X8 APEX
AIR INFLATOR
User Manual
Model: X8 APEX

Contents
01~22
23~47
1.English
2.Español
WARRANTY CARD

Thank you for choosing Fanttik.
Thank you for purchasing the Fanttik X8APEX air inflator. With its large LED screen and
easy-to-use interface, this is a highly capable inflator fit for a wide range of tasks.
Contents
1. PRODUCT OVERVIEW
2. PACKAGE CONTENTS
4. TURNING THE INFLATOR ON/OFF
3. BATTERY LEVEL INDICATOR & CHARGING
5. CONNECTING THE AIR TUBE AND NOZZLE
6. DETECTING THE CURRENT PRESSURE
7. DETERMINING THE RIGHT PRESSURE VALUE
8. PRESET PRESSURE VALUE
9. LIGHT
03
04
05
07
08
10
11
13
15
- 01 -

11. DISCO NNECTING THE AIR TUBE
12. POWER BANK FUNCTION
13. TROUBLESHOOTING
14. SPECIFICATIONS
15. SAFETY INSTRUCTIONS
- 02 -
10. INFLATING 15
17
17
18
20
21

1. Battery indicator
2. Real-time pressure value
3. Target pressure value
4. Power button
5. Light button
6. Preset mode
7. Pressure unit
8. “+” button
9. Mode button
10. “-” button
11. Air outlet
12. USB-A port
13. USB-C port
- 03 -
1. PRODUCT OVERVIEW
1
2
3
6
7
8
9
10
4
511
1213

- 04 -

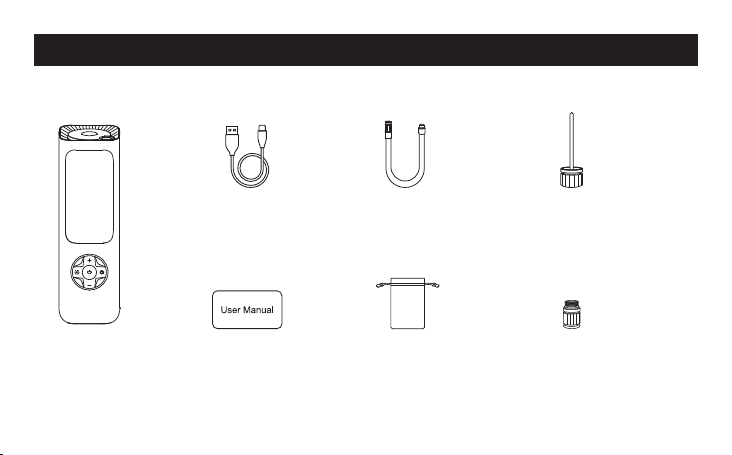

2. PACKAGE CONTENTS
X8 Apex Air
inflator × 1
USB charging
cable × 1 Air tube × 1
User manual × 1 Storage bag × 1
Needle valve
adaptor × 1
Schrader-Presta
valve adaptor × 1

- 05 -
3. BATTERY LEVEL INDICATOR & CHARGING
Battery Level Indicator
The battery level is shown by four bars, with each bar representing 25%.
1 bar = under 25%
2 bars = between 25% and 50%
3 bars = between 50% and 75%
4 bars = between 75% and 100%
Note:The battery indicator will flash when the battery level is below 20%.
Charging
While charging:
Fully charge the inflator before using it for the first time. To charge, connect it
to a certified 5.0V/3A USB charger with the charging cable.
1 bar flashing = under 25%
1 bar solid, 2nd bar flashing = between 25% and 50%
2 bars solid, 3rd bar flashing = between 50% and 75%

- 06 -
3 bars solid, 4th bar flashing = 75% and 100%
All 4 bars solid = fully charged
The inflator will automatically switch off if left inactive for 5 minutes after being
fully charged.
Note:
• The inflator cannot be used while it is charging.
• The USB charger is sold separately. Make sure to use a certified charger.

- 07 -

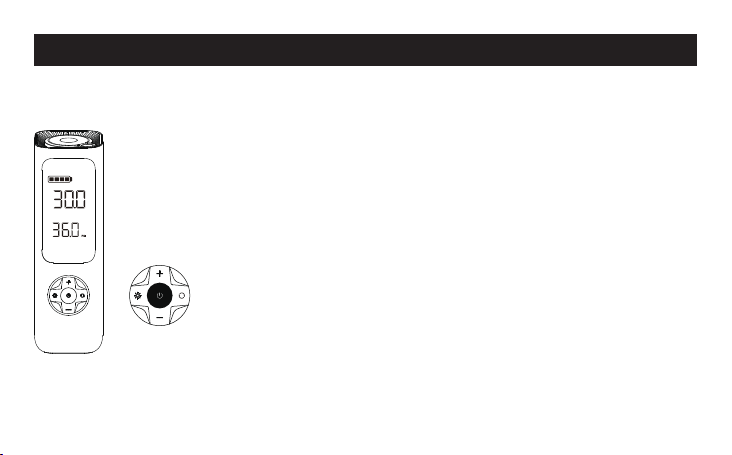

4. TURNING THE INFLATOR ON/OFF
ON
Long-press for 1.5 seconds to turn on.
OFF
When the inflator is turned on, long press 1.5 seconds to turn off.
The inflator will automatically turn off in the cases below:
1. After 3 minutes of inactivity.
2. When the charging cable is disconnected during charging.
3. After 5 minutes of inactivity after being fully charged.
4. When the inflator is being used as a power bank, after
disconnecting the other device.
5. Inflate over 5 minutes when the target pressure value is below 5psi.
6. Inflate over 3 minutes when the target pressure value is above or
equates 120psi.

- 08 -
5. CONNECTING THE AIR TUBE AND NOZZLE
Connecting the Air Tube
Connect one end of the air tube (with screw thread) to the inflator
before inflating.
Valve Type
Inflation Adapter
Schrader Valve
Tires on cars, motorcycles, e-bikes, and most mountain bikes use a
Schrader valve.
To inflate: The inflator can be directly connected to a Schrader valve
to start inflating.
To deflate: Use an proper tool (such as 4mm Allen wrench) to press
the pin inside the air valve to release air.

- 09 -
Valve Type
Inflation Adapter
Presta Valve Adapter
Road bicycles and certain mountain bikes use a Presta valve which
requires the included presta valve adapter to be used.
To inflate:
1. Connect the Presta valve adapter to the Schrader valve of the air tube.
2. Unscrew the ring of the Presta valve of the tire.
3. Connect the Presta valve adapter to the tire’s Presta valve to start
inflating.
To deflate: Unscrew the ring of the tire’s Presta valve, and press the valve
stem down to release air.

- 10 -

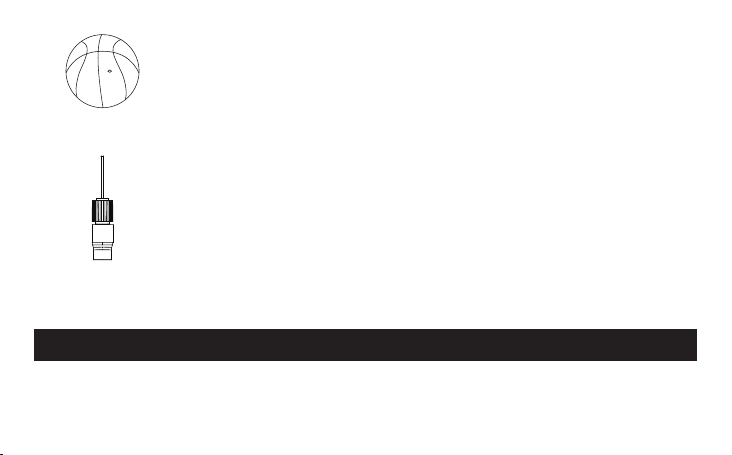

Valve Type
Inflation Adapter
Needle Valve Adapter
To inflate balls like basketballs and footballs, the included needle valve
adapter will need to be used.
To inflate: Screw the needle valve adapter onto the Schrader valve
adapter, then insert the needle into the valve of the ball to start inflating.
To deflate: Insert the needle valve adapter into the valve of the ball, and
gently apply pressure to the ball to release air.
6. DETECTING THE CURRENT PRESSURE
When the inflator is turned on, connect the air tube to the device to be inflated, and then the
LED screen will display the current pressure value.

- 11 -
7. DETERMINING THE RIGHT PRESSURE VALUE
To avoid injuries from bursting items due to over-inflation, make sure you are aware of the
maximum inflation pressure before you start.
Tires
The recommended air pressure of tires for cars, bicycles, and
motorcycles is indicated on the tire's sidewall. The recommended tire
pressure for cars is also indicated on the inside of the driver's side door.
For details concerning load carrying capacity and recommended air
pressures, refer to your vehicle's instructions or manual.
The recommended air pressure for footballs, basketballs, volleyballs,
and other balls is indicated near the ball's air valve.
Balls

- 12 -
Air Pressure Reference Table
Category
Bicycles
Motorcycles
Cars
Balls
Type Recommended
Pressure Range
Electric Folding Bike tires
12-, 14-, & 16-inch bicycle tires
20-, 22-, & 24-inch bicycle tires
26-, 27.5-, & 29-inch mountain bike tires
Electric Scooter tires
700c road bike clincher tires
700c road bike tubular tires
10 - 50psi
30 - 50psi
40 - 50psi
45 - 65psi
40 - 50psi
100 - 130psi
120 - 145psi
Scooter & street motorcycle tires
Car tires
26 - 43psi
26 - 50psi
Basketball
Soccer ball
Volleyball
Football
7 - 9psi
8 - 16psi
4 - 5psi
12 - 14psi

- 13 -
Note: Pressure range values are for reference only. Always refer to the instructions or manual
of the item being inflated for actual inflation pressure specifications.
8. PRESET PRESSURE VALUE
Switch Modes
Click the Mode button to switch between the five inflation modes below. Long press the
Mode button to cycle through psi/bar/kPa. The number on the top of the screen indicates the
real-time pressure of the inflated device, and the number on the bottom indicates the preset
pressure.
Manual mode: When in the manual mode, no mode icon is selected on the screen.
The preset pressure value is adjustable, and the value and unit will be saved.
Adjustable Range: 3-150psi / 0.2 - 10.3bar
Car Mode: Default 36psi
Adjustable Range: 26-50psi
Motorcycle Mode: Default 35psi
Adjustable Range: 26-43psi

- 14 -

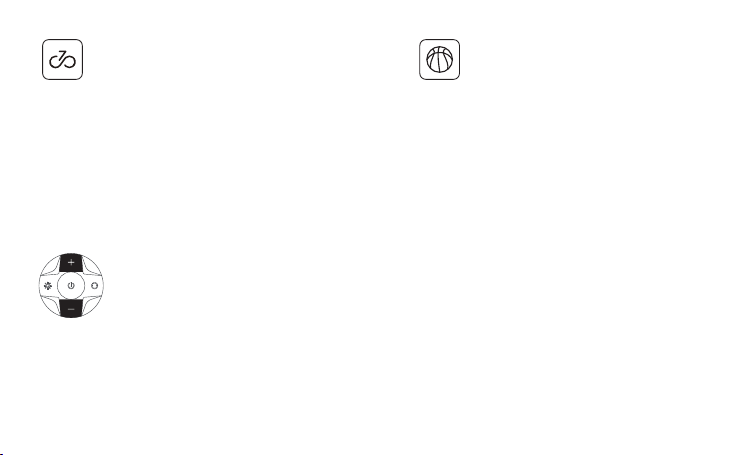

Bicycle Mode: Default 45psi
Adjustable Range: 30-145psi
Ball Mode: Default 8psi
Adjustable Range: 4-16psi
Note:
When you have finished inflating an item, the manual mode will remeber the target pressure value
as its defaultpressure value.
For the best inflating experience, we suggest you inflate items like balls via the ball mode.
Adjusting the Preset Pressure
After selecting a mode, press + or - to increase or decrease the target pressure
value. Press and hold the + or - button to quickly adjust the pressure value.

- 15 -
9. LIGHT
Press the light button to turn the inflator's light on/off. The light makes it easy to see
in the dark when you have on any tasks, such as connecting the air compressor to
a valve.
When the light is on, press the light button to cycle through Spotlight, SOS and
OFF.
Note: After 30 minutes, the light will automatically turn off.

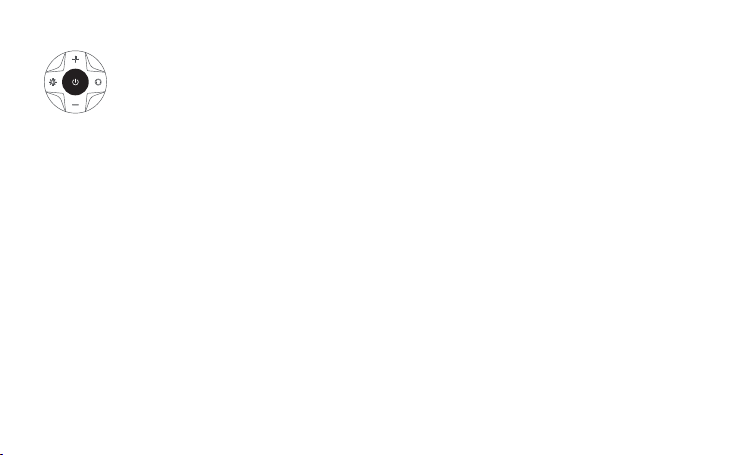

10. INFLATING
Start Inflating
Press the Power button to start inflating. When inflating, the air compressor may
be as loud as 75 - 80 dB. Please take appropriate precautions to protect your
hearing. The air compressor and air tube can get very hot after running for a while.
Avoid prolonged skin contact with the tube to prevent injuries.

- 16 -
Stop Inflating
Once the target pressure value has been reached, the inflator will automatically
stop inflating. The inflator can also be manually stopped at any time by pressing
the power button while inflating.
Items such as balloons, beach balls, and swim rings cannot be automatically inflated because
they have an air pressure requirement below the air compressor's minimum pressure range.
Only inflate these items manually with caution.
Caution
Battery Information
The inflator's battery lasts about 40 minutes on a full charge, running without a load at an
ambient temperature of 25°C. Using the air compressor under a heavy load or at lower
ambient temperatures may reduce its battery life.
