Faraone ELEVAH 40 MOVE PICKING Operation instructions

STOCK PICKER
□ ELEVAH 40 MOVE PICKING
□ ELEVAH 40 B PICKING
USE AND MAINTENANCE INSTRUCTIONS
Translation of the original instructions
This document is the property of Faraone Industrie Spa
Any total or partial reproduction without written authorisation by the author or owner is forbidden

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 0-1
SECTION 0. INTRODUCTION
TABLE OF CONTENTS
SECTION 0. INTRODUCTION ............................................................................................................ 0-1
TABLE OF CONTENTS ............................................................................................................................................ 0-1
PREMISE .................................................................................................................................................................. 0-2
SYMBOLS AND TERMS ........................................................................................................................................... 0-2
TECHNICAL SUPPORT - WARRANTY .................................................................................................................... 0-3
NOTICES .................................................................................................................................................................. 0-3
SECTION 1. SAFETY PRECAUTIONS ............................................................................................... 1-1
GENERAL INFORMATION ....................................................................................................................................... 1-1
PRELIMINARY PROCEDURES ................................................................................................................................ 1-2
OPERATION ............................................................................................................................................................. 1-3
SECTION 2. GENERAL TECHNICAL DATA ...................................................................................... 2-1
OVERALL DIMENSIONS .......................................................................................................................................... 2-2
GENERAL TECHNICAL DATA ................................................................................................................................. 2-4
BASIC CONSTRUCTIVE DATA ................................................................................................................................ 2-6
SECTION 3. PREPARATION AND INSPECTION .............................................................................. 3-1
PERSONNEL TRAINING .......................................................................................................................................... 3-1
DAILY FUNCTIONAL TEST ...................................................................................................................................... 3-2
SAFETY WARNINGS FOR OPERATORS ............................................................................................................... 3-3
SECTION 4. CONTROLS, WARNING LIGHTS AND MACHINE OPERATION .................................. 4-1
INTRODUCTION ....................................................................................................................................................... 4-1
MACHINE OPERATION ............................................................................................................................................ 4-1
CHARGING THE BATTERY ..................................................................................................................................... 4-1
CONTROL CONSOLE IN THE BASKET (ELEVAH 40 MOVE PICKING) ................................................................ 4-3
CONTROL CONSOLE IN THE BASKET (ELEVAH 40 B PICKING) ........................................................................ 4-6
LOADING PLATFORM ASSEMBLY ......................................................................................................................... 4-8
LIFTING OF THE MOBILE LOADING FLOOR ......................................................................................................... 4-9
LOADING PLATFORM EXTENSION ...................................................................................................................... 4-10
TRANSPORT AND LIFTING PROCEDURE ........................................................................................................... 4-11
SECTION 5. EMERGENCY PROCEDURES ...................................................................................... 5-1
EMERGENCY OPERATION ..................................................................................................................................... 5-1
REPORTING THE ACCIDENT ................................................................................................................................. 5-2
SECTION 6. DAILY INSPECTION ...................................................................................................... 6-1
SECTION 7. ROUTINE MAINTENANCE ............................................................................................ 7-1
MAINTENANCE EVERY THREE MONTHS ............................................................................................................. 7-2
MAINTENANCE EVERY SIX MONTHS .................................................................................................................... 7-3
MAINTENANCE EVERY YEAR ................................................................................................................................ 7-3
MAINTENANCE EVERY TWO YEARS .................................................................................................................... 7-3
MAINTENANCE EVERY FIVE YEARS ..................................................................................................................... 7-3
SECTION 8. MAINTENANCE OPERATING INSTRUCTIONS ........................................................... 8-1
BATTERY MAINTENANCE ....................................................................................................................................... 8-1
HYDRAULIC OIL CHANGE ...................................................................................................................................... 8-1
LIFT BELT REPLACEMENT ..................................................................................................................................... 8-2
TRANSMISSION MOTOR (ELEVAH 40 MOVE PICKING) ....................................................................................... 8-2
SECTION 9. ATTACHED DOCUMENTATION ................................................................................... 9-1
ATTACHMENT 1 – Layout for decal application ....................................................................................................... 9-1
ATTACHMENT 2 - Hydraulic diagram ....................................................................................................................... 9-3
ATTACHMENT 3 – Wiring diagram - ELEVAH 40 MOVE PICKING ......................................................................... 9-4
ATTACHMENT 4 – Wiring diagram - ELEVAH 40 B PICKING ................................................................................. 9-5
ATTACHMENT 5 – Successful test certificate .......................................................................................................... 9-6
ATTACHMENT 6 – Declaration of conformity ........................................................................................................... 9-7
SECTION 10. MAINTENANCE LOGBOOK ........................................................................................ 10-1

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 0-2
ENGLISH
PREMISE
The purpose of this use and maintenance manual is to provide the users with the essential
information to carry out the steps intended for safe and correct machine operation, in accordance
with the purposes for which it has been manufactured.
All information in this manual must be read and understood before making any attempt to operate
the machine.
THIS MANUAL IS VERY IMPORTANT DOCUMENTATION; ALWAYS KEEP IT NEAR THE
MACHINE.
Due to continuous improvements to the products, Faraone Industrie Spa reserves the right to amend
the technical data without any prior notice. For updated information, contact Faraone Industrie Spa.
ATTENTION
REMEMBER NO EQUIPMENT IS SAFE IF THE OPERATOR DOES NOT COMPLY WITH THE
SAFETY PRECAUTIONS
SYMBOLS AND TERMS
ATTENTION
The danger symbol draws attention to potential dangers that might
cause injuries. To avoid possible injuries or fatal accidents, comply with
all safety instructions that follow the symbol.
Arrows are used in the pictures of the machine to indicate the specific
points described in the text of the manual.
• Stock picker: Machine designed for picking / storage / handling of all types of goods, driven by
an operator placed on the elevating operator position simultaneously to the load-handling
device.
• Basket: A position from which the operator is able to control all driving positions and handle the
load.
• Loading platform: Platform from where to load goods to carry, lift, stack or arrange on shelving.
• Extending structure: A structure connected to the frame that supports the basket and allows
the basket to move to the required position.
• Frame: Machine Base. It may be pushed-around or self-propelled.

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 0-3
TECHNICAL SUPPORT - WARRANTY
The Client must make sure to have the serial number of the machine and an accurate description of
the problem or of the information to be provided before contacting the Manufacturer.
The warranty period is 12 months from the date of the purchase invoice.
Said warranty covers faulty components and the labour required for servicing, if this is carried out at
the Manufacturer's premises (the transport of the machine is borne by the purchaser).
The warranty is valid provided all rules laid down for correct use of the machine are complied
with.
The machine is designed and built to last years, as long as it is always used for the purposes
it is intended for and that the inspections and maintenance described herein are carried out.
Faraone Industrie Spa deems it necessary to conduct an extensive analysis of all of the
structural components every 10 (ten) years, to confirm their integrity.
NOTICES
In compliance with legislation in force in the country where the machine is stationed and operating,
the owner of the lifter must find out whether a declaration is required when the machine is
commissioned and for any periodical tests that are carried out thereafter.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 1-1
SECTION 1. SAFETY PRECAUTIONS
GENERAL INFORMATION
This section illustrates the necessary precautions for the correct and safe use and for machine
maintenance. To guarantee correct use of the machine, it is essential to establish a daily routine
procedure based on the instructions provided in the manual. Also, to guarantee safe operation of the
machine, it is necessary for a qualified person to establish a maintenance programme based on the
information provided in this manual; such programme must be scrupulously followed.
The owner/user/operator/company granting in leasing/person receiving in leasing the machine, must
not accept responsibility of its operation before having carefully read the manual and completed the
training and the functioning procedures, guided by an experienced and qualified operator.
For further information relating to safety, training, inspection, maintenance, application and
operation, contact Faraone Industrie Spa.
ATTENTION
THE NON COMPLIANCE WITH THE SAFETY PRECAUTIONS LISTED IN THE MANUAL MAY
CAUSE DAMAGES TO THE MACHINE AND TO THE PROPERTY AND INJURIES OR FATAL
ACCIDENTS.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 1-2
PRELIMINARY PROCEDURES
Operator training and knowledge
• Carefully read the manual before using the machine;
• Use the machine only after complete training by authorised personnel.
• The use of the machine is allowed exclusively to authorised and qualified personnel.
• Read carefully and follow all the WARNING statements and the operational instructions reported
on the machine and in the manual.
• Use the machine for the applications falling within those envisioned by Faraone Industrie Spa.
• All operational personnel must familiarise with the emergency operations and controls of the
machine, as specified in the manual.
• Carefully read and comply with all company, local and government Standards in force, relating
to machine operation.
Inspection of the work place
• Before using the machine, the operator must take the necessary precautions to avoid any hazard
in the work place.
• Do not activate the machine on lorries, trailers, railway wagons, boats, scaffolding or similar,
unless Faraone Industrie Spa has approved the operation in writing.
• The machine can be switched on at temperatures between -15°C and 40°C. Contact Faraone
Industrie for machine operation at temperatures not within the indicated range;
• The machine cannot be switched on in environments stated as ATEX, unless specifically
indicated in the EC certificate of conformity delivered with the machine.
Machine inspection
• Use the machine only after having carried out the inspections and functional checks. For further
instructions, refer to Section 3 of this manual;
• Operate the machine only after having carried out all assistance and/or maintenance specified
in this manual;
• Make sure all safety devices work properly. Any changes to such devices constitute a breach of
the safety regulations;
• Do not operate the machine if its signs or decals indicating the safety regulations or instructions
are illegible or missing;
• Avoid building up debris on the floor of the machine. Prevent mud, oil, grease and other slippery
substances from coming into contact with shoes and with the floor of the machine.
ATTENTION
ANY AMENDMENTS OR ALTERATIONS TO THE MACHINE MAY ONLY BE APPLIED
EXCLUSIVELY WITH PRIOR WRITTEN AUTHORISATION FROM THE PRODUCER.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 1-3
OPERATION
General information
• A self-propelled Stock Picker is a machine designed exclusively to carry, lift, stack or arrange
loads on shelving, controlled by an operator stationed in the driver's seat, which can be raised at
the same time as the load handling device.
• Do not activate a faulty machine. If a fault occurs, switch-off the machine.
• Do not suddenly move the control switches or levers from one position to the opposite one, going
via the neutral position; always bring the switch to neutral position before moving it in the position
corresponding to the next function. Activate the controls by applying slow and even pressure.
• If there are any people on the work platform, allow personnel to operate the machine from the
ground only in the event of an emergency.
• Before leaving the machine, completely lower the extensible structure and completely power it
off.
• (In case of a battery powered machine) Charge batteries in a well-ventilated area.
Risk of falls
• Prior to using the machine, ensure all railings and gates are fastened in the correct position.
• Keep both feet firmly on the floor of the cage. Do not arrange ladders, boxes, steps, planks or
similar items on the cage to increase the range of action.
• Do not use the extension unit to climb on or off the cage.
• Pay maximum attention when entering or exiting the cage. Ensure the extending structure is
completely lowered. Face the machine when entering or exiting the cage. Always maintain "three
contact points" with the machine, ensuring both hands and one foot or one hand and both feet
are continuously in contact with the machine when entering and exiting.
Danger of electrocution
With regard to the safety distances from live parts of power lines and electrical systems that are not
protected or not sufficiently protected to be complied with when carrying out non-electric jobs, at net
clearance deriving from the type of job, the equipment used and the materials handled, as well as
the lateral shifting of the conductors owing to the action of wind and lowering of heights due to heat
conditions, refer to the Laws regarding safety in the workplaces of the country where the machine is
operating.
For Italy, refer to Legislative Decree 81/08, annex IX “Values of rated operating voltages of electrical
machines and systems”.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 1-4
Danger of overturning
• Before driving the machine, the user must verify the work area surface. While driving, do not
exceed the allowed transversal and longitudinal slopes;
• Do not lift the basket or drive the machine with the basket raised (on a machine with a self-
propeller) on a slope or uneven or soft surface;
• Before driving the machine on floors, bridges, lorries and other surfaces, check their maximum
capacity;
• Do not exceed the maximum capacity of the machine. Evenly distribute the loads on the loading
platform as best as possible;
• Keep the machine chassis (including stabilisers if present) at a minimum distance of 0.5 m from
holes, unevenness, descents, obstacles, debris, hidden holes and other potential dangers found
at ground level;
• Do not attempt using the machine as a crane. Do not tie the machine to any adjacent structure;
• Do not increase the dimension of the basket or the loading platform with unauthorised
extensions;
• If the extending structure or the basket get stuck so that one or more wheels are lifted from the
ground, the operator must be made to get off the basket before attempting to release the
machine. Use a crane, forklift or other adequate equipment to stabilise the machine and have
personnel climb down from the basket;
• (For machine without self-propeller) Do not move the machine with the stabilisers engaged (if
present) or with the extending structure raised. Before moving the machine, completely lower the
extending structure.
Crushing and impact hazard
• When using the machine or lifting or lowering the basket, check the distances above, at the sides
and below the basket;
• Do not lean over the rails of the basket when the machine is running;
• Always pay the utmost attention to prevent the operational controls and people in the basket
from being hit or hindered by any obstacles;
• Ensure the operators of other machines at a height or at ground level are informed of the
presence of the machine;
• Warn personnel not to work, stand or walk underneath the lifted basket;
• (For machine with self-propeller) When driving in areas where visibility is limited by obstacles,
always have a person precede the vehicle to signal any dangers;
• (For machine with self-propeller) While driving, always keep non-operational personnel at a
minimum distance of 2 m from the machine.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 1-5
• (For machine with self-propeller) Adjust the driving speed according to the following conditions:
ground surface, traffic, visibility, slope, location of personnel and other factors that can pose a
risk of collision or injuries to personnel;
• (For machine with self-propeller) Take into account the braking distances regardless of the speed
of the machine;
• (For machine with self-propeller) Do not drive at high speed in reserved or tight areas or when
reversing.
Towing, lifting and carrying
• Do not allow personnel to stand on the basket while towing, lifting and transporting;
• Only tow the machine in case of emergency, faults, a power-cut or to load/unload it;
• Before towing, lifting and transporting, make sure the basket is completely retracted and emptied;
• Do not pull or push a blocked or disabled machine.
• While lifting the machine by means of a forklift, place the forks exclusively in the appropriate
areas of the machine. Lift by means of lifting equipment of adequate capacity.
For information regarding lifting, refer to the relevant section in the manual.

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-1
SECTION 2. GENERAL TECHNICAL DATA
ATTENTION
THE STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING IS A MACHINE DRIVEN BY
AN OPERATOR PLACED ON THE ELEVATING OPERATOR POSITION SIMULTANEOUSLY
TO THE LOAD-HANDLING DEVICE.
THE STOCK PICKER IS DESIGNED TO WORK INDOOR ON PREPARED, HORIZONTAL AND
SMOOTH GROUNDS.
FURTHERMORE, IT CAN ALSO BE USED OUTDOORS IN THE TOTAL ABSENCE OF WIND
AND ATMOSPHERIC PRECIPITATIONS.
THE STOCK PICKER MUST ONLY BE USED FOR THE PURPOSE IT WAS DESIGNED FOR.
ANY OTHER USE SHALL BE CONSIDERED INAPPROPRIATE.

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-2

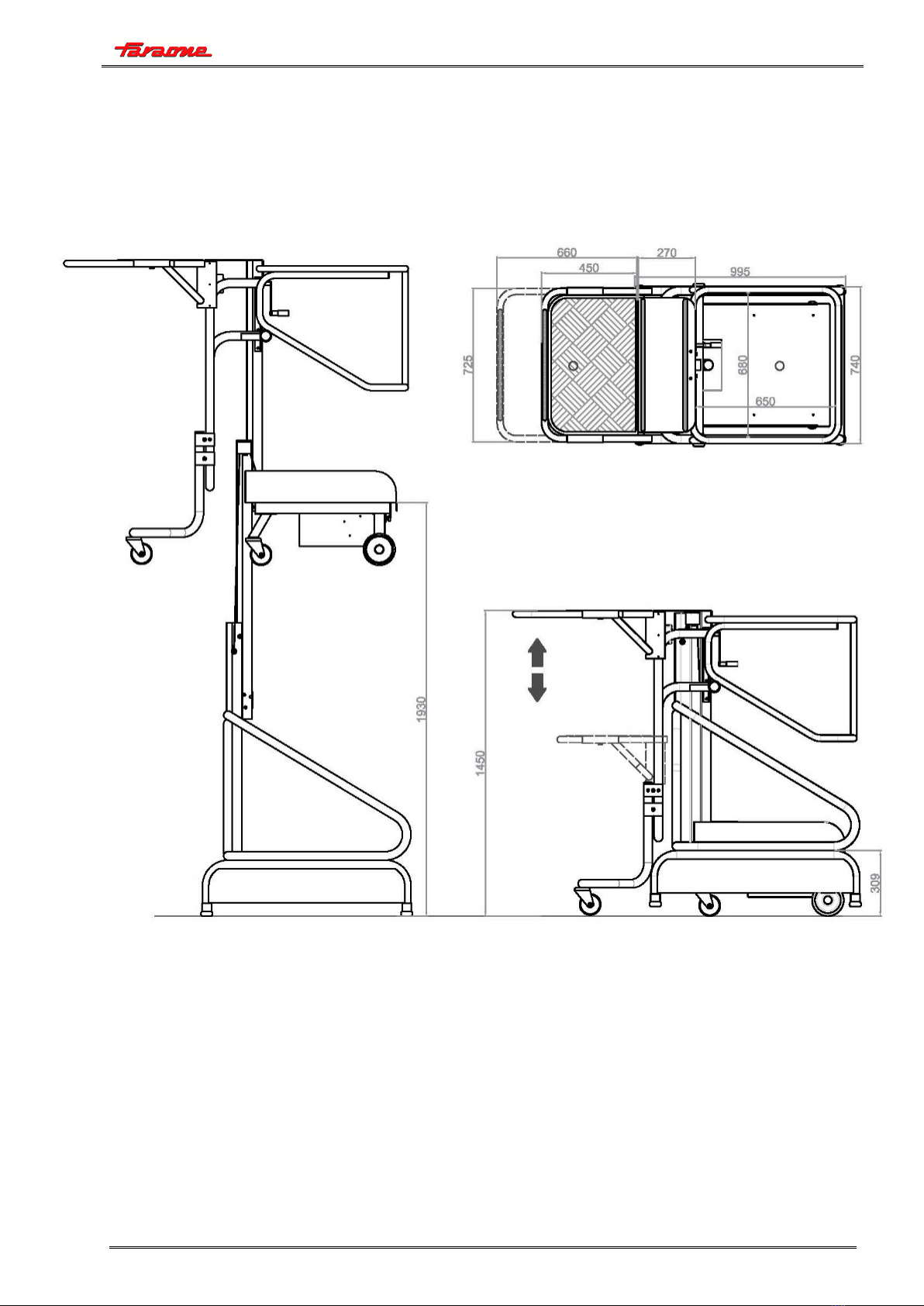

OVERALL DIMENSIONS
ELEVAH 40 MOVE PICKING
Measurements expressed in mm

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-3
ELEVAH 40 B PICKING
Measurements expressed in mm

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-4
GENERAL TECHNICAL DATA
ELEVAH 40 MOVE PICKING MODEL
GENERAL TECHNICAL DATA
Value
Weight of the machine (overall):
200 kg
Machine height (in transport position):
155 cm
Maximum resting force on the ground (per wheel/stabiliser (*):
122 daN
Machine base overall dimensions without stabilisers:
99.5 cm x 74 cm
Machine base overall dimensions with stabilisers:
N.A.
Maximum hydraulic system pressure:
~ 60 bar
Required amount of oil for the hydraulic system:
~ 1.5 Litres
Power supply
2 Batteries AGM 12V 45
Ah
Operator in the basket:
1
Maximum capacity of the basket and the loading platform:
150 kg
Maximum capacity of the loading platform
40 kg
Maximum basket height (from the ground to the floor of the basket):
1.93 m
Maximum basket height with self-propeller (from the ground to the
floor of the basket):
N.A.
Maximum dimensions of the loading platform (min/max):
~ 45/66 cm x 72,5 cm
Internal dimensions of the basket:
~ 68 cm x 65 cm
Max shifting speed in transport position:
1.3 m/s
Maximum self-propelled movement speed at a height:
N.A.
Maximum basket rising speed:
0.08 m/s
Maximum basket descending speed:
0.1 m/s
Maximum longitudinal / transversal tilt in the transport position:
15%
Maximum longitudinal / transversal tilt in the raised position:
“Levelled” base
* Maximum force per stabiliser considering that 70% of the weight of the machine plus the maximum load inside the basket
are entirely distributed on one side only of the platform (entirely asymmetrical load)

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-5
ELEVAH 40 B PICKING MODEL
GENERAL TECHNICAL DATA
Value
Weight of the machine (overall):
• Standard Battery
• Optional Battery
185 kg
190 kg
Machine height (in transport position):
145 cm
Maximum resting force on the ground (per wheel/stabiliser (*):
110 daN
Machine base overall dimensions without stabilisers:
99.5 cm x 74 cm
Machine base overall dimensions with stabilisers:
N.A.
Maximum hydraulic system pressure:
~ 60 bar
Required amount of oil for the hydraulic system:
~ 1.5 Litres
Power supply
• Standard Battery
• Optional Battery
2 Batteries AGM 12V 35
Ah
2 Batteries AGM 12V 45
Ah
Operator in the basket:
1
Maximum capacity of the basket and the loading platform:
150 kg
Maximum capacity of the loading platform
40 kg
Maximum basket height (from the ground to the floor of the basket):
1.93 m
Maximum basket height with self-propeller (from the ground to the
floor of the basket):
N.A.
Maximum dimensions of the loading platform (min/max):
~ 45/66 cm x 72,5 cm
Internal dimensions of the basket:
~ 68 cm x 65 cm
Max shifting speed in transport position:
N.A.
Maximum self-propelled movement speed at a height:
N.A.
Maximum basket rising speed:
0.08 m/s
Maximum basket descending speed:
0.1 m/s
Maximum longitudinal / transversal tilt in the transport position:
15%
Maximum longitudinal / transversal tilt in the raised position:
“Levelled” base
* Maximum force per stabiliser considering that 70% of the weight of the machine plus the maximum load inside the basket
are entirely distributed on one side only of the platform (entirely asymmetrical load)

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 2-6
BASIC CONSTRUCTIVE DATA
MACHINE FRAME: The frame of the machine (called base) is made completely of aluminium
profiles with rectangular sections. All essential components for normal machine operation in stable
conditions are installed on the frame.
EXTENDABLE STRUCTURE: The extending structure consists of special extruded aluminium
alloy profiles that slide along each other on runners with nylon wheels. The kinematic connection
between profiles is implemented by means of belt of textile fibres.
An oil hydraulic cylinder is installed between the first and second profile, powered by the hydraulic
unit, to lift the structure. The chains interconnect the extending structure elements so that they lift
simultaneously.
BASKET AND LOADING PLATFORM: The basket and loading platform are built entirely of
extruded aluminium profiles. The base floors are built with a non-slip, chequered, aluminium sheet.
EXPOSURE TO VIBRATION: The lifter does not produce vibrations that pose a risk to the health
of the operators. The weighted acceleration to which the entire body is subjected to is less than 0.5
m/s2
ACOUSTIC EMISSIONS:The A-weighted emission sound pressure level is below 70dB
ATTENTION
THE STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING HAS BEEN INSPECTED BY
THE MANUFACTURER FOR THE PURPOSE OF CALCULATING THE MAXIMUM ADMISSIBLE
TRANSVERSE AND LONGITUDINAL ANGLES.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 3-1
SECTION 3. PREPARATION AND INSPECTION
PERSONNEL TRAINING
Operator training
The machine is only used by trained personnel. Operator training must include the following:
• Use and limits of the machine's controls in emergency and operation controls and of the safety
systems;
• Signs/decals for controls, instructions and warnings on the machine;
• Regulations defined by the employer and government regulations;
• Use of the approved fall protection device (if required);
• Sufficient knowledge of the mechanical operation of the machine to permit recognising a fault;
• Safe methods for using the machine in presence of overhead obstacles, other moving equipment
and obstacles, hollows, holes and slopes;
• Methods to prevent dangers due to unprotected electric conductors;
• Requirements of a particular job or particular application of the machine.
Training supervision
Training must be carried out under the supervision of a skilled person, in an open space and free
from obstacles and must continue until the trainee is able to safely operate and use the machine.
Operator responsibility
The operator must be trained with regard to responsibility and authority to switch off the machine in
the event of fault or other unsafe conditions, both relating to the machine and to the work area.
NOTE: the owner shall provide skilled personnel for training both at the time of delivery of the first
units and later, if required by the user or personnel.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 3-2
DAILY FUNCTIONAL TEST
Upon completing the "DAILY INSPECTION" (section n°6), perform a functional test of all systems in
an area free from obstacles either high or at ground level.
ATTENTION
IF THE MACHINE DOES NOT WORK PROPERLY, SWITCH IT OFF IMMEDIATELY. ALERT
MAINTENANCE PERSONNEL TO THE PROBLEM.
DO NOT USE THE MACHINE UNTIL IT IS DEEMED SAFE TO USE.
Carry out a functional test as detailed below.
1. From the ground controls (if present)
a. Lift and lower the basket checking lifting and lowering happen regularly;
b. Ensure all machine functions are disabled when operating (pressing) the emergency stop
button;
c. Check the correct operation of the manual emergency descent valve.
2. From the control console of the basket
a. Lift and lower the basket checking lifting and lowering happen regularly;
b. Activate all functions and check the correct operation of all end run switches, main and
activation switches:
• Machine brakes (on machine with self-propeller) – Drive the machine on a slope (not
exceeding the nominal operational capacity on a slope) and stop it to ensure the brakes
hold it;
• Inclination alarm limit switch (on machine with self-propeller from above) – With
the basket completely lowered, drive the machine on a surface with a slope greater than
that designed in any direction (do not exceed the maximum nominal operational capacity
on a slope). Any attempt to lift the basket makes the machine signal an inclination that
exceeds the maximum allowed;
• Transmission speed reduction limit switch (on machine with self-propeller from
above) – When the basket is lifted, the transmission speed is reduced compared to the
speed with the basket lowered;
c. Ensure all machine functions are disabled when operating (pressing) the emergency stop
button;
d. Make sure the loading platform is working correctly. Make sure that it travels smoothly
without any jerky movements, and that its up/down movement is not obstructed. Make sure
all its parts are intact.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 3-3
SAFETY WARNINGS FOR OPERATORS
Do not install and use the machine in the following cases:
OUTDOORS IN PRESENCE OF WIND
(DANGER OF LOSS OF STABILITY AND OVERTURNING)
CLOSE TO AERIAL OBSTACLES (power lines, protrusions, etc.)
(RISK OF ELECTROCUTION AND IMPACT)
WITH EXCESSIVE LOADS COMPARED TO LIMITS ALLOWED
(DANGER OF LOSS OF STABILITY AND OVERTURNING)
ON FLOORING WITH STRENGTH LOWER THAN THE WEIGHT OF THE MACHINE
(DANGER OF LOSS OF STABILITY AND OVERTURNING)
IN ALL CIRCUMSTANCES NOT SPECIFICALLY INDICATED UNDER OPERATING
CONDITIONS IN THIS MANUAL
(GENERAL DANGER)
ATTENTION
THE ELECTRICAL SYSTEM OF THE MACHINE IS NOT IN ANTI-EXPLOSIVE EXECUTION (NO
ATEX): THEREFORE YOU SHOULD CAREFULLY AVOID ITS USE IN AREAS SUBJECT TO
ATEX RISK.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 3-4
When travelling:
ü Cautiously move the machine avoiding sudden manoeuvres;
ü DO NOT TRANSPORT PERSONS on the base frame of the machine and in any other position
except for in the position inside the basket;
ü Check the structural condition and cleanliness of the surfaces on which the machine is used
(make sure the surface is suitable for the weight of the machine in work conditions).
During ascent and descent:
ü Comply with the maximum capacity weights allowed in the basket;
ü Make sure there are no overhead upright obstacles along the trajectory;
ü Do not cause dangerous vibrations and/or oscillations that would result in loss of machine
stability and possible tipping over.
While loading the materials:
ü Make sure the weight of the material to be loaded does not exceed the maximum capacity of the
loading platform;
ü Set the load evenly on the loading platform so that the centre of gravity of the load always falls
within the surface;
ü Firmly secure the load before moving the loading platform, the basket or the machine.
ATTENTION
THE MACHINE IS WITHOUT AN AUTOMATIC BASE LEVELLING VERIFICATION SYSTEM.
BEFORE PROCEEDING WITH THE ASCENT/DESCENT PHASE, VERIFY CORRECT
INCLINATION OF THE BASE BY VISUALLY CHECKING THE SPIRIT LEVELS. THE SPIRIT
LEVELS MUST BE CENTRAL COMPARED TO THE INDICATOR, WITHIN THE TOLERANCE
LIMITS.
WHEN USING THE MACHINE WITH THE BASE NOT COMPLETELY LEVEL, AVOID LIFTING
THE BASKET TO PREVENT THE MACHINE FROM TIPPING OVER.
NOTE: The level bubbles are at the same position for both machine models
ATTENTION
IT IS STRICTLY FORBIDDEN TO TRY TO LEVEL THE MACHINE BY INSERTING ANY TYPE
OF SHIM UNDER THE FRAME

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 40 MOVE PICKING / B PICKING – Rev. 13_2020
Page 3-5
Prohibition signs:
Prohibition to overload the machine beyond the indicated limits
Prohibition to use the machine as an aerial platform to carry out works from heights
Prohibition to remove or tamper with the machine's stability devices (sensors,
ballasts, etc.)
Prohibition to remove or tamper with the machine's safety and protection devices
Prohibition to climb on or off the basket in places other than the provided gate
Prohibition to increase outreach or work height of the machine using additional
equipment (for example, ladders)
Prohibition to cause oscillations on the machine so as not to destabilise it
Prohibition to install any additional device that increases the wind load on the
machine (for example, warning signs)
Prohibition to come into contact with live electrical conductors
Prohibition to climb on/off the basket when elevated
Prohibition to lift/lower the basket without operator on board
Do not operate/move with the cage railing raised even partially
