Farmi Forest W30F Guide

SKIDDING WINCH
W30F
OPERATION, MAINTENANCE AND SPARE
PARTS MANUAL
PLEASE READ THE OPERATING AND MAINTENANCE
INSTRUCTIONS BEFORE USING THE MACHINE
FROM MACHINE: 300000014
INSTRUCTION MANUAL
A-EN-300000014-CS

W30F
3
TABLE OF CONTENTS
INTRODUCTION........................................................................................................................................................................................6
PRODUCT WARRANTY..............................................................................................................................................................................7
GENERAL SAFETY INSTRUCTIONS.............................................................................................................................................................8
STARTING .................................................................................................................................................................................................8
TRANSPORT..............................................................................................................................................................................................9
OPERATION ..............................................................................................................................................................................................9
MAINTENANCE.......................................................................................................................................................................................10
SAFETY INSTRUCTIONS FOR THE WINCHES ...........................................................................................................................................11

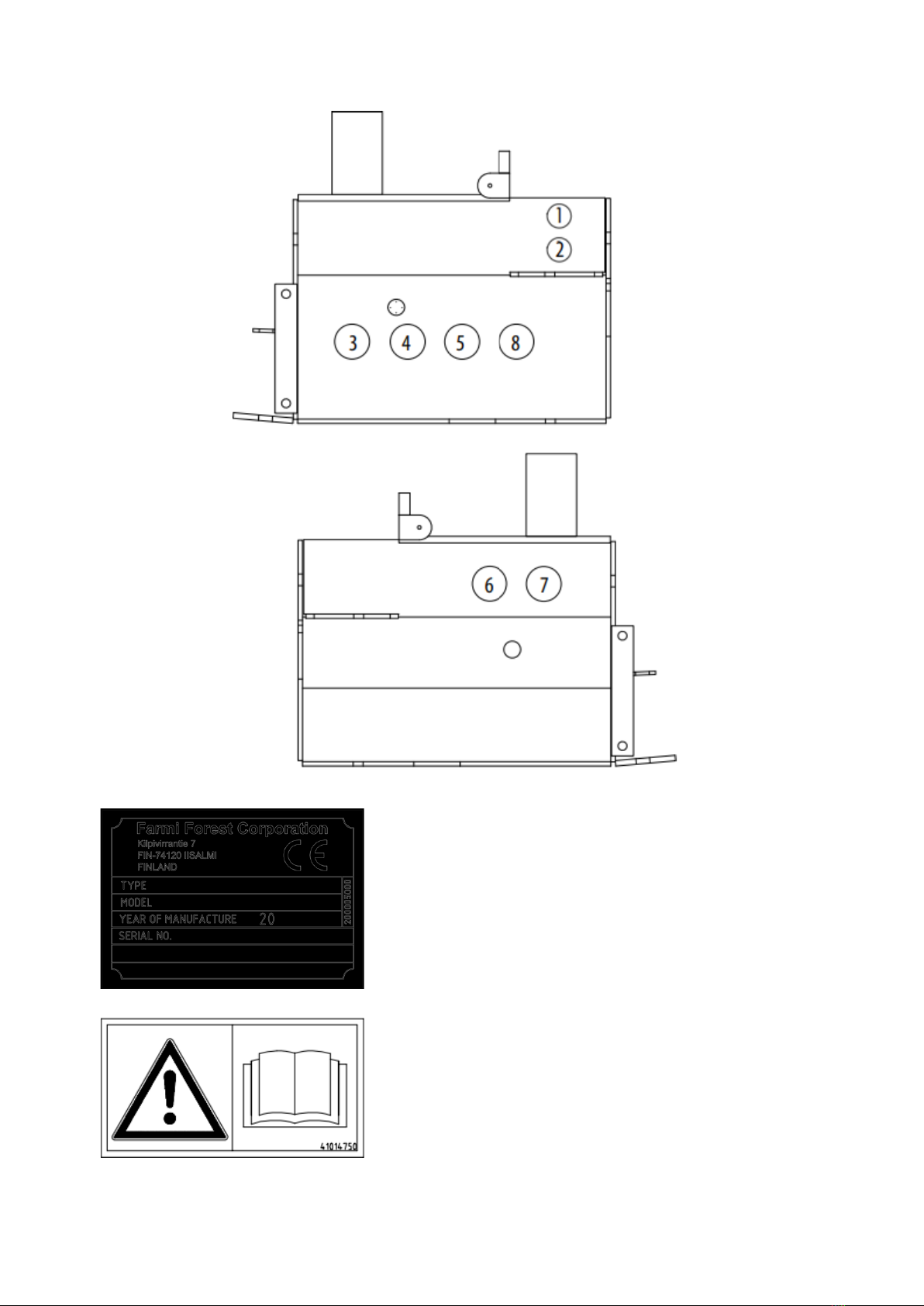

STICKERS AND PLATES............................................................................................................................................................................12

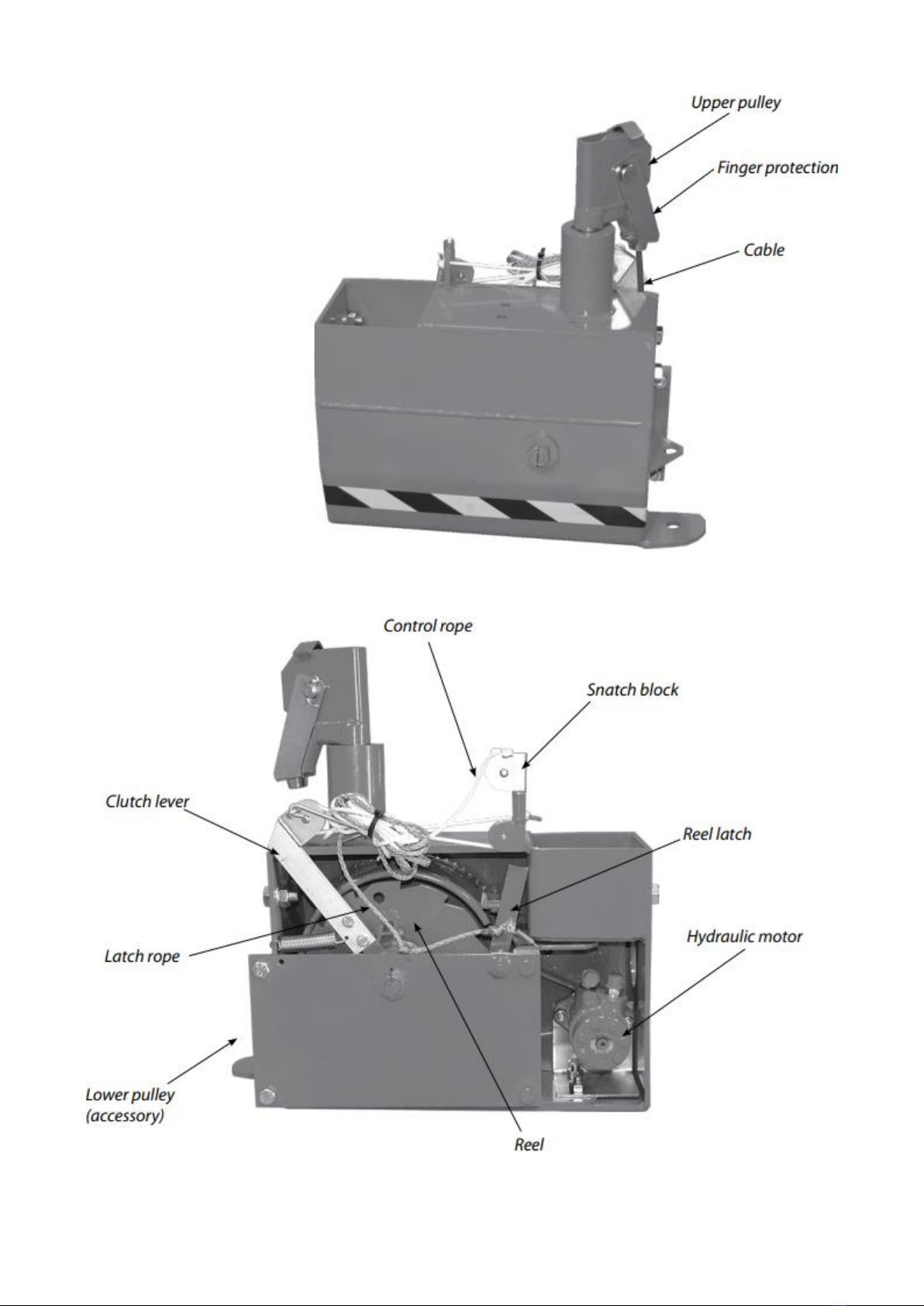

MAIN PARTS...........................................................................................................................................................................................15
TECHNICAL SPECIFICATION....................................................................................................................................................................16

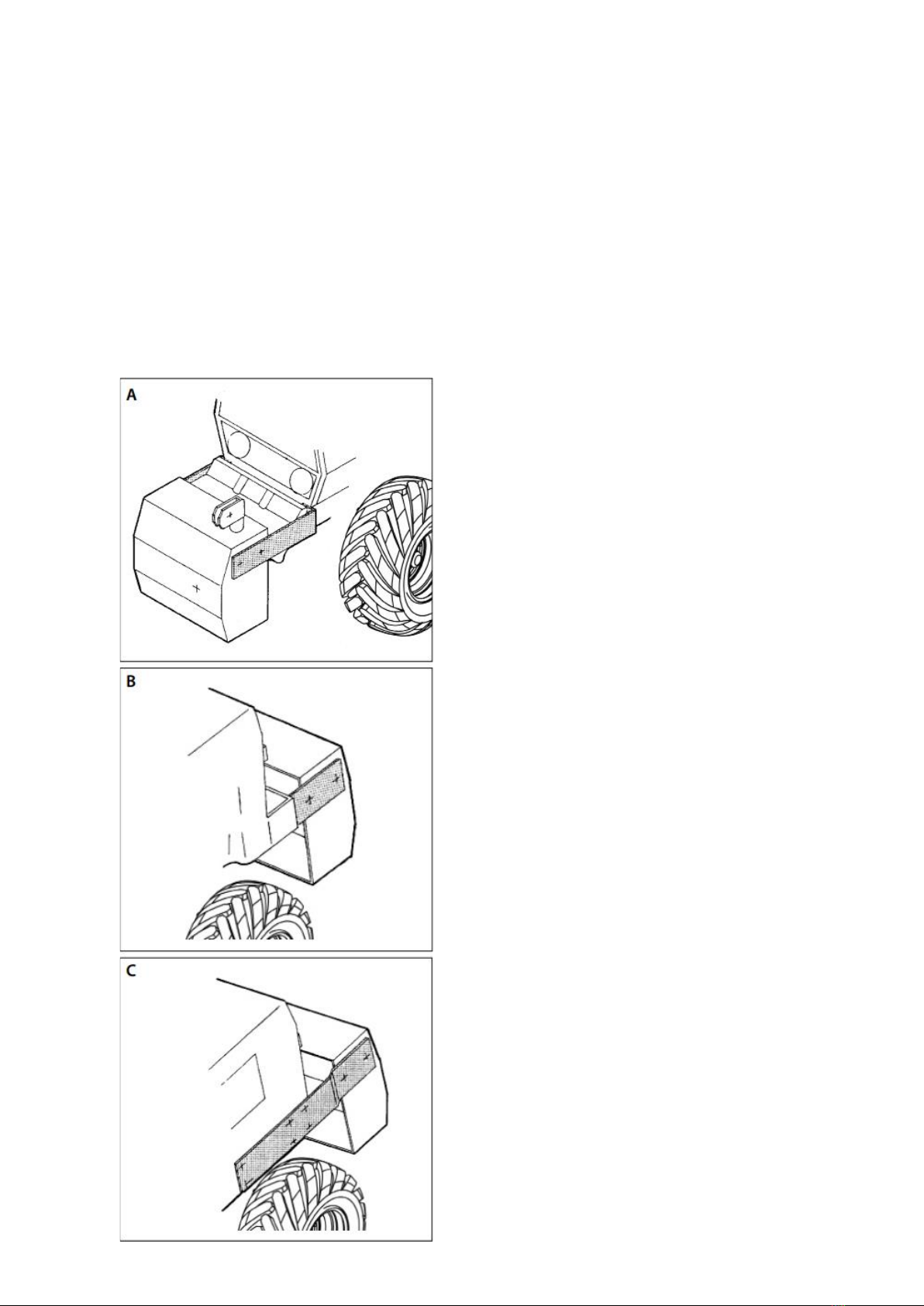

MOUNTING ............................................................................................................................................................................................17
PRE-OPERATION CHECKS .......................................................................................................................................................................19
CONTROLS..............................................................................................................................................................................................19
OPERATION ............................................................................................................................................................................................20
PRE-OPERATION CHECKS .......................................................................................................................................................................21
WINCHING .............................................................................................................................................................................................22
SKIDDING ...............................................................................................................................................................................................23
MAINTENANCE.......................................................................................................................................................................................24
TROUBLE SHOOTING..............................................................................................................................................................................30
SPARE PARTS..........................................................................................................................................................................................31
WARRANTY ............................................................................................................................................................................................38
PRODUCT REGISTRATION.......................................................................................................................................................................38
FARMI FOREST REPRESENTATIVES.........................................................................................................................................................38
When ordering spare parts, please indicate the serialnumberofyourmachine canbefoundonthe machine plate, spare parts
order number, description and quantity required. Example. W30F, 94624046, torsion spring, 2 pc

W30F
5
EC DECLARATION OF CONFORMITY
Original declaration of conformity
Manufacturer:
Farmi Forest Corporation
Kilpivirrantie 7, FIN-74120 IISALMI, Finland
Person authorized to compile the technical documentation:
Name: Petri Pelkonen
Address: Kilpivirrantie 7, FIN-74120 IISALMI, Finland
Commercial name:
Farmi
Machine denomination:
Skidding winch
Machine type:
W30F
Machine series number:
Herewith, we declare that the machine brought into circulation conforms with the
pertinent requirements of the Machinery Directive 2006/42/EC.
The following harmonized standards were used for the conceptional design of the
machine:
EN ISO 12100, SFS EN ISO 13857, SFS EN ISO 4254-1
Iisalmi 3.1.2021
Ilkka Kuuramaa

6
W30F
INTRODUCTION
This manual includes the information and maintenance instructions required for operating the machine in the
optimal manner.
Although you have experience in using this kind of machinery, read the operation and maintenance instructions
carefully since they include information enabling efficient and safe operation. Regular maintenance is the best way
to guarantee the efficient and economical performance of the machine.
Each and every operator must read, understand, and follow all safety instructions
and procedures
CAUTION
WARNING SYMBOLS IN THIS MANUAL
Imminent danger which could cause serious personal injury or death.
DANGER
Danger which could cause personal injury.
WARNING
Conditions or misuse that could damage equipment or machinery.
Reminders, such as for performing checks or carrying out maintenance or repair
procedures.
CAUTION
PRODUCT DESCRIPTION
A winch is a machine intended for harvesting felled timber from the forest. The basic components are welded frame,
driveline, drum with wire rope, directional pulleys, friction clutch and a brake.
In FARMI winches, there are two different kinds of brakes: models W30F, W35R and W50R are operated with
ratchet brake and models W35F, W50B, W60B and W86B with automatically switched on band brake.
There are also two different type of control systems in FARMI winches: 1) Manual control where two ropes are used
by operator to control the unit or 2) electro hydraulic control where operator uses remote control instead of ropes.
In this case, functions are operated with hydraulic cylinders.
Using the wire rope, the logs can be towed to the winch and anchored with chains to the winches slotted dozer plate.
After this logs can be transported to a place where other means of transport are accessible. FARMI winches may
not be used for lifting! Factory setting values may not be changed without a permission of Farmi Forest.

W30F
7
PRODUCT WARRANTY
Farmi provides a 12-months warranty on all Farmi products.
Register on our home page https://shop.farmiforest.fi/warranty within 30 days after the receipt of the product to get
full product warranty and additional information on your product.
CUSTOMER FEEDBACK
We are happy to receive your opinions and suggestions for improvements https://shop.farmiforest.fi/contactus. All
implemented suggestions for improvements will be rewarded.

8
W30F
GENERAL SAFETY INSTRUCTIONS
These safety instructions are meant for the owners of FARMI machine, as well as those who operate, service or
repair it.
The instructions help with:
1. using the machine safely, appropriately, and effectively.
2. identifying, avoiding, and preventing potentially dangerous situations.
The manufacturer supplies an operation manual, which must always be available at the place of operation of the
machine. Each user must read the safety, maintenance, and operating instructions before operating the machine, and
comply with these instructions at all times.
Ensure that every operator of the machine is familiar with the content of the
instruction manual and situation-specific safety instructions and has been suitably
trained before operating the machine.
CAUTION!
The machine complies with technical requirements and applicable safety regulations. However, incorrect use,
maintenance or repair of the machine may cause risks.
In addition to the operation manual, remember to comply with regulations of the local occupational health and safe-
ty authorities, and with your country’s laws anddecrees.
The manufacturer is not liable for damages caused by:
3. incorrect, negligent or inappropriate use of the product.
4. non-original spare parts.
5. normal wear and tear.
6. misuse caused by an untrained person’s improper actions.
7. alterations made without the manufacturer’s permission.
Written authorization must be requested from the manufacturer for any alterations
to the machine.
CAUTION!
STARTING
1. Familiarize yourself thoroughly with the use, operation and controls of the machine and its equipment before
starting.
2. Familiarize yourself with the capacities and limitations of the machine and its equipment.
3. Do not use the machine unless you are completely familiar with its operation.
4. Be aware of the machine’s danger zones.
5. During operation, prevent bystanders from entering the danger zone.
6. Ensure that each operator has the necessary safety equipment, such as a helmet, safety goggles, work safety
boots and suitable protective clothing.
7. Never wear loose clothing around moving parts. Protect long hair!
8. Ensure that work is carried out according to the stipulations of applicable occupational health and safety
legislation.
9. Before starting up or using the machine, ensure that it cannot cause a risk to other people or property.
10. Perform a safety check on the machine before every use. If you observe any faults or deficiencies, repair the
machine immediately.

W30F
9
11. Before operating the machine, ensure that there are no foreign articles in it.
12. Place the machine on a hard, level surface for operation. In the winter avoid working in slippery areas.
13. Before mounting and using the machine, check the PTO drive shaft for correct condition and machine.
14. Never use a faulty or deficient machine.
TRANSPORT
1. Before driving with the tractor, ensure the safe mounting of the winch. Make sure that the journals are seating
correctly and that the pins are tight. Check the tension of the lower link stabilizers.
2. Before driving with the tractor, make sure that the required lamps and reflectors as well as the slow moving
vehicle sign are attached correctly. Moreover, the lamps should be checked for correctfunctioning.
3. Before driving with the attached winch, make sure that the hydraulic unit of the tractor is depressurized (unless
otherwise instructed in the operating instructions).
4. When driving on public roads, always observe the valid traffic regulations. The travel speed must be adapted to the
specific conditions.
5. When driving, please take into consideration the additional mass resulting from the machine’s weight. It may
affect the reactions, the steerability and the braking function of the tractor.
6. Please note that the machine rear sways when turning.
7. Pay attention to the machine’s height near bridges or ot- her height restricting objects.
8. When backing off, the machine may obstruct the rear view. Exercise extreme caution. If necessary, ask a flagman
to help you; he can indicate the required distances.
9. It is prohibited for other people to ride on the winch.
OPERATION
Many occupational accidents take place in abnormal circumstances. Therefore, it is
important to take into account all the possible circumstances that may arise during
operation of the machine.
DANGER
The machine’s operator must have constant, unobstructed visibility of the work
area. If this is not possible, the operator must work with an assistant.
WARNING
1. Depending on the machine’s type, it will have diverse safety devices and protectors. These are meant to protect
the machine and its operator, and they must never be removed or altered. Never start up or use the machine
without all the safety devices and protectors in place. Also check the universal joint’s safety equipment and joints.
2. Never insert any body part into the machine with the engine running.
3. If any faults arise that may jeopardize occupational safety, turn off the machine.
4. During operation, the machine’s operator is responsible for safety in the whole work area. Work may not
be carried out in the presence of any factors that jeopardize occupational safety.
5. Exercise extreme caution when hitching/unhitching the machine from a tractor/trailer.
6. Look out for moving parts when the machine is in operation.
7. Secure the machine against unauthorized and accidental operation (e.g. moving when parked) whenever it is left
unattended.
8. Never leave the machine running unattended.
9. Avoid causing fast, stroke-like loading.

10
W30F
10. Never exceed the given operating values.
11. All safety and warning signs on and in the machine must be legible and intact.
12. The machine may not be operated by persons who are unwell or under the influence of drugs or alcohol.
MAINTENANCE
1. The machine may only be serviced and repaired by professionals.
2. Electrical and hydraulic faults may only be repaired by authorized professionals.
3. In cases requiring welding, contact the manufacturer.
4. When servicing the machine, place it on a level surface and ensure that it cannot be moved.
5. Turn off the tractor engine, disconnect the hydraulic hoses and electrics before beginning service or
maintenance actions.
6. Before any maintenance work, turn the main power switch of the tractor to OFF.
7. Take out the key from the tractor’s ignition for the duration of the servicing or maintenance. Check that the power
is off from the tractor you are working on.
8. Before disconnecting the hydraulic hoses from tractor, ensure that the hydraulic system is depressurized.
9. Observe the service intervals and annual safety inspections.
10. All spare parts and equipment must fulfill the manufacturer’s requirements. This can be guaranteed by using
original parts.
11. Put all safety devices back into place immediately once servicing or maintenance is complete.
When lifting the machine, check that the lifting/hoisting equipment is in perfect
working order. Check the weight of the machine before lifting it. Choose lifting
trajectories so that they do not cause any danger.
WARNING
Many countries have specific legislation on lifting, hoisting cables and hoists. Always comply with local safety
regulations.
OILS AND LUBRICATION
1. Always use the oil types recommended by the manufacturer. Other types of oil may cause faults or improper
operation of the equipment, which could lead to serious damage to people or property.
2. Never mix different liquids or oils.
3. Always follow the manufacturer’s lubrication instructions.
4. Usecontrolequipment carefully untilthehydraulicoilhas had time to reach its operating temperature.
SAFETY INSTRUCTIONS FOR HYDRAULIC CIRCUITS
1. Work on hydraulic equipment may only be carried out by professional hydraulic engineers.
2. Be cautious when using the equipment in cold conditions.
3. Check the machine for leaks. Do not use the machine if there is a leak from any system. Check all hydraulic
hoses –particularly those which are bent during use –and replace any that are in poor condition or have leaks.
Ensure that all joins are tight and that the lines are not damaged. Check that all protective caps and filler caps are
closed properly. Check the hose sheathing for damage.
4. Check that all hose connectors, lengths and qualities comply with applicable requirements. When replacing or
repairing hoses, use original parts or hoses and connectors recommended by the manufacturer. Check particularly
that the pressure classes of the hoses and connectors are suitable to the operating pressure levels.
5. Check that all safety devices such as pressure relief valves, etc., are in place and work properly. Familiarize yourself
with their use. Safety systems may neverbe bypassed.
6. Check the main hydraulic parts daily, and always after a fault. Replace any damaged parts immediately.
7. If a component is damaged,cleanit beforerepairingit.Do not use solvents when cleaning parts.

W30F
11
8. Do not attempt to carry out repairs that you are not fully familiar with.
9. Never carry out repairs of the hydraulic circuit when the system is pressurized. When pressurized, the oil spray can
penetrate the skin and cause mortal danger.
10. Never work below a device or component that is only being held up by hydraulics. Use separate supports when
carrying out maintenance or repairs. Do not disconnect cylinders or their valves until the machine is well supported.
11. Most hydraulic oils do not evaporate easily. Risk factors include hot oil, spills and oil mist (pressurized).
12. If oil gets into your eyes, rinse with plenty of water and contact a doctor.
13. Avoid prolonged or repeated oil contact with your skin.
14. If sprays or contact with the skin cannot be avoided, use protective gloves, goggles and clothing as necessary. Do not
use oily clothing.
15. Avoid discharging hydraulic oil into the environment, as it can pollute waterways and the groundwater. If
biodegradable oil is to be used, contact the manu- facturer beforehand and have the suitability of your equipment
for the operation with biodegradable oil confirmed by him before such oil is used.
16. Store the oil in sealed containers provided by the manufacturer. Try to transfer the oil directly from its container
into the tank.
17. If the oil must be passed through other containers, ensure that they are completely clean. Caps, funnels, sieves and
filling holes must also be clean.
18. Never store oil outdoors, as water could condense in it.
19. Always dispose of oil in a suitable container, never into the environment!
SAFETY INSTRUCTIONS FOR THE WINCHES
1. Check that the wire cable is in good condition before using the winch (check for corrosion, sharp bends, breakage
and thickness of strands). If a cable snaps, it can whip towards the operator or away from the winch.
2. Operate the winch with a guide cable at least 2 meters away to the side of the machine. Do not operate the winch
from the tractor cabin unless a safety net has been installed.
3. When winching downhill, the pulling must be done from the side using an additional idler.
4. When winching on a hill, do not follow the load from below.
5. Side-winching must not be done at angles of more than 30 degrees.
6. It is extremely dangerous to be in the space between a load attached to the wire cable and the winch.
7. Check that all bystanders are at a safe distance of at least 15 meters whenever the machine is running. Place warning
signs on approaching roads.
8. Never touch the wire cable by hand during winching.
9. The maximum load must be adjusted to conditions.
10. Check that the winching chains are carefully attached. Do not attach the wire cable directly to the load.
11. The safety coefficient must be 2.5 for cable-type fasteners and 2 for chain-type fasteners.
12. Disconnect the transmission before examining the machine in the case of any faults.
13. Ensure the wire cable is as short as possible during transport.
14. The winch may only be used for winching and hauling. Do not use the winch for lifting loads.
Noise from the winch exceeds 70 dBs in operation.
Wear ear protection!
WARNING

12
W30F
STICKERS AND PLATES
These plates and stickers must be found on the winch. Replace missing plates or stickers immediately.
1. Machine plate W30F (200005000)
2. Note! See manual for operation and maintenance.
(41014750)

W30F
13
3. Nr 41014740
Falling danger!
Do not work in an oblique position.
Crushing danger!
Do not use the winch for the lifting.
Watch out for a breaking cable!
Always use the protective screen.
4. Nr 41014730
Note!
Before doing maintenance work turn off the
motor, remove the ignition key and disengage
the P.T.O.
Accident danger!
Keep the safety equipment where it belongs.
Winding danger!
Do not wear too loose clothes and keep the hair
bound inside the cap.

14
W30F
5. Nr 41014720
Falling danger!
Do not winch at sideways angles exceeding 30
degrees.
Crushing danger!
Do not stand in front of the winch when
working. Stand on the side at a distance of at
least 6 ft from the winch.
Crushing danger!
Do not winch downhill.
6. FARMI-sticker
(200006179)
7. Sticker W30F (40147270)
8. Maximum hydraulic pressure (41015580)

W30F
15
MAIN PARTS

16
W30F
TECHNICAL SPECIFICATION
W30F
Tractive power Cable drum empty (Maximum)
Cable drum full (Minimum)
35 kN
13 kN
Cable capacity
Ultimate strength of the cable 1,96 kN/mm2
50 m of ø 8 mm (164 ft of 5/16”) cable
Winching speed 160 cc
hydraulic
motor
0,28 - 0,8 m/s
(0.92-2.6 ft/s)
Weight (without cable)
140 kg (309lbs)
Clutch
Mechanical friction plate clutch with heat sink
Power transmission
Hydraulic motor
Mounting
Permanent mounting on the front of the tractor or
on the front linkage using three-point hitch
Max. working pressure
175 bar
Recommended pump capacity
40-60 l/min
Dimensions
700 x 300 x 570 mm
DIMENSIONS

W30F
17
MOUNTING
W30F is a general-purpose winch for all kinds of winching operations. Because the winch has hydraulic function it
may be mounted anywhere provided 2-funtion hydraulic system is available.
In the tractor use it is most appropriate to mount the winch in front where it may stay permanently and at the same
time functions as a front weight.
Mounting in the tractor must be steady, with steel slabs bolted or welded at tractor frame or front weight frame,
provided the front frame is strong enough. The hydraulic winch W30F can also be mounted to the front linkage
using a three-point hitch.
The hydraulic hoses (ø ½”) are attached alongside the tractor frame, well protected from eventuel mechanical
damage.
The coupling nipples should be marked indicating the flow direction in order to avoid rotating the winch motor at
wrong direction.
Fig. 2.
Mounting options: A, B and C

18
W30F
FASTENING THE CABLE TO THE REEL
Before fastening the cable on the winch, please turn off the tractor and disconnect
the hydraulic line.
WARNING!
1. Tape the cable end to prevent loosening of the core wires.
2. Pass the cable through the hole in cable guard, over the upper diverting pulley and then inside the winch.
3. Insert the cable from behind the roll of the overrun brake.
4. Pull the cable onto the reel from the left hand side (the same side as the clutch lever).
5. Pass the cable end through the hole in the reel plate, pull about 15 cm (6”), and insert under the wedge of the cable
lock device. See fig. 3.
6. Tighten the cable lock screw.
7. Winch the cable on the reel by following spooling instructions.
Fig. 3.
Fastening the cable
Do not use longer cable than needed. With correct length you achieve good pulling strength and proper winding
of the cable.
SPOOLING THE CABLE TO THE REEL
Keep the cable loaded with approx. 100 kg when spooling the cable to the reel (see fig. 4). Keep the cable clamped
to the reel side with using a block of wood, so that first layer spools tightly in order (see fig. 5).
Fig. 4.
Spooling the cable

W30F
19

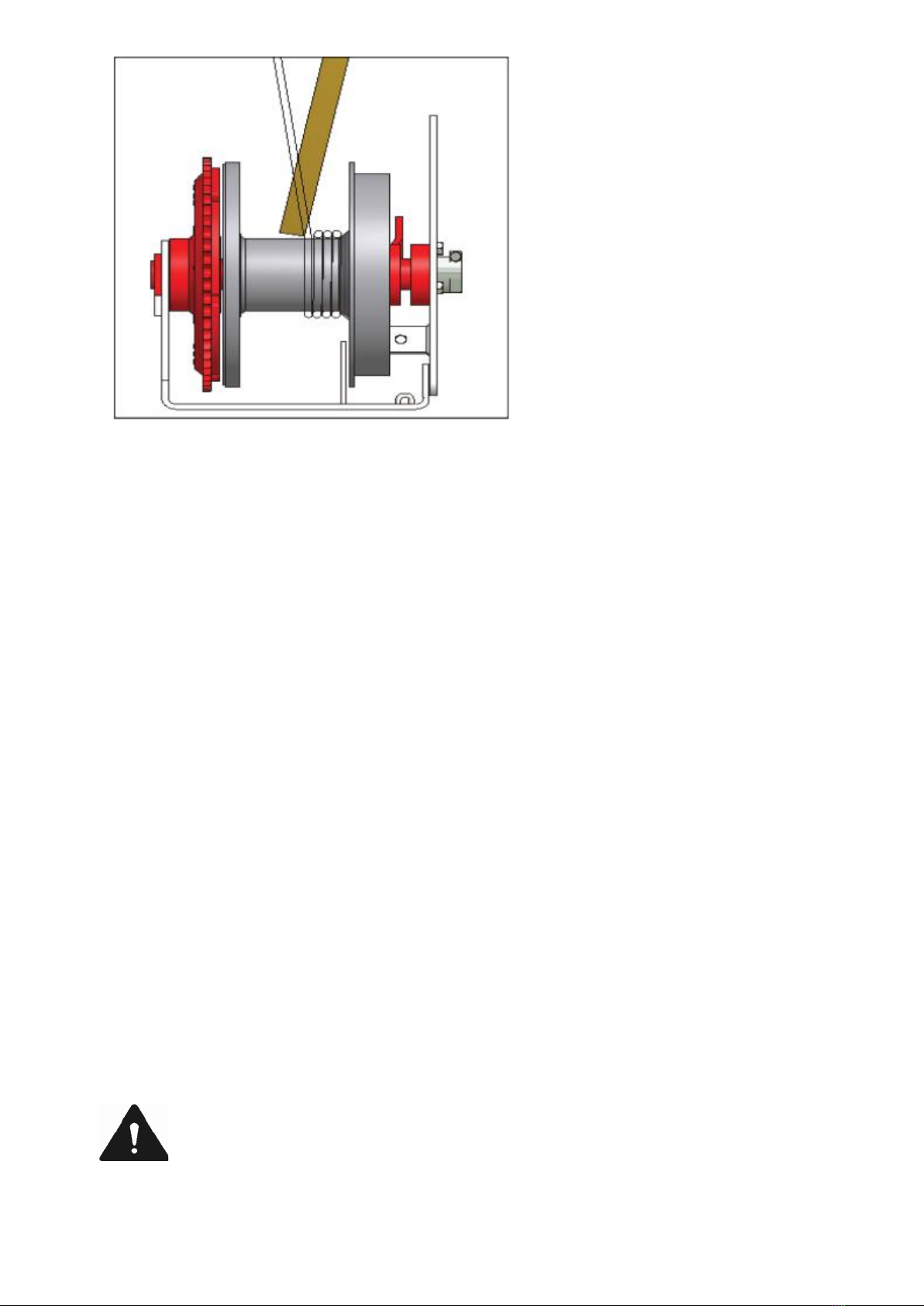

Fig. 5.
Clamping the cable with a block of
wood
PRE-OPERATION CHECKS
CABLE
Check that:
1. the cable is faultless (breakage risk).
2. there are no twists or kinks (breakage risk) in the cable.
3. the cable has been properly fastened to the winch.
WINCH
Check that:
1. all the pins and lynch pins are in place.
2. all bolts and nuts have been tightened.
3. roller chain is tight.
4. the drum brake has been properly adjusted.
5. the clutch has been correctly adjusted.
6. lubrication is carried out correctly. See lubricating instructions.
MOUNTING TO THE TRACTOR
Check that:
1. the tractor’s top link point is locked. (with the help of a support, if necessary).
2. the pins are properly secured.
3. the side limits are locked and slack removed from the lifting arm.
CONTROLS
Get acquainted with the controllers of the winch before the use, tests the stopping
functions of the winch and the tractor and all other functions. Each function has to
be in perfect condition.
WARNING!

20
W30F
WINCHING
1. The winch is equipped with a clutch, which will be used by the control rope. When the user draws the control
rope, the winch begins to draw in the cable. Winching will stop when the rope is released.
2. The end of the cable drum is equipped with a friction clutch, which slips, if the load is too heavy. This prevents
cable break or damages if the load gets caught.
3. The cable can be pulled out when the latch is released.
4. Once the latch is released, it will stay released until the operator has engaged it again by pulling on the latch rope.
Fig. 6.
Controls
OPERATION
SAFETY PRECAUTIONS
Read the operation instructions before operating this machine! It is the owner’s
responsibility to instruct all equipment operators and support personnel in the
operation of this winch.
WARNING!
1. Choose a horizontal, hard based skidding route for the tractor. Avoid steep slopes, especially when winching from
the side. Check that the winching trail is clear and that the tractor’s parking brake is on. Do not run the tractor at
a high idle when winching. Maximum P.T.O speed is 540 rpm. Ensure that the logs can be drawn freely. Be
especially careful when working on slopes. Avoid winching sideways at angles exceeding 30 degrees. Use diverting
pulley which is fastened to the tree if needed. (See fig. 9.)
2. The safest place for the operator is at the back left side of the winch, allowing good visibility (See fig. 7). Take care
that there is no one in the working area.
3. The tractor must have a ROPS cab and rear end weights.
a. Always position the tractor on a flat ground in line with the direction of the pull (see fig. 7.). Avoid
working in steep terrain. Ensure nothing is blocking the path of trees.
b. Avoid an unnecessarily strong pulls, the tractor may roll over.
c. Adjust the tractors rpm’s according to the conditions.
