Fast Mover FMT3067 Specification sheet

FMT3067
Air Operated Spraygun Cleaner
Product Instruction Manual
Please keep this manual safe for future reference
T: [phone] E: [email protected] W: www.fastmovertoolsuk.com
fastmovertoolsuk.com/mp
Year 2006
I

Tool Use
This air operated spraygun clean can be
used for the cleaning the following
sprayguns;
- Gravity
- Suction
- Pressure Feed up to 2ltrs (lid, gun and
hoses)
FMT3067
Instruction Manual
Fast Mover Tools Limited
Unit 1 Frenchs Avenue, Dunstable, LU6 1BH, United Kingdom
www.fastmovertoolsuk.com
IMPORTANT
Please read through this Manual carefully before using the FMT3 67.
This tool must only be used for spraygun cleaning and within the parameters outlined in this
manual. All users of the e uipment should be trained in any risks associated with the products
they are cleaning or using as cleaning aids.
There is a risk of explosion if proper safety precau%ons are not followed when using this tool to
clean solvent.
Specification
Operating Pressure 40-60PSI
Air Consumption 2-4CF
Capacity 2 Pots and 2 Guns
Dimensions W: 470mm D: 650mm H: 1000mm
Reservoir Capacity 20ltrs
Pump Pneumatic Diaphragm Pump
Weight 33.5kg
Noise Level 75dB
Inner Tank aterial Polyethylene
General Safety Instructions
1 WARNING! Ensure that HSE, local authority and our own Health and Safety policy is
adhered to at all times when using this equipment.
2 WARNING! The installation site must be equipped with foam fire extinguishers. Water
must not be used.
3 ALWAYS disconnect the equipment from air source before changing accessories,
cleaning, servicing or carrying out maintenence.
4 ALWAYS keep tank in good condition (use an authorized service agent).
5 Replace or repair damaged parts using genuine parts only. Non-authorized parts may be
dangerous and will invalidate warranty (use an authorized service agent).
6 Position the tank in a suitable location. Ensure that it is placed on a stable and level
surface.
7 ALWAYS keep the work area clean and tidy and free from unrelated material.
8 Ensure that the location of this equipment is well ventilated and has sufficient lighting.
9 WARNING! Ensure that the correct air pressure is maintained and not exceeded. The
Important
Although this machine is
designed for both solvent and
waterbased use, you must
ensure that this machine is
thoroughly flushed through
before the changeover to
remove any trace of the
material. This is to prevent
contamination issues

recommended pressure is 40-60PSI(2.75-4.1BAR).
10 Keep air hose away from heat, oil and sharp edges.
11 ALWAYS check air hose for damage before use and that all air connections are clean,
secure and undamaged.
12 WARNING! Do not use water and solvent cleaners at the same time. The tank must be
flushed fully before changeover.
13 ALWAYS read the aterial Safety Data Sheets ( SDS) for any fluid that you choose to
clean with. ALWAYS consult paint SDS to ensure that it is compatible with the cleaner
you are using.
14 ALWAYS keep the tank clean. Regulary clean (or replace if necessary) the suction filter
for best performance.
15 WARNING! Do not smoke or keep potential sources of ignition near this machine at any
time, together with flammable or combustible materials as there is a risk of explosion.
16 WARNING! Wear approved eye protection, respirator and gloves. If solvent gets onto
your skin or into your eyes, rinse thoroughly with clean water and take any other action
required or stated on the solvent instructions or SDS. Seek medical attention if in any
doubt.
17 DO NOT wear loose or ill fitting clothing, ties, watches, rings or other loose jewellery
when using this machine.
18 ALWAYS tie long hair back.
19 ALWAYS where the appropriate PPE clothing and equipment.
20 aintain correct balance and footing. Always where non-slip footwear.
21 ake sure that the floor is not slippery or wet.
22 Keep all non-essential persons away from this machine and the working area.
23 In the case of a fire inside the machine, do not attempt to move it whilst it is still
operating.
24 DO NOT use the machine with lid open. This machine is fitting with a safety switch
which stops the operation if the lid is opened. This switch should not be tampered with
or removed. Doing is will invalidate the warranty.
25 DO NOT use this equipment for spray gun testing.
26 DO NOT use this equipment if parts are missing or damaged. Doing so could cause
serious damage to the machine and could also cause injury to users. Using the machine
in a faulty condition will invalidate the warranty.
27 DO NOT over-fill the tank (19ltrs max.).
28 DO NOT direct air from the hose or at others.
29 DO NOT use this equipment if you are tired or under the influence of drugs, alcohol or
intoxicating medication.
30 When the cleaning operation is completed, turn all controls off and max sure that the air
connection is removed or switched off.
31 WARNING! It is the operator’s responsibility to ensure that there is no uncontrolled
discharge (whether in error or on purpose) of any fluids used in this machine. It is the
operator’s responsibility to ensure that a proper system is in place for the safe disposal of
waste fluid in accordance with government/local authority regulation.
32 WARNING! The operator must be fully acquainted with the contents of this manual and
be instructed with the use and operation of this equipment. It is the owner’s
responsibility to provide suitable training if this is required.
33 WARNING! DO NOT run the machine without the screen platform inside the tank. This
may cause the solvent to spill out of the tank.
34 DO NOT open the lid as soon as the cleaning operation has finished. You must wait at
least 30 seconds to allow the solvent to condense to avoid inhalation of vapour.
35 WARNING! Breathing in solvent vapour will seriously damage your health.
36 Women should not operate this equipment whilst pregnant.
Fast Mover Tools Limited
T: 01582 661993 F: 01582 667100 E: [email protected]
www.fastmovertoolsuk.com
PLEASE KEEP THIS MANUAL SAFE FO FUTU E EFE ENCE

FMT3067
Instruction Manual
Fast Mover Tools Limited
Unit 1 Frenchs Avenue, Dunstable, LU6 1BH, United Kingdom
www.fastmovertoolsuk.com
37 WARNING! Before opening the lid of the tank to insert spraygun, earth the metal body of
the gun to the bare metal contact on the machine to discharge any static electricity. Not
doing this could cause a fire.
38 In the case of a malfunction with the safety switch, turn off the air supply at the air inlet.
Assem ly Instructions
1 Attach legs to cabinet with screws (60), washers (61) and nuts (62)
provided and fit drain valve (63) to base of tank (2).
2 To prevent possible static build up, run a wire earth from the frame to
earth. Before operating the machine, the user must check this
wire.
Air Supply
1 Ensure that the air valve (64) is closed before connecting the air supply.
2 An air pressure of 40-60PSI and an available air volume of 0.06-0.11m3/min is required
to run this machine.
WARNING! Ensure air supply is clean and does not exceed 60PSI. Too high an air
pressure and/or unclean air will shorten the machine’s life due to excessive wear
and may e dangerous, causing possi le damage and personal injury. The air
supply must e equipped with a Regulator/Filter/Lu ricator.
3 Line pressure should be increased to compensate for unusually long air hoses (over 8
metres). The minimum air hose diameter should be 10mm ID and fittings should have
the same internal diameter.
4 Keep air hose away from heat, oil and sharp edges.
5 ALWAYS check air hose for damage before use and that all air connections are clean,
secure and undamaged.
6 The air inlet is 1/4” NPT.
Operating Instructions
WARNING! Ensure that you have read and understood the safety instructions.
Wear approved safety gloves, respirator and suita le clothing.
WARNING! Before using the machine, always touch a suita le earthing point to
dissipate any electrostatic charge that you may have.
1-1 Preparing the Tank and Items for C eaning
1-1 Before opening the lid of the tank to insert spraygun, earth the metal body of the gun to
the bare metal contact on the machine to discharge any static electricity. Not doing this
could cause a fire.
1-2 Ensure tank drain ball valve (63) is closed then pour solvent into the tank (2). To aid
future sludge removal approximately 2ltrs of water may be added before or after the
solvent. Ensure that the final level is at least 25mm (1”) above the pump suction strainer
(59).
1-3 Confirm that the air valve (20) is closed and that the air supply is regulated to no more
than 60PSI. Turn on the air supply.
1-4 Partially open the air valve (20) and allow pump to run slowly for appox. 2 minutes to
remove any fluids used during the manufacturer’s tests.
1-5 Check the spraygun to be cleaned. Empty and store and unused paint for future use.
For best results clean immediately after use, having removed as much residual paint as
possible.

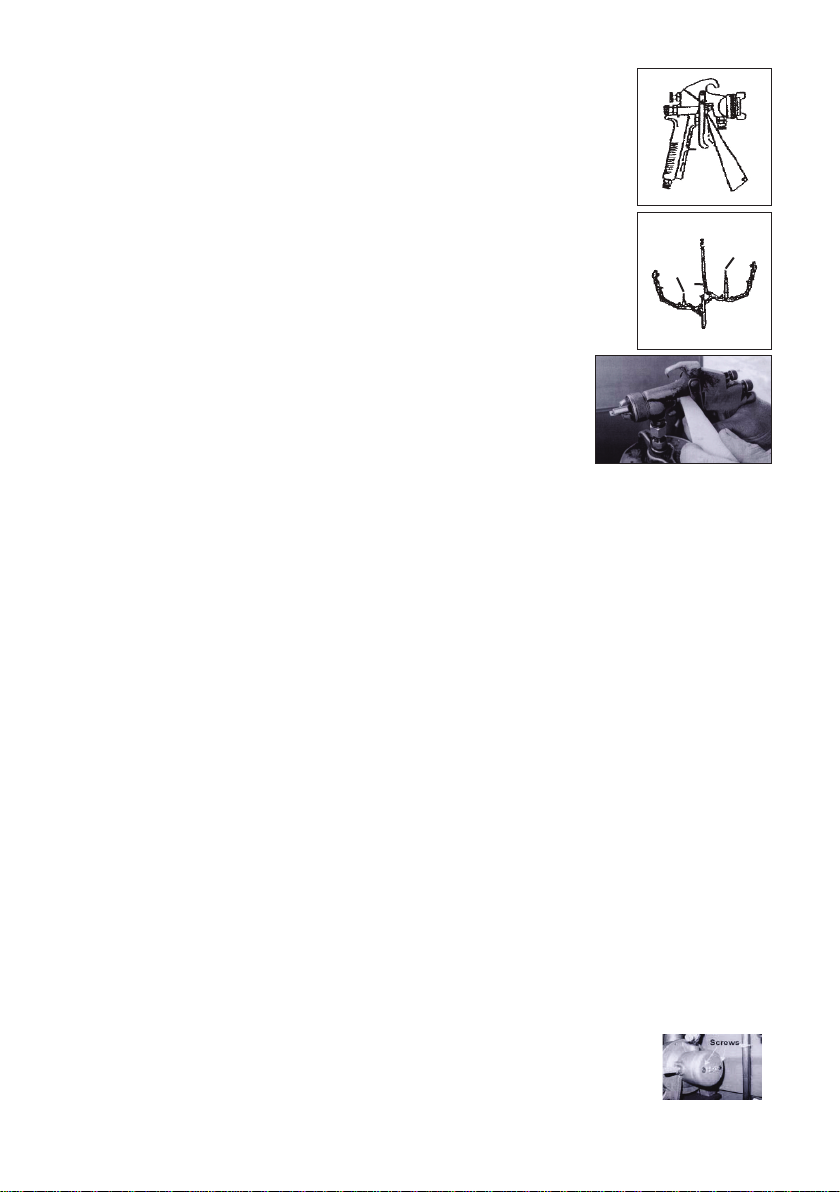

1-6 Fit the trigger lock (56) as shown in Fig. 1 and Fig. 3.
1-7 Two gun supports are provided, one short (Fig. 2, A), one long (Fig. 2, B). Use
whichever one suits the configuration of the gun. Typically, gravity guns fit the low

PLEASE KEEP THIS MANUAL SAFE FO FUTU E EFE ENCE
Fast Mover Tools Limited
T: 01582 661993 F: 01582 667100 E: [email protected]
www.fastmovertoolsuk.com
1-7 cont. support, ensuring that it doesn’t foul the lid. Suction guns are to be
fitted to the long support. If required, the gun cleaning nozzle (8) may
be fitted directly to the manifold (6) without items 9 and 10, thus
providing two short nozzles.
1-8 For pressure fed guns up to 2ltrs capacity place the siphon stem of
the pot cover over the short support and position the gun and hoses
on the screen platform. Over this capacity, disconnect the gun from
the lines and place on the long support.
1-9 Place pots over nozzles (Fig. 2, C).
2 C eaning Operation
2-1 Ensure washer lid is closed and then fully open pump air valve (20).
The pump will now operate and send an atomized spray through the
nozzles in the cleaning tank.
2-2 Cleaning will be complete after 60 seconds, at which time the pump
should be turned off by closing air valve (20).
2-3 Open lid and remove cleaned equipment.
NOTE: If during c eaning, the id is opened, the c eaning process wi be
stopped automatica y. C ose the id to resume c eaning.
DO NOT store guns in the tank.
Solvent Change and Maintenance
WARNING! It is the operator’s responsi ility to ensure that there is no
uncontrolled discharge (whether in error or on purpose) of any fluids used in this
machine. It is the operator’s responsi ility to ensure that a proper system is in
place for the safe disposal of waste fluid in accordance with government/local
authority regulation.
WARNING! disconnect the equipment from air source efore changing
accessories, cleaning, servicing or carrying out maintenence.
WARNING! Wear approved safety gloves, respirator and suita le clothing.
1 So vent rep acement
1 The number of guns the solvent will clean will depend on the amount of residual paint left
in the equipment. We recommend, however, that solvent is changed on a regular basis
to provide optimum cleaning performance and that paint sludge is removed weekly as
detailed below.
1-1 Sludge Removal - No water added. Drain 2ltrs of solvent/sludge via the
drain valve (63). Close valve and add solvent to the tank to bring the level to
at least 25mm above the strainer.
1-2 Sludge Removal - Water added. Drain water until it becomes discoloured,
close drain valve. Change receptacles and re-open valve and drain 2ltrs of
solvent/sludge. Close valve and replace water in the tank. Add clean solvent
to the tank to bring the level to at least 25mm above the strainer.
2-1 Solvent change. Completely drain dirty solvent as in 1-1. Clean the inside of
the tank and strainer before refilling. Clean any spillages immediately.
2 Maintenance
2-1 Regularly check that opening the washer lid automatically stops the spray. DO NOT
USE IF A FAULT IS FOUND.
2-2 Check and add air tool oil to the air cock (67) on a monthly basis.
2-3 Keep the outside of the unit clean.
2-4 Inject lubricant into air inlet every 3 months.
2-5 Use a hexagonal screwdriver in tool bag to open the circular cap of the
pump and inject lubricant into it. Fig. 4.
Fig. 1
Fig. 2
A
B
C
Fig. 3
Fig. 4

PLEASE KEEP THIS MANUAL SAFE FO FUTU E EFE ENCE
Fast Mover Tools Limited
T: 01582 661993 F: 01582 667100 E: [email protected]
www.fastmovertoolsuk.com
Warranty
We hope that you will be very happy with your purchase. If you do have a problem with your tool,
you have the added peace of mind of a 12 month warranty, which comes into date from the date of
purchase (proof of purchase required).
Scope of Warranty
- The warranty will cover you from all faults caused by defective components or poor workmanship.
- Tools sent outside the EU are not covered by this warranty.
- Product must be returned to us, the warranty does not cover cost of carriage.
- If the product is no longer in manufacture, it will be replaced with a tool of equivalent or higher
specification.
What is not covered
- Normal wear and tear caused by use in accordance with the operating instructions.
- Replacement of any provided accessories, such as Airline Connections, Air Fittings, Blades,
Spanners, etc.
- Accidental damage, faults caused by negligent use or care, neglect, misuse or careless operation,
handling and storage of the product.
- odification of, or change of, any part of this product in any way.
- Faults caused by use of non compatible accessories.
- Tool seizure caused by insufficient oiling.
- Faults caused by incorrect installation.
- Repairs or alterations carried out by non-approved parties.
- Traces of water or rust inside tool - this shows that a properly working air filter has not been used.
Validity
- This warranty is valid for 12 months after date of purchase.
- Warranty is rendered invalid if;
- Tool is taken apart for any reason without our consent.
- Tool is not oiled as per instructions in this manual.
- Air supply line is not used with a properly working air filter.
- A warranty claim will not be accepted without an official proof of purchase from your supplier.
Warranty Verification
Please keep this manual with your tool for the purpose of verifying your
warranty. Fill in box below to validate warranty.
Fax to 01582 667100
Year of Manufacture: 2014 Tool Code: F T3067
Place of Purchase
____________________________________________
____________________________________________
_____________ Post Code __________________
Date
___________________________________________
Your Details
Company ________________________
Address ________________________
________________________________
Post Code________
Email ________________________

FMT3067
Instruction Manual
Fast Mover Tools Limited
Unit 1 Frenchs Avenue, Dunstable, LU6 1BH, United Kingdom
www.fastmovertoolsuk.com
Declaration of Conformity
We declare that the equipment detail below, to the best of our knowledge and
ability, complies with the following Directive.
achinery Directive - 2006/42/EC
ATEX Directive - 94/9/EC
Equipment Description Air Operated Spraygun Cleaner (Two Gun)
Part Code F T3067
Distributed in the EU by Fast over Tools Limited
Address Unit 1 Frenchs Avenue
Dunstable
Bedfordshire
LU6 1BH
United Kingdom
The following Transposed Harmonised Standards have been applied in the
design and construction of this equipment:
EN 1127-1 Explosive atmospheres. Explosion prevention and protection. Basic concepts
and methodology
EN 13463-1:2001 Non-electrical equipment for potentially explosive atmospheres. Basic method
and requirements
EN 13463-5:2003 Non-electrical equipment intended for use in potentially explosive
atmospheres. Protection by constructional safety 'c'
EN 292-1 Safety of machinery. Basic concepts, general principles for design. Basic
terminology, methodology
EN 292-2 Safety of machinery. Basic concepts, general principles for design. Technical
principles and specifications
EN 983 Safety of machinery. Safety requirements for fluid power systems and their
components. Pneumatics
EN 1050 Safety of machinery. Principles for risk assessment
The manufacturer and the distributor, stated above, hold the Technical Construction File for this
equipment.
Signed on behalf of the distributor
(the responsible person) …………………………………………
Name: Brian offitt
Position: Director
Date and Place: 20/01/2014, Dunstable, UK
Please look after the environment, dispose of all packaging in a responsible way.
Always dispose of tools in accordance with local authority guidelines.
Ensure that waste paint and cleaning fluids are disposed of in accordance with
government legislation.
© 2014 Fast over Tools Ltd. This document is copyright and is not to be copied, circulated, distributed or shown
to anyone other than the intended recipient without the express permission of Directors.
Year 2006
I
