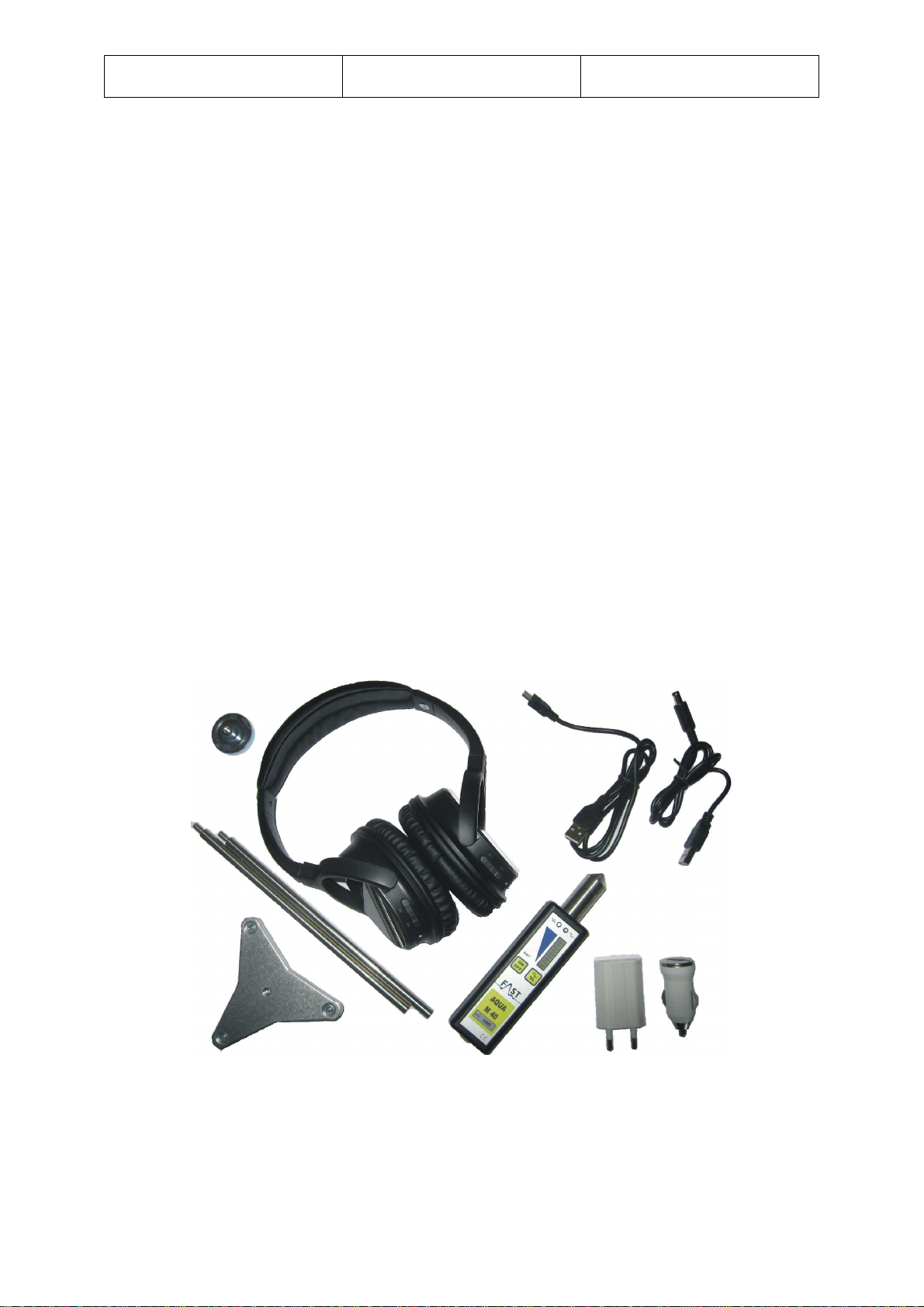

Fast Aqua M40 User manual

Operating Manual Aqua M40 F.A.S.T GmbH
Operating
Manual
AquaM40 (Bluetooth version)

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 1
Table of content
1 Safety instruction....................................................2
2 Intended use:...........................................................2
3 Scope of delivery and overview.............................3
4 Start-up and operation ............................................4
5 Activating the Bluetooth connection......................7
6 Technical data.........................................................8
7 Relevant information on environmental protection
for customers located in the European Union........9

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 2
This measuring device has been designed according to state-of-the-art technology and meets
all relevant requirements of the applicable European and national guidelines. Conformity has
been proved, and the corresponding declarations and documentation have been filed with the
manufacturer. In order to maintain this status and to guarantee safe operation, the operator is
requested to follow the below listed safety instructions.
1 Safety instruction
•Do not expose the device or its components to extremely high temperatures or to
powerful light sources.
•If the device has been subject to any inappropriate application, to any modification
not authorized or approved by F.A.S.T. GmbH, or to any repair work done by any
party other than F.A.S.T. GmbH, the warranty provisions for the device shall
become ineffective. F.A.S.T. GmbH will not assume any product liability for the
device if the device has been subject to any inappropriate application or to any
application other than its intended purpose. F.A.S.T. GmbH will not assume any
liability other than the statutory product liability for any consequential damage.
•This product is no toy! It is not suitable for children!
•In order to avoid any hearing disorder, it is recommended not to listen to the
acoustic noise level indications with a high volume for a long time!
•The in-built battery may be replaced by F.A.S.T. only. Do not replace or remove
the battery by yourself. If you need to dispose of the device, please dispose of it in
accordance with local regulations.
•This Manual needs to be read carefully and to be observed in full before the AquaM40
device is applied.
•Finding valid measuring results, making any conclusions, and deriving any measures
shall be subject to the operator’s sole responsibility. Any liability or guarantee for the
correctness of the results provided by the device is explicitly excluded, and there will
be no liability assumed for any damage resulting from the usage of the measuring
results received.
2 Intended use:
The AquaM40D Bluetooth Version is intended to transmit any leakage-borne noise signals to
the corresponding headphones via Bluetooth. The range of the central unit to the headphones
is limited to approximately 10 metres/11 yards. The noise level is indicated at the central
unit of the AquaM40D.
The AquaM40 is operated in combination with a connected sensor, extension, tripod, or pot
magnet subject to local circumstances. The frequency has to be adjusted appropriately taking
the particular material of the measured pipe section, the pressure, and the size of the leakage
into consideration.

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 3

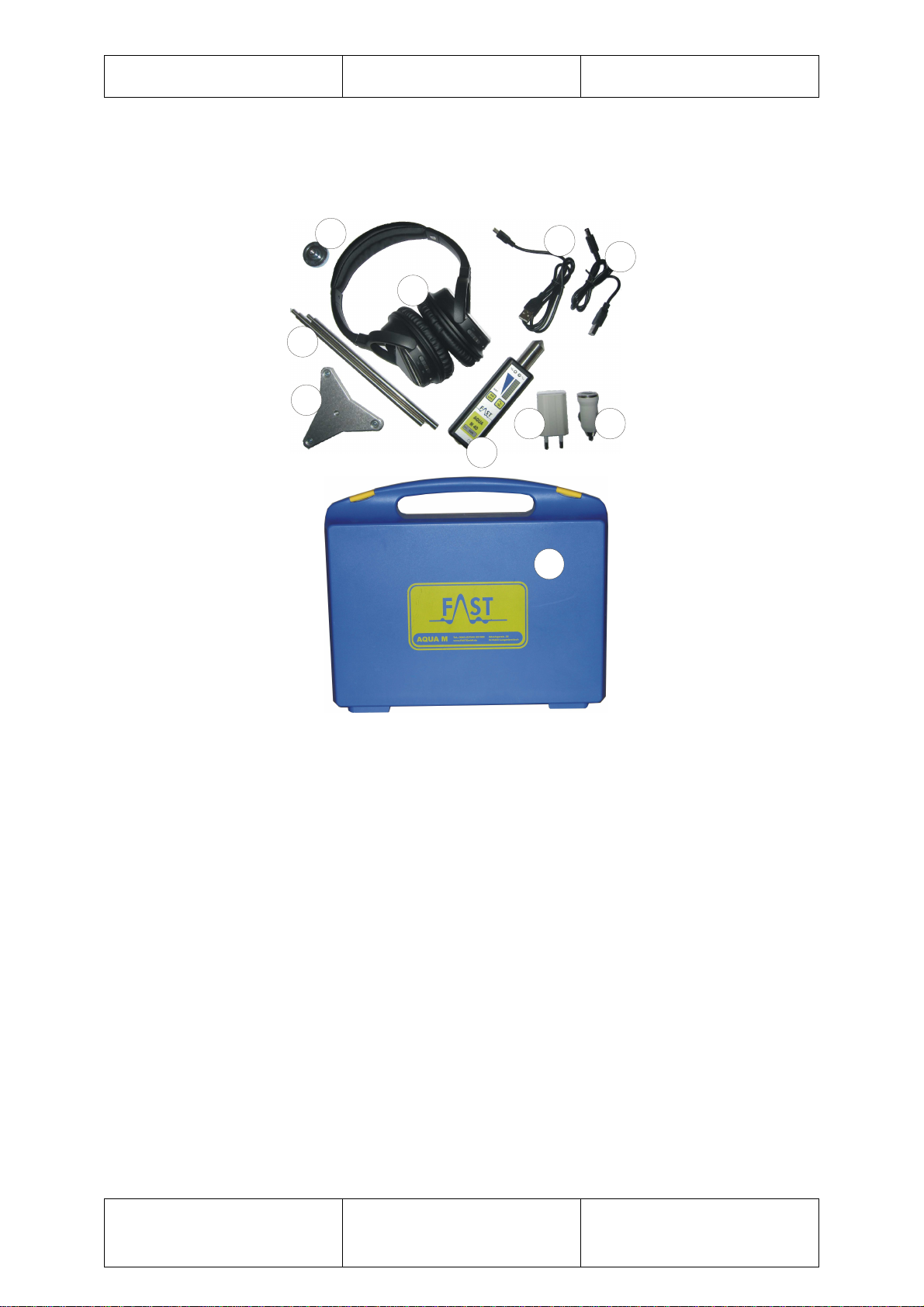

3 Scope of delivery and overview
1
2
3
4
56
78
9
10
1. Central unit with sensor
2. Bluetooth headphones
3. Tripod
4. Pot magnet
5. Charging unit 220 volt with USB connector
6. Charging unit 12 volt with USB connector
7. Battery charger leads USB for headphones
8. Battery charger leads USB for AquaM40 central unit
9. Extensions
10. Carrying case

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 4
4 Start-up and operation
Both the AquaM40 central unit and the Bluetooth headphones feature in-built batteries.
Before the equipment is operated, please make sure that the batteries have been fully charged
and the battery voltage is sufficient respectively.
4.1 Central unit
4.1.1 Switch on
For switching the Aqua M40 central unit on, press the On/Off button short until the battery-
LED begins to glow.
4.1.2 Switch off
Keep the ON/OFF key pressed for approximately 3 seconds. The level indicator will indicate
”Maximum value“. Now release the key.
4.1.3 Further functions
•The Mute function can be switched on by pressing the on/off button shortly during
operation
•The requested frequency is selected by briefly pressing the frequency push-button.
•Pressing the frequency push-button for a little longer switches on/off the in-built
lighting.

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 5
high frequency low frequency All frequencies lighting
The Noise Level LEDs indicate the intensity of the noise acquired. Please note that a leakage-
borne noise does not always or necessarily lead to a full-scale indication of the Level LEDs.
The Level LEDs are for guidance purposes only.
The Bluetooth LED indicates whether a Bluetooth connection has been established. If the
LED is on permanently, a connection has been established. If the LED flashes in intervals, the
device is in the “Pairing Mode”. If the LED is out, there is no Bluetooth connection and the
device will re-activate only the last active Bluetooth connection.
4.1.4 Voltage and charging
The Battery LED of the central unit indicates the voltage status of the accumulator. If this
LED glows permanently, the battery voltage is still sufficient. If the LED flashes slowly, the
accumulator should be recharged.
The central unit is charged through the charging unit [5] and [6] respectively and by applying
the charger leads [8] (as listed in Chapter 1 “Scope of delivery”). The recharging time of the
accumulator is around 2-3 hours. Afterwards the accumulator will be charged with a low
current to preserve the charging-status. As soon as the green LED glows the charger leads
should be removed.
4.2 Headphones
1.* Pause
2.* Previous
3.* Next
4.* Audio input
5. Power
6. Volume +
7. Volume –
8. USB connection
9.* Microphone
10. red/blue LED

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 6
* Push-button or input not relevant for measurement procedure
4.2.1 Switch on
Keep the Power push-button [5] pressed for about 4 seconds. The blue LED will flash, and the
headphones will be switched on.
4.2.2 Switch off
Keep the Power push-button [5] pressed for about 4 seconds. The red LED will flash, and the
headphones will be switched off.
4.2.3 Further functions
Tip VOLUME+ [6] if you wish to increase the volume. The equipment issues a tone as soon
as the maximum volume has been reached.
Tip VOLUME- [7] if you wish to reduce the volume. The equipment issues a tone as soon
as the minimum volume has been reached.
4.2.4 Voltage status / charging
As soon as the red LED on the headphones flashes, the headphones should be charged. As
soon as the equipment issues an audio warning, the headphones will switch off 3 to 5 minutes
later due to insufficient power.
The central unit is charged through the charging unit [5] and [6] respectively and by applying
the charger leads [7] (as listed in Chapter 1 “Scope of delivery”). As soon as the red LED
goes out, the device is fully charged.

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 7
5 Activating the Bluetooth connection
5.1 Initial connection
To bring the central unit into the pairing mode, push and hold the frequency button and
thereafter the On/Off button. Wait until the Bluetooth LED is flashing and then release the
two buttons. Now the old connections are deleted.
•The central unit is now in pairing mode
To bring headphone into pairing mode, push the “Power” key for 7 seconds until the red and
blue LED is flashing alternately.
•The headphone is now in pairing mode
During pairing process, hold the headphone and the central unit in direct proximity. When the
connection is established, the Bluetooth LED at the central unit will glow permanently and
the headphone will indicate the established connection with a double “Piep” and accordingly
the blue LED will flash in a 5 second intervall.
5.2 Re-activating a Bluetooth connection
Once a headphone and a central unit has been paired (coupled), the two devices will find each
other automatically after you switch them normal on.
Additional information for new Headphones Marmitek Boom Boom 560
The Bluetooth connection between the Aqua M40 and the Marmitek Boom Boom 560 needs
to be established as following. First switch on Aqua M40 and then press and hold the power
button on the headphone until the Bluetooth-LED on the Aqua M40 indicates connection
(LED is lighting). If you release the power button to early there will be a long beep tone
audible and the Aqua M40 will indicate Bluetooth connection but no sound is audible. If this
happens, switch the headphone off and repeat the process.
5.3 Delete a Bluetooth-connection
To delete a established connection, or to connect the central unit with a different headphone,
push and hold the frequency button and afterwards the On/Off button. Wait until the
Bluetooth LED flashes and then release both buttons. Now all connections are deleted.

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 8
6 Technical data
Headphone
Bluetooth frequency 2.402-2.480GHz
Bluetooth version V2.1+EDR
Supported Bluetooth profiles A2DP, AVRCP, HSP, HFP
Supported codecs SBC (subband codec)
Support Multiple Pair up to 8 devices
Range up to 10 metres/11 yards on open field
Battery Li-ion 3.7v
- battery capacity 320mAh
- charging voltage 5V
- charging time 3-4 hours max.
- operation time 8-10 hours
Audio input DC3.5 connection
Operation on the headphones and at the audio
Source: Volume+, Volume-, Power
Weight 210 grams
Operating temperature -10°C ~ +55°C
Storage -20°C ~ +60°C
Loudspeaker
Loudspeaker diameter 40 mm
Impedance 32 ohm
Sensitivity 114±3dB S.P.L. with 1 KHz
Output poqwer (RMS) 20mW
Output power (PMPO) 50mW
Signal-to-noise ratio ≥82dB
Frequency response 20Hz-20,000Hz
AquaM40 central unit
Display level
Bluetooth connection
battery status
selected frequency
external power supply
Battery rechargeable
Radio transmission Bluetooth
Resolution 0 - 10 noise levels
Lighting LED
Dimensions 114 x 35 x 25 mm
Weight 170 grams
Technical data may be subject to change without prior notification.

Operating Manual Aqua M40 F.A.S.T GmbH
A40 2014
F.A.S.T. GmbH
Bössingerstrasse 36
D- 74243 Langenbrettach
Page 9
7 Relevant information on environmental
protection for customers located in the
European Union
European Guideline 2002/96/EC claims that any technical equipment which is marked with
this symbol either directly on the equipment or on its package must not be disposed of with
unsorted municipal waste. The symbol indicates that the product should be disposed
of separated from regular household waste. It is upon your responsibility to dispose
of this device and any other electrical and electronic equipment at the appropriate
and authorized waste collecting stations. Disposing of and recycling such equipment
in a proper way will avoid potentially negative consequences both for the
environment and for human health. If you require any further information on how
to dispose of waste electronic equipment, please contact the local authorities, the
municipal waste disposal services, or your dealer.
