Feather FOLD User manual

User ManUal
EN

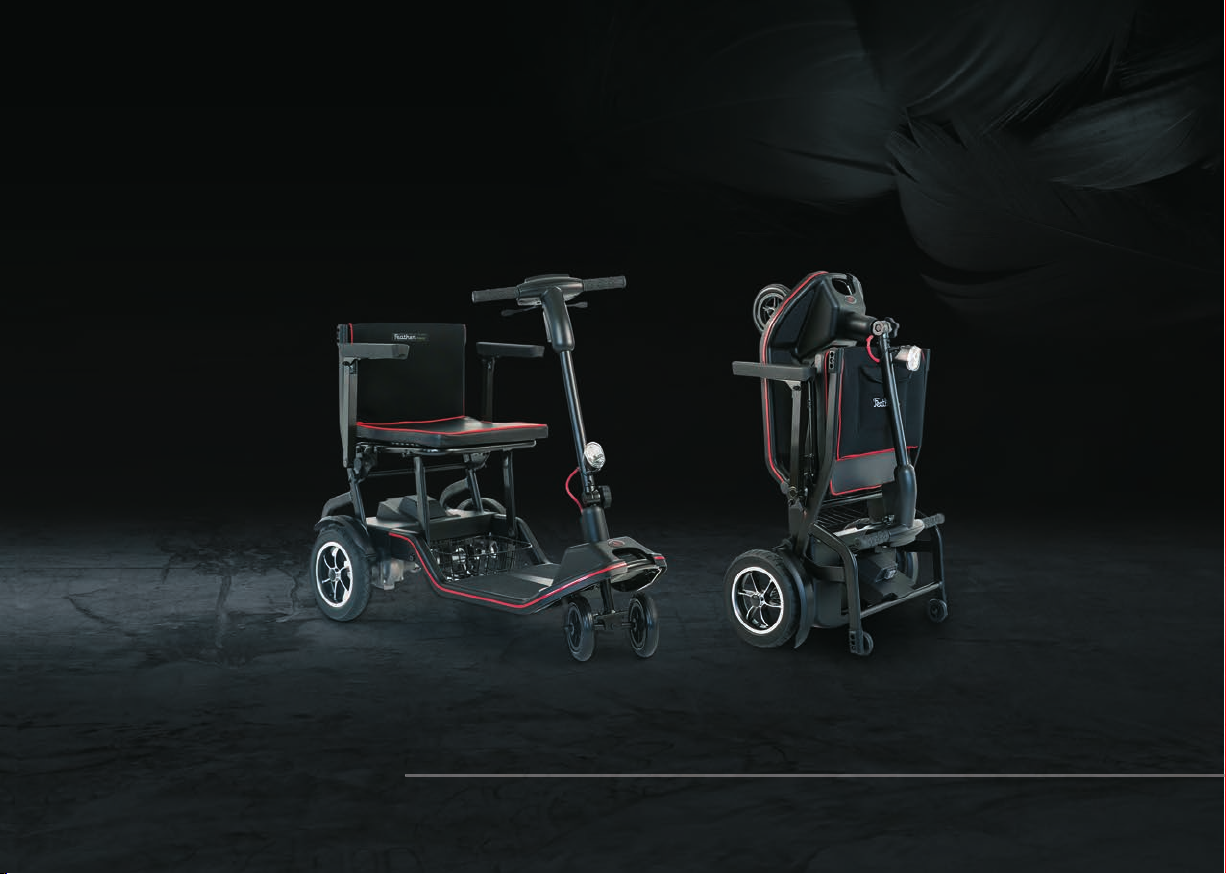

The lightest mobility range ever. . .

Learn more about your Feather Fold Scooter today...

Scooterpac Feather Fold | User Manual 4
Contents
Contents ......................................................................................................4
1Before Using ....................................................................................5
2Welcome...........................................................................................6
3Legal....................................................................................................7
4Safety Guidelines ..........................................................................8
5Pre-Ride Safety Check.............................................................. 10
6Specification................................................................................. 11
7Controls........................................................................................... 12
8Operating Your Scooter ......................................................... 14
8.1 Starting ................................................................................14
8.2 Steering ...............................................................................15
8.3 Driving on inclines.........................................................16
8.4 Folding the Scooter ......................................................17
9Fitting the Battery...................................................................... 18
9.1 Inserting the Battery Box............................................18
9.2 Removing the Battery Box.........................................18
10 Freewheel Lever.........................................................................19
11 Batteries and Charging ........................................................... 21
11.1 Charging Instructions...................................................21
11.2 Battery Warnings ............................................................22
11.3 Charging your Batteries ..............................................24
12 EMI / RFI ..........................................................................................25
13 Daily Checking............................................................................. 26
13.1 Regular Checking Record...........................................27
13.2 Tires........................................................................................27
14 Maintenance ................................................................................28
15 Basic Troubleshooting ............................................................29
16 Flash Codes...................................................................................30
17 Warranty .........................................................................................32
18 Servicing.........................................................................................33
19 Notes ................................................................................................ 35

Scooterpac Feather Fold | User Manual 5
1B ef ore Using
Please read this manual carefully before using the item and ensure all parts are in good condition.
•Please drive carefully and consciously obey the Highway Code to ensure the safety of you and others.
•Do not disassemble the battery, motor, or controller.
•Please purchase the original parts from an authorised Scooterpac Dealer. Failing to do so will invalidate the
warranty. The warranty will be invalidated if the product is modified or is not using genuine parts.
•For safety reasons, please do not allow the mobility scooter to be used by children, pregnant women, or other
people who are not suitable to use mobility scooters.
Please fully charge your scooter,
at least once a week to maintain
battery life & maximise performance.
Even when the scooter isn’t in use.

Scooterpac Feather Fold | User Manual 6
2Welcome
Congratulations on purchasing your Scooterpac
Feather Fold, the folding marvel. With regular
maintenance and proper operation your Feather Fold will
give you many years and countless miles of rewarding
experiences. This manual contains the information that
you and your authorised Scooterpac dealer will need to
keep your Feather Fold in good working order.
If you have any questions, please contact the Scooterpac
dealer that supplied your Feather Fold and they will be
happy to help you.
This Feather Fold was originally supplied by:
Dealer Name ________________________
Address 1 ________________________
Address 2 ________________________
Town/City ________________________
Postcode ________________________
Phone Number ________________________
E-mail Address ________________________
Website ________________________

Scooterpac Feather Fold | User Manual 7
3Legal
The Scooterpac Feather Fold is designed to be operated by a single person, in accordance with the legal requirements for
operating a Class 2 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle outside of these limitations
may invalidate your warranty.

Scooterpac Feather Fold | User Manual 8
4Saf ety Guidelines
An authorised Scooterpac Dealer or qualified technician must perform the initial setup of this
scooter and must perform all the procedures in this manual. The symbols below are used
throughout this owner's manual and on the scooter to identify warnings and important information.
It is very important for you to read them and understand them completely.
WARNING! Indicates a hazardous situation that could result in serious injury or death if it is not avoided.
CAUTION! Indicates a hazardous situation that could result in minor or slight injury if it is not avoided.
IMPORTANT! Indicates a hazardous situation that could result in damage to property if it is not avoided.
USEFUL TIP! Recommendations and information for efficient, trouble-free use. Your mobility scooter is a state-of-the-art
life-enhancement device designed to increase mobility. We provide an extensive variety of products to best fit the
individual needs of the scooter user.
Please be aware that the final selection and purchasing decision regarding the type of mobility scooter to be used is the
responsibility of the scooter user who is capable of making such a decision and his/her healthcare professional (e.g., doctor,
physical therapist, etc.).

Scooterpac Feather Fold | User Manual 9
The contents of this manual are based on the expectation that a mobility scooter expert has properly fitted the scooter to
the user and has assisted the prescribing healthcare professional and/or the authorised provider in the instruction process
for the use of the product.
There are certain situations, including some medical conditions, where the scooter user will need to practice operating the
scooter in the presence of a trained attendant. A trained attendant can be defined as a family member or care professional
specially trained in assisting a scooter user in various daily living activities.
As you begin using your mobility scooter during daily activities you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you manoeuvre through
doorways, on and off elevators, up and down ramps, and over moderate terrain.
Additional general information can be found on the supplemental information sheets and booklets included in your
Scooterpac Welcome Pack. Please fully read and review the information and keep it readily available for future reference.

Scooterpac Feather Fold | User Manual 10
5Pre-Ride Safety Check
Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check before each use
to make sure your scooter operates smoothly and safely.
Perform the following inspections before using your scooter:
•Check the condition of the tires. Make sure they are not damaged or excessively worn.
•Check all electrical connections. Make sure they are tight and not corroded.
•Check all harness connections. Make sure they are secured properly.
•Check the battery condition meter to ensure the batteries are fully charged.
•Ensure the manual freewheel lever is in drive mode before sitting on the mobility scooter.
If you discover a problem, contact your authorised Scooterpac Dealer for assistance.
WARNING! Never exceed the maximum permissible load – see 3.0 Specifications and never use the scooter to transport
more than one person.
WARNING! Never drive the scooter under the influence of medication or alcohol.
WARNING! Never attempt to get onto or off your scooter without first removing the key from the key switch. This will
prevent the scooter from moving if accidental throttle control lever contact is made.
WARNING! Never drive the scooter with the tiller lock in the locked position.

Scooterpac Feather Fold | User Manual 11
6Specification
Weight Capacity
120kg / 19 stone
Overall Size (H x L x W)
914mm / 1020mm / 559mm (36” / 40” / 22”)
Folded Flat Size (H x L x W)
457mm / 953mm / 559mm (18” / 37.5” / 22”)
Seat Width
380mm / 15”
Seat Depth
356 / 14”
Front Wheel
152mm / 6”
Rear Wheel
254mm / 10”
Max Speed
4 mph
Grade Ability
<8°
Static Ability
>6°
Dynamic Stability
>6°
Spanning Ability
<60°
Maximum Range
7.5 miles
Turning Radius (Min.)
1554mm / 61”
Ground Clearance
60mm / 2.4”
Weight (excluding battery)
16.8kg
Brake System
Electromagnetic brake
Driving System
Rear wheel (differential) drive
Controller
PG
Battery
25.2V / 10Ah (Lithium
Motor Power (VA)
120W Brushless Motor
Charger
Automatic protective type charger (29.4V 2A)

Scooterpac Feather Fold | User Manual 12
7Controls
WARNING! Never operate the mobility scooter unless the tiller is raised, the teeth are fully engaged, and the tiller
adjustment bolt fully tightened and securely positioned.
Indicates the voltage of the batteries:
•Green –batteries are fully charged.
•Yellow –batteries are half full.
•Red –batteries need charging.
•Beeping sound continues –batteries need to charge. Please recharge the batteries.
Key Switch:
This turns the mobility scooter’s power on and off.
1. Insert the key into the key switch.
2. Turn the key clockwise to turn on the power. The battery indicator will light up to indicate that the power is on.
3. Turn the key counterclockwise to turn off the power. The battery indicator light will turn off to indicate the power is
off.
Horn Button:
This button activates a warning horn. Your mobility scooter must be turned on for the horn to be operational.
Do not hesitate to use the warning horn to prevent an accident or injury.

Scooterpac Feather Fold | User Manual 13
Throttle Control Lever – Forward/Back:
This lever allows you to control the forward speed and the reverse speed up to the maximum speed that you pre-set with
the speed adjustment dial. Place your right hand on the right-hand tiller handle and your left hand on the
left hand tiller handle.
To move forwards, use either of the following:
•Use your left thumb to push the left side of the throttle control lever.
•Use your right-hand fingers to pull back on the right side of the throttle control lever.
To move backwards, use either of the following:
•Use your right thumb to push the right side of the throttle control lever.
•Use your left-hand fingers to pull back on the left side of the throttle control lever.
Release the lever and allow your scooter to come to a complete stop before pushing the other side of the lever to move in
reverse. When the scooter is moving in reverse, the reverse beeper will sound. When the throttle is completely released, it
automatically returns to the centre “stop” position and engages your scooter’s brakes.
Speed Adjustment Dial
This dial allows you to preselect and limit the top speed in the range of 0mph – 4mph:
•The image of the snail represents the slowest speed setting.
•The image of the hare represents the fastest speed setting.

Scooterpac Feather Fold | User Manual 14
8Operating Your Scooter
8.1 Starting
1. Make sure you are seated safely and comfortably.
2. Turn the speed adjustment dial fully counterclockwise to the slowest setting.
3. Insert the key into the key switch.
4. Turn the key clockwise to the ‘’ON’’ position.
5. Place your hands on the hand grips:
i. Pull-on the left-hand grip to steer your scooter to the left.
ii. Pull-on the right-hand grip to steer your scooter to the right.
6. Move the tiller to the centre position to drive straight ahead.
7. Slowly engage the throttle control lever to gently accelerate your scooter forward by either:
i. Use your left thumb to push the left side of the throttle control lever forward.
ii. Use your right-hand fingers to pull back on the right side of the throttle control lever.
8. To stop, release the throttle control lever to allow your scooter to stop gradually.
The electronic brakes will automatically engage when your scooter comes to a stop.

Scooterpac Feather Fold | User Manual 15
8.2 Steering
1. Place both hands on the handgrips of the tiller
2. Turn the tiller to the right to travel right – never turn at high speeds as this will result in loss of control.
3. Turn the tiller to the left to turn left – never turn at high speeds as this will result in loss of control.
4. Make sure to maintain sufficient clearance when turning your scooter so that the rear wheels will be clear of any
obstacles.
5. Show even greater caution when steering in reverse.
WARNING! Turning your scooter too sharply at high speed will cause loss of control and balance and will result in
the scooter tipping over resulting in serious injury or death.

Scooterpac Feather Fold | User Manual 16
8.3 Driving on inclines
•When driving your scooter, never descend or climb a gradient that is greater than recommended – see 6.0
Specifications. Failure to do so could result in serious injury or death.
•When driving up a ramp, curb, or incline - lean forward to move the centre of gravity of the scooter forward for
maximum stability and safety.
•Drive with extreme caution when attempting to drive up or down any incline, access ramp, etc, always drive at a
slow speed.
•Always drive straight up or straight down an incline, ramp, slope, etc.
•Never drive across (traverse) an incline, ramp, etc., in any direction –Driving across an incline, ramp, etc. could
result in turning the scooter over resulting in serious injury or death.
•Try to keep your scooter moving when climbing or descending an incline. If you must stop, restart, and accelerate
slowly and carefully.

Scooterpac Feather Fold | User Manual 17
8.4 Folding the Scooter
To fold the scooter, pull out the fold knob as shown below, [Fig 8.4.1] at the same time gently lower the seat back down
into its folded position. Now with the seat folded, loosen off the tiller adjuster knob and gently lower the tiller into the
folded position. [Fig 8.4.2] The tiller handles should be able to rest between the chassis as shown below. Re-tighten the
tiller knob to hold the tiller into position. This will then allow you to pull the scooter on its rear tip wheels as shown in 6.4
Storage and Travel.
CAUTION! Lifting weight beyond your physical capability may result in physical injury. Ask for assistance when
necessary while disassembling or assembling your scooter.
Fig 8.4.2
Fig 8.4.1

Scooterpac Feather Fold | User Manual 18
9Fitting the Battery
9.1 Inserting the Battery Box
To insert the battery box, simply place it into position and push forwards as shown below, [Fig 9.1.0] gently lowering into
position. Make sure the rubber protector flap remains on top of the battery box.
9.2 Removing the Battery Box
To remove the battery box, push the box forwards against the sprung connectors and then lift to release the box.
Fig 9.1.1

Scooterpac Feather Fold | User Manual 19
10 Freewheel Lever
The Freewheel lever on the scooter is located on the rear section of the scooter. Before driving the scooter needs to be put
into the drive position.
The two positions are:
1. Drive position - is indicated by ‘Closed’ - pull the lever downwards for this position. [Fig 10.0.1]
2. Freewheel position - is indicated by ‘Open’ – push the lever upwards for this position. {Fig 10.0.1]
Fig 10.0.1

Scooterpac Feather Fold | User Manual 20
WARNING! Before placing your scooter into or taking it out of freewheel mode, remove the key from the key
switch. Never sit on the scooter when it is in freewheel mode. Never put your scooter in freewheel mode on any
incline.
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
WARNING! Disengage the drive motors only on a level surface.
WARNING! Ensure the key is removed from the key switch.
WARNING! Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on a scooter to do
this.
WARNING! After you have finished pushing your scooter, always return it to the drive mode to lock the brakes.
