Feig Electronic OBID classic-pro ID CPR.03.20-CD User manual

MANUAL
final
confidential
2008-09-23
H60100-5e-ID-B.doc
OBI
D
®
classic-
p
ro
ID CPR.03.20-CD
Multitag Reader Data-/Clock and RS232-TTL
up from firmware version 02.00.00

OBID® classic-pro Manual ID CPR.03.20-CD
FEIG ELECTRONIC GmbH Page 2 of 40 H60100-5e-ID-B.doc
Note
©Copyright 2007 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg (Germany)
Tel.: [phone]
http://www.feig.de
With the edition of this manual, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®is a registered trademark of FEIG ELECTRONIC GmbH.
I-CODE®and mifare®is a registered trademark of NXP (formerly Philips Electronics N.V.)
my-d®is a registered trademark of Infineon Technologies AG
Tag-itTM is a registered trademark of Texas Instruments Incorporated
Microsoft® and Windows® are registered trademarks of the Microsoft Corporation.
General information's regarding this manual
•If bits within one byte are filled with '-', these bit spaces are reserved for future extensions or for internal
testing- and manufacturing-functions. These bit spaces must not be changed, as this may cause faulty
operation of the Reader.
•The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.

OBID® classic-pro Manual ID CPR.03.20-CD
FEIG ELECTRONIC GmbH Page 3 of 40 H60100-5e-ID-B.doc
Content
1. Introduction 5
1.1. Optional Accessory.............................................................................................................5
2. Technical Specifications 6
2.1. Dimensions..........................................................................................................................7
2.2. Applicable Standards..........................................................................................................8
2.3. Approval...............................................................................................................................8
2.4. UID Format...........................................................................................................................9
3. Installation 10
3.1. Mounting............................................................................................................................10

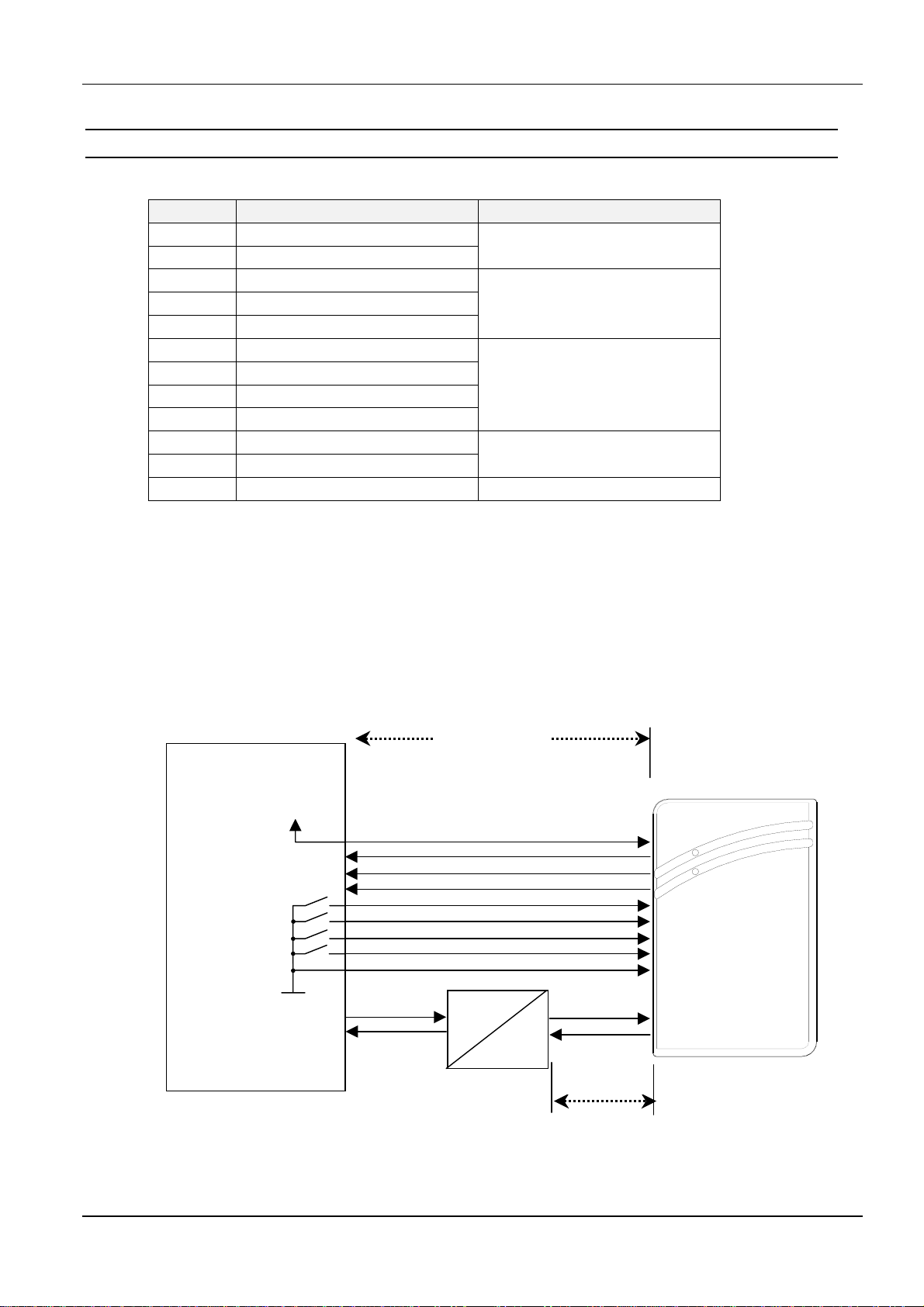

3.2. Connection.........................................................................................................................11
3.3. Configuration Procedure..................................................................................................12
3.3.1. Default Configuration...................................................................................................12
3.3.2. Reloading the configuration.........................................................................................12
4. Normal Operating Mode Fehler! Textmarke nicht definiert.
4.1. Digital Inputs......................................................................................................................14
4.2. Wiegand Interface .............................................................................................................15
4.2.1. UID...............................................................................................................................16
4.2.2. DATA-BLOCK..............................................................................................................16
4.3. Magstripe Track II Interface..............................................................................................17
4.3.1. UID...............................................................................................................................19
4.3.2. DATA-BLOCK..............................................................................................................19
4.4. Asynchronous Interface: RS232-TTL ..............................................................................20
4.4.1. UID...............................................................................................................................21
4.4.2. DATA-BLOCK..............................................................................................................21

OBID® classic-pro Manual ID CPR.03.20-CD
FEIG ELECTRONIC GmbH Page 4 of 40 H60100-5e-ID-B.doc
5. Reader Configuration - ConfigCard 22
5.1. Configuration Parameter (ConfigData)............................................................................22
5.2. ConfigCard - Data Structure.............................................................................................26
5.2.1. CRC16 Calculation Algorithm......................................................................................27
6. FEConfCardTool 28
6.1. Installation of FEConfiCardTool ......................................................................................28
6.2. Starting FEConfigCardTool..............................................................................................29
6.3. FEConfigCardTool Functions ..........................................................................................30
7. Firmware update 32
7.1. Required components ......................................................................................................32
7.2. Programming.....................................................................................................................32
7.2.1. Starting and setting up HyperTerminal........................................................................33
7.2.2. Reader synchronisation Î'PPPPPPPP...'..................................................................34
7.2.3. Programming the firmware Î'FLASHALL' command ................................................35
7.2.4. Verifying the firmware Î'VERIFY' command.............................................................37
7.2.5. Exiting the Bootloader Î'RESET' command..............................................................37
ANNEX 38
ANNEX A: Revision History of Documentation......................................................................38
ANNEX B: Index of Status Bytes .............................................................................................39
ANNEX C: Memory Organization of Supported Transponders.............................................40

OBID® classic-pro Manual ID CPR.03.20-CD
FEIG ELECTRONIC GmbH Page 5 of 40 H60100-5e-ID-B.doc
1. Introduction
The Multitag Reader ID CPR.03.20-CD is designed for access control and time-recording systems.
Via the configurable data-/clock interface it can connected easily with usual access control and
time-recording controllers. Also available for data output is a RS232-TTL interface.
The data-/clock interface can be configured like Wiegand- or Magnetic Stripe format (ISO7811-2,
5 Bit).
The ID CPR.03.20-CD can read the serial-no. (UID) of the most common 13,56 MHz Transponder
according ISO 14443 type A, ISO 14443 type B and ISO 15693, but only if the UID is not random
generated by the Transponder.
Additional the ID CPR.03.20-CD can read data blocks from mifare 1 and 4 k, mifare ultra light,
my-d proximity (SLE55xx) and the most of ISO 15693 Transponder.

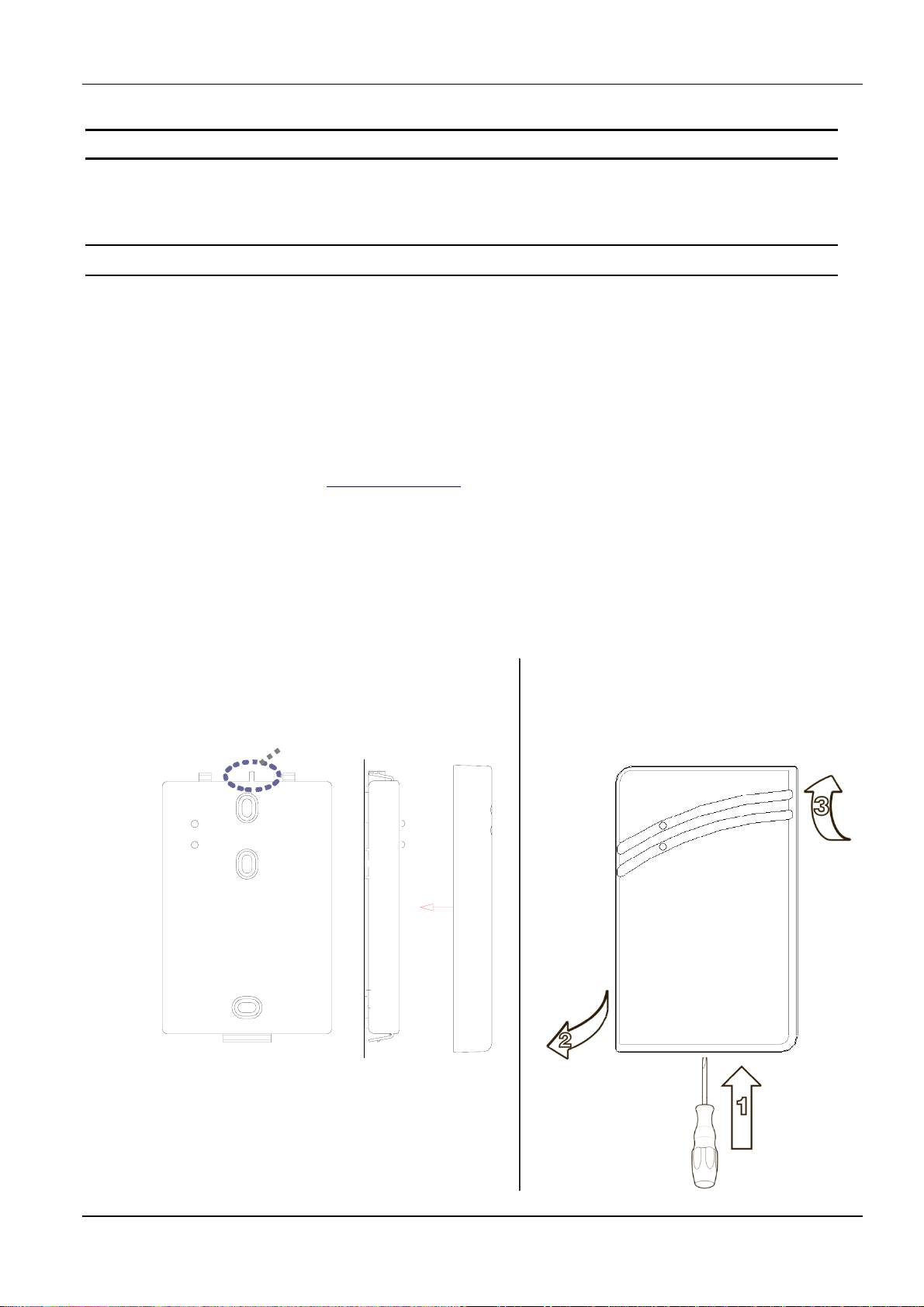

The ID CPR.03.20-CD is designed to be wall-mounted onto flat and non-conductive walls with or
without a flush-mounting box.
The configuration can be changed while installation with a ConfigCard Transponder. This Config-
Card can be prepared comfortable before Installation with the separate windows software
(FEConfigCardTool) which is a part of the optional available ID CPR.03 Configuration Kit.
1.1. Optional Accessory
Order-No Description
2744.000.00 ID CPR.03 Configuration Kit •FEConfigTool
Windows Software to configure the
ConfigCard
•10 ConfigCards
2745.000.00 ID CPR.03 ConfigCards •10 ConfigCards
2167.000.00 ID CPR.02.VP/AB-AT Vicinity/Proximity
Desktop Reader (RS232) •Reader to read and write ConfigCards
1962.000.00 RS232-TTL converter •Required for firmware update
