1. Machine Introduction & Specification:
illustration on the main parts of the roaster
Front Side
①Control Pannel
②Drum
③Ingredient tray
④Glass Door
Control Pannel
⑤Buzzer
⑥RPM Display
⑦RPM Adjustment
⑧Temperature Setting
⑨Exhausted
⑩Power
⑪Time Setting
⑫Roller
⑬Heating
Right Side Inside the Drum
⑭Temperature Probe

FELI TECHNOLOGY CO., LTD.
2
NTM-610 Manual Instructions 20221122
Back Side
○
15 Material Checking Hole
○
16 Air Exhaust Device
○
17 General Power Cord
○
18 Over-current Protection
Device
○
19 Cooling Fan of the Control
Pannel
○
20 Material checking stick
☛Specification：
1. Voltage：220V Single Phase
2. Machine Dimensions：L85 xW69 xH64 cm
3. Weight：87 Kg
4. Material：Stainless Steel
5. Electrothermal Device：Far Infrared Quartz Heating Tube
(1000W per tube, Total Power: 3000W)
6. Drum Capacity：50 L
(The recommended roasting quantity is under half a drum about 25 L.)
7. Rotating Speed of the Drum：0～100RPM (rotation speed per minute)
8. Temperature Range：0℃～300℃
9. Roasting Time Setting：seconds/ minutes/ hours
10. Stainless Steel Stand Frame (Optional)
11. Made in Taiwan

FELI TECHNOLOGY CO., LTD.
3
NTM-610 Manual Instructions 20221122
2. Ready to Start
2-1 Assemble the Air Exhaust Device
[Step 1]
Unscrew the three wing screws
counterclockwise.
[Step 2]
With the outlet of the air exhaust
device facing downwards, align the
device and screw on it clockwise with
the three wing screws.
plug in the power cord.

FELI TECHNOLOGY CO., LTD.
4
NTM-610 Manual Instructions 20221122
Single phase
220V
2-2 Main Power Installation
Connect the machine power cord
to no-fuse switch.
2-3 Main Power Operation
[Step 1]
First, make sure all the switches are
off. Then, push up the over-current
protection switch located on the
back of the roaster.
(This over-current protection device
is specific to high current.)
Push up the
over-current
protection switch
Main power port
Over-current safety
protection device
for high current

FELI TECHNOLOGY CO., LTD.
5
NTM-610 Manual Instructions 20221122
[Step 2]

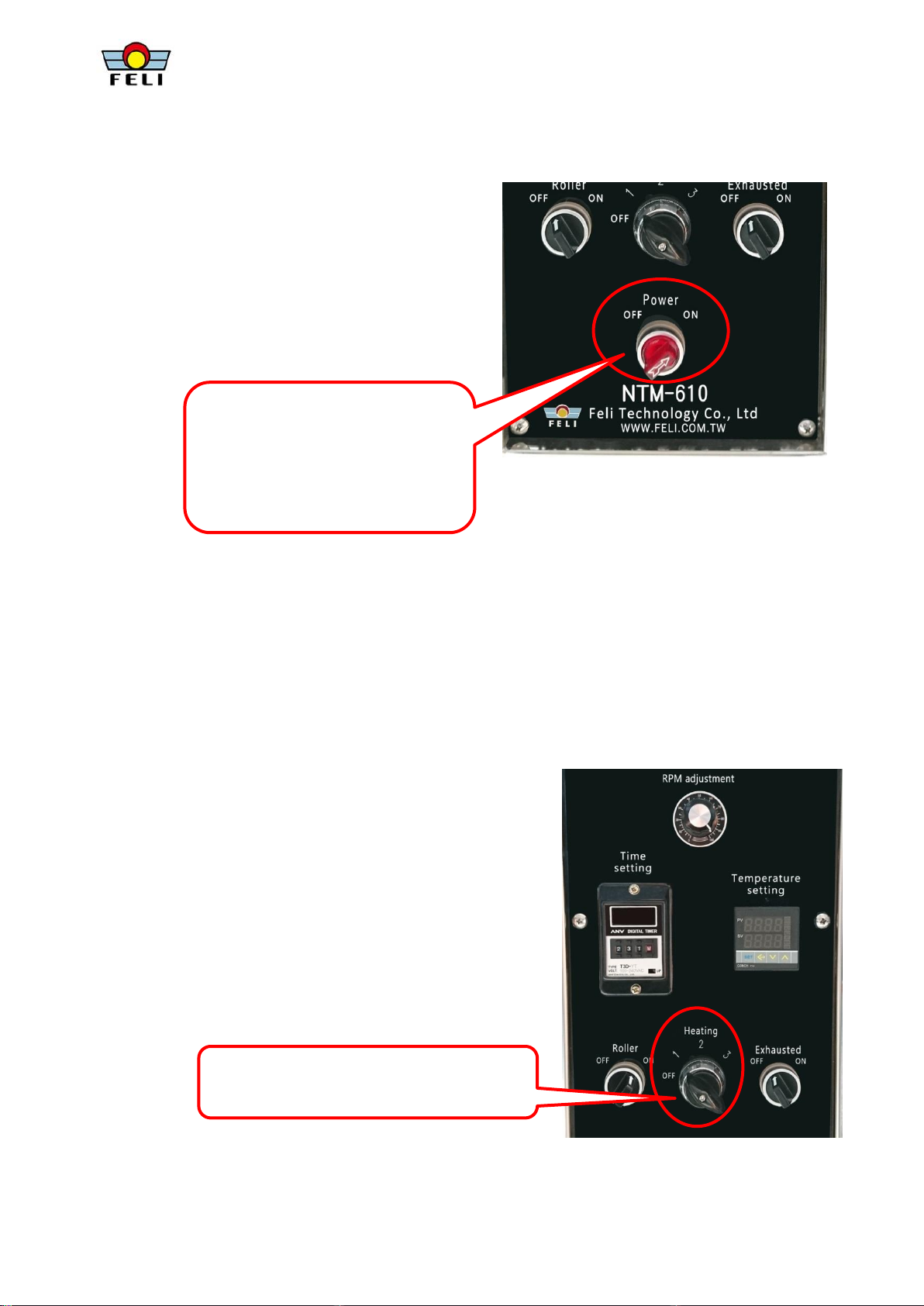

Turn on the Main Power
located at the Operation
Control Panel of the Roaster.
★NOTE：It is important to operate the Main Power in order.
2-4 Safety Protection Device
Besides the over-current
protection device mentioned in
2-3, there are 2 small
over-current protection buttons
that are specific to low current,
such as fan, relay and etc..
Turn on the
main power.
Overcurrent safety
protection device for
low current

FELI TECHNOLOGY CO., LTD.
6
NTM-610 Manual Instructions 20221122
3. Operation Procedure of the Roaster
3-1 Roaster Temperature Set Up
Set up the Temperature of the Roaster
(between 0 to 300℃)

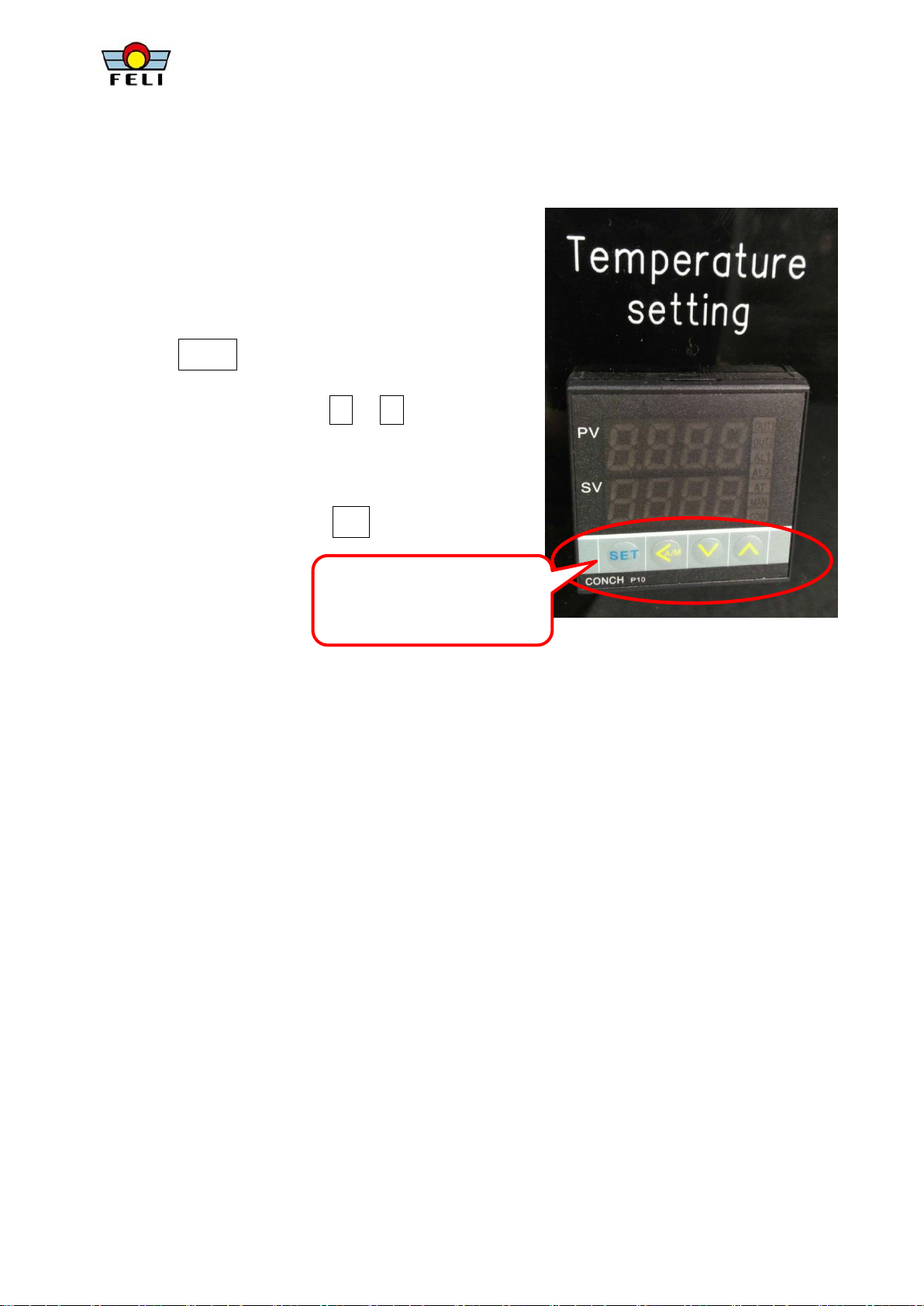

Press on <A/M to get the digital number for
adjusting, then press onor to make the
number bigger or smaller. After having the
right numbers, press on SET to confirm the
temperature set up.
Set up the
temperature of the
Roaster

FELI TECHNOLOGY CO., LTD.
7
NTM-610 Manual Instructions 20221122
3-1-1 Temperature Setting
General Temperature Setting
“AL 1 “Have to be zero.
(Start the timer when the
temperature is over the
general setting)
“At “Have to be ”no“

FELI TECHNOLOGY CO., LTD.
8
NTM-610 Manual Instructions 20221122
3-2 Heating Time Set Up
Set up the roasting time. (It refers to
the roasting time starting from the
moment when the temperature in the
roaster reaches the set up
temperature and the roaster
maintains constantly the
temperature.)
3-3 Turn On the Drum Operation
Setting the roasting time for
the machine to roast with a
constant temperature.
Turn on the drum.
★Note: It is normal that the
temperature will rise a few degrees
when it stops heating at the set
temperature.

FELI TECHNOLOGY CO., LTD.
9
NTM-610 Manual Instructions 20221122
3-4 Set Up the Rotation Speed of the Drum
The rotation speed of the Drum is
0~100RPM(rotation speed per minute).
Users can adjust the rotation speed
according to their needs.
3-5 Set Up the Numbers of the Heating Tubes
The roaster is equipped with 3 heating tubes.
The more heating tubes being turned on, the
faster the heating speed will be.
★Note: The power of each heating tube is
1kW<1000W>. The power of turning on all 3
heating tubes is 3kW<1000W>.
Set up the numbers of
the heating tubes.
Set up the rotation
speed of the drum.

FELI TECHNOLOGY CO., LTD.
10
NTM-610 Manual Instructions 20221122
3-6 Use of the material checking stick
During the roasting process, the
materials can be drawn from the
⑮material checking hole through
the provided ○
20 material checking
stick at any time to check the
degree of roasting.
3-7 Notify at the Completion of the Roasting
The Buzzer will notify while the roasting
time is up, under the constant
temperature. Pay attention: the heating
system is still on.
Roasting completion

FELI TECHNOLOGY CO., LTD.
11
NTM-610 Manual Instructions 20221122
3-8 Restart the General Power located on the Panel
Once the buzzer rings, turn off the
General Power to release the Buzzer.
Then turn on again the General
Power to continue the roasting.
3-9 Turn Off the Heating Tubes
After the completion of the roasting, turn off
the Heating Tubes (switch OFF).
Turn off the power to
release the buzzer.
Then, turn it on again to
restart the roaster.
Turn off the heating tubes.

FELI TECHNOLOGY CO., LTD.
12
NTM-610 Manual Instructions 20221122
3-10 Air Exhaust
(to speed up exhausting the hot air from the interior of the roaster)
[Step 1]
Turn on the Air Exhaust.
The heating tubes should be off.
[Step 2]
Rotate the exhaust damper backward
(couterclockwise) to exhaust air.
feeling hot air exhausting from the
Exhaust Outlet.
Turn on the air exhaust.
Exhaust Outlet

FELI TECHNOLOGY CO., LTD.
13
NTM-610 Manual Instructions 20221122
3-11 Completion of Air Exhaust
Users decide when to turn off the air exhaust by feeling the heat level of
the air exhausting from the Roaster.
☞Step 1: Rotate the exhaust damper forward(clockwise) to the OFF
position.
Step 2: Turn off the Exhaust on the Operation Control Panel.
Step 1:
Rotate the exhaust damper
to the OFF position
Step 2:
Turn off the Exhaust

FELI TECHNOLOGY CO., LTD.
14
NTM-610 Manual Instructions 20221122
3-12 Turn Off the Drum Rotation
3-13 Turn off the General Power
After the completion of the
roasting and after exhausting
the hot air, turn off the
General Power.
Turn off the rotation.
Turn off the
General Power

FELI TECHNOLOGY CO., LTD.
15
NTM-610 Manual Instructions 20221122
4. Operation on Unloading Roasted Ingredients
4-1 Open the Glass Doors of the Roaster
After exhausting air or after the roaster cools
down, following the roasting completion, open
the glass doors to unload roasted ingredients.
(The doors are hot. Be careful while opening
the doors. Prepare a pair of “thick gloves”to
do the operations.)
Caution!
The doors
are hot.

FELI TECHNOLOGY CO., LTD.
16
NTM-610 Manual Instructions 20221122
4-2 Open the Drum
[Please wear gloves to open the Drum]

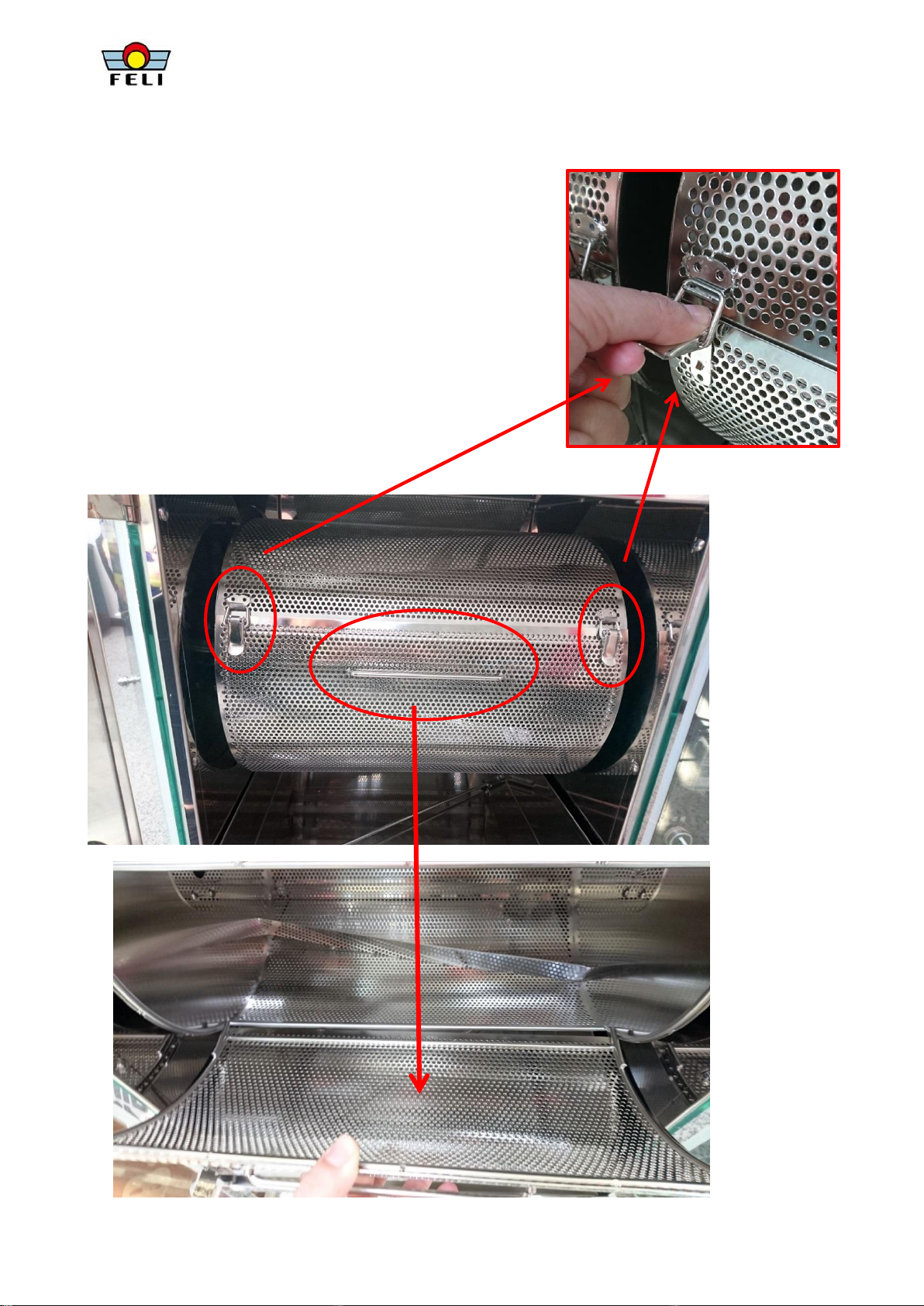

Open the latches to remove the cover.

FELI TECHNOLOGY CO., LTD.
17
NTM-610 Manual Instructions 20221122
4-3 Rotate the Drum to Unload Ingredients
[Please wear gloves to unload ingredients]

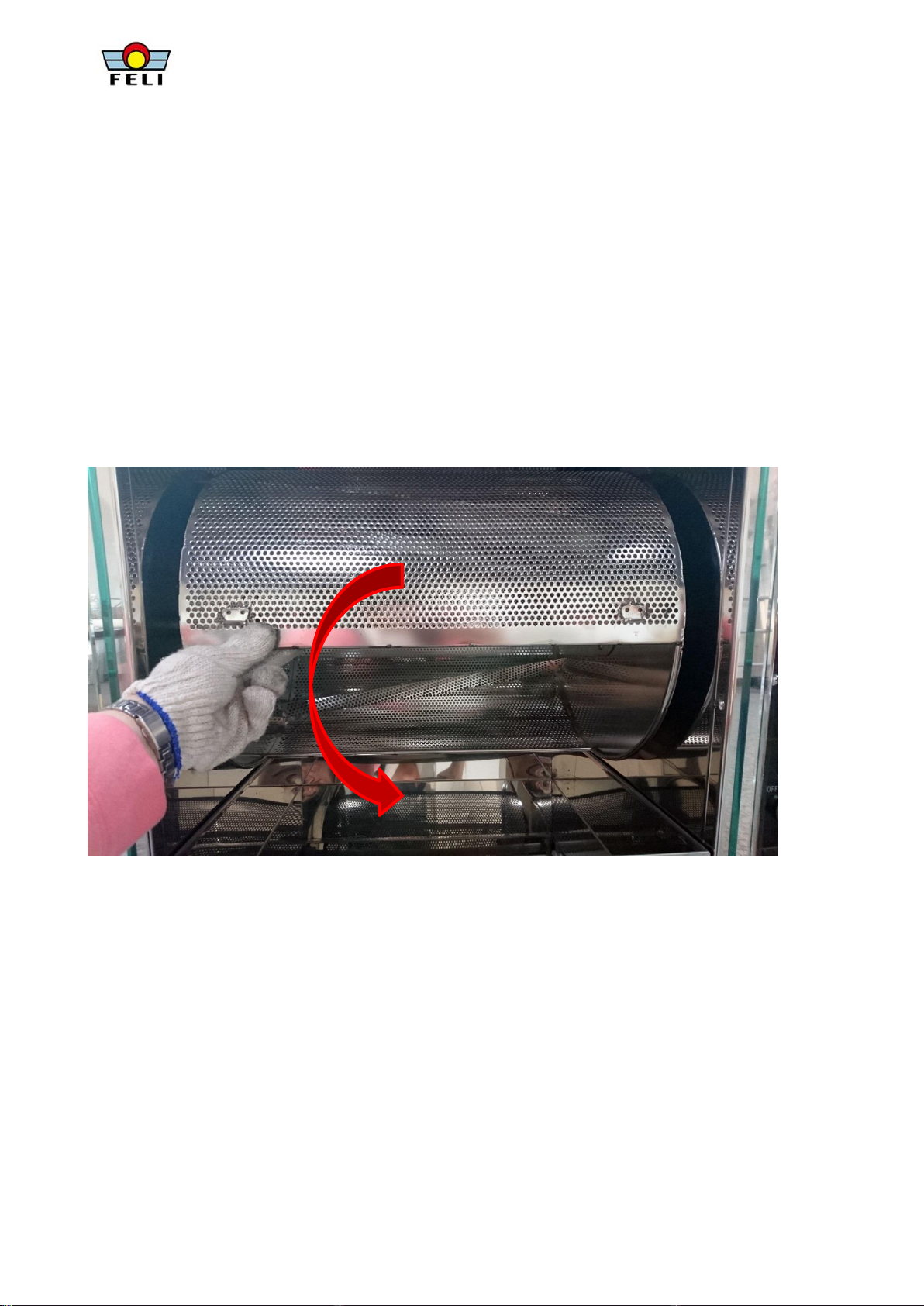

Rotate slowly the Drum to have the opening faced down. Unload the
roasted ingredients into the tray located at the bottom of the roaster.
(It is recommended to turn the Drum back and forth with the Drum
opening facing down to unload all the ingredients stuck by the edge of
the roaster.) After unloading all ingredients from the Drum, reinstall the
cover of the Drum.
4-4 Completion of Unloading Ingredients
[Please wear gloves for the operation]
Take out the tray contained with roasted ingredients located at the
bottom of the roaster. Pour the ingredients into prepared containers and
put the tray back into the roaster. Load into the Drum with other raw
ingredients for the next round of roasting.
