Quantum® 600 Lightstick Instruction Manual
1.800.615.8350 / feniex.com
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the
United States and other countries preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in the Feniex products described in this Price List may not be copied, reproduced,
distributed, merged or modied,transmitted, transcribed, stored in retrieval system or translated into any language or computer language, in any
form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
Patent & Trademark Oce.
QUANTUM®
600 LIGHTSTICK
QT-0620
Equipment Dimensions
pp. 03
Specifications
pp.03
Patterns & Modes
pp.04
Quick Setup Guide
pp.05
Feniex University
pp.06
Feniex University
feniexuniversity.com
®

If the product needs to be returned for repair
or replacement, call our customer support line
to receive a return merchandise authorization
number.
Operational times are from 10 a.m. to 5 p.m.
central time, Monday through Friday. Please
do not send in product without contacting
support rst for a RMA number.
Service After Expiration
Feniex Industries will still provide service for
all products after expiration of the warranty.
For any issues, call the customer support
line. In some instances it may be necessary
for the product to be shipped, freight prepaid
and insured for loss or damage to Feniex
headquarters.
Copyright
This instruction manual and the Feniex
products described in this instruction manual
may include or describe copyrighted Feniex
material. Laws in the United States and other
countries preserve for Feniex Industries
and its licensors certain exclusive rights for
copyrighted material, including the exclusive
right to copy, reproduce in any form, distribute
and make derivative works of the copyrighted
material. Accordingly, any copyrighted
material of Feniex and its licensors contained
herein or in the Feniex products described in
this instruction manual may not be copied,
reproduced, distributed, merged or modied
in any manner without the express written
permission of Feniex Industries, Inc.
Feniex Product Copyrights
The products described in this document
are the property of Feniex Industries, Inc. It is
furnished by express license agreement only
and may be used only in accordance with the
terms of such an agreement. Products and
documentation are copyrighted materials.
Making unauthorized copies is prohibited by
law. No part of the product or documentation
may be reproduced, transmitted, transcribed,
stored in retrieval system or translated into any
language or computer language, in any form or
by any means, without prior permission from
Feniex Industries, Inc.
Safety Regulations
The following provides all the information
necessary to safely operate the previously
listed products of Feniex Industries, Inc. Please
read this manual thoroughly before installing or
operating your new product in order to prevent
any damage or injury. Failure to follow the
listed instructions in this manual may result in
damage to your products or personal injury.
• Proper installation of this product requires
good knowledge of automotive systems,
electronics and procedures.
• Please guarantee all vital components
of the vehicle are not in danger of being
damaged by drilling holes necessary for
installation. Check all sides of the mounting
surface before drilling any holes into the
vehicle.
• Do not install this product in any way
that interferes with the deployment of
the air bag. Doing so may damage the
eectiveness of the air bag and can lead
to serious personal and vehicle injury. The
installer will assume full responsibility of
proper installation of the new unit.
• Please clean the mounting surface before
installation of the unit when using tape,
brackets, magnet, Velcro or suction cups.
• The product's ground wire must be
connected directly to the Negative (-)
battery post for eective use of the unit.
Please follow all wiring guidelines provided
to guarantee long lifespan and productivity.
Failing to follow these instructions may
result in damage to the product.
Warranty
Feniex Industries, Inc. warranties to the original
purchaser that all our products shall be free
from defects in material and workmanship.
Feniex Industries' speakers, sirens, rocker
panels, AM600 Beacons, Torch Lights, AI
lightbars, AI Cubes, AM900 Work Lights, 8.5”
Dome Lights, ashlights, Remote Spot Lights
and controllers are warrantied for 2 years from
the manufacturing date. In addition, all other
products are warrantied for 5 years from the
manufacturing date.
If a warranty problem occurs, please contact
customer support at 1.800.615.8350 or visit
the web site at www.Feniex.com.
Warning! Utilizing non-factory screws and mounting
brackets may result in loss of warranty coverage.
Feniex Industries, Inc.
1.800.615.8350 / feniex.com
2
SAFETY REGULATIONS & WARRANTY

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
3

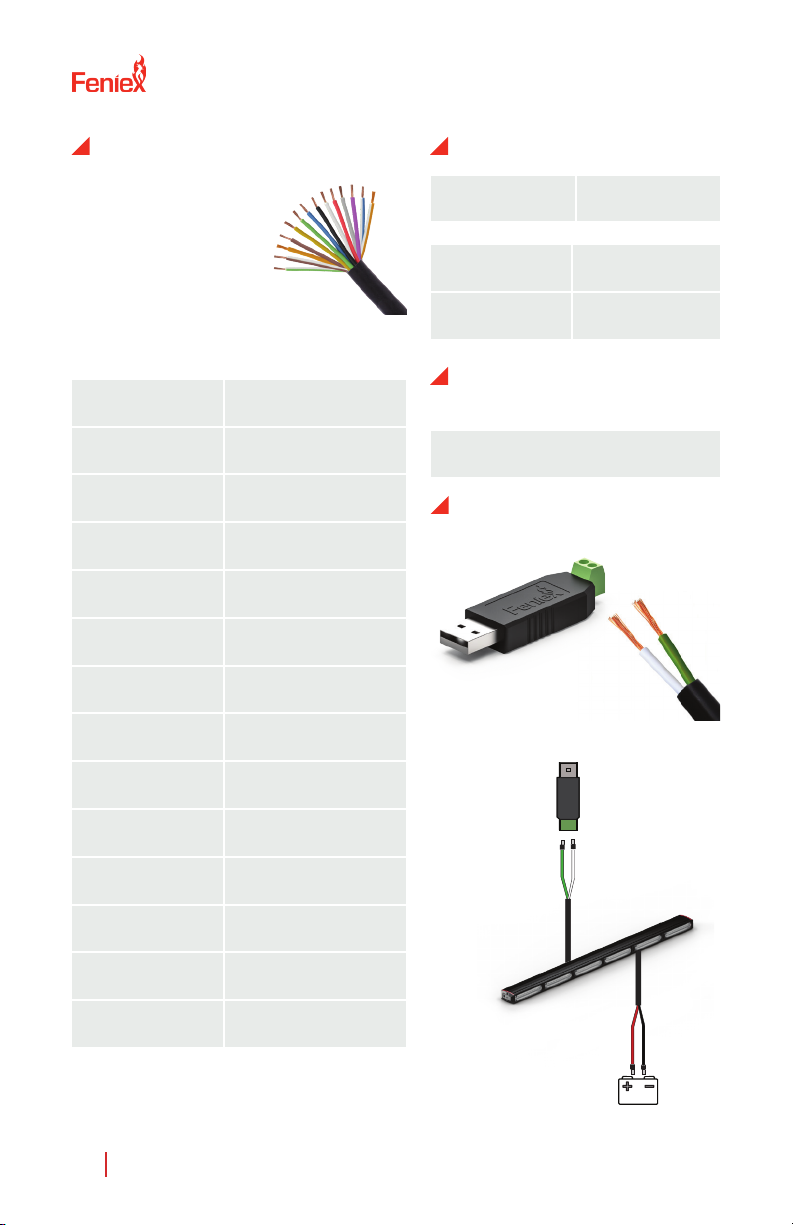

EQUIPMENT
DIMENSIONS
Wire: Function:
Red 12V+
Black Ground
SPECIFICATIONS
Voltage
10-18 Volts DC
Current Draw
Warranty 5 years
WIRING DIAGRAM
4 Amps
two-pin
wiring harness
connects usb to
computer
28.1" L x 1.3" W x 2.25" H
Green Data Wire A
White Data Wire B
Blue Input 1
Orange Input 2
Brown Input 3
Gray Input 4
Yellow Input 5
Violet Input 6
Blue/White Input 7
Orange/White Input 8
Brown/White Input 9
Green/White Input 10
Quantum®
wiring harness
WIRING
HARNESS
two-pin
USB to Computer
B A
D- D+
white to port A
green to port B

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
4
PATTERNS
1Attack
2
3
4
5
6
7
8
9
10
11
Cluster
Cluster Mix
Combo Single
Combo Triple
Half-Half Single
Half-Half Triple
One-One Single
One-One Triple
Two-Two Single
Two-Two Triple
12 All-On Single
13
14
15
16
17
18
19
20
21
All-On Triple
Raging Beacon
Figure 8 Chase
Night Ride Crossover
Hale Storm
Pulse
I/O Flux
Spectrum
Progressive Pursuit

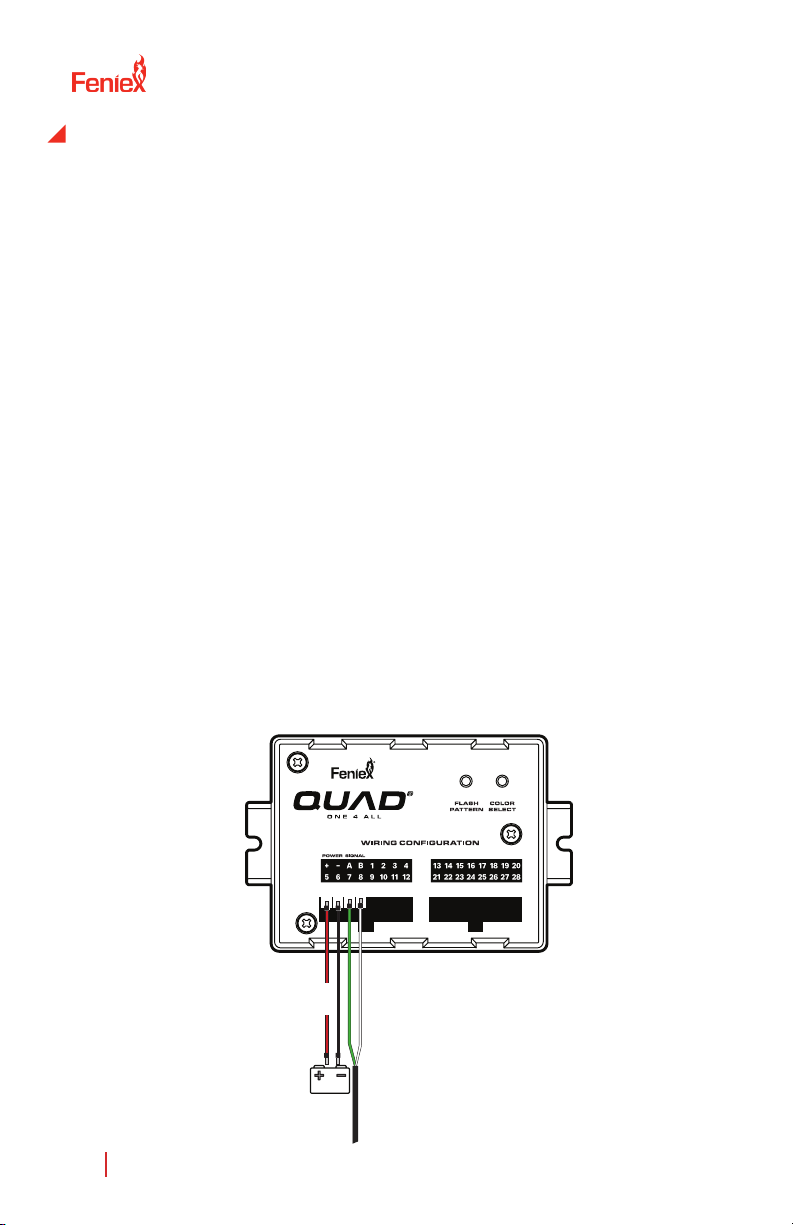

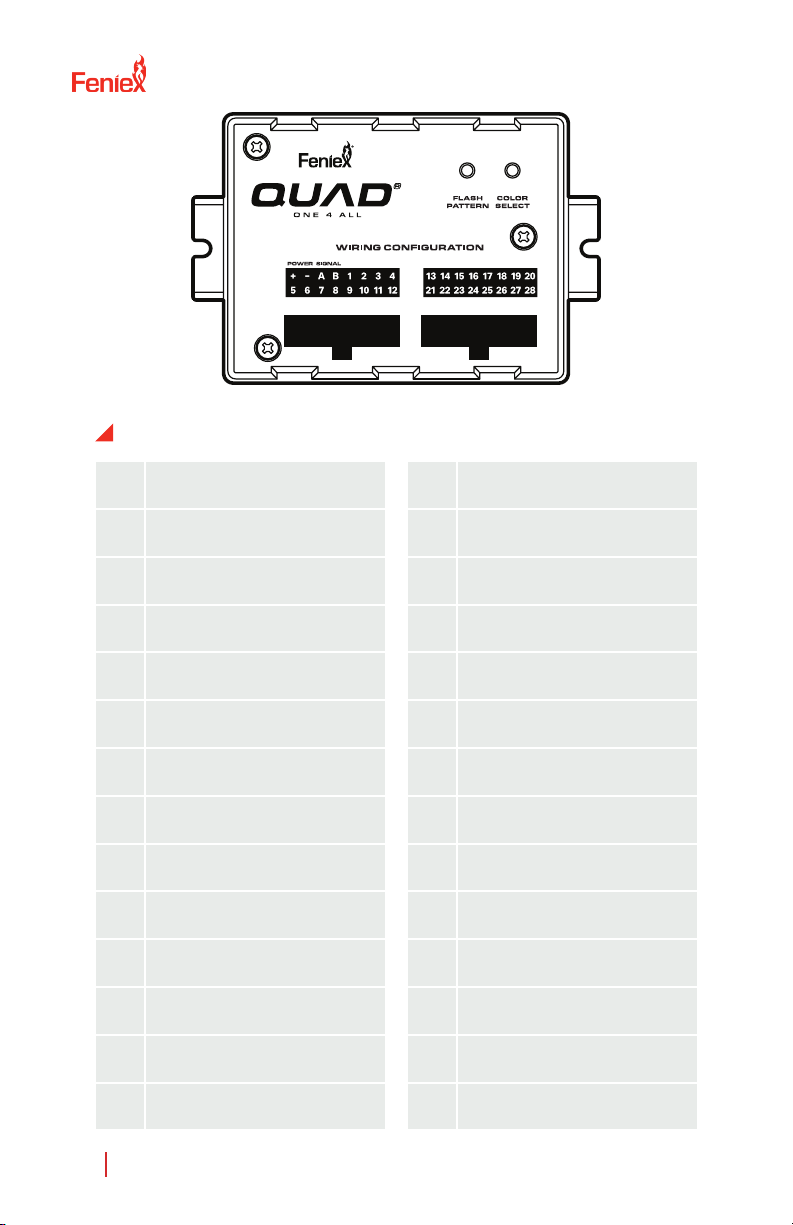

10 Inputs / 28 Inputs when
paired with Quad Converter
INPUTS
1Tail Signal
2
3
4
5
Cruise Signal
Flashing
Arrow Direction
Turn Signal
MODES
6Brake Signal
7
8
9
Flood & Alleys
Low Power
Cut O
10%
50%
BRIGHTNESS
100%
Park Pattern

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
5

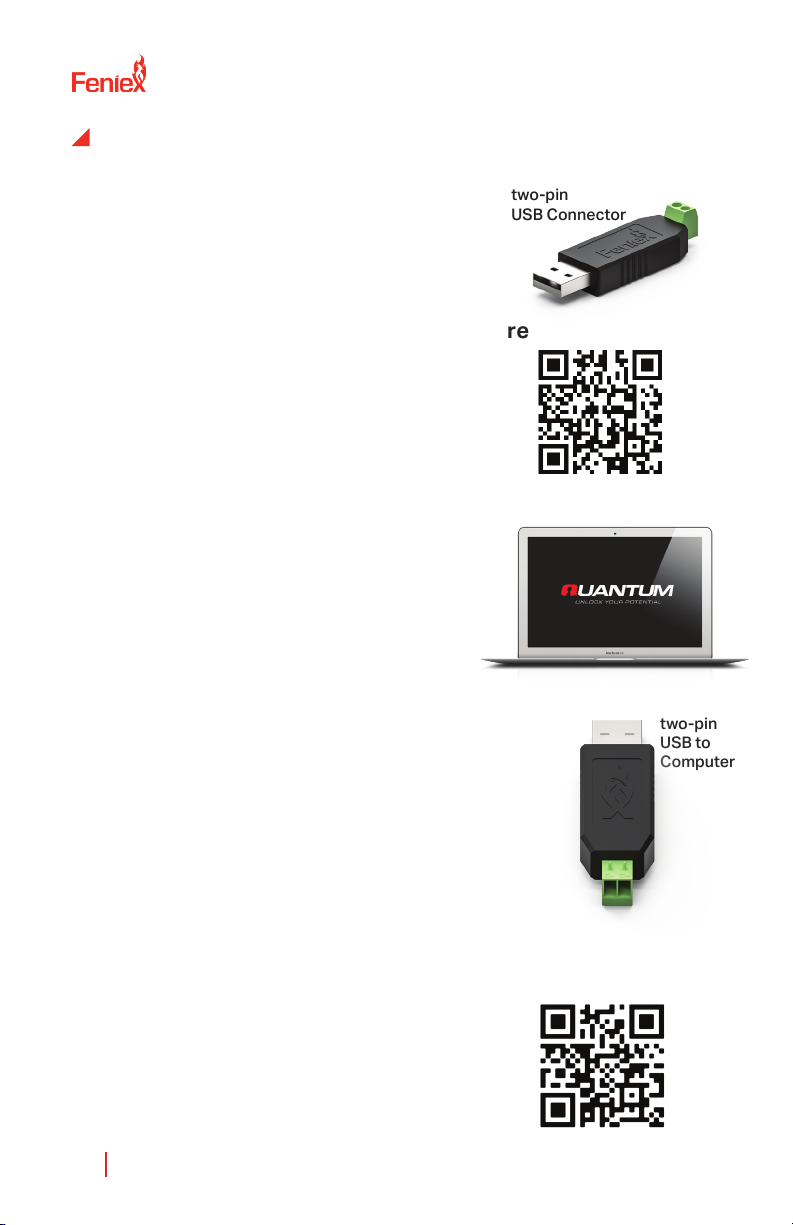

QUICK SETUP GUIDE
■1. Unbox Quantum® Product
Remove the Quantum®product from
its packaging. Locate the Quantum®
product and the 2-pin USB drive:
■2. Download Quantum® Unlock Software
Visit website http://unlock.feniex.com/
site/change_log or use the QR code
to download the Quantum®unlock
software.
■3. Install Quantum® Unlock Software
The Quantum®Unlock Software
is available for both PC and Mac.
The software will allow the user to
completely configure their Quantum
Products (i.e color, modes, functions).
■4. Connect Quantum® to your Computer
Open Quantum®Software. Connect the
Quantum®product to your computer
using the 2-pin USB connector.
■5. Power the Quantum® Product
Connect the red wire to a 12v+ terminal
and the black wire to a 12v- ground to
power on your Quantum®product.
■6. Open Feniex University
Open Feniex University to follow
step-by-step instructions on how to
configure your Quantum product.
■Plug in USB Wire Adapter
Use the provided USB Wire
Adapter to plug into your
computer
■2-Pin Wire to USB
Plug the 2-pin green & white
wire to the USB adapter.
two-pin
USB Connector
two-pin
USB to
Computer
▶white to port A (D+)
▶green to port B (D-)

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
6
■ Feniex University
Before installing the Quantum product, watch our instructional video
series; Feniex University. Get an in-depth look at how to program and
install your products using the Quantum Unlock Software
■Visit Feniex University:
feniexuniversity.com
FENIEX UNIVERSITY
■Download Quantum Unlock Software:
http://unlock.feniex.com/site/change_log

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
7

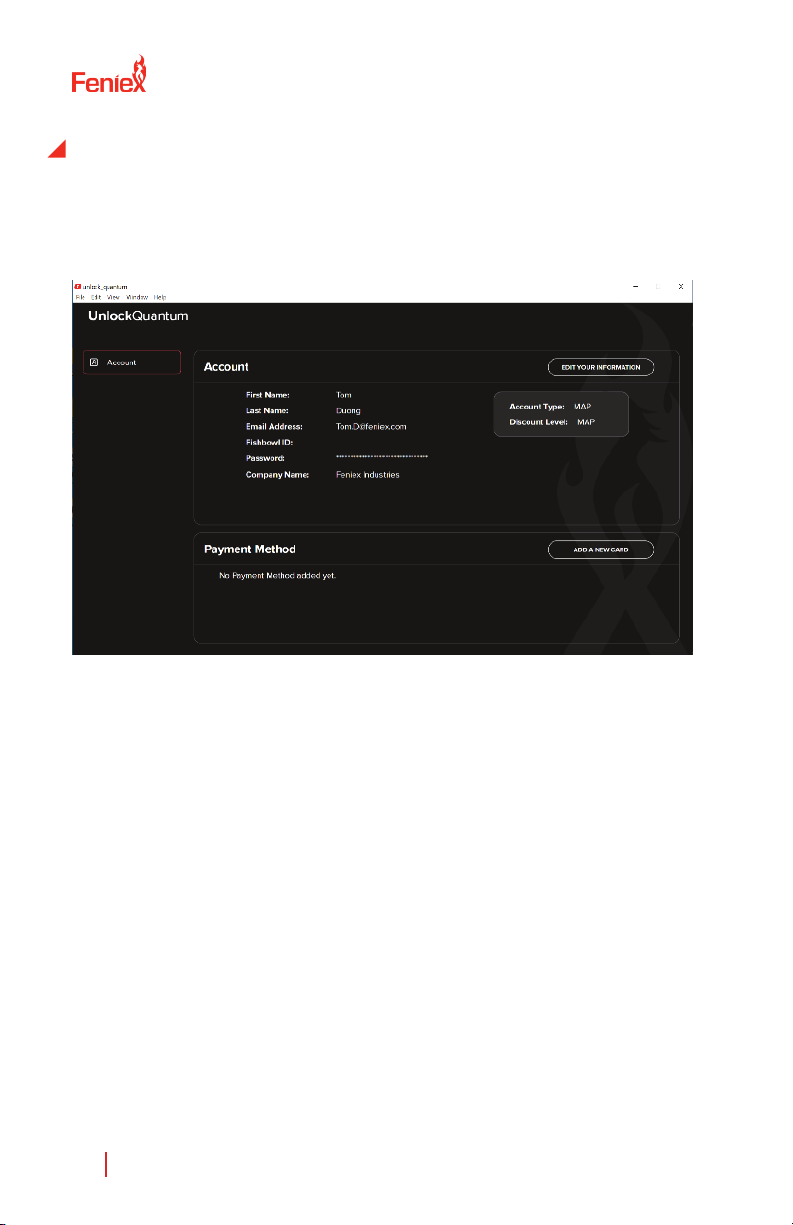

QUANTUM SOFTWARE
■Unlocking Quantum
Every Quantum product is programmed to be a “Single”
color platform from the factory. Single color
implies one color LED per module as a “Single” color use.
All 4 colors can be used on this platform as a single
color or single function operation (i.e., if my single color
lightbar has takedowns it is defaulted with a white
colored module. I cannot change my takedowns as red,
blue, or amber in color). Each function like STT, Alley,
and Takedowns are defaulted to a specific-colored mod-
ule. Dealers could unlock different levels through their
dealer portal.
■Dealer Unlock with Hardware & User Interface
Eligible dealers will have access to a Quantum dealer user
interface. This will allow the dealer to make
any level changes to their customer’s product(s) and con-
figure their product to their specific needs. A USB
dongle will be provided for every Quantum product.
■Dealer Unlock with Hardware & User Interface
Every end user can make any configuration based on their
level of purchase through their dealer’s
network. On single, dual, and trio level of purchase they
have up to 30 days to make any necessary changes to
their product(s) before it locks in permanently. No changes
are available after 30 days. Any upgrades are
required by your authorized Feniex dealer.
■Configuring Products
Levels:
▶Single
▶Dual
▶Trio
▶Quad

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
8

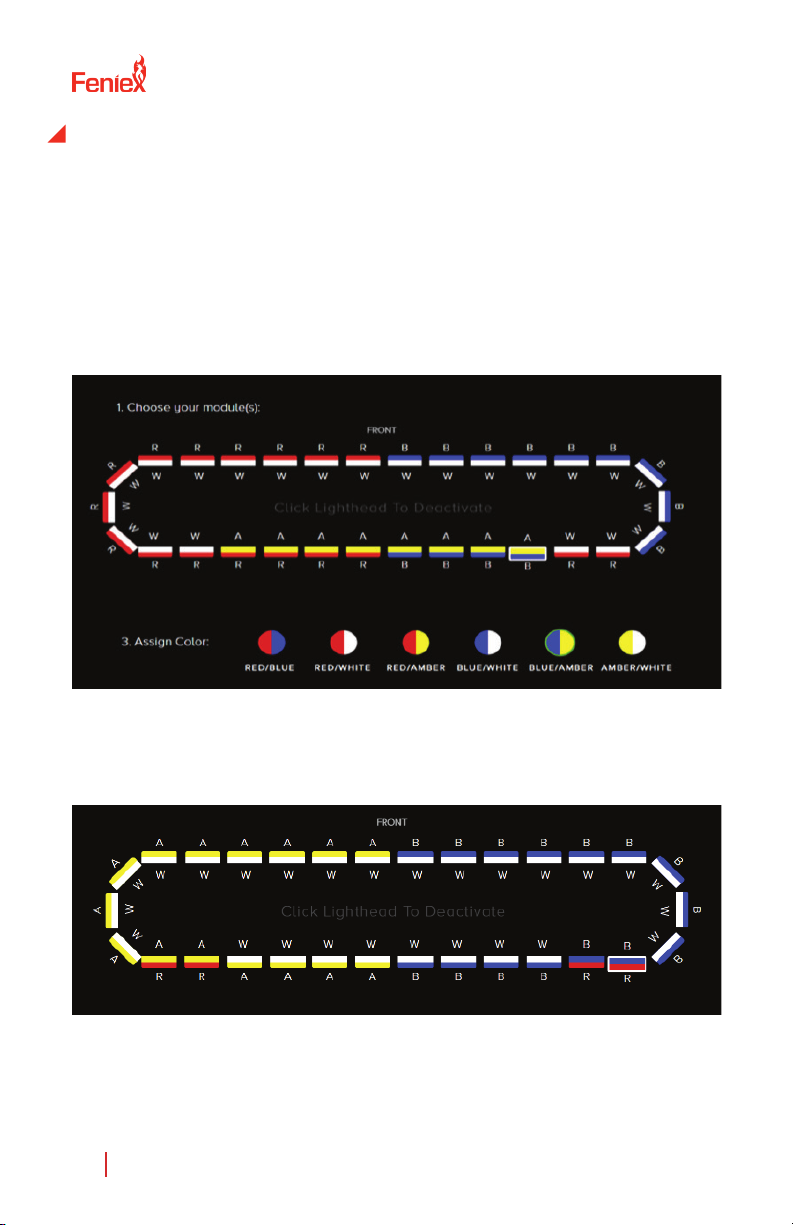

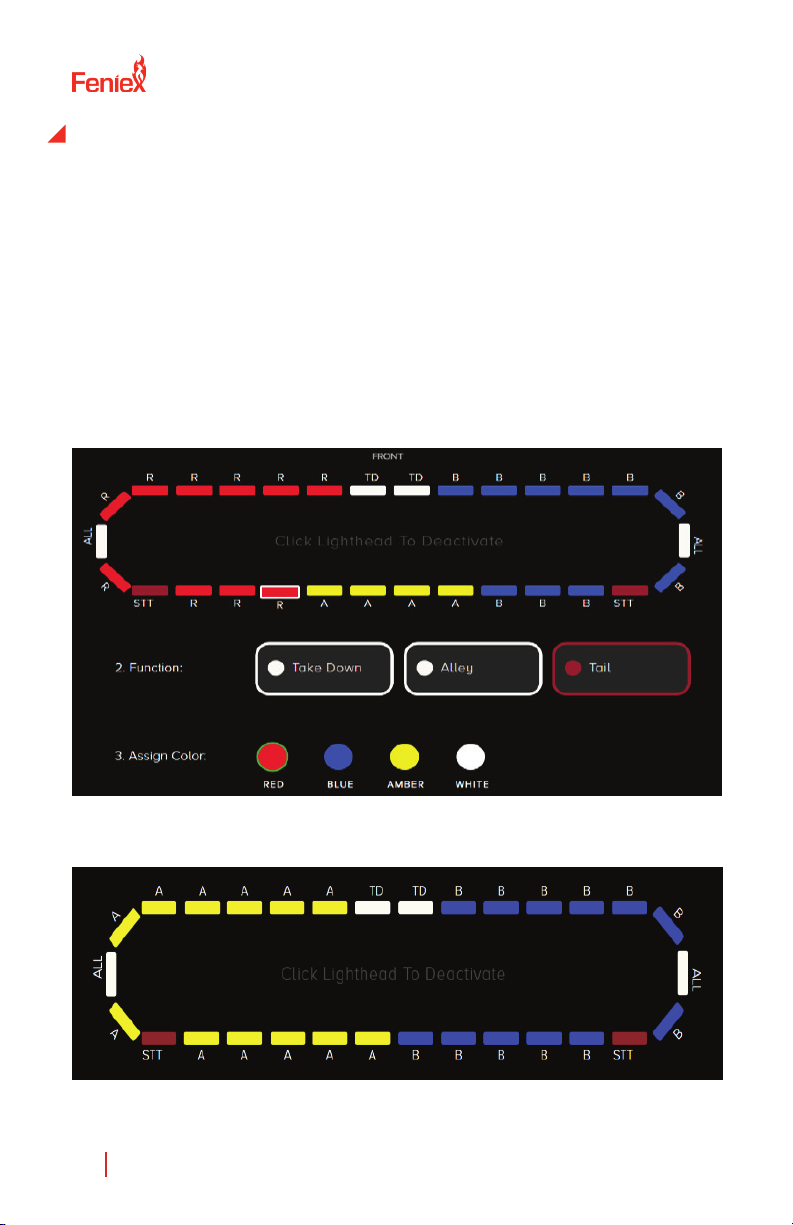

SINGLE COLOR OPTIONS
The product can be in any color scheme utilizing all 4 col-
ors on a single module and the use of all 5
options (i.e., Takedown, alleys, and stop, turn, and tail). This
configuration is the most widely used as a single-
color platform to most agencies nationally and internation-
ally. It covers the basic of police and fire color
scheme widely known to our industry. In this illustration
this lightbar is fully populated with every possible
Quantum function available and has more capabilities for a
budget department than they need.
Most common single-color configuration for Police, Fire & EMS:
Driver red, passenger blue, takedowns, alleys, and STT [Stop, Turn, Tail]
Most common single-color configuration for Public Safety with all
available options:

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
9
DUAL COLOR OPTIONS
The most popular economical lightbar configuration. This
setup encompasses the standard driver red, passenger
blue, adding white to their emergency flash pattern, with
flood takedowns and flood alleys (modular capability), full
traditional amber directional, rear worklights and Stop,
Turn, and Tail.
Most common dual-color congurations for Police, Fire & EMS:
Driver red, passenger blue, ood takedowns, ood alleys, amber arrows, STT,
Work lights.
A popular public safety build that is attractive w/ every function wanted. While
maintaining the traditional amber and blue a ood 360 is a must for night work
while adding the DOT approved lighting functions needed with stop, turn and
tail.

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
10
TRI COLOR OPTIONS
This color combo sets the bar for an enhanced traditional
red and blue bar. An infinite of red and blues throughout
the entire lightbar with an overkill but necessary all white
lights 360 degrees. With our flash patterns and an infinite
of red, blues, and white the lightbar will absolutely stand
out. Stop, turn, and tail is always optional. To the prede-
cessor standard build of driver red, and passenger blue
and 2 takedowns this setup will cover more area in color
than needed.
QUAD COLOR OPTIONS
Enjoy all four colors any time!

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
11
QUAD CONVERTER [NOT INCLUDED]
2A Fuse
2-pin Quantum
Wire
Quantum programming unlocks more modes and
functionality for your Quantum product. Quantum products
(excluding full-size and mini lightbars), come with 10 wires
for input programming. The Quad Converter increases your
modes to 28 inputs. Follow the steps below to connect
your product to the Quad Converter:
■Connecting Quantum® to Quad Converter
Connect your Quantum product to the Quad Converter
by using your data wires to the A and B inputs (Green
wire to A, White wire to B). Power your Quantum product
by connecting the red wire to a 12V+ terminal and the
black wire to a 12V- terminal or ground. Power your Quad
Converter to a 12V battery by connecting the red wire to
a 12V+ terminal and the black wire to a 12V- terminal or
ground.
Use the provided Quad converter wiring harnesses to
connect the wires to inputs 1-28.

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
12
QUAD CONVERTER
15 Input 15
16
17
18
19
20
21
22
23
24
25
26
27
28
Input 16
Input 17
Input 18
Input 19
Input 20
Input 21
Input 22
Input 23
Input 24
Input 25
Input 26
Input 27
Input 28
1Input 1
2
3
4
5
6
7
8
9
10
11
12
13
14
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
Input 9
Input 10
Input 11
Input 12
Input 13
Input 14

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
13
PROGRAMMING QUAD CONVERTER
(CONT.)
■Improved Quantum Functions:
Quad converter for all Quantum products is now programmable.
There are up to 28 programmable inputs of your choice. They
can have an innite of ash patterns, 28 dierent alley light
congurations, 28 variable arrow functions, etc.
▶All programming will be done through the end-user app when
conguring.
■Understand the Quad Converter
Each input shows in the illustration below is a direct
correlation with the inputs on the Quad Converter.
The end-user is required to map out their specific
configurations to a 12V+, triggering a controller like the
4200 Data Link, Mini 4200, Typhoon, Feniex One (analog
12V+ triggers).
Example of User Interface:

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
14
PAYMENT
Purchasing and upgrading your Quantum products is
easy. Start by connecting your Quantum product to your
computer and opening your Quantum Unlock Software and
clicking "Account".
You will be redirected to another screen for payment
information. Add a Payment Method by selecting "Add a
New Card".
■ Pay to Unlock: Unlock Once added, select "Pay to Unlock"
to upgrade your Quantum products.
■ Payment History: To view past purchases with Quantum,
select "Purchase History" in the right side menu:
Pay to Unlock
Purchase History
Account
Account

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
15
PAYMENT (DEALER ACCESSIBILITY)
The dealer can setup their own account on a provided
web link that is accessible through their inside sales
representative.
