Ferno 102 User manual

Users’ Manual
Model 102 Folding Operating Table
August 2009 GLO
Pub. No. 234-0201-04
Read this Manual
and Retain for
Future Reference
FERNO®
Mortuary

2© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
© Copyright Ferno-Washington, Inc. All Rights Reserved.
USERS’ MANUAL
To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the
user. Safety information is included as a service to the user. All
other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that
training on the proper use of this product be provided before using
this product in an actual situation.
Retain this manual for future reference. Include it with the product
in the event of transfer to new users. Additional free copies are
available upon request from Customer Relations.
Proprietary Notice
The information disclosed in this manual is the property of Ferno-
Washington, Inc., Wilmington, Ohio, USA. Ferno-Washington, Inc.
reserves all patent rights, proprietary design rights, manufacturing
rights, reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those rights
are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty,
which is printed on the invoice you received when you purchased
the product. Please refer to the warranty terms as printed on
your invoice. The complete terms and conditions of the limited
warranty, and the limitations of liability and disclaimers, are also
available upon request by calling Ferno at 1.800.733.3766 or
1.937.382.1451.
Ferno Customer Relations
For ordering assistance or general information:
CANADA AND THE U.S.A.
Telephone (Toll-free) 1.877.733.0911
Telephone [phone]
Fax (Toll-free) 1.888.388.1349
Fax [phone]
Internet www.ferno.com
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno distributor.
If you do not have a Ferno distributor, please contact Ferno
Customer Relations:
Ferno-Washington, Inc.
70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone [phone]
Fax [phone]
Internet www.ferno.com
EUROPEAN REPRESENTATIVE
Ferno (UK) Limited
Stubs Beck Lane, Cleckheaton
West Yorkshire BD19 4TZ, United Kingdom
Telephone [phone]
Fax [phone]
Internet www.ferno.co.uk
Ferno Technical Support
Customer service and product support are important aspects of each
Ferno product. Please have the product serial number available
when calling, and include it in all written communications. For
technical support questions:
Telephone (Toll-free) 1.800.733.3766 ext. 1010
Telephone [phone] ext. 1010
Email quality[email protected]

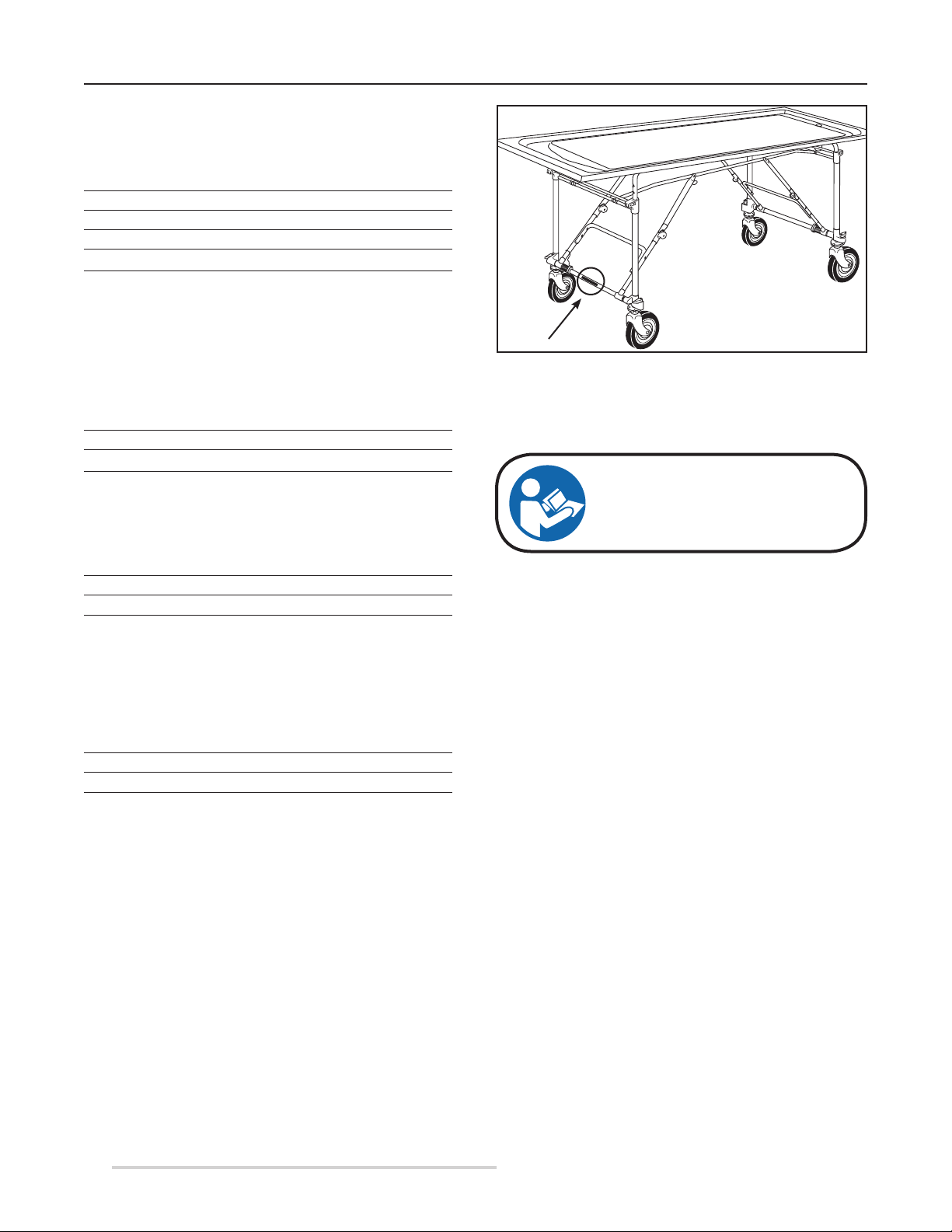

Serial Number _________________________
Location: Leg Crosstube

3
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
TABLE OF CONTENTS
Section Page Section Page
Ferno Customer Relations______________________ 2
Ferno Technical Support _______________________ 2
1 - Safety Information___________________________ 4
1.1 Warning________________________________ 4
1.2 Important_______________________________ 4
1.3 Bloodborne Disease Notice_________________ 4
1.4 Symbol Glossary_________________________ 4
1.5 Safety and Instruction Labels _______________ 5
2 - Operator Skills and Training __________________ 5
2.1 Skills __________________________________ 5
2.2 Training________________________________ 5
3 - About the Table _____________________________ 6
3.1 Description _____________________________ 6
3.2 GeneralSpecications ____________________ 6
3.3 Components ____________________________ 7
4 - Using the Table______________________________ 8
4.1 Before Placing the Table in Service __________ 8
4.2 General Guidelines for Use_________________ 8
4.3 Swivel Locks____________________________ 8
4.4 Adjusting the Height of the Table Top ________ 9
4.5 Unfolding the Table Legs _________________ 10
4.6 Folding the Table Legs ___________________ 10
5 - Maintenance _______________________________ 11
5.1 Maintenance Schedule ___________________ 11
5.2 Disinfecting and Cleaning the Table_________ 11
5.3 Inspecting the Table _____________________ 11
5.4 Waxing the Table Legs and Frame __________ 12
5.5 Lubricating the Table ____________________ 12
6 - Accessories and Related Products _____________ 12
7 - Parts and Service ___________________________ 13
7.1 U.S.A. and Canada ______________________ 13
7.2 Worldwide_____________________________ 13
7.3 Parts List ______________________________ 13
Training Record ______________________________ 14
Maintenance Record___________________________ 15

4© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
1  SAFETY INFORMATION
1.1 Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
WARNING
Untrained operators can cause injury or be injured. Permit
only trained personnel to operate the table.
Improper use of the table can cause injury. Use the table
only for the purpose described in this manual.
Improper operation can cause injury. Operate the table
only as described in this manual.
Improper maintenance can cause injury. Maintain the
table only as described in this manual.
Attaching improper items to the table can cause injury.
Use only Ferno-approved items on the table.
Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the table.
Modifying the table can cause injury and damage. Use
the table only as designed by Ferno.
1.2 Important
Important notices emphasize important usage or maintenance
information.
Important
1.3 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the table, follow the
disinfecting and cleaning instructions in this manual.
1.4 Symbol Glossary
The symbols dened below are used on the table and in
this users’ manual. Ferno uses symbols recognized by the
International Standards Organization (ISO), American
National Standards Institute (ANSI) and the mortuary
services industry.
General Warning
of Potential Injury
Unlocked Locked
Product meets European
Union Standards
Safety Information
Do Not
Lubricate
Lubricate
Read the Users’
Manual
Load Limit
Operation Requires
One Trained Operator

5
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
1.5 Safety and Instruction Labels
Safety and instruction labels place important information from
the users’ manual on the table. Read and follow label instructions.
Replace worn or damaged labels immediately. New labels are
available from EMSAR (page 13) or from your distributor. The
labelsshownhereareafxedtothetable.
Safety Information, Skills and Training
2  OPERATOR SKILLS AND TRAINING
2.1 Skills
Operators using the table need:
a working knowledge of mortuary-service procedures.●
a complete understanding of the procedures described●
in this manual.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the table.
2.2 Training
Operator trainees need to:
read and understand this manual.●
be trained on the use of the table.●
practice with the table before using it with a body.●
record their training information. A sample training●
record sheet is provided on page 14.

6© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
3  ABOUT THE TABLE
3.1 Description
The Model 102 Folding Operating Table (called the table
in this manual) is a mortuary-service product designed to
provide an adjustable surface for embalming, transfer, and
dressing.
The table-top is constructed of stainless steel. The table has
a total of seven level locking positions and can be adjusted
independently between 32-3/4" and 38-3/4" (83 cm - 98 cm)
at one or both ends. The table-top is convex and has a deep
perimetertroughtoguideuidstoadrainatthefootend.
The legs fold compact for storage. The table has 6" (15 cm)
wheels that swivel and lock.
WARNING
Improper use of the table can cause injury. Use
the table only for the purpose described in this
manual.
About the Table
3.2 General Specications
Height
Minimum 32-3/4 in./83 cm
Maximum 38-3/4 in./98 cm
Length 80 in./205 cm
Width (Overall) 30 in./77 cm
Folded Thickness 6 in./15 cm
Wheelbase 27 in. x 64 in. (69 cm x 163 cm)
Weight 87 lb/39.5 kg
Load Limit 1000 lb/454 kg
Some general specications are rounded to the nearest whole
number. Metric conversions are calculated before rounding the
Imperial measurements. For more information, contact Ferno
Customer Relations (page 2) or your Ferno distributor.
Fernoreservestherighttochangespecicationswithoutnotice.
Load Limit
Inspect the table if the load limit
has been exceeded (See Inspecting
the Table, page 11).
USERS’ MANUAL
To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.

7
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
3.3 Components
About the Table
Leg Clip
Leg Clip
Drain Tube
Table Top Drain Opening
Trough
Ratchet
Control Bar
(Each End)
Ratchet
Tube (4)
Crossbar (2)
Leg Brace (4)
Wheel Swivel
Lock (4)

8© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
WARNING
Improper operation can cause injury. Operate
the table only as described in this manual.
4  USING THE TABLE
4.1 Before Placing the Table in Service
Personnel who will work with the table need to read this●
manual.
Conrmthatthetableoperatesproperly.See● Inspecting the
Table, page 11.
4.2 General Guidelines for Use
The table is for professional use only, by a trained operator.●
Follow standard mortuary-service procedures when using●
the table.
Lift only the weight you can safely handle. Use additional●
help when working with a heavy body.
Using the Table
4.3 Swivel Locks
Eachof the fourwheels is ttedwith a lockingcaster. Lock the
casters to help hold the table steady and unlock the casters to roll
the table.
To lock the caster, turn the swivel lock toward the end of the●
table (Figure 1).
To unlock the caster, turn the swivel lock toward the long side●
of the table (Figure 1).
To help prevent the table from rolling during use, lock the●
casters at 90° angles as shown in Figure 2.
(1) Align two wheels of opposite corners parallel to the
long sides of the table and lock them.
(2) Turn the remaining two wheels perpendicular to the
long sides of the table and lock them.
Figure 2 - Conguring the Casters
To Hold the Table Stationary
Caster (4)
Figure 1 -
Using the
Swivel Lock
Operation Requires
One Trained Operator Load Limit

9
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table Using the Table
4.4 Adjusting the Height
of the Table Top
The table top is adjustable between seven level positions.
Each end of the table can be adjusted independently. To tilt
the table top, raise one end of the table higher than the other.
Raising the end opposite of the drain will assistNote:
draining.
RAISING THE TABLE TOP
Grasp one end of the table with both hands and lift1.
slightly to assume the weight of the table top and
body. Use additional help as needed to help control the
weight of a heavy body.
Press downward on the crossbar with one foot as you2.
raise the table top a little higher than the desired height
(Figure 3).
Slowly lower the table top until it locks into the nearest3.
locking position.
If keeping the table level, move to the opposite end of4.
the table and repeat Steps 1-3.
LOWERING THE TABLE TOP
Stand at the end of the table you wish to lower.1.
With one hand, grasp the table top and lift slightly2.
to assume the weight of the table top and body. Use
additional help as needed to help control the weight of
a heavy body.
Placing your other hand3. in the center of the ratchet
control bar (Figure 4), pull and hold the ratchet
control bar to disengage the lock, then lower the table
top until it is almost the desired height.
Release the ratchet control bar and continue lowering4.
the table top until it locks into the nearest locking
position.
If keeping the table level, move to the opposite end of5.
the table and repeat Steps 1-4.

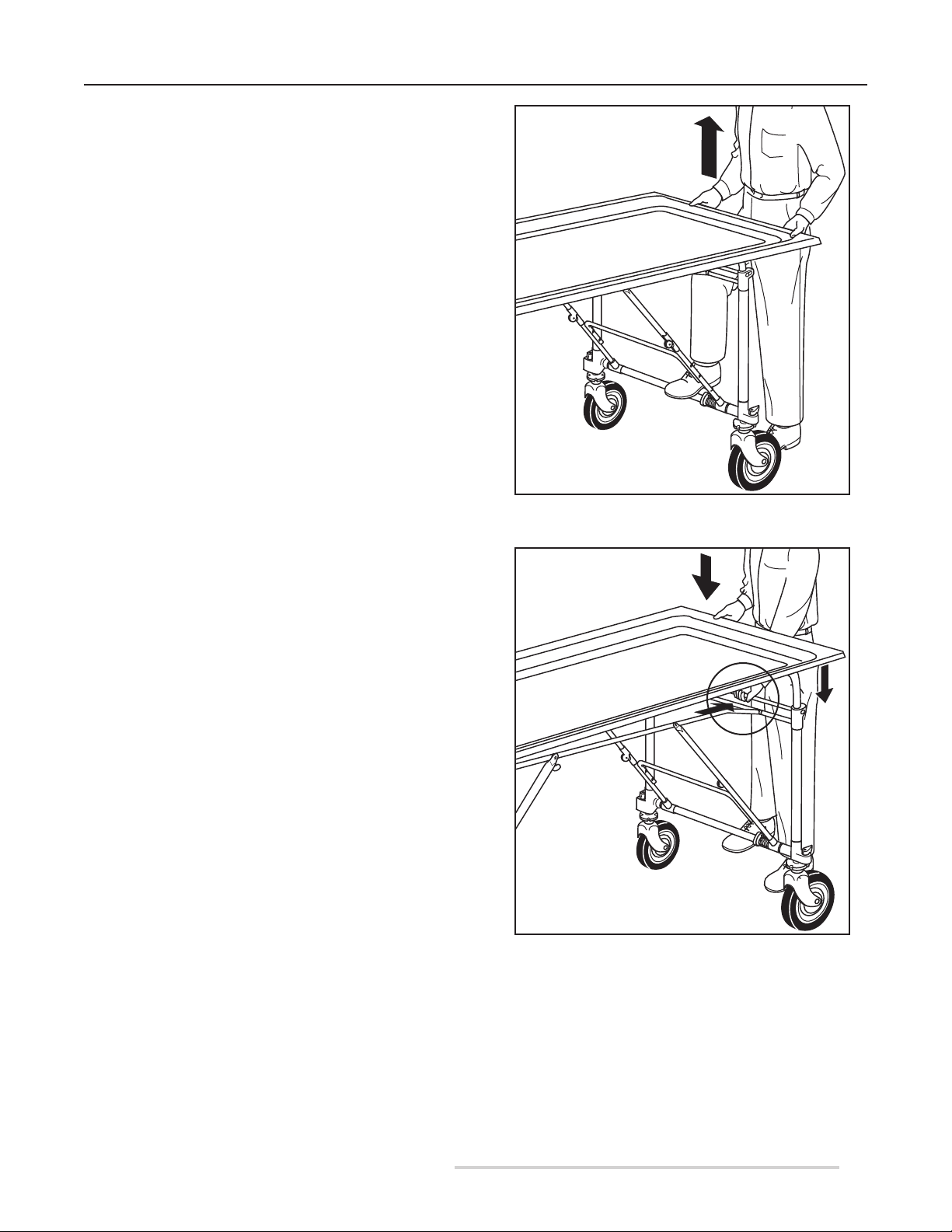

Figure 3 - Raising the Table Top
Figure 4 - Grasp the Center of the Ratchet Control Bar
When Lowering the Table Top

10 © Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating TableUsing the Table
4.5 Unfolding the Table Legs
Place the table on its side.1.
Slide the leg clip off the leg crossbar (Figure 5).2.
Unfold the leg assembly and pull one of the leg3.
Leg Clip
Figure 5 - Unhooking the Leg Clip Figure 6 - Unfolding and Locking the Legs
Leg Brace Hinge
braces until the upper and lower braces are aligned and the
hinges lock (Figure 6).
Repeat Steps 2 and 3 to unfold and lock the other leg assembly.4.
4.6 Folding the Table Legs
Adjust both ends of the table top to the lowest position.1.
Important
Lower both ends of the table top before folding the
table. Failure to do so may result in damage to the
ratchet tubes.
Place the table on its side.2.
Pull the crossbar of one leg assembly toward the3.
center of the table while pushing on the upper leg
braces (above the hinge, Figure 7). Fold the leg
assembly against the bottom of the table.
Slide the leg clip over the crossbar to hold the leg in4.
the folded position (Figure 8).
Repeat Steps 3 and 4 to fold and secure the other leg5.
assembly.
Figure 8 - Legs Folded and Secured with Leg Clips
Leg Clips
Figure 7 - Folding the Legs
Crossbar
Leg Brace
Leg Brace

11
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
5  MAINTENANCE
5.1 Maintenance Schedule
The table requires regular maintenance. Set up and follow a
maintenance schedule. The table at right represents minimum
intervals for maintenance.
Keep maintenance records. A sample maintenance record
sheet is provided on page 15.
When using maintenance products, follow the manufacturers’
directions and read the manufacturers’ material safety data
sheets. You can purchase a recommended disinfectant from
your Ferno distributor or Ferno Customer Relations (page 2).
WARNING
Improper maintenance can cause injury. Maintain
the table only as described in this manual.
Maintenance
5.2 Disinfecting and Cleaning
the Table
Ferno recommends inspecting the table for visible wear and
damage as you disinfect and clean it.
To disinfect:● Apply disinfectant to all surfaces
according to the disinfectant manufacturer’s
instructions for application method and contact time.
To clean:● Hand wash all parts of the table with warm
water and a mild detergent. Rinse with warm, clear
water. Dry with a towel or allow the table to air-dry.
Important
Disinfectants and cleaners containing bleach,
phenolics, or iodines can cause damage. Do not use
products containing these chemicals.
Important
Using abrasive cleaning compounds or applicators
on the table can cause damage. Do not use abrasive
materials to clean the table.
Important
Water under high pressure, or steam, can penetrate
joints, ush away lubricant, and cause corrosion. Use
caution when cleaning moving parts such as joints and
hinges, and reapply lubricant if needed.
5.3 Inspecting the Table
Inspect the table regularly. Follow the checklist below and
operate the table through all its functions as described in
this manual.
If inspection shows damage or excessive wear, remove
the table from service until repair is made. See Parts and
Service, page 13.
INSPECTION CHECKLIST
Are all components present?●
Is the table free of excessive wear?●
Are all screws, nuts, bolts, and roll pins securely in●
place?
Do all moving parts operate smoothly and properly?●
Does each end of the table top lock properly into all●
six raised positions?
Do the legs fold properly and do the leg clips function●
properly?
Do the wheels roll without wobbling and are the tires●
free of abrasions and wear?
Do the casters lock and unlock properly?●
Minimum
Maintenance Intervals
Each Use As Needed Each Month
Disinfecting (this page) •
Cleaning (this page) •
Inspecting (this page) • •
Waxing (page 12) •
Lubricating (page 12) •

12 © Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
5.5 Lubricating the Table
Disinfect and clean the table before applying lubricant. Use
the lubricants designated below to lubricate the table. Do not
lubricate points marked with the “do not lubricate” symbol.
Do Not Lubricate Lubricate
Important
Lubricating parts that should not be lubricated allows
dirt and foreign particles to collect on those parts,
resulting in damage. Lubricate only the numbered
reference points shown.
LUBRICATION POINTS
Use a small amount of lubricant. Lubricate identical
points on each side of the table.
1. Ratchet Tubes (4) White lithium grease
2. Leg-Brace Hinge (4) WRL-191S or E-Z-1 (1-2 drops)
3. Wheel Bearing (4) WRL-191S or E-Z-1 (1-2 drops)
LUBRICATIONFREE ITEMS
Ratchet control bar spring Do not lubricate
Maintenance, Accessories
6  ACCESSORIES AND RELATED PRODUCTS
Ferno offers a full line of mortuary service accessories
and products. Always follow the instructions packed with
accessories. Keep the instructions with this manual. Be
aware of any special considerations (loading heights, door
widths, etc.) when using accessories.
Contact Ferno Customer Relations (page 2) or your Ferno
distributor for product information.
WARNING
Attaching improper items to the table can cause
injury. Use only Ferno-approved items on the table.
Model Description Part Number
14 Body Lifter 010-1400
38-BB Body Bridge 069-5790
Ultra Care 4000™Body/Casket Lift (U.S.A.) 066-3914
Ultra Care 4000™Body/Casket Lift (50 Hz) 066-3915
5.4 Waxing the Table Legs and Frame
While it is not necessary to wax this table, waxing the
aluminum legs and lower frame will not damage them, and
will maintain the table’s appearance. Do not wax the table
top, which is constructed of stainless steel.
Disinfect and clean the table before applying wax. Use an
automotive wax as directed by the wax manufacturer.
2
3
1

13
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
7.2 Worldwide
To order Ferno parts and for professional repair, contact your
Ferno distributor. Your distributor is the only agent authorized
by Ferno to manage, service, and repair Ferno products.
7  PARTS AND SERVICE
7.1 U.S.A. and Canada
IntheUnitedStatesandCanada,toorderpartsorforprofessional
table repair, contact EMSAR®- the only agent authorized by
Ferno to manage, service, and repair Ferno products.
Telephone (Toll-Free) 1.800.73.EMSAR
Telephone [phone]
Fax [phone]
Internet www.EMSAR.com
WARNING
Improper parts and service can cause injury. Use
only Ferno parts and Ferno-approved service on the
table.
WARNING
Modifying the table can cause injury and damage.
Use the table only as designed by Ferno.
Parts and Service
7.3 Parts List
No. Part Description Qty
1 090-0795 U-Brace w/hardware and plugs 1
2 090-0524 Plug, black plastic 2
3 090-0793 Lock bar (29") w/springs 1
4 090-5530 Table-top (stainless steel, bolt-on, no frame)* 1
5 190-1017 Lock bar springs 4
6 090-1259 1/2" Bearing (for wheel shank) 2
7 090-2904 6" Wheel, plain w/.375 bearings 1
8 090-1266 3/8" Bearing (for 6" wheel) 2
9 090-0180 3/8" Axle bolt and nut 1
10 090-0796 6" Wheel caster assy. complete 1
11 090-3045 Swivel lock lever assy. 1
12 090-0871 Ratchet tube w/hardware (before 1988) 1
13 090-5474 Ratchet tube w/hardware (after 1988) 1
14 090-0790 Drain assy. (bolt-on style) 1
15 190-1782 Label sheet 1
*Replacement stainless-steel table-top “skin” only, without tube frame.
This is a bolt-on version. All earlier versions are unavailable.
14
1
2
3
5
6
87
10
11
12 13
4
9

14 © Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
TRAINING RECORD
Date Name Training Method

15
© Ferno-Washington, Inc 234-0201-04 August 2009
Model 102 Folding Operating Table
MAINTENANCE RECORD
Date Maintenance Performed By
