Ferno SPED II User manual

®
Users’ Manual
SPED II
Spinal Protection Extrication Device
FERNO/MAN/0721/215-R2/UK
Stock Code 2003-0147
Read and retain this Manual for future reference

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
2
SPED II Spinal Protection Extrication Device
®
DISCLAIMER
This manual contains general instructions for the use, operation and care of this
product. The instructions are not all-inclusive. Safe and proper use of this product
is solely at the discretion of the user. Safety information is included as a service to
the user. All other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that training on the
proper use of this product be provided before using this product in an actual
situation.
Retain this manual for future reference. Include it with the product in the event of
transfer to new users. Additional electronic copies are available free upon request
from Customer Service.
Proprietary Notice
The information disclosed in this manual is the property of Ferno UK Ltd. reserves
all patent rights, proprietary design rights, manufacturing rights, reproduction use
rights, and sales use rights thereto, and to any article disclosed therein except to the
extent those rights are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty, which is printed on all
Ferno invoices. The complete terms and conditions of the limited warranty, and the
limitations of liability and disclaimers, are also available upon request by calling
Ferno UK on [phone].
© Copyright Ferno (UK) Limited. All Rights Reserved.
FERNO TECHNICAL SUPPORT & CUSTOMER SERVICE
Customer service and product support are important aspects of each Ferno product.
Please have the product serial number available (if applicable) when calling and include it in
all written communications. For technical support questions:
Telephone - Main Reception [phone]
Telephone - Sales Dept [phone]
Telephone - Service Dept [phone]
Email - Sales [e-mail]
Email - Service [email protected].uk
Internet www.ferno.co.uk
FERNO S.r.l.
via B. Zallone, n. 26, 40066
Pieve di Cento, Bologna, Italy
+39.051.6860028
Product meets UK and EU Standards

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK 3
®
SPED II Spinal Protection Extrication Device
TABLE OF CONTENTS
1  SAFETY INFORMATION ............................................................4
1.1 Warning .................................................................................................4
1.2 Important ..............................................................................................4
1.3 Bloodborne Disease Notice ...............................................................4
1.4 Safety Labels .........................................................................................4
2  OPERATOR SKILLS AND TRAINING .........................................5
2.1 Skills ........................................................................................................5
2.2 Training ..................................................................................................5
3  ABOUT THE SPED ......................................................................6
3.1 Description ...........................................................................................6
3.2 SPED Components ..............................................................................6
3.3 General Specications ........................................................................6
3.4 Bag Specications with SPED Stored...............................................6
4  GUIDELINES FOR USE...............................................................7
5  OPERATION OF DEVICE ............................................................7
5.1 Before placing into service ................................................................7
5.2 Preparing the SPED for use ................................................................7
5.3 Securing the strapping system .........................................................7
5.4 Applying the vacuum to the SPED ...................................................7
5.5 Manually lifting a casualty ................................................................8
5.6 Vertical/ Horizontal Lifting ................................................................8
5.7 Returning the strapping system after use................................... 8
6  MAINTAINING THE SPED..........................................................9
6.1 Maintenance Schedule .......................................................................9
6.2 SPED Longevity ....................................................................................9
6.3 Disinfecting and Cleaning .................................................................9
6.4 Inspecting the SPED ............................................................................9
7  LIMITED WARRANTY...............................................................10
Limited Warranty Summary .................................................................... 10
Limited Warranty Obligation .................................................................. 10
8  FERNO CUSTOMER SERVICE ..................................................10
TRAINING RECORD........................................................................................... 11
MAINTENANCE RECORD................................................................................ 11

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
4
SPED II Spinal Protection Extrication Device
®
1  SAFETY INFORMATION
1.1 Warning
The following warnings appear in this manual.
1.2 Important
Boxes like the one below emphasise important information.
1.4 Safety Labels
Labels place important information from the Users’Manual on
the stretcher. Read and follow label instructions. Replace worn
or damaged labels immediately. The product information label
is axed to the middle carry handle and contains important
information regarding the unit and date of manufacture.
1.3 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the SPED, follow the
disinfecting and cleaning instructions in this manual.
Important
Rescue procedures using ropes, harnesses, bridles
and other Personal Protective Equipment (PPE)
require special skills and are potentially hazardous
activities. No rescue personnel should attempt such
rescue procedures unless he or she has received
professional instruction and training.
WARNING
Important
Ensure all straps are fastened and tensioned. DO
NOT over tension. Allow for at least one‘at’hand
space between the strap and the patient’s body.
Untrained operators can cause injury or be
injured. Permit only trained personnel to operate
the SPED.
Improper use of the SPED can cause injury. Use
the bridle only for the purpose described in this
manual.
Improper operation can cause injury. Operate the
SPED only as described in this manual.
Modifying the SPED can cause injury and
damage. Use the SPED only as manufactured
and sold by Ferno.
Improper maintenance can cause injury or
damage. Maintain the SPED only as described
in this manual.
Improper parts and service can cause injury.
Use only Ferno approved parts and service on
the SPED.
An unattended patient can be injured. Stay with
the patient at all times.
Attaching improper or inappropriate items to the
SPED can cause injury. Use only Ferno-approved
items on the SPED.

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK 5
®
SPED II Spinal Protection Extrication Device
2  OPERATOR SKILLS AND TRAINING
2.1 Skills
1. Operators using the SPED need:
• A working knowledge of emergency patient-handling
procedures.
• The ability to assist the patient.
• A complete understanding of the procedures described
in this manual.
• Follow local protocols and guidelines as set down by
your organisation
2.2 Training
Trainees need to:
• Follow a training program designed or approved by
their training ocer.
• Read this manual. For additional free users’ manuals,
contact Ferno Customer Service.
• Practice with the stretcher before using it in regular
service.
• Be evaluated and tested on their understanding of the
stretcher.
• Record their training information. A form is provided
on page 11.
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the
device.
WARNING
Important
Rescue procedures usingropes, harnesses, bridles
and other Personal Protective Equipment require
special skills and are potentially hazardous
activities. No rescue personnel should attempt
such rescue procedures unless he or she has
received professional instruction and training.
USER MANUAL
To requestadditional freeusersmanuals
contact Ferno Service Department,
your Ferno distributor, or visit www.
ferno.co.uk.

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
6
SPED II Spinal Protection Extrication Device
®

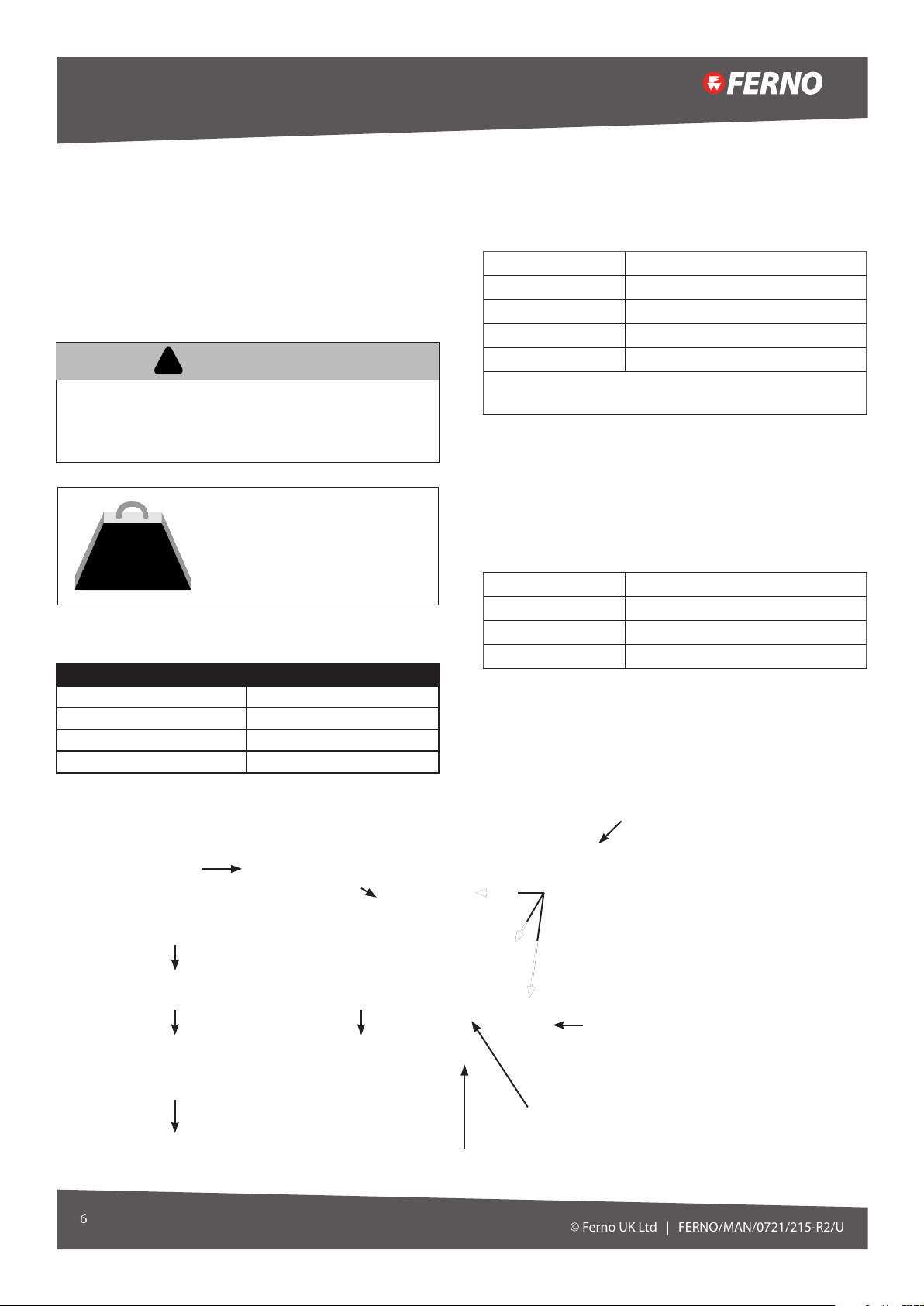

3  ABOUT SPED II
3.1 Description
The SPED II Spinal Protection Extrication Device (referred
to as the SPED throughout this manual) is designed for the
immobilisation and extrication of crash victims from closed-
top racing vehicles.
3.3 General Specications
Part Number 23005001001
Length 1000mm
Width unfolded 670mm
Width folded 650mm
SPED Weight 2.8 kg
Ferno and manufacturers of components reserve the right to
change specications without notice.
General specications are rounded to the nearest whole
number. Metric conversions are calculated before rounding
the English measurements. For more information, contact
Ferno Customer Service or your Ferno distributor.
3.4 Bag Specications with SPED stored
Length 700mm
Width 300mm
Depth 250mm
Weight of kit in Bag 4.7 kg
Untrained Operators can cause injury or be
injured. Permit only trained personnel to operate
the device.
WARNING
SAFE WORKING LOAD
200 kg
31½ stone
440 lb
3.2 SPED Components
Torso Strapping
Colour Coded
Shoulder Strappings
Head Protector Area
Introducer Pocket
SPED COMPONENTS
SPED Vacuum Pump
Intoducer Paddle Carry Bag
Buckle Relocator Shoulder Straps
Puncture Repair Kit Head Straps x2
Reective Strips
Leg Strapping
Introducer Paddle
Board
Vacuum
Splint Valve
x2 Head Straps
Leg Strapping Clip
Groin Strapping
Lifting Handles

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK 7
®
SPED II Spinal Protection Extrication Device
4  GUIDELINES FOR USE
5  OPERATION OF DEVICE
Using the SPED requires a minimum of two trained
operators. In most Motorsport situations, operators
will want or need additional help.
Follow standard emergency patient-handling
procedures when using the device.
Stay with the patient at all times. Always use the
patient restraints provided, as well as a supplementary
restraining system as per your training and team
Remove SPED from the bag, record serial numbers and
other relevant information.
Thoroughly inspect the SPED and ensure it is damage
free.
Before and after each use, inspect the SPED buckles,
materials and vacuum components. If there are any
signs of damage, DO NOT use the device and remove it
from service immediately.
1. During the strapping process one extrication team
member is required to hold the casualties head rmly
above the ears with both hands from behind.
2. Secure the patient to the SPED by rstly fastening the
YELLOW Torso Strapping.
3. Then secure the BLUE and RED shoulder straps.
4. Moving down the torso fasten the GREEN groin
strapping followed by both SILVER leg straps, these go
under each leg up through the groin area across the
casualty and attach to the other side from where the
straps were deployed.
REMEMBER THE STRAPPING SYSTEM IS DEPLOYED FROM WITHIN
THE DEVICE & REQUIRES A FIRM PULLING ACTION TO FREE THE
STRAPS FOR SECURING PURPOSES.
5. You are now ready to apply the vacuum
protocols, applicable to the situation.
Personnel using the SPED in high-angle environments
are responsible for learning the proper techniques
involved, and for selecting the equipment and
procedures best suited to the rescue situation.
The device should be stored in a cool, dry place out of
direct sunlight or damp conditions.
5.1 Before placing into service 5.3 Securing the Strapping System
WARNING
Untrained operators can cause injury or be
injured. Permit only trained personnel to
operate the stretcher.
1. You need to have a clear entry point into the casualties
cockpit.
2. Ensure the casualty is free from the vehicles seat safety
harnesses or belt and any other cockpit obstacles
including their crash helmet.
3. Leave the SPED strapping system in their pockets until
ready to secure the casualty.
4. Position the SPED behind the casualty, GREEN side to
the casualties back.
5. This puts the “low friction material”facing the vehicle
seat, apply the Introducer to the introducer pocket and
push the sped to the base of the casualtues spine
6. You are now ready to operate the device.
5.2 Preparing the SPED for use
1. The application of the vacuum requires two operators
2. The operator in charge of holding the casualties head
can now massage the SPED’s neck and head area to
form a closer contact to the the casualties c-spine area
(head and neck).
3. The operator who would have deployed the strapping
is now required to insert the vacuum pump nozzle to
the vacuum splint valve.
4. Using the vacuum hand pump stiens the SPED
compartments, forming too and immobilising the
casualty in seconds
5. Attach the two head straps one to forehead the other
to chin using the velcro on the back of the SPED to
secure both straps.
6. You are now ready to lift the casualty away from the
vehicle
5.4 Applying the Vacuum to the SPED

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
8
SPED II Spinal Protection Extrication Device
®
Refer to local protocols and guidelines regarding manual
handling and lifting of persons or objects. The SPED is
tted with ve carry handles. There should be a minimum
of three people lifting the device but one person on each
carry handle (ve people) is recommended.
Each operator to grasp a carry handle in palm of hand and
in a coordinated action, lift out and carry as required.
Using additional help: Operators should maintain control
of the device and direct any helpers or assistants.
High angle and rope-access rescue can involve any
combination of ropes, winches, pulleys, litter bridles, belay
devices and many other specialised items and devices.
Proper and safe use of these tools requires professional
instruction and training. When using high-angle or rope-
access equipment with the SPED, ensure the equipment
has an adequate load-rating, and that it is at least as great
as that of the SPED.
5.5 Manually lifting a casualty
5.6 Vertical/ Horizontal Lifting
Important
Rescue procedures using ropes, harnesses, bridles
and other Personal Protective Equipment require
special skills and are potentially hazardous
activities. No rescue personnel should attempt such
rescue procedures unless he or she has received
professional instruction and training.
5.7 Returning the Strapping System
after use
One of the most important protocols is once the SPED
has been used it must be returned to ‘Ready to Deploy’
status. The vacuum valve releases to allow air back in plus
the strapping sytem must be returned to their pockets,
ensuring the device is able to be used correctley the next
time it is needed.
To stow the straps into their pockets place the SPED on a at surface with
the outer surface upwards.
Manipulate the buckle to the end of the strap, Place Strap Introducer on
top of strap, Loop the excess with nger and poke strap under where it
exits. Push strap in the full length of the Introducer, Repeat with the excess
strap length underneath the previously stowed strap, push strap in until
buckle is ush. APPLY TO ALL OTHER STRAPPINGS
Once you have got the straps back in their pockets, turn to over to the
GREEN side up, attach the BLUE and RED buckles, place intoducer into the
centre then fold the remaining bottom buckles into each other.
Then fold the top head area down on itself and using the head straps fold
the edges under and apply the straps to secure, then put it in the carry bag.
Once you have followed these proceedures your SPED is ready to deploy
again.

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK 9
®
SPED II Spinal Protection Extrication Device
6  MAINTAINING THE SPED
6.1 Maintenance Schedule
The SPED requires regular maintenance. Set up and
follow a maintenance schedule. A form is provided
on page 11. The schedule below represents minimum
maintenance and you should modify your own program
based on your needs.
Over and above an inspection prior to and after each
use, the SPED must be inspected by a competent person
every 6 months and must be recorded in the equipment
inspection manual for this device.
Each Use As Needed Each Month
Disinfecting x
Cleaning x
Inspecting x
6.2 SPED Longevity
The SPED has a 5 year life span provided the device does
not sustain any damage during this period. After 5 years, it is
reccomended the SPED is removed from service.
When using maintenance products, follow the
manufacturers’directions and read the manufacturers’
material safety data sheets. 6.4 Inspecting the SPED
After each use, check the stretcher for the following:
˛ Are all components present?
˛ Is all strapping in good condition with no cuts or frayed
edges?
˛ Is stitching in good condition with no frayed or broken
threads?
˛ Are the adjustment buckles operational and do they
insert and release smoothly?
˛ Is the material of the SPED intact and not torn or
excessively worn?
˛ Are the lifting attachment points in a good condition
and free from any wear, tear or fraying?
If inspection shows damage or excessive wear, remove the
stretcher from service and retire it. Do not attempt to repair
or replace any materials or components.
6.3 Disinfecting and Cleaning
1. Hand wash the SPED in warm water with a mild soap
(Ferno recommend Rope & Harness Wash). Once stains
are removed, rinse in clear water. DO NOT use excessive
force or abrasive items in the cleaning process. Do not
use cleaners that contain bleach, phenolics or iodines.
2. Once the SPED is clean, hang to dry in a warm, well
ventilated area away from direct sunlight, or air dry
near a heat source. Do not tumble dry.
3. Once completely dry, inspect the entire SPED and
ensure all components are operational and in good
condition.
Improper maintenance can cause injury.
Maintain the SPED only as described in this
manual.
WARNING
Important
Disinfectants and cleaners containing bleach,
phenolics, or iodines can cause damage.
Disinfect and clean only with products that do
not contain these chemicals.

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
10
SPED II Spinal Protection Extrication Device
®
7  WARRANTY
Limited Warranty Summary
Ferno warrants the SPED (Spinal Protection Extrication Device) to be free from defects in material and workmanship for two
years except as follows:
(A) Soft goods (webbing, vinyl, fabric, foam, etc.) are warranted for 90 days.
This limited warranty applies when you use and care for the product properly. If the product is not used and cared for properly,
the warranty is void. The warranty period begins the day the product is shipped from Ferno or the day you receive it if you have
proof of the delivery date. Shipping charges are not covered by the limited warranty. We are not liable for shipping damages or
damages sustained through using the product.
Limited Warranty Obligation
If a product or part is proven to be defective, Ferno will repair or replace it. At our option, we will refund the product’s purchase
price. The purchaser accepts these terms in lieu of all damages.
This is a summary of the limited warranty. The actual terms and conditions of the limited warranty, and
the limitations of liability and disclaimers, are available upon request by calling Customer Service.
8  FERNO CUSTOMER SERVICE
Customer relations and product support are important
aspects of each Ferno product.
Service Telephone [phone]
Telephone [phone]
Email [email protected].uk
Fax [phone]
Online www.ferno.co.uk
For assistance with the SPED please contact your Ferno
distributor, or Ferno Customer Service as listed below:

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK 11
®
SPED II Spinal Protection Extrication Device
TRAINING RECORD
Date Name Training Method
MAINTENANCE RECORD
Date Maintenance Performed By

© Ferno UK Ltd | FERNO/MAN/0721/215-R2/UK
12
SPED II Spinal Protection Extrication Device
®
®
Overview
Ferno SPED - Spinal Protection and Extrication Device,
designed for immobilisation and extrication of crash
victims from closed-top racing vehicles.
• Low friction material - quick and easy introduction of
SPED into position
• Special introducer paddle – aids in the quick & easy
positioning of the device
• Cobra stripes – visible conrmation ensuring
centralisation of patient in SPED prior to deployment
• Vacuum hand pump – simple stiening of vacuum
compartments once positioned
• Integrated colour coded strapping system – instant
visual verication, no loose straps
• Vacuum splint technology – immobilises victim
within seconds
• Built-in spinal stiening ribs – giving maximum
support during immobilisation and extrication
• Integrated head-immobiliser – further protection of
victim during transfer
• Scan compliant – patient is immobilised from crash
scene right through to triage
• Multiple lifting points - seven lifting handles for ease
of lifting manoeuvrability
Contact
Ferno (UK) Ltd, Ferno House, Stubs Beck Lane, Cleckheaton,
West Yorkshire, BD19 4TZ, ENGLAND
Call [phone]
Email [e-mail]
Online www.ferno.co.uk
