Fetco EXTRACTOR CBS-2031e Service manual

NUMBER
TECHNICAL
BULLETIN 8
www.fetco.com
email : [email protected]
FETCO ♦640 Heathrow Drive ♦Lincolnshire, IL 60069 USA ♦Tel. [phone] or [phone] ♦Fax: [phone]
Subject: 2000 Series Input Board Date: December 30, 2002
Applies to: All 2000 Series Brewers
There are four different input boards for the 2000 Series Brewers. In the table & diagrams below please find
each board’s configuration and use. The board’s configuration is dictated by the placement of a jumper in
the lower right corner of the board (as viewed from the front or button side of board.)
Model #CBS 2031 2032 2041 2042 2051 2052 2061 2062
Input Board 51024 X X
Input Board 51025 XX
Input Board 51026 X X
Input Board 51027 XX
X Indicates which input board goes with which brewer.

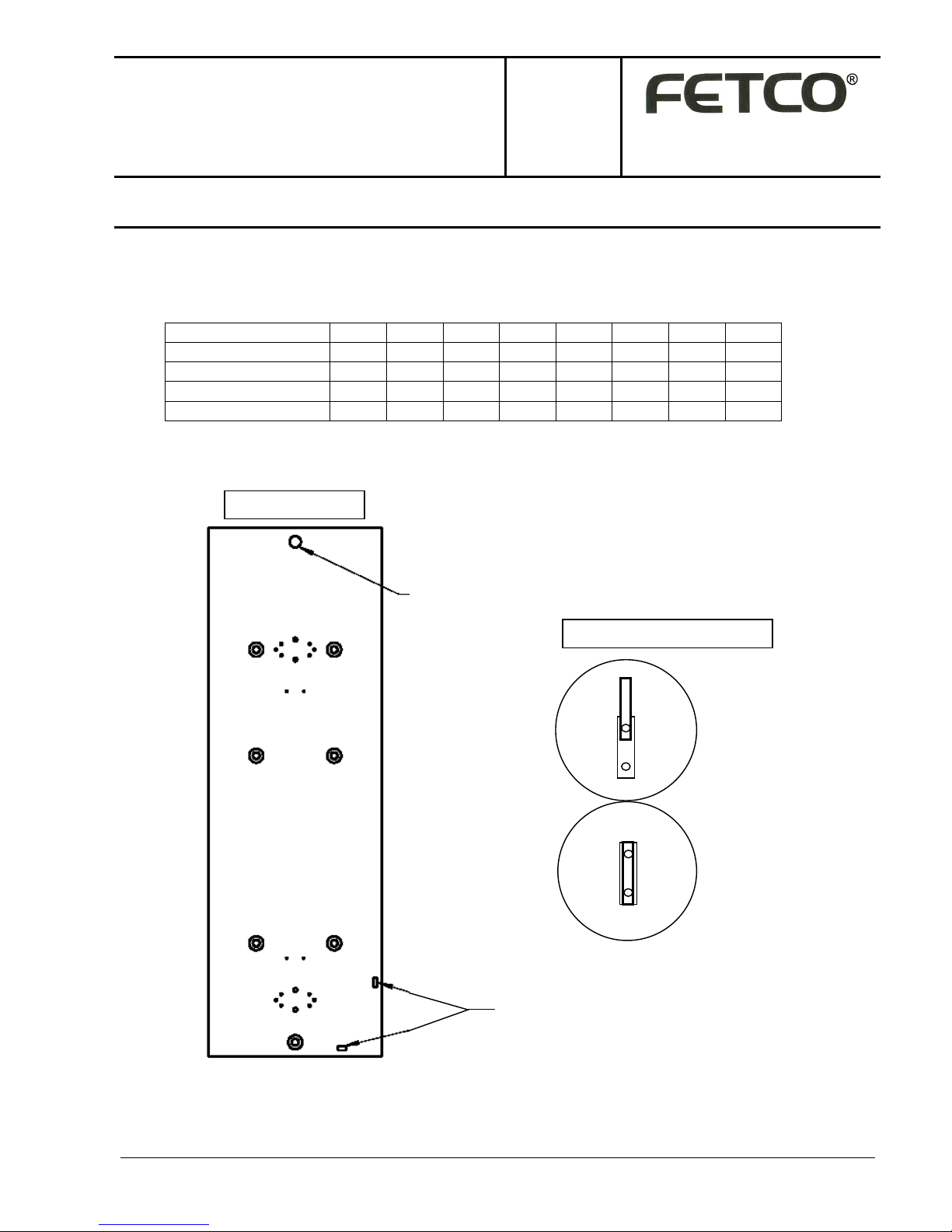

Jumper Configuration
Open:
CBS-2041
CBS-2042
CBS-2061
CBS-2062
Closed:
CBS-2031
CBS-2032
CBS-2051
CBS
-
2052
Indicator Light
Or Jumper
Input Board
