FIBARO WALL PLUG
Type G with USB charger
FGWPG-121
OPERATING
MANUAL EN
v1.0

2
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
!
This product is intended for indoor use only in dry locations.
Do not use in damp or wet locations, near a bathtub, sink,
shower, swimming pool, or anywhere else where water or moisture
are present.
!
Caution!
To avoid risk of electrical shock, do not operate the device with
wet or moist hands.
!
This product is not a toy. Keep away from children and animals!
General information about
the FIBARO System
FIBARO is a wireless smart home automation system, based on the
Z-Wave protocol. All of available devices can be controlled through
a computer (PC or Mac), smartphone or tablet. Z-Wave devices are
not only receivers, but can also repeat the signal, increasing the
Z-Wave network’s range. It gives advantage over traditional wireless
systems that require direct link between transmitter and receiver, as
a result the construction of the building could aect network’s range
negatively.
Every Z-Wave network has its unique identication number (home
ID). Multiple independent networks can exist in the building without
interfering. Transmission security of FIBARO System is comparable to
wired systems.
Z-Wave technology is the leading solution in smart home automation.
There is a wide range of Z-Wave devices that are mutually
compatible, independently of manufacturer. It gives the system the
ability to evolve and expand over time. For more information visit:
www.baro.com.
Do not dismantle the device!

3
DESCRIPTION AND FEATURES
Main features of FIBARO Wall Plug:
• Compatible with type G sockets and plugs.
• Compatible with any Z-Wave or Z-Wave Plus Controller.
• Supports Z-Wave network Security Modes: S0 with AES-128
encryption and S2 Authenticated with PRNG-based encryption.
• Extremely easy installation - simply plug the device into the mains
socket.
• Equipped with USB charging port.
• Works as a Z-Wave signal repeater.
• Active power and energy consumption metering for plugged device
and the USB port.
• Current value of the load and operating mode are indicated by the
multi-colour LED frame.
FIBARO Wall Plug is a remotely controlled plug-in switch with the
ability to measure power and energy consumption.
It uses a LED frame to visualize the current load and operating mode
with colour changing illumination.
Our smart plug makes it possible to control electrical devices in a
convenient and maintenance-free way.
It is also equipped with a USB charging port with power metering.
#1: Description and features
FIBARO Wall Plug is a fully
compatible Z-Wave Plus device.
NOTE
This device may be
used with all devices
certied with Z-Wave
Plus certicate and
should be compatible
with such devices pro-
duced by other manu-
facturers.
i
NOTE
Z-Wave Controller
must support Z-Wave
Security Mode in or-
der to fully utilize the
product.
i

4
BASIC ACTIVATION
#2: Basic activation
1. Plug the device into a socket nearby the main Z-Wave controller.
2. Set the main controller in (Security/non-Security Mode) add mode
(see the controller’s manual).
3. Quickly, triple click the button located on the casing.
4. Wait for the device to be added to the system.
5. Successful adding will be conrmed by the controller.
6. Plug a device you want to control into the Wall Plug.
7. Test the device by turning it on and o using the button.
NOTE
When powered, the
device will indicate
Z-Wave status with
colour of LED frame:
• Green - the device is
already added to the
Z-Wave network.
• Red - the device is
not added to any
Z-Wave network.
i

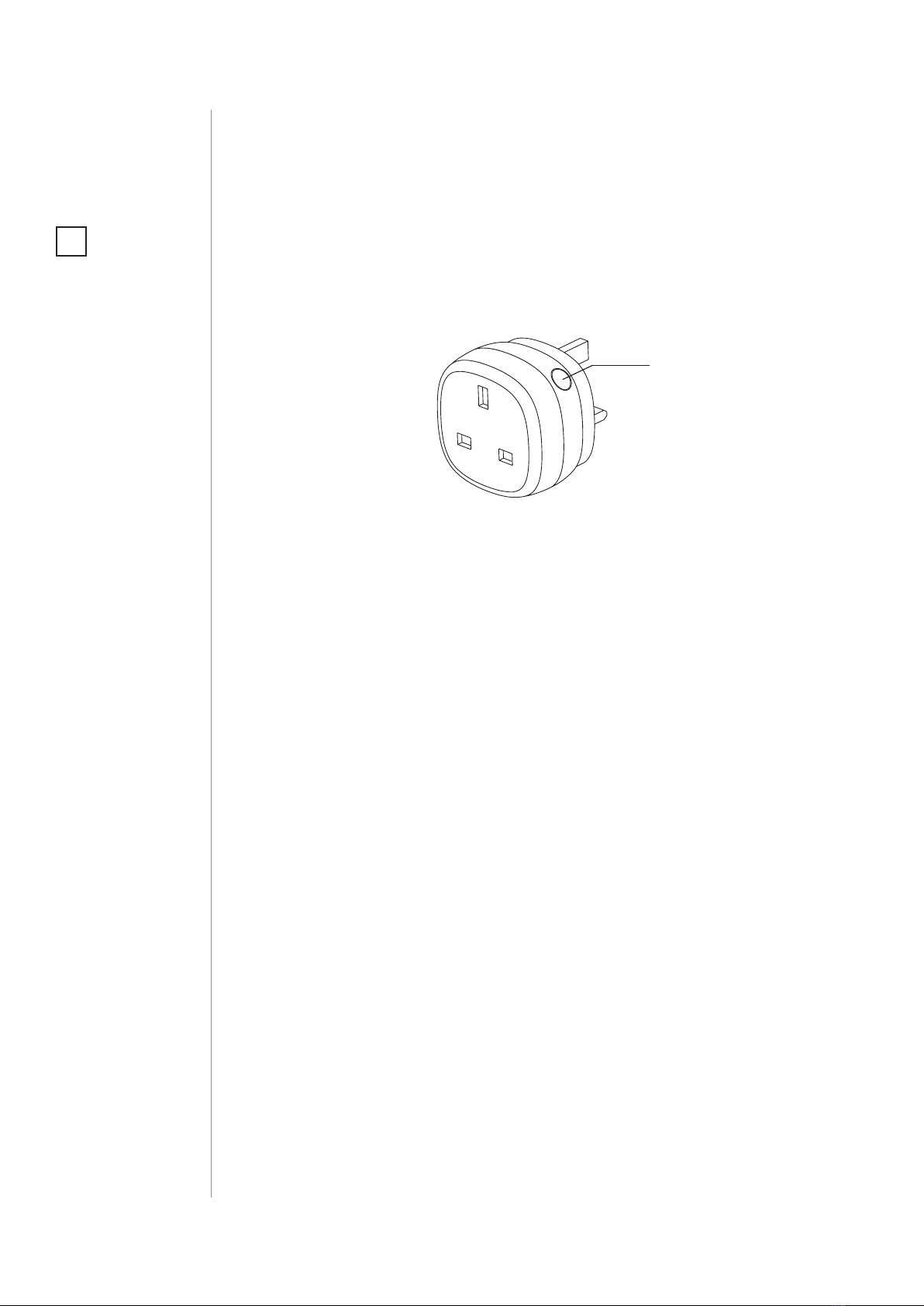

Button

5
ADDING THE DEVICE
#3: Adding the device
Adding (Inclusion) - Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
To add the device to the Z-Wave network:
1. Plug the device into a socket nearby the main Z-Wave controller.
2. The LED frame will glow red signalling not being added (reset or
remove the device otherwise).
3. Set the main controller in (Security/non-Security Mode) add mode
(see the controller’s manual).
4. Quickly, triple click the button located on the casing.
5. If you are adding in S2 Authenticated mode, type in the device pin
code (underlined part of the public key available on the device or
in the manual).
6. Wait for the adding process to end.
7. Successful adding will be conrmed by the Z-Wave controller’s
message.
NOTE
In case of problems
with adding the de-
vice, please reset the
device and repeat the
adding procedure.
i

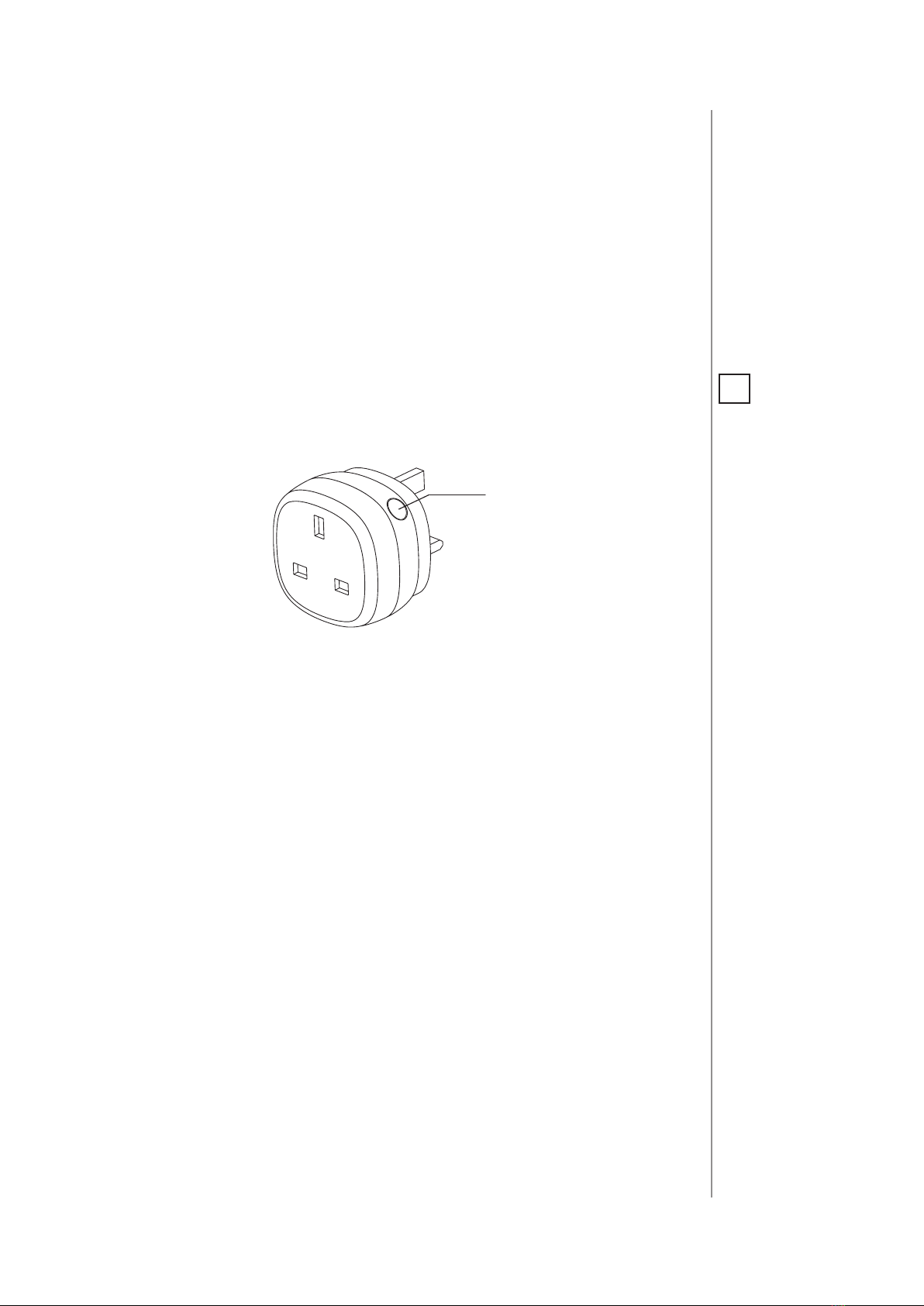

Button

6
REMOVING THE DEVICE
Removing (Exclusion) - Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network.
To remove the device from the Z-Wave network:
1. Plug the device into a socket nearby the main Z-Wave controller.
2. The LED frame will glow green signalling being added (removing
is not necessary otherwise).
3. Set the main controller into remove mode (see the controller’s
manual).
4. Quickly, triple click the button located on the casing.
5. Wait for the removing process to end.
6. Successful removing will be conrmed by the Z-Wave controller’s
message.
NOTE
Removing the Wall Plug
from the Z-Wave net-
work restores all the
default parameters of
the device.
i
#4: Removing the device
Button

7
OPERATING THE DEVICE
#5: Operating the device
Controlling the Wall Plug using the button:
Wall Plug is equipped with a button, which allows to use the menu
and additionally perform the following actions:
1x click: turn controlled device ON/OFF, conrm selected menu op-
tion (if menu is active)
3x click: add/remove the device to/from a Z-Wave network
Hold: enter/navigate through the menu
Visual indications:
The Wall Plug is equipped with a LED frame, signalling sensor’s oper-
ating modes and current active power consumption. In addition the
visual indicator may inform of the Z-Wave network range.
Visual indicator frame signalling modes:
Active power consumption – by default, when the device is
turned ON, the colour will vary depending on the current power.
Z-Wave network inclusion status – once plugged into a mains sock-
et the device signals it with blink (green - added, red - not added).
Range of the Z-Wave network – signalled with colour depending
on type of communication or the lack of it (only in range tester
mode)
Menu position – signalled with colour assigned to position.
Ongoing software update – signalled with cyan blinking.
Hardware fault state – error in communication with radio chip,
device secured, plug the device out and back into the socket.
Menu allows to perform Z-Wave network actions. In order to use the
menu:
1. Press and hold the button.
2. Wait for the device to indicate desired position with a colour:
• GREEN - erase energy consumption memory
• VIOLET - Z-Wave network’s range test
• YELLOW - device reset
3. Release the button.
4. Click the button to conrm selection.
NOTE
Menu is preceded by
white ashes of the
LED frame - release
the button if you want
to disable/enable the
LED frame.
i
CAUTION
To avoid risk of electri-
cal shock, do not op-
erate the device with
wet or moist hands.
!

8
OPERATING THE DEVICE
Resetting the device to factory defaults:
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the Z-Wave controller and
user conguration will be deleted.
1. Make sure the device is powered.
2. Press and hold the button.
3. Wait for the LED frame to glow yellow (3rd menu position).
4. Release the button.
5. Click the button once to conrm selection.
6. After few seconds the device will restart with factory settings,
which is signalled with the red frame colour.
NOTE
Resetting the device is
not the recommend-
ed way of removing
the device from the
Z-Wave network. Use
reset procedure only
if the primary con-
troller is missing or
inoperable. Certain
device removal can
be achieved by the
procedure of remov-
ing described in “Add-
ing the device” on
page 5.
i
Controlling the Wall Plug with FIBARO Home Center controller:
The Wall Plug after successful adding is represented in the
Home Center interface with two icons. Device allows to turn on and
o the device and displays current active power and cumulative en-
ergy consumption. USB port icon displays current active power and
cumulative energy consumption
Disabling visual indicator:
Visual indication frame may be turned o for status signalling (turned
ON/OFF, power consumption). That means each status change will
be signalled by a short white blink of the frame. Disabling it will not
change operation of the device. To disable the LED frame:
1. Insert the Wall Plug in a socket.
2. Press and hold the button for about 3 seconds.
3. Release the button after LED frame starts pulsing white.
To restore visual indications perform above procedure again.
NOTE
Disabling the LED
frame indications will
also aect alarm sig-
nalization.
i

9
POWER AND ENERGY CONSUMPTION
#6: Power and energy
consumption
The Wall Plug allows to monitor the active power and energy con-
sumption. Data is sent to the main Z-Wave controller, e.g. Home
Center.
Measuring is carried out by the most advanced micro-controller tech-
nology, assuring maximum accuracy and precision (+/- 1% for loads
greater than 5W).
Power and energy are reported according to parameters 11-15.
For loads under 5W power is reported for every 0.2W change.
For USB port power is not reported for loads under 0.4W.
Electric active power - power that energy receiver is changing into a
work or a heat. The unit of active power is Watt [W].
Electric energy - energy consumed by a device through a time
period. Consumers of electricity in households are billed by sup-
pliers on the basis of active power used in given unit of time. Most
commonly measured in kilowatt-hour [kWh]. One kilowatt-hour is
equal to one kilowatt of power consumed over period of one hour,
1kWh = 1000Wh.
Resetting consumption memory:
Wall Plug allows to erase stored consumption data (turning it o/on
or removing it from the socket will not erase consumption):
1. Make sure the device is powered.
2. Press and hold the button.
3. Release the button when the LED frame glows green (1st menu
position).
4. Press the button briey.

10
ASSOCIATION
#7: Association
The Wall Plug provides the association of three groups:
1st Association Group – “Lifeline” (for root, endpoint 1 and 2)
reports the device status and allows for assigning single device only
(main controller by default).
2nd Association Group – “On/O (Button)”(for root and endpoint 1)
devices in this group will be switched on or o when relay status is
changed using the button (uses Basic command class).
3rd Association Group – “On/O (Plug power)” (for root and end-
point 1) devices in this group will be switched on or o depending on
the current load of plugged device (uses Basic command class).
NOTE
Association ensures
direct transfer of
control commands
between devices, is
performed without
participation of the
main controller.
i
The Wall Plug in 2nd and 3rd group allows to control
up to 5 regular or multichannel devices per an association group.
“LifeLine” group is reserved solely for the controller and hence only 1
node can be assigned.
Association (linking devices) - direct control of other devices within
the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter
or scene (may be controlled only through a Z-Wave controller).
NOTE
2nd association group
commands are sent
only in case of manual
operation through the
button.
3rd association group
commands are sent
automatically, de-
pending on parame-
ters 21 to 27.
i
To add an association (using the Home Center controller):
1. Go to the device options by clicking the icon:
2. Select the„Advanced” tab.
3. Click the “Setting Association” button.
4. Specify to which group and what devices are to be associated.
5. Save the changes.
6. Wait for the conguration process to end.
NOTE
Meter Report [0x02] in
Lifeline Group reports
energy by default.
i
