FIBARO WALLI FGWDSEU-221 User manual

FIBARO WALL DOUBLE SWITCH
FGWDSEU-221
OPERATING
MANUAL EN
v1.0

3
Table of contents
1: Important safety information 4
2: Description and features 5
2.1: Description 5
2.2: Main features 5
3: Specications 6
4: Installation 7
4.1: Before installation 7
4.2: Preparing for installation 8
4.3: Electrical connection 8
4.4: Assembling the device 9
5: Adding to Z-Wave network 11
5.1: Adding manually 11
5.2: Adding using Smart Start 11
6: Removing from Z-Wave network 12
7: Operating the device 13
7.1: Controls 13
7.2: Single/double switch operating mode 13
7.3: Button control 14
7.4: Visual indications 14
7.5: Menu 15
7.6: Resetting to factory defaults 15
8: Power and energy metering 16
9: Z-Wave range test 17
10: Conguration 18
10.1: Associations 18
10.2: Advanced parameters 19
11: Z-Wave specication 33
12: Parts compatibility 37
13: Regulations 39

4
Important safety InformatIon
1: Important safety information
Read this manual before attempting to install the device!
!Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manu-
facturer, Fibar Group S.A. will not be held responsible for any loss or
damage resulting from not following the instructions of operating
manual.
DANGER OF ELECTROCUTION!
The device is designed to operate in electrical home installa-
tion. Faulty connection or use may result in re or electric
shock.
All works on the device may be performed only by a qualied
and licensed electrician. Observe national regulations.
Even when the device is turned o, voltage may be present at
its terminals. Any maintenance introducing changes into the
conguration of connections or the load must be always performed
with disabled fuse.
To avoid risk of electrical shock, do not operate the device with
wet or moist hands.
Do not modify!
!Do not modify this device in any way not included in this
manual.
Other devices
!The manufacturer, Fibar Group S.A. will not be held responsi-
ble for any damage or loss of warranty privileges for other con-
nected devices if the connection is not compliant with their
manuals.
This product is intended for indoor use only in dry locations.
!Do not use in damp or wet locations, near a bathtub, sink,
shower, swimming pool, or anywhere else where water or
moisture are present.
Not a toy!
!This product is not a toy. Keep away from children and
animals!

5
DescrIptIon anD features
2: Description and features
2.1: Description
FIBARO Wall Double Switch is a smart wall switch designed to con-
trol one or two light sources via Z-Wave network.
It measures active power and energy consumed by the controlled
load.
You can install it with provided cover plate or other compatible.
2.2: Main features
• Can be used with:
»conventional incandescent and halogen light sources,
»LED lamps,
»compact uorescent CFL tube lamps,
»electronic transformers (for ELV halogen lamps and LED bulbs),
»ferromagnetic transformers (for MLV halogen lamps).
• Can be used with provided cover plate or one of the following
(see “Parts compatibility” on page 37):
»GIRA – System 55 (Standard 55, E2, Event, Event Clear),
»Legrand – Céliane,
»Schneider – Odace.
• Active power and energy consumption metering.
• Supports Z-Wave network Security Modes: S0 with AES-128 en-
cryption and S2 Authenticated with PRNG-based encryption.
• Works as a Z-Wave signal repeater.
• May be used with all devices certied with the Z-Wave Plus cer-
ticate and should be compatible with such devices produced by
other manufacturers.
i
The device is a Security Enabled Z-Wave Plus product
and a Security Enabled Z-Wave Controller must be
used in order to fully utilize the product.

6
specIfIcatIons
3: Specications
Power supply 110-230V~ 50/60 Hz
Rated load current 13A per one channel
16A total
Compatible load types incandescent bulbs
tube lamps
electronic transformers
ferromagnetic transformers
LED
Active element micro-gap relay μ
Recommended external
overcurrent protection
10A type B circuit breaker (EU)
13A type B circuit breaker (Sweden)
For installation in boxes Ø = 60mm, depth ≥ 40mm
Operating temperature 0–35°C
Ambient humidity 10–95% RH without condensation
Radio protocol Z-Wave (500 series chip)
Radio frequency 868.4 or 869.8 MHz EU;
869.0 MHz RU;
Transmit power EIRP max. 6dBm
Range up to 50m outdoors
up to 40m indoors
(depending on terrain and building
structure)
Dimensions
(Height x Width x Depth)
86 x 86 x 51 mm
Compliance with EU
directives
RoHS 2011/65/EU
RED 2014/53/EU
i
Radio frequency of individual device must be same as
your Z-Wave controller. Check information on the box
or consult your dealer if you are not sure.

7
InstallatIon
4: Installation
4.1: Before installation
!Connecting the device in a manner inconsistent with this
manual may cause risk to health, life or material damage.
• Connect only in accordance with one of the diagrams,
• Install only in ush mounting boxes compliant with a relevant na-
tional safety standards and with depth no less than 40mm,
• Do not connect devices which are not compliant with the speci-
cation or relevant safety standards,
• Do not connect heating devices,
• Do not connect SELV or PELV circuits.
• Make sure you have all required parts when installing with covers
other than FIBARO (see “Parts compatibility” on page 37).
Device parts:
1
2
3
4
1 – switch button, 2 – cover plate, 3 – unit (device), 4 – mounting
frame
Notes for diagrams:
N LQ1 Q2
N - terminal for neutral wire
Q1 - output terminal of the 1st channel
Q2 - output terminal of the 2nd channel
L - terminal for live wire

8
InstallatIon
4.2: Preparing for installation
When installing with FIBARO or GIRA cover plates:
1. Pull out the switch button.
2. Take o the cover plate.
When installing with Legrand or Schneider cover plates:
1. Pull out the original switch button.
2. Take o the original cover plate.
3. Dismount the original mounting frame.
4. Snap the new mounting frame*.
* Switch button adapter and additional mounting frames
are sold separately.
4.3: Electrical connection
1. Switch o the mains voltage (disable the fuse).
2. Connect with one of the diagrams below:
N
L
Diagram 1: Example con-
nection for double switch
conguration
N
L
Diagram 2: Example con-
nection for single switch
conguration
3. Verify correctness of connection.
4. Tighten the terminal screws.

9
InstallatIon
4.4: Assembling the device
i
When installing the device in the mounting box orient
the device with terminal screws going up or to the left
(for horizontal button position) to ensure button order.
i
When installing with cover plates other than FIBARO,
we recommend disabling the LED by changing param-
eter 13 to 0.
When installing with FIBARO cover plates:
1. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
2. Snap the cover plate to the device.
3. Snap the switch button to the device.
When installing with GIRA cover plates:
1. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
2. Snap the new cover plate to the device.
3. Snap the switch button adapter* to the device.
4. Snap the new switch button to the device.

10
InstallatIon
When installing with Legrand cover plates:
1. Insert the device with mounting frame* into the mounting box
and secure with mounting claws and screws.
2. Snap the switch button adapter* to the device.
3. Snap the new inner cover plate to the device.
4. Snap the new outer cover plate to the device.
5. Snap the new switch button to the device.
When installing with Schneider cover plates:
1. Insert the device with mounting frame* into the mounting box
and secure with mounting claws and screws.
2. Snap the new cover plate to the device.
3. Snap the new switch button to the device.
* Switch button adapter and additional mounting frames
are sold separately.

11
aDDIng to Z-Wave netWork
5: Adding to Z-Wave network
Adding (Inclusion) – Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
i
If you want to change single/double switch operating
mode (see “Single/double switch operating mode” on
page 13), you must do it before adding the device to the
Z-Wave network.
5.1: Adding manually
To add the device to the Z-Wave network manually:
1. Power the device.
2. Set the main controller in (Security/non-Security Mode) add mode
(see the controller’s manual).
3. Quickly, three times click one of the buttons.
4. If you are adding in Security S2 Authenticated, scan the DSK QR
code or input the 5-digit PIN code (label on the bottom of the box).
5. Wait for the adding process to start (up to few minutes), which is
signalled with yellow LED blinking.
6. Successful adding will be conrmed by the Z-Wave controller’s
message.
5.2: Adding using Smart Start
SmartStart enabled products can be added to SmartStart enabled
Z-Wave controller by scanning the Z-Wave QR Code present on the
product. SmartStart product will be added automatically within 10
minutes of being switched on in the network range.
To add the device to the Z-Wave network using Smart Start:
1. Set the main controller in Security S2 Authenticated add mode
(see the controller’s manual).
2. Scan the DSK QR code or input the 5-digit PIN code (label on the
bottom of the box).
3. Power the device.
4. Wait for the adding process to start (up to few minutes), which is
signalled with yellow LED blinking.
5. Successful adding will be conrmed by the Z-Wave controller’s
message.
i
In case of problems with adding the device, please re-
set the device and repeat the adding procedure.

12
removIng from Z-Wave netWork
6: Removing from Z-Wave network
Removing (Exclusion) – Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network. Removing also re-
sults in resetting the device to factory defaults.
To remove the device from the Z-Wave network:
1. Power the device.
2. Set the main controller into remove mode (see the controller’s
manual).
3. Quickly, three times click one of the buttons.
4. Wait for the removing process to start (up to few minutes), which
is signalled with yellow LED blinking.
5. Successful removing will be conrmed by the Z-Wave controller’s
message and red LED colour.

13
operatIng the DevIce
1
2
3

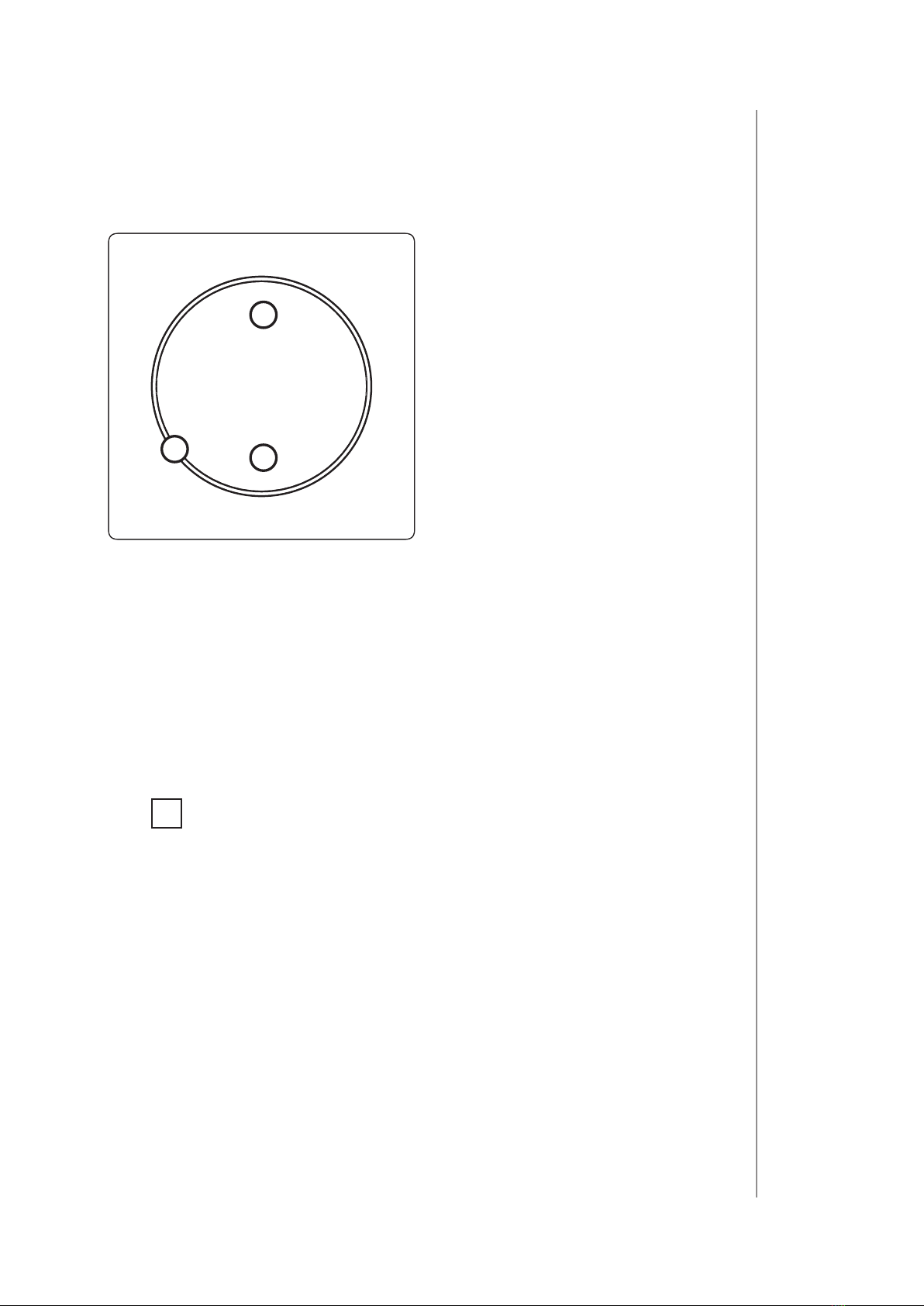

1. First button,
2. Second button,
3. LED ring.
7.2: Single/double switch operating mode
The device can work as single or double switch:
• Double switch mode (default) – the device can control two
separate loads, but they can be up to 13A per channel and
16A total.
• Single switch mode – the device can control only one load,
but it can be rated up to 16A.
i
Changing operating mode must performed be-
fore adding it to the Z-Wave network!
To change or check the operating mode:
1. Quickly, three times click, then press and hold one of the
buttons to enter the menu
2. Release button when the device glows white.
3. Quickly click the button to conrm.
4. If the device is not added to the Z-Wave network, it change
the mode to the opposite one.
5. The device will signal current operating mode:
• 1 white blink – single switch mode,
• 2 white blinks – double switch mode.
7: Operating the device
7.1: Controls

14
operatIng the DevIce
7.3: Button control
Controlling connected loads
Perform following actions on one of the buttons to change state
of the connected load. Button operation is congurable using
advanced parameters.
Double switch mode – the 1st button controls the 1st channel
and the 2nd button controls the 2nd channel:
• Click – change to the opposite state, ON/OFF (by default).
Single switch mode – both buttons control the load:
• Click – change to the opposite state, ON/OFF (by default).
Other actions
Perform following actions on one of the buttons to:
• 3xClick – start learn mode to add/remove to/from Z-Wave
network,
• 1,2,3xClick/hold/release – activate scene in the controller for
specic action (requires prior conguration),
• 3xClick then press and hold – enter the menu.
7.4: Visual indications
The built-in LED light shows current device status.
After powering the device:
• Green – device added to a Z-Wave network (non-secure, S0,
S2 non-authenticated),
• Magenta – device added to a Z-Wave network (Security S2
Authenticated),
• Red – device not added to a Z-Wave network.
State of the device:
• White – load turned ON (congurable).
Update:
• Blinking cyan – update in progress,
• Green – update successful,
• Red – update not successful.
Menu:
• 3 green blinks – entering the menu (added as non-secure, S0,
S2 non-authenticated),
• 3 magenta blinks – entering the menu (added as Security S2
Authenticated),

15
operatIng the DevIce
• 3 red blinks – entering the menu (not added to a Z-Wave network),
• Green – reset energy consumption memory,
• Magenta – start Z-Wave range test,
• Yellow – reset to factory defaults,
• White – change or check operating mode (single or double switch),
• 1 white blink – single switch mode,
• 2 white blinks – double switch mode.
7.5: Menu
Menu allows to perform Z-Wave network actions. In order to use the
menu:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu, device blinks to signal adding status (see 7.4:
Visual indications).
2. Release the button when device signals desired position with
colour:
• WHITE – change or check single/double switch mode
• GREEN – reset energy consumption memory
• MAGENTA – start Z-Wave range test
• YELLOW – reset to factory defaults
3. Quickly click the button to conrm.
7.6: Resetting to factory defaults
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the Z-Wave controller and
user conguration will be deleted.
i
Resetting the device is not the recommended way of
removing the device from the Z-Wave network. Use re-
set procedure only if the primary controller is missing or
inoperable. Certain device removal can be achieved by the
procedure of removing described.
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows yellow.
3. Quickly click the button to conrm.
4. After few seconds the device will be restarted, which is signalled
with red LED colour.

16
poWer anD energy meterIng
8: Power and energy metering
The device allows for the active power and energy consumption mon-
itoring. Data is sent to the main Z-Wave controller, e.g. Home Center.
Measuring is carried out by the most advanced microcontroller tech-
nology, assuring maximum accuracy and precision (+/- 1% for loads
greater than 10W).
Electric active power – power that energy receiver is changing into
a work or a heat. The unit of active power is Watt [W].
i
Power measurement can contain mains voltage uctu-
ations within +/- 10%.
Electric energy – energy consumed by a device through a time pe-
riod. Consumers of electricity in households are billed by suppli-
ers on the basis of active power used in given unit of time. Most
commonly measured in kilowatt-hour [kWh]. One kilowatt-hour is
equal to one kilowatt of power consumed over period of one hour,
1kWh = 1000Wh.
Resetting consumption memory:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows green.
3. Quickly click the button to conrm.
4. Device will blink two times green to conrm.
i
The device stores periodically (every hour) the con-
sumption data in the device memory. Disconnecting
the module from the power supply will not erase stored
energy consumption data.
i
Changing the device operating mode (Single/Double)
resets energy consumption memory.

17
Z-Wave range test
9: Z-Wave range test
The device has a built in Z-Wave network main controller’s range
tester.
i
To make Z-Wave range test possible, the device must
be added to the Z-Wave controller. Testing may stress
the network, so it is recommended to perform the test only
in special cases.
To test the main controller’s range:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows magenta.
3. Quickly click the button to conrm.
4. Visual indicator will indicate the Z-Wave network’s range (range
signaling modes described below).
5. To exit Z-Wave range test, press the button briey.
Z-Wave range tester signalling modes:
• Visual indicator pulsing green - the device attempts to establish
a direct communication with the main controller. If a direct com-
munication attempt fails, the device will try to establish a routed
communication, through other modules, which will be signalled
by visual indicator pulsing yellow.
• Visual indicator glowing green - the device communicates with
the main controller directly.
• Visual indicator pulsing yellow - the device tries to establish a
routed communication with the main controller through other
modules (repeaters).
• Visual indicator glowing yellow - the device communicates with
the main controller through the other modules. After 2 seconds
the device will retry to establish a direct communication with the
main controller, which will be signalled with visual indicator puls-
ing green.
• Visual indicator pulsing violet - the device does communicate
at the maximum distance of the Z-Wave network. If connection
proves successful it will be conrmed with a yellow glow. It’s not
recommended to use the device at the range limit.
• Visual indicator glowing red - the device is not able to connect
to the main controller directly or through another Z-Wave net-
work device (repeater).
i
Communication mode of the device may switch be-
tween direct and one using routing, especially if the
device is on the limit of the direct range.

18
confIguratIon
10: Conguration
10.1: Associations
Association (linking devices) – direct control of other devices within
the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter
or scene (may be controlled only through a Z-Wave controller).
Association ensures direct transfer of control commands between
devices, is performed without participation of the main controller
and requires associated device to be in the direct range.
The device provides the association of 5 groups:
1st association group – “Lifeline” reports the device status and al-
lows for assigning single device only (main controller by default).
2nd association group – “On/O (UP)” is used to turn the associ-
ated devices on/o reecting button operation for 1st channel (uses
Basic command class).
3rd association group – “Dimmer (UP)” is used to change level of
associated devices reecting button operation for 1st channel (uses
Switch Multilevel command class).
4th association group* – “On/O (DOWN)” is used to turn the as-
sociated devices on/o reecting button operation for 2nd channel
(uses Basic command class).
5th association group* – “Dimmer (DOWN)” is used to change lev-
el of associated devices reecting button operation for 2nd channel
(uses Switch Multilevel command class).
The device in 2nd to 5th group allows to control 5 regular or mul-
tichannel devices per an association group, with the exception of
“LifeLine” that is reserved solely for the controller and hence only 1
node can be assigned.
* only in Double Switch Mode

19
confIguratIon
10.2: Advanced parameters
The device allows to customize its operation to user’s needs using
congurable parameters.
The settings can be adjusted via Z-Wave controller to which the de-
vice is added. The way of adjusting them might dier depending on
the controller.
In the FIBARO interface parameters are presented as simple options
in Advanced Settings of the device.
Available parameters:
1. Remember device state
Description
This parameter determines how the device will
react in the event of power supply failure (e.g.
power outage).
The parameter is not relevant for outputs set to
pulse mode (parameter 150/151 set to 2).
Parameter size 1B
Default value 1 (restores the state)
Available
values
0 – remains switched o after restoring power
1 – restores remembered state after restoring
power
2. First channel – overload safety switch
Description
This function allows to turn o the controlled
device in case of exceeding the dened power.
Controlled device can be turned back on via
button or sending a control frame.
Parameter size 4B
Single Switch Mode
Default value 0 (disabled)
Available
values
0 – function disabled
10-45000 (1.0-4500.0W, step 0.1W) – power
threshold
Double Switch Mode
Default value 0 (disabled)
Available
values
0 – function disabled
10-36200 (1.0-3620.0W, step 0.1W) – power
threshold

20
confIguratIon
3. Second channel – overload safety switch
Only in Double Switch Mode
Description
This function allows to turn o the controlled
device in case of exceeding the dened power.
Controlled device can be turned back on via
button or sending a control frame.
Parameter size 4B
Default value 0 (disabled)
Available
values
0 – function disabled
10-36200 (1.0-3620.0W, step 0.1W) – power
threshold
10. LED frame – power limit
Description
This parameter determines maximum active
power. Exceeding it results in the LED frame
ashing violet. Function is active only when pa-
rameter 11 is set to 8 or 9.
Parameter size 4B
Single Switch Mode
Default value 36800 (3680W)
Available
values
500-36800 (50.0-3680.0W, step 0.1W) – power
threshold
Double Switch Mode
Default value 30000 (3000W)
Available
values
500-30000 (50.0-3000.0W, step 0.1W) – power
threshold
