FIBARO WALLI FGWDSEU-221 User manual

FIBARO WALLI DOUBLE SWITCH
FGWDSEU-221
OPERATING
MANUAL EN
v1.0

3
Table of contents
1: Important safety information 4
2: Description and features 5
2.1: Description 5
2.2: Main features 5
3: Specications 6
4: Installation 7
4.1: Before installation 7
4.2: Preparing for installation 8
4.3: Electrical connection 8
4.4: Assembling the device 9
4.5: Activating the device 10
5: Adding to Z-Wave network 11
5.1: Adding manually 11
5.2: Adding using SmartStart 12
6: Removing from Z-Wave network 13
7: Operating the device 14
7.1: Controls 14
7.2: Single/Double Switch operating mode 14
7.3: Button control 15
7.4: Visual indications 15
7.5: Menu 16
7.6: Resetting to factory defaults 16
8: Power and energy metering 17
9: Conguration 18
9.1: Associations 18
9.2: Advanced parameters 21
10: Z-Wave specication 36
11: Parts compatibility 39
12: Regulations 40

4
Important safety InformatIon
1: Important safety information
Read this manual before attempting to install the device!
!Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manu-
facturer, Fibar Group S.A. will not be held responsible for any loss or
damage resulting from not following the instructions of operating
manual.
DANGER OF ELECTROCUTION!
The device is designed to operate in electrical home installa-
tion. Faulty connection or use may result in re or electric
shock.
All works on the device may be performed only by a qualied
and licensed electrician. Observe national regulations.
Even when the device is turned o, voltage may be present at
its terminals. Any maintenance introducing changes into the
conguration of connections or the load must be always performed
with disabled fuse.
To avoid risk of electrical shock, do not operate the device with
wet or moist hands.
Do not modify!
!Do not modify this device in any way not included in this
manual.
Other devices
!The manufacturer, Fibar Group S.A. will not be held responsi-
ble for any damage or loss of warranty privileges for other con-
nected devices if the connection is not compliant with their
manuals.
This product is intended for indoor use only in dry locations.
!Do not use in damp or wet locations, near a bathtub, sink,
shower, swimming pool, or anywhere else where water or
moisture are present.
Not a toy!
!This product is not a toy. Keep away from children and
animals!

5
DescrIptIon anD features
2: Description and features
2.1: Description
FIBARO Walli Double Switch is a smart wall switch designed to con-
trol one or two light sources via Z-Wave network.
It measures active power and energy consumed by the controlled
load.
You can install it with provided cover plate and switch button or oth-
er compatible.
2.2: Main features
• Can be used with:
»conventional incandescent and halogen light sources,
»LED lamps,
»uorescent lamps,
»electronic transformers (for ELV halogen lamps and LED bulbs),
»ferromagnetic transformers (for MLV halogen lamps).
• Can be used with FIBARO Walli covers or other compatible (see
“Parts compatibility” on page 39):
»GIRA – System 55 (Standard 55, E2, Event, Event Clear),
»Legrand – Céliane,
»Schneider – Odace.
• Active power and energy consumption metering.
• Supports Z-Wave network Security Modes: S0 with AES-128 en-
cryption and S2 Authenticated with PRNG-based encryption.
• Works as a Z-Wave signal repeater (all non-battery operated de-
vices within the network will act as repeaters to increase reliabili-
ty of the network).
• May be used with all devices certied with the Z-Wave Plus cer-
ticate and should be compatible with such devices produced by
other manufacturers.
i
The device is a Security Enabled Z-Wave Plus product
and a Security Enabled Z-Wave Controller must be
used in order to fully utilize the product.

6
specIfIcatIons

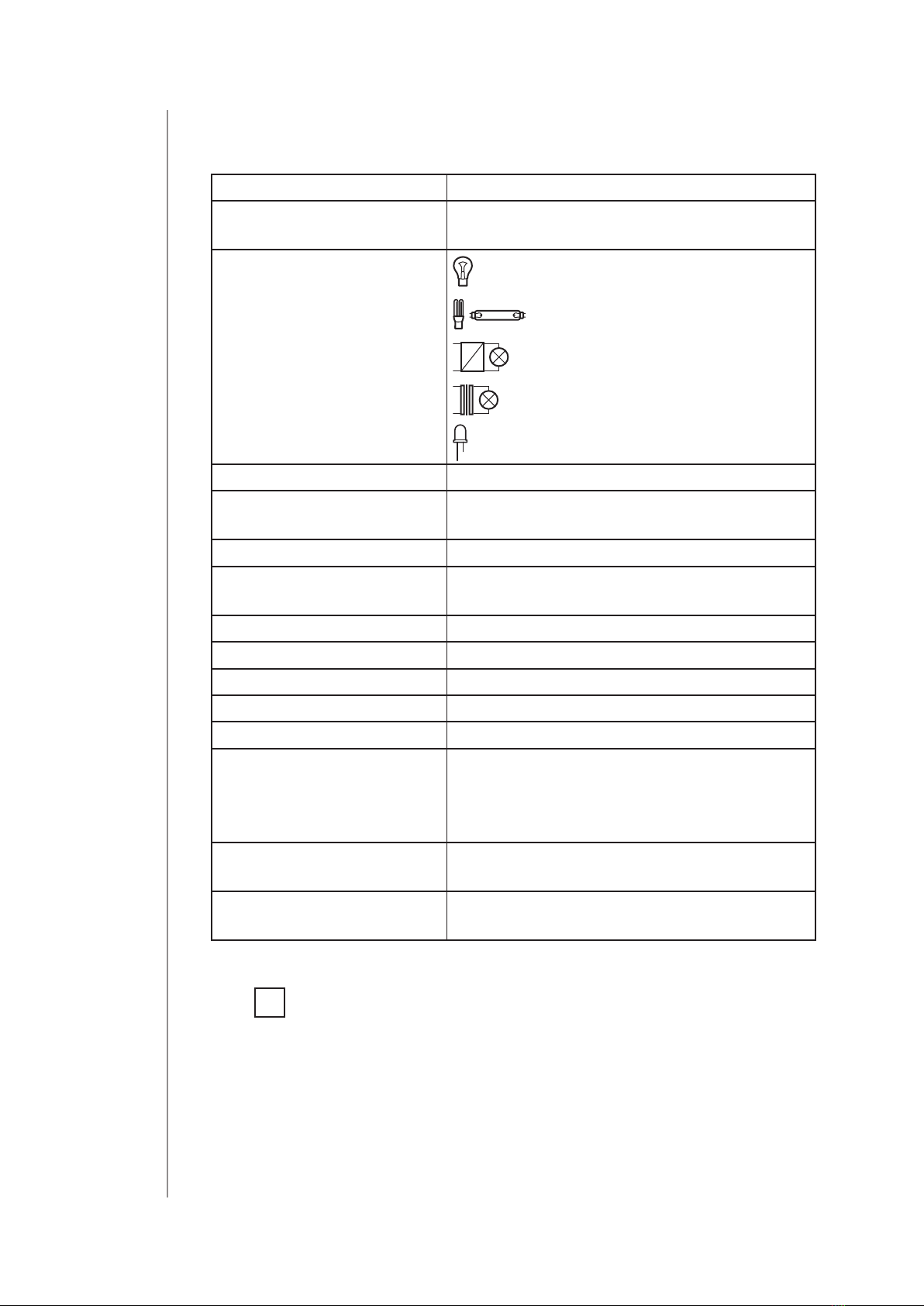

3: Specications
Power supply 110-230V~ 50/60 Hz
Rated load current 13A per one channel
16A total
Compatible load types incandescent bulbs
uorescent lamps
electronic transformers
ferromagnetic transformers
LED
Active element micro-gap relay μ
Recommended external
overcurrent protection
10A type B circuit breaker (EU)
13A type B circuit breaker (Sweden)
For installation in boxes Ø = 60mm, depth ≥ 40mm
Recommended wires cross-section area between 1.5-4.0mm2,
stripped 11.5-13mm of insulation
Operating temperature 0–35°C
Ambient humidity 10–95% RH without condensation
Radio protocol Z-Wave (500 series chip)
Radio frequency band 868.0–868.6MHz; 869.7–870.0MHz
Max. transmitting power +6dBm
Range up to 50m outdoors
up to 40m indoors
(depending on terrain and building
structure)
Dimensions
(Height x Width x Depth)
86 x 86 x 51 mm
Compliance with EU
directives
RoHS 2011/65/EU
RED 2014/53/EU
i
Radio frequency of individual device must be same as
your Z-Wave controller. Check information on the box
or consult your dealer if you are not sure.

7
InstallatIon
4: Installation
4.1: Before installation
!Connecting the device in a manner inconsistent with this
manual may cause risk to health, life or material damage.
• Do not power the device before fully assembling it in the mount-
ing box,
• Connect only in accordance with one of the diagrams,
• Install only in ush mounting boxes compliant with a relevant na-
tional safety standards and with depth no less than 40mm,
• Do not connect devices which are not compliant with the speci-
cation or relevant safety standards,
• Do not connect heating devices,
• Do not connect SELV or PELV circuits.
• Make sure you have all required parts when installing with covers
other than FIBARO (see “Parts compatibility” on page 39).

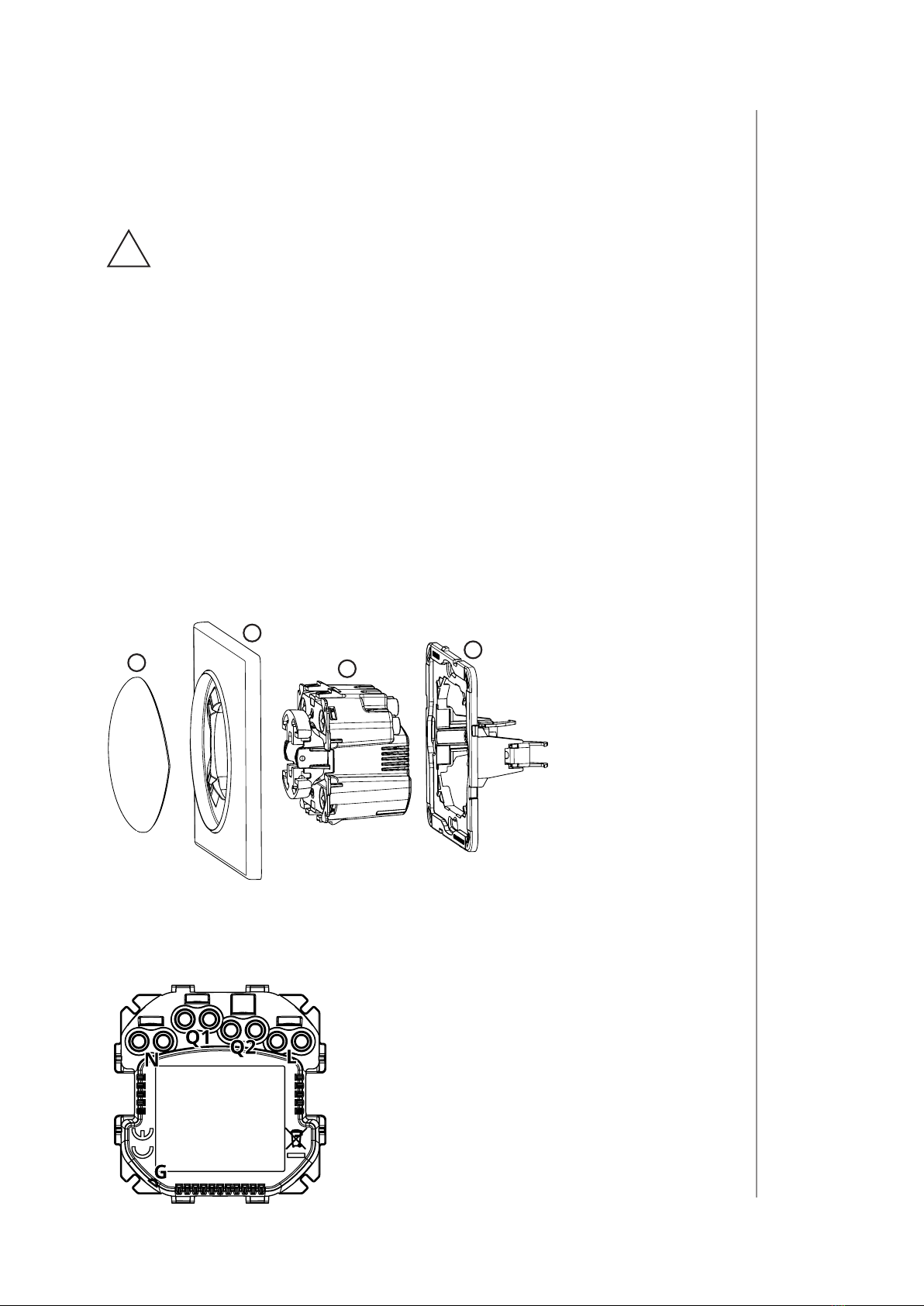

Device parts:
1
2
3
4
1 – switch button, 2 – cover plate, 3 – unit (device), 4 – mounting
frame
Notes for diagrams:
N – terminal for neutral wire
Q1 – output terminal of the 1st channel
Q2 – output terminal of the 2nd channel
L – terminal for live wire
G – groove used to measure wire length

8
InstallatIon
4.2: Preparing for installation
Prepare wires by removing 11.5-13mm of insulation from their ends.
You can use groove on the side of the unit to measure the length.
When installing with FIBARO or GIRA cover plates:
1. Pull out the switch button.
2. Take o the cover plate.
When installing with Legrand or Schneider cover plates:
1. Pull out the original switch button.
2. Take o the original cover plate.
3. Dismount the original mounting frame.
4. Snap the new mounting frame*.
* Additional mounting frames are sold separately.
4.3: Electrical connection
1. Switch o the mains voltage (disable the fuse).

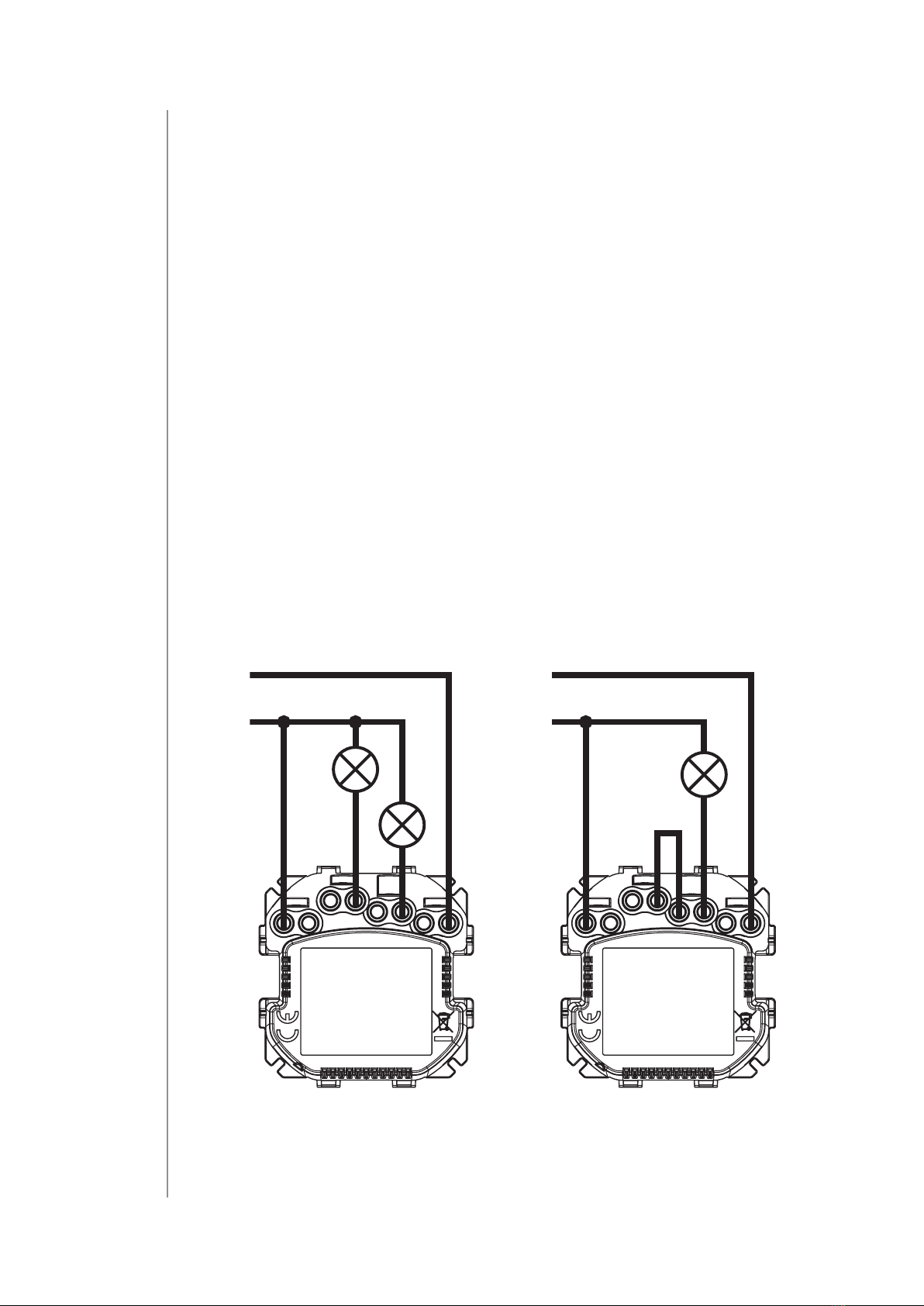

2. Connect with one of the diagrams below:
N
L
Diagram 1: Example con-
nection for double switch
conguration
N
L
Diagram 2: Example con-
nection for single switch
conguration
3. Verify correctness of connection.
4. Tighten the terminal screws using PH1 screwdriver.

9
InstallatIon
4.4: Assembling the device
i
When installing the device in the mounting box orient
the device with terminal screws going up or to the left
(for horizontal button position) to ensure button order.
i
When installing with cover plates other than FIBARO,
we recommend disabling the LED by changing param-
eter 13 to 0.
When installing with FIBARO cover plates:
1. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
2. Snap the cover plate to the device.
3. Snap the switch button to the device.
When installing with GIRA cover plates:
1. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
2. Snap the new cover plate to the device.
3. Snap the switch button adapter* to the device.
4. Snap the new switch button to the device.

10
InstallatIon
When installing with Legrand cover plates:
1. Insert the device with mounting frame* into the mounting box
and secure with mounting claws and screws.
2. Snap the switch button adapter* to the device.
3. Snap the new inner cover plate to the device.
4. Snap the new outer cover plate to the device.
5. Snap the new switch button to the device.
When installing with Schneider cover plates:
1. Insert the device with mounting frame* into the mounting box
and secure with mounting claws and screws.
2. Snap the new cover plate to the device.
3. Snap the new switch button to the device.
* Switch button adapter and additional mounting frames
are sold separately.
4.5: Activating the device
1. If the device fully assembled, switch on the mains voltage.
2. LED ring light means the device is powered and can be added to
the Z-Wave network.

11
aDDIng to Z-Wave netWork
5: Adding to Z-Wave network
Adding (Inclusion) – Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
i
If you want to change single/double switch operating
mode (see “Single/Double Switch operating mode” on
page 14), you must do it before adding the device to the
Z-Wave network.
5.1: Adding manually
To add the device to the Z-Wave network manually:
1. Power the device.
2. Set the main controller in (Security/non-Security Mode) add mode
(see the controller’s manual).
3. Quickly, three times click one of the buttons.
4. If you are adding in Security S2 Authenticated, input the underlined
part of the DSK (label on the bottom of the box).
5. LED will start blinking yellow, wait for the adding process to end.
6. Adding result will be conrmed by the Z-Wave controller’s message
and the LED frame:
• Green – successful (non-secure, S0, S2 non-authenticated),
• Magenta – successful (Security S2 Authenticated),
• Red – not successful.

12
aDDIng to Z-Wave netWork
5.2: Adding using SmartStart
SmartStart enabled products can be added into a Z-Wave
network by scanning the Z-Wave QR Code present on the
product with a controller providing SmartStart inclusion.
SmartStart product will be added automatically within 10 minutes of
being switched on in the network range.
To add the device to the Z-Wave network using SmartStart:
1. To use SmartStart your controller needs to support Security S2
(see the controller’s manual).
2. Enter the full DSK string code to your controller. If your controller
is capable of QR scanning, scan the QR code placed on the label
on the bottom of the box.
3. Power the device.
4. Wait for the adding process to start (up to few minutes), which is
signalled with yellow LED blinking.
5. Adding result will be conrmed by the Z-Wave controller’s message
and the LED frame:
• Green – successful (non-secure, S0, S2 non-authenticated),
• Magenta – successful (Security S2 Authenticated),
• Red – not successful.
i
In case of problems with adding the device, please re-
set the device and repeat the adding procedure.

13
removIng from Z-Wave netWork
6: Removing from Z-Wave network
Removing (Exclusion) – Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network. Removing also re-
sults in resetting the device to factory defaults.
To remove the device from the Z-Wave network:
1. Power the device.
2. Set the main controller into remove mode (see the controller’s
manual).
3. Quickly, three times click one of the buttons.
4. LED will start blinking yellow, wait for the removing process to
end.
5. Successful removing will be conrmed by the Z-Wave controller’s
message and red LED colour.

14
operatIng the DevIce
7: Operating the device
7.1: Controls
1
2
3
1. First button,
2. Second button,
3. LED ring.
7.2: Single/Double Switch operating mode
The device can work as single or double switch:
• Double Switch mode (default) – the device can control two sepa-
rate loads, but they can be up to 13A per channel and 16A total.
• Single Switch mode – the device can control only one load, but it
can be rated up to 16A.
i
Changing operating mode must performed before
adding it to the Z-Wave network!
To change operating mode before adding to Z-Wave network:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows white.
3. Quickly click the button to conrm.
4. The device will change and signal the new operating mode:
• 1 white blink – Single Switch mode,
• 2 white blinks – Double Switch mode.
To check operating mode after adding to Z-Wave network:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows white.
3. Quickly click the button to conrm.

15
operatIng the DevIce
4. The device will signal the operating mode:
• 1 white blink – Single Switch mode,
• 2 white blinks – Double Switch mode.
7.3: Button control
Controlling connected loads
Perform following actions on one of the buttons to change state of
the connected load. Button operation is congurable using parame-
ters 20 and 24.
Double Switch mode – the 1st button controls the 1st channel and
the 2nd button controls the 2nd channel:
• Click – change to the opposite state, ON/OFF (by default).
Single Switch mode – both buttons control the load:
• Click – change to the opposite state, ON/OFF (by default).
Other actions
Perform following actions on one of the buttons to:
• 3xClick – start learn mode to add/remove to/from Z-Wave network,
• 1,2,3xClick/hold/release – activate scene in the controller for spe-
cic action (requires conguration using parameters 40 and 41),
• 3xClick then press and hold – enter the menu.
7.4: Visual indications
The built-in LED light shows current device status.
After powering the device:
• Green – device added to a Z-Wave network (non-secure, S0, S2
non-authenticated),
• Magenta – device added to a Z-Wave network (Security S2
Authenticated),
• Red – device not added to a Z-Wave network.
State of the device:
• White – load turned ON (congurable using parameters 11 and
12).
Update:
• Blinking cyan – update in progress,
• Green – update successful,
• Red – update not successful.

16
operatIng the DevIce
Menu:
• Blinking green – entering the menu (added as non-secure, S0, S2
non-authenticated),
• Blinking magenta – entering the menu (added as Security S2
Authenticated),
• Blinking red – entering the menu (not added to a Z-Wave network),
• White – change or check operating mode (single or double switch),
• Green – reset energy consumption memory,
• Yellow – reset to factory defaults.
7.5: Menu
Menu allows to perform Z-Wave network actions. In order to use the
menu:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu, device blinks to signal adding status (see 7.4:
Visual indications).
2. Release the button when device signals desired position with
colour:
• WHITE – change or check single/double switch mode
• GREEN – reset energy consumption memory
• YELLOW – reset to factory defaults
3. Quickly click the button to conrm.
7.6: Resetting to factory defaults
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the Z-Wave controller and
user conguration will be deleted. Resetting to factory defaults does
not reset energy consumption memory.
i
Resetting the device is not the recommended way of
removing the device from the Z-Wave network. Use re-
set procedure only if the primary controller is missing or
inoperable. Certain device removal can be achieved by the
procedure of removing described.
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows yellow.
3. Quickly click the button to conrm.
4. After few seconds the device will be restarted, which is signalled
with red LED colour.

17
poWer anD energy meterIng
8: Power and energy metering
The device allows for the active power and energy consumption mon-
itoring. Data is sent to the main Z-Wave controller, e.g. Home Center.
Measuring is carried out by the most advanced microcontroller tech-
nology, assuring maximum accuracy and precision (+/- 1% for loads
greater than 10W).
Electric active power – power that energy receiver is changing into
a work or a heat. The unit of active power is Watt [W].
i
Power measurement can contain mains voltage uctu-
ations within +/- 10%.
Electric energy – energy consumed by a device through a time pe-
riod. Consumers of electricity in households are billed by suppli-
ers on the basis of active power used in given unit of time. Most
commonly measured in kilowatt-hour [kWh]. One kilowatt-hour is
equal to one kilowatt of power consumed over period of one hour,
1kWh = 1000Wh.
Resetting consumption memory:
1. Quickly, three times click, then press and hold one of the buttons
to enter the menu.
2. Release button when the device glows green.
3. Quickly click the button to conrm.
4. Device will blink two times green to conrm.
i
The device stores periodically (every hour) the con-
sumption data in the device memory. Disconnecting
the module from the power supply will not erase stored
energy consumption data.
i
Changing the device operating mode (Single/Double)
resets energy consumption memory.

18
confIguratIon
9: Conguration
9.1: Associations
Association (linking devices) – direct control of other devices with-
in the Z-Wave system network.
Associations allow:
• reporting the device status to the Z-Wave controller (using Lifeline
group),
• creating simple automations by controlling other devices without
participation of the main controller (using groups assigned to ac-
tions on the device).
i
Commands send to 2nd, 3rd, 4th and 5th association
groups reect button operation according to device
conguration, e.g. turning the rst channel on using but-
ton will send frame responsible for the same action.
For Single Switch Mode the device provides the association of 3
groups:
1st association group – “Lifeline” reports the device status and al-
lows for assigning single device only (main controller by default).
2nd association group – “On/O” is used to turn the associated de-
vices on/o reecting button operation (uses Basic command class).
3rd association group – “Dimmer” is used to change level of as-
sociated devices reecting button operation (uses Switch Multilevel
command class).
For Double Switch Mode the device provides the association of 5
groups:
1st association group – “Lifeline” reports the device status and al-
lows for assigning single device only (main controller by default).
2nd association group – “On/O (1)” is used to turn the associated
devices on/o reecting button operation for 1st channel (uses Basic
command class).
3rd association group – “Dimmer (1)” is used to change level of
associated devices reecting button operation for 1st channel (uses
Switch Multilevel command class).
4th association group – “On/O (2)” is used to turn the associated
devices on/o reecting button operation for 2nd channel (uses Ba-
sic command class).
5th association group – “Dimmer (2)” is used to change level of
associated devices reecting button operation for 2nd channel (uses
Switch Multilevel command class).

19
confIguratIon
The device allows to control 5 regular or multichannel devices per an
association group, with the exception of “LifeLine” that is reserved
solely for the controller and hence only 1 node can be assigned.
Assocation groups mapping
Root Endpoint Association group in
endpoint
Association Group 2 Endpoint 1 Association Group 2
Association Group 3 Endpoint 1 Association Group 3
Association Group 4 Endpoint 2 Association Group 2
Association Group 5 Endpoint 2 Association Group 3
Single Switch Mode: commands sent to association groups for
parameter 20 set to 1
1 click 2 click Hold Release
Button
1 and 2
(toggle)
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Multilevel
Start Level
Change: 3rd
group
Multilevel
Stop Level
Change: 3rd
group
Single Switch Mode: commands sent to association groups for
parameter 20 set to 2
1 click 2 click Hold Release
Button 1
(ON),
Button 2
(OFF)
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Multilevel
Start Level
Change: 3rd
group
Multilevel
Stop Level
Change: 3rd
group
Double Switch Mode: commands sent to association groups for
parameter 20 set to 1
1 click 2 click Hold Release
Button
1 and 2
(toggle)
Basic Set:
2nd and 4th
group,
Multilevel
Set: 3rd and
5th group
Basic Set:
2nd and 4th
group,
Multilevel
Set: 3rd and
5th group
Multilevel
Start Lev-
el Change:
3rd and 5th
group
Multilevel
Stop Lev-
el Change:
3rd and 5th
group

20
confIguratIon
Double Switch Mode: commands sent to association groups for
parameter 20 set to 2
1 click 2 click Hold Release
Button 1
(ON),
Button 2
(OFF)
Basic Set:
2nd and 4th
group,
Multilevel
Set: 3rd and
5th group
Basic Set:
2nd and 4th
group,
Multilevel
Set: 3rd and
5th group
Multilevel
Start
Change:
3rd and 5th
group
Multilevel
Stop Change:
3rd and 5th
group
Double Switch Mode: commands sent to association groups for
parameter 20 set to 3
1 click 2 click Hold Release
Button 1
(toggle)
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Multilevel
Start Level
Change: 3rd
group
Multilevel
Stop Level
Change: 3rd
group
Button 2
(toggle)
Basic Set:
4th group,
Multilevel
Set: 5th
group
Basic Set:
4th group,
Multilevel
Set: 5th
group
Multilevel
Start Level
Change: 5th
group
Multilevel
Stop Level
Change: 5th
group
Double Switch Mode: commands sent to association groups for
parameter 20 set to 4
1 click 2 click Hold Release
Button 1
(ON)
Basic Set:
2nd group,
Multilevel
Set: 3rd
group
Basic Set:
4th group,
Multilevel
Set: 5th
group
Multilevel
Start Lev-
el Change:
3rd and 5th
group
Multilevel
Stop Lev-
el Change:
3rd and 5th
group
Button 2
(OFF)
Basic Set:
2nd and 4th
group,
Multilevel
Set: 3rd and
5th group
–
Multilevel
Start Lev-
el Change:
3rd and 5th
group
Multilevel
Stop Lev-
el Change:
3rd and 5th
group
