FILA FILActive FAT003DG User manual

MANUAL
User
www.fila.com/watch
FM-717.1
FAT003DG
FILActive
Increase /
Decrease
the number
[S/S] [S/S]
[L/R]
[L/R]
Counting time
(hour, minute)
Current
time
beep, beep
Hour
Hold [M]
[L/R] / [S/S]
Hold [L/R] / [S/S]
[M]
[M]
[M]
Minute
Second
Increase /
Decrease
the number
at a higher
speed
Hold [M] [M]
Hold [L/R] / [S/S]
[L/R] / [S/S]
Increase / Decrease
the number
Increase / Decrease
the number
at a higher speed
[M]
[M] [M]
[M]
[M]
[M]
[M]
[M]
12/24
Hour Format
Second
Minute Hour
Year
Month Day
Key Beep
ON/OFF
Touch
ON/OFF
[EL]
[M]
[S/S]
[L/R]
[T]

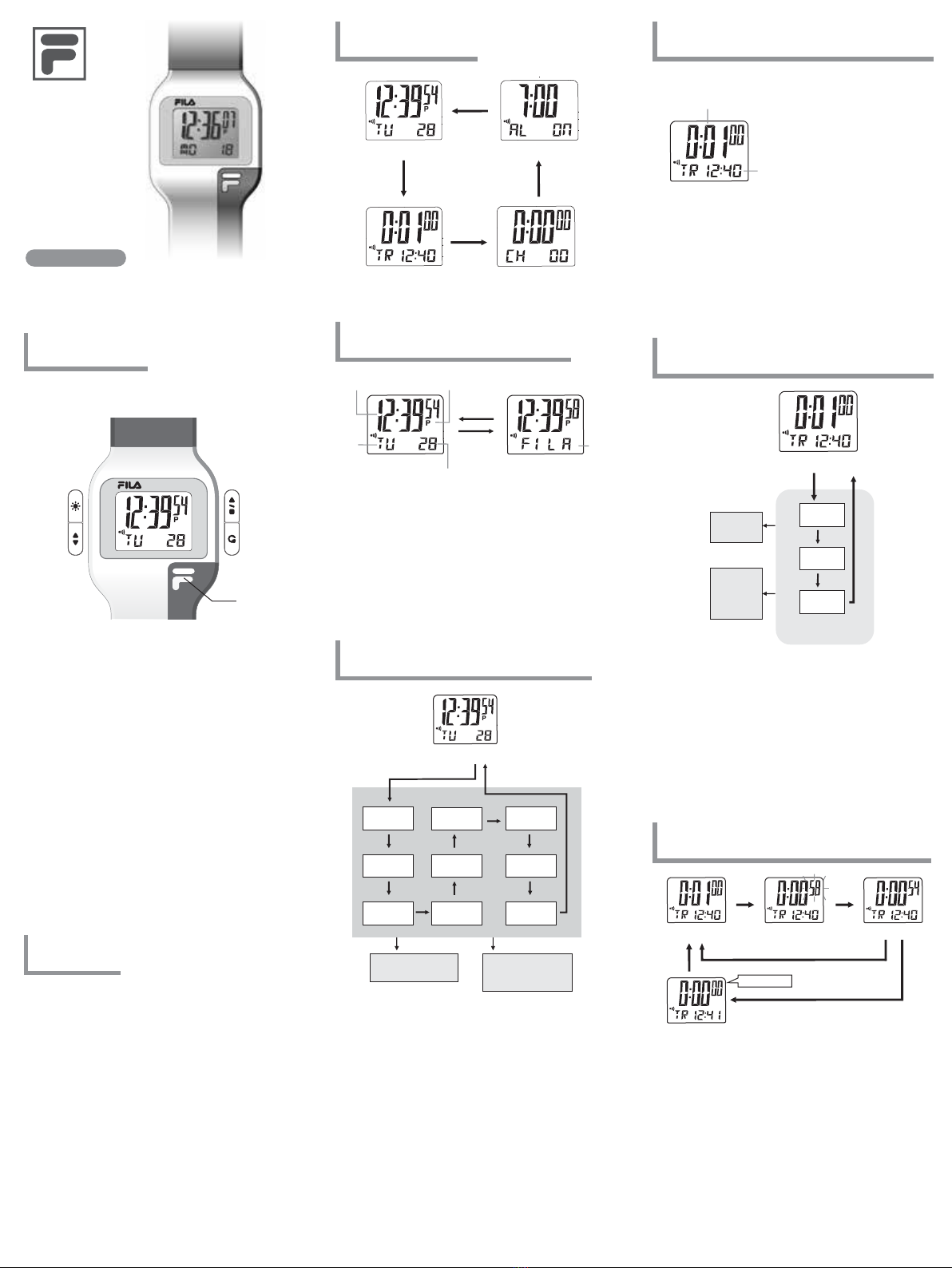

Major Function Modes
Design of the Watch
Thank you for purchasing this watch.
Please read this manual thoroughly before using the watch!
Mode Button [M]
• To select among the Current Time, Timer, Chronograph and
Daily Alarm.
• To select among the setting items during setting display.
Start/Stop Button [S/S]
• To increase the digits during setting display.
• To activate the ‘start’ or ‘stop’ function during Chronograph
mode or Timer mode.
• To turn ON/OFF the Daily Alarm
Lap/Reset Button [L/R]
• To decrease the digits during setting display.
• To activate the ‘lap’ or ‘reset’ function during chronograph
mode.
• To turn ON/OFF the Daily Alarm
EL Button [EL]
• To turn on the EL back light for about 3 seconds.
Touch Button [T]
• To turn on the EL back light for about 3 seconds when touch
button function is turn on.
NOTE: The major key operations are summarized on the above
paragraphs, however please read the coming chapters for the
detail operations.
Current Time Mode
• Time System: AM, PM, Hour, minute, second
• Time Format: 12-hour or 24-hour format
• Calendar: Month, date and day of week display
(Auto-Calendar function for leap year and day of week)
Countdown Timer
• Resolution: 1 second
• Measuring Range: 23 hours 59 minutes 59 seconds
• Timer Sounds: beep once at 9 to 1 second(s).
2 Beep continuously for 15 seconds at 0 second.
Chronograph Mode
• Resolution: 1/100 second
• Measuring Range: 23 hours 59 minutes 59.99 seconds
• Lap memory: 30 lap memory
Alarm Mode
• Daily alarm
• Alarm sound: 20 seconds
Water Resistant
• 3 ATM
* These specifications might be changed without prior notice.
3
Current Time Mode - Current Time Display
4
1
Current Time Display
• When the Current Time Mode is selected, the Watch will
show the following items on the display:
• The current time (hour, minute, second) is exhibited on the
1st row of the display.
• The day of week and date of the current time are exhibited
on the 2nd row of the display.
• The FILA word will show at every 58 & 59 seconds.
Countdown Timer Display
• When the Countdown Display is selected, the Watch will
show the following items on the display:
• The target time (hour, minute) is exhibited on the 1st row of
the display.
• The current time (hour, minute) is exhibited on the 2nd row
of the display.
Countdown Timer Mode
• This Watch includes a
countdown timer function
which timekeeping for the
elapse of a fix period of time
(target time).
• When a target time is set for
the timer, the Watch will start
running from the target time
to zero.
• The measurement unit of the
timer is 1 second, and its
measuring capacity is 23
hours and 59 minutes 59
second.
Specifications
2
Countdown Timer Mode - Countdown Timer Display
5
Countdown Timer Display
Setting Sequence
Countdown Timer
Display
Timer Display
Count to zero
Counting Display Stop Counting
Current Time Mode Daily Alarm Mode
[M]
[M]
[M]
Current time AM/PM indicator
Day of
week
Date
(Day, month)
0-57 sec
58-59 sec FILA
[M]
Timer Mode
Current Time
Mode
Current Time
Mode
Chronograph Mode
How to Set the Countdown Timer
• To select the setting display, hold down the [M] button for 2
seconds in the Countdown Timer Mode, and then the ‘Hour’
digits start flashing on the display.
• In setting display, press the [M] button to move the flashing
following adjacent diagram to select among different settings.
• When one of the settings (hour, minute, second ) is flashing,
press the [L/R] / [S/S] button to change the number (hold
down the button to change the number at a higher speed).
• When the setting is completed, hold [M] button or press the
[M] button (after “second” setting is completed) to exit the
setting display. The Watch will also exit the setting display if
NO key-stoke has been activated for 1 minute.
To Use the Timer
• Once the target time has been set and
loaded (for example 1 minutes), press
the [S/S] button to start the measurement (the digits will start
running); press the [S/S] button once again to stop the
measurement (the digits will stop running).
• The current time will be exhibited on the 2nd row of display
throughout the measurement.
How to Reload the Timer
• To reload the timer display to original target time prior to the
timer counts to zero, press the [L/R] button to re-load the
timer during the timer is stopped.
• Or press the [L/R] button to reload after the Watch counted to
zero.
Timer Alarm Sound
• During the counting, the Watch will beep once when it comes
to the last 10 second (s).
• When the timer counts to zero, the Watch will beep for 15
seconds.
Countdown Timer Mode - Setting the Countdown Timer
5.1
Countdown Timer Mode - Using the Countdown Timer
5.2
How to Set the Current Time
• To select the setting display, hold down the [M] button for 2
seconds in the Current Time Mode.
• In setting display, press the [M] button to change the selection
following the adjacent diagram.
• When one of the setting items (minute, hour, day, month,
year) is flashing (selected), press the [S/S] or [L/R] button
to increase / decrease the number. (Hold down the button
to change the number at a higher speed).
• When the second digits are flashing (selected), press the
[S/S] or [L/R] button to reset the digits to “00”.
• When 12/24 hour format setting is selected, press the
[S/S] button to select between 12 and 24 hour format.
• When key beep or Touch setting is selected, press the
[S/S] or [L/R] button to select between ON and OFF.
• When the setting is completed, hold down the [M] button or
press the [M] button (after “Touch” setting is completed) to
exit the setting display. The Watch will also exit the setting
display if NO keystroke has been activated for 1 minute.
Current Time Mode - Setting the Current Time
4.1
Current Time Mode
Setting Sequence

Hour Minute
Second
1/100
second
Hold
[S/S]
any
button
1. Elapsed time
2. Accumulative elapsed time
3. Lap time
[S/S]
0
010 10 20
010 10 10
010 20 30
30
[S/S]
[S/S][S/S][S/S]
lap 1
time
lap 2 lap 3
[L/R] [L/R] [L/R]
[S/S]
[S/S]
Increase /
Decrease
the number
[L/R] / [S/S]
Hold [M]
Hold [L/R]
[S/S]
Auto return
after 10 secs
lap
no.
lap
time
[S/S]
[S/S] [L/R] [L/R]
[L/R]
/
[S/S]
Daily Alarm
indicator
Alarm time
(hour, minute)
[M]
Hold [L/R] / [S/S]
Increase /
Decrease
the number
at a higher
speed
[M]
Hour
Minute
• This watch contains electronic components. Never attempt
to open the case or remove the back cover.
• Avoid exposing the watch to extreme temperature,
chemicals which will damage the watch.
• Keep the watch away from the conditions of strong electric
field and static electricity.
• Avoid rough usage or severe impact. The watch is designed
to withstand impact under normal use. It is advisable to
subject it to severe impact or rough usage.
• Clean your watch occasionally with a soft moistened cloth
only. Avoid using chemicals, especially soap as the
waterproof gasket will corrode.
• Store the watch in a dry place when it is not in use.
Care and Maintenance
Precautions for Straps
• Exposure to water often makes a strap fragile and it may
soon tear.
• Don’t apply perfume or moisturizers around your wrist as
the chemicals can erode the metal, leather and plastic of
watch straps.
• The strap’s condition will depend on the owner’s wearing
habits as well as the climate of the place where the person
lives. An original replacement on straps is possible to be
re-ordered through an authorized service center.
• PU straps are usually very hardwearing, please wash them
with mild soapy water only.
• There may be discoloration for light color and transparent
straps after normal wear for some time.
• In case if there is any severe or persistent skin reaction, such
as severe redness, itching, rash or hives, you should stop
wearing this watch, and consult your doctor.
9
10
Precautions for Water Resistance
11
• Water damage may occur if the push buttons are pressed
under water.
• Should water or condensation appear in the watch, please
check the watch immediately as corrosion of electronic
parts can occur inside the case.
All FILA watches are designed to withstand use as indicated on
the below chart.
Precautions for Battery
12
Battery Life
The battery in your FILA watch is estimated to last for 2 years.
Battery Replacement
If the watch is out of battery, you are recommended to go to the
authorized FILA service center for correct battery replacement in
order to retain a valid warranty and avoid any damage on the
water resistance function.
WARNING!
Always keep watch batteries away from children. If swallowed,
contact a doctor immediately. Batteries contain chemical
substances. They should be disposed of properly according to
local regulations.
Indication
Bathing,
etc
Swimming,
etc
Light spray
perspiration,
light rain, etc
3ATM
(30 meters)
5ATM
(50 meters)
10ATM
(100 meters)
Water-related use
Level of
resistance
Chronograph
Display
‘All Zero’
Power Saving Mode
(LCD display turned off)
Current Time Mode
Elapsed time, Accumulative
Elapsed time and Lap time
Daily Alarm Display
All Zero Display
Stop Counting Counting
Lap Time Recall Lap Time Display
Daily Alarm OFF
Daily Alarm ON
Daily Alarm Display
Chronograph Mode
• This Watch includes a stopwatch function which measures:
• Elapsed time, accumulative elapsed time (multi-phase
elapsed time) and Lap time (get a elapsed time without
stopping the counting).
• The measuring capacity of the chronograph:
• Measuring unit: 1/100 second,
• Measuring range: 23 hours, 59 minutes and 59.99
second,
• Lap Memory: a maximum of 30 laps.
Chronograph Display
• When the Chronograph Display is selected, the Watch will
show the following items on the display:
• During the chronograph is counting or stopped: The
accumulative elapsed time is exhibited on the 1st and 2nd
row.
• During the Lap Display is displaying: The current lap time
and the lap number is exhibited on the 1st and 2nd row
respectively.
How to Measure Elapse Time
• During the ‘All Zero’ Display, press the [S/S] button once will
start the counting, and press the [S/S] button again will stop
the counting.
• The elapsed time between the above 2 key-stokes will be
exhibited on the display. Repeat the above key operations to
get the accumulative elapsed time.
How to Get a Lap Time
• When the chronograph is counting, press the [L/R] button to
get and view the Lap Display.
• In the Lap Display, the current lap number and lap time will
appear on the 1st and 2nd row of the display respectively.
• Repeat the above key operations to get another lap time.
How to Recall the Lap Time and Reset the Chronograph
• During the chronograph is stopped:
• Press the [L/R] button to recall the recorded lap times one by
one, or
• Hold down the [L/R] button for about 2 seconds to reset the
chronograph.
NOTE: If the Chronograph is reset, the lap time will be cleared at
the same time.
Chronograph Mode - Chronograph Mode
6
Chronograph Mode - Using the Chronograph
6.1
FILA™ is trademark of FILA Luxembourg and
used under licence by LONGITUDE LIMITED.
Daily Alarm Mode - Daily Alarm Mode
7
Daily Alarm Mode - Setting the Daily Alarm
7.1
Power Saving Mode
8
Daily Alarm Mode
• This Watch includes a daily alarm function for the current
time.
• When the daily alarm is ON, the Watch will beep for 20
seconds at the alarm time every day.
Daily Alarm Display
• When the Daily Alarm Mode is selected, the daily alarm time
(hour, minute) is exhibited on the display.
To Set the Daily Alarm ON/OFF
• To set the daily alarm between ON and OFF, press the [L/R]
button in the Daily Alarm Display.
• When the daily alarm indicator ‘ ’ is appeared, the daily
alarm is ON.
How to Set the Daily Alarm
• To select the setting display, hold down the [M] button for 2
seconds in the Daily Alarm Mode, and then the ‘hour’ digits
will start flashing.
• In setting display, press the [M] button to move the flashing
following the adjacent diagram to select among different
settings.
• During one of the settings (minute, hour) is flashing, press the
[L/R] / [S/S] button to change the number; hold down the
[L/R] / [S/S] button to change the number at a higher speed.
• When the setting is completed, hold [M] button or press the
[M] button ( after ”minute” setting is completed) to exit the
setting display. The Watch will also exit the setting display if
NO key-stoke has been activated for 1 minute.
Power Saving Mode
• This Watch includes a Power
Saving Function. User can turn off
the LCD display temporarily if the
Watch is not in use for some days,
so that the battery can last longer.
NOTE: Even the LCD display is OFF,
the timekeeping function is still
running normally in Power Saving
Mode.
How to Enter/Exit the Power
Saving Mode
• To enter Power Saving Mode:
Hold down [S/S] in Current Time
Mode for few seconds, and the
LCD display will be turned OFF.
• To exit Power Saving Mode: Press
any button once in Power Saving
Mode, and the LCD display will be
resumed.
Setting Sequence
