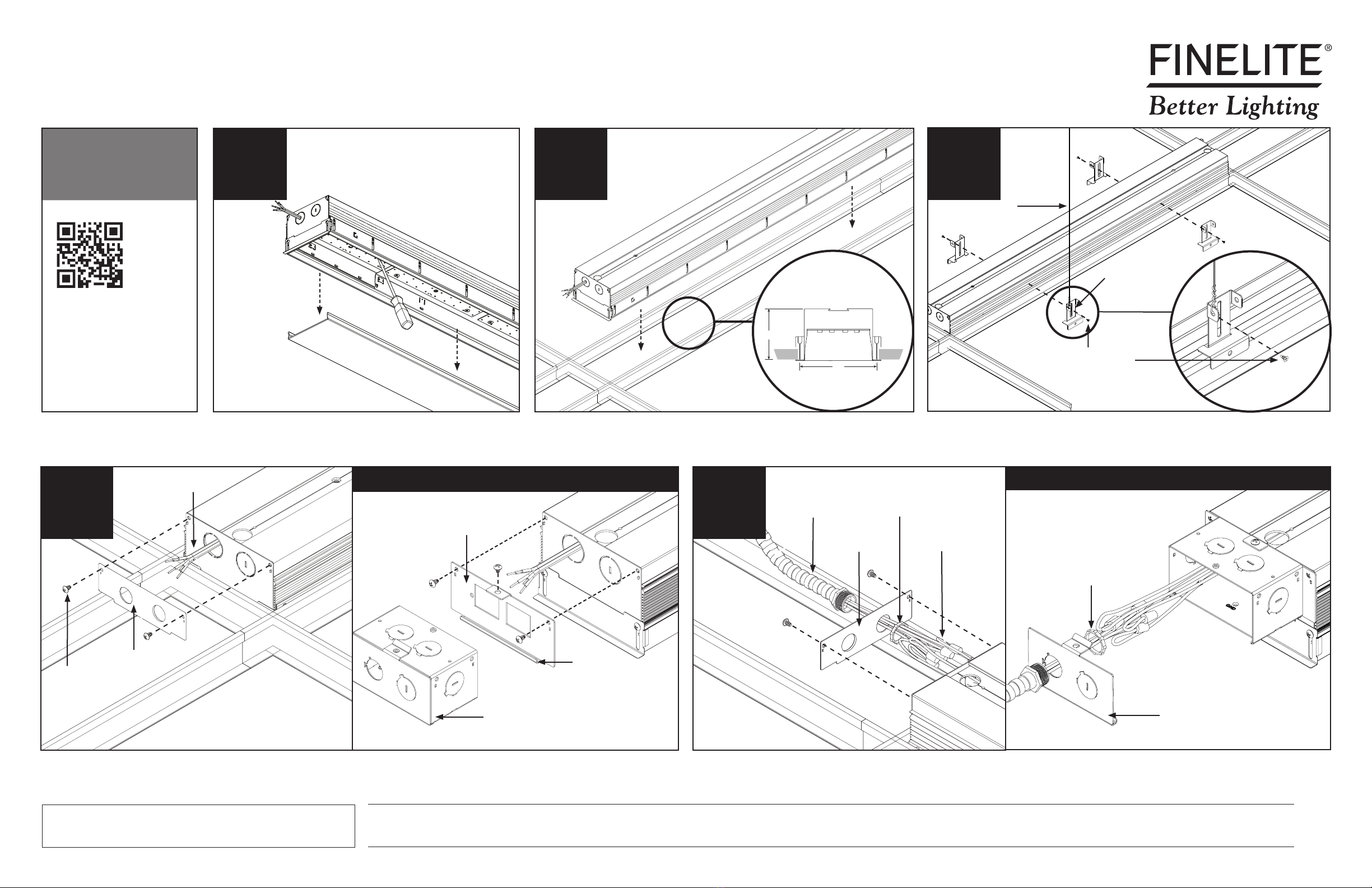

HP-6 Recessed Flush Diffuser Tech Zone 6" T-Bar
Starter/Independent Installation Instructions
Note: All power connections to be installed to local/national codes
by a Certified Electrician. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • [phone] • Fax: [phone] • www.finelite.com 1
Step 5
Run power cables through conduit plate and jam nut. Make electrical
connections. Secure conduit onto conduit plate with jam nut, and
reinstall conduit plate carefully not to damage any wiring.
Conduit
Conduit Plate
Jam Nut
Wires
Jam Nut
Conduit Plate
Run power cable through knock-out. Make electrical connection.
Secure conduit on to splice box with jam nut and close conduit plate.
Step 1 Step 3
Remove diffuser and set aside to prevent it from getting dirty or dam-
aged. NOTE: If part of a longer run, diffuser will be reinstalled back
into original luminaire section as lengths vary.
Install T-Bar bracket onto luminaire. Secure with #8-18 x 1/4" screws (provided).
Secure luminaire to structure using tie-wire (by others), as per code.
0 - 10V
Dimming
Scan QR code for
helpful video(s)
Diffuser
T-Bar Bracket
Secure to
Structure
(by others)
#8-18 x 1/4" Self Drilling
Screws (Provided)
Step 2
Configure T-Bar to luminaire size and leave an opening for luminaire as noted above.
Make sure T-Bars are aligned at 90 degrees. Place luminaire on T-Bar.
Starter
Starter
Step 4
Remove conduit plate from luminaire. NOTE: Purple and gray wires
are for Low Voltage Control.
Attach optional splice box to conduit plate by hooking onto splice box
bracket. Insert wires through feed hole.
Splice Box
Conduit Plate
Splice Box
Bracket
Wires
Conduit Plate
Screws
OPTIONAL SPLICE BOX OPTIONAL SPLICE BOX
4"
6"
Center-to-Center
T-Bar Spacing
9/16" Tech Zone 6"

Protected by one or more US Patents: 8915613; D702,391; D702,390; D700,732; D727,554 S; D727,550 S, D727,551 S
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98382 V2. 03/17
HP-6 Recessed Flush Diffuser Tech Zone 6" T-Bar
Starter/Independent Installation Instructions
Note: All power connections to be installed to local/national codes
by a Certified Electrician. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • [phone] • Fax: [phone] • www.finelite.com 2
Step 6 Step 7
Secure luminaire to T-Bar with #6-20 x 1/2" self drilling sheet metal
screws (provided).
Reinstall diffuser and turn power on. NOTE: If part of a longer run, diffuser
will be reinstalled back into original luminaire section as lengths vary.
Diffuser
Conduit
Secure to Structure
(by others)
#6-20 x 1/2"
Self Drilling Screws
(provided)

Protected by one or more US Patents: 8915613; D702,391; D702,390; D700,732; D727,554 S; D727,550 S, D727,551 S
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98383 V2. 04/17
HP-6 Recessed Flush Diffuser Tech Zone 6" T-Bar
Joiner/Ender Installation Instructions
Note: All power connections to be installed to local/national codes
by a Certified Electrician. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • [phone] • Fax: [phone] • www.finelite.com 1
Step 1 Step 2
Remove diffuser from joiner/ender and set aside to prevent it from getting dirty or damaged. NOTE: If part of a longer run, diffuser will
be reinstalled back into original luminaire section as lengths vary.
Install joiner/ender onto ceiling next to starter.
0 - 10V
Dimming
Scan QR code for
helpful video(s)
Joiner/Ender
Diffuser
Starter
Joiner/Ender
Secure to Structure
(by others)
Step 3
Install T-Bar brackets onto joiner/ender luminaire. Secure with #8-18 x 1/4" screws (provided). Secure luminaire to structure using tie-wire
(by others), as per code.
Remove backplate clips to release the backplates. We recommend using a flat head screwdriver to remove them.
CAUTION: Do not lose these pieces.
Step 4
Joiner/Ender
Starter
T-Bar Bracket
Joiner/Ender
Secure to
Structure
(by others)
#8-18 x 1/4" Self Drilling
Screws (Provided)
Backplate Clips
4"
6"
Center-to-Center
T-Bar Spacing
9/16" Tech Zone 6"

Protected by one or more US Patents: 8915613; D702,391; D702,390; D700,732; D727,554 S; D727,550 S, D727,551 S
© 2017 FINELITE, INC. ALL RIGHTS RESERVED. Form 98383 V2. 04/17
HP-6 Recessed Flush Diffuser Tech Zone 6" T-Bar
Joiner/Ender Installation Instructions
Note: All power connections to be installed to local/national codes
by a Certified Electrician. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • [phone] • Fax: [phone] • www.finelite.com 2
Step 7
Step 5
Starter
Plug-Together Wiring
Joiner/Ender
Step 6
Joint Sleeves
#10-32 x 5/8" Screws (2)
(provided) Yoke Brackets (2)
(provided)
IMPORTANT STEP
Pivot Point
Connect plug-together wiring connections.
Slowly swing down backplate. CAUTION: Do not twist the backplate when swinging down – it will come
out of the support extrusion. Note that the screws shown are the pivot points, and the backplate can be slid
a few inches either way for ease of access to the driver space.
IMPORTANT STEP: Secure joint with two yoke brackets (provided) using two #10-32 x 5/8" screws
(provided). When installed correctly these brackets will pull luminaires together to make a tight joint.
CAUTION: Do not over-tighten.
Step 8
Secure luminaire to T-Bar with #6-20 x 1/2" self drilling sheet metal screws (provided).
T-Bar Bracket
#6-20 x 1/2" Self Drilling
Screws (provided)
Secure to Structure
(by others)
Joiner/Ender Step 9
Replace backplates by holding them in their original position and pushing the clips back in. Make sure wire connections are
not pinched. (If a 1ft. backplate assembly is near joint, reconnect feed harness to LED board.) Replace diffuser and turn power
on to luminaire. NOTE: If part of a longer run, diffuser will be reinstalled back into original luminaire section as lengths vary.
Starter
Joiner/Ender
Backplate Clips
Diffusers
