FingerTec AC100C User manual

AC100C TA100C TA200 Plus
Color Time Attendance System
User Guide

2CONTENTS
CONTENTS
3-5 Chapter 1 • GETTING STARTED
Viewing the User Guide in the Internet
Terminal Included Accessories
Included Printed Materials
Activating Terminal
Registering Terminal
6-10 Chapter 2 • BASICS
Introduction to Terminal
Terminal Overview
Main Menu
Power On/Off Button
Battery
Date/Time
Voice Control
Security Features
Cleaning Terminal
Restarting and Resetting Terminal
11-14 Chapter 3 • USER
Enrolling User
Verifying User
Adding User Information
Deleting User
Access Level/Privilege
Defining Work Codes
RFID Card Function
15-18 Chapter 4 •
INSTALLATIONS & CONNECTION
Installations
Communications
Security
TCMS V2 Online Activation
Installation and Setup of TCMS V2
Connecting Terminal to TCMS V2
Using USB to Download/Upload Data
Communication Key
19-22 Chapter 5 • SYSTEM
System Settings
Data Management
Data Update Using USB Flash Disk
Keyboard
Display Settings
Reset
Misc Settings
23 Chapter 6 • DATE/TIME
Setting Date/Time
Daylight Saving Time
24 Chapter 7 • USB
Understanding the Need for USB
25 Chapter 8 • AUTO TEST
Who should do the Auto Test?
26 Chapter 9 • RECORD
Checking Records of Users in the
Terminal
27 Chapter 10 • SYSTEM
INFORMATION
Records
Device
28-29 TROUBLESHOOTING
“Unable to Connect” Appears
“Admin Affirm” Appears
Difficult to Read Finger
The LED is Blinking All The Time
“Duplicate Finger” Appears
RFID Card Doesn’t Respond
No Sound

3
AC100C MODEL
CONTENTS
1• GETTING STARTED
Viewing the User Guide in the Internet
The User Guide is available in the package when you purchased the terminal. The User
Guide is also available online at http://www.fingertec.com and http://user.fingertec.com.
Choose the language that you prefer for your User Guide.
Terminal Included Accessories
Do not abuse the fingerprint sensor by scratching the surface, contacting the sen-
sor’s surface with heat, pressing hard during placement of fingerprint for verifica-
tion. Clean the sensor occasionally with microfiber cloth to maintain the perform-
ance of the sensor.
A Packet of Bolts
Use the screws to hold the back plate
of the terminal against a wall.
DC 5V Power Adaptor
For supplying power to the terminal.
Screwdriver
Use the screwdriver to open the back plate
of ngerprint terminal and to install the back
plate against a wall.

4
TA100C MODEL
TA200 PLUS MODEL
A Packet of Bolts
Use the screws to hold
the back plate of the ter-
minal against a wall.
DC 12V Power Adaptor
Connect the power adapter to the
terminal and plug it into a standard
power outlet to charge the terminal.
RFID Cards (5 pieces)
For card enrollment and veri-
cation.
Screwdriver
Use the screwdriver to open
the back plate of ngerprint
terminal and to install the
back plate against a wall.
CONTENTS
DC 5V Power Adaptor
For supplying power to
the terminal.
RFID Cards (5 pieces)
* Exclusively for TA103C-R
model only
For card enrollment and
verication.
Siren Cable
For connecting the terminal
to external siren.
Screwdriver
Use the screwdriver to open the
back plate of ngerprint termi-
nal and to install the back plate
against a wall.
A Packet of Bolts
Use the screws to hold the back
plate of the terminal against a
wall.

5
CONTENTS
Included Printed Materials
• FingerTec Comprehensive DVD
• Quick Start Guide
• Pamphlet
• User Enrollment Template Form
• Warranty Card
Activating Terminal
Every FingerTec access control model comes bundled with a unique license key. To start
using the terminal with TCMS V2, you must connect the terminal to TCMS V2 and per-
form online activation. TCMS V2 reads the serial number of your terminal and sends it for
verification at the FingerTec server via Internet.
In case you do not have an Internet connection, you would need to do offline activation.
Please send the serial number and models of your terminals to your local resellers or
[email protected] to request for a product key and activation key.
Registering Terminal
Make sure that you register your terminal’s warranty with us at http://www.fingertec.
com/ver2/english/e_warranty.htm.

6
AC100C MODEL

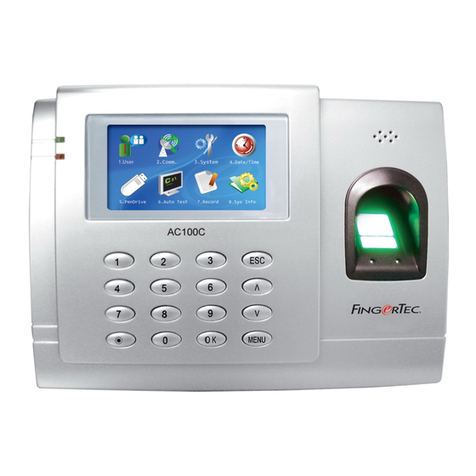

L.E.D Display LCD Screen
Keypad Fingerprint
Sensor
Speaker
Reset
s u p p o r t @ f i n g e r t e c . c o m
Reset Button & USB Port
CONTENTS
2 • BASICS
Introduction to Terminal
FingerTec is a renowned brand name for commercial products for door access and time
attendance systems. FingerTec offers a wide range of products to cater to the growing
needs for biometrics products in office/home automation as well as in security indus-
try.
FingerTec terminals are loaded with powerful microprocessor that can process biomet-
rics authentication methods for accurate personal identifications and for collection of
precise data for time attendance. In addition, some fingerprint terminals are made to
accept card verification as an added security measure.
This manual covers color time attendance models of FingerTec products from AC100C,
TA100C and TA200 Plus model. The terminal acts as a tool to collect attendance data.
For a processing of attendance data, FingerTec is providing a powerful time manage-
ment software, TCMS V2 to process data and provide accurate and reliable attendance
reports.
Terminal Overview
ITEM FUNCTION
LCD Screen Displaying status of terminal, day, date, time and the icons available.
LED Display Green LED – The terminal is working fine and it is in standby mode.
Red LED – There is an error at the terminal that requires checking. For first
time use, the terminals need to be charged fully to avoid having the red
light blinking.

7
TA100C MODEL
L.E.D Display
LCD Screen
Keypad Fingerprint
Sensor
RFID Card
Induction Area
Speaker
s u p p o r t @ f i n g e r t e c . c o m
Reset
Reset Button & USB Port
CONTENTS
ITEM FUNCTION
Keypad To input instructions into the terminal and to allow configuration.
Fingerprint Sensor To scan finger for confirmation of identity.
Speaker For terminal voice emission.
USB Port To upload/download users information, password and transaction
logs via USB disk.
Reset Button To restart the terminal as and when required.
ITEM FUNCTION
LCD Screen Displaying status of terminal, day, date and time.
LED Display Green LED – The terminal is working fine and it is in standby mode.
Red LED – There is an error at the terminal that requires checking. For
first time use, the terminals need to be charged fully to avoid having the
red light blinking.
Keypad To input instructions into the terminal and to allow configuration.
Fingerprint Sensor To scan finger for confirmation of identity.
RFID Card Induction Area Area that reads RFID cards. * for TA103C-R only
Speaker For terminal voice emission.
USB Port To upload/download users information, password and transaction
logs via USB disk.
Reset Button To restart the terminal as and when required.

8
L.E.D Display
LCD
Screen
Keypad
TA200 PLUS MODEL
RFID Card Induction Area
Speaker
Fingerprint
Sensor
Navigation
Keys
Reset Button
USB Port
CONTENTS
ITEM FUNCTION
LCD Screen Displaying status of terminal, day, date and time.
LED Display Green LED – The terminal is working fine and it is in standby mode.
Red LED – There is an error at the terminal that requires checking. For first
time use, the terminals need to be charged fully to avoid having the red
light blinking.
Keypad To input instructions into the terminal and to allow configuration.
Navigation Keys To navigatien and input command to terminal.
RFID Card Induction Area Area that reads RFID cards.
Speaker For terminal voice emission.
Reset Button To restart the terminal as and when required.
Main Menu
Enroll users, manage user data and input workcode.
Setup FingerTec terminal communication with computer through LAN, RS232 and
RS485. Set security password of the device for a secure data transfer.
Configure the settings of the FingerTec terminals from general to display setting to
fingerprint. Data management, update via USB flash disk, keyboard functions, reset and
other terminal settings can be done here.
Adjust the date and time settings of the terminal.

9
CONTENTS
Upload and download data and information to and from the FingerTec terminal using
a USB flash disk.
Run tests on the FingerTec terminal to diagnose the terminal on various aspects.
Check user attendance and transaction logs that are available in FingerTec terminals
and perform housekeeping of the machine.
View free and used memory of the terminal as well as the terminal’s details in system
information.
Power On/O Button
Use the power on/off button to turn the terminal on or off. You can disable the button to
avoid accidental shut off of the terminal.
Battery
Terminals operate using power supply from a standard power outlet. Inside the terminal,
there is an RTC battery for the running of the clock. Charge the terminal for at least 3
hours straight before you start using it. When there is a serious delay in time or the clock
keeps on restarting, the RTC needs to be replaced.
External power supply: Mini UPS (uninterrupted power supply) 5V and mini UPS 12V pro-
vide mobile power supply to the terminals. Charge the mini UPS sufficiently for optimum
performance.
Refer to http://accessory.fingertec.com for more information about accessories.
Date/Time
The terminals display the date and time at the home screen. Choose the date and time
format based on your preference. Press Menu > Date/Time > Select Value > OK to save.
Voice Control
Voice Control lets you control the level of volume emitted by the terminal.
TURN ON/OFF
The system lets you to turn on/off the voice based on your preference. Press Menu >
System > System > Voice > On/Off > Determine value in percentage (default is 67%) >
OK to save.

10 CONTENTS
ADJUST VOLUME
The default volume of the terminal’s voice is 67. The volume can go as high as 100 and
as low as 0. To sustain the performance of speaker, it’s recommended to stay within the
range of 60-70. To adjust the volume Press Menu > System Icon > System > Vol > input
value > OK to save
Security Features
Security features help protect the information in the terminal from being accessed by
unauthorized individuals.
ADMIN AFFIRM
Register an administrator to the system by enrolling a fingerprint or a password to a
user ID. Press Menu > User Mgmt > New User > Privilege: Admin > Choose enrollment
method > OK to Save. After enrolling an administrator, the main menu can only be ac-
cessed by the administrator. The terminal will display “Admin Affirm” when an anau-
thorized individual tries to access the Menu.
COM KEY
Create password for a specific terminal here. Press Menu > Comm. Icon > Security >
Insert Terminal ID No and Password > Ok to save. The security password known as COM
Key is intended for extra security. To connect the terminal with the software, the COM
key inserted in the Software must be the same as the one inserted in the terminal or else
the connection will not be established even though the activation key and product key
are correctly inserted.
Cleaning Terminal
CLEANING THE BODY
Use a dry cloth to clean the terminal’s body. Do not use any liquids, household cleaners,
aerosol spray, solvents, alcohol, ammonia and abrasive solutions to clean the body of
the terminal because it could damage it.
CLEANING THE FINGERPRINT PRISM
Clean the fingerprint prism with a cellophane tape for (silicon coated prism). View the
video on how to clean the fingerprint prism at this link http://www.fingertec.com/news-
letter/enduser/cleanfinger.html. For the non-coated prism, please use microfiber cloth.
Restarting and Resetting Terminal
If a feature isn’t functioning as it should, try restarting or resetting the terminals
RESTARTING THE TERMINAL
Push the On/Off button on the terminal to restart the terminal. If you can’t restart the
terminal, or if the problem persists, you might want to reset.
RESETTING THE TERMINAL
Go to Menu, press the System icon and click on Reset. Choose to Reset All Default Set-
tings, Reset Keyboard Settings or Reset Other Parameters. Resetting the terminal will
cause all your settings to return to the original factory settings.

11
CONTENTS
3 • USER
Enrolling User
The FingerTec terminals can enroll fingerprint templates, passwords and card informa-
tion. This chapter covers all possible user enrollments in the terminals.
FINGERPRINT ENROLLMENT
It is recommended to enroll two fingers for one user ID. One template is the default
and another one is used for backup. You need to check the quality of the fingerprint
before doing any fingerprint enrollment. It is important to locate the center points of
the finger because the center points has to be placed in the middle of the scanner dur-
ing enrollment to get a good reading. You also have to make sure that the fingers are
not too wet or too dry for enrollment.
To enroll ngerprint: Press Menu > User Mgmt icon > New User > ID. No: (insert value)
> Select “Enroll FP” > Select Privilege > Place your fingerprint 3 times following instruc-
tions given by the terminal > OK to save.
CARD ENROLLMENT
For terminals that are using card system, default card for the terminal is RFID. MiFare
and HID card systems are available upon request.
To enroll card: Press Menu > User Mgmt icon > New User > ID No: > Insert User ID >
Select “Enroll Card” > Wave the card at the scanning area until the screen displays the
Card ID > OK to save.
PASSWORD ENROLLMENT
The terminal offers different enrolment methods, and passwords can be used alone or
in combination with other verification methods. The maximum length of a password
is 8 digits.
To enroll password: Press Menu > User Mgmt icon > New User > ID No: (insert value)
> Select “Enroll Pwd” > Input password using the keypad > Reconfirm password > OK
> OK to save.
Verifying User
1:1 ONE TO ONE / 1:N ONE TO MANY
VERIFICATION METHOD PROCESS
1:1 (One to One) You have to identify your User ID before inputting any biometrics
feature for verification. For example, your user ID is 1008. One to
one method requires you to key in user ID followed by your finger-
print to get verified.
1:N (One to Many) You don’t need to identify your User ID before inputting any bio-
metrics feature for verification. Simply place your finger on the
scanner for verification.

12
Center point
CONTENTS
VOICE MESSAGE
VOICE / MESSAGE WHAT DOES IT MEAN?
“Verified” Identity verification is successful, the terminal stores the transaction
logs and opens the door (if connected to door access)
“Try again please” Identity verification is failed because the finger is not properly posi-
tioned, the template is not available in the terminal or the password
is incorrect.
“Admin Affirm” You are not an administrator of the system and you cannot access
Menu page
“Duplicate Finger” This message only appears during registration when the finger that
you want to enroll has been enrolled before. “FP Enrolled Alrd” will be
displayed on the LCD screen.
“Invalid ID” For 1:1 verification, User ID entered does not match with fingerprint.
FINGERPRINT VERIFICATION
1:N – 1:N verification does not require any input of your user ID. Place your finger properly on
the scanner and the terminal will take a second to verify your identity.
1:1 – 1:1 requires input of User ID before the terminal reads and verifies your identity. Press
1:1/1:N > Input ID on the screen > Press fingerprint icon > terminal will read and verify.
Some precautions have to be taken to get a good read every time.
·Make sure the center point of your finger is
placed in the middle of the scanner for a good read.
·Recommended to use index finger. The terminal
accepts other fingers but index is the most convenient.
·Make sure the finger is not wet, too dry, injured or dirty
·Do not press hard on the sensor, just place it
comfortably
·Avoid direct sunlight or bright light
PASSWORD VERIFICATION
Password can be an option for those who do not prefer to use other verification methods. To
verify using password, press 1:1/1:N > insert User ID and press key button > insert password
and press OK.
CARD VERIFICATION
Place the card on the card scanning area and the terminal will read and verify the card.

13
CONTENTS
Adding User Information
User information can be added into the terminal through two ways. One is through the
FingerTec terminal and the other through the TCMS V2. To add/change user information
via the terminal, press Menu > User Mgmt icon > Manage User > OK > Select Instruction
> Edit/Add > OK to Save.
Instruction Function
Search User Insert User ID in the column and press OK
Record Press to view available user records
Edit User Delete/Add Verification Methods and change Privilege
Del User Delete User, Fingerprint or Password
New User Enrolment of New User
Field Function
ID No. Edit user ID based on your company’s employee numbering system. Maximum length of
user ID is 9 digit
Name Add name of the user in this field (Can only be done via TCMS). Maximum number of char-
acters is 24
FP Quantity of Fingerprint
PWD Quantity of Password
CARD Quantity of Card
It is recommended that the updating of user information be done through the TCMS V2
software. After the information is updated, sync the TCMS V2 and the terminal to display
the information.
Deleting User
Only an administrator can perform user deletion at the FingerTec terminal. To delete
certain user(s), press Menu > User Mgmt > Manage User > OK > Select Del User > Choose
“Delete User” > OK
Please be extra careful when performing this task to avoid any unauthorized deletion.

14
REASONS WORK CODE
Check In 00
Check Out 01
OT start 04
Done 05
Sick Leave 10
Half-day Leave 12
Emergency Leave 11
Meeting Client 20
Outstation 21
Workcode Mode 1: Verification followed by work code
Workcode Mode 2: Work code followed by verification
CONTENTS
Access Level/Privilege
FingerTec terminals offer two types of access level or privilege.
PRIVILEGE USER ROLES
Normal User Only use the terminal to verify your identity. You cannot access into
Menu and make changes into settings and system
Administrator You are allowed to access into menu to enroll users and edit settings
and system
Dening Work Codes
The terminal provides a work code feature
which allows users to key in predefined
numbers after verification. The work code
numbers are predefined in the TCMS V2.
The following table shows examples of
work codes.
Press Menu > User Mgmt > WorkCode >
Press ok to activate the menu > Select to
Create New workcode, Edit Workcode or
to Delete Workcode > Choose your pref-
erence > Ok to save.
To add work code through the terminal,
Press Menu > User Mgmt > Workcode >
Menu > New > Enter Code Number eg: 02
> Enter Code Name eg: Emergency Leave
> OK to save.
RFID Card Function
The fingerprint terminals are versatile and some can accept card verifications. This chap-
ter covers the Radio Frequency Identification or better known as RFID system. The termi-
nals accept RFID card with specifications of 64-bit, 125kHz.
ENROLLMENT OF RFID CARD
RFID can be enrolled alone, with fingerprint or with password. Each RFID card comes with
a unique ID and the terminals will read from the numbers and match it with the card.
Enrollment of RFID is easy. Press Menu > User Mgmt > New User > Enroll Card > ware card
at the induction area > OK.
CHANGING CARD ID
Press Menu > User Mgmt > Manage User > OK > Change Card > OK > Show a different
card > OK.

15
4 feet / 1.2 meter
(recommended)
CONTENTS
4 • INSTALLATIONS & COMMUNICATION
Installations
FingerTec terminals offer several connections for power and communications. Installations
of FingerTec time attendance terminals are simple.
MOUNT ON WALL
• After measuring the height accordingly
and make relevant marking on the wall,
drill the screws into the wall to secure
the back plate.
• Attach the terminal to the back plate
and tighten the screws.
FLEXIKIT
FingerTec offers flexi-kit for all its time attendance models. Attach the terminal on the flexi-
kit for convenience and cosmetic purposes. View flexi-kit at http://accessory.fingertec.com

16
AC100C MODEL & TA100C MODEL
TA200 PLUS MODEL
Reset
Reset
TCP/IP PORT
POWER PORT
USB PORT
........
......
TCP/IP PORT
POWER PORT
USB PORT
........
......
CONTENTS
Communications
Connection points for power and communication are available on top of the terminals.
Refer to the following diagrams for the terminals you require.

17
1 8
TOP
FRONT
1 8
CONNECTOR PIN CABLE COLOR CONNECTOR
TX+ 1•White/Orange •1 TX+
TX- 2•Orange •2 TX-
RX+ 3•White/Green •3 RX+
4•Blue •4
5•White/Blue •5
RX- 6•Green •6 RX-
7•White/Brown •7
8•Brown •8
JOINT 1 PIN JOINT 2 PIN
TX+ 1 • • 3 RX+
TX- 2 • • 6 RX-
RX+ 3 • • 1 TX+
RX- 6 • • 2 TX-
CONTENTS
USB PORT
Linking with USB flash disk for remote data transfer.
TCP/IP PORT
Connect with CAT 5 cable for LAN connection, one end to this port
and another end to the computer’s TCP/IP Port.
TCP/IP for Single Connection – Linking the termi-
nal to a single computer using TCP/IP requires Ethernet
10/100Base-T Crossover Cable. The cable can be used to
cascade hubs or to connect Ethernet stations back-to-
back without a hub. It works with both 10Base-T and
100Base-TX.
TCP/IP for Network Connection – Linking the terminals to multiple computers using TCP/IP re-
quires Ethernet 10/100Base-T Straight Thru Cable or “whips”. The cable works with both 10Base-T and
100Base-TX, connecting a network interface card to a hub or network outlet.
POWER SUPPLY PORT
Insert the Power Adapter point to this port for power.
Security
Create password for a specific terminal here. Press Menu > Comm. > Security > Insert
Terminal ID No and Password > Ok to save. The security password known as COM Key
is intended for extra security. To connect the terminal with the software, the COM key
inserted in the Software must be the same as the one inserted in the terminal or else
connection cannot be established even though the activation key and product key are
correctly inserted.
TCMS V2 Online Activation
TCMS V2 is a genuine software by FingerTec. Every FingerTec access control model
comes bundled with a unique license key. To start using the terminal with TCMS V2, you
must connect the terminal to TCMS V2 and perform online activation. TCMS V2 reads
the serial number of your terminal and sends it for verification at the FingerTec server
via Internet. In case you do not have an Internet connection, you would need to do of-
fline activation. Please send the serial number and models of your terminals to your lo-
cal resellers or [email protected] to request for a product key and activation key.

18 CONTENTS
Installation and Setup of TCMS V2
Install TCMS V2 in a PC that fulifills the software’s minimum requirements. Refer to user.
fingertec.com/user-promanual.htm for the TCMS V2 user guide online. Setup Wizard will
require you to do online activation before a connection can be established between TCMS
V2 and the terminals.
Connecting The Terminals to TCMS V2
DETERMINING TERMINAL NUMBER: Identify the number of your terminals to dif-
ferentiate them between one another. TCMS V2 can connect up to 999 units of terminal.
Press Menu > Options > Comm Opt > Dev Num > Select the number.
USING TCP/IP: IP address is important, as it is a unique address of the terminal in LAN.
Without the IP address, locating the specific terminal is not possible. To input the IP ad-
dress of the terminal: Press Menu > Options > Comm Opt > IP Addr > Key in IP address.
SETTING UP ETHERNET: It is important to setup the Ethernet to connect the termi-
nals using TCP/IP connection. Setting up the Ethernet is done by enabling the Ethernet
function: Press Menu > Options > Comm Opt > Ethernet > Yes. Turn off the terminal after
you have set the Ethernet setting to Yes. Now, plug-in the network plug to the Ethernet
interface and turn the power on.
Determining the Netmask, Gateway and NetSpeed: For TCP/IP connection, please configure
the netmask, gateway and netspeed for the terminal.
Press Menu > Options > Comm Opt > NetMask > Insert the numbers.
Press Menu > Options > Comm Opt > Gateway > Insert the numbers.
Press Menu > Options > Comm Opt > NetSpeed > Choose the speed of your Ethernet connec-
tion.
USING RS232 CONNECTION: For connection via RS232,baudrate is the determinant
of communication speed between the terminal and the software. The higher the baudrate,
the faster the speed is. To turn on RS232 connection and set the baudrate: Press Menu
> Options > Comm Opt > RS232 > Change the RS232 connection to Y. To change baudrate:
Press Menu > Options > Comm Opt > Baudrate > Change the Baudrate accordingly.
USING RS485 CONNECTION: For connection via RS485, baudrate is also the deter-
minant of communication speed between the terminal and the software but the speed
must be according to the speed of theconverter. Check your converter for the speed. To
turn on RS485 connection and set the baudrate: Press Menu > Options > Comm Opt > RS232 >
Change the RS485 connection to Y. To change baudrate: Press Menu > Options > Comm Opt
> Baudrate > Change the Baudrate accordingly.
Using USB to Download/Upload Data
A USB flash disk is useful in cases where the terminal is installed far from a PC or there is a
connection problem. To determine the type of USB flash disks compatible with the termi-
nal, please refer to this link at http://www.fingertec.com/newsletter/HL_74.html using
USB. Press Menu > PenDrive Mgmt > Choose the operation that you want to carry out via
USB flash disk.
Communication Key
Since the software is controlled by an activation code and a product key, set the COMM key
to zero. Press Menu > Options > Comm Opt > COMM Key > Set to 0.

19
CONTENTS
5 • SYSTEM
System Settings
THRESHOLD
Threshold is the level of the fingerprint scanner’s sensitivity. Threshold determines how
many percent of minutiae points on a fingerprint template will be read by the system.
The higher the threshold level, more points are being read, more restricted the system.
Configure the threshold for 1:1 and 1:N methods.
For 1:1, the range is from 0-50 and the recommended value is 15.
For 1:N, the range is from 0-50 and the recommended value is 35.
Press Menu > System > System > Threshold (1:1) or Threshold (1:N) > Determine the
Level > OK to Save
DATE FORMAT
The date format can differ based on countries for example in Malaysia, the date-month-
year format is used while in America, the month comes first. Choose your date format
according to your preference. The default format is dd-mm-yy. Press Menu > System >
Date Format > Select Format > Ok to Save
SOUND OF KEYBOARD
The terminals emit sound when you press any of its buttons. To turn on/o the keypad
sound: Press Menu > System > Keybeep > On/Off >Ok to Save
FINGER SENSITIVITY
Determine the sensitivity of the sensor to fingerprint. Choose Low, Mid or High sensi-
tivity. It is recommended to be set at Mid. Press Menu > System > Finger Sensitivity >
Select your preference >Ok to Save
VOICE
The terminal has certain voice commands to guide users during enrolment and to no-
tify users during verification. Press Menu > System > Voice > On/Off > OK to save
VOLUME %
Voice Control lets you control the level of volume emitted by the terminal.
Adjust Volume: The default volume of the terminal is 60. The volume can go as high as
100 and as low as 0. To sustain the performance of speaker in the terminal, it’s recom-
mended to stay at the range of 60-70. To adjust the volume. Press Menu > System >
Volume 1:100% > Set your number > Ok to Save.
ALGORITHM VERSION
Get the terminal’s algorithm version here. Press Menu > System icon > System > Alg
Version > View the Version > Ok to Save.

20
DESCRIPTION CODE
Terminal ID 01
Date (ddmmyy) 050210
Time (hhmm) 0900
User ID 000000001
Transaction Code 00
Terminal Activity 00
NOTE
Please be extra careful when
performing this task to avoid
unauthorized deletion of
important data
CONTENTS
RECHECK MIN
Once you have inserted a value, eg: 1, when a user checks in at 10:01, his time will be
adjusted to 10:00. The maximum value is 99. When you enter 5, a user is given 5 minutes
leeway time in his attendance.
LOG ALERT
When the log storage is at a certain level, the user/administrator needs to be alerted to
avoid underperformance of terminal. The recommended value is 99. Menu > System >
System Settings> Log Alert > Input your value > Save
Data Management
Every time an enrolment is performed or a
verification is done, a transaction log is stored
inside the terminal. The data contains the ter-
minal ID, date, time, user ID and transaction
activity. For example, 0105021009000000000
010000:
These logs need to be managed to maintain
the effectiveness of the terminal.
It is recommended to do the housekeeping of data from the TCMS V2 software. There
are 4 functions available in the Data icon to enable you to manage your data in the
FingerTec terminal.
In the data management icon, you can choose from four instructions. Press Menu >
System > Data Mgmt > Select your instruction > Ok to save
DELETING ATTLOG
Please make sure that you are certain when you want to do this operation. The logs that
are stored inside the terminal are the ones that have not been downloaded into TCMS
V2. Deleting the logs means that no backup data is available.
DELETING ALL DATA
This function allows you to delete all attendance data and user information in the ter-
minal. Make sure that all user information has been backed up in the TCMS V2 before
performing this task.
CLEARING ADMIN
There are three user privileges in the terminals, administrator, supervisor and normal
user. You can delete administrator privilege; but without an administrator, normal user
can access the menu easily and interrupt the settings.
DELETING PICTURE
You can advertise your product and company cor-
porate message in the terminal using screen saver
function.
