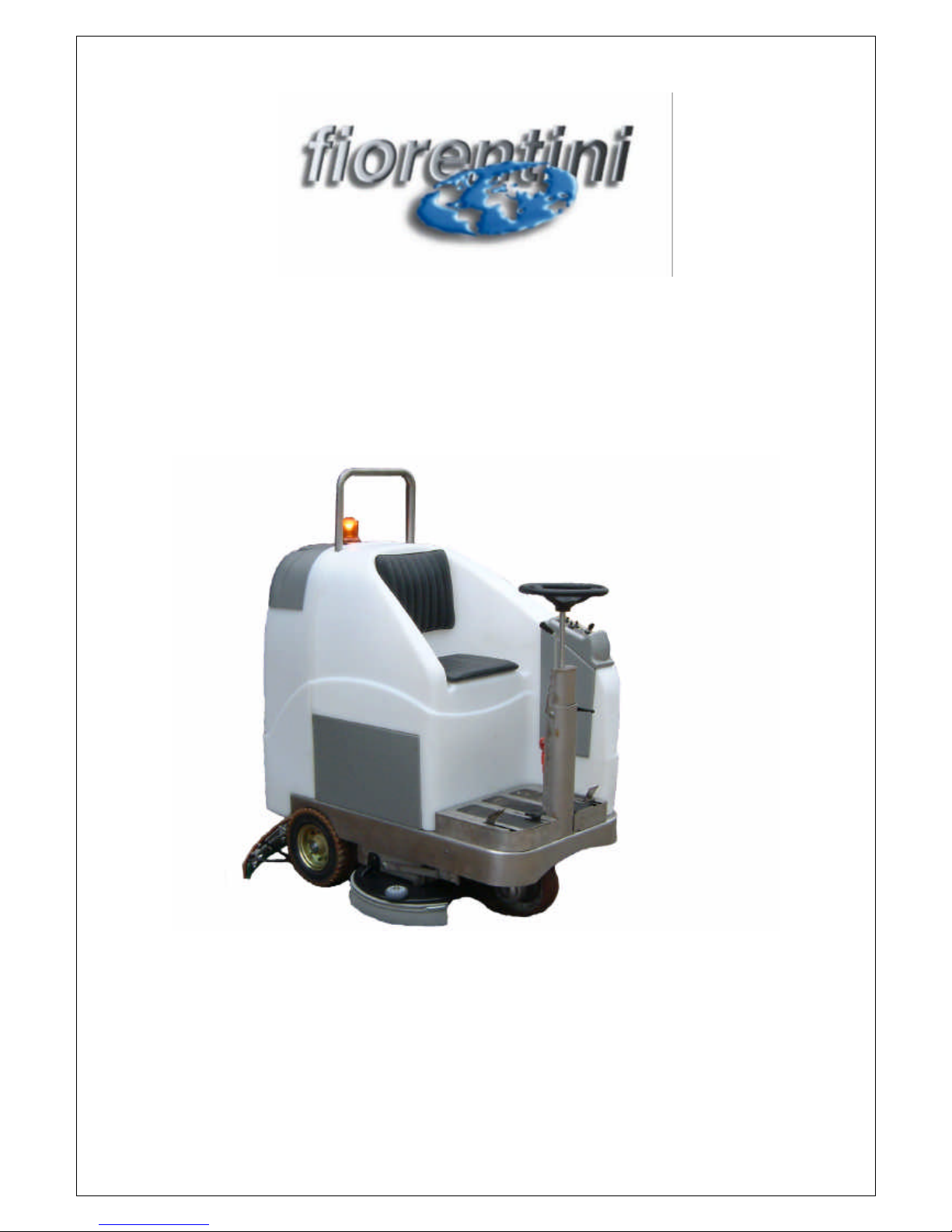

FIORENTINI SCOIATTOLO 75 User manual

User Manual
SCOIATTOLO 75 -85
ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE MACHINE
FIORENTINI INDUSTRIALE S.r.l.
INDUSTRIAL CLEANING MACHINES

1
INDEX
MACHINE DELIVERY page
2
INTRODUCTION 2
TECHNICAL DESCRIPTION 3
GENERAL INFORMATION 4
MANUFACTURER RESPONSIBILITY 4
INTERVENTION REQUEST 4
TRANSPORT AND STOCKING 5
PACKED MACHINE HANDLING 5
UNPACKING THE MACHINE 5
UNPACKED MACHINE HANDLING 5
DESCRIPTION 6
DASHBOARD 6
SYMBOLS ON THE DASHBOARD 7
USING THE MACHINE 8
Safety Systems 8
Brake 9
Batteries Installation 9
Battery Charger Installation 10
Choosing the detergent 10
Starting and Preparing the Machine 10
Use of the machine 10
Detergent quantity 11
Water unload 11
Squeegee Adjustment 12
Brushes Replacement 13
Cleaned area width regulation 14
SAFETY, MAINTENANCE AND CONTROLS 15
GENERAL SEFATY RULES 15
DAILY MAINTENANCE RULES 16
Maintenance Plan 16
Batteries 17
Squeegee Blades Replacement 18
Suction Motor Maintenance 19
CONTROLS 20
Checking the Safety System 20
Checking the Electric System 20
Checking the Braking System 20
SUMMARY 21

2
MACHINE DELIVERY
AS SOON AS THE MACHINE IS DELIVERED, PLEASE CHECK THAT THERE
IS NOT ANY DAMAGE DUE TO TRANSPORT.
IN CASE OF DAMAGE OR MISSING PARTS, PLEASE ADVISE
IMMEDIATELY THE MANUFACTURER.
INTRODUCTION
THIS KIND OF SCRUBBER MACHINE CAN PERFECTLY WASH EVERY
KIND OF FLOOR FROM EVERY KIND OF DIRT WITH AN EXCELLENT RESULT.
THIS IS WHY THE MACHINE MUST ALWAYS BE USED IN A CORRECT
WAY AND MAINTAIN IT. PLEASE, READ CAREFULLY THIS USER AND
MAINTAINANCE MANUAL.
THE MACHINE MUST ONLY BE USED FOR THE INDUSTRIAL
CLEANING.
Pease, keep this manual for any future reference

3
TECHNICAL DESCRIPTION
DIMENSIONS SCOIATTOLO 75 SCOIATTOLO 85
LENGHT 1360 mm 1360 mm
WIDTH 860 mm (with brushes
protection)
860 mm (with brushes
protection)
HEIGHT 1360 mm 1360 mm
WASHING BRUSHES 2 2
WASHING BRUSHES DIMENSIONS Ø380 mm Ø410 mm
CLEANED AREA WIDTH 750 mm 850 mm
SQUEEGEE WIDTH 950 mm 1050 mm
POLYETHYLENE SOLUTION TANK 160 lt.
POLYETHYLENE RECOVERY TANK 155 lt.
FRONT WHEEL DIAMETER 250 mm.
REAR WHEEL DIAMETER 310 mm.
TRACTION electric
WEIGHT WITHOUT OPERATOR ON
BOARD 430 kg.
WEIGHT WITHOUT BATTERIES 250 kg. 250 kg.
BATTERIES ROOM (LxWxH) 590x530x325 mm.
ELECTRIC CHARACTERISTICS
ENERGY SOURCE Nr. 6 batteries (6V)
VOLTAGE 36 V
WASHING BRUSHES ENGINE 1000W 32A 2200rpm
TRACTION DRIVING WHEEL 600w 21A 130rpm
SUCTION ENGINE 850w 23A 16000rpm
FUNCTIONS
DRIVE Operator on board Operator on board
U-TURN LANE 2500 mm
SQUEEGEE UP
SQUEEGEE DOWN
electrical
mechanical by pedal
SERVICE BRAKE mechanical by pedal
PARKING BRAKE mechanical by pedal
PERFORMANCES
FORWARD SPEED 0 ÷6 Km/h
BACKWARD SPEED 0 ÷4 Km/h
MAXIMUM OVERCOMING SLOPE 10 %
MAXIMUM OVERCOMING SLOPE FOR
A U-TURN
5% A 1 Km/h
CLEANED AREA (m² /h) 4300 m² /h 4700 m² /h
ECOLOGICAL CHARACTERISTICS
NOISE AT OPERATOR’S EAR < 70 dB(A)
NOISE AT OPERATOR’S SEAT < 2.5 m/s²

4
GENERAL INFORMATION
MANUFACTURER RESPONSIBILITY
The manufacturer FIORENTINI is not responsible for any damage due to the no-
acquaintance or no-fulfilment of the instructions of this manual. The same applies to
changes, modifications, and/or the installation of accessories not authorized by
FIORENTINI.
In particular, FIORENTINI is not responsible for any damage caused by:
- Natural calamity
- Erroneous manoeuvres
- No maintenance
Furthermore, the manufacturer is not responsible for any intervention not
performed by FIORENTINI technicians except for ordinary maintenance.
INTERVENTION REQUEST
Intervention should be made after a careful analysis of the damage and its causes. In
any case,when a damage occurs, it is necessary to give the following information to
the authorized Service Centre:
??Machine model;
??Serial number (picture nr. 1);
??A detailed description of the damage;
??Check done;
??Performed adjustments and their results;
??Any other information considered useful for this purpose;
??Customer address.
Fig. 1
FIORENTINI
S.r.l.
MADE
IN
ITALY
CE
Mod. SCOIATT-80M S.N.SCO-04-005 2004
V36 Hz.
Kg 480 A 70
W 2650

5
TRANSPORT AND STOCKING
PACKED MACHINE HANDLING

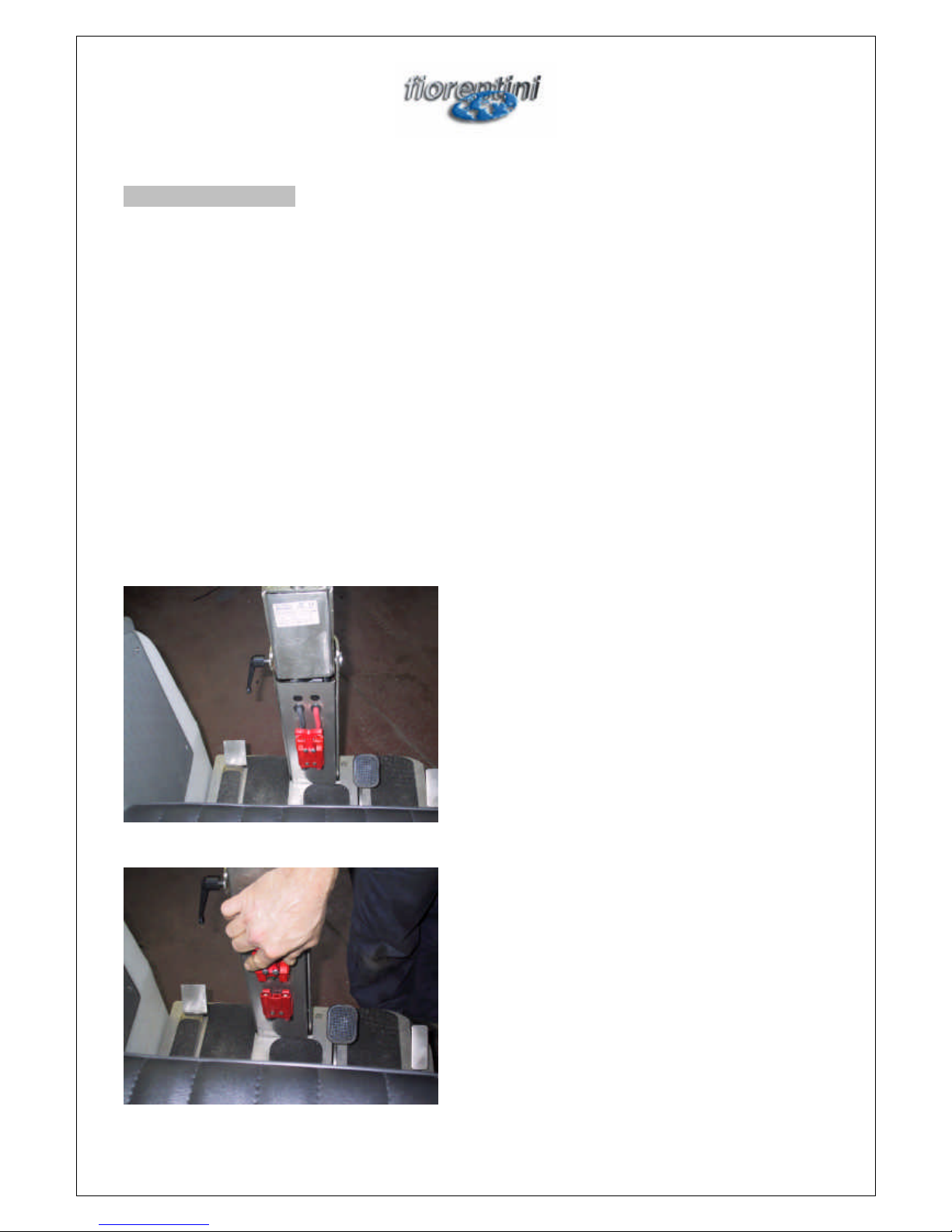

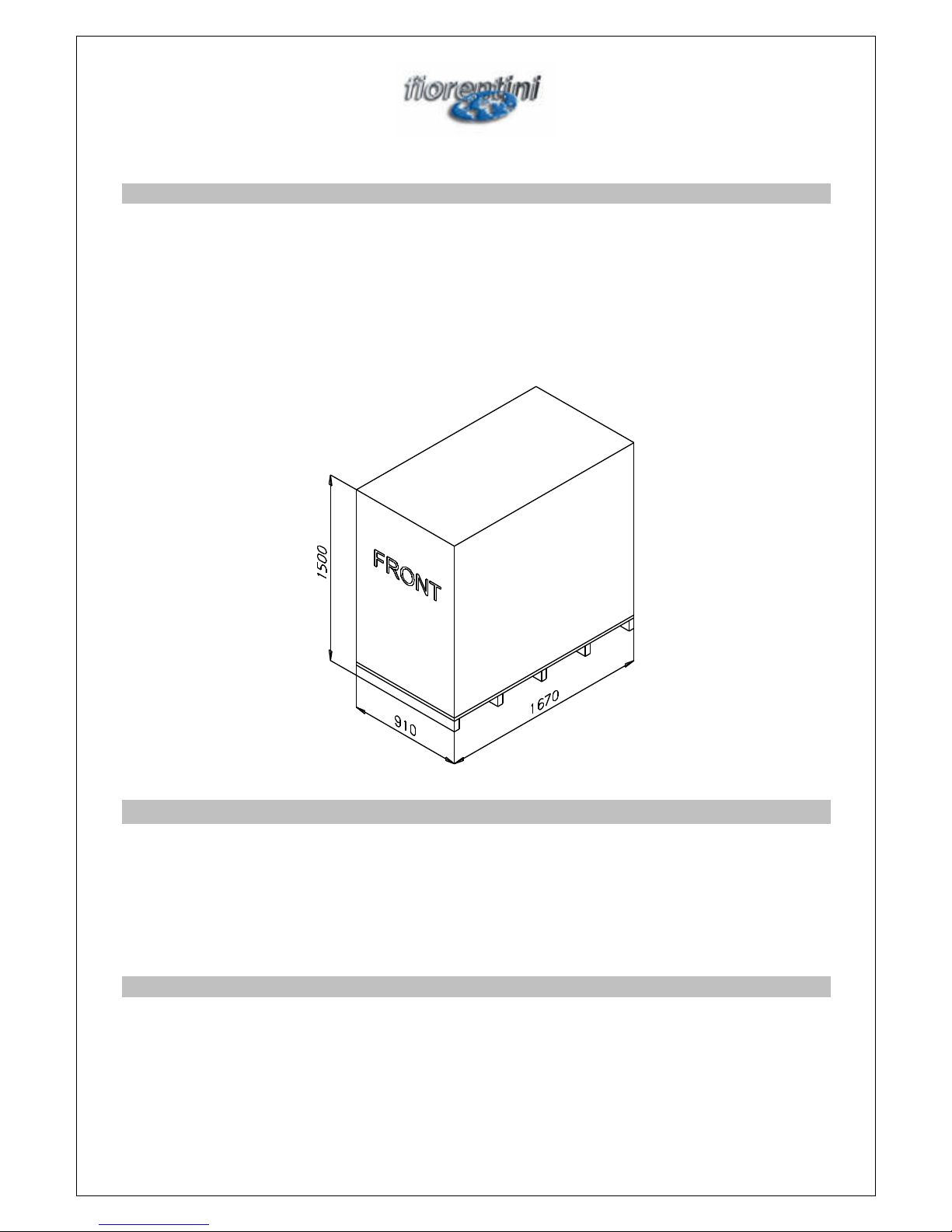

The machine is delivered in a special package, which is shown in picture nr. 2.
The gravity centre is indicated on the package with a black arrow. The pallet must be
forked in the middle of the side with the black arrow in order to avoid overturning.
The case should be handled with extreme caution.
It is forbidden to lay cases on each other.
Picture 2
UNPACKING THE MACHINE
1. Cut the plastic bands. Pay attention to the spring back.
2. Remove the clips that fix the carton to the pallet.
3. If the case is made of plywood, remove the clips from the each side and the base.
4. Remove the plastic bands that hold the machine.
5. Place the machine on the floor.
UNPACKED MACHINE HANDLING
1. Check the machine and install the batteries if they are not installed.
2. If the machine has to be handled for a short transport, disconnect the battery
cables. It is recommended to pack the machine again in its original case if it has
to be handled for a longer transport.

6
DESCRIPTION
DASHBOARD

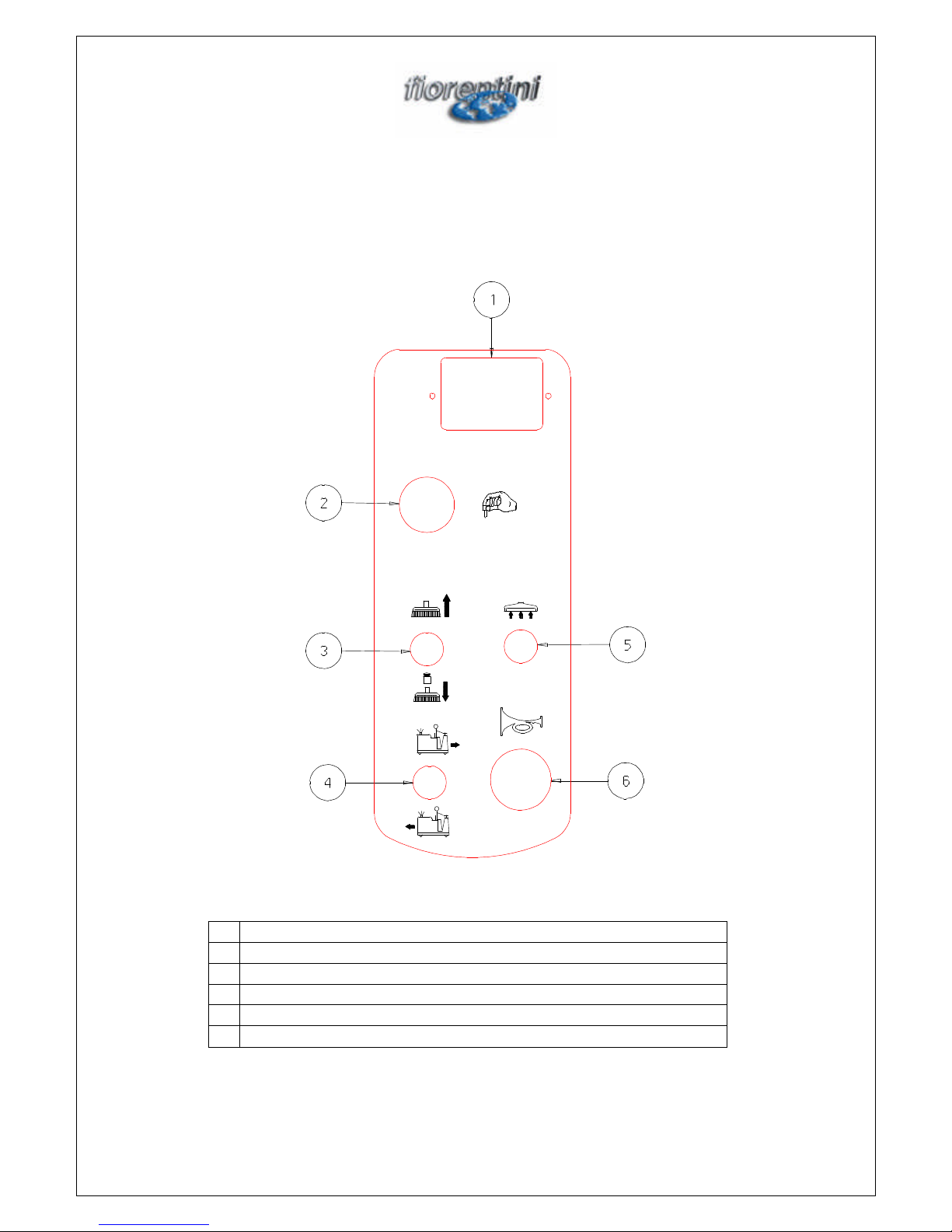

1 BATTERY CHARGER INDICATOR
2 KEY SWITCH
3 BRUSHES SWITCH
4 FORWARD/BACKWARD GEAR SELECTOR
5 SUCTION SWITCH
6 HORN

7

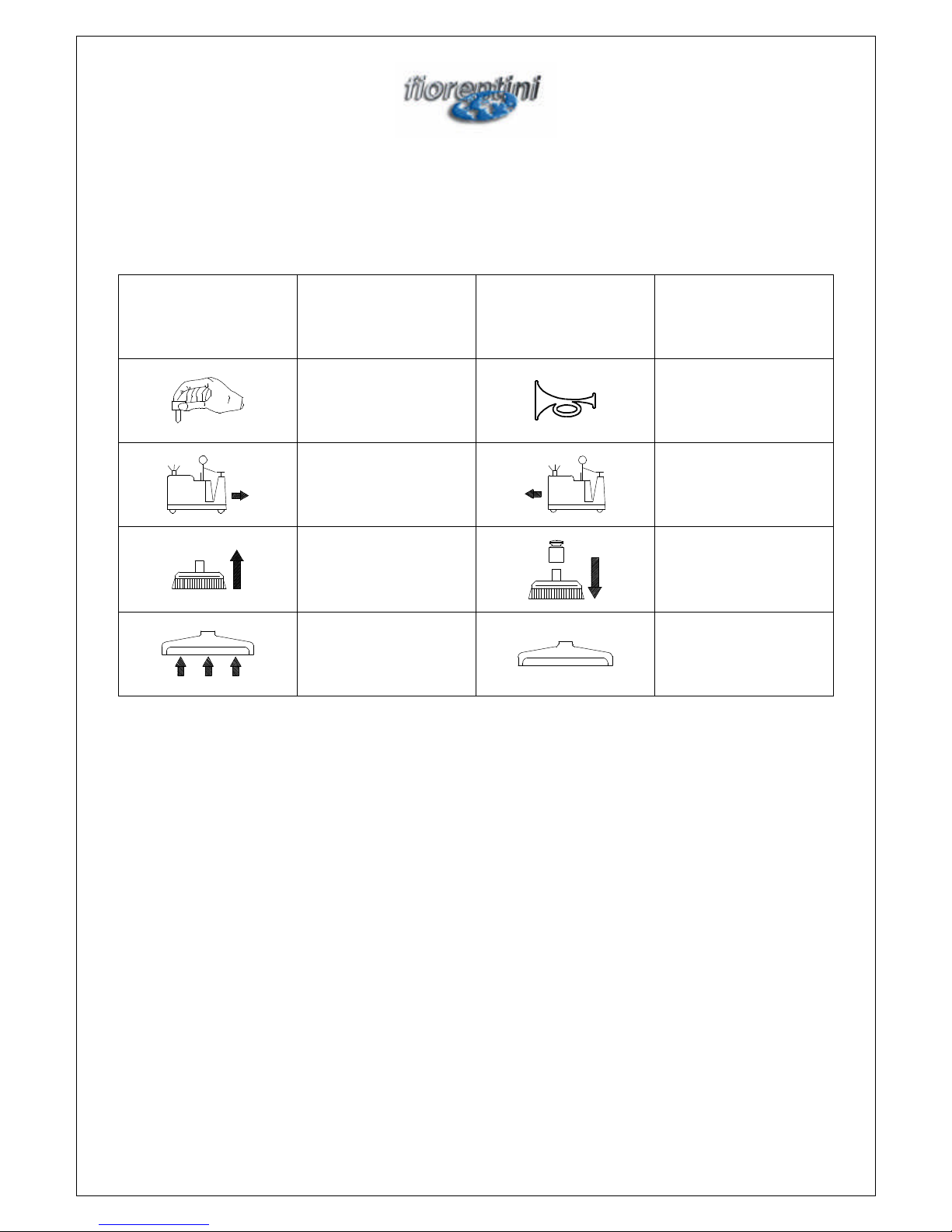

SYMBOLS ON THE DASHBOARD
0
Off 1 On
Main switch
Horn
Forward gear Backward gear
Washing brushes off
Washing brushes on
Suction on Suction off

8
USING THE MACHINE
SAFETY SYSTEMS
The machine is equipped with some safety systems.

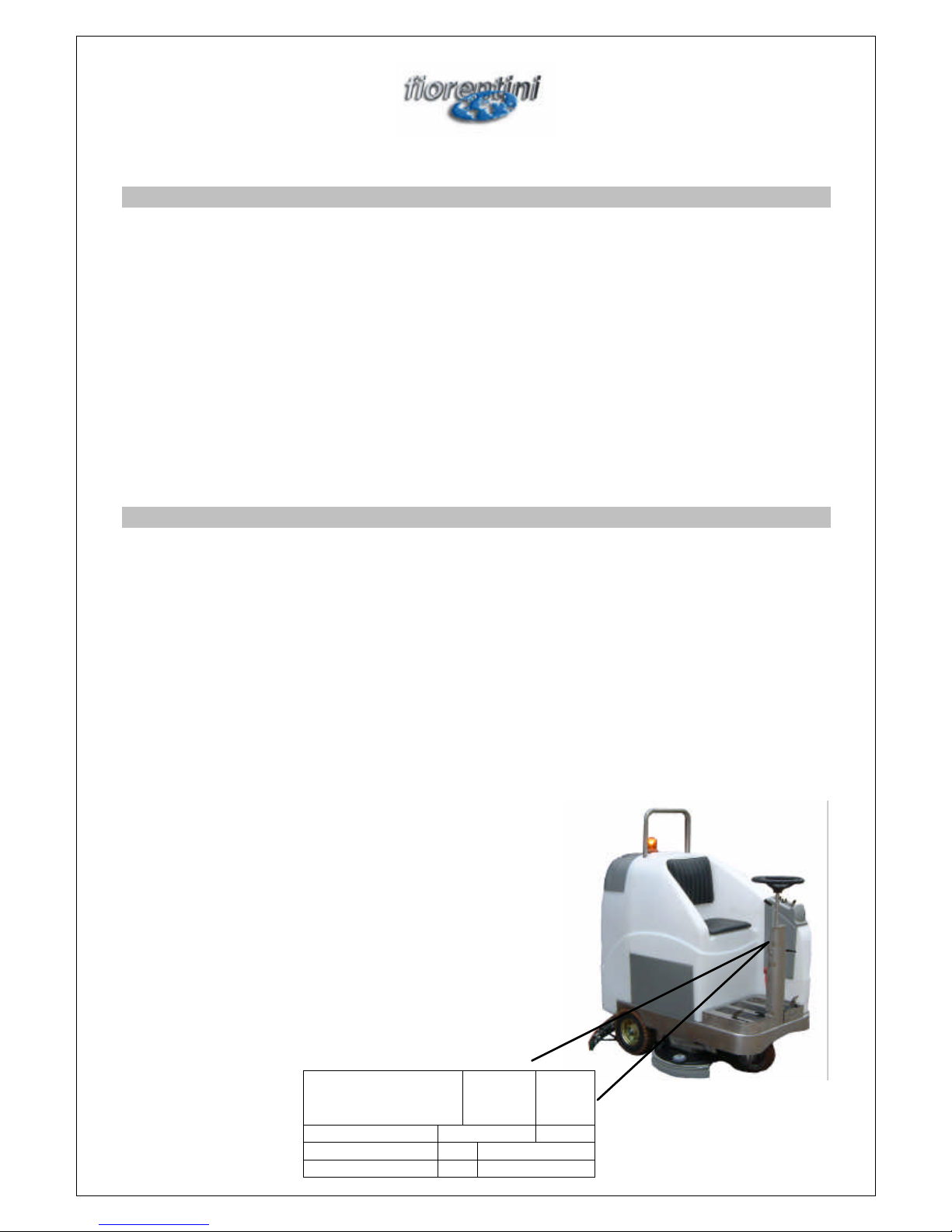

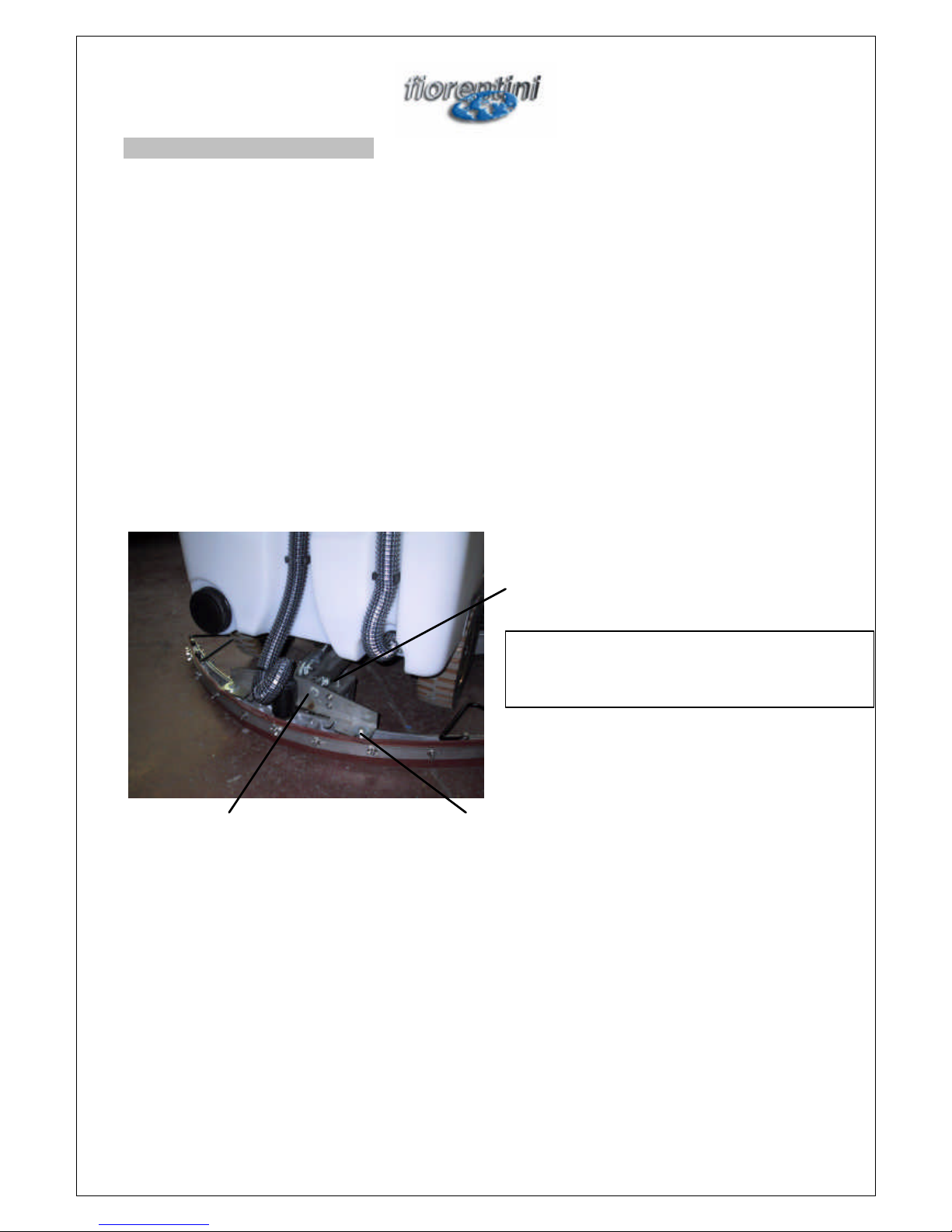

Outlet (picture 3), it is the same used for the battery charger. In casa of emergency,
the operator must the plug must be taken out of the outlet by means of its handle
(picture 4).
Before using the machine, the operator must know how the safety system of the
machine works. It is forbidden to plug in, if the problem has not been sorted
completely out. If necessary, ask for a trained technician.
Float:the recovery tank is equipped with a float that stops the machine if the tank is
too full. In this case, before restarting the machine the operator has to empty the
recovery tank o (see page 11). When the machine stops because the recovery tank is
full, the battery charger indicator on the dashboard blinks six times.
Unsufficient battery charge:The electronic card, that controls every function of the
scrubber machine, is equipped with a safety system that stops all the machine
functions (except for the traction) when the batteries autonomy is lower than 20%.In
this way, the batteries lifetime lasts longer.
Picture 3
Picture 4

9
BRAKE

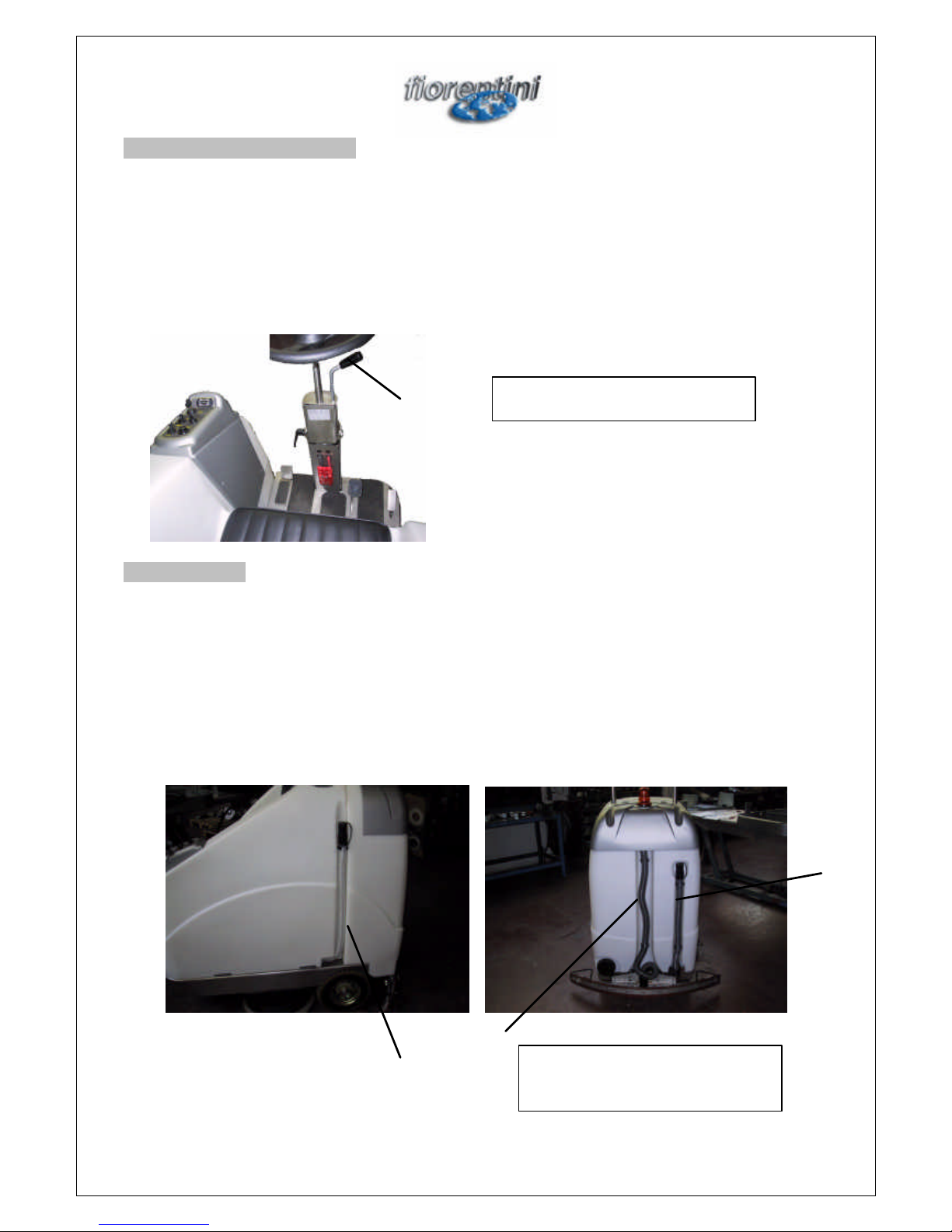

The machine is equipped with parking and service brake (picture 5).
??The service brake is operated by the pedal placed on the right of the footboard
(picture 1).
??The parking brake is operated by means of the service brake pedal. The
operator has to push this pedal completely down and do the opposite when
he/she wants to release it.
STEERING WHEEL ADJUSTMENT
The machine steering wheel can be adjusted so that the operator can reach a proper
position (picture 5).
??In order to adjust the steering wheel position, the operator has to unscrew the
knob placed on the left of the steering column. Then the operator has to move
the steering wheel forward and backward until the best position is found.
Finally, the operator has to screw the knob again in order to fix the steering
wheel.
Picture 5
BATTERIES INSTALLATION

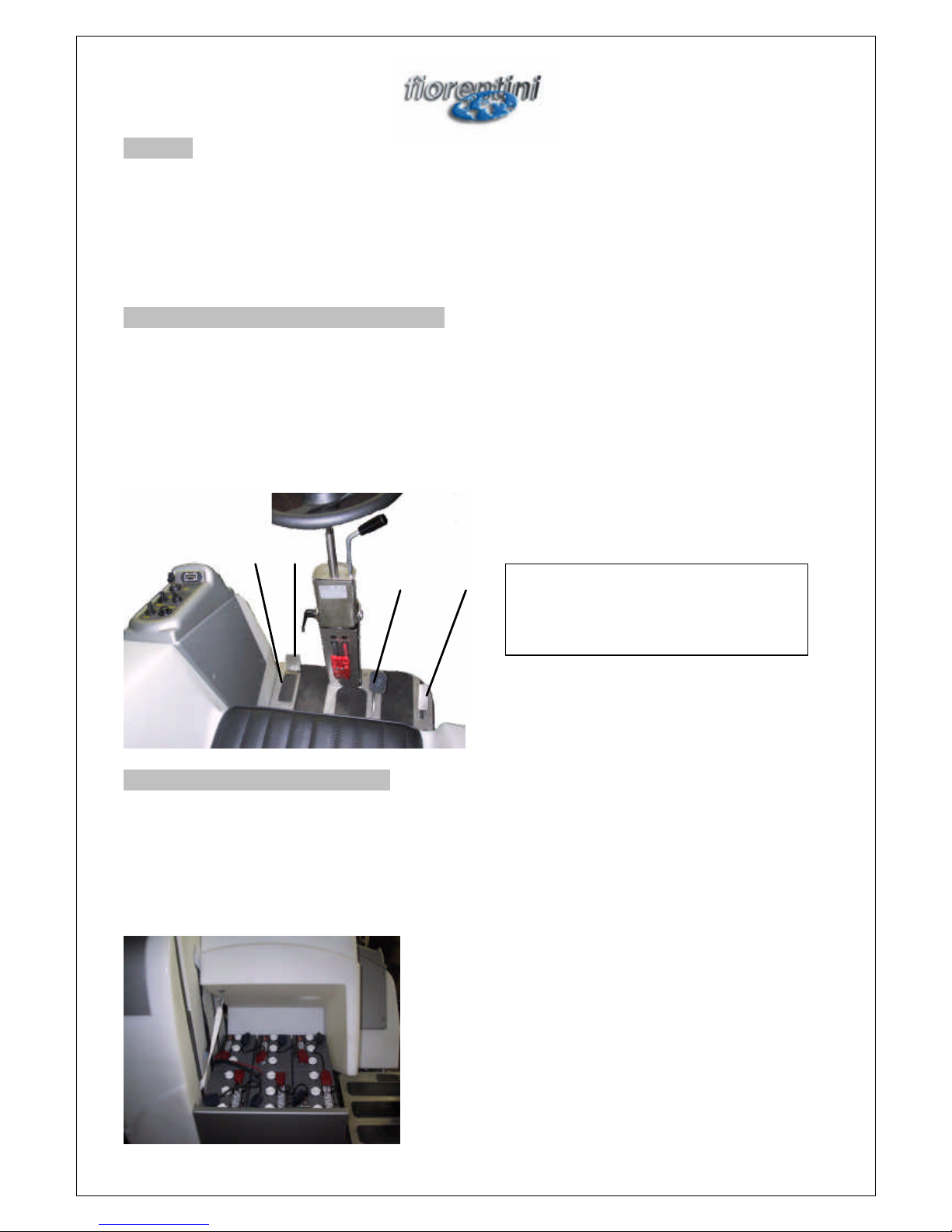

??Pull the solution tank up in order to reach the batteries room;

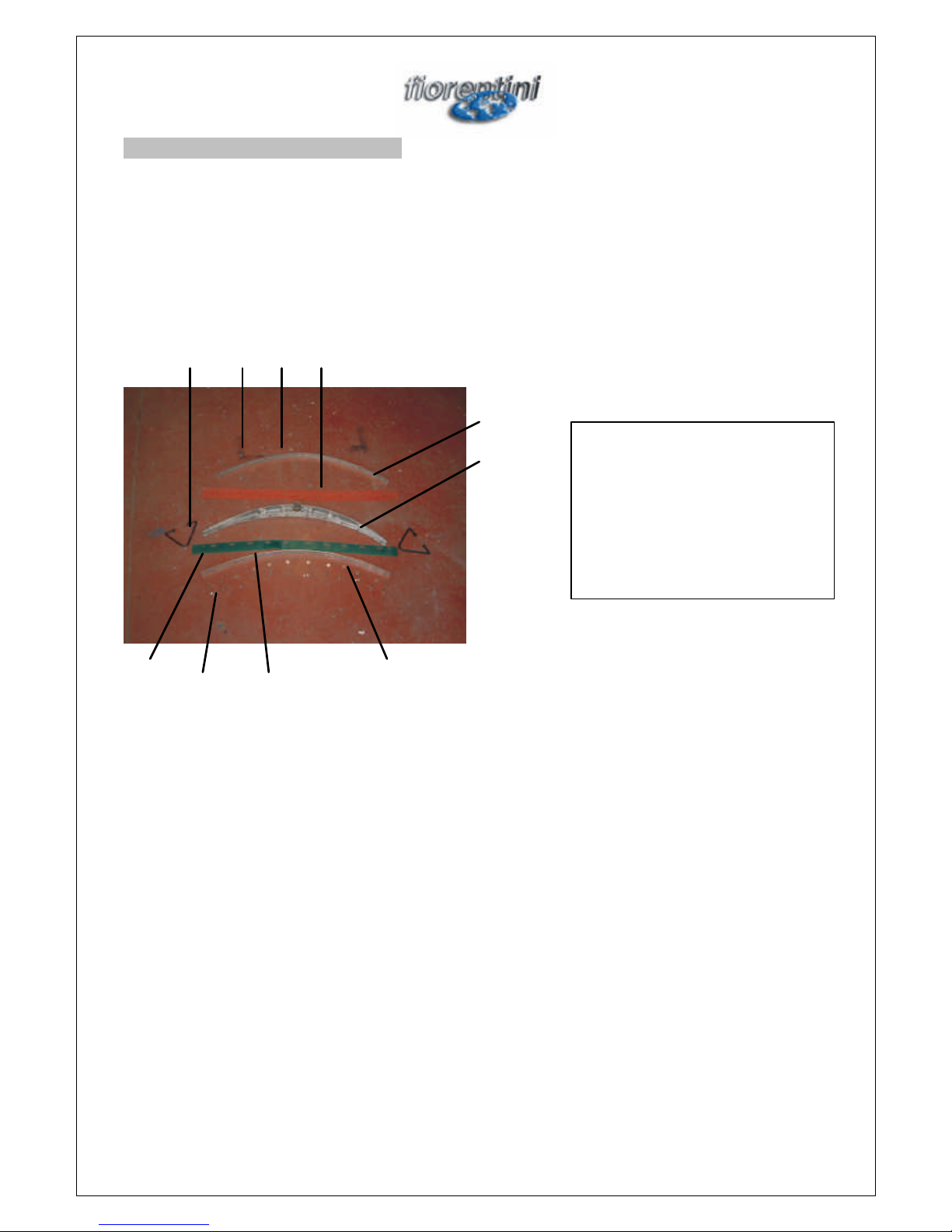

??Install the batteries in its room as shown in picture nr. 6 making sure that there
are not any breaks or holes in the batteries boxes;
??Never add distilled water after the batteries recharge;
??Always clean the surfaces that are in contact with the connections;
??Thanks to handles batteries handling is easier.
1.
Accelerator pedal
2. Brake pedal
3. Brushes pedal
4. Brushes plate pedal
12
3
4
Picture 6

10

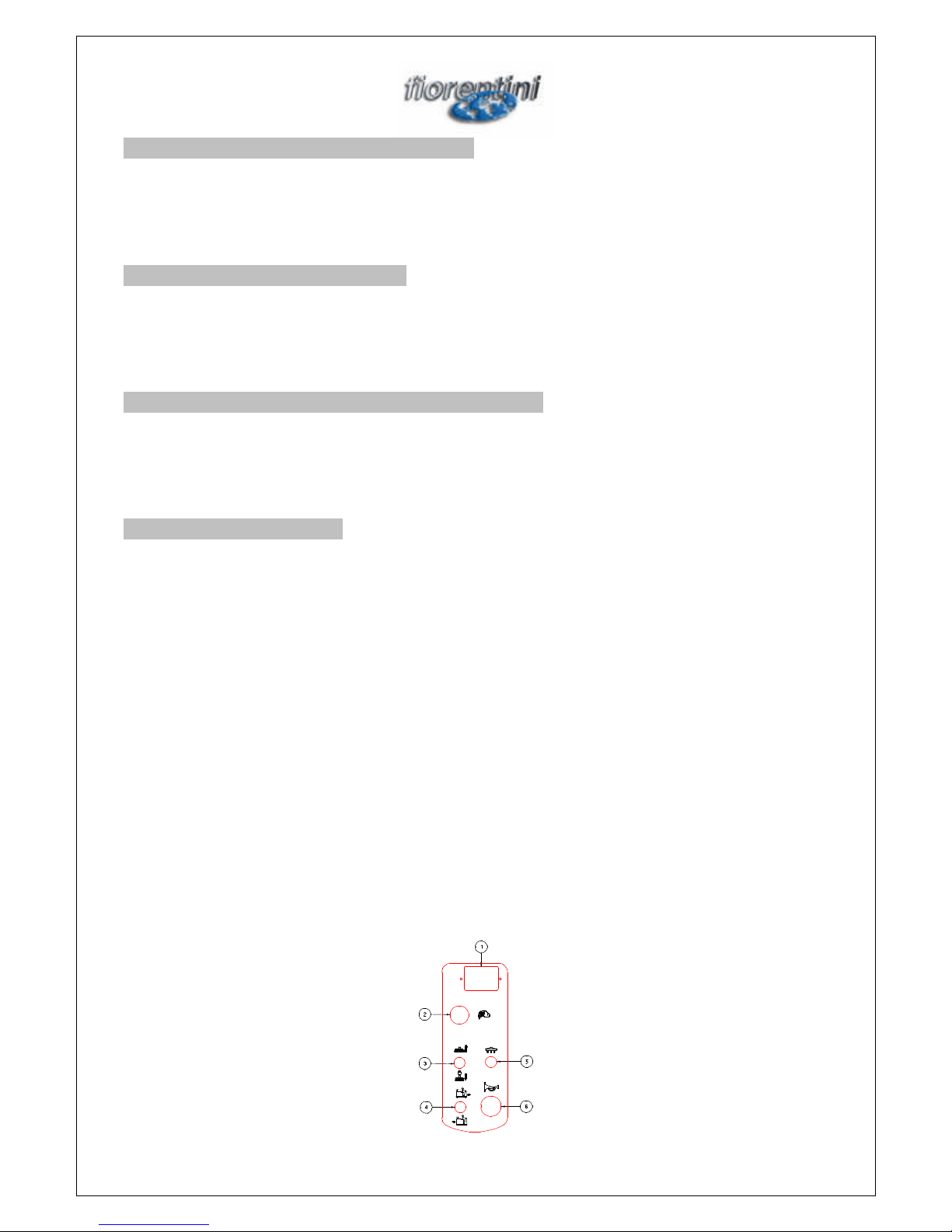

BATTERY CHARGER INSTALLATION
??Install the battery charger in a ventilated and dry place, far from heat sources and
corrosive substances;
??Protect the mains with a delayed switch or with a fuse whose load is higher than
the maximum absorbtion of the battery charger .
??Do not invert the polarities of the battery charger outlet.
CHOOSING THE DETERGENT
For a good floor cleaning, it is important to choose the right detergent solution. Atoo
strong detergent can compromise the machine lifetime. It is necessary to use a
controlled foam detergent, or an antifoaming additive, in order to avoid damaging the
suction engine. Otherwise, the operator can use vinegar to avoid foam and pour 50cc of
it in the recovery tank before scrubbing.
STARTING AND PREPARING THE MACHINE
If the machine is connected with the battery charger, the operator must firstly
disconnect the battery charger plug from the batteries one and connect the batteries
plug with the power supply plug (see picture 4). Secondly, the operator must fill water
lifting the recovery tank up and turning the cap. Now the operator can seat on the
machine, start it and wash the surface.
USE OF THE MACHINE
The operator, thanks to his/her experience, has to choose the right type of brush and
detergent for the surfaces that has to be cleaned and to decide if the floor needs a
second washing.
Follow these instructions for a correct washing:
1. press the brushes motor switch;
2. press the solution solenoid valve switch;
3. press the suction switch.
By means of the accelerator pedal the washing brushes and the suction motor are
activated. On the contrary, both the washing brushes and the suction engine are
disactivated after a few seconds if the operator leaves the accelerator pedal. Before the
surface is completely dry, the operator must switch the solution solenoid valve off
because this is not activated/disactivated by the accelerator pedal.
The operator has to do a second washing if the surface is particularly dirty:
1. wash the surface with the squeegee up and the brushes down;
2. activate the brushes;
3. press the solution solenoid valve switch;
4. leave the solution on the surface to dissolve the dirt;
5. do a second washing with brushes and squeegee down, the suction activated and the
solution solenoid valve opened.

11
DETERGENT QUANTITY
During the cleaning the operator can control the detergent quantity by means of a
cock, which is on the left of the machine frame.
Important: before checking the water quantity that flows to the brushes, make sure
that the ignition key is not in the dashboard in order to avoid a casual starting of the
machine.
Picture 7
WATER UNLOAD

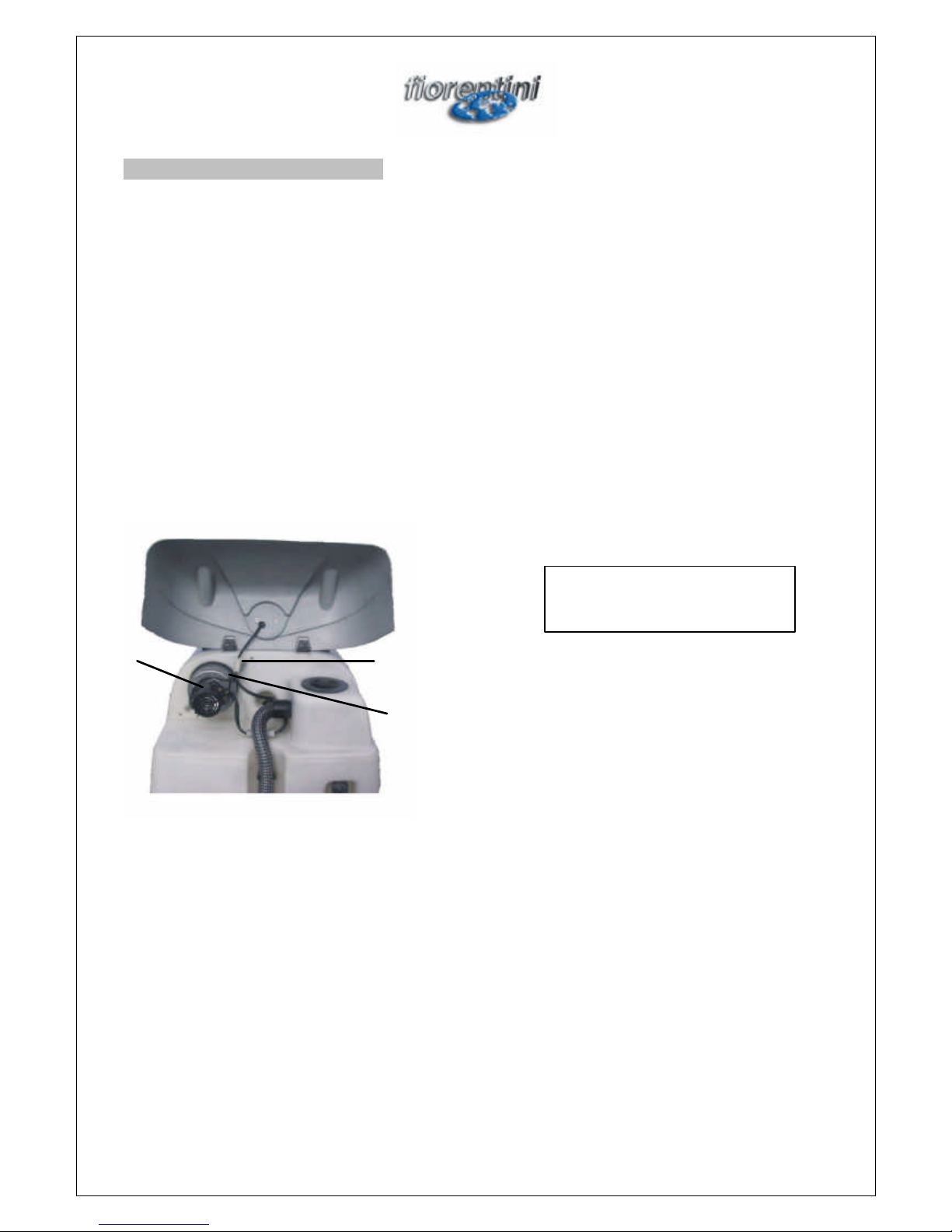

The scrubber machine is equipped with two pipes for water discharge (pictures 8-a and
8-b):
If you need to discharge water from the tanks, you have to place the machine on a
dump well, release the pipe of the tank and open the rubber cap at the end of the pipe
itself.
Picture 8-a Picture 8-b
1.
recovery tank discharge pipe
2. suction squeegee pipe
3. solution tank discharge pipe
1.
water lever
1
1
2
3

12
SQUEEGEE ADJUSTMENT
The squeegee has to be well regulated in order to have a perfect dry system. This kind
of squeegee can perfectly suck water, which flows into the suction pipe, but it must be
parallel to the surface.
The operator has to follow the instructions below for the squeegee adjustment:
??Replace the ignition key from the dashboard in order to avoid the casual starting of
the machine.
??By means of the knob (see detail nr. 1in picture nr. 9) regulate the squeegee. The
best squeegee pressure is reached when the corner of its blade is in contact with
the floor and their inclination is between 45° and 60°.
??Squeegee pressure regulation: the operator has to work on the squeegee driving
wheels cam pins. The operator has to unloose the screw at the bottom of the pin
by means of the spanner delivered with the machine. Afetrwards the operator has
to tighten this screw again.
Picture 9
1.
squeegee height screw
2. squeegee fastening screw
3. squeegee inclination screw
1
2
3

13
BRUSHES REPLACEMENT
The operator has to follow the instructions below to replace the brushes (picture 10):
??Take the ignition key away from the dashboard in order to avoid a casual
starting of the machine;
??Right side brush replacement: remove the case by means of the knob (see detail
nr. 1 in picture nr. 10-a) and translate it outside. Translate counterclockwise
the right brush and remove it;
??To set a new brush up: put the coupler pins under the brush support slots, pull
the brush up and translate it (clockwise for the right brush and
counterclockwise for the left one);
??Set again the brushes cases up and fix them by means of the knob.

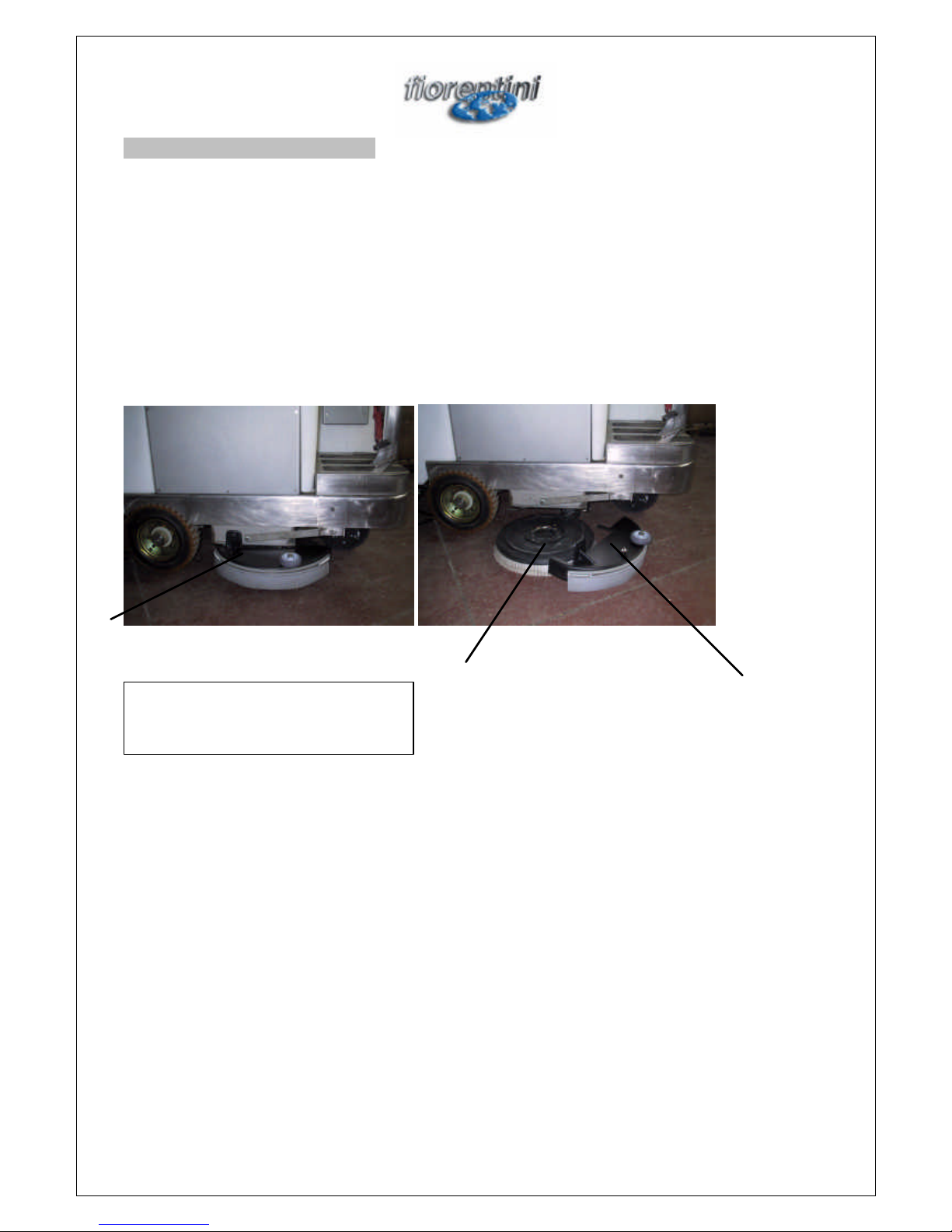

Picture 10-b
Picture10-a
1.
Protection brush knob
2. Brush
3. Brush protection
3
2
1

14
CLEANED AREA WIDTH REGULATION
Thanks to this srubber machine, the cleaned area width can be regulated.
The operator can choose between 70 cm. or 80 cm., but only if the brushes,
their protections and the propeller shaft of the reduction gear have been
bought for both versions.
The operator has to follow the instructions listed below for machines with central
brushes in order to regulate the cleaned area width.
??Take the ignition key away from the dasboard in order to avoid a casual start of the
machine;
??Remove the brushes and the protection cases as shown in paragraph ‘BRUSHES
REPLACEMENT’;
??Remove the brushes plate and at the same time the hydraulic pipes and the electric
cables;
??Choose between the two brushes plate version and set up the right propeller shaft
of the rectucions gears;
??Set the brushes plate up again, the hydraulic pipes and the elctric cables;
??Set the chosen brushes version up: Ø 380 brush for SCOIATTOLO 70 or Ø 410
brush for SCOIATTOLO 80;
??Set the brushes protection cases up. They are the same for both versions.
??Set the right squeegee up for the brush chosen version.

15
SAFETY, MAINTENANCE AND CONTROLS
GENERAL SAFETY RULES
The rules listed below must be carefully followed in order to avoid damages to the
operator and/or the machine.
??Read carefully the labels sticked on the machine and do not cover them for any
reason;
??Do not mix detergents of different kind in order to avoid the development of
dangerous gases;
??Do not use the machine in places with explosive substances;
??Do not use the machine as a means of transport
??Do not use acids which could damage the machine;
??Do not intake flammable liquids for any reason
??In case of fire, please use a powder extinguisher. Do not use water.
??If the machine does not work in the correct way, please make sure that the defect is
not caused by a lack of ordinary maintenance. On the contrary, please immediately
contact FIORENTINI Service;
??Before starting the machine again, please make sure that all fixed or removable
protections are in their position;
??Do not wash the machine with corrosive substances or with water jets;
??Do not keep the machine in an environment with a temperature < 3° C;
??Avoid to leave the machine in a no-authorized place for the scrapping. In fact, the
machine is made of materials that must be recycled and disposed in authorized
centres;
??The machine does not develop dangerous vibrations;
??Keep always the machine far from kerbstones and drive slowly on surfaces with
holes;
??Make sure that there are no people near the machine during the cleaning;
??Do not start the machine if it is under maintenance;
??Do not drive too fast while turning, in particular on sloping surfaces;
??It is absolutely forbidden to touch the inferior side of the machine during
the cleaning. If it is necessary, please keep the ignition key away from the
dashboard;
??The operator must carefully read this manual and do not use alcohol or medicines
before driving the machine;
??The machine cannot be used in places with dangerous substances and in
particular with explosive atmospheres or with a bad microclimate;
??Please, disconnect the battery when the machine is not working.
Important: the operator has to have a sufficient knowledge of the Italian
language.

16
Daily maintenance rules
While the operator is cleaning, maintaining the machine or replacing some of its parts,
the ignition key must not be in dashboard.
MAINTENANCE PLAN
EVERY DAY
??Clean the recovery tank and the suction engine filter
EVERY WEEK
??Check if the squeegee pipes and the suction ones are clean
??Check the squeegee rubber blades state
??Check the water level of the batteries
EVERY MONTH
??Check the filter of the solution tank
EVERY SIX MONTHS
??Check the connection of the batterie cables
EVERY YEAR
??Check the coal brushes of each engine
EVERY TWO YEARS
??Check the safety devices
??Check the electric system
BATTERIES
??Keep the battery room open during the batteries recharge;
??It is forbidden to use flames and/or to smoke near the batteries;
??Pay attention to the battery acid;
??Do not develop sparks near the batteries;
??Pay attention to the batteries gazes, which can burst;
??Do not invert battery polarities.
CHECKING THE BATTERY CHARGE
The operator has to check the batteries charge when the machine is on duty by means
of the indicator on the dashboard, which shows:
??Green light: charged battery
??Yellow light: slightly charged battery
??Red light: uncharged battery
HYDROMETRY
In order to check the batteries hydrometry the operator has to follow the instructions
below:
1. By means of a hydrometre draw a small quantity of electrolyte so that the floater
reaches the surface;
2. Make sure that the floater inside the hydrometre is not blocked;
3. For a new measurement, after having filled the batteries with distilled water, the
operator has to wait until the liquid inside each battery becomes homogeneous.

17
WATER FILLING UP
1. Fill distilled water up in each battery cell before the recharge. The liquid inside the
batteries has to be of 6 mm. over the plates;
2. The operator has to repeat the same operation every time the level decreases (every
week).
CHARGE LIMITS
It is not necessary to recharge the batteries if the hydrometry, after a work day, is not
under 1,24 (28 Bè). The highest suggested temperature is 45°C. If the electrolyte
temperature increases more than 10/12 °C compared to the outside temperature, the
batteries can be overcharged.
OFF DUTY OR INACTIVE BATTERIES
Inactive batteries looses their automatically their charge. If batteries do not
continually work, the operator has to:
??Charge the batteries once a month with a ‘final’ stream intensity until gas is
spread and the batteries voltage and weight are constant for 3-4 hours. This
operation has to be done even if the absolute weight is high;
??Keep the batteries in a dry room.
BATTERIES TECHNICAL FEATURES
BATTERY CHARGER TECHNICAL FEATURES
This battery charger can also charge batteries of a different brand.
BATTERIES DISPOSAL
Old batteries are toxic wastes and they have to be thrown in a suitable and authorized
place for the batteries disposal. For a short storage, old batteries must be located in an
authorized room. Moreover, they must be stored in sealed plastic tanks, whose
capacity is not lower than the electrolyte.
IN V 230, Hz 50, A5
OUT V 36, A 30
TENSION V 6
CAPACITAY 240 A/h
PWEIGHT 28 Kg
DIMENSIONS (LxLxH) 240 x 180 h 280

18
SQUEEGEE BLADES REPLACEMENT
Squeegee blades must be replaced when their hedge is worn. A perfect hedge in the
blade allows a perfect dry (picture 13).
Follow these instructions to replace the squeegee blades:
1. Remove the squeegee from the machine and lay it on a table;
2. Remove the internal and external knobs, the steel strips and the worn blades;
3. Set the new blades up, tighten the knobs and regulate the squeegee.
Picture 13
1.
S
queegee
2. Washer
3. Throttle
4. Rear rubber blade
5. Front steel
6. Washer
7. Throttle
8. Side bumper
9. Rear steel
10.
Front rubber blade
3
4
1
5
6
7
8
2
9
10

19
SUCTION ENGINE MAINTENANCE
The suction motor has to be checked up and cleaned. Every six months motor brushes have to be
checked and replaced if it is necessary.
In order to maintain the suction motor please follow the instructions below:
1. Take the ignition key off the dashboard, disconnect the plug, remove the steel plate
that fixes the suction motor and the motor itself (picture 14);
2. Remove the sponge filter under the motor, wash it and put it again in its position;
3. Check the motor fan through the hole in the front side of the suction motor;
4. Remove the plastic cover, lossen the screws and both the brushes supports and
check the motor brushes (see detail 2 in picture 5.1);
5. Do now the opposite operations to set everything up again.
Picture 14
Trained personnel only can service the machine and especially
electric and electromechanical parts by means of suitable tools
and equipments. Make reference to FIORENTINI S.r.l. only for
service and spare parts.
1.
plug for cables connection
2. coal brushes engine
3. engine fastening plates
1
2
3
