FIORENTINI BIG 38 Specification sheet

ING. O. FIORENTINI S.p.A.
INDUSTRIAL CLEANING MACHINES
FLOOR SCRUBBER-DRYER
MODEL BIG 38/48
INSTRUCTIONS FOR USE
AND MAINTENANCE

CONTENTS
1.
GENERAL INFORMATION
4
1.1. Symbols used……………………………….…….........................……..................page
4
1.2. Disclaimer…...............................................................................................................
4
1.3. Use of the manual…………......…………………………....….........…….............…….
4
1.4. Warranty..............................................................…………...…………...….…...........
4
1.5. Declaration of Conformity........................................…...........………….………..……
5
2.
MACHINE FEATURES AND TECHNICAL DATA
7
2.1. Identification………………......…...............................….…………….….……............
7
2.2. Description and components….……………...…....................................................…
7
2.3. Technical data sheet................................…........……………………….....…............
9
3.
SAFETY
10
3.1. Intended use.…………..………....……………....…....……………….....………….......
10
3.2. Improper use…………………………………………………………………..…………...
10
3.3. Recommended equipment……………………………………………………….....……
10
3.4. Operator qualifications..............……………….......……………...…………................
11
3.5. Safety and warning devices……………..................…...………….............................
11
3.6. Residual risks………………………………………………………………………………
12
3.7. Safety signs……………………………………………………………….................…...
13
4.
STAR-TUP AND OPERATION INSTRUCTIONS
16
4.1. Transport and handling............. .….....................…....………….….…………........
16
4.2. Storage........................... ...............…………….………….....................................
17
4.3. Unpacking the machine... .....................……………………..........................….....
17
4.4. Handling the unpacked machine…. .…..........………………………..……............
17
4.5. Installation…..........................................................………………..……................
18
4.5.1. Battery installation……..........……..….......……………….…...….…….........….....
18
4.6. Control and monitoring devices……………………………….............................…
19
4.6.1. Dashboard…………………………………………………………………….......……
19
4.7. Operation…………………………………………..........................................……..
21
4.7.1. Starting and preparing the machine………………………………..……………….
21
4.7.2. Choice of detergent………………………………………………………….………..
21
4.7.3. Adjustment of the driving position….………………………………............………
22
Congratulations on your choice!
Thank you for choosing to purchase a product by FIORENTINI S.p.A., a global leader in
the manufacture and marketing of industrial cleaning machines.
Our long-standing experience and acquired know-how are the best guarantee of the
technical quality of your purchase; all our products are built from top quality materials to
ensure maximum reliability, sturdiness and functionality and to meet the requirements of
even the most demanding customers. FIORENTINI has recently obtained UNI EN ISO
9001:2000 certification for its quality system certificate.
Feel free to contact us with any technical or commercial inquiry; we will be happy to
supply any details and information that you may need.

4.7.4. Pedal functions…………………………………………………………..........……..
23
4.7.5. Regulating the detergent solution………………………………………….….……
23
4.7.6. Squeegee adjustment…..……………………………….………………….….……
24
4.7.7. Drain hoses………………….............…......………….………..................….……
25
4.7.8. Replacing the brushes………………………………..…………………….....….…
26
4.7.9. Replacing the squeegee blade………………….…………………………....…….
27

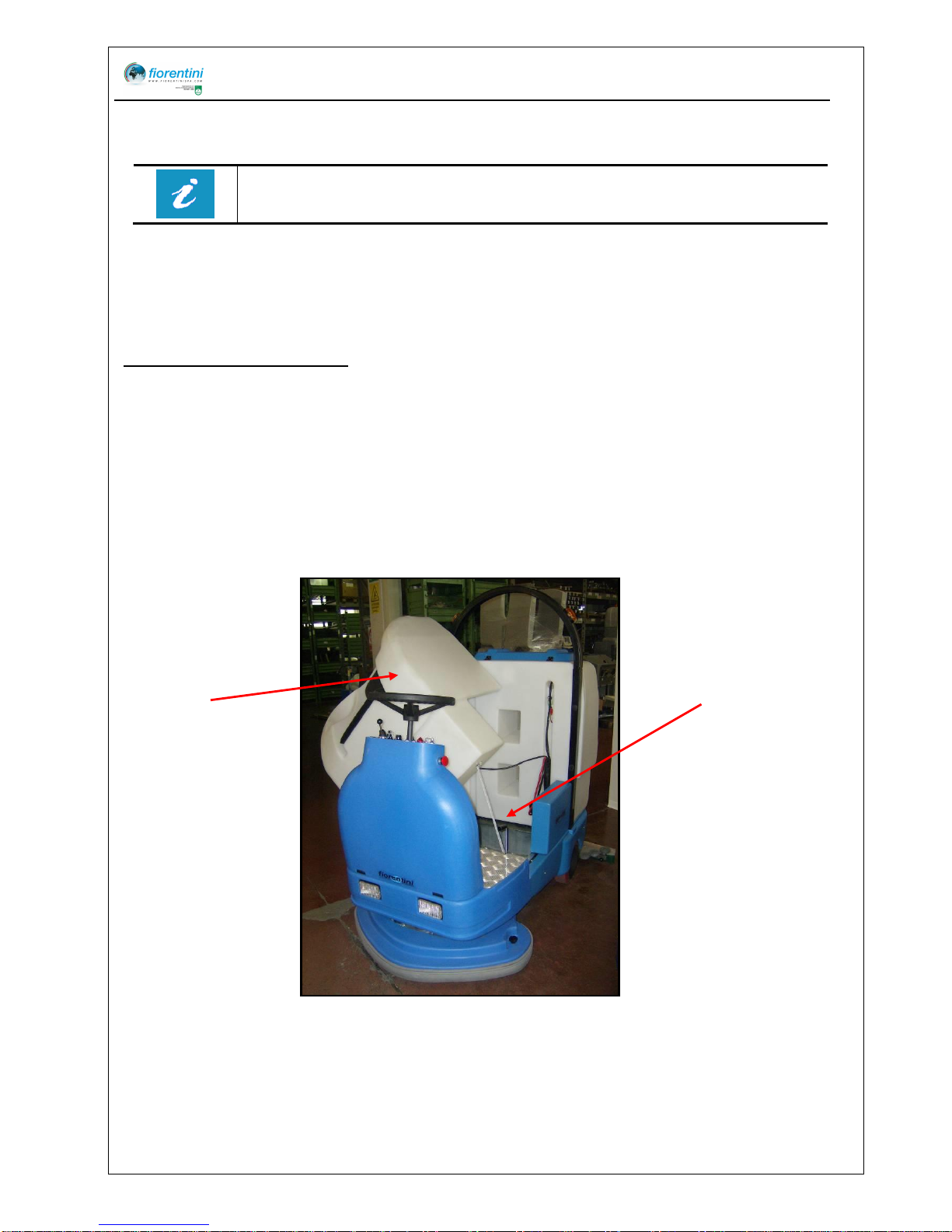

4.7.10 Tilting the fairing…………………………..............…………………………
28
5.
MAINTENANCE
29
5.1. Routine maintenance table…… ……..................….....…..………….................
29
5.2. Battery maintenance……………………..……………………………………..…..
29
5.2.1. Measuring specific gravity……………………….……………..................….
30
5.2.2. Topping up the water…………………………...............................................….
30
5.2.3. Charging limits……………………………………………………………………….
30
5.2.4. Batteries not in continuous service or inactive …..........………..............……...
30
5.2.5. Battery disposal….......………………………………………..…………………….
30
5.3. Maintenance of the suction motor…..……………………....……………………..
31
5.4. Checking the electrical system………………………………….……….………….
32
5.5. Inspection summary schedule……………………………….................………….
32
5.6. Maintenance Log………………………...............………………………………….
33
6.
TECHNICAL SUPPORT
34
6.1. Contact details for technical support............…………................……..................
34
6.2. Complaint report……………………………..…………...…………………..............
34

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48
1. GENERAL INFORMATION
1.1. SYMBOLS USED
This symbol is used to call the operator’s attention to important procedures or precautions
required to prevent harmto users orthemachine
This symbol is used to call the operator's attention to important general information.
1.2. DISCLAIMER
1.3. USE OF THE MANUAL
This manual provides extensive coverage of all topics deemed necessary for easy and safe use of the
machine, in compliance with European Directives on product safety.
We therefore advise all authorised operators to read all parts of the manual carefully, to follow its indications
thoroughly and to contact FIORENTINI S.p.A. for clarifications in case of any doubt. The manual should also
be used for reference whenever there are doubts concerning a procedure or operation and for training new
operators.
For reasons of printing, the pictures and drawings may appear slightly different from the actual machine
parts, without however casing any confusion.
Special symbols and bold and/or Italic fonts are used to highlight important information, particularly with
regard to safety.
The current revision code is indicated at the bottom left corner of every page. The list of revised pages is
shown at the end of the manual.
1.4. WARRANTY
The warranty terms and conditions are stated below unless otherwise specified in the order confirmation.
This manual is the property of FIORENTINI S. p. A.
The reproduction of all or part of this manual or its transmission to third parties by any
mechanical or electronic means or otherwise is forbidden without written authorisation
from the manufacturer. This manual is supplied to customers in a single original copy
unless otherwise specified at the time of ordering.
This manual is supplied as an integral part of the machine and should remain with the machine if transferred
to a new owner. This manual should be kept in a safe location for the entire working life of the machine. The
purchaser is responsible for making this manual available to all users. If this manual is lost,a duplicateshould be
obtained fromFIORENTINI.
FIORENTINI S.p.a. will not be held responsible for any damages to persons and/or property resulting from
failure to comply with the instructions in this manual.
FIORENTINI reserves the right to introduce any required technical and commercial changes without prior
notice. Therefore, any data and information contained in this manual may be changed and/or updated.

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48
SCOPE OF THE WARRANTY
The machine has been designed and built for trouble-free use over several years. However, if any
malfunction occurs during the warranty period, FIORENTINI S.p.A. undertakes to repair or replace free of
charge any parts revealing damage or premature wear due to faulty materials, factory defects or incorrect
assembly. The warrantydoes notcover any parts with damage or premature wear dueto:
failure to observe the instructions contained in this manual;
tampering or alterations made without FIORENTINI’s specific approval;
use of non-original spare parts;
worn replacement parts, such as brushes, squeegee blades etc.
For installed electrical parts and commercially available parts, FIORENTINI S.r.l. extends to purchasers the
same warranty terms granted to FIORENTINI itself by the suppliers of the parts.
WARRANTY PERIOD
The warranty is valid for 12 months, starting from the machine delivery date. This is a fixed warranty term
and may not be extended due to replacements or repairs carried out during the warranty period.
EXCLUSIONS
The warranty does not cover materials and components subject to normal wear (brushes, squeegee blades
etc.) and those whose working life cannot be determined beforehand.
WARRANTY APPLICATION TERMS
Defective components must be returned to FIORENTINI S.p.a. in order to establish the causes of any
defects discovered and determine warranty applicability. Repairs and replacement under warranty will be
carried out on FIORENTINI’s premises, by third parties or on the customer's premises. For services carried
out on the customer premises, power sources and any special equipment necessary for the repairs will have
to be provided by the customer.
PRODUCT RETURNS
Written approval must be obtained from FIORENTINI's Technical Support office before returning parts for
replacement or repair under warranty.
All defective parts must be carefully repacked in order to avoid damage during transport. Products must be
returned on a free-on-board basis, complete with:
the serial number from the machine data plate (see point 2.1);
the item code and installation position of the returned part, as given on the spare part list;
a detailed description of the defect and the conditions under which it became apparent;
In the case of defective electrical or electronic components,
please return the parts separately from other materials, so that
waste containing dangerous substances can be segregated and
Waste Electrical and Electronic Equipment (WEEE) can be recycled
in accordance with Directive 2002/96/EC.
A missing machine data plate will result in immediate loss of any warranty rights.
1.5. DECLARATION OF CONFORMITY
The Declaration of Conformity is supplied with the purchased machine and the use and maintenance
manual.

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48
2. MACHINE FEATURES AND TECHNICAL DATA

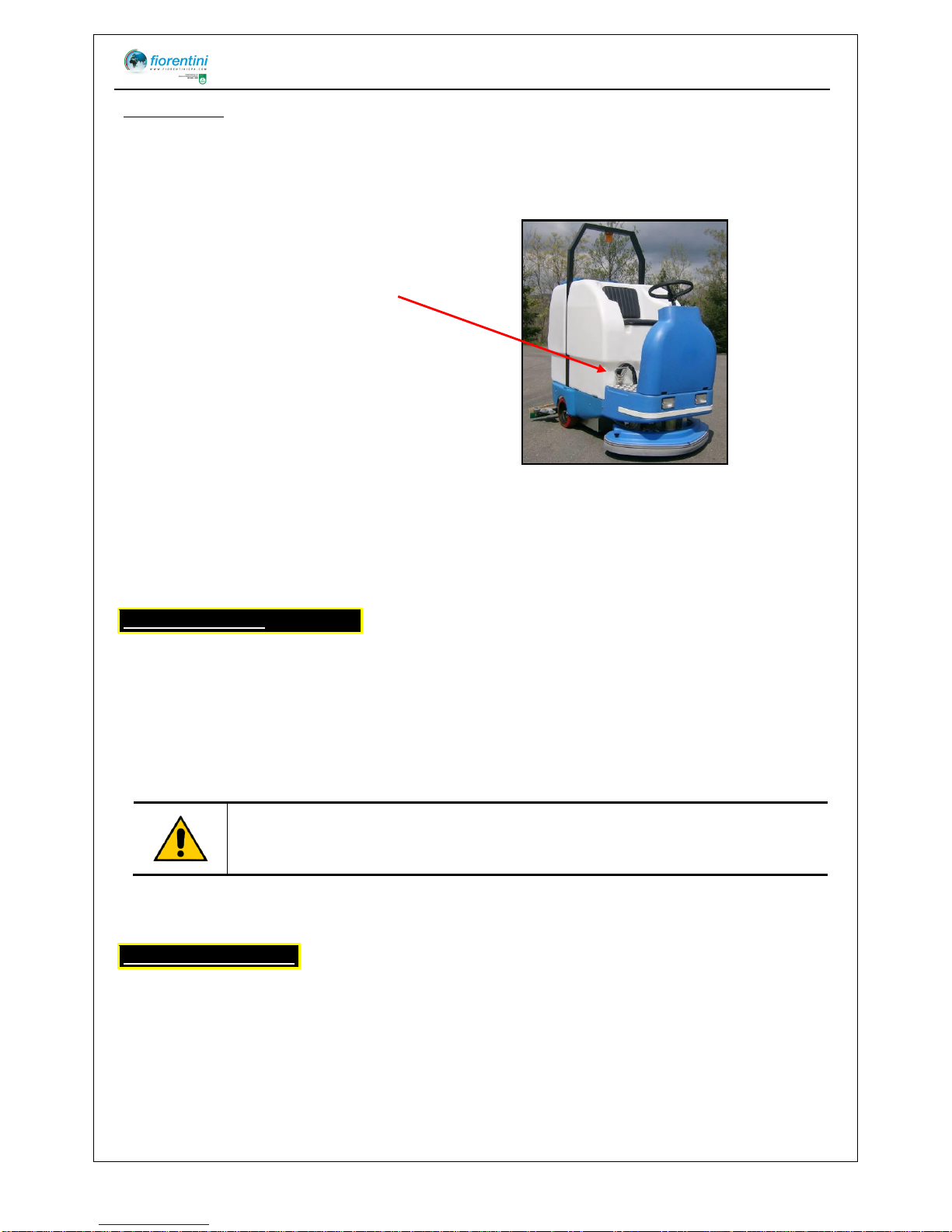

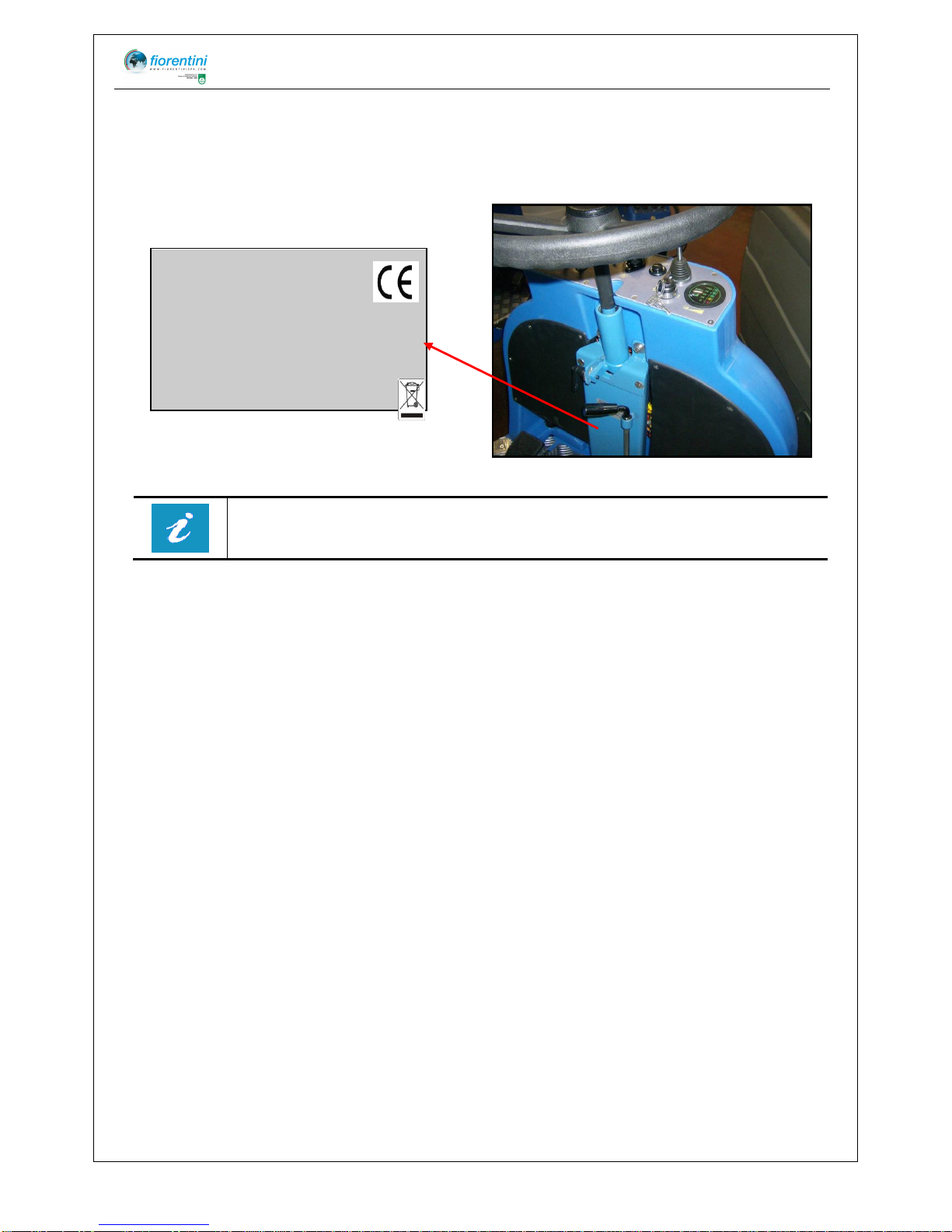

2.1. IDENTIFICATION
The machine is identified by an adhesive plate attached to the protective casing of the steering column,
which contains indelible data regarding “CE” marking.
The plate must never be removed and should always be kept legible. In case of damage,
a duplicate should be ordered. The machine cannot be sold without the plate.
2.2. DESCRIPTION AND COMPONENTS
The BIG 38/48 scrubber-dryer is designed to clean all flat surfaces by washing and then suctioning the waste
water. The scrubber-dryer has a drive system consisting of two gear motors installed on the rear wheels,
powered by a 36V x 450 A/h box battery. The brush system is driven by three 750W gear motors fitted
directly on the brushes and powered in turn by electric accumulators, as are the suction motors.
The machine uses three rotating brushes to clean the floor surfaces, assisted by the action of the water and
detergent. As the machine travels forward, the rear brush (squeegee), in contact with the floor, collects the
water, which is immediately conveyed by suction to the recovery tank.
The dashboard regulates all the machine functions and provides the operator with an LED system that
indicates the remaining battery capacity and any errors detected by the electronic board, which are displayed
as rapid flashes. All the main functions of the machine can be activated through the dashboard. In detail,
these include:
raising, lowering and switching on the brushes;
regulating the water delivery flow;
starting the suction motors;
lowering/raising the squeegee;
turning the lights on and off;
turning on the flashing beacon and the buzzer;
starting and stopping the machine.
The load-bearing structure of the machine consists of a cold-galvanised or stainless steel chassis, which
prevents oxidation problems that could affect its reliability.
The machine comprises the following main components:
a cold galvanized or stainless steel chassis;
Ing. O.Fiorentini S.p.A.
MADE
50030 Piancaldoli (FI)
IN ITALY
Mod
BIG38
S.N.
101
2008
V
36
rpm
3600
Kg
780
A
174
kW
4.75
FIGURE 2.1

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48
an ABS plastic washing liquid tank;
an ABS plastic waste water recovery tank with flexible suction and drainage hoses;
three washing brushes;
a squeegee;
one idle wheel;
two drive wheels controlled by electric motors;
the steering assembly;
the driver’s seat.
In consideration of recent EU product safety concerns, FIORENTINI has designed and built this machine in
compliance with the safety and health requirements provided by the applicable Directives. High quality
materials, advanced technology and FIORENTINI’s experience have been combined to produce a machine
of high performance and reliability. Each machine undergoes rigorous testing during construction and careful
final inspection.

MACHINE FEATURES AND TECHNICAL DATA
BIG 38/48
2.3. TECHNICAL DATA SHEET
The specifications provided above are not binding on the manufacturer and may therefore be
changed without notice. FIORENTINI can be contacted at any time for further information
(see point 6.1.).
UNIT OF MEASUREMENT CONVERSION TABLE
Length
1 inch = 1” = 25.4 mm
Power
1 kW = 1.36 CV = 1.34 BHP
Temperature
T (K) = t (°C) + 273 / t (°F) = 1.8 t (°C) + 32
Pressure
1 bar =100 kPa = 14.5 psi
MODEL
BIG 38
BIG 48
MAIN SPECIFICATIONS
Total working width
950 mm
1150 mm
Maximum output per hour
5700 m²/h
6900 m²/h
Maximum working autonomy
5-6 h
5 h
Solution tank capacity
300 l
300 l
Recovery tank capacity
300 l
300l
GENERAL SPECIFICATIONS
Traction (front/rear)
rear
rear
Type of traction
Two electric gear motors
Two electric gear motors
Travel speed
0/6 km/h
0/6 km/h
Max. gradient with a full load
12%
12%
Depression
1600 mBar
1600 mBar
Brush head pressure
0/100 kg
0/100 kg
Noise (operator’s ear)
<75 dB
<75 dB
Minimum turning radius
2450 mm
2800 mm
ELECTRICAL SYSTEM
Power supply voltage
36V
36V
Suction motor
2x 850W
2x 850W
Brush motors
3x 750W
3x 750W
Drive motors
2x 750W
2x 750W
Power supply
36V - 450A/h
36V - 450A/h
DIMENSIONS AND WEIGHT
Length
1800 mm
1800 mm
Width
1000 mm
1000 mm
Height
1820 mm
1820 mm
Number/diameter of brushes
3x Ø330 mm
3x Ø330 mm
Squeegee width
1300 mm
1470 mm
Battery weight
530 kg
530 kg

SAFETY
BIG 38/48
3. SAFETY
3.1. INTENDED USE
The BIG 38/48 is a floor scrubber-dryer machine designed and built for use in
industrial environments for washing and drying, with waste water removal, of flat
horizontal surfaces or sloping surfaces with gradients not exceeding 12%.
3.2. IMPROPER USE
machine operation by unauthorised personnel;
washing uneven and/or bumpy surfaces;
washing of sloping surfaces;
washing of surfaces with a gradient exceeding 12%;
performing U-turns on a slope exceeding 5% and with a speed of over 1 km/h;
using the machine in environments containing dangerous substances, and
particularly in explosive atmospheres or unsuitable microclimatic conditions;
cleaning machine surfaces in the presence of flammable substances;
use of the machine as a means of transport for people or other vehicles;
modifying or tampering with the protection devices;
charging the batteries in locations with insufficient ventilation;
failure of operators to comply with current safety regulations/procedures;
fitting equipment/devices likely to interfere with machine operation;
introducing changes or alterations not authorised by FIORENTINI;
using acid solutions likely to damage the machine;
failure to comply with the specifications of the use and maintenance manual.
The information labels placed on the machine should be read carefully and should not be
covered for any reason. FIORENTINI shall assume no liability in any case of improper use
of the machine as described above.
3.3. RECOMMENDED EQUIPMENT
To make the best use of your machine, equipment specially designed and tested by Fiorentini and original
spare parts should be used. The FIORENTINI S.p.A. technical department is available to customers to meet
any design needs concerning parts and components required for a particular use of the machine.

SAFETY
BIG 38/48
3.4. OPERATOR QUALIFICATIONS
The table below shows the operator qualifications required based on the type of operation to be performed.
TYPE OF OPERATION
OPERATOR QUALIFICATIONS
Driving/control
Trained operator
Installation/removal
Fiorentini technician
Maintenance of mechanical parts
Fiorentini technician
Maintenance of electrical parts
Fiorentini technician
Cleaning maintenance
Trained operator
Dismantling and scrapping
Fiorentini technician
The personnel assigned to operating the machine should be specifically trained, particularly in regard to
safety issues; machine operators must have read and understood this manual.
FIORENTINI declines all liability for accidents involving persons or property caused by
unqualified and unauthorised operators.
3.5. SAFETY AND WARNING DEVICES
Tampering with safety devices, and their removal or deactivation while the machine
is in operation, is strictly prohibited.
The efficiency of safety and warning devices should be regularly checked (see point
5.1.).
Front brush guards
The BIG 38/48 machine has three nylon bristle brushes that rotate during
normal operation. Access to hazardous areas is prevented by plastic casing
that serves as a guard. The guard can only be removed intentionally. Removal
of a fixing element will obviously cause detachment of the guard from the
machine.
Warning devices
The BIG 38/48 machine is fitted with various warning devices to alert anyone
who happens to be within the working range of the machine:
a horn-type acoustic signal to alert any persons in the vicinity of the
machine during normal use;
an acoustic warning signal (buzzer) that sounds whenever the reverse
gear is engaged;
a signal light with a yellow flashing beacon to indicate that the machine
is in operation.

SAFETY
BIG 38/48

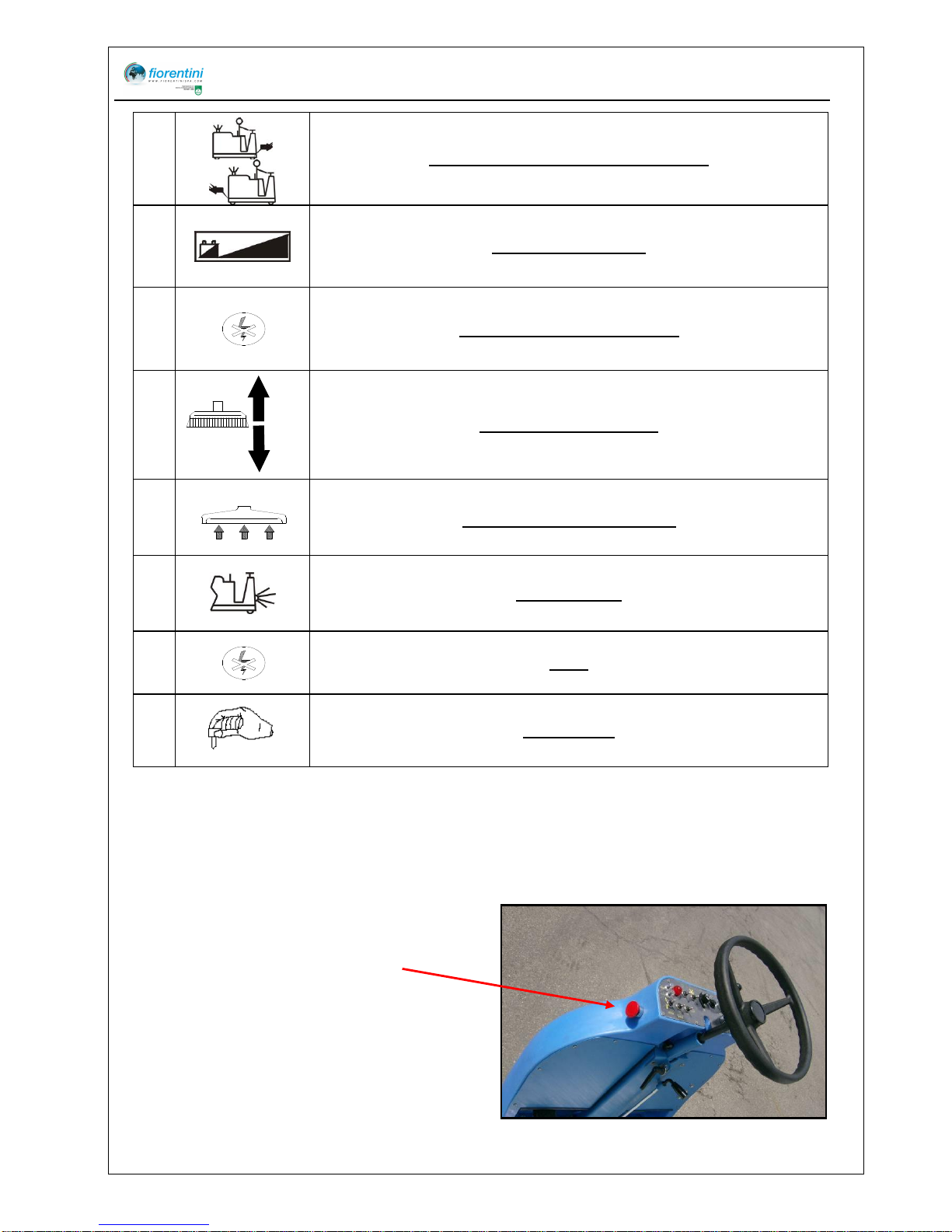

SAFETY PLUG
The BIG 38/48 machine has a safety plug that connects the power supply batteries to the rest of the
machine. The plug is disconnected by pulling on the handle, which brings all machine functions to an
immediate halt. Operators should therefore familiarise themselves with use of the safety plug, as it provides
the most complete prevention and protection system. Use of the emergency plug should therefore be
automatic in situations of real or presumed emergency.
Pull in the case of
emergency
3.6. RESIDUAL RISKS
Starting from the design phase, FIORENTINI has analysed all the possible hazards related to use of the
machine in order to eliminate or at least minimise any risk of injury to machine operators. Warning signs and
indications regarding the accident-prevention systems and procedures to be used have been provided for
machine operators in order to minimise residual risks.
RISK OF CRUSHING
Risk of crushing is present:
when replacing the front brushes;
when checking the brushes in the suction motor;
when adjusting the squeegee;
When replacing the brushes and adjusting the squeegee, the operator must ensure that the ignition
key is not inserted in the dashboard in order to prevent accidental starting of the machine.
This hazard is indicated by pictograms on the brush guards and recovery tank.
RISK OF OVERTURNING
Risk of overturning is present:
during normal use of the machine when the slope limits specified under improper use of the
machine are exceeded and when the machine is used to clean surfaces that are uneven or have
holes and depressions (see 3.2).

SAFETY
BIG 38/48
Do not use the machine to wash surfaces with gradients exceeding 12% or bumpy or
uneven surfaces likely to affect its stability.
FIORENTINI declines all liability for accidents involving persons or property caused by use of
the machine on surfaces that can compromise its stability. The buyer must put suitable signs
in place to inform the user of the state and condition of the surfaces to be cleaned.
3.7. SAFETY SIGNS
These include signs indicating:
HAZARDS
These signs are triangular with black
pictograms on a yellow background
PROHIBITIONS
These signs are round with black pictograms
on a white background with a red stripe
What is this?
This sign indicates the risk of crushing by moving parts inside the
machine.
What should
I do?
During installation or maintenance work, ensure that the ignition key
has been removed from the dashboard.
What is this?
This sign prohibits the removal of guards covering moving parts.
What should
I do?
Before removing guards for installation or maintenance work, always
ensure that the ignition key has been removed from the dashboard.
During operation, keep body parts clear of the machine and ensure
that the guards are securely in place.

SAFETY
BIG 38/48
If any signs become damaged, the purchaser must replace them with identical ones.
It is strictly forbidden to remove or tamper with these signs.
What is this?
This sign indicates risk of crushing due to closure of the recovery
tank. This can be tipped to one side along the longitudinal axis of the
machine to facilitate cleaning of the tank and to provide access to the
battery.
What should
I do?
Take particular care during maintenance and, if necessary, provide a
suitable support.

SAFETY
BIG 38/48
If any signs become damaged, the purchaser must replace them with identical ones.
It is strictly forbidden to remove or tamper with these signs.
What is this?
This sign indicates risk of crushing during maintenance by the suction
motors.
What should
I do?
Take particular care to ensure that the key is not inserted in the
dashboard and that the motor protection cover does not tip over.

START-UP AND OPERATION INSTRUCTIONS
BIG 38/48
4. START-UP AND OPERATION INSTRUCTIONS
4.1. TRANSPORT AND HANDLING
The machine is delivered to the purchaser fully assembled, in special packaging whose features are indicated in
figure 4.1 below. The centre of gravity is marked by a black arrow on the packaging. The forks of the forklift or
pallet truck must be positioned with the black arrow centred between them. The package must be handled with
extreme care. Do not stack one package on top of another.
If agreed with the purchaser, the machine can be delivered without packaging, placed on a pallet and secured
by means of straps.
The purchaser should check upon delivery that the machine has not been damaged during
transport and that all the material listed in the transport documentation has been received;
otherwise, the forwarders and manufacturer should be promptly informed.
Unless otherwise agreed, purchased goods will travel at the purchaser's own risk.
Handling must be performed with appropriate lifting equipment and devices, as indicated in the following table.
Always ensure that the elevator forks and harness straps are placed so that the black arrow on the packaging is
centrally positioned in relation to the lifting system. Anchor and/or harness points must be arranged so that the
machine remains in a stably balanced position during lifting.
TYPE OF PACKAGING
LIFTING EQUIPMENT AND DEVICES
FIG.
Cardboard or plywood box on a
pallet
Forklift truck
4.2
None
Forklift truck/mobile crane with two slings and a spreader bar
4.3
FIGURE 4.1
1080
1840
850
1850

START-UP AND OPERATION INSTRUCTIONS
BIG 38/48
The slings used must be of a suitable capacity for the load. All handling operations
should be performed very slowly to prevent the load from swinging or tipping. Any
improper handling manoeuvres could damage the machine or expose operators to risk.
For the machine dimensions and weight, see point 2.3 Handling of the machine should
only be carried out by authorised personnel trained in the use of lifting equipment.
LOADING DIAGRAM
4.2. STORAGE
If the machine is not installed immediately, it should be stored in an enclosed, dry location to ensure the proper
preservation and efficiency of all its components. Relative humidity must be below 80% and the storage
temperature must be between 3°C and + 45 °C.
4.3. UNPACKING THE MACHINE
Cut the strapping with care so that it does not spring up;
Remove the staples on the base connecting the box to the pallet
If the package is made of plywood, remove the staples from the sides and base of each panel;
Cut the strapping holding the machine in place;
Place the machine on the ground.
4.4. HANDLING THE UNPACKED MACHINE
When handling the machine for short transport after use, disconnect the battery cables and remove the
brushes and squeegee; for longer transport, repack the machine in the original box.
FIGURE 4.2
FIGURE 4.3

START-UP AND OPERATION INSTRUCTIONS
BIG 38/48
4.5. INSTALLATION
Installation must be performed by authorised personnel with knowledge of the instructions
contained in this manual.
The BIG 38/48 floor scrubber-dryer can only be put into service when there is absolute certainty that all its
components and devices are in good working condition. For this purpose, FIORENTINI's specialised technicians
conduct rigorous testing during manufacture and a thorough final inspection of each machine.
4.5.1 BATTERY INSTALLATION
For installation of the batteries, follow the instructions given below:
raise the recovery tank to access the battery compartment (detail 1 figure 4.4);
install the battery box in the provided compartment (detail 2 figure 4.4), making sure there are no cracks
in the battery containers;
never add distilled water after recharging the batteries;
clean the connection surfaces;
the battery must be handled using appropriate lifting gear (see 2.3 for the weight of the battery).
1
2
FIGURE 4.4

START-UP AND OPERATION INSTRUCTIONS
BIG 38/48
4.6. CONTROL AND MONITORING DEVICES
4.6.1 DASHBOARD
The dashboard features a series of switches and indicator lights that activate/deactivate the various functions of
the machine. Each switch has a pictogram that clearly represents its function. The dashboard is illustrated in
figure 4.5 and the function of each switch is described in the table below.
POS.
BUTTON
FUNCTION
1
BRUSH MOTOR PROTECTOR
2
SUCTION MOTOR LIGHT
3
ROTATING BEACON SWITCH
4
BRUSH ROTATION STOP
5
HORN
FIGURE 4.5
12 3 4 5 6 7
8 9 10 11 12 13

START-UP AND OPERATION INSTRUCTIONS
BIG 38/48
6
FORWARD/REVERSE GEAR SELECTOR
7
BATTERY INDICATOR
8
SUCTION MOTOR PROTECTOR
9
RAISE/LOWER BRUSHES
1 0
SQUEEGEE SUCTION SWITCH
1 1
LIGHT SWITCH
1 2
FUSE
1 3
KEY SWITCH
An emergency button is installed on the left side of the fairing on the BIG 38/48 floor scrubber-dryer for use
whenever a situation of real or presumed danger arises. Pressing the emergency button immediately stops all
machine functions. Once the problem has been resolved and the machine is ready for use, it can be restarted
simply by returning the emergency button to its original position. (see figure 4.6).
Push in case of
emergency
FIGURE 4.6
