FIORENTINI I 42TE User manual

Instruction manual
I 42TE
WARNING! DO NOT USE THIS EQUIPMENT WITHOUT HAVING READ
THE USER INSTRUCTIONS
ING. O. FIORENTINI S.p.A.
INDUSTRIAL CLEANING MACHINES

2
SUMMARY
TAKING DELIVERY OF THE MACHINE
page
3
FOREWORD
3
TECHNICAL DESCRIPTION
4
MAIN WARNINGS
5
MANUFACTURER'S LIABILITY
5
REQUESTS FOR INTERVENTION
5
TRANSPORT AND STORAGE
6
HANDLING THE PACKAGED MACHINE
6
UNPACKING THE MACHINE
6
HANDLING THE UNPACKED MACHINE
6
DESCRIPTION OF CONTROLS
7
DASHBOARD
7
SYMBOLS FOUND ON THE DASHBOARD
8
diagnostic signal of the forward boards
9
MACHINE USE
11
safety system
11
Brake
12
installing the batteries
12
choosing the detergent
13
machine preparation and start-up
13
methods of use
13
adjusting the squeegee
14
replacing the brushes
14
SAFETY, MAINTENANCE AND CHECKS
15
MAIN SAFETY STANDARDS
15
ROUTINE MAINTENANCE STANDARDS
16
maintenance plan
16
batteries
16
replacing the squeegee blades
18
vacuum motor maintenance
19
CHECKS
20
safety device checks
20
electric system checks
20
braking system checks
20
SUMMARY MATRIX
21
CONFORMITY DECLARATION
22

3
TAKING DELIVERY OF THE MACHINE
UPON ARRIVAL, CHECK THE MACHINE HAS NOT BEEN DAMAGED
DURING TRANSPORT AND THAT YOU HAVE ALL THE MATERIAL
INDICATED ON THE ACCOMPANYING DOCUMENTS; NOTIFY THE
COMPANY IMMEDIATELY IN THE CASE OF DAMAGE OR IF SOMETHING
IS MISSING IN ORDER TO REMEDY THE PROBLEM.
FOREWORD
THIS TYPE OF FLOOR CLEANING MACHINE IS ABLE TO REMOVE DIRT
AND CLEAN ANY FLOORING, GUARANTEEING EXCELLENT RESULTS.
THIS IS ACHIEVED BY USING THE MACHINE PROPERLY AND KEEPING IT
WELL-MAINTAINED; THEREFORE, PLEASE READ THIS INSTRUCTION
MANUAL CAREFULLY.
THE MACHINE MUST BE USED FOR THIS PURPOSE ONLY.
Manual to be kept for future reference

4
TECHNICAL DESCRIPTION
DIMENSIONS
LENGTH
2000 mm
HEIGHT
1300 mm
NO. OF WASHING BRUSHES
3
SIZE OF WASHING BRUSHES
Ø 405 mm
WORK WIDTH
1110 mm
WIDTH OF SQUEEGEE
1350 mm
POLYETHYLENE SOLUTION TANK
320 litres
POLYETHYLENE RECOVERY TANK
330 litres
FRONT WHEEL DIAMETER
300 mm
REAR WHEEL DIAMETER
300 mm
DRIVE
Electric
WEIGHT WHEN IN OPERATION WITHOUT OPERATOR
1050 kg
WEIGHT WITHOUT BATTERIES
505 kg
BATTERY COMPARTMENT SIZE (length x width x height)
935 x 410 x 615
ELECTRICAL FEATURES
ENERGY SOURCE
battery
VOLTAGE
36 v
PERM. MAGNET WASHING BRUSH. GEARED MOTOR
3x750w 16.5A2400rpm
GEARED MOTOR PERMANENT MAGNET DRIVE
2x750w 16.5A2400rpm
WOUND FIELD VACUUM MOTORS
2x500w 13A 16000rpm
FUNCTIONAL FEATURES
DRIVING
driver on board
STEERING WHEEL TURNS
1.75 turns
MINIMUM CORRIDOR FOR U-TURN
2600 mm
SQUEEGEE AND BRUSHES LIFT START
electric
SERVICE BRAKE
mechanical with pedal
PARKING BRAKE
mechanical with lever
PERFORMANCE
FORWARD SPEED
0 ÷6 Km/h
REVERSE SPEED
0 ÷6 Km/h
MAXIMUM SLOPE
10 %
TRANSVERSE MAXIMUM SLOPE
5% AT 2 Km/h
HOURLY CLEANS m²/h
6600 m²/h
ECOLOGICAL FEATURES
NOISE LEVEL FOR DRIVER
80 Decibel
VIBRATIONS IN THE OPERATING POSITION
Less than 2.5 m/s²

5
MAIN WARNINGS
MANUFACTURER'S LIABILITY
The manufacturing company FIORENTINI will not be held liable for failures, breakdowns,
accidents, etc., due to the lack of knowledge (or non application thereof) of the provisions found in
this manual. The same is valid in case of changes, modifications and/or installation of accessories
without prior authorisation.
In addition, FIORENTINI declines any liability for damages deriving from:
natural disasters
incorrect manoeuvres
lack of maintenance
The manufacturer is not liable for interventions made by personnel not authorised by
FIORENTINI, except for routine maintenance.
REQUESTS FOR INTERVENTION
Any requests must be made after having carefully analysed the failures and their causes. When
calling, the following information will be needed:
machine model
serial no. (fig. 1)
details of the defect
the checks performed
the adjustments performed and their effects
any other useful information
address the requests to the authorised after-sales assistance network
Fig. 1
Ing. O. Fiorentini SPA
50030 Piancaldoli (Fi)
MADE
IN ITALY
CE
Mod. I 42T
S.N.
2004
V 36
HZ
Kg 1050
A
W 4750

6
TRANSPORT AND STORAGE
HANDLING THE PACKAGED MACHINE
The machine arrives in a special package, whose features are shown in fig. 2. A black arrow on the
packaging indicates the position of the centre of gravity; the transpallet or the forks of the forklift
truck must be positioned so the black arrow is in the centre of the forks.
The arrow indicated on the packaging is approximately in the centre of the forks themselves. The
packaging must be carefully handled. It is forbidden to stack packaging.
Fig. 2
UNPACKING THE MACHINE
1. Cut the straps paying attention to any spring back
2. Remove the staples on the cardboard base that join the cardboard to the pallet
3. Remove the staples from the side and base of each panel in the case of plywood
4. Cut the straps that prevent the machine from shifting
5. Bring the machine to ground level
HANDLING THE UNPACKED MACHINE
1. Check the machine and mount the batteries if not already installed
2. To handle it for a short transport after use, disconnect the battery cables,
remove the brushes and the squeegee; for a longer transport, package the
machine inside its original box.
DESCRIPTION OF CONTROLS

7
DASHBOARD
SYMBOLS FOUND ON THE DASHBOARD
1
BATTERY CHARGER STATUS INDICATOR
2
MAIN FUSE
3
CENTRAL BRUSH POWER-ON INDICATOR
4
MAIN FUSE
5
VACUUM MOTOR POWER-ON INDICATOR
6
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) WASHING BRUSH MOTOR
RIGHT
7
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) CENTRAL WASHING BRUSH
MOTOR
8
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) WASHING BRUSH MOTOR
LEFT
9
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) RIGHT FORWARD MOTOR
10
GEAR SELECTOR (FORWARD-BACKWARD)
11
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) LEFT FORWARD MOTOR
12
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) WASHING BRUSHES LIFT JACK
13
MOTOR PROTECTION (MINIATURE CIRCUIT BREAKER) SQUEEGEE LIFT JACK
14
MAIN KEY SWITCH
15
SOLUTION SUPPLY ADJUSTMENT AND OPENING LEVER
16
WASHING BRUSHES SHUT-OFF SWITCH
17
HEADLIGHT POWER-ON SWITCH
18
VACUUM MOTOR POWER-ON SWITCH
19
BRUSHING BRUSH POWER-ON SWITCH
20
CENTRAL BRUSHING BRUSH POWER-ON SWITCH
21
FLASHING LIGHT POWER-ON SWITCH
22
EMERGENCY STOP SWITCH

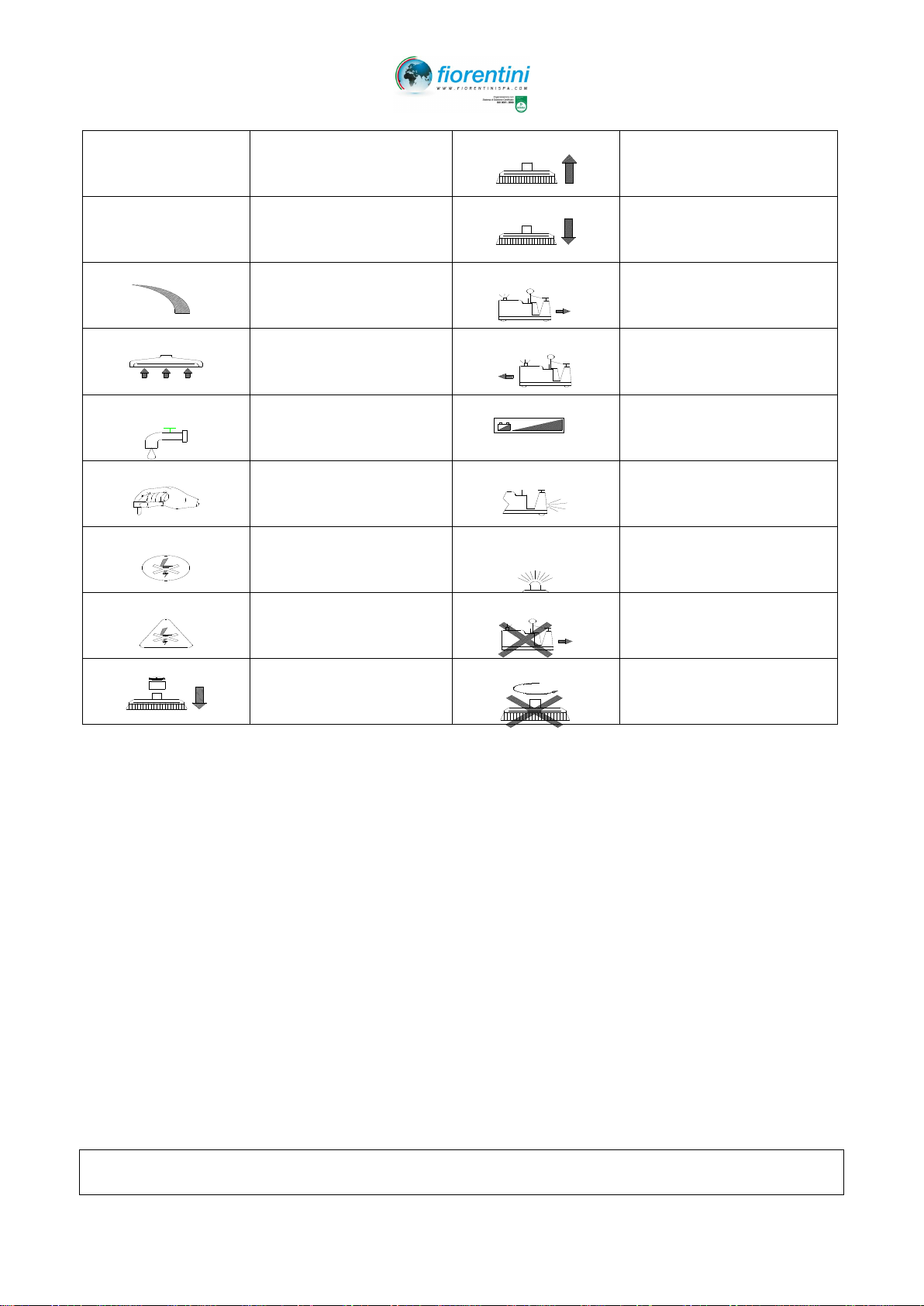

8
1
on
washing brush lifting
2
off
washing brush lowering
gradual increase by
rotating the control
forward start
squeegee vacuum
reverse start
water valve
battery charger indicator
main switch
headlights
fuse or motor protection
Flashing light
emergency switch
forward stop
brush pressure
brush rotation stop
DIAGNOSTICS

9
When the control detects an abnormal situation it stops and gives an error. The type of error can be determined from the
LED diagnostics. There are two types of error: serious and non-serious.
Non-serious errors
Recognised by an LED flashing quickly.
Resolve the error situation by putting the start controls into neutral and bringing the potentiometer to minimum.
There are two types:
- At least one potentiometer is not at 0.
- Forward and reverse start controls are active simultaneously.
Serious errors
Recognised by counting the number of consecutive flashes given by the LED.
Resolve the error situation by switching off the control with the key.
Flashing
lights
Code
Error
Possible causes and solutions
1
1 f
Engine not stopped at start
Engine running when key is turned. If the error persists the power
may be damaged.
2
08
Contact with the remote
control switch
Check the operation of the contactor, the pad and the power wiring.
3
1d
Insufficient battery voltage
The power supply voltage has dropped below Vmin. (1.72 V/el.).
Check the battery and its wiring
4
1e
Excessive battery voltage
The power supply voltage has risen above Vmax. (2.35 V/el.) or it has
exceeded the maximum supported. Check battery wiring.
5
10
Block of remote control
switch
The maximum power consumption on an output for the contactor is
exceeded. Check coils and wiring.
6
1b
Pot. interrupted
Check the potentiometer and relative wiring (white/blue and red/black
lines).
7
18
Temperature outside the
allowed limits
Improve heat dissipation of the control.
8
23
Switch-off while moving
The control was switched off while the vehicle was moving. Always
switch-off the control with the vehicle stationary.
9
27
Incorrect parameters set
Some calibration values are incorrect. Check programming
10
2d
Incorrect Checksum
The programming procedure was interrupted. Repeat it
12
22
Failed acquisition
Acquisition could not be completed. Check wiring and calibrations.
14
2b
Rotor over-current
Check the wiring strength of the left engine. Contact the after-sales
assistance if the error persists
16
5b
Rotor 2 over-current
Check the wiring strength of the right engine. Contact the after-sales
assistance if the error persists
19
28
Corrupted program
memory
Contact the specialist technicians.
20
29
Corrupted parameter
memory
Contact the specialist technicians.
21
2f
Device not registered
Contact the specialist technicians.
22
2e
External block
Block was given through the specific input.

10
Forward boards
Fig. 3

11
MACHINE USE
safety system
The machine is fitted with a double safety system (emergency stop)
Mushroom button (page 7 item 22). Press the button firmly in an emergency

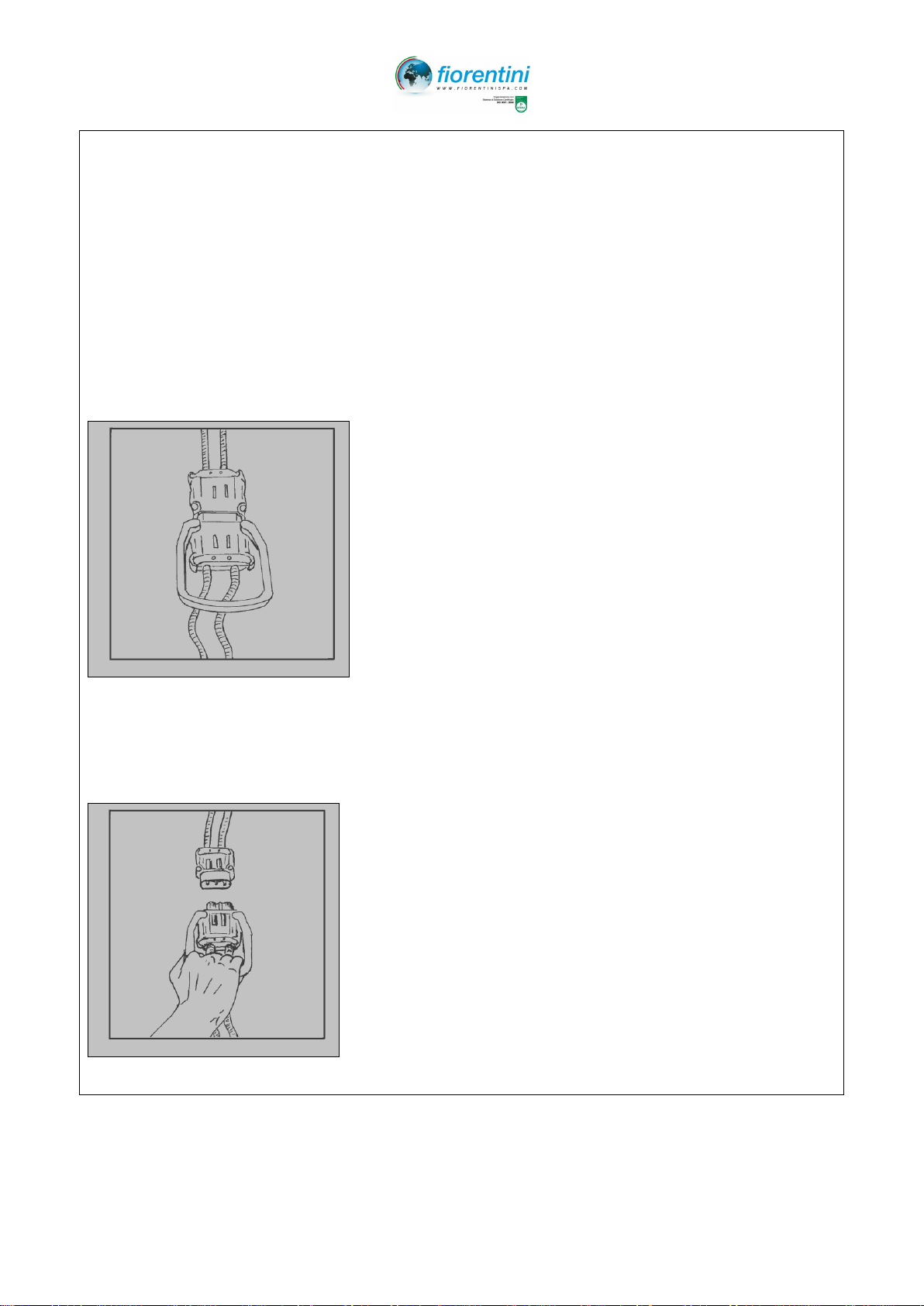

Current socket (fig. 4), used to charge the battery. In an emergency, pull this socket from the
plug by the handle (fig. 5).
The operator should familiarise himself with using the safety system, before using the machine, so
that the use is automatic in case of need. Do not reset the safety system until the problem has been
solved - with the help of a specialist technician if necessary.
Fig. 4
Fig. 5

12
brake

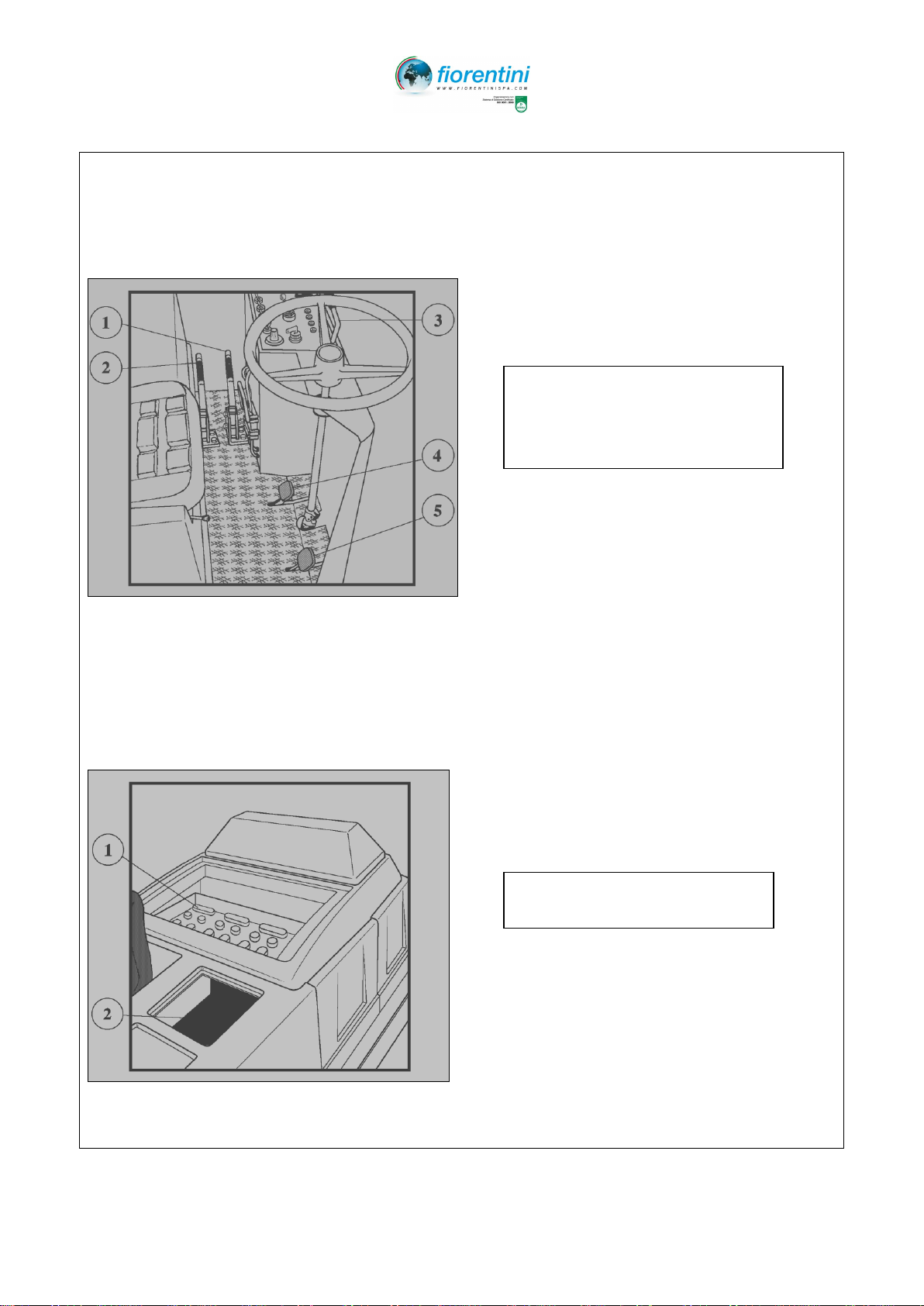

The machine is fitted with parking and service brakes (fig 6).
the service brake is controlled by a pedal on the left of the platform
the parking brake is controlled by a lever in front of the brake pedal
Fig. 6
installing the batteries
install the batteries in their housing (fig. 7) making sure the containers are not broken
never add electrolyte if the batteries have been used for one or more weeks
clean the surfaces that come into contact with the connections
batteries can easily be moved by using the handles at the sides
Fig. 7
1. brushing unit lever
2. parking brake lever
3. solution lever
4. brake pedal
5. forward pedal
1. batteries
2. tank opening

13
choosing the detergent
Select the right detergent to clean the floor properly as an excessively aggressive one may be
harmful. Use low foam detergent or an anti-foam additive to avoid damaging the vacuum motor. If
these products are not available, pour 50 cc of common wine vinegar in the recovery tank before
washing, to prevent foam from forming.
machine preparation and start-up
Before using the scrubbing machine check:
Turn the main key switch to start the machine
fill with water
press the pedal on the right to move the vehicle forward or backwards depending on the gear
selector position (fig. 6)
stop the engine by turning the key left, to position "2".
ways to use
The washing operation is very delicate as, based on experience, the type of brush to use, the need or
otherwise of a dual washing action, and the good choice of detergent, must be judged correctly. If
the floor is extremely dirty we recommend the dual washing action. In this initial phase the
squeegee is lifted and the brushes are in the work position. A first pass is given to the surface of a
few tens of square metres when the brushes are started. The detergent is left on the floor to dissolve
the dirt, working as solvent until taken up by the second pass. The second washing action takes
place with the brushes lowered and the squeegee touching the floor.
To perform the washing operation, press the switch to lower the brushes and the motors will start
automatically.
The dosage lever for the detergent water must be activated immediately.
If the dual washing action is not performed, lower the squeegee by putting the switch into position 1
(stable). The vacuum motors automatically start when the squeegee lowers and switch-off when it
lifts. Once the washing and drying operation is completed, turn off the water using the lever and
then lift the brushes using the switch. Finally lift the squeegee by putting the switch into position
"0". Please note that the squeegee automatically lifts when reversing.

14
adjusting the squeegee

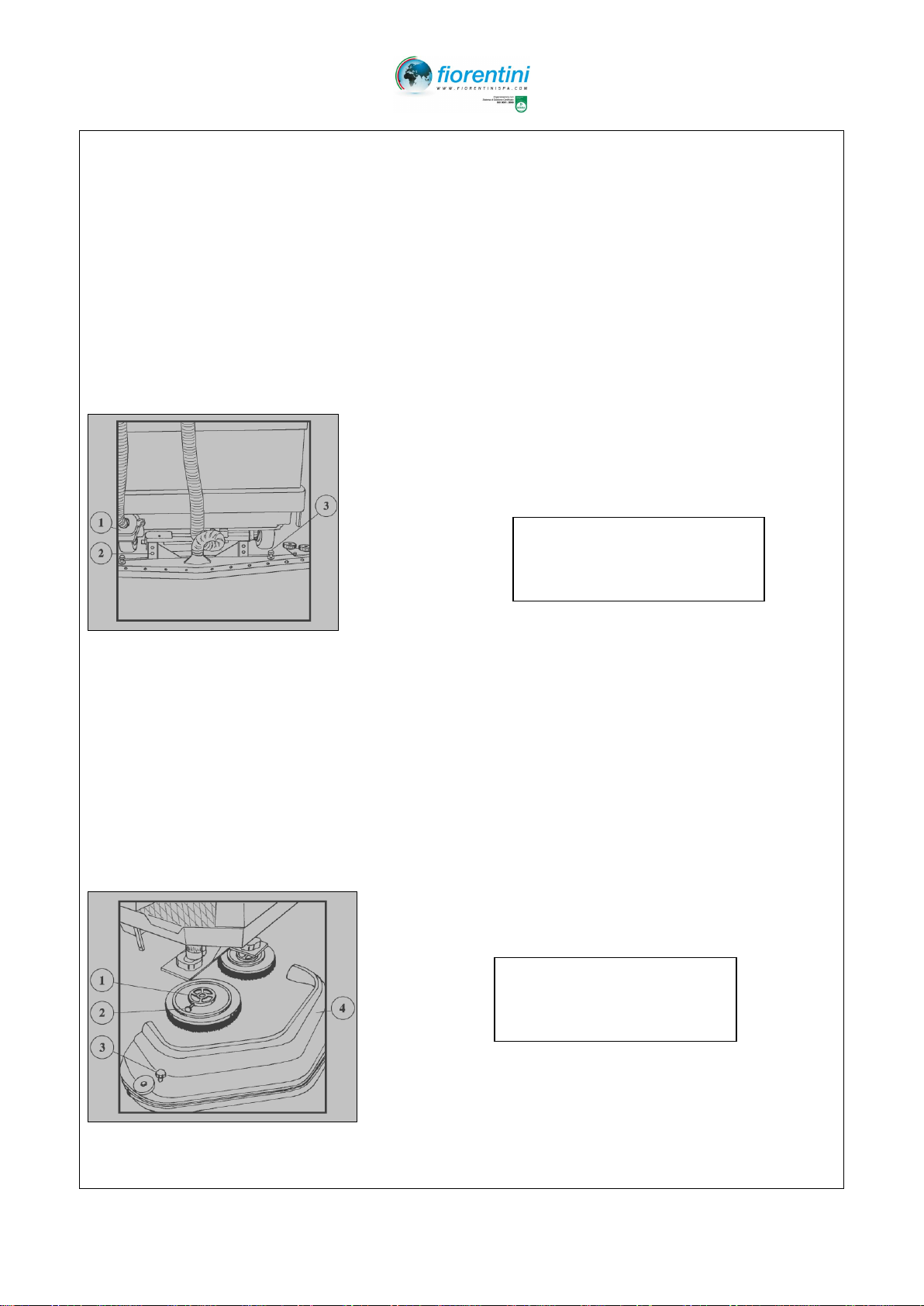

The squeegee must be correctly adjusted (fig. 8) to guarantee perfect cleaning.
This type of squeegee is excellent at collecting water and channelling it towards the vacuum pipe,
but is very sensitive and must be parallel with to parallelism with the ground. To adjust the
squeegee:
Remove the key from the dashboard to avoid any accidental ignition
loosen the upper screws if the blades are pressed into the wings and tighten the lower screws
perform the operation in reverse if the blades are pressed on the centre
adjust the pressure by means of the ring nut: tighten to increase pressure on the ground and
loosen to decrease it.
The correct pressure is obtained when the edge of the blade touches the floor with a 60°
inclination, -40° respect to the ground.
Fig. 8
replacing the brushes
To replace the brushes (fig. 9):
Remove the key from the dashboard to avoid accidental ignition
Loosen the knobs and remove the brush cover guard
Turn each brush until its knob is accessible, press the knob and remove the brush which will fall
to the ground
To insert a new brush:
Place the hexagon of the female joint on the male joint on the motor
Lift the brush vertically, turning it until it automatically fits in.
Insert the guards and tighten the knobs
Fig. 9
1. discharge outlet
2. squeegee adjustment
screws
3. squeegee releasing knobs
1. brush female joint
2. brush male joint
3. guard casing knob
4. brush cover guard

15
SAFETY, MAINTENANCE AND CHECKS
MAIN SAFETY STANDARDS
The following standards must be strictly complied with to avoid injury to the operator and damage
to the machine.
Carefully read the labels on the machine and do not cover them
Do not mix different types of detergent to avoid the production of harmful gases
Do not use the machine in an explosive atmosphere
Do not use the machine as means of transport
Do not use acid solutions that could damage the machine
Do not vacuum flammable liquids
Use a powder extinguisher in case of fire. Do not use water.
Should anomalies be detected in the machine's operation, make sure they are not caused by a
lack of routine maintenance. If not caused by a lack of maintenance, request the intervention of
the FIORENTINI after-sales assistance centre.
The fixed and movable protection systems must always be in their housings; it is compulsory to
restore them before restarting the machine.
Do not wash the machine with compressed water jets or corrosive substances
Do not dump the machine when scrapping it. It contains materials subject to regulations
covering their recycling or disposal at authorised sites only
The machine does not cause damaging vibrations
The flashing light must be constantly on and working when the key switch is activated. The
switch on the dashboard must
only be placed in position "0" in particular situations and with the machine stationary.
Always keep the machine at a safe distance from the edge of the pavement and large unevenness
in the floor
Make sure no unauthorised people approach the machine
Do not operate the machine if it is stationary for special interventions
Do not make turns at excessive speed, particularly if the floor is not level
It is strictly forbidden to touch the bottom part of the machine with your hands when a
part is operating and moving. If absolutely necessary, first remove the key from the
dashboard
The operators must be physically fit, they must have read this manual and must not operate the
machine whilst under the influence of alcohol or drugs.
The machine was not built to work in environments with the possible presence of gas, dust
or noxious substances that can catch fire in contact with flames
Disconnect the battery when the machine is not used
Note: The operators must have sufficient knowledge of the Italian language

16
ROUTINE MAINTENANCE RULES
Remove the ignition key during machine cleaning and maintenance and when replacing parts.
maintenance plan
DAILY
Clean the recovery tank and the vacuum motor filter
WEEKLY
Check the vacuum piping and squeegee are clean
Check the condition of the squeegee rubber vacuum blades
Llightly grease the drive chains
MONTHLY
Check the clean water tank filter and the fork joint
Check the condition of the washing solution supply valve
EVERY 6 MONTHS
Check the battery cables fixing
ANNUALLY
Check the condition of each motor's brushes
EVERY 2 YEARS
Check the safety devices and electric system
EVERY 5 YEARS
Complete overhaul
batteries
What to do with the batteries:
Leave the battery cover open during charge
Never use naked flames or smoke near the batteries
Be careful with the liquid because it is corrosive
Do not create sparks near the batteries
The battery gases are explosive
Do not reverse the polarity
CHECKING THE BATTERIES CHARGE STATUS
This type of check is shown on display.
Charge when the electrolyte density is 1.260 (30° Bè) at 30°C with the electrolyte at the right
level, between 100% and 75% on display
Partially discharged if the density is between 1.26 (30° Bè) and 1.20 ( 24° Bè), between 50%
and 25% on display
Fully discharged if the density is below 1.14 (18° Bè), below 25% on display
DENSITY MEASUREMENT
This check of the battery charge status is done with the hydrometer, when the batteries are charging.
1. Insert the hydrometer syringe and withdraw a sufficient amount of electrolyte to bring up the
float
2. Make sure its top does not touch the rubber ball or it remains attached to the glass walls.
3. To measure the density after distilled water has been added, wait for the density
to equalise throughout the liquid contained in the element

17
WATER TOP-UP
1. Add distilled water to each battery cell after having charged the batteries, to bring the liquid
level to 6 mm above the plates.
2. Repeat this operation every time the level drops, but never going beyond one week between
one top-up and the next.
LIMITS OF CHARGE
Do not recharge the battery if the density has not dropped below 1.24 (28 Bè) at the end of the
working day.
The recommended maximum temperature is 45°. If the electrolyte temperature increases by more
than 10/12°C with respect to the ambient temperature, an overload is possible regardless of the
effectively reached temperature.
ROOMS TO CHARGE THE BATTERIES
The gases developing during charge present dangers of explosion, therefore make sure the rooms
are well ventilated and the temperature does not exceed 40/45°C.
If ventilation through the windows is not sufficient, provide special exhaust ducts which must not,
however, flow into the flues. When a change is required, this must be as quick as possible using
suitable fans.
BATTERIES NOT IN CONTINUOUS SERVICE OR INACTIVE
The batteries spontaneously discharge (self-discharge) during periods of inactivity.
If the battery is not continuously used:
1. Monthly charge it with a current intensity indicated as "final" until a vivacious development of
gas is noticed in all elements and until the voltage and specific gravity readings remain constant
for 3-4 hours
2. This must be done even if the specific gravity measurements are high. The battery must be kept
in a dry place if it is inactive for long periods
BATTERY TECHNICAL FEATURES
BATTERY CHARGER TECHNICAL FEATURES
This type of battery charger can charge batteries up to 500 A/h and can support different brands of
batteries.
INPUT
V 230, Hz 50, A18
OUTPUT
V 36-50, A80
VOLTAGE
V 36
CAPACITY
400 A/h
WEIGHT
511 Kg
SIZE (height x width x length)
535 x 405 x 925

18
DISPOSING OF THE BATTERIES
Batteries are considered "toxic-noxious" waste.
To dispose of them, they must only be given to assigned collectors who have authorisation and who
show this authorisation upon request. In case of impediment, the "temporary storage" must comply
with current laws, and mainly:
Be in possession of the temporary storage authorisation
Store in sealed plastic containers with a capacity of not less than the volume of the electrolyte
contained in the batteries or, however, in such a manner that rainwater cannot penetrate the
container
replacing the squeegee blades
The squeegee blades must be replaced when the contact edge is worn;
the edge must be perfect for perfect drying. To replace the blades,
1. Bring the squeegee support to the high position, remove the vacuum pipe from the squeegee
(fig. 10) and partially loosen the screws
2. Remove the squeegee from the machine and place it on a bench.
3. Remove the screws from the front and back of the squeegee, then the steel straps and the worn
rubber blades
4. Now operate in the reverse order to assemble the new blades and adjust the squeegee.
Fig. 10

19
vacuum motor maintenance
The vacuum motors must be checked and cleaned. The brush must be checked every six months and
replaced, if required.
1. Remove the key from the dashboard and the motor cover guard on the back of the machine.
2. Release the hooks and disconnect the plug to free the motors (fig. 11)
3. Free and remove the sponge filter underneath the motors, wash it and put it back.
4. Check the suction blower from the hole in front of the vacuum motor.
5. Check the brushes by removing the plastic cap, loosen the screws (fig. 12) and remove the two
plastic supports of the carbons
6. Now perform the operation in reverse order
Fig. 11
Fig. 12
Any maintenance or repair operation not described in the routine maintenance must be
carried out by specialised personnel authorised by FIORENTINI
1. vacuum motor
2. frame fixing knobs
3. vacuum motor fixing
hooks
1. cap
2. brushes
3. brush screws

20
CHECKS
The machine must be inspected by a technician checking its safety conditions and the presence of
damage or defects visible from the outside
Upon commissioning
After modifications and repairs
safety devices checks
Have a professional technician check the efficiency of the safety devices every 2 years. The
machine must be inspected every 5 years by FIORENTINI personnel to guarantee its overall
efficiency.
electric system checks
The electric system set-up must be inspected and examined every 2 years. Any defects like
disconnections or burnt cables must be removed immediately. Only a professional technician must
intervene.
braking system checks
The brake must be checked and adjusted every 3 months
