Firegear PRO Series User manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
ModelModel ((N= Natural Gas) N= Natural Gas) DescriptionDescription ModelModel ((P= Propane GP= Propane Gas)
LOF-3010PS246TPSI-N 30" X 10" Linear Flat Pan & 24" x 6" Pro H-Burner LOF-3010PS246TPSI-P
LOF-3610PS306TPSI-N 36" X 10" Linear Flat Pan & 30" x 6" Pro H-Burner LOF-3610PS306TPSI-P
LOF-4810PS406TPSI-N 48" X 10" Linear Flat Pan & 40" x 6" Pro H-Burner LOF-4810PS406TPSI-P
LOF-6010PS506TPSI-N 60" X 10" Linear Flat Pan & 50" x 6" Pro H-Burner LOF-6010PS506TPSI-P
LOF-4016OPS246TPSI-N 40" X 16" Linear Flat Pan & 24" x 6" Pro H-Burner LOF-4016OPS246TPSI-P
LOF-5616OPS406TPSI-N 56" X 16" Linear Flat Pan & 40" x 6" Pro H-Burner LOF-5616OPS406TPSI-P
H-Burner
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
PN#90249
“PRO SERIES”
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
NOTE: All TPSI models come shipped from the factory as Natural gas or Propane (LP)
gas. They must be ordered specically as Natural gas or Propane models and cannot be
eld converted from one gas to another.
#20-025
MODELS H-Burner

REV. A Page 2
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliance.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage,
personal injury of loss of life
Read the owner’s information manual
provided with this appliance.
Installation and service must be
performed by a qualied installer,
service agency, or the gas supplier.
WARNING
If the information in this manual is not
followed exactly, a re or explosion
may result causing property damage,
personal injury, or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or re department.
DANGER
FIRE OR EXPLOSION
HAZARD

REV. A Page 3
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
Specications 4
Gas Pipe Sizing Chart 5
Preparation for Non-Combustible Structure 6
Hard Piping to Fire Pit 6
Cross Ventilation Requirements 6
High Elevation 6
Removing Fire Pit From Carton 7
Installing the Orice/Control Panel/ Media Info 7
Installation into an Approved Enclosure 8
Preparing Burner Pan/ Injector Hood Installation 9

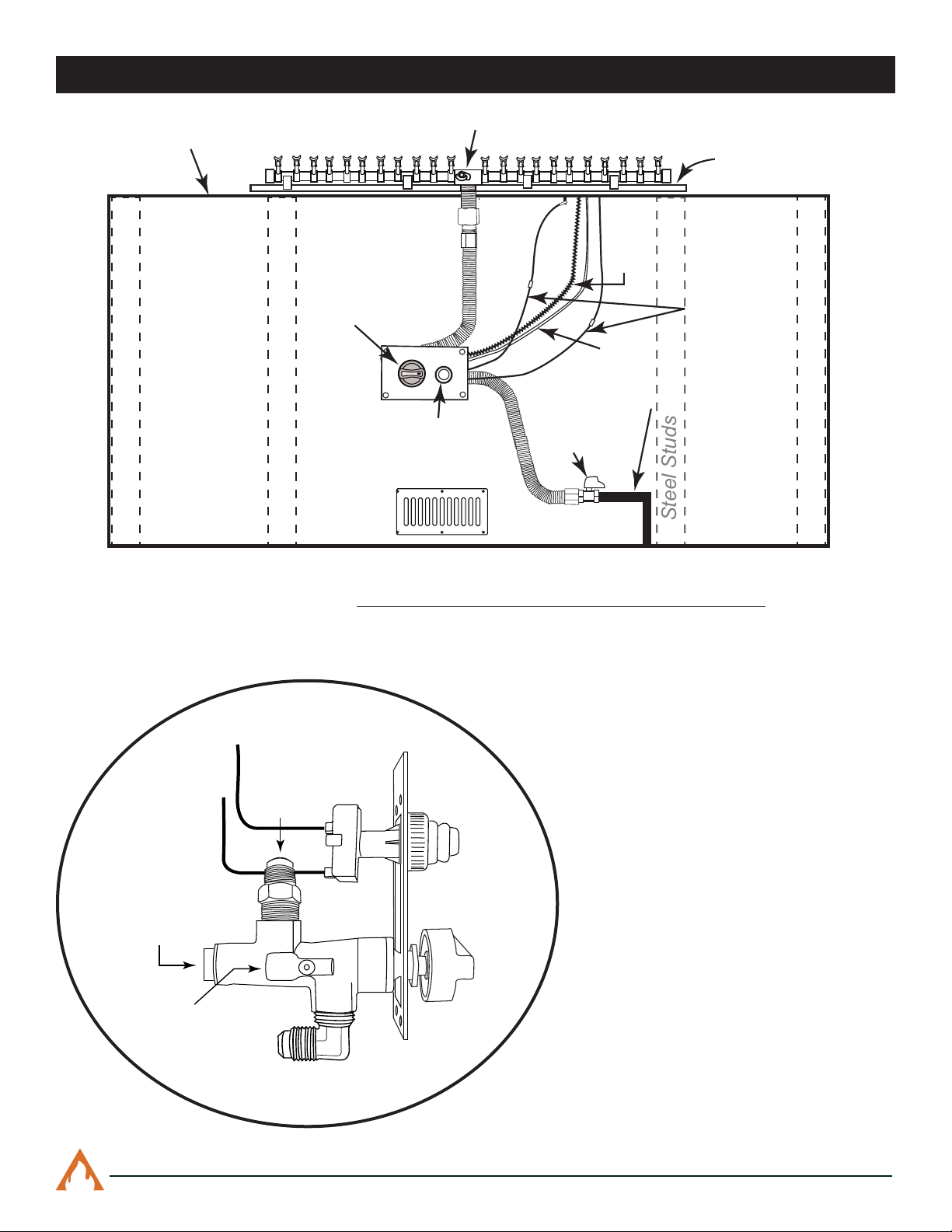

Typical Installation Drawings 8-10

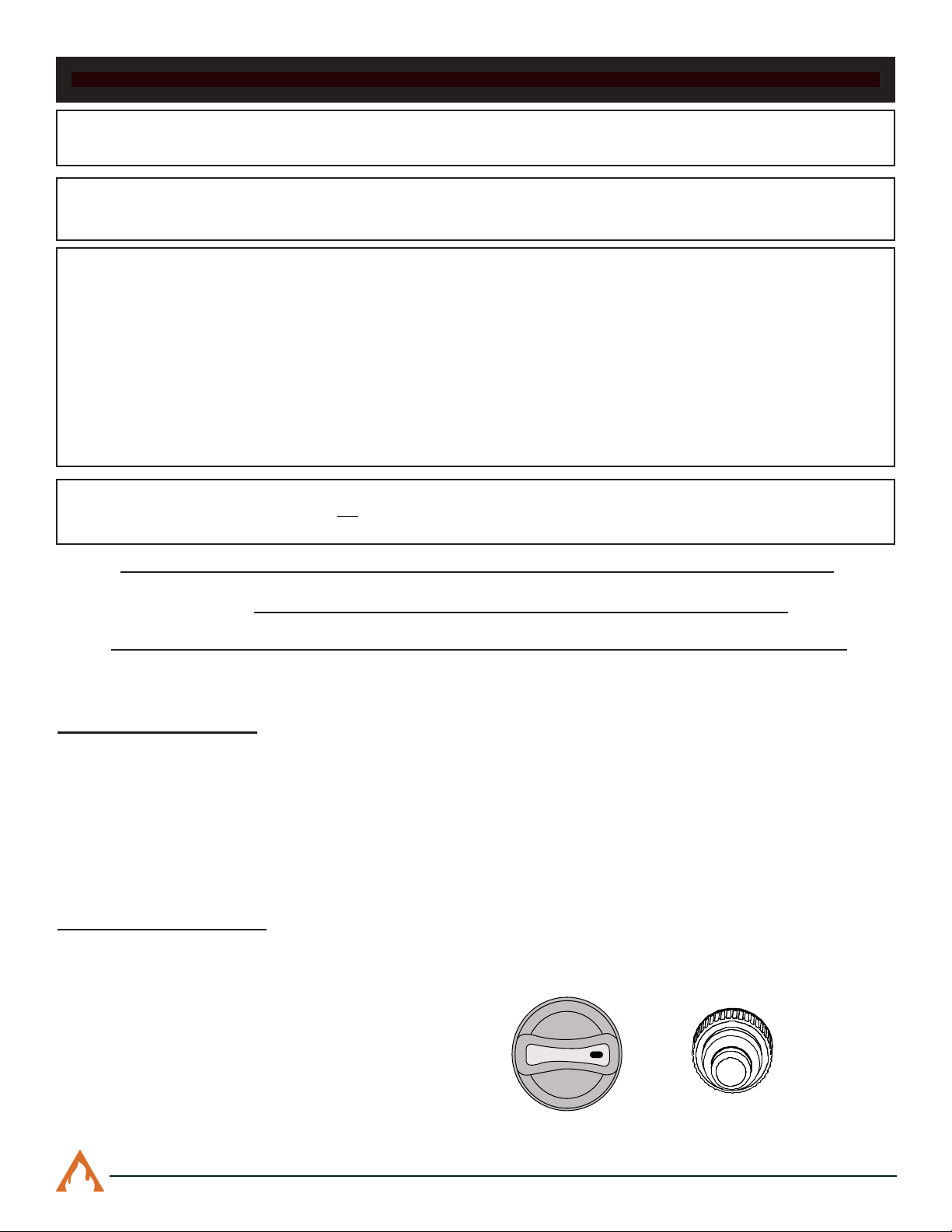

Operation/Lighting Instructions 11
Replacement Parts 12
Replacement Parts List 13
Fire Pit Maintenance/Trouble Shooting 14

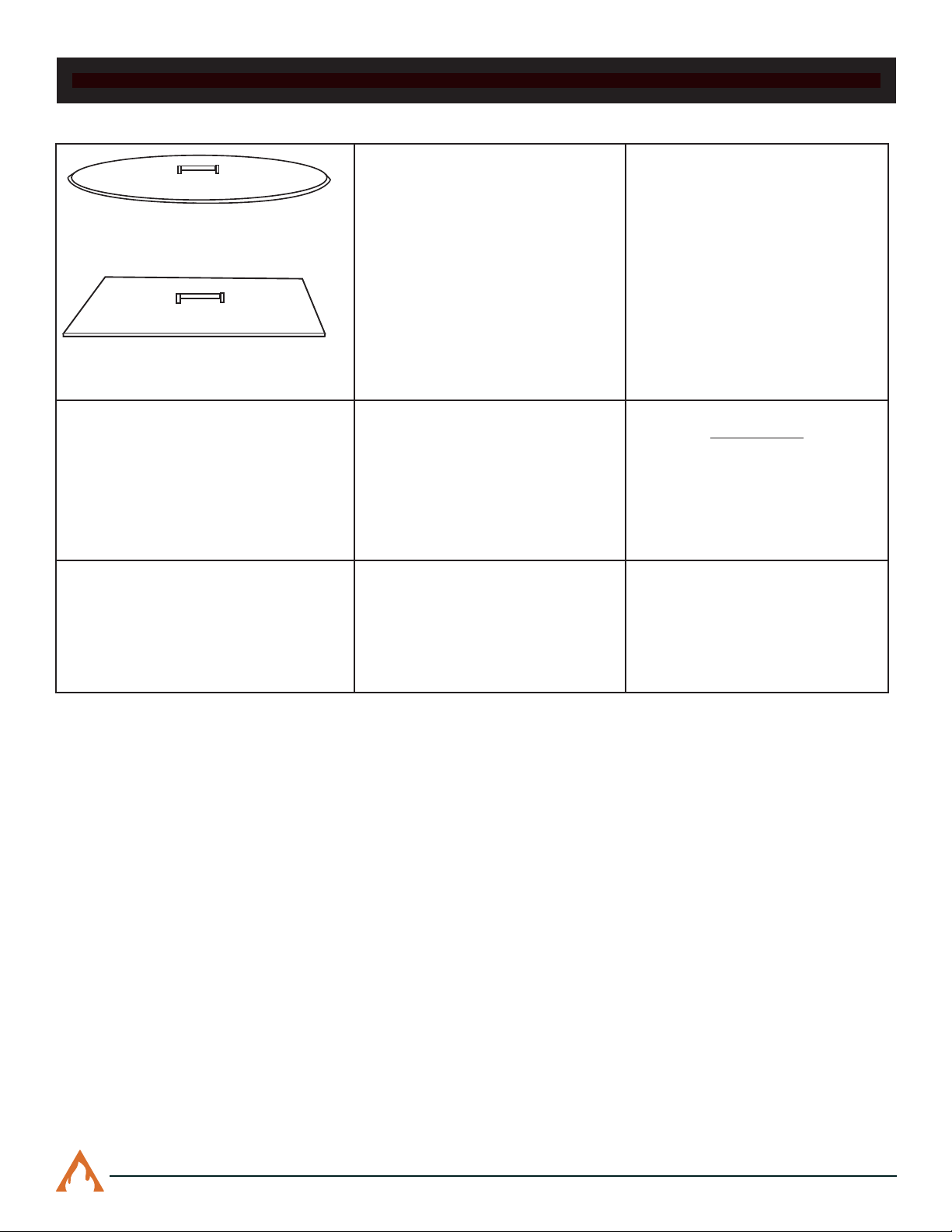

Optional Accessories 15
TABLE OF CONTENTS
NOTE: An exterior lid/cover is not required but highly recommended when the re pit is not in use. Even though re
pits are designed for outdoors they are not impervious to all weather conditions if not protected. See the accessory
page for information and sizes.
All media (i.e. lava rock, lava stones, lava boulders and re glass) has the potential of thermal
spalling. This is a process that may occur when media is wet and moisture gets trapped inside of
the material due to rapid temperature differences. When this happens the media has the potential
to crack or “pop” outside the replace.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a replace when heavy rains, high humidity and
moisture are present. Light the replace; leave the area allowing any moisture in the media to
dissipate. We strongly recommend that during this drying out time that you monitor the re feature
from a distance. This drying out period should be no less than 30 minutes. Continue monitoring
the ame from distance to ensure that all popping has ceased before fully enjoying the re.
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel
used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including
Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and
Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)
Congratulations! You have just purchased a Firegear Outdoors “Pro Series” H-Burner. These are Brass
Burners that come in several size models. Each burner is 6¾” wide and incorporates individual injectors that
eliminate the need for a main burner orice.

REV. A Page 4
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
Table 1 Fire Pit Dimensions
A
A
MODELS
N = Natural Gas
MODELS
P = Propane Gas
FLAT PAN
DIMENSIONS
A
BURNER
DIMENSIONS
GROUND
LEVEL
SIDE
WALL
COMBUSTIBLE
CEILING
COMBUSTIBLE
FLOOR
LOF-3010PS246TPSI-N LOF-3010PS246TPSI-P 30” x 10”
(762 x 254mm)
24” x 6¾”
(.944 x .236mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-3610PS306TPSI-N LOF-3610PS306TPSI-P 36” x 10”
(914 x 254mm)
30” x 6¾”
(1.18 x .236mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-4810PS406TPSI-N LOF-4810PS406TPSI-P 48” x 10”
(1219 X 254mm)
40” x 6¾”
(1.57 x .236mm)
8”
(203mm)
36”
(914mm)
120”
(2438mm)
18”
(457mm)
LOF-6010PS506TPSI-N LOF-6010PS506TPSI-P 60” x 10”
(1524 x 254mm)
50” x 6¾”
(1.96 x .236mm)
8”
(203mm)
36”
(914mm)
120”
(3048mm)
18”
(457mm)
LOF-4016OPS246TPSI-N
(Oval Flat Pan)
LOF-4016OPS246TPSI-P 39⅝” x 15⅝”
(1016 x 406mm)
24” x 6¾”
(.944 x .236mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-5616OPS406TPSI-N
(Oval Flat Pan)
LOF-5616OPS406TPSI-P 55⅝” x 15⅝”
(1422 x 406mm)
40” x 6¾”
(1.57 x .236mm)
8”
(203mm)
36”
(914mm)
120”
(3048mm)
18”
(457mm)

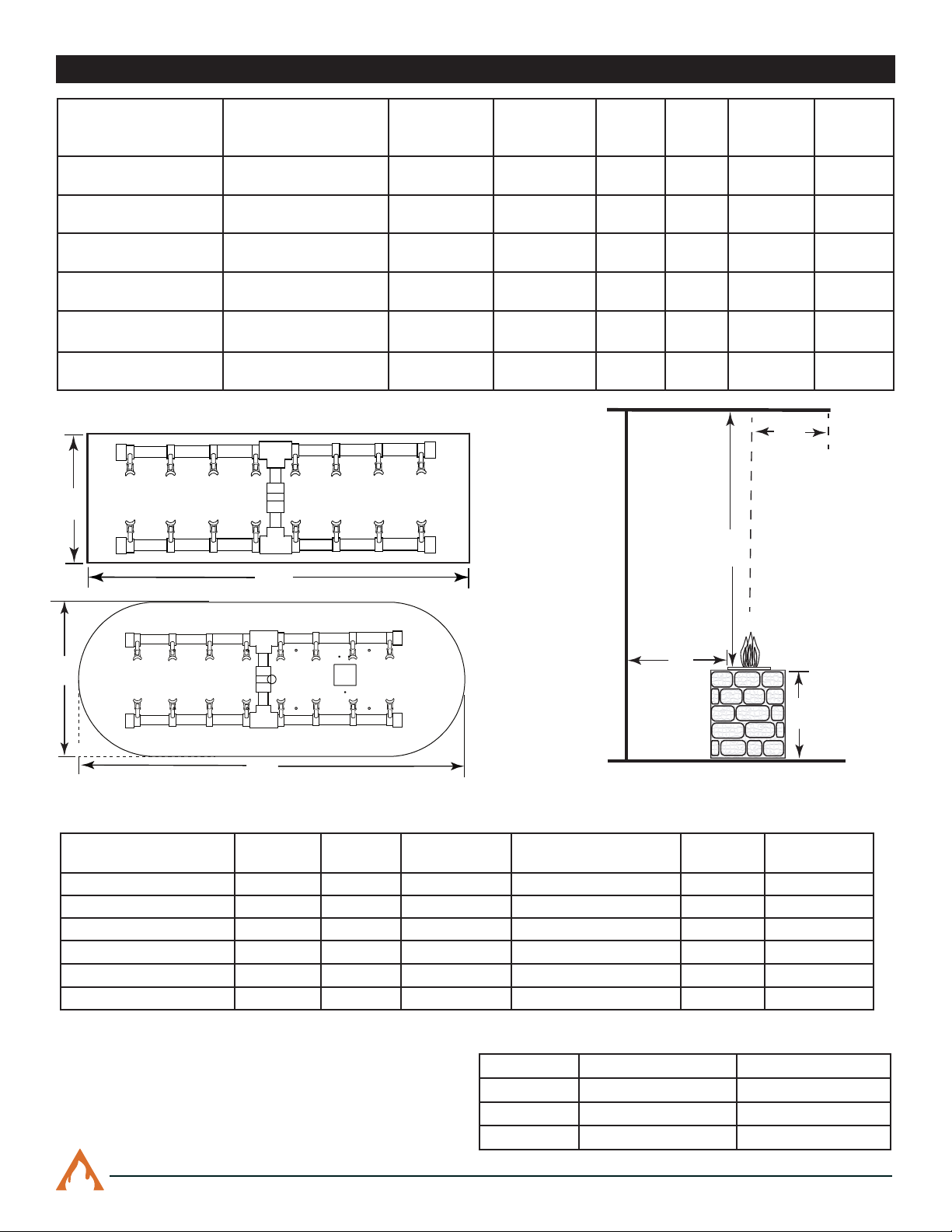

Fig. 1 H-style at burner pan specications.
SPECIFICATIONS
Models:
N = Natural Gas
# Injectors Injector
Size
BTU
Rating (NG)
Models:
P= Propane Gas
Injector
Size
BTU
Ratings (LP)
LOF-3010PS246TPSI-N 20 68 (0.031) 80K (23.44kW) LOF-3010PS246TPSI-P 72 (0.025) 110K (23.44kW)
LOF-3610PS306TPSI-N 24 68 (0.031) 95K (27.84kW) LOF-3610PS306TPSI-P 72 (0.025) 115K (27.84kW)
LOF-4810PS406TPSI-N 32 68 (0.031) 120K (36.16kW) LOF-4810PS406TPSI-P 72 (0.025) 150K (36.16kW)
LOF-6010PS506TPSI-N 40 68 (0.031) 160K (46.89kW) LOF-6010PS506TPSI-P 72 (0.025) 175K (46.89kW)
LOF-4016OPS246TPSI-N 20 68 (0.031) 80K (23.44kW) LOF-4016OPS246TPSI-P 72 (0.025) 110K (23.44kW)
LOF-5616OPS406TPSI-N 32 68 (0.031) 120K (36.16kW) LOF-5616OPS406TPSI-P 72 (0.025) 150K (36.16kW)
Disclaimer: BTU listings are based on 7.0”WC for Natural Gas
and 11.0”WC for Liquid Propane (LP) at the burner orice. Flex
line size and proper gas pipe sizing will also affect BTU’s. As a
result your BTU’s may vary slightly from Table 2 specications.
96”/120”
18”
Combustible Side Wall
Combustible Ceiling
Combustible Floor
C
L
36”
Max
Overhang
36”
Fig. 2 Clearance to Combustibles for models.
(Not to be used in an enclosed space)
Table 2 H-burner specications.
Table 3 Gas pressures.
Pressure NG LP
Min. Inlet 3.5” WC (0.87 kPa) 8.0” WC (1.99 kPa)
Max. Inlet 10.5” WC (2.61kPa) 13.0” WC (3.23 kPa)
Normal Inlet 7.0” WC (1.74 kPa) 11.0” WC (2.73 kPa)
A
A

REV. A Page 5
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
•Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
•Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
•Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
•Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
•Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
•This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
•Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
•LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4 Gas pipe sizing.

REV. A Page 6
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on page 4 for proper clearance to combustibles.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install Fire pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation (Fig.1, pg. 4). Ensure
proper water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply system using minimum of ¾” black iron pipe or an approved exible gas line from existing
house supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a foundation
or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see Fig. 12 page 10).
IMPORTANT
Installation of Natural or LP gas should be done by a qualied
installer, service agency or gas supplier. This appliance must
be isolated from the gas supply piping system by closing its
manual shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or less than
½” psig (3.5kPa)
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches
(per side) of cross ventilation is required to keep the
components in good working order. Use Fig. 3 as guide to
assist to incorporate proper ventilation.
Fire Pit
Enclousure
(2) 6”x12”
Fire Pit Pan/Disc
Examples of Cross Ventilation
2- Firegear 6 x12 vents
(Model # VENT-KIT-6X12)
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fig. 3 Cross Ventilation Example
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0- 4500 feet in
Canada and the U.S. If elevation exceeds 4500 feet it may be
necessary to decrease the input rating by changing the
existing burner orice to a smaller size. Input should be
reduced 4% for each 1000 feet beyond the 4500 feet above
sea level. Check with your local gas utility for assistance in
determining the proper orice in your location. In some cases
the heating value may already be reduced and downsizing the
orice may not be necessary.
ALL PAN OR FLAT DISCS MUST BE REMOVABLE FOR SERVICE Pans or Discs CANNOT be installed
in a manner to prevent them from being removed for service. Top coping material or top cap of re pit
MUST NOT overlap onto the pan or disc surface without easily being removed. Pan lip of disc edge must
be unobstructed so it can be lifted our of the re pit for servicing. We highly recommend the use of a ex
frame kit for all installations.

REV. A Page 7
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
REMOVING FIRE PIT FROM CARTON
Fig. 3 Shows carton contents.
Fig. 4 Installing nipple into bottom of burner.
Carton Contents
Valve Assembly
Hardware
Bag
Flexible Gas Line
Piezo Wires
Thermocouple Lead
Pilot Tubing
Control Panel
This re pit is comes partially assembled from the factory.
The pilot tubing and thermocouple leads are 48” in total
length, therefore, when mounting the Gas Valve/Piezo
mounting plate, ensure the mounting plate is close enough
to make all connections.
Open carton and remove contents. Inspect for any damage
or missing parts.
The hardware bag include mounting plate screws,
injector hoods, Piezo wires and ex connector to complete
the installation.
Carefully install the re pit into the prepared enclosure,
connect the gas line and wire according to the gure
drawings in this manual.
INSTALLING BURNER NIPPLE TO BURNER
Before the re pit is installed:
Locate and install the burner nipple underneath the burner
pan. Ensure the nipple on the burner has gas rated Teon
tape wrapped around the threads (See Fig. 4).
Install the nipple into the burner in a clock wise manner.
Install the ared tting in the same manner. Secure into
position.
The control panel can use the template on the back of this
manual for mounting or you can purchase an optional
PAVER-CP-MT control plate to mount the control panel.
Once you have determined the location of mounting plate
install the gas connections and Piezo wires as shown in
Fig. 5 and secure all connections.
CONTROL PANEL MOUNTING PLATE
Paver Block
Paver Block
Flex Line To Fire Pit
Inlet Gas
Piezo Wires
Pilot Tubing
Thermocouple
PAVER-CP-MT
(Control Panel)
Fig. 5 Installing control panel into PAVER-CP-MT mounting
plate.
Burner Pan

REV. A Page 8
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
3. Determine the size of the linear re pit you are preparing to install (Refer to page 4).
4. You must provide a round or square opening out to place the re pit into the non-combustible enclosure.
Do not exceed the maximum opening from Table 1, dimension B.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the enclosure
dry.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible. Do
not cover more than 1” above the top of the burner and do not block the injectors with any media. When purchasing
lava rock use 1” diameter as a base to ll the burner pan.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in
this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
Fig. 6 TPSI control panel mounting plate.
+-
AAA
Plastic Nut Red Button Cap
Mounting Plate
Remove red button cap and install battery into
Piezo ignitor module.
Thermocouple
Connection
Inlet Gas
Supply
Pilot Gas
Line
Piezo Ignition
Control Knob
PIEZO25WH
PIEZO48WH
Outlet
To Burner
Fig. 7 Installing battery into Piezo.

REV. A Page 9
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
INSTALLATION OF LAVA ROCK/MEDIA INTO FIRE PIT
Install lava rock/media into the burner pan. Ensure the lava
rock is a 1 to 2-inch diameter for proper operation.
Note: Do not pour Lava Rock/Media directly from bag. It
should be placed naturally and NOT packed in tight. Loose
tting is important to ensure robust ames. Be sure rocks
are free of any excessive dust. This prevents the burner
pan weep holes from being plugged and holding water.
IMPORTANT: Do not place media directly on top or
under the screen cover. The screen must be free of any
debris to ensure proper lighting of burner and good ame
sense (See Fig. 9).
Cover the burner completely with media but do not make
the depth greater than 1-inch overtop of the burner port-
holes.
Do NOT cover the top of the screen hood with any rock or
glass. It must be free an any debris to operate properly.
Fig. 9 Keep screen cover exposed
PILOT ASSEMBLY
It is important to understand that this is a “standing pilot”
system. When placing media around the pilot area ensure
the top of the screen hood/cover is open to exhaust the
gases and enable the pilot to operate properly. See Fig. 8.
Fig. 8 Show TPSI pilot assembly identication.
Thermocouple
Ignitor
Flame Spreader
¼” Female
Terminal
48” Pilot
Tubing
Screen Hood
Lava Rock Lava Rock
Lava Rock
Ignition
Hood
Screen Cover
Install the hood/rain shields over top of each injector of the
pro brass burner by sliding it into position. Use the bead in
the lower section of the hood, and align it with the groove
in the injector, until it snaps into place. See Fig. 10. Rotate
the hood to ensure it is protecting the injector opening from
the elements (i.e. rain, dirt or media). See Fig. 1 for proper
alignment. Note: If there is no detent in the injector, ensure
the hood is ½” from the base of the injector to the bottom
edge of the hood as shown in Fig. 11.
Groove around
the injector
Bead around
the hood
HOOD
1/2”
HOOD
INJECTOR
Fig. 10 Installing hood over top of injector. Fig. 11 Shows 1/2” spacing from bottom of injector.
INJECTOR HOOD/RAIN SHIELD INSTALLATION

REV. A Page 10
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
PREPARING BURNER PAN FOR INSTALLATION
Ensure you determine how to mount valve
bracket into place before completing re pit.
Thermocouple
Connection
Inlet Gas
Supply
Pilot Gas
Line
Piezo
Ignition
Control
Knob
PIEZO25WH
PIEZO48WH
Outlet
To Burner
D
e
t
a
i
l
V
i
e
w
o
f
T
P
S
I
V
a
l
v
e
A
s
s
e
m
b
l
y
Gas valve and exible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories
page. Flex lines with ared ttings do not require Teon tape or pipe compound. Ensure not to “kink” the ex
lines to allow better gas ow of gas. The illustration above is only a guide for the gas connection. Local
codes may require different methods to connect the gas supply. Note: See optional mounting method of
TPSI face plate on back of this manual.
Gas Supply
Burner Pan
Non-Combustible Enclosure
Shut-O
Pro H- Burner
OFF
Gas Valve
Thermocouple
Piezo
Steel Studs
Steel Studs
Steel Studs
Steel Studs
Pilot
Tube
Piezo Wires
Fig. 12 Typical installation.

REV. A Page 11
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause sever burns if contacted.
2. Do not burn any solid fuels in this appliance.
Fig. 13 Control panel with gas valve knob and Piezo.
TURNING OFF FIRE PIT
1. Slightly depress the control knob inward and rotate the knob clock wise to OFF position. Fire pit will turn OFF.
2. After cooling off install cover (if applicable).
OFF
PILOT
ON
Control Knob Piezo Button
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: ENSURE YOU HAVE LEAK TESTED THE FIRE PIT BEFORE OPERATING.
WARNING: Do not stand over re pit during ignition or operation due to high surface temperatures.
LIGHTING INSTRUCTIONS
TURNING ON FIRE PIT
1. Depress and hold the red Piezo button and ensure sparking is occurring inside the pilot hood. An audible sparking
sound can be heard.
2. While holding the Piezo button, slightly depress the control knob inward and rotate counter clockwise to the PILOT
position. Depress and hold control knob inward for at least 30 to 60 seconds; to light the PILOT.
3. Once the pilot lights, release the Piezo button and turn control knob counter clockwise to the ON position. If pilot does
not stay lit, release the control knob, turn the control knob clockwise to turn OFF and wait 5 minutes before trying
again. Turn gas supply OFF to check ignitor spacing and Piezo battery if no sparking occurs.
4. Repeat steps 1-4 to try again.

REV. A Page 12
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
G
A
S
P
R
E
S
S
U
R
E
R
E
G
U
L
A
T
O
R
TPSI REPLACEMENT PARTS
1
2
6
8
5
Drawings not to scale.
4
3
MT REPLACEMENT PARTS LIST
7
13
1514
11
12
10
9

REV. A Page 13
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
1 30” x 10” LOF30 Flat Pan (used with 24” x 6” Pro Burner) 1 78124
1 36”x 10” LOF36 Flat Pan (used with 30” x 6” Pro Burner) 1 78125
1 48” x 10” LOF48 Flat Pan (used with 40” x 6” Pro Burner) 1 78126
1 60” x 10” LOF60 Flat Pan (used with 57” x 6” Pro Burner) 1 78127
1 39⅝” x 15⅝” LOF40 Flat Oval Pan (used with 24” x 6” Pro Burner) 1 78177
1 55⅝” x 15⅝” LOF56 Flat Oval Pan (used with 40” x 6” Pro Burner) 1 78178
2 24” x 6” NG Burner (used with 30” x 10” Flat & 40”x 16” Flat Oval Pan) 1 FG-PSBR-H24-NG
2 30” x 6” NG Burner (used with 36” x 10” Flat Pan) 1 FG-PSBR-H30-NG
2 40” x 6” NG Burner (used with 48” x 10” Pan & 56” x 16” Flat Oval Pan) 1 FG-PSBR-H40-NG
2 50” x 6” NG Burner (used with 60” x 10” Flat Pan) 1 FG-PSBR-H50-NG
2A 24” x 6” LP Burner (used with 30” x 10” Flat & 40”x 16” Oval Pan) 1 FG-PSBR-H24-LP
2A 30” x 6” LP Burner (used with 36” x 10” H-burner pan) 1 FG-PSBR-H30-LP
2A 40” x 6” LP Burner (used with 48” x 10” Pan & 56” x 16” Flat Oval Pan) 1 FG-PSBR-H40-LP
2A 50” x 6” LP Burner (used with 60” x 10” H-burner pan) 1 FG-PSBR-H50-LP
3 Brass Burner Support & Hardware Bag 1 10850
4 ½” Flex Gas Line (46-inch Length) 1 T-200-9898-46
5 Copreci High Capacity Gas Valve 1 68001599
6 Stainless Steel Thread Cutting Screws #10-24x ½” 8 ST3-113-1028
7Lock Nut, M15 x 1 for TPSI Gas Valve 1 08032504
8 Gas Valve Control Knob for TPSI Valve 1 CN-ALHC
9 ½” OD Flare to ½” MIP Fitting 1 U1-8D-S
10 ½” Flare to ½” MIP 90° elbow 1 49-88
11 ½” NPT Female to ½” Male Flare Fitting 1 U3-8D-S
12 Complete Natural Gas Pilot Assembly with 48” leads 1 PSE-NA495
13 Complete Propane Gas Pilot Assembly with 48” leads 1 PES-LP495
14 TPSI Face Plate 1 78188
15 LP Regulator with 32” Hose 1 FG-32LPHRK
16 #10-24 Stainless Nut (not shown) 4 ST3-113-1020
17 #10 Stainless Flat Washer (not shown) 4 WASHER10SS
18 #10-24 x 1.25” Stainless Phillips Screw (not shown) 4 SCREW1024PANSS
19 48” long ¼” OD Corrugated Pilot Tube (not shown) 1 90-9898-48
20 Manual Spark Ignitor Module (not shown) 1 3042-RB
21 23" Piezo Extension wire - See page 16 (not shown) 1 PIEZO23WH
22 48" Piezo Extension wire - See page 16 (not shown) 1 PIEZO48WH
23 Ground tab for Piezo ignition (not shown) 1 GROUNDTAB
24 ½” x Male Flared Fitting (not shown) 1 U3-8D-S
25 ⅜” MIP x 2” Stainless Steel Nipple (not shown) 1 10858
26 ½” Flare to ⅜” FIP Fitting (used with all kits) (not shown) 1 46-86
27 ½” MIP x 2” Nipple (not shown) 1 113SS4-D2
Item Description Part #
Qty.
TPSI REPLACEMENT PARTS LIST

REV. A Page 14
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a ventilated cover over top of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this occurs
ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used
over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
FIRE PIT MAINTENANCE
TROUBLE SHOOTING
Brass Burner Maintenance Information:
• Dust in injector - Use compressed air from aerosol can or compressor.
• Check for bug nests or stubborn debris - replacement where necessary.
Note: Always use safety equipment including but not limited to SAFETY glasses or goggles when using
compressed air and consider a disposable mask for particulate.
Symptom Remedy
Fire Pit Won’t Light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
Low Flame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Ensure all shut-off valves and valve is fully open.
3. Check for spider webs inside burner orice.
Water in my Fire Pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
2. Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
3. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
4. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.
1. Windy days can potentially blow pilot ame out. Gusts of 25-30mph or higher can cause pilot
intermittent outage.
2. Too much media around the pilot can cause thermocouple to overheat.
3. Operating the re pit after heavy rains can potentially cause pilot outage. Let the re pit
completely dry before using.
Fire Pit Shuts Off
After A Short Period
of Operation

REV. A Page 15
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
Manual changes often occur, ensure to check the Firegear Outdoor
website for any recent updates and warranty information.
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
17322 Gothard St
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
[phone]
OPTIONAL ACCESSORIES
The following accessories are available from your local Firegear dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Stainless Round Lids for 19 - 33” Pits,
Models: LID-19R, LID-25R, LID-29R2,
LID-33R2
Stainless Square Lids for 20” Pits
Models: LID-20S, LID-26S, LID-32S
Media
Lava Stones 1” to 2” size (50lbs.)
Models: FG-LS50 (Bag)
Glass Media - See catalog for
various colors. Comes in 10lb jugs
Lava Rock 1” to 2” size
Models: FG-LAVA-40 (bag)
FG-LAVA-10 (jug)
Paver Control Panels
Model: PAVER-CO-MT
Provides a means to to install gas
valve/Piezo control into an
enclosure
Vent Kits
Model: VENT-KIT-6X12SS
(provides 18 sq. in of ventilation per
side of enclosure)
Model: PAVER-VENT-4-LNTS
Model: PAVER-VENT-6-LNTS
Shut-Off Valves
Model: 01-387 ⅜” OD Flare x ½” FIP
Model: 01-487 ½” OD Flare x ½” FIP
Model: 01-266
⅜” OD Flare x ⅜” OD Flare
Model: 01-288
½” OD Flare x ½” OD Flare
E-STOP
Mechanical gas timer valve with
emergency shut-off.
Model: ESTOP1-0H 1hr. timer
Model: ESTOP2-5H 2.5hr. timer
FLEXFRAME
Universal brackets to support re pit
when using paver blocks or other
non-combustible enclosures.
Model: FLEXFRAME-SS (2 piece)
Model: FLEXFRAME-SS3 (3 piece)
Log Sets
Model:
L-SF (Spit Fire) - 17pc (52lbs)
L-Sedona (Sedona) 19pc (200lbs)
See catalog for various styles
NOTE: See the Firegear Outdoors catalogue for other accessories also available.

REV. A Page 16
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
FIREGEAR LIMITED WARRANTY - 2022
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
• BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANT
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS
AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY
WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 17
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS
AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY
WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 18
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to
establish the warranty period. This Limited Warranty shall be valid and limited to the original purchaser only.
WARNING: Any modication to the product will void the warranty.
This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be
defective under normal use and service. All warranty claims must be made by the OEM/Distributor/Dealer
account on behalf of the end-user. You may contact Technical Support at 800-966-8126.
Our Technical Service Department must conrm all approved defects. If a defect is conrmed and we approve
the claim, we will replace such parts without charge. This warranty gives you specic legal rights, and you may
also have other rights, which vary from state to state.
The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization)
issued by Firegear Outdoors for specic products, which is considered to be the nature of the defect and or
warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued.
The RMA must be clearly marked on the outside of the package.
Please check with your local building code department or governing agency for proper approvals before
purchasing. Firegear Outdoors is not responsible for any violation of local codes.
Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the
responsibility of the owner. We will not be responsible for labor charges and/or damage incurred in installation,
repair, and replacement. Firegear is not responsible for Issues related to gas or electrical installation.
The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty
does not cover any defects due to accident, abuse, misuse, alteration, misapplication, vandalism, improper
installation or improper maintenance or service, removal from the original location, or re-installation into another
location, or failure to perform normal and routine maintenance.
Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due
to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere, or very
high humidity, is not covered by this Limited Warranty. Coastal, humid and/or salt environments are subject to
manufacturer review. All out-of-box claims must be made within 30 days of purchase and must be made prior
to installation. Any product installed damaged will be considered damaged during installation and not covered
under warranty.
There are no other express warranties except as set forth herein. For consumer applications, any applicable
implied warranties of merchantability and tness are limited induration to the period of coverage of this Limited
Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not
apply to you.
For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty.
We expressly disclaim any and all implied warranties, including any warranties of tness for a particular purpose
or merchantability.

REV. A Page 19
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
We are not liable for any special, indirect or consequential damages. Our maximum liability is limited to the
purchase price of the purchased units. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you.
We do not authorize any person or company to assume for it any other obligation or liability in connection with the
sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding.
Firegear Outdoors
17322 Gothard St.
Huntington Beach, CA 92647
www.regearoutdoors.com
Phone: [phone]
Email: order@regearoutdoors.com
Manual changes often occur, ensure to check the Firegear Outdoor
website for any recent updates and warranty information.
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
17322 Gothard St.
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
[phone]

REV. A Page 20
FPB Pro H-Burners Flat Pan Fire Pits with TPSI System
Having problems getting the gas appliance to operate?
Don’t leave the job site! We want to help! Call 800.966.8126for
Technical Support between the hours of 8:00AM to 5:00PM PST.
BEFORE YOU CALL WE WILL NEED THIS INFORMATION
1. Model Number: ___________________________
2. Serial Number: ___________________________
3. How long is the gas line run? Nat Gas ____ LP Gas ____
4. What size is gas line? _____
5. Inlet Gas Pressure: _____WC
Manifold Gas Pressure: _____ WC
6. What type of media are you using? __________________
7. Review the troubleshooting section in the installation manual.
8. What are the symptoms? Please be prepared to explain.
9. Be prepared to send photos to us when on the phone.
10. Found missing or damaged parts? Let us know ASAP or send photos.
FPSS 3-30-16
Fire Pits
