Firegear FPB-G25RBSTFS-N User manual

Outdoor Thermocouple Flame Sense Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLATION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Natural Gas Description Propane
FPB-G25RBSTFS-N 25” G90 Black Pan & Spur Kit FPB-G25RBSTFS-P
FPB-G29RBSTFS-N 29” G90 Black Pan & Spur Kit FPB-G29RBSTFS-P
FPB-G33RBSTFS-N 33” G90 Black Pan & Spur Kit FPB-G33RBSTFS-P
FPB-19RBSTFS-N 19” Round Stainless Pan & Spur Kit FPB-19RBSTFS-P
FPB-25RBSTFS-N 25” Round Stainless Pan & Spur Kit FPB-25RBSTFS-P
FPB-20SBSTFS-N 20” Square Stainless Pan & Spur Kit FPB-20SBSTFS-P
FPB-26SBSTFS-N 26” Square Stainless Pan & Spur Kit FPB-26SBSTFS-P
FPB-32SBSTFS-N 32” Square Stainless Pan & Spur Kit FPB-32SBSTFS-P
MODELS
MH# 60069

!
!! !!!"#$%&!
!
"#!$%&!'()**!+,'-!
!
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
!!'"&#(#$!
!
.%!/%0!'0%1)!%1!&')!+,'%*2/)!%1!%03)1!
#*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)!
5292/20$!%#!032'!%1!%03)1!,66*2,/9):!
!
;/!<=>9$*2/7)1!/%0!9%//)90)7!#%1!&')!
'3,**!/%0!4)!'0%1)7!2/!03)!5292/20$!%#!032'!
%1!,/$!%03)1!,66*2,/9):!
!!!"#$%&! ! ! )"&*+#,-+#+.(!%,/"00"&!,
,
1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:,
B2392,254,8<,<=<;C,
,
D438E,3F,38,58,:897<4:=,4659:,958,G377,H<>C,
,
#:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:,
4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C,
!
'"&#(#$-!!"#!03)!2/#%1(,02%/!2/!03)')!2/'01&902%/'!2'!/%0!#%**%?)7!)@,90*$A!,!#21)!%1!
)@6*%'2%/!(,$!1)'&*0!9,&'2/+!61%6)10$!7,(,+)A!6)1'%/,*!2/B&1$!%1!7),03:!
!
K+&,L+D&,M"K%1L,
.%!/%!'0%1)!%1!&')!+,'%*2/)!%1!%03)1!#*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)!5292/20$!%#!
032'!%1!,/%03)1!,66*2,/9):!
!
!
!! !!'"&#(#$!
"(61%6)1!2/'0,**,02%/A!,7B&'0()/0A!
,*0)1,02%/A!')1529)!%1!(,2/0)/,/9)!9,/!
9,&')!2/B&1$!%1!61%6)10$!7,(,+):!!C),7!
03)!2/'0,**,02%/A!%6)1,02/+!,/7!
(,2/0)/,/9)!2/'01&902%/'!03%1%&+3*$!
4)#%1)!2/'0,**2/+!%1!')15292/+!032'!
)8&26()/0!!!!!!
'"&#(#$,
.%!/%0!*),5)!&/,00)/7)7!7&12/+!&'):!
.%!/%0!&')!#%1!9%%D2/+:!
E%**%?!,**!+,'!*),D!61%9)7&1)'!2/!032'!
(,/&,*!612%1!0%!%6)1,02%/:!
REV. 5-7-14 Page 1
TFS Burning Spur Fire Pits

REV. 5-7-14 Page 2
Specications 3
Preparation for Non-Conbustible Structure 4
Hard Piping to Fire Pit 4
Cross Ventilation Requirements 4
High Elevation 4
Installation into an Approved Enclosure 5
Requirements 5
Typical Installation Drawings 5
Installing Battery Pack 6
Installation of Lava Rock/Media 7
Learning Remote Control to Module (Receiver) 7
Operation 8
Lighting Instructions 8
Replacement Parts 9
Replacement Parts List 10
Fire Pit Maintenance/ Trouble Shooting 11-12
Optional Accessories 13
TABLE OF CONTENTS
TFS Burning Spur Fire Pits
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1

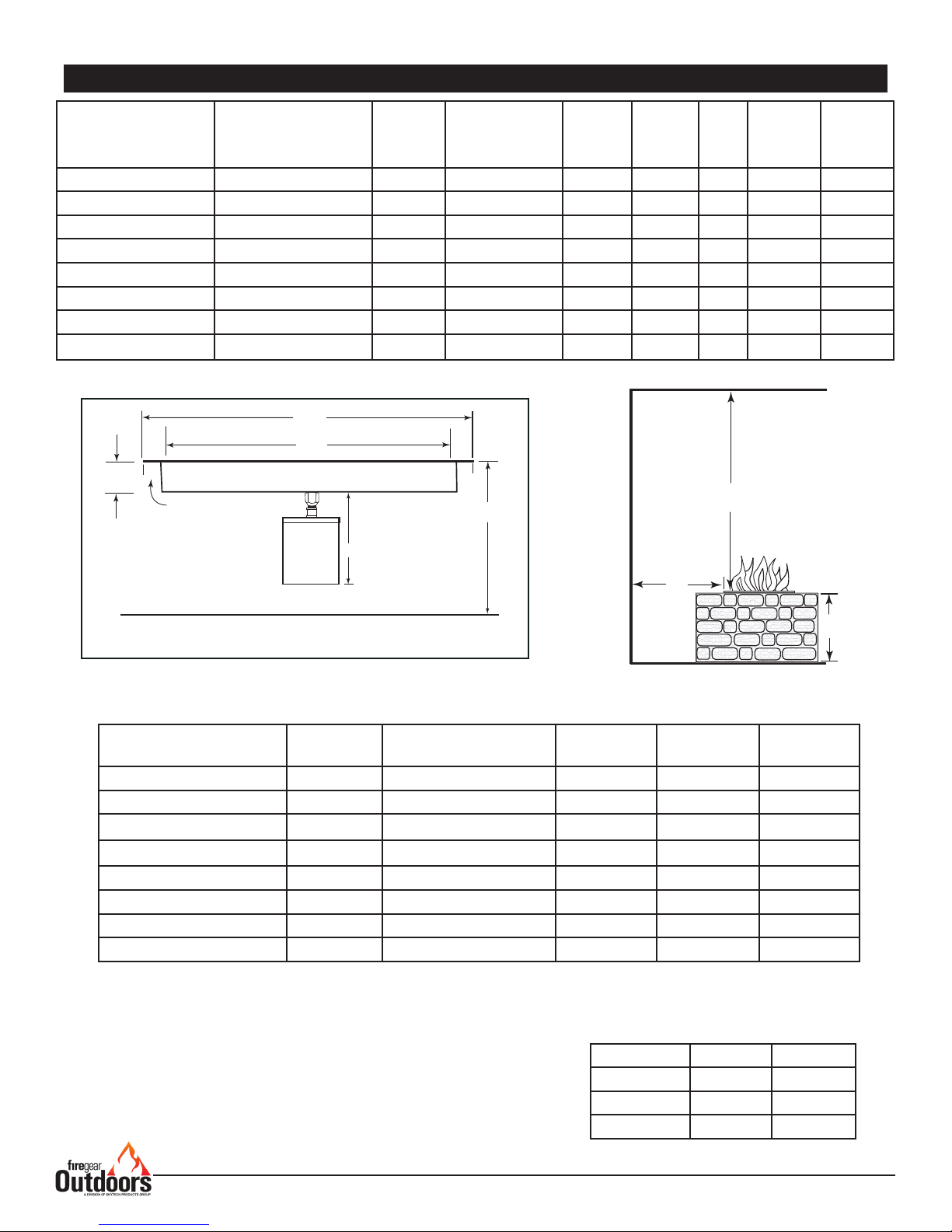

TFS SPECIFICATIONS
Table1. Fire pit Dimensions
Figure 2. Clearance to Combustibles
(Not to be used in an enclosed space)
REV. 5-7-14 Page 3
Model:
Match Throw NG
NG Factory
Orice
Model
Match Throw LP
LP Factory
Orice
BTU’s High BTU’s Low
FPB-G25RBSTFS-N #7 FPB-G25RBSTFS-P #31 105,000 51,000
FPB-G29RBSTFS-N #7 FPB-G29RBSTFS-P #31 105,000 51,000
FPB-G33RBSTFS-N #7 FPB-G33RBSTFS-P #31 105,000 51,000
FPB-19RBSTFS-N #19 FPB-19RBSTFS-P #36 80,000 45,000
FPB-25RBSTFS-N #7 FPB-25RBSTFS-P #31 105,000 51,000
FPB-20SBSTFS-N #19 FPB-20SBSTFS-P #36 80,000 48,000
FPB-26SBSTFS-N #7 FPB-26SBSTFS-P #31 105,000 51,000
FPB-32SBSTFS-N #7 FPB-32SBSTFS-P #31 105,000 51,000
Table 2. Btu Specications
Model:
Natural Gas (NG)
Model:
Propane Gas (LP)
A
Pan
Depth
B
Min/Max
Install Opening
C
Inside
Pan
D
Ground
Level
E
Side
Wall
F
Combustible
Ceiling
G
Combustible
Floor
FPB-G25RBSTFS-N FPB-G25RBSTFS-P 2.500” 25”/25.5” 23.875” 20.5” 19” 69” 18”
FPB-G29RBSTFS-N FPB-G29RBSTFS-P 2.500” 30”/31.35” 29” 20.5” 19” 69” 18”
FPB-G33RBSTFS-N FPB-G33RBSTFS-P 2.500” 34”/35.25” 33” 20.5” 19” 69” 18”
FPB-19RBSTFS-N FPB-19RBSTFS-P 2.625” 19.25/21.5” 19” 20.625” 16” 54” 18”
FPB-25RBSTFS-N FPB-25RBSTFS-P 2.625” 25.25”/27.5” 25” 20.625” 19” 69” 18”
FPB-20SBSTFS-N FPB-20SBSTFS-P 2.625” 20.25”/21.75” 20” 20.625” 16” 54” 18”
FPB-26SBSTFS-N FPB-26SBSTFS-P 2.625” 26.25”/27.75” 26” 20.625” 19” 69” 18”
FPB-32SBSTFS-N FPB-32SBSTFS-P 2.625” 32.25”/33.75” 32” 20.625” 19” 69” 18”
Disclaimer: BTU listings are based on 7.0”WC for Natural
Gas and 11.0”WC for Liquid Propane (LP) at the burner
orice. Flex line size and proper gas pipe sizing will also
affect BTU. As a result your BTU may vary slightly from Table
2 specications.
TFS Burning Spur Fire Pits
Figure 1. Fire pit dimensions; refer to Table 1. (Dimensions applicable to
round or square pans)
A
B
C
.875” TYP. (usable flat lip)
*
*
D
Ground Level (Earth)
10.0”
Valve
Box
Pressure NG LP
Min. Inlet 3.5” WC 8.0” WC
Max. Inlet 10.5” WC 13.0” WC
Normal Inlet 7.0” WC 11.0” WC
Table 3. Gas Pressures
F
E
G

REV. 5-7-14 Page 4
WARNING: Proper clearances from combustible, construction materials must be maintained from all sides, top and
bottom of this appliance. Use the specications listed on page 3 for proper clearance to combustibles.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install re pit on any level,
outdoor non-combustible, at, stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation (Fig. 3, pg. 4).
Ensure proper water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 BTU.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply using minimum of ¾” black iron pipe or an approved exible gas line from existing house
supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a foundation
or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see gure 4).
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½ “psig (3.5kPa)

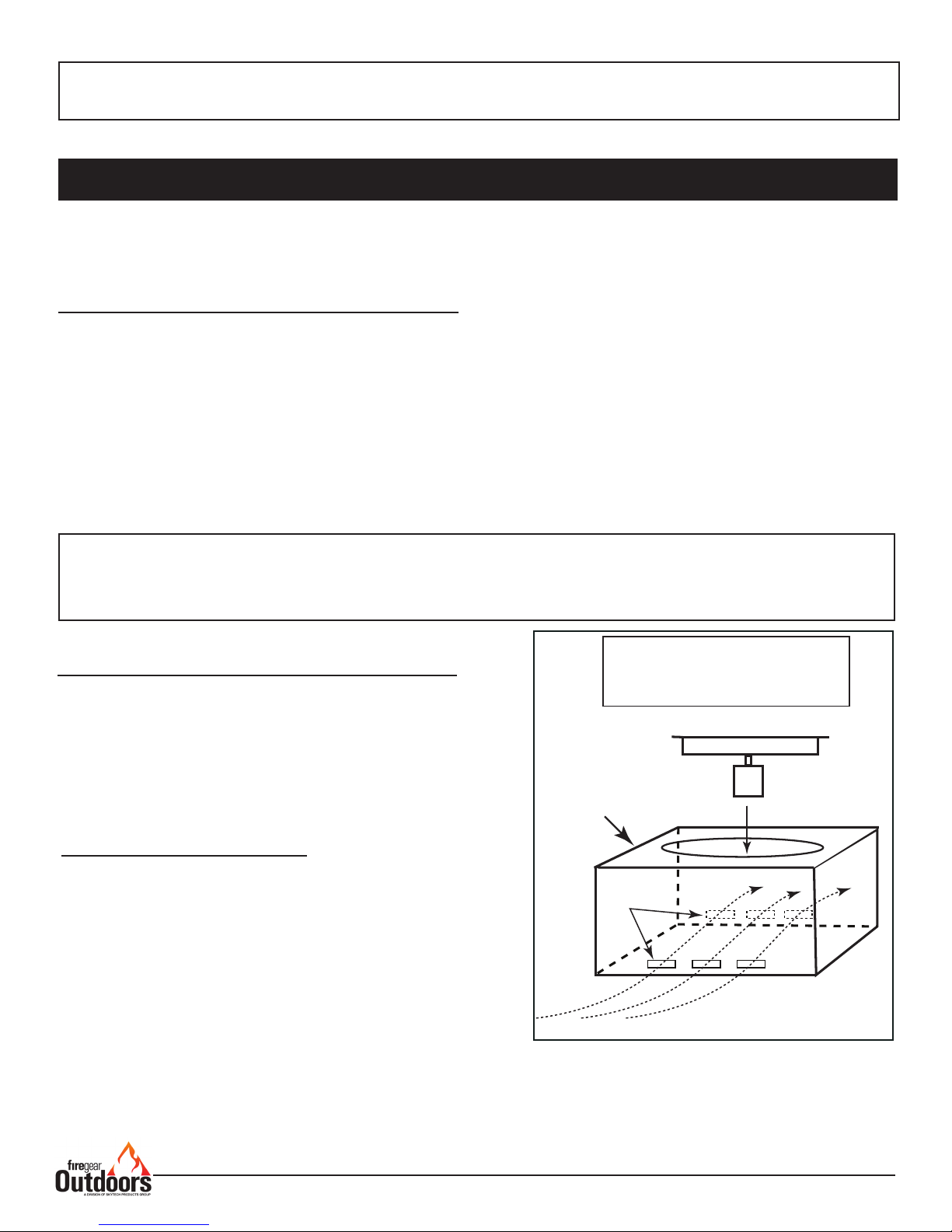

VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as
rain, snow, wind, heat or cold. A minimum of 18 square
inches of cross ventilation (2 sides) is required to keep the
components in good working order. Use gure 3 as guide
Figure 3. Cross Ventilation Example
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0- 4500 feet in Canada
and the U.S. If elevation exceeds 4500 feet it may be necessary
to decrease the input rating by changing the existing burner orice
to a smaller size. Input should be reduced 4% for each 1000 feet
beyond the 4500 feet above sea level. Check with your local gas
utility for assistance in determining the proper orice in your loca-
tion. In some cases the heating value may already be reduced
and downsizing the orice may not be necessary.
TFS Burning Spur Fire Pits
Fire Pit
Enclousure
2”x3”
Fire Pit
Examples of Cross Ventilation
3 - 2”x3” Slots Per Side or
2- 1” x 9” Slots Per Side
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)

REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should be non-
combustible or a at level combustible surface according to the clearances specied in this manual.
2. We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for proper
pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 BTU.
3. Determine the size of the round or square re pit you are preparing to install (Refer to page 3).
4. You must provide a round or square cut out to place the re pit into the non-combustible enclosure. Use the pattern from
the shipping carton for sizing.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. Normal operation of the re pit is with a battery pack that is supplied with your system (Fig 5). The battery pack has
12-feet of black sleeved wire that is to be passed through the junction box provided. This wire should not be cut or
spliced and the junction box can be placed in the facing of the vertical nish of the re pit, if you place the wire under
ground you should install those wires into an approved protective conduit/sleeve material.
8. Fire pit should never be left unattended while in operation. It should always be a safe distance from all trees and
combustible landscape materials.
10. Construction of the nished re pit should be stable and solid. From the bottom of the control box that houses the
gas valve and module, it should be a minimum if of 8-inches to the ground level. See gure #1. Drainage is critical to
ensure that water does not damage gas valve and components. Never install the re pit system below grade.
11. CAUTION: The re pit enclosure MUST have a minimum ventilation of 18 square inches on each side of the
nished enclosure.
12. The insulation square pad provided with the re pit is to be placed foil up toward the bottom of pan on top of the
valve box.
13. Never ll the cavity under and around the valve box with any material, this is a provided air space necessary for
ventilation.
14. These products are designed for outdoor use only. Not approved for any indoor use.
15. This re pit is designed to have decorative rock, lava rock/Media covering the burner, so the burner is not visible. Optional
concrete logs can be added to consumers taste. Decorative Rock is not provided. When purchasing decorative rock use
minimum of 1-inch diameter rock as a base to ll the burner pan. DO NOT COVER THE IGNITION HOOD WITH ANY
ROCK OR MEDIA.
16. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
17. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in this
material and can rapidly break apart and cause damage or personal injury.
18. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
REV. 5-7-14 Page 5
TFS Burning Spur Fire Pits
Gas Supply
Fire Pit Pan
Non-Combustible
Fire Pit Enclousure
Shut-O
45&&-
456%4
45&&-
456%4
Battery Pack
Valve Box
NOTE: Gas valve, exible gas lines and TFS
components are supplied. Gas shut-off is
not supplied.
Fig. 4 Typical installation.

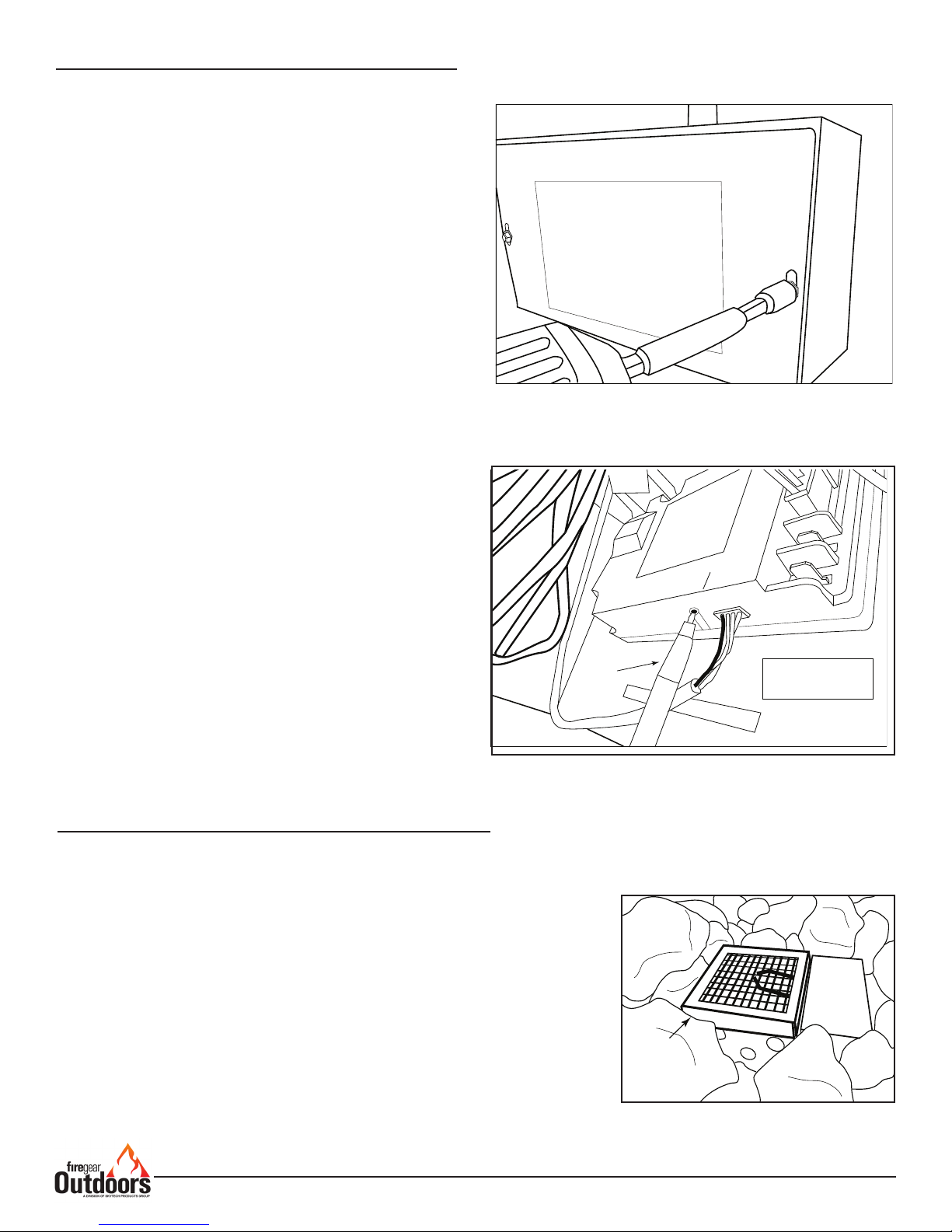

INSTALLATION OF BATTERY PACK
1. During the installation the location of the battery pack should be installed in the location that is easy to service.
The best location is in the vertical enclosure of the Fire pit. The plastic junction box is provided for the installation
of the battery pack.
Requires 4-AA 1.5V
alkaline batteries
Battery cover slides on/off
Latching Solenoid DC Motor Drive
Slide Switch
to Latching
Solenoid
2. The wiring extending from the valve box is a 12-foot special 4-pin connector that connects to the battery pack and
(2) two additional wires with ¼” female connectors. A complete wiring diagram (Fig.11) is located on page 12.
3. Feed all wires into the plastic junction box and connect special 4-pin plug into back of the battery pack. Connect
¼” female spade connectors to solenoid wires matching color, red-to-red and black-to-black.
4. Install the (4) AA batteries in to the battery compartment shown in gure 5. Double check to ensure the slide
switch is in the Latching Solenoid position on the battery pack. Then snap cover plate in place as shown in g.6.
Fig. 5. Slide switch on latching solenoid
5. Reinstall the battery pack into the plastic junction box, line up the two holes in the cover and install white screws
provided. Batteries can be changed or installed by removing the two screws that hold the cover plate battery pack
in place. Remove assembly, slide cover away from the cover plate and install the (4) four AA batteries.
6. Be sure the batteries are installed positive-to-positive and negative-to-negative. If one battery is installed wrong
the system will not operate.
7. Once the re pit is installed into the enclosure, the burner and control system should be tested before the media
(lava rock) is installed.
INSTALLATION OF BATTERY INTO TRANSMITTER
You have one handheld transmitter and you will need to install the included (12-volt battery) into the transmitter. On the
backside of the transmitter, push the cover away from the case. Place the battery into the compartment matching positive-
to-positive and negative-to-negative. To ensure the battery is properly installed push any button on the transmitter and
you will see a red LED light at the top of the transmitter glow. The red LED light will only be lit when a button is pushed.
Fig. 6 Cover plate installation
IGNITOR ALIGNMENT
It is important check that the ignitor probes be properly
aligned overtop of the burner port holes and did not move
during shipping. Use the Fig.7 as a guide. Before lighting
remove the screen cover of the ignition hood to burner and
ensure the spark probes are directly overtop of a burner port
hole. The sparking probes and the thermocouple must be in
the path of a ame to ignite the gas for proper ignition of the
ame. Replace the screen cover and follow the operating
instructions.
Fig. 7 Proper alignment of probes and thermocouple.
REV. 5-7-14 Page 6
TFS Burning Spur Fire Pits
Thermocouple
Ignitor Probes
Igniton
Hood
Battery Pack
Cover Plate
(Rear View)

REV. 5-7-14 Page 7
TFS Burning Spur Fire Pits
INSTALLATION OF LAVA ROCK/MEDIA INTO BURNER PAN
Install lava rock/media into the burner pan. Ensure the media is a minimum of
1-inch diameter for proper operation. Note: Do not pour Lava Rock directly from
bag. Media should be placed naturally and NOT packed in tight. Loose tting is
important to ensure robust ames. Be sure rocks are free of any excessive dust.
This prevents the burner pan weep holes from being plugged and holding water.
IMPORTANT: Do not place media over top or under the screen cover. The
screen must be free of any debris to ensure proper lighting of burner and to allow
proper heating of the thermocouple.
Cover the burner completely with media but do not make the depth greater than
1-inch overtop of the burner portholes.
Decorative glass may be loosely scattered on top of the lava rock. Do NOT
cover the stainless steel screen cover with any rock or glass. It must be free an
any media/debris to operate properly.
Lava Rock Lava Rock
Lava Rock
Ignition Hood
Screen Cover
Fig. 10 Keep screen cover exposed
Fig. 8 Removing the cover from metal box.
LEARNING THE REMOTE CONTROL TO THE MODULE
The Firegear re pit is unique that it comes standard with
one remote controlled transmitter. The handheld remote is
shipped with this system are already learned (programmed)
to the module inside the control box. Additional transmit-
ters can be learned to this electronic module; up to a total of
three Firegear transmitters are available. Contact Firegear to
discuss additional transmitter options or see the accessory
page of this instruction manual.
Learning the new transmitters is simple, but will require
pressing the learn button on the module. You should learn
any new transmitters before the nal installation of the re pit.
Follow the steps below:
1. Remove the two screws securing the cover on the
control box (See g. 8). The cover will slide
down exposing the gas valve and control module.
2. Find the black module attached to the inside of the
control box. Locate the “Learn Button” on the bottom
of the module.
3. Once the Learn button is located, press and release
the button once. You will hear a beep indicating that
the module is ready to receive a transmitter code
(See g. 9)
4. Take the transmitter and press the OFF button. You
will hear a series of rapid beeps indicating the module
has accepted the new code.
NOTE: A maximum of three (3) codes can be programmed
to the module. After a total of three (3) codes have been pro-
grammed the memory is full and will not accept any additional
codes. To clear all codes, press and hold the learn button for
10 seconds. The module will beep three (3) times indicat-
ing the memory is clear of all codes. After codes have been
cleared see to Step #3 above to re-learn transmitter.
Learn Button
AUX
POWER
PEN
MODULE
INSIDE FIRE PIT
METAL BOX
Fire Pit Valve Box
Fig. 9 Learn button location

REV. 5-7-14 Page 8
TFS Burning Spur Fire Pits
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the Fire pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
LIGHTING INSTRUCTIONS
NOTE: It may take several cycles of ON/OFF to purge the airow from the gas lines. The direct spark ignition
will turn OFF after 15 seconds if the burner does not light after which you will need to press transmitter OFF button then
back ON to initiate ignition again.
Flame height is HI and LO. By pressing the buttons on the handheld transmitter you can operate ON-OFF-HI-LO. The
transmitter defaults to the HI setting when initially lighting the re pit each time but will remember the last setting used and
change back to the last setting in approximately 5-seconds after lighting.
READ ALL WARNING AND SAFETY INFORMATION ABOVE BEFORE ATTEMPTING TO LIGHT FIRE PIT
L
O
W
H
I
O
F
F
O
N
TURNING OFF FIRE PIT
1. To turn OFF the re pit press the OFF button on the transmitter. Fire pit will turn OFF.
2. After re pit has completely cooled off install cover.
Fig. 11 Transmitter
TURNING ON FIRE PIT
1. Ensure you have leak tested the re pit before operating. Turn main gas supply ON.
2. Ensure batteries are installed in battery pack and switch is on Latching Solenoid.
3. Press the ON button on the transmitter. You will hear the ignitor probe will begin sparking
for 15-seconds and the re pit will turn ON.
4. If the re pit does not light the module will “beep” one time every second indicating an
ignition error. This is a hard lockout. If this occurs press the OFF button on the remote
control and repeat step 1-3.
5. If re pit does not light after second try turn main gas OFF, wait 5 minutes and repeat
steps 1-3.

REV. 5-7-14 Page 9
TFS REPLACEMENT PARTS
12
6
TFS Burning Spur Fire Pits
3
89
Drawings are not in proportion
OUT
PILOT ADJ
IN
MAIN
PILOT
SI
Remote/O ADJ
IPI
POWER
AUX
Learn
Module
Battery cover slides on/off
Latching Solenoid DC Motor Drive
AA Batteries
AA Batteries
AA Batteries
AA Batteries
10
11
12 13
14 15
16 17
18
19
20
L
O
W
H
I
O
FF
O
N
57
21

REV. 5-7-14 Page 10
TFS Burning Spur Fire Pits
1 25-inch G90 Round Galvanized Black Pan 1 Pan-GV25R
1 29-inch G90 Round Galvanized Black Pan 1 Pan-GV29R
1 33-inch G90 Round Galvanized Black Pan 1 Pan-GV33R
1 19-inch Round Stainless Pan 1 Pan-SS19R
1 25-inch Round Stainless Pan 1 Pan-SS25R
2 20-inch Square Stainless Pan 1 Pan-SS20S
2 26-inch Square Stainless Pan 1 Pan-SS26S
2 32-inch Square Stainless Pan 1 Pan-SS32S
3 16-inch Spur (used on 19” Rd. & 20” Sq. Pans) 1 B-SPUR-16
3 22-inch Spur (used on 25”, 26”, 29”, 32”, 38” Pans) 1 B-SPUR-22
4Red Silicone “O” Ring (not shown) 1 ST3-110-1003
5 ½” NPS Brass Mounting Nut 1 ST3-113-1032
6 7/8” Flat Washer/Spacer 3 ST3-113-1026
71/2” Flex Gas Line (46-inch Length) 2 T-200-9898-46
8 Orice Air Shutter NG (Used on Natural Gas Models) 1 OAS-NG31
9 Orice Air Shutter LP (Used on Propane Models) 1 OAS-LP45
10 Electronic IPI Gas Valve with Solenoid 1 AF-4026
11 Thermocouple (Must be ordered with item #13) 1 ST3-040-1023
12 Ignitor Probes 1 VCS-5000DSI2P01
13 Thermocouple Bracket (Must order with item #11) 1 ST3-100-1054
14 Ignition Module 1 VCS-5000MODTC
15 Ignition Hood for Spur Burner 1 ST3-100-1057
16 Mesh Screen Cover 1 ST3-100-1027
17 AA Batteries 1.5 Volt (used in battery pack) 4 AA Batteries
18 Valve Box Stainless Steel Lid 1 ST3-100-1033
19 Valve Box Stainless Steel ST3-100-1034
20 Battery Pack (with 12-foot 4-Pin, 4-wire harness, cover plate
and 12-foot red & black 2-wire harness for solenoid)
1 AF-4000BP12
21 ON/OFF HI/LO Transmitter 1 RCAF-3
22 Transmitter Battery (not shown) 1 12-volt
23 Stainless Thread Cutting Screws #10-24x ½” (not shown) 4ST3-113-1028
24 ½” Cast Iron Coupler (not shown) 1 ST3-093-1029
25 Gas Valve 8-Pin Wiring Harness (not shown) 1 AF-40008PIN12WH/2
26 Plastic Electrical Gang Box with Tabs (not shown) 1 ST3-040-1024
27 12-inch, 8-Pin Wire Harness (not shown) 1 ST3-042-1001
28 ½” NPT Male to Male Close Nipple (not shown) 1 ST3-093-1025
29 ½” NPT Male to ½” Male Flare Fitting (not shown) 1 U1-8D-S
Item Description Qty. Part Number
TFS REPLACEMENT PARTS

REV. 5-7-14 Page 11
FIRE PIT MAINTENANCE
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a ventilated cover overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this
occurs ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is
used over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Carbon (soot) may build up on the surface of logs (if installed) during heavy use. Sooting may also occur periodically
on the screen of the ignitor hood. To clean, brush off with a dry bristle brush or cloth. Keep soot away from clothing or
furniture.
6. Over time stainless steel and galvanized parts can discolor when heated, usually a golden or brown hue. This
discoloration is normal and does not affect the performance of the appliance.
TROUBLE SHOOTING
TFS Burning Spur Fire Pits
TROUBLE SHOOTING
FAULT CODES
The VCS-5000MODTC control module has built-in error detection for several common operating fault conditions. When
the control module detects an error, it will emit a series of beeps. The beeping pattern will help to determine the cause of
the operating fault.
Ignition Safety (Protection for Ignition system):
Error Code: One beep every one second.
Description of Fault: Warn users if the pilot is not successfully ignited in 15 seconds.
How to Clear: Press OFF then ON buttons to re-attempt ignition.
What to Check:
1. Ensure gas supply is turned on.
2. Ensure that the gas line is purged of air. Air is common in the gas line if the appliance has just been installed, has
been disconnected then re-connected to the gas line, or if the appliance has been unused for an extended period
of time.
3. Ensure there is no blockage in the gas line.
4. Make sure that the ame sensor electrode is clean. Soot buildup will insulate the electrode and will not allow for
proper ame sensing.
5. Ensure orange/white leads from module are plugged into the “PILOT” connection on the valve body.
6. Ensure green/white leads from module are plugged into the “MAIN” connection on the valve body.
7. Verify lead from igniter on electrode assembly is connected to the “I” terminal on the module.
8. Verify lead from ame sensor on electrode assembly is connected to the “S” terminal on the module.
9. Verify that the black ground lead from the module is connected to a proper ground on the appliance.
Sensor Safety (Protection for Flame sensor):
Error Code: 4 Beeps every one second (Constant beeping)
Description of Fault: Warn users the ame sensor detects a ame already present when ignition sequence is initiated.
This fault will also occur if the ame sensor is shorted to ground.
How to Clear: Press OFF then ON buttons to re-attempt normal ignition.
What to Check:
1. Check if ame is actually present when valve is turned OFF (if so, replace valve).
2. Ensure that the ame sensor electrode is not touching the burner or another metal surface.
3. Check to ensure ground wire from thermocouple and module is connected to gas valve.
4. If 3-probe ignitor is exposed to excessive moisture/water it will need 24-48 hours to dry out.
6. Replace electrode assembly.
7. Replace module.

Thermal Safety (Overheat Protection):
Error Code: 4 Beeps every 2 seconds.
Description of Fault: Warn users that the modules internal temperature exceeds 170°F.
How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button.
What to Check:
1. Ensure that there is proper ventilation to the control module.
2. Is module located in unapproved location, too close to burner?
3. Move to cooler location.
Wireless Remote Transmitter Will Not Operate Appliance
1. Make sure that the transmitter is within the 25-foot operational range of the control module.
2. Ensure batteries in transmitter are fully charged and properly installed.
3. If using the battery pack, ensure batteries are fully charged and properly installed. Also, make sure the battery
pack’s 4-pin connector is securely connected to the battery pack and control module.
4. If using optional AC adapter, ensure that the AC adapter leads are securely attached to “POWER” connection on
the control module. Also, ensure that the AC adapter is connected to a live 120VAC power source.
5. Ensure “Remote/Off” switch on control module is set to “Remote”.
6. Ensure the control module has learned the transmitter’s security code (learning section pg. 7).
7. Make sure that the remote transmitter is not placed/mounted to a metal surface, which will reduce the operating
range.
8. Make sure that there is not a large metal obstruction between the remote transmitter and the control module.
Igniter Electrode Sparks Frequently During Operation
1. The control module will generate a spark at the igniter electrode if the system is in the ON position, but does not
sense a ame.
2. Make sure that the ame sensor electrode is clean. Soot buildup will insulate the electrode and will not allow for
proper ame sensing.
3. Make sure that wind does not blow the ame off of the ame sensor. The sensor hood and the appliance media
(rocks, glass, etc.) provides shielding from the wind. Ensure that the sensor hood and appliance media is properly
positioned per the appliance instructions. If wind is too strong, and the ame will not maintain contact with the
ame sensor, the appliance should not be operated.
Flame Modulation Will Not Work or Works Backwards
1. Ensure that the black and red leads from the battery pack are securely connected to the red and black leads from
the Hi/Lo latching solenoid located on the valve body (red to red and black to black).
2. Verify that the selector switch on the battery pack is set to LATCHING SOLENOID only.
3. Check functionality with all transmitters to determine if there is an issue with the main control system or an
individual transmitter. If the issue is with an individual transmitter, make sure that the batteries in both the transmit
ter and battery pack are installed properly and fully charged.
REV. 5-7-14 Page 12
TFS Burning Spur Fire Pits
OUT
PILOT ADJ
IN
MAIN
PILOT
Battery
Pack
Black (Ground)
Orange
Green
White
2-Brown
White
Black (-)
Red (+)
Black (4-Pin Connector)
Red
Red
Black
Black
Learn AUX
Remote/OFF
AF-5000MOD-1
Module
I
S
Ignitor
Sensor
Thermocouple Ground Wire
Fig. 11 Wiring Diagram

REV. 5-7-14 Page 13
TFS Burning Spur Fire Pits
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
9230 Conservation Way
Fort Wayne, IN 46809
For Sales: [phone]
WEB SITE: www.regearoutdoors.com
[phone]
OPTIONAL ACCESSORIES
The following accessories are available from your local Firegear dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Stainless lid for 19”, 25” 29”, 33”
round re pits. Models: LID-19R,
LID25R, LID-29R, LID33R
Stainless lid for 20” to 32” square re
pits. Models: LID-20S, LID-26S,
LID-32S
Lava Stones 1” to 2” size. (20lbs.)
Model: FG-LS20
Lava Boulders 6” to 12” size (30lbs.)
Model: FG-LB30
LP CONVERSION KIT
THERE IS NO LP CONVERSION
KIT AVAILABLE THESE MODELS.
YOU MUST ORDER THE FIRE PIT
DIRECT FROM THE FACTORY AS
PROPANE.
MODEL: 1322-WT
Wireless wall switch with
ON/OFF/HI/LO
MODEL: 1001D-A
Wireless wall switch with
ON/OFF ONLY
MODEL: TMR-AF1
4-Button Timer with
30/60/120/OFF Minutes
Model: AF-4000ADP24 (80)
Optional 24VAC transformer (24”
leads) eliminates the use of battery
power with any TFS system.
ON
OFF
HI
LO
30 MIN
60 MIN
120 MIN
OFF
