First Alert SA302B User manual

Description:
PHOTO/ION SENSORS
Dual Photoelectric & Ionization sensing
technologies for optimal sensing of
smoke particles produced in both
flaming and smoldering fires.
IR REMOTE SILENCE
Point and click any remote control to silence
unwanted alarms.
SMART SENSING
Intelligent Sensing TechnologyTM helps
reduce nuisance alarms.
OPTIPATH 360
TECHNOLOGY
TM
Provides 360 degrees of direct access
to the smoke sensing chambers.
TWO LOCKING
FEATURES
Pins are provided to lock battery drawer
and/or alarm to base. Perfect for
apartment, dormitory or hotel
applications.
EASY ACCESS
BATTERY DRAWER
Listed to
Standard
UL 217
CAT. SA302B
SMOKE
ALARM
First Alert Model SA302 is a battery operated single station photoelectric and
ionization dual sensor smoke alarm specifically designed for residential and
institutional applications including sleeping rooms of hospitals, hotels, motels,
dormitories, and other multifamily dwellings as defined in standard NFPA 101.
Model SA302 has been fully tested and complies with, UL217, CSFM, NFPA 72,
and NFPA 101 and other agencies that model their codes after the above
agencies. It meets building codes where battery operated photoelectric and
ionization dual sensor with Silence smoke alarms are required and with model
building codes published by the ICC.
First Alert Model SA302 is a state of the art smoke alarm designed to provide
early warning of a fire. It features two smoke sensing chambers, photoelectric
and ionization, an 85dB horn, a supervised 9V alkaline battery power supply, a
single button test/silence switch, a silence feature to silence unwanted nuisance
alarms, a red LED light that indicates DC power or alarm. The alarm can also be
silenced by using most Infrared (IR) remote controls. Optipath 360 technologyTM
provides 360 degrees of direct access to the smoke sensing chambers. It also
features tamper resistant locking pins that lock the alarm to the mounting
bracket and/or the battery drawer to prevent removal of battery. Battery
installation and removal can occur while the unit is mounted to the ceiling or wall
via the slide out battery drawer. When battery power drops to a pre-set warning
level, the horn will “chirp” approximately once per minute to indicate a fresh
battery is needed. Designed for wall
or ceiling mounting. Includes
mounting anchors and
screws.
9V Battery Powered

brkelectronics.com

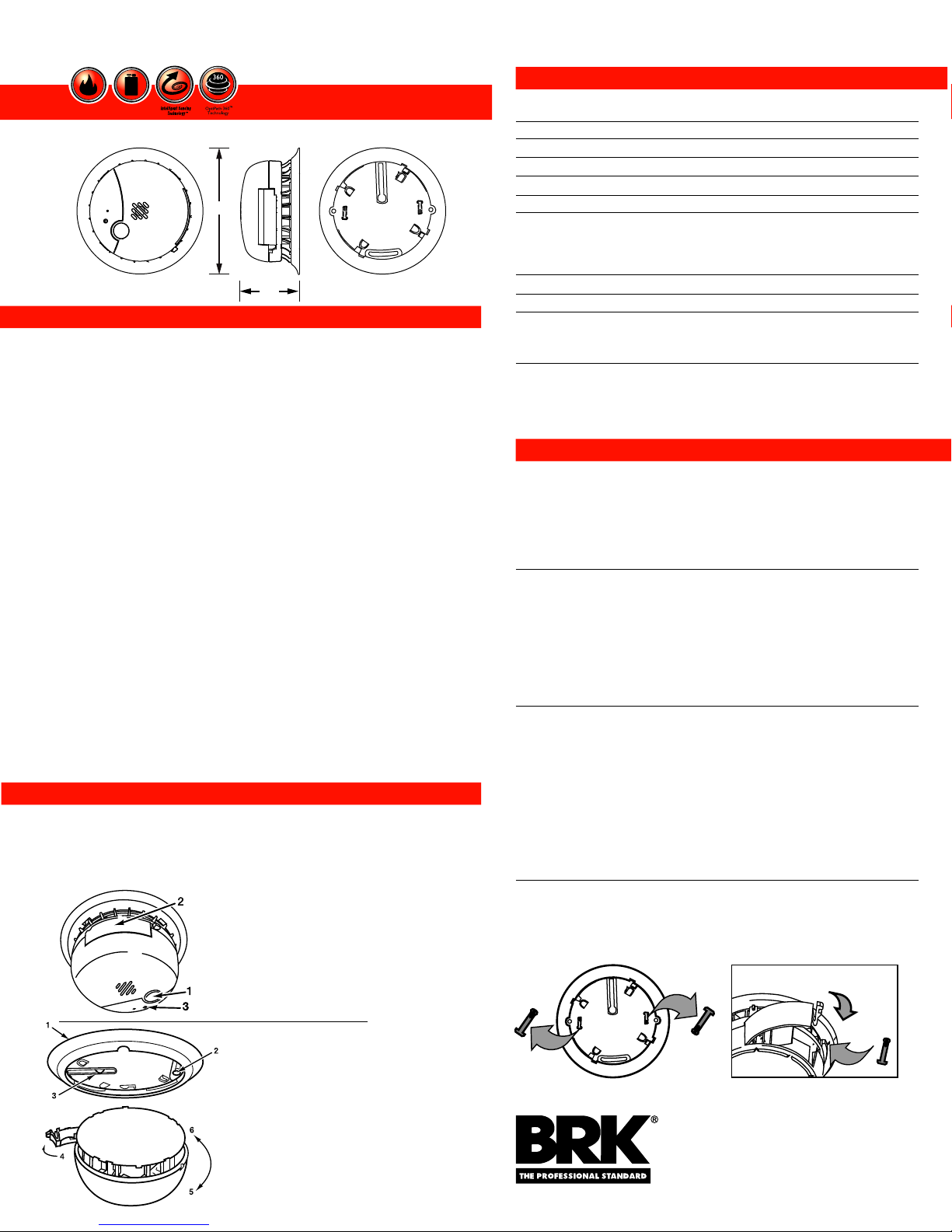

ARCHITECTURAL AND ENGINEERING SPEC
5.69”
TOP
VIEW
2.8”
INSTALLATION OF ALARM
The smoke alarm shall be a First Alert Model SA302 and shall provide at a minimum the
following features and functions:
1. Two sensing chambers - photoelectric and ionization.
2. The unit shall be capable of self restoring.
3. Fully screened sensing chambers to resist entry of small insects
 thereby reducing the probability of unwanted alarms.
4. Powered by a supervised 9V alkaline battery and a solid state piezo horn
 rated at 85dB at 10 ft.
5. A visual red LED power-on indicator to confirm unit is receiving power or
 is in alarm.
6. A full function test button should check all alarm functions by simulating a smoke 
 condition, causing the unit to alarm.
7. An infrared remote (IR) feature to test and/or silence the alarm with most  
 standard IR remote controls.
8. Two silence features - One to temporarily silence the low battery chirp for up 
 to eight hours and one to silence unwanted nuisance alarms for several minutes.
9. Optipath 360 Technology - provides 360 degrees of direct access to the  
 smoke sensing chambers.
10. Two Locking features - tamper resistant locking pins that lock battery drawer 
 and/or alarm to mounting bracket.
11. The unit shall be capable of operating between 40°F (4°C) and
 100°F (38°C) and relative humidity between 10% and 90%.
12. The unit shall contain mounting hardware and shall be listed for wall
 or ceiling mounting.
13. The unit shall at a minimum meet the requirements of UL217, CSFM,
 NFPA 72, NFPA 101, ICC.

Installation of this smoke alarm must conform to NFPA 72. Always check your local
building codes. Follow all instructions for placement as outlined in the user’s manual.
SHIPPING SPECS:
TECHNICAL SPECS
Individual Carton Dimensions  5.75 ”L x 2.875”W x 5.83”H
Weight  0.72lbs.
Cube  0.056 ft3
UPC  0 29054 14200 9

Master Carton Dimensions  12.063”L x 9.125”W x 6.563”H
Master Pack 6
Weight  4.78lbs.
Cube  0.418 ft3
UPC  100 29054 14200 6

Pallet Information 
Cases per Layer 15
Number of Layers 7
Cases per Pallet  105
Units per Pallet  630
Cube 56.6 ft3
Weight 567 lbs.
Alarm Dimensions:  5.69” dia x 2.8”H
Weight:  9.5 oz.
Operating Voltage:  9V Alkaline Battery Powered
Temperature Range:  40F (4C) to 100F (38C)
Humidity Range: 10% to 90% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition,   
 causing the unit to alarm
Remote: Use vol/chn buttons on most household IR remotes.
Manual: Press and hold test/silence button
Alarm Reset: Automatic when smoke clears
Smoke Sensors: Sensor 1: Photoelectric; Sensor 2: Dual Ionization
Indicator Lights/Sounds:
DC Power: Intermittent Red Light
Alarm: Audio alarm, rapidly flashing red light
Listing: UL to UL217 Standard
SIDE
VIEW MOUNTING BRACKET
CAT.SA302B
©2009 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM2909
THE PARTS OF THIS SMOKE ALARM
  BOTTOM OF ALARM
 1.  Mounting bracket
 2.  Horizontal
  mounting slot (1 of 2)
 3.  Vertical
  mounting slot (2 of 2)
 4.  Battery Drawer - Install
  9V battery here
 5.  Turn this way to
  remove from bracket
6.  Turn this way to
  attach to bracket
  TOP OF ALARM
 1.  Test/Silence button
 2.  Swing-open
  battery drawer
 3.  Red Alarm Light
BATTERY DRAWER LOCK
Remove Pin Close Door. Insert Pin in
Hole by Battery Drawer.
