First Choice lincat Silverlink 600 V6 User guide

SPARE PARTS DIAGRAM FOR
First Choice Group
Blakeney Way, Kingswood Lakeside
Cannock, Staffs, WS11 8LD
TEL: [phone] FAX: [phone]
Email: [email protected]
Web: www.firstchoice-cs.co.uk
Electric Convection Oven
Silverlink 600 Range

IS 218 ECN 3607 Page 1 of 7
Installation, Operating and Servicing
Instructions
Silverlink 600 Electric Convection Ovens
V6, V6/F, V6/D, V6/FD, V7, V7/4
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 218 ECN 3607 Page 2 of 7
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-5
Operating Instructions
5
Cleaning
5
Servicing, Maintenance and Component Replacement
6
Fault Finding
6
Spare Parts List
6
Accessories
6
Service Information and Guarantee
7
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 218 ECN 3607 Page 3 of 7
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
V6
650-670
600
600
46.0
V6/F
V6/D
47.0
V6/FD
V7
750
53.0
V7/4
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Shelves x 2
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.

IS 218 ECN 3607 Page 4 of 7
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Means of isolation with at least 3mm contact separation in all poles must be
incorporated into the fixed wiring of this appliance.
The fixed wiring insulation must be protected by insulated sleeving having a
temperature rating of at least 60 Deg C.
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

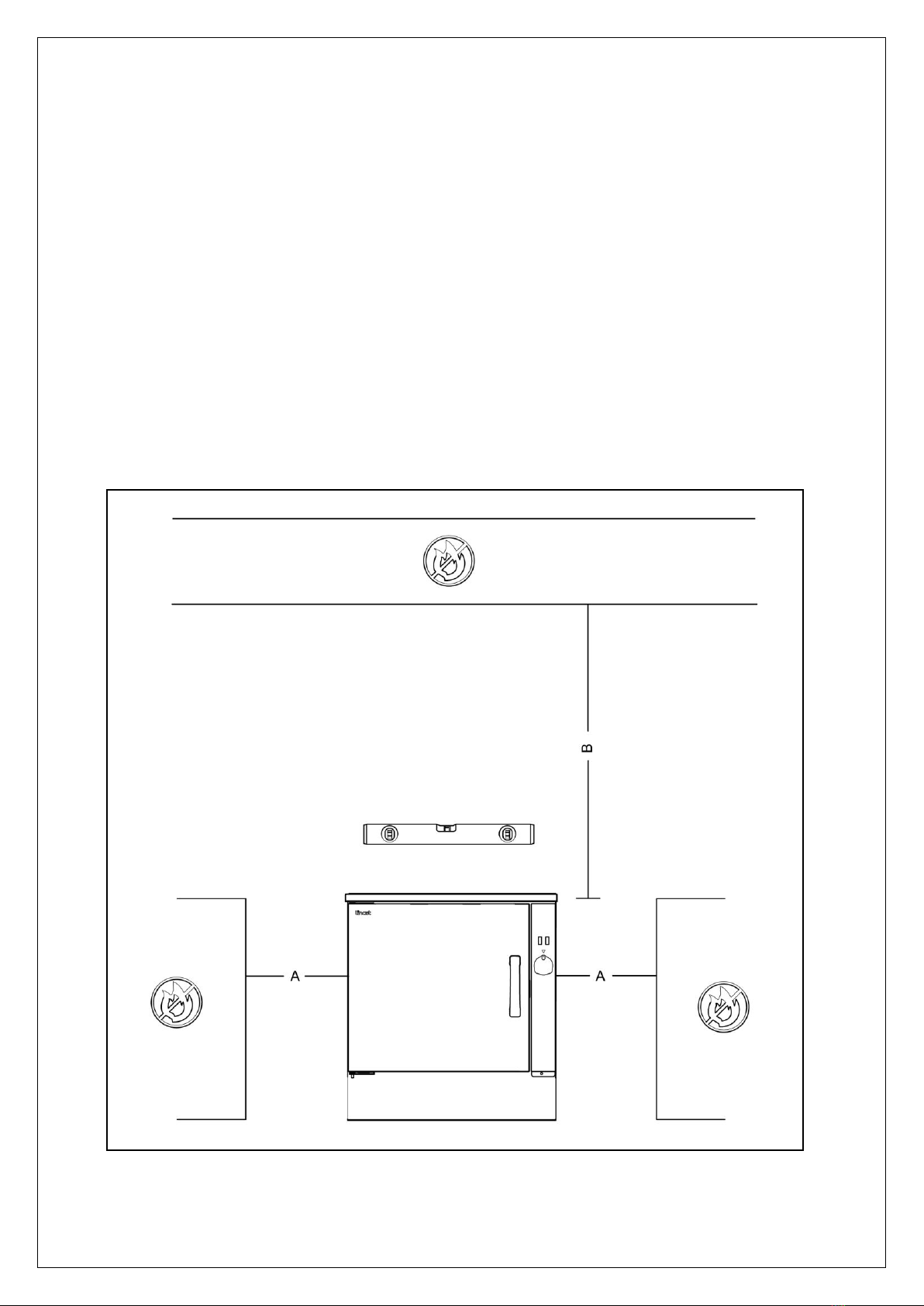

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 500mm –see Fig 1.
Fig 1

IS 218 ECN 3607 Page 5 of 7
The fitting of a fryer above this appliance is not recommended.
Power Ratings
Model
kW
Amps
V6
3.0
13.0
V6/F
V6/D
V6/FD
V7
V7/4
4.0
17.0
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
Connect the appliance to the supply. For V6 and V6/F the green neon will
illuminate. For other models, turn on at the green switch, which will illuminate.
Set the oven temperature using the thermostat control knob –the amber neon will
illuminate.
When the amber neon extinguishes, temperature is reached and product may be
loaded into the oven. The amber neon will cycle as the element operates to
maintain a constant oven temperature.
After use, switch off at the thermostat, then the green switch and then the electrical
supply.
For fan assisted models, switching off at the thermostat and allowing the fan to
keep running before switching off at the green switch and supply will allow the oven
to cool more quickly.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
Shelves and side racks may be removed for cleaning.

IS 218 ECN 3607 Page 6 of 7
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
All servicing, maintenance and component replacement on this appliance should be
carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
Part Number
Description
Used on
EL30
Element 2kW
V6, V6/D
EL31
Element 1kW
EL103
Element 3kW
V6/F, V6/FD, V7
EL110
Element 4kW
V7/4
FA12
Fan
V6/F, V6/FD, V7, V7/4
FE10
Foot
All
GL48
Glass
V6/D, V6/FD
HA92
Handle
All
KN189
Control knob
NE34
Green neon
V6, V6/D
NE41
Amber neon
All
PL202
Mains cable
V6, V6/F, V6/D, V6/FD, V7
RE28
Relay
V6/F, V6/FD, V7, V7/4
SE22
Side door seal
All
SE23
Top door seal
V7, V7/4
SH03
Shelf
V6, V6/F, V6/D, V6/FD
SH63
Shelf
V7, V7/4
SR1
Side rack
All
SW53
Switch - green
V6/F, V6/FD, V7, V7/4
TH46
Thermostat
All
Part Number
Description
Used on
V6/T
Top to convert to counter top unit
V6 models
SLS6/V
Floor stand for converted V6 model
V7/T
Top to convert to counter top unit
V7 models
SLS7/V
Floor stand for converted V7 model
FAULT FINDING
SPARE PARTS LIST
ACCESSORIES

IS 218 ECN 3607 Page 7 of 7
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION
