First Choice Moorwood Vulcan MLE60R-F-S User manual

SPARE PARTS DIAGRAM FOR
First Choice Group
Blakeney Way, Kingswood Lakeside
Cannock, Staffs, WS11 8LD
TEL: [phone] FAX: [phone]
Email: [email protected]
Web: www.firstchoice-cs.co.uk
Electric Oven
MLE60R-F-S / MLE90R-F-S /
MLE90R-F-RS / MLE90BT-F-R-S

Manual Part No: 930158-01 MD Electric Range - 1 –
Manual Rev No: 1
MEDIUM DUTY
ELECTRIC
GENERAL PURPOSE RANGE,
OVENS & BOILING TABLES
OWNER’S MANUAL

Manual Part No: 930158-01 MD Electric Range - 2 –
Manual Rev No: 1
Model No. Product Description Rev. Date
MLE60R-F-S
MLE60R-F-RS
MLE90R-F-S
MLE90R-F-RS
MLE90BT-F-S
MLE90BT-F-RS
MLST90EGP-F
M-Line Ranges
600 Range - 2 Solid Plates
600 Range - 1 Solid/2 Rings
900 Range - 3 Solid Plates
900 Range - 2 Solid/2 Rings
900 Boiling Table - 3 Solid Plates
900 Boiling Table - 2 Solid Plates/2 Rings
900 Single Tier General Purpose Oven
3
3
3
3
2
2
1
14/08/00
14/08/00
14/08/00
14/08/00
14/08/00
14/08/00
28/01/02

Manual Part No: 930158-01 MD Electric Range - 3 –
Manual Rev No: 1
INDEX
Page
CoverSheet: 1
RevisionSheet: 2
Index: 3
Introduction: 4&5
General Introduction 4
ImportantNote 5
Specification: 6-18
Electric Supply/Connection 6 & 7
Dimensions 7-11
WiringDiagrams 12-18
Installation: 19-22
ImportantNote 19
Positioning 19
ElectricalConnection 20
Checking & Commissioning 20
900 Grill over Range 21
600 Grill over Range 22
UserInstructions: 23-27
ImportantNote 23
Operation 24&25
Cleaning 25 - 27
Service & Maintenance: 28 - 30
Routine Maintenance 28
FaultFinding 29
Instructions 29-31
SpareParts: 32
WarrantyCoverSheet: 33

Manual Part No: 930158-01 MD Electric Range - 4 –
Manual Rev No: 1
INTRODUCTION
This manual contains all the required information to ensure that your new appliance is installed correctly
and that you have all the information necessary to identify and order spare parts. It also contains
comprehensive instructions for the user and for cleaning the appliance.
To maintain peak performance, it is recommended that the appliance be regularly serviced and that
when ordering spare parts, reference be made to the appropriate list quoting the Part No. and the
description therein. THE FITTING OF A NON-STANDARD PART MAY VOID ANY GUARANTEE.
All work carried out on this appliance during installation or servicing MUST be performed by a
competent person and the connection of the appliance to the electricity supply MUST be carried out by
qualified personnel in accordance, where applicable, with the relevant regulations.
The siting of the appliance and the connection to the electricity supply must comply with the
requirements of the FIRE PRECAUTIONS ACT 1971; the HEALTH & SAFETY AT WORK, ETC ACT 1974,
the BUILDING STANDARDS (SCOTLAND) CONSOLIDATION REGULATIONS 1971.
The installation MUST comply with the requirements of Local Authority Regulations and the wiring must
comply with the latest I.E.E. Regulations.
An easily accessible fused mains isolator MUST be fitted in the electricity supply.
The details of the electricity supply will be found on the Data Plate, which is located on the rear of the
flue upstand/splashback panel.
WARNING: THIS APPLIANCE MUST BE ELECTRICALLY EARTHED.
Improvements
The policy of Viscount Catering Ltd is such that, each product is subject to continual development and
may, therefore, be subsequently improved. The company reserves the right to alter the design of any
appliance without prior notification and without the responsibility to update any delivered or in-service
appliance and furthermore, without incurring the responsibility for altering these instructions. In such
circumstances, it may be found that the appliance detailed herein differs in certain respects from the one
supplied.
IT IS IMPORTANT, THEREFORE, TO QUOTE THE SERIAL No. AND THE APPLIANCE MODEL No. IN ALL
COMMUNICATIONS WITH THE COMPANY.

Manual Part No: 930158-01 MD Electric Range - 5 –
Manual Rev No: 1
Introduction (cont.)
Important
Before installing any item please refer to the installation instructions.
We recommend that all servicing other than routine cleaning be carried out by our authorised service
agents and will accept no responsibility for work carried out by other persons.
For satisfactory operation parts of catering equipment become hot. Suitable precautions must be taken
to avoid accidental burns therefore the appliance should be positioned to minimise the possibility of
accidental touching. It is the supervisors’ responsibility to warn users to wear suitable protection and to
follow correct operation and cleaning procedures.
For the details of your nearest Service Agent for all warranty and repair work, you should contact: -
The Service Manager,
Viscount Catering Limited
Provincial Park
Nether Lane
Ecclesfield
Sheffield
S35 9ZX
Tel: [phone]
Fax: [phone]
Spares can be obtained via the Spare Parts Department at the above address.
IT IS IMPORTANT, TO QUOTE THE SERIAL No. AND THE APPLIANCE MODEL No. IN ALL
COMMUNICATIONS WITH THE COMPANY.

Manual Part No: 930158-01 MD Electric Range - 6 –
Manual Rev No: 1
SPECIFICATION
900 Range - 3 Solid Plates - (MLE90R-F-S)
Supply - 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading - L1 - 6.0kW, L2 - 6.0kW, L3 - 3.0kW (1 Phase - 15.0kW)
Oven - 6.0kW
Solid Hotplate - 3 x 3.0kW
Total - 15.0kW
Weight - 128kg
900 Range - 2 Solid Plates, 2 Round Hotplates - (MLE90R-F-RS)
Supply - 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading - L1 - 6.0kW, L2 - 6.0kW, L3 - 3.5kW (1 Phase - 15.5kW)
Oven - 6.0kW
Solid Hotplate - 2 x 3.0kW
Round Hotplate- Front - 1.5kW, Rear - 2kW
Total - 15.5kW
Weight - 127kg
600 Range - 2 Solid Plates - (MLE60R-F-S)
Supply- 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading - L1 - 4.0kW, L2 - 3.0kW, L3 - 3.0kW (1 Phase - 10.0kW)
Oven - 4.0kW
Solid Hotplate - 2 x 3.0kW
Total - 10.0kW
Weight - 98kg
600 Range - 1 Solid Plate, 2 Round Hotplates - (MLE60R-F-RS)
Supply - 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading - L1 - 4.0kW, L2 - 3.0kW, L3 - 3.5kW (1 Phase - 10.5kW)
Oven - 4.0kW
Solid Hotplate - 3.0kW
Round Hotplate- Front - 1.5kW, Rear - 2.0kW
Total - 10.5kW
Weight - 97kg
900 Boiling Table - 3 Solid Plates - (MLE90BT-F-S)
Supply - 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading - L1 - 3.0kW, L2 - 3.0kW, L3 - 3.0kW (1 Phase - 9.0kW)
Solid Hotplate - 3 x 3.0kW
Total - 9.0kW
Weight - 54kg

Manual Part No: 930158-01 MD Electric Range - 7 –
Manual Rev No: 1
Specification (Cont.)
900 Boiling Table - 2 Solid Plates, 2 Round Hotplates - (MLE90BT-F-RS)
Supply - 400V, 50Hz, 3 Phase (alternative 240V, 50Hz, 1 Phase)
Phase Loading- L1 - 3.0kW, L2 - 3.0kW, L3 - 3.5kW (1 Phase - 9.5kW)
Solid Hotplate- 2 x 3.0kW
Round Hotplate- Front - 1.5kW, Rear - 2.0kW
Total - 9.5kW
Weight - 53kg
900 Single Tier General Purpose Oven – (MLST90EGP-F)
Supply - 240V, 50Hz 1 Phase
Phase Loading - 6.0KW
Oven - 6.0KW
Total - 6.0KW
Weigh - 10.5KG
Dimensions
900 Range 600 Range
OVERALL SIZE
Width 900mm 600mm
Depth 760mm 760mm
Height 950mm 950mm
INTERNAL SIZE
Width 705mm 405mm
Depth 590mm 590mm
Height 480mm 480mm
SHELF AREA
Width 685mm 385mm
Depth 505mm 505mm
Cooking Volume 0.17m30.09m3

Manual Part No: 930158-01 MD Electric Range - 8 –
Manual Rev No: 1
Specification (cont.)
Wiring Variations to Back-Outer Terminal Block
927883-01

Manual Part No: 930158-01 MD Electric Range - 9 –
Manual Rev No: 1
Specification (cont.)
Dimensions – MLE90R-F-S, MLE90R-F-RS, MLE90BT-F-S & MLE90BT-F-RS

Manual Part No: 930158-01 MD Electric Range - 10 –
Manual Rev No: 1
Specification (cont.)
Dimensions – MLST90EGP-F

Manual Part No: 930158-01 MD Electric Range - 11 –
Manual Rev No: 1
Specification (cont.)
Dimensions – MLE60R-F-S & MLE60R-F-RS

Manual Part No: 930158-01 MD Electric Range - 12 –
Manual Rev No: 1
Specification (cont.)

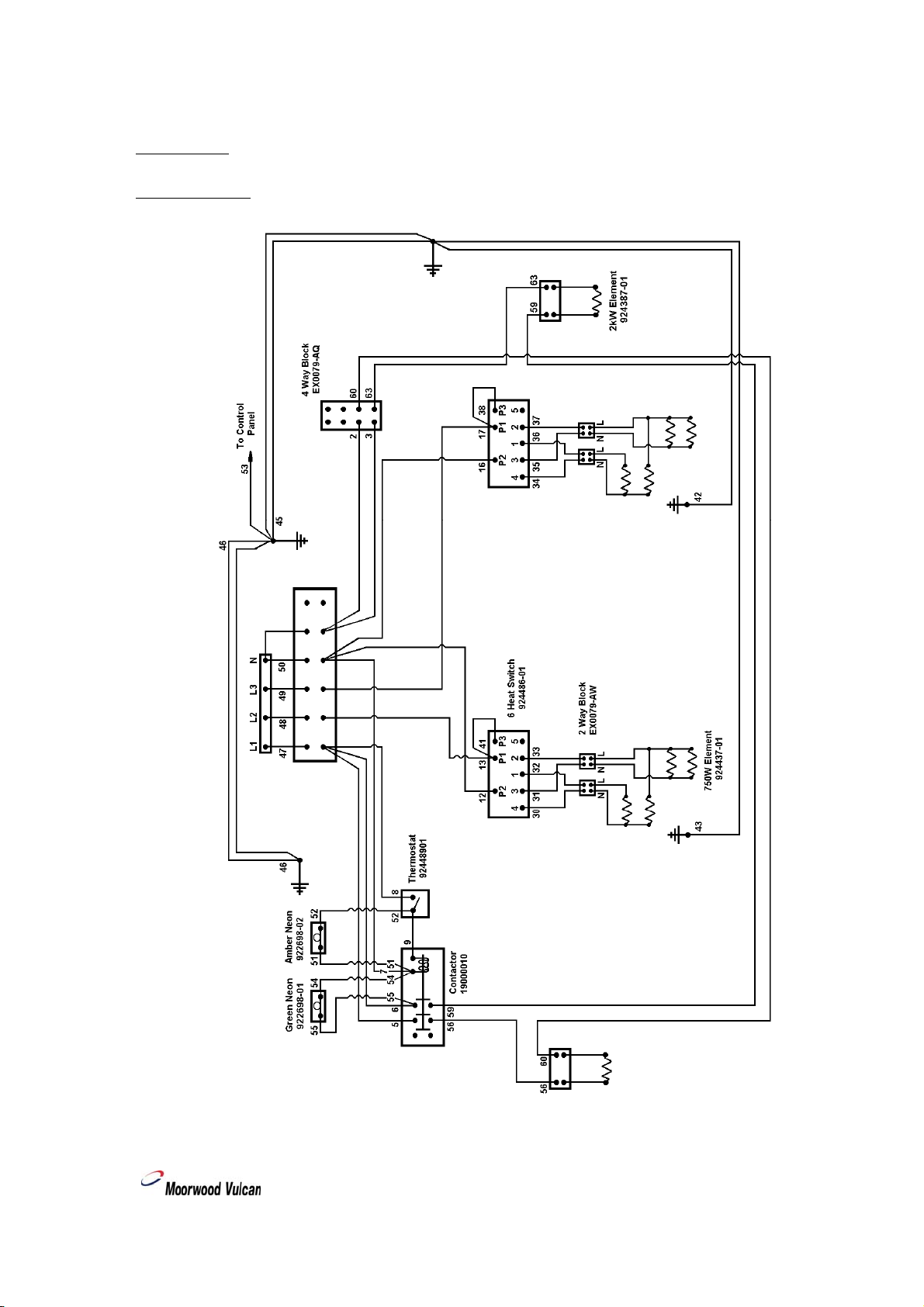

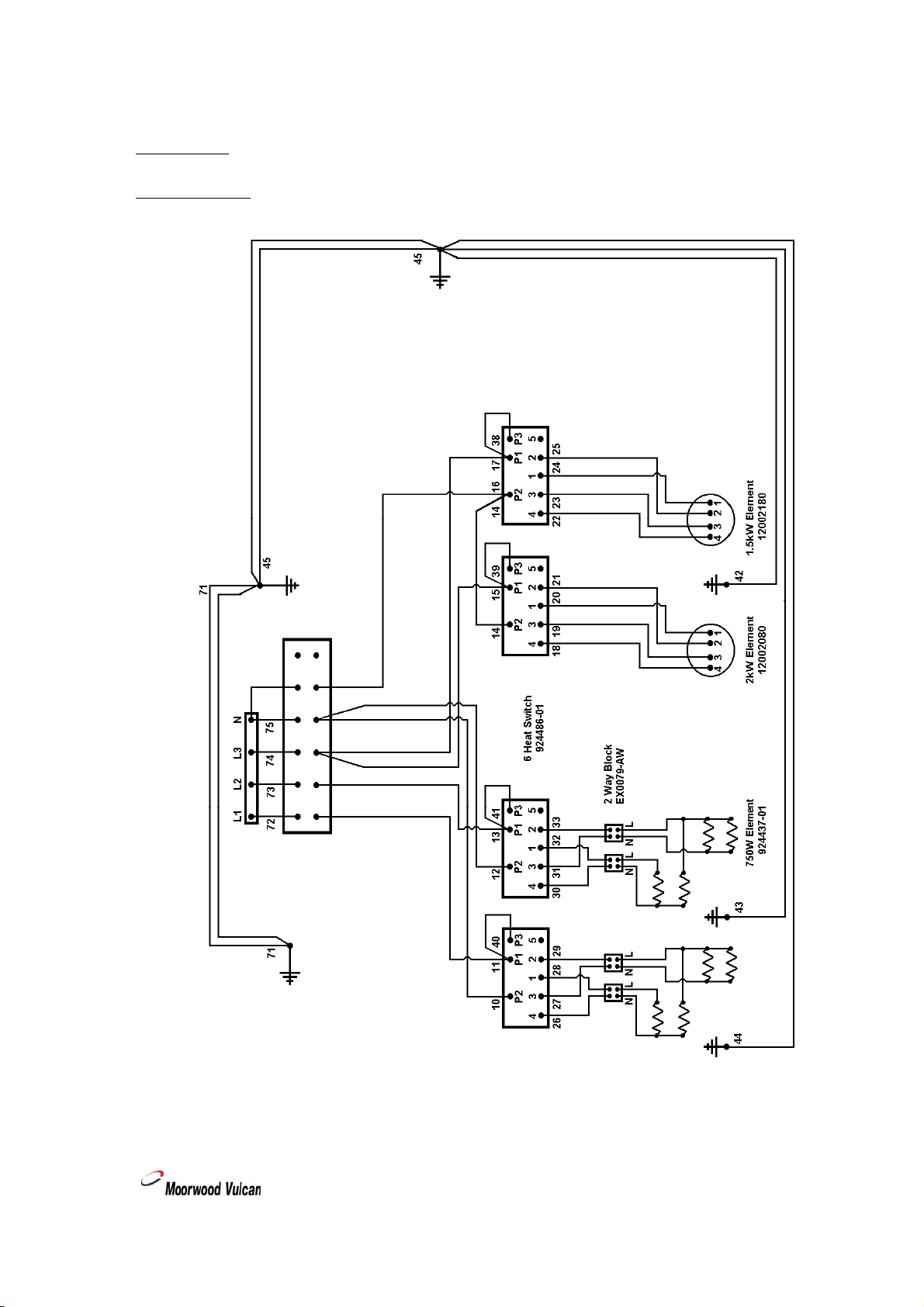

Wiring Diagrams – MLE90R-F-S

Manual Part No: 930158-01 MD Electric Range - 13 –
Manual Rev No: 1
Specification (cont.)

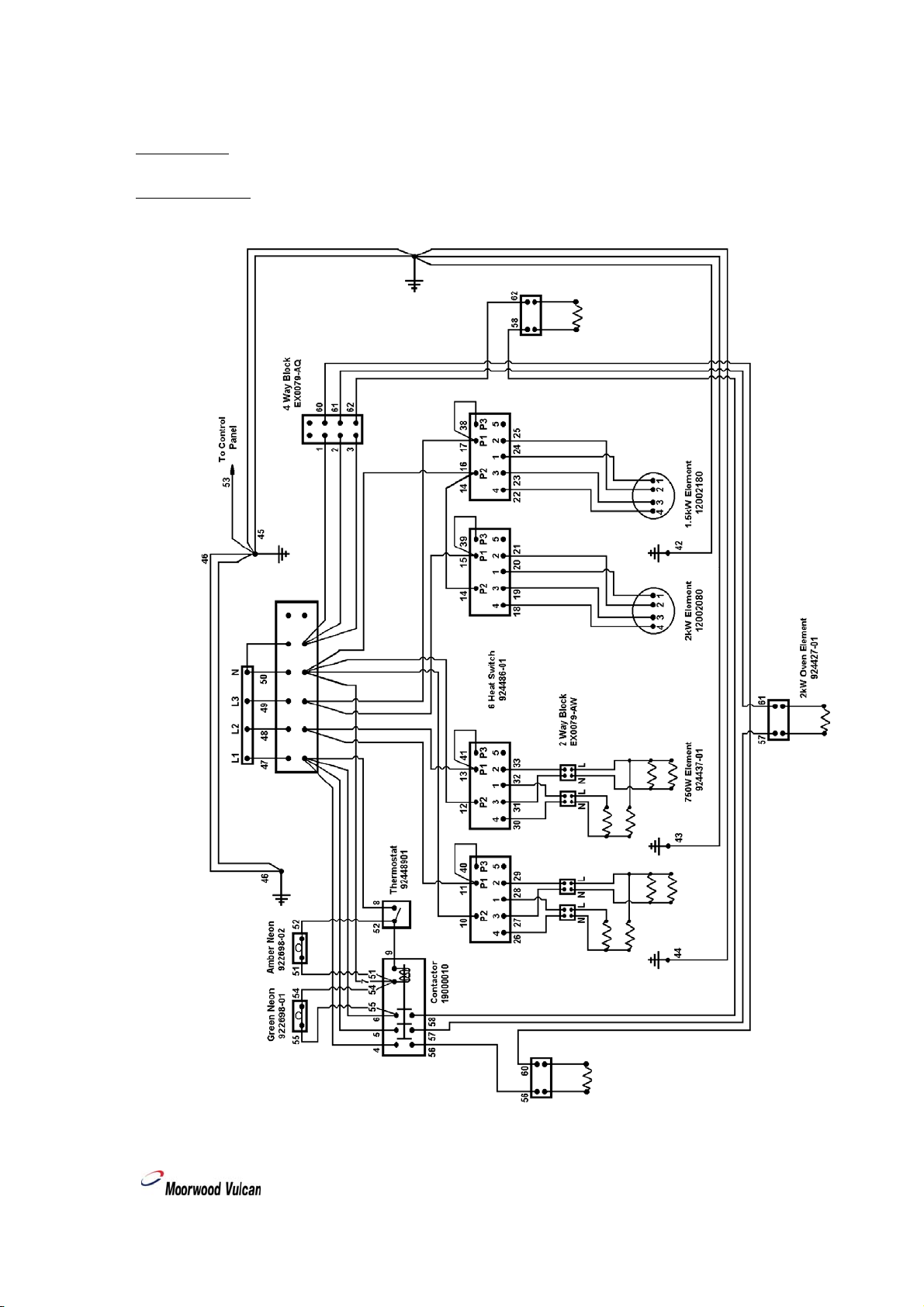

Wiring Diagrams - MLE90R-F-RS

Manual Part No: 930158-01 MD Electric Range - 14 –
Manual Rev No: 1
Specification (cont.)
Wiring Diagrams – MLE60R-F-S

Manual Part No: 930158-01 MD Electric Range - 15 –
Manual Rev No: 1
Specification (cont.)
Wiring Diagrams – MLE60R-F-RS

Manual Part No: 930158-01 MD Electric Range - 16 –
Manual Rev No: 1
Specification (cont.)
Wiring Diagrams – MLE90BT-F-S

Manual Part No: 930158-01 MD Electric Range - 17 –
Manual Rev No: 1
Specification (cont.)
Wiring Diagrams – MLE90BT-F-RS

Manual Part No: 930158-01 MD Electric Range - 18 –
Manual Rev No: 1
Specification (cont.)
Wiring Diagrams – MLST90EGP-F

Manual Part No: 930158-01 MD Electric Range - 19 –
Manual Rev No: 1
INSTALLATION
Important
This appliance MUST be installed by a competent person in accordance with these and any other relevant
regulations.
The installation wiring MUST comply with the latest I.E.E. Regulations.
WARNING: THIS APPLIANCE MUST BE ELECTRICALLY EARTHED.
Before Installation
Before commencing installation, remove all packaging materials from the appliance. It is suggested that
any protective film adhering to the stainless steel panels should be left on until installation is completed.
BUT THIS MUST BE REMOVED BEFORE COMMISSIONING OR OPERATING THE APPLIANCE.
Check the appliance Data Plate (fitted to the back panel), to ensure that the appliance is suitable for the
electricity supply available.
Ensure that the floor upon which the appliance is to stand is level and capable of adequately supporting
the weight of the appliance. TO COMPENSATE FOR SOME UNEVENNESS OF THE FLOOR, THE
APPLIANCE FEET ARE ADJUSTABLE.
THE FLOOR MUST BE FIRE PROOF. If it is not, or if any adjacent wall or surface is made of a combustible
material, then the installer must ensure that the requirements of the LOCAL FIRE REGULATIONS are
observed.
Positioning
Place the appliance in position allowing a minimum of 150mm (6”) at the rear and at least
150mm (6”) between the sides of the appliance and any adjacent wall. If the appliance is being suited
please refer to the separate instructions. The minimum distance between the top of the appliance and
any overshelf or ceiling constructed of a combustible material must be 1525mm.
It is recommended that the appliance be sited below a ventilating hood, one preferably connected to an
extractor system incorporating a grease filter.
Ensure that the appliance is level in two places - front to rear and side to side. To check the level it is
recommended that a spirit level be placed on the oven shelf.
