Touchless Dispenser
Model FS-HSP-1
Operator’s Manual
Touchless Dispenser Model FS-HSP-1 Operator’s Manual
1

PACKAGE INCLUDES
1 – Touchless Dispenser 1 – 9.8 in (25 cm) Silicone Siphon Tube
5 – Interchangeable Bottle Opening Gaskets
(one attached to the dispenser)
1 – Instruction Manual
SPECIFICATIONS
Overall Dimensions 3.75 x 2 x 4.5 in
Unit Materials ABS
Sensor Range 0~2 in
Liquid Amount Seconds 0.3,0.5,0.7
Battery Type 3 AAA batteries (not included)
INSTALLATION INSTRUCTIONS
NOTE: Avoid using on a mirror surface which could activate the dispenser.
1. Install Batteries
• Press and slide the battery cover down (per arrow) to remove it (A).
• Insert 3 new AAA alkaline batteries in the correct +/- positions (B).
• Place battery cover back on dispenser and slide up into locked position (C).
A B C
2
Touchless Dispenser Model FS-HSP-1 Operator’s Manual

2. Select the silicone gasket which fits your bottle. Please try each gasket on the bottle to
determine the gasket which fits best. Save the other 4 gaskets for future bottles which have
different opening size.
3. Attach gasket to bottom of dispenser (A), then attach the silicone tube to nozzle (B).
4. Push gasket in bottle opening until secure.
Note: you do not need to cut the silicone tube length for different size bottles. It is made to
work on most liquid soap and hand sanitizer bottles.
BA
Currently attached
3
Touchless Dispenser Model FS-HSP-1 Operator’s Manual

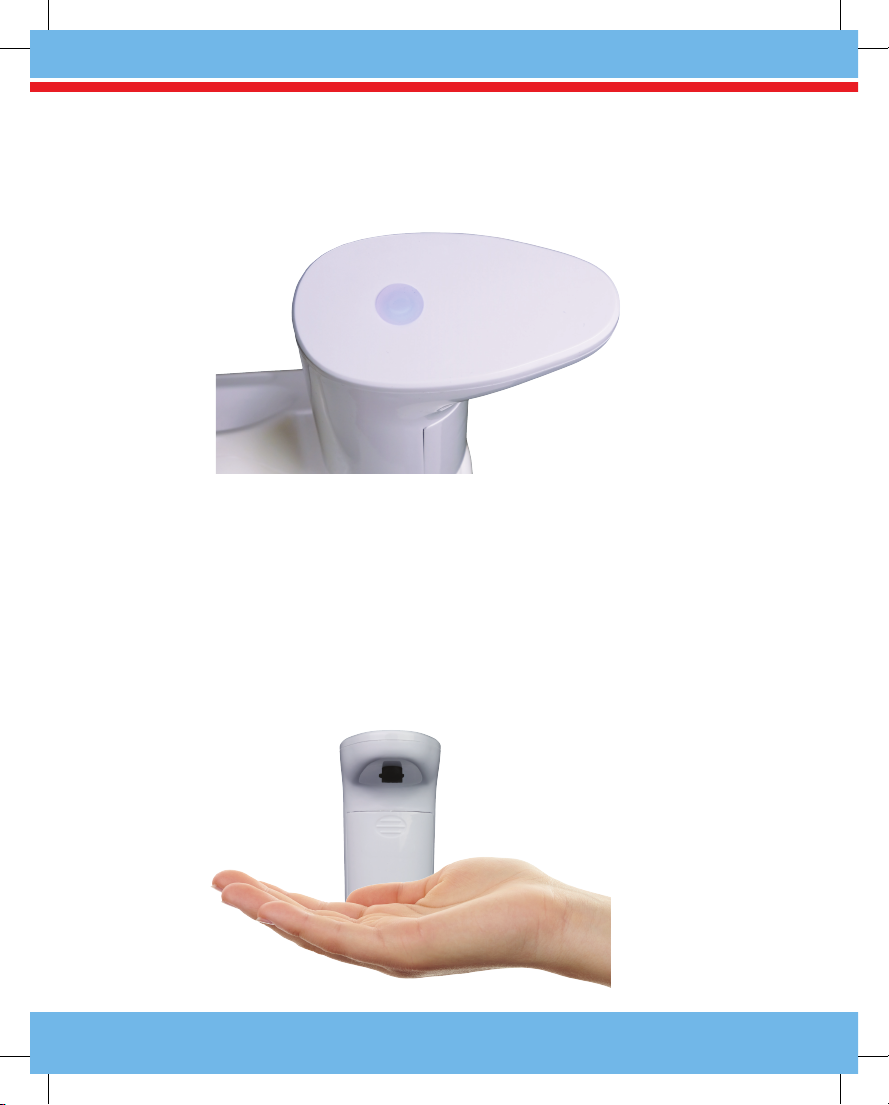

5. To turn pump on, press and hold the silicone button until the blue LED lights up for 2
seconds. Release your finger when the blue LED light is on. The light will go off as the product
enters stand-by mode. In this condition your hand will trigger the pump to release the liquid
automatically, and the blue LED light will flash at the same time.
To adjust the desired amount of liquid that is dispensed from the pump, press the POWER
button to cycle through setting options below. Default is 0.3 seconds. Each time you press the
POWER button, the pump will cycle to the next setting:
• Low Volume Setting, LED will blink once (0.3 seconds duration) – This is the default
setting when you first turn the pump on.
• Medium Volume Setting, two blinks (0.5 seconds duration).
• High Volume Setting, three blinks (0.7 seconds duration).
6. If this is the first use of the dispenser, place your hand underneath the infrared sensor (within
2 inches) several times until the soap begins to dispense from the spout. This will prime the
pump.
4
Touchless Dispenser Model FS-HSP-1 Operator’s Manual

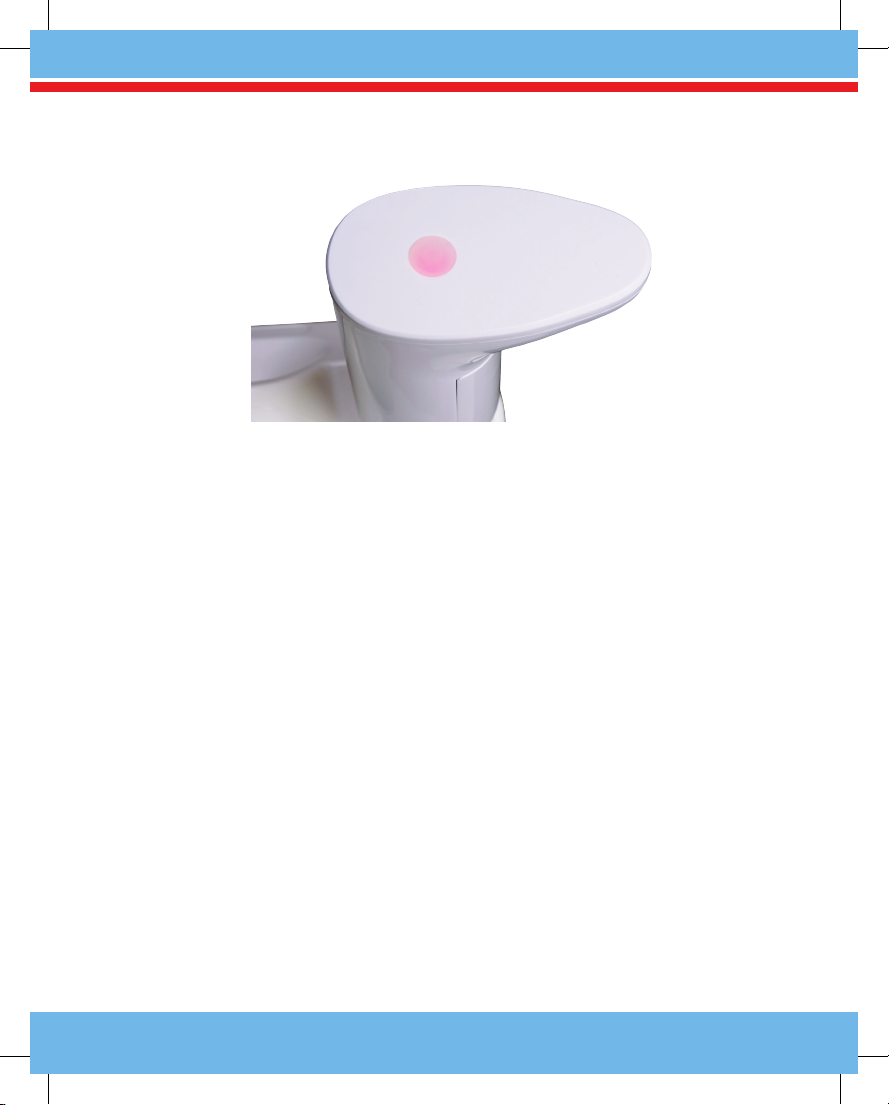

7. To turn off from standby mode, press and hold the POWER button until the red LED lights up
for 2 seconds. The pump will power off.
Low Voltage Indicator
When the battery voltage is low, the red LED flashes continuously. Replace the 3 AAA batteries per
#1 above, the pump will continue to work until battery is exhausted.
TROUBLESHOOTING GUIDE
Dispenser does not power on.
1. Make sure the batteries are placed in the battery compartment correctly and that they are
fresh.
2. Check if the LED button has been pressed to turn on.
Motor works but no liquid soap or hand sanitizer is dispensed.
1. If this is the first use of the dispenser, place your hand underneath the infrared sensor (within
2 inches) several times until the soap begins to dispense from the spout. This will prime the
pump.
2. Liquid soap and hand sanitizer can become congealed in the spout or dispensing tube due to
lack of use of the dispenser, or from cold/dry weather. If that has occurred, locate an empty
bottle and fill with warm soapy water and then operate the dispenser several times until the
water begins to dispense from the spout. When PUMP works correctly, place the PUMP back
into original bottle with the liquid hand soap or hand sanitizer.
3. Confirm that you are using liquid soap or hand sanitizer that is:
• Non-foaming
• Non-granular
5
Touchless Dispenser Model FS-HSP-1 Operator’s Manual

CARE AND MAINTENANCE
1. Place the dispenser and bottle on a flat, level surface.
2. This product is for indoor use. Do not use in direct sunlight as it will destroy the infrared sensor.
3. Always keep the dispenser straight and upright.
4. Never immerse the battery compartment into water or other liquid.
5. If you will not use the dispenser for an extended period of time, please remove from the liquid
bottle, clean the dispenser and remove the batteries. Store it in a dry place.
6. Clean the dispenser’s surface with a damp towel and the battery compartment with a dry
towel. Clean the dispenser tube regularly.
7. Use non-granular and non-foaming liquid soap and hand sanitizer.
8. Do not use rechargeable batteries. Never insert new and old batteries into the battery
compartment at the same time.
9. Install the battery cap after replacing batteries.
DISPOSAL
When this appliance has reached the end of its life, please dispose of the unit properly. This and
other electrical appliances contain valuable materials that can be recycled. Electronic waste may
be harmful to our environment if not disposed of properly. We ask that you follow your governing
agency’s rules and regulations when disposing of electronic appliances. Please find an authorized
recycling facility near you.
CONTACT
If you have any questions or need assistance, please contact our customer service department at
877-217-7923 or e-mail us at info@firstsafetyco.com. Please read the operating instructions before
using this product. Please keep the original box and packaging materials if replacement is required.
First Safety
45 Bartlett Street, Marlborough, MA 01752
877-217-7923
info@firstsafetyco.com
www.firstsafetyco.com
6
Touchless Dispenser Model FS-HSP-1 Operator’s Manual

FCC STATEMENT
(Federal Communications Commission)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Class B Digital Device. This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency (RF) energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However there is no guarantee that interference will not occur in a particular installation. If this
equipment does not cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interface by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
• Consult an experienced radio/TV technician for help
Caution to the user. The Federal Communications
Commission warns the users that changes or modifications
of the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate
the equipment.
