Fisher & Paykel PROFESSIONAL EB30PSX1 User manual

USER GUIDE
US CA
BUILT-IN
COFFEE MAKER
PROFESSIONAL
EB0PSX1 models

3
CONTENTS
Safety and warnings 4
Before you begin 7
Control panel 8
Accessories 9
First use 10
Coffee making guide 17
Steaming milk 22
Hot water 27
Custom drink settings 28
Customizing drinks 30
Settings 31
Auto start 33
Care and cleaning 34
Descaling 44
Water filter 47
Alerts 49
Troubleshooting 52
Warranty and service 54
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
!WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – some edges are sharp.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
WARNING!
To reduce the risk of fire, electrical shock, injury to persons or damage when using the
appliance, follow the important safety instructions listed below. Read all the instructions
carefully before use. Use only for its intended purpose as described in these instructions.
General
zThis appliance is for household use only.
zMake sure the voltage of your electrical system corresponds to the voltage shown on
the bottom of the machine.
zDo not touch hot surfaces. Use handles or knobs.
zTo protect against fire, electrical shock and personal injury, do not immerse cord, plug
or appliance in water or other liquid.
zKeep the appliance out of reach of children and do not leave appliance unattended
while in operation.
zDo not operate with a damaged cord or plug, or after the appliance malfunctions,
or has been damaged in any manner. Return the appliance to the nearest authorized
service facility for examination, repair or adjustment.
zThe use of accessory attachments not recommended by the manufacturer may result in
fire electrical shock, or personal injury.
zDo not use outdoors.
zMake sure the power cord does not hang over the edge of the table or counter-top to
avoid getting accidentally caught or entangled.
zDo not place the appliance or its electrical parts on or near electric stoves, cooking
surfaces, or gas burners.
zPlug cord into the wall outlet. To disconnect, first turn machine “off”, then remove plug
from wall outlet.
zDo not use the appliance for other than the intended use. This appliance is to be
utilized for domestic use only. The manufacturer declines all responsibility for any
damage caused by improper, incorrect, or irresponsible use.
zWARNING: To reduce the risk of fire or electric shock, do not remove the cover or the
exterior of the unit. Do not attempt to repair or modify the machine, doing so will void
the warranty. Repair should be done by authorized service personnel only!
zA short power cord is provided to reduce risks resulting from becoming entangled in or
tripping over a longer cord.

5
SAFETY AND WARNINGS
zLonger, detachable power supply cords or extension cords are available and may be
used if care is exercised in their use.
zIf an extension cord is used, the marked electrical rating should be at least as great
as the electrical rating of the appliance. If the appliance is provided with 3- wire,
grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The
longer cord should be arranged so that it will not drape over the counter-top or table
top where it can be pulled on by children or tripped over.
zThe coffee system must be maintained daily to prevent the growth of harmful bacteria
and mold. Please refer to ‘Care and cleaning’ section of the booklet.
zImportant! Do not look directly or with an optical instrument into the lighting.
zDanger of burns! Risk of burns when dispensing hot beverages, they are extremely hot.
zPersons which lack physical, sensory or mental abilities or experience with the machine
should not use it without supervision or instruction by a responsible person.
zClose supervision is necessary when any appliance is used by or near children.
zTo avoid injuries allow the coffee system to cool before cleaning or putting on
and taking off parts. Turn the machine off at the main switch when not in use and
before cleaning.
zOnly fill the water tank with cold, fresh tap water. Warm or hot water, or any other
liquids may damage the machine.
zThe water should be changed daily to prevent bacteria or mold growth.
zDo not use mineral water. Mineral water leads to heavy calcium build-up in the machine
that can damage the unit.
zDo not fill anything but coffee beans into the beans container. Do not fill ground coffee
in the beans container, it will damage the grinding unit.
zSugar can damage the appliance! Caramelized or otherwise pre-treated coffee beans or
other sugar containing beverages must not be put in the machine.
zNever place a cup with an alcohol-coffee mixture underneath the coffee dispenser.
Plastic parts of the unit could catch fire!
zThe hot water and steam dispensed could cause scalding. These functions must be used
carefully. Never hold any parts of the body under the steam nozzle or the hot water
dispenser. The machine must never be used to clean objects.
zNever use a steam cleaner to clean the appliance. Pressurized steam could damage
electrical components and cause a short circuit.
zThe appliances must be descaled regularly with the supplied descaling solution.
In areas with very hard water the machine may need to be descaled more
often. The manufacturer cannot be held responsible for damages resulting from
insufficient descaling.
zOnly use the supplied descaling solution. Take care to use the correct mixture of water
and descaler, otherwise it may cause damage.
zNever make coffee, hot water or steam when the appliance is extracted. Always make
sure the appliance is inactive before extracting it. Failure to observe this precaution
could lead to damage to the appliance! The only exception is adjusting the coffee mill
which must be done with the machine out (see the section ‘Adjusting the coffee mill’).
zDo not place on or near a hot gas or electric burner, or in a heated oven.
zTo reduce the risk of fire, do not mount unit over or near any portion of a heating or
cooking appliance.
zTo reduce the risk of electric shock, do not mount over a sink.
zDo not allow children and animals to stop or linger near the appliance when it is pulled
out of the cabinet.

6
SAFETY AND WARNINGS
zDo not leave the machine pulled out of the cabinet when it is being used.
zDo not leave the machine pulled out of the cabinet when it is not needed.
zUnplug from outlet when not in use and before cleaning. Allow to cool before putting
on or taking off parts, and before cleaning the appliance.
zDo not let cord hang over edge of table or counter, or touch hot surfaces.
zScalding may occur if the lid is removed during the brewing cycles.
zTo disconnect, turn any control to “off,” then remove plug from wall outlet.
SAVE THESE INSTRUCTIONS
Your product is equipped with a polarized alternating current line plug (a plug having
one blade wider than the other). This plug will fit into the power outlet only one way. This
is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug.

7
BEFORE YOU BEGIN
1!5
2
4
5
6 8 9
!1
!2
!3
zMake sure the installer has completed the ‘Final checklist’ in the Installation instructions.
zRead this guide, taking special note of the ‘Safety and warnings’ section.
zRemove all internal and external packaging and dispose of it responsibly. Recycle items
that you can.
zAfter removing the packaging, make sure the product is complete. If the appliance
zis damaged, contact customer support.
zCoffee has been used to factory test the appliance, so there may be traces of coffee in
the mill.
zWe recommend customising water hardness as soon as possible following the
instructions in the section ‘Setting water hardness’.
Coffee machine features
1 Beans container/Ground coffee funnel
2 Control panel
3 Handle
4 Standby button
5 Grounds container
6 Coffee dispenser spouts
7 Lower door panel
8 Drip tray
9 Light
!0 Hot water/steam connection
!1 Accessories storage
!2 Water tank
!3 Main power switch
!4 Cup warmer
!5 Power plug
3
7!0
!4

8
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH
CONTROL PANEL
Control panel features
1 My menu
2 Customisable profiles
3 Scroll arrows
4 Beverage selection
5 Settings menu
6 Coffee strength
7 Clock
8 Coffee size
9 Strength selection
!0 Size selection
Using the touch controls
Your coffee machine is operated using a
touch keypad and display. To use the keypad
to navigate between functions and settings,
use the ball of your finger, not its tip. The
controls respond to touch, so pressure is not
needed.
10:45
COOK BY
FUNCTION
COOK BY
FOOD TYPE
COOK BY
RECIPE
1
2
3
5 6 7 8 9
!0
3
4

9
6 Coffee strength
7 Clock
8 Coffee size
9 Strength selection
!0 Size selection
ACCESSORIES
Connection
nozzle cover
Steam wand/
Hot water spout
Water hardness
indicator paper
Ground coffee
measure
Descaler
Water softener
filter
Cleaning brush
Milk container

10
Ensure the main power switch at the side
of the appliance is turned on.
Touch or until the flag
corresponding to the required language
appears on the display.
Touch the flag to select.
FIRST USE
Setting a language
You’ll need to select a language when your appliance is first turned on, or after a power cut.
1
2
3
English Deutsch
Select
language
Back
Italiano Français
Connect the appliance to the mains
electricity supply.

11
FIRST USE

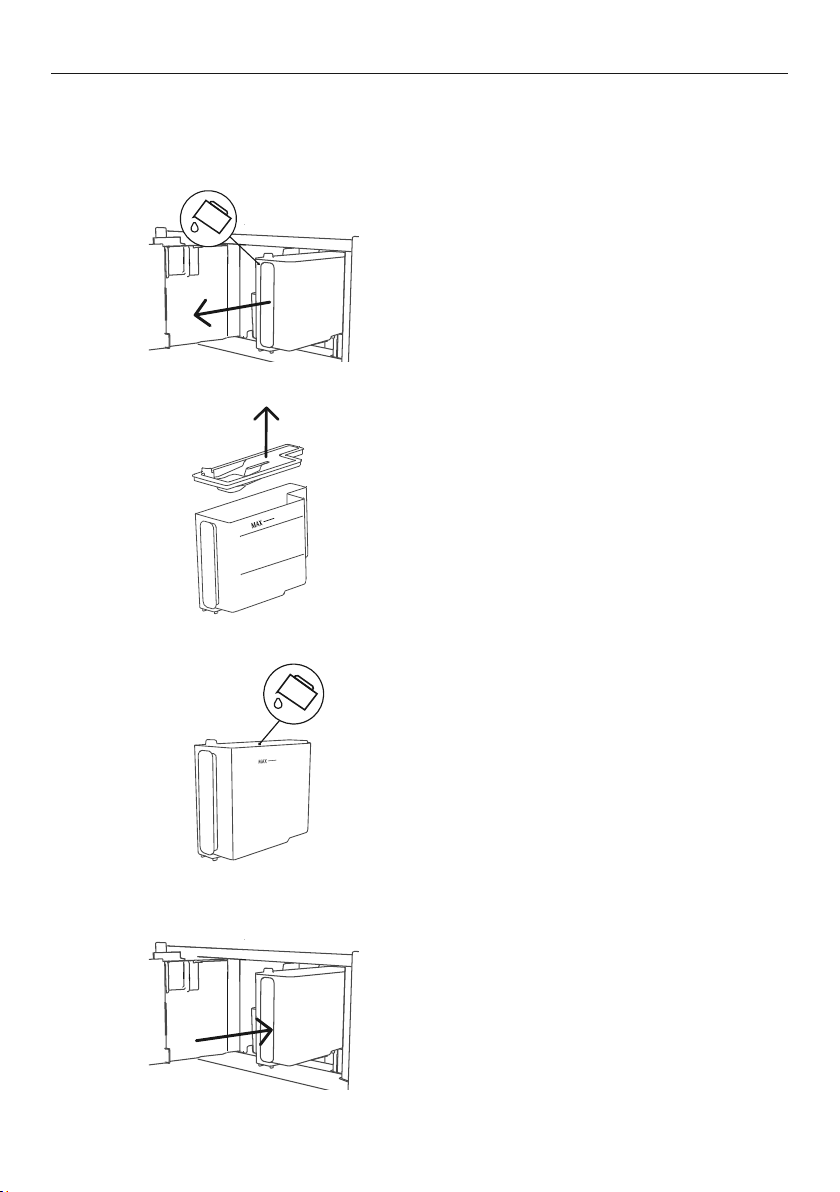

Filling the water tank
Before making any coffee, you’ll need to fill the water tank. For best results, we recommend
filling the tank with fresh water each day.
Pull the coffee dispenser forward to open
the door.
Remove the water tank.
Remove the lid.
Fill with fresh water to the MAX line, then
replace the lid.
Place the water tank back inside the coffee
maker, then close the door.
1
2
3
4

12
zWhen using the appliance for the first time, the water circuit is empty and the appliance
could be noisy. This level of noise will reduce as the circuit fills.
zTo improve the performance of your appliance, we recommend installing a water softener
filter. If your model is not provided with a filter, you can request one from Customer Care.
Connect the hot water spout to
the appliance.
Place a container underneath the steam
wand to catch any water.
Press to start filling the water circuit.
Water will flow through the steam wand
until the circuit is filled.
5
6
FIRST USE
Preparing the water circuit
The first time you fill the water tank, you’ll also need to prepare the water circuit.

13
FIRST USE

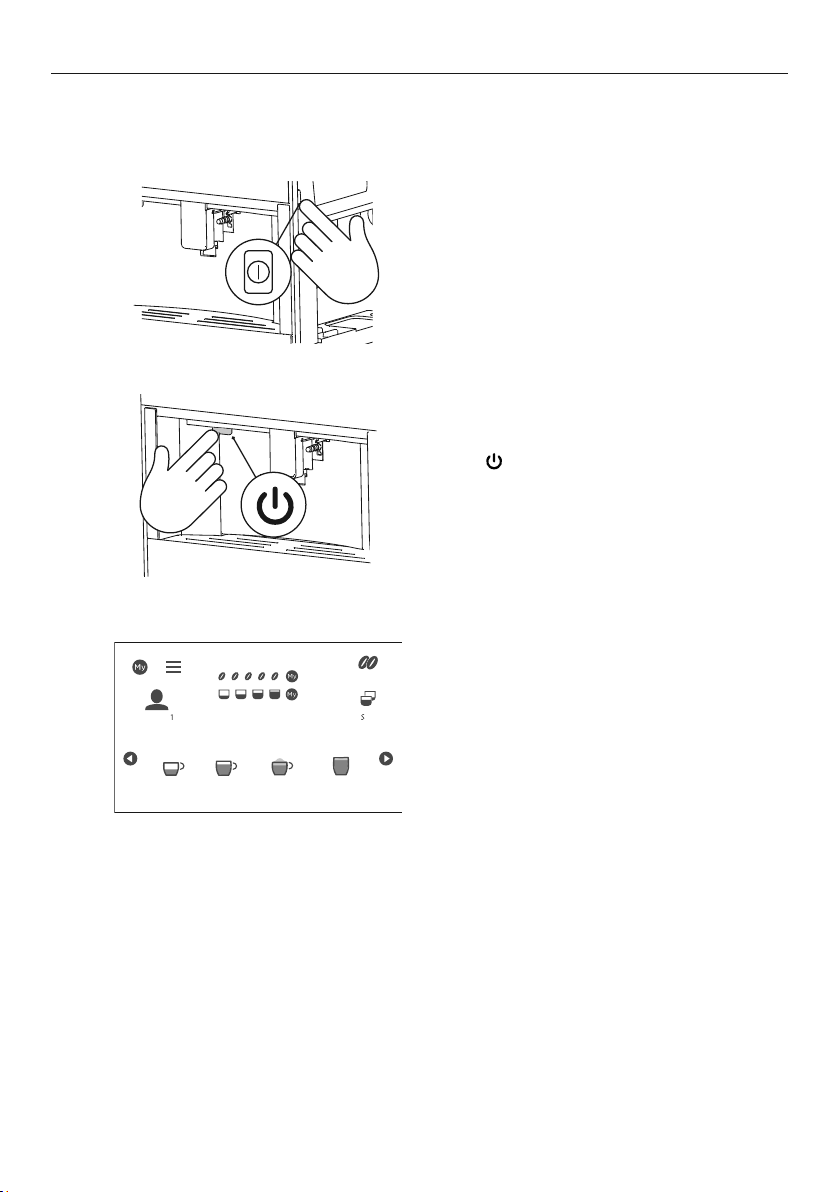

Turning the coffee maker on
When the coffee maker is turned on, it will run an automatic preheat and rinse cycle.
During rinsing, a little hot water comes out of the coffee spouts and is collected
in the drip tray underneath. During this cycle, keep hands clear of the spout to avoid
contact with the water.
2
3
Press to turn on the coffee maker.
HEATING UP UNDERWAY PLEASE WAIT will
appear on the display.
After preheating and rinsing, the display
will return to the home screen.
The coffee maker is now ready to use.
Ensure the main power switch at the side
of the appliance is turned on.
1
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH

14
FIRST USE
Turning the coffee maker off
When the coffee maker is turned off, it will run an automatic rinse cycle.
To ensure that cleaning message prompts appear on the display as scheduled, we
recommend leaving the coffee maker in standby mode.
If you will not be using the coffee maker for an extended period of time, turn the appliance
off by pressing the main power switch.
Never press the main power switch while the appliance is running.
Press to put the coffee maker into
standby mode.
TURNING OFF, PLEASE WAIT will appear on
the display.
The appliance will perform a rinse cycle
before turning off.
After the rinse cycle is finished, press the
main power switch at the side of
the appliance.
1
2

15
FIRST USE
Remove the indicator paper from its pack.
Immerse completely in glass of water for
1 second.
1
Measuring and setting water hardness
Your coffee maker comes supplied with a water hardness indicator paper, to test the water
hardness level in your home.
For best results, the water hardness level should be set before making coffee for the
first time.
Measuring water hardness
2
Remove the paper and shake lightly. Wait
for 1 minute for the paper to develop.
The number of red squares on the paper
indicate the water hardness level.
Water hardness level
STRENGTH
Level 1 (Soft water)
Level 2 (Slightly hard water)
Level 3 (Hard water)
Level 4 (Very hard water)

16
FIRST USE
Touch to enter the settings menu.
Touch or to scroll to the
WATER HARDNESS setting.
To change the level selected, touch
WATER HARDNESS until the required level
is displayed.
Touch BACK to confirm and return to the
home screen.
1
2
3
Setting water hardness
Once you have measured the water hardness in your home, you may need to adjust the
water hardness level on your coffee maker.
The default setting is Level 4.
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH
Back
14:35
Water hardness Set language
Level: 1 English
Back
14:25
Set time Auto-start
OFF
3:00

17
COFFEE MAKING GUIDE
For best results, you’ll need to condition your coffee maker before you start using it. To do
this, make four to five coffees, until the appliance starts delivering a consistent result. While
conditioning the coffee maker, it is normal to hear the sound of boiling water. After making
a few coffees this noise should reduce.
You can make coffee using either whole beans or pre-ground coffee. You can make up to
two coffees at a time using whole beans, or one cup at a time using pre-ground coffee.
For a creamier coffee, adjust the height of the coffee dispenser as close to the cup
as possible.
Coffee strength
Adjust coffee strength according to your preference.
Select the required strength by pressing STRENGTH.
STRENGTH
Very Light
Light
Medium
Strong
Extra Strong
Customized strength (if programmed)
Pre-ground coffee
Coffee size
Select the required size of coffee delivered by pressing SIZE.
SIZE
Small
Medium
Large
Extra Large
Customized size (if programmed)
Tips for a hotter coffee
zPerform a rinse cycle by selecting the RINSING function in the settings menu.
zWarm the cups with hot water (see section ‘Hot water’).
zIncrease the coffee temperature in the settings menu (see section ‘Settings’).

18
COFFEE MAKING GUIDE
Using whole coffee beans
If using whole beans, you’ll need to fill the beans container before making your coffee.
When the container is empty, FILL BEANS CONTAINER will appear on the display.
Do not use green, caramelised or candied coffee beans as they may stick in the coffee mill
and damage it.
Pull the coffee maker out using the handle.
Open the beans container cover and fill
with coffee beans.
Close the cover and push the coffee maker
back into place.
Place a cup under the coffee dispenser and
adjust the dispenser height.
Touch or to scroll through the drink
options. Touch the drink option to select.
2
1
3
Your coffee is now being made.
When your coffee is ready, the display will
revert back to the home screen.
4
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH
Extra Stop
ESPRESSO
Original recipe

19
COFFEE MAKING GUIDE

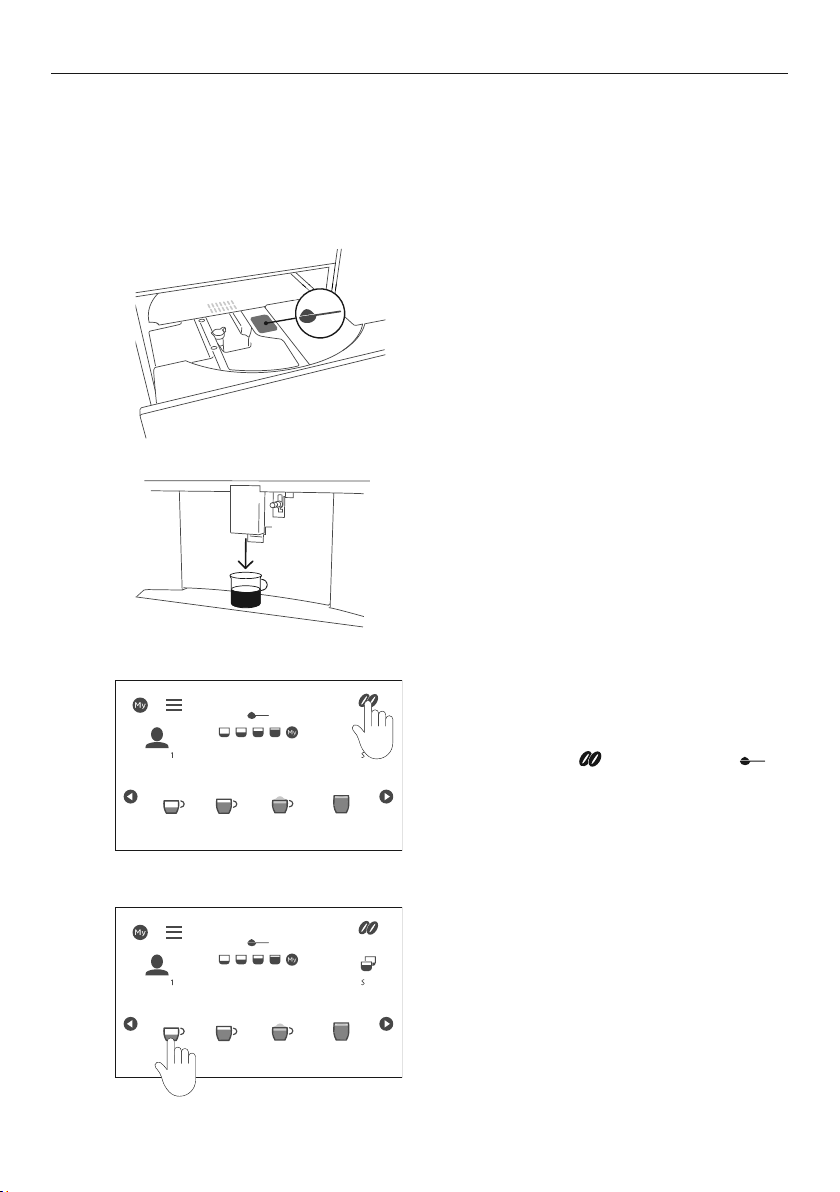

Using pre-ground coffee
If using pre-ground coffee, you’ll need to add coffee each time you make a drink. Before
adding ground coffee, ensure the funnel isn’t blocked.
Never add ground coffee when the machine is off.
Never use more than one level measure as this may block the funnel.
Pull the coffee maker out using the handle.
Open the container cover and then the
funnel cover.
Add one level measure of ground coffee.
Close the cover and push the coffee maker
back into place.
Place a cup under the coffee dispenser and
adjust the dispenser height.
Select your coffee and touch to start.
1
2
4
Touch STRENGTH repeatedly until
appears on the display.
3
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIAT0
00:00
PROFILE IZE
STRENGTH

20
COFFEE MAKING GUIDE

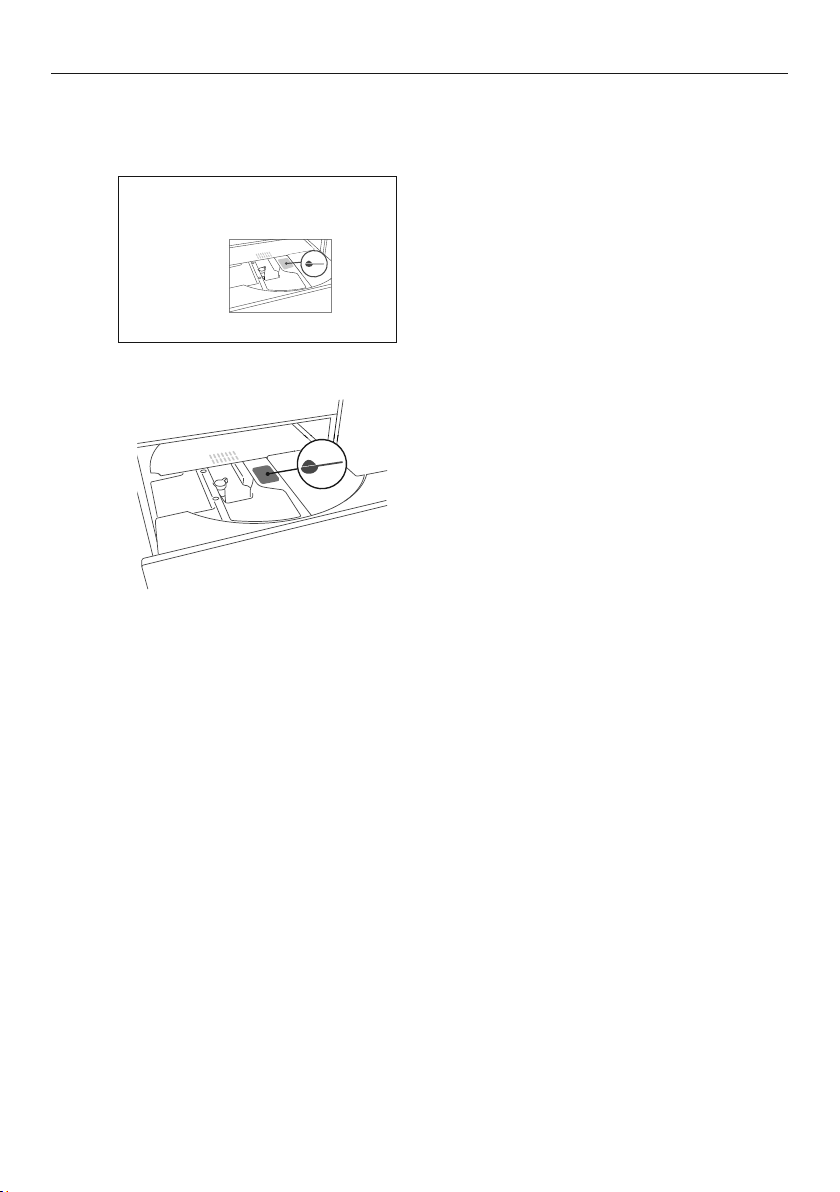

If using pre-ground coffee to make a long coffee, you may need to add an extra measure of
coffee partway through the drink dispensing.
Halfway through dispensing, ADD PRE-
GROUND COFFEE, MAXIMUM ONE MEASURE
will appear on the display.
Back
Add pre-ground coee
maximum one measuring cup
Pull the coffee maker out and add one level
measure of ground coffee.
Close the cover and push the coffee maker
back into place.
Coffee dispensing will resume.
2
1
