USER GUIDE
NZ AU GB IE
AUTOMATIC BEAN TO CUP
COFFEE MACHINE
EB60 model

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Appliance parts 2
Safety and warnings 4
First use 9
Menu settings 13
Making coffee 17
Making cappuccinos and milk-based coffees 21
Delivering hot water 24
Steam delivery 25
Customising beverages 26
Memorising your personal profile 27
Cleaning 28
Descale 34
Water softener filter 37
Displayed messages 39
Troubleshooting 44
Warranty and service 46

2
Service door
Coffee guide
Infuser
Grinding adjustment dial
Beans container lid
Beans container
Ground coffee funnel
Control panel
Drip tray
Coffee grounds container
Cup tray
Cup
light
Hot water/steam
connection nozzle
Spouts
On/Off/
stand-by button
Interior lighting

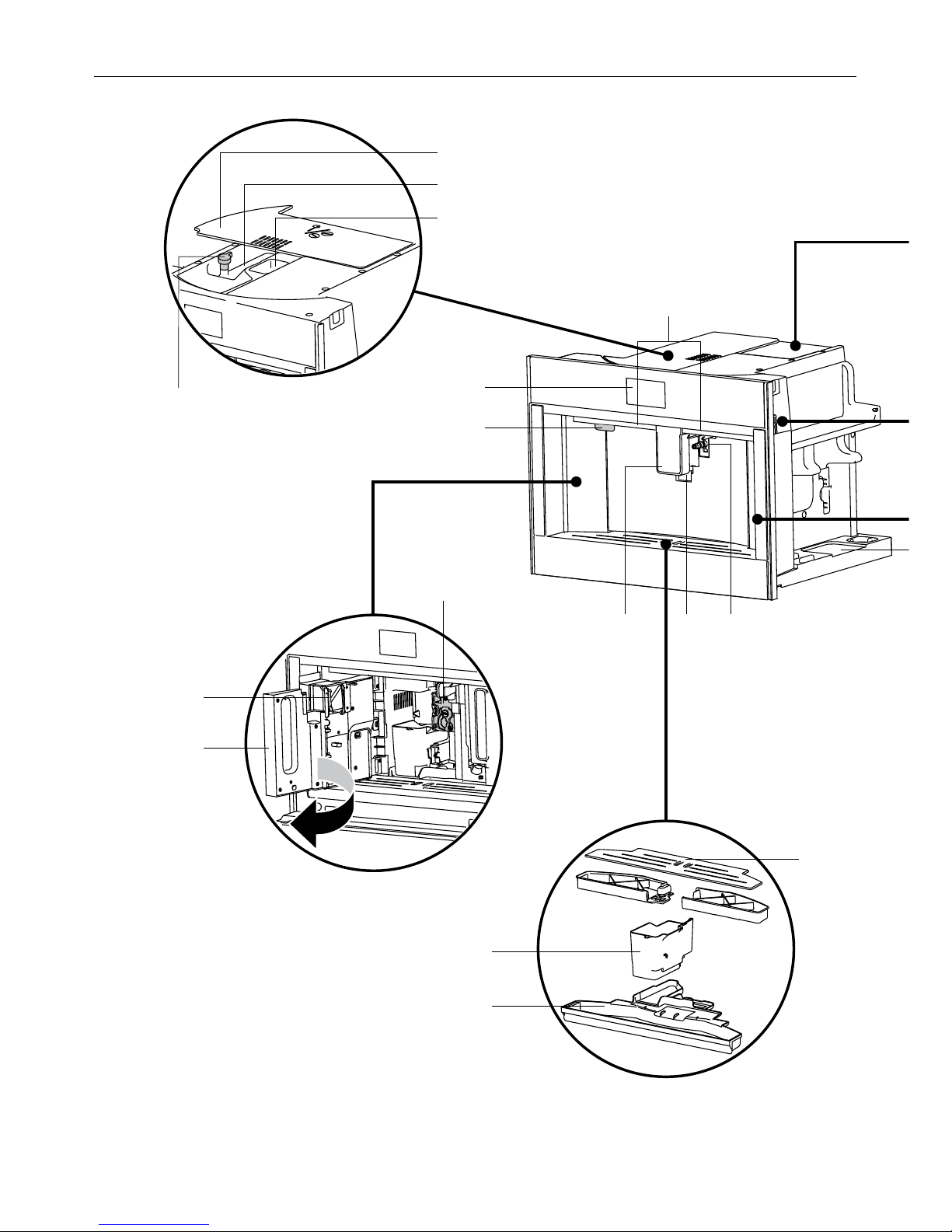

APPLIANCE PARTS

3
Power cord
Power plug
Measure
compartment
Main switch
Water tank
ACCESSORIES
Connection
nozzle cover
Cleaning brush
Frothed milk spout
(adjustable)
Milk intake tube
Milk container
Thermal casing
Lid with milk frother
Froth
adjustment
and clean dial
Lid release
buttons
‘Total Hardness
Test’ indicator
paper
Water softener
filter (some
models only)
Descaler
Steam wand
Ground coffee
measure
Milk container
Tray for objects
APPLIANCE PARTS

4
IMPORTANT SAFETY INSTRUCTIONS
Your safety is important to us. Keep the following instructions in mind when you are using
your coffee maker.
IMPORTANT!
Failure to observe warnings could result in:
●Possibly life threatening injury from electric shock.
●Injury or scalds and burns.
●Damage to the appliance.
WARNING!
When using your coffee maker, follow basic
precautions, including the following:
●Read all instructions before using the coffee maker.
●The information in this manual must be followed to
minimise the risk of fire, explosion, or to prevent
property damage, personal injury or loss of life.
●Use the coffee maker only for its intended function
as described in this user guide.
●This appliance is intended to be used in household
and similar applications such as:
– staff kitchen areas in shops, offices and other
working environments
– farm houses
– by clients in hotels, motels and other residential
type environments
– bed and breakfast type environments.
●The manufacturer is not liable for damage deriving
from improper use of the appliance.
●Do not tamper with the controls.
SAFETY AND WARNINGS
WARNING!
Cut Hazard
Take care – some edges are sharp.
Failure to use caution could result in injury
or cuts.

5
SAFETY AND WARNINGS
●The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
●Children should be supervised to ensure that they do
not play with the appliance.
●Keep all packaging (plastic bags, polystyrene foam)
away from children.
●DESIGNATED USE: this appliance is designed and
made to prepare coffee and milk based beverages and
hot water. Any other use is considered improper and
thus dangerous.
●The manufacturer is not liable for damage deriving
from improper use of the appliance.
●The surface of the heating element remains hot after
use and the outside of the appliance may retain the
heat for several minutes depending on use.
●Clean all the components thoroughly, taking
particular care with parts in contact with the coffee
and milk.
●Never immerse the appliance in water.
●During the rinse cycle hot water flows from the
spout. Keep hands clear of the spout to avoid the
risk of burns.

6
●Never touch the appliance with damp hands.
●Never touch the plug with damp hands.
●Unplug the appliance directly from the plug only.
●Never pull the power cable as you could damage it.
●To disconnect the appliance completely, place the
main switch on the side of the appliance in the OFF
position.
●If the appliance is faulty, do not attempt to repair.
●This appliance produces hot water and steam may
form while it is in operation.
●If you have problems operating this appliance,
follow the information provided in the sections
‘Displayed messages’ and ‘Troubleshooting’. If this
does not resolve the problem, contact your nearest
Authorized Service Centre, Customer Care, or
contact us through our website fisherpaykel.com.
MAINTENANCE
●Do not repair or replace any part of the appliance or
attempt any servicing
unless specifically recommended in this user guide.
●We recommend that you contact Customer Care to
arrange service.
See your ‘Service and warranty’ booklet for contact
details.
●To prevent damage to the appliance do not use
alkaline cleaning agents when cleaning, use a soft
cloth and a mild detergent.
●If the plug or power cable is damaged, it must be
replaced by an authorised
technical only to avoid all risk.
●Appliances with removable cord: avoid splashes of
water on the power cord
connector or socket at the back of the appliance.
●Do not place weight onto the coffee machine when it
is out of the cabinet.
SAFETY AND WARNINGS

7
SAFETY AND WARNINGS
●Do not rest containers with liquids or inflammable or
corrosive materials on top
of the appliance.
●Do not rest large objects which could obstruct
movement or unstable objects
on the appliance.
●Never turn off the machine during descaling.
●The first time you use the appliance, or if it is not
used for more than three or
four days, rinse all removable accessories which may
come into contact with
water or milk with hot water.
●If the appliance is not used for more than three or
four days, prior to re-using
the appliance, rinse the water circuit as described in
this manual.
●You should diligently carry out automatic cleaning
and guided maintenance
when prompted by the appliance through the display
as described in this manual.
●Choking hazard. The appliance might contain small
parts. Some of those small partsmight be required to
get disassembled during cleaning and maintenance
operations.
●Handle with care and keep small parts out of reach
of children.
●Cleaning and user maintenance shall not be made by
children without supervision.
Disposal
The appliance must not be disposed of with
household waste, but taken to an authorised waste
separation and recycling centre.

8
SAFETY AND WARNINGS
Operational
●Customise the water hardness as soon as possible
following the instructions in the ‘Water hardness’
section.
●Keep hands clear of the coffee spout when in
operation. The temperature of liquid that flows from
the spout could result in burns.
●During the rinse cycle hot water flows from the
spout. Please keep hands clear of the spout to avoid
the risk of burns.
●This appliance produces hot water and steam may
form while it is in operation.
●Models with glass surfaces: do not use the appliance
if the surface is cracked.
●Do not use the appliance when it is out the cabinet.
Make sure the appliance is turned off before
extracting it. The only exception is adjusting the
coffee mill which must be done with the machine
extracted (see section ‘Adjusting the coffee mill’).
Note: use original or manufacturer recommended
accessories and spare parts only.

9
FIRST USE
Checking the appliance
After removing the packaging, make sure the product is complete. If the appliance
is damaged, contact customer support.
Note: that coffee has been used to factory test the appliance, so it is possible that
there may be traces of coffee in the mill.
●You should customise water hardness as soon as possible following the instructions
in section ‘Setting water hardness’.
1
Connect the appliance to the mains
electricity supply.
2
Make sure the main switch on the side
of the appliance is pressed down.
3
To select language press or
until the flag corresponding to the
required language appears on the
display, then press the flag.
ESPRESSO COFFEE CAPPUCCINO LATTE
MACCHIATO
00:00
PROFILE 1 SIZE
STRENGTH
Appliance
settings menu
My menu to
customise the
beverages settings
Customisable
profiles
Scroll arrow
Beverage selection
Clock
Selected
strength
Selected
size
Strength
selection
Size
selection
Scroll arrow
Display

10
FIRST USE
Follow the instructions indicated on the appliance display:
1

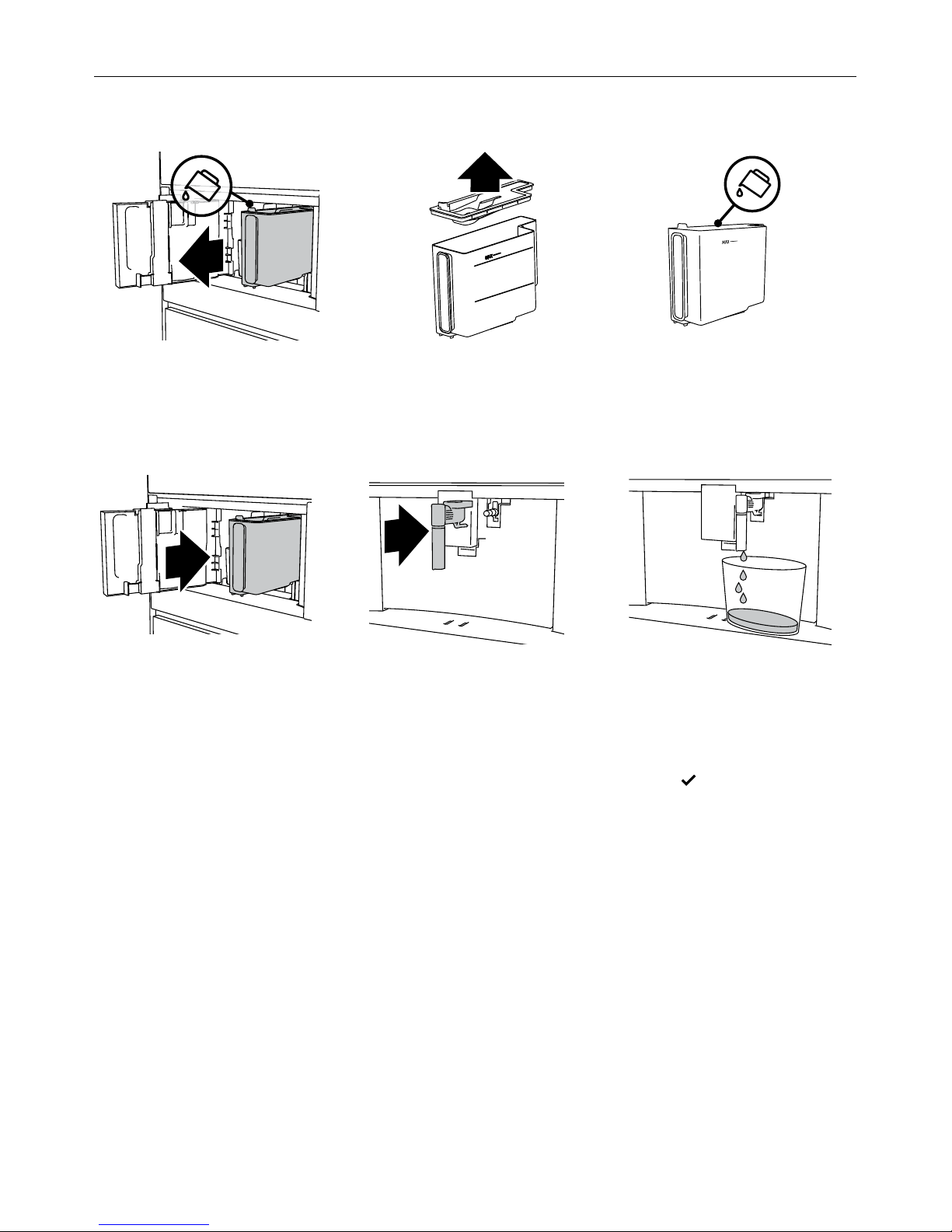

FILL TANK WITH
FRESH WATER:
remove the water tank.
2
Open the lid. 3 Fill with fresh water to the
MAX line (marked on the
inside of the tank).
4Close the lid and put
the tank back in the
appliance.
5
INSERT WATER SPOUT:
Check that the steam
wand is inserted on the
connection nozzle.
6Place a container
underneath the spouts.
7
WATER CIRCUIT EMPTY
PRESS OK TO START
FILLING PROCESS.
8
Press the appliance
will deliver water from the
spout and then turn off.
Note:
●When using the appliance for the first time, you will need to make four to five coffees,
before the appliance starts to deliver a consistent level of beverage quality.
●When using the appliance for the first time, the water circuit is empty and the appliance
could be noisy. This level of noise will reduce as the circuit fills.
●When making the first four to five coffees it is normal to hear the sound of boiling water.
Following this, the noise will reduce.
●To improve the performance of your appliance, we recommend installing a water
softener filter. If your model is not provided with a filter, you can request one from
Customer Care.

11
FIRST USE
Note:
●Before turning the appliance on, make
sure the main switch is pressed.
●Each time the appliance is turned on,
it performs an automatic preheat and
rinse cycle which cannot be interrupted.
●The appliance is ready for use only after
completion of this cycle.
1To turn the appliance on, press .
The message HEATING UP UNDERWAY
PLEASE WAIT will appear on the display.
2When heating is complete, the message
changes to: RINSING UNDERWAY, HOT
WATER FROM SPOUTS. As well as
heating the boiler, this also heats the
internal circuits by circulating hot water.
3The appliance is ready to use when the
home screen appears on the display.
Turning the appliance on
IMPORTANT!
During rinsing, a little hot water comes out of the coffee spouts and is collected
in the drip tray underneath. During this cycle, keep hands clear of the spout to avoid
contact with the water.

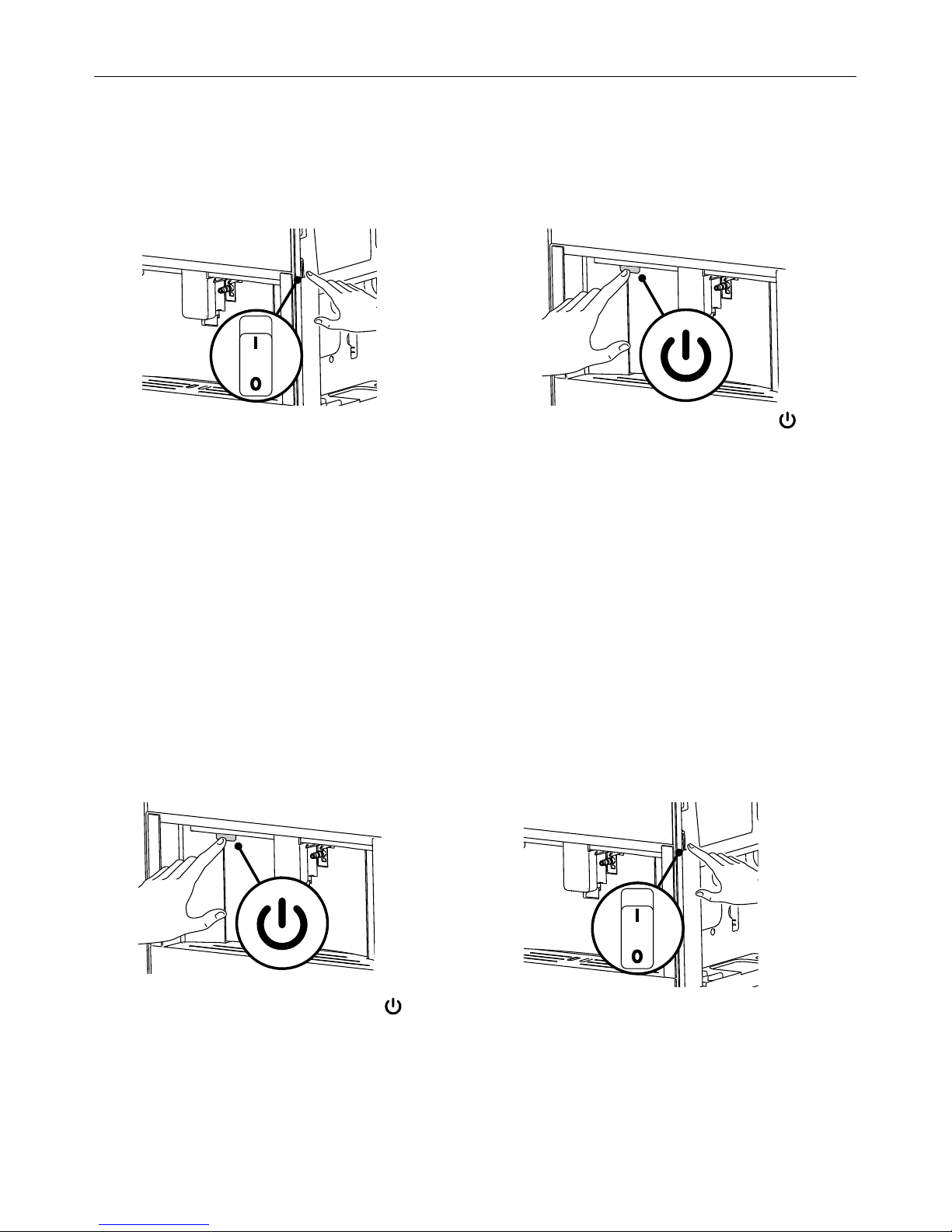

Turning the appliance off
Whenever the coffee maker is turned off after being used, it performs an automatic
rinse cycle.
IMPORTANT!
●During rinsing, a little hot water flows from the coffee spouts. Keep hands clear
of the spout to avoid contact with the water.
●Never press the main switch while the appliance is on or in stand-by mode.
1To turn the appliance off, press .
2The message TURNING OFF, PLEASE
WAIT will appear on the display.
The appliance will perform a rinse cycle
and then go into stand-by mode.
3Press the main switch at the side of
the appliance.
4To ensure that cleaning message prompts
appear on the display as scheduled, we
recommend leaving the coffee maker in
stand-by mode. If you will not be using
the coffee maker for an extended period,
turn the appliance off by pressing the
main switch.

12
FIRST USE
Measuring and setting water hardness
How frequently the appliance alerts you that a descale is required, is determined by
the level of water hardness. The appliance has a default water hardness setting of 4.
However, to ensure the continued high performance of your coffee maker, it is important
to measure the water hardness before the first use.
Measuring water hardness
1Remove the ‘total hardness test’ indicator paper from its pack.
2Immerse the paper completely in a glass of water for one second.
3Remove the paper and shake lightly. After about a minute, a number of red squares
form, which indicates the hardness of the water. Use this result to set the level of water
hardness on the coffee maker. Each square corresponds to one level.
Soft water – level 1
Slightly hard water – level 2
Hard water – level 3
Very hard water – level 4
Setting water hardness
1Press .
2Press or until WATER HARDNESS appears on the display.
3To change the level selected, press WATER HARDNESS until the required level
of water hardness is displayed.
(Level 1 = soft water; Level 4 = very hard water).
4Press BACK.
The coffee maker is now programmed with the new water hardness setting.

13
MENU SETTINGS
Rinsing
Use this function to deliver hot water from the coffee spouts and steam wand,
to clean and heat the appliance’s internal circuit. Place a container under the coffee
and hot water spouts.
IMPORTANT!
Do not leave the appliance unattended
while hot water is being delivered.
1
Press .
2
Press or until RINSING appears
on the display.
3
Press to start rinsing.
1
After a few seconds, hot water is delivered first from the coffee spouts, then
from the steam wand (if inserted). RINSING UNDERWAY, HOT WATER FROM SPOUTS
appears on the display, along with a progress bar which fills gradually to indicate
the stage of completion.
2
The rinsing cycle will finish automatically. If you would like to cancel this function
press CANCEL.
Note:
●If the appliance is not used for more than four days, when switched on again, we
recommend performing three rinses before use.
●After cleaning, it is normal for the grounds container to contain water.
Drinks settings
This allows you to view the current drinks settings for each profile. By using this
function, you can reset drinks settings to the default value. To customise the drinks
settings to your personal preference, see the ‘customising drinks’ section.
1 Check that the profile you want to change the drinks settings for is active.
The current active profile is displayed on the home screen. Press .
2Press or until DRINKS SETTINGS appears on the display. To change the drink
press NEXT.
3Press . The values for the first drink appear on the display.
4The settings for each drink are displayed on vertical bars. The default value is indicated
by a circle symbol at the side of the bar, while the current value is highlighted by the
solid part of the vertical bar.
5To go back to the settings menu, press BACK. To scroll and display more drinks,
press NEXT.
6
To reset the default values for the drink displayed, press RESET.
7Press to confirm. Press BACK to go back.
8DEFAULT VALUES SET will appear on the display. Press . The drink has been reset
to the default value.
Note:
●To change the drink settings in another profile, go back to the home screen, select the
required profile and repeat the steps.
●To reset all the drinks in a profile to the default values, see the ‘Default Values’ section.

14
MENU SETTINGS
Set time
To adjust the time on the display:
1
Press .
2
Press or until SET TIME appears on the display.
3Press . The time setting panel will appear on the display.
4Set the current time by pressing or .
5To confirm, press (to cancel, press BACK), then press BACK to go back to the
home screen.
Auto-start
You can set the auto-start time in order to have the appliance ready at a certain
time (eg in the morning) so that the appliance is ready to make coffee immediately.
Note: to enable this function, the time must already be set correctly.
To enable auto-start:
1
Press .
2
Press or until AUTO START appears on the display.
3
Select the function by pressing AUTO START. The time setting panel appears
on the screen.
4Press or to set the time of day you require the coffee maker to
automatically turn on.
5
Press or to disable or enable auto start.
6
To confirm, press or to cancel and return to the settings menu press BACK.
Press BACK again to return to the home screen.
Note: if the auto-start function is enabled, and the mains switched is turned off,
this function will be reset.
Auto off (standby)
The auto-off function can be enabled so that the appliance turns off after a
set amount of time.
To programme Auto off:
1
Press .
2
Press or until AUTO OFF appears on the display.
3Press AUTO OFF until the required timeframe is displayed.
4Press BACK to go back to the home screen. The function is enabled and the
appliance will turn-off after the timeframe that has been selected.
Energy saving
Use this function to enable or disable energy saving. When enabled, the function
reduces energy consumption.
To disable or enable ‘Energy Saving’:
1Press .
2Press or until ENERGY SAVING appears on the display.
3Press or to disable or enable energy saving.
4Press BACK.
If enabled, the corresponding symbol appears on the display alongside the time
to indicate that the function has been enabled.

15
MENU SETTINGS
Coffee temperature
To modify the temperature of the water used to make the coffee:
1Press .
2Press or until SET COFFEE TEMPERATURE appears on the display
along with the current selected temperature of: low, medium, high or maximum.
3Press SET COFFEE TEMPERATURE until the required temperature is displayed.
4Press BACK to go back to the home screen.
Note: a different temperature can be set for each profile (see section ‘Memorising
your personal profile’).
Selecting the language
To change the language of the display:
1Press .
2Press or until SET LANGUAGE appears on the display.
3Press SET LANGUAGE. Press or to display the flag corresponding to the
required language. Confirm your selection by pressing the required flag.
4Press BACK to go back to the home screen.
Beep
This enables or disables the beep emitted by the machine each time an icon
is pressed or an accessory is inserted/removed.
To disable or enable beeping:
1
Press .
2
Press or until BEEP SOUND appears on the display.
3Press or to disable or enable the beeping.
4Press BACK.
Cup light
This function enables or disables the cup lights. The lights come on each
time coffee drinks or hot milk is delivered and during each rinse cycle.
To disable or enable this function, proceed as follows:
1Press .
2Press or until CUP LIGHTING appears on the display.
3Press or to disable or enable the cup lighting.
4Press BACK to go back to the home screen.
Note: the interior lighting comes on when the appliance is turned on.
Emptying the circuit
We recommend emptying the water circuit if the appliance is to be left idle for
a long period of time, or before taking it to customer support for a service or repair:
1
Press .
2Press or until WATER CIRCUIT EMPTYING appears on the display.
3Press .
4EMPTY GROUNDS CONTAINER AND DRIP TRAY: extract and empty the grounds
container and drip tray. Press NEXT.

16
MENU SETTINGS
5INSERT GROUNDS CONTAINER AND DRIP TRAY: insert the drip tray complete
with grounds container.

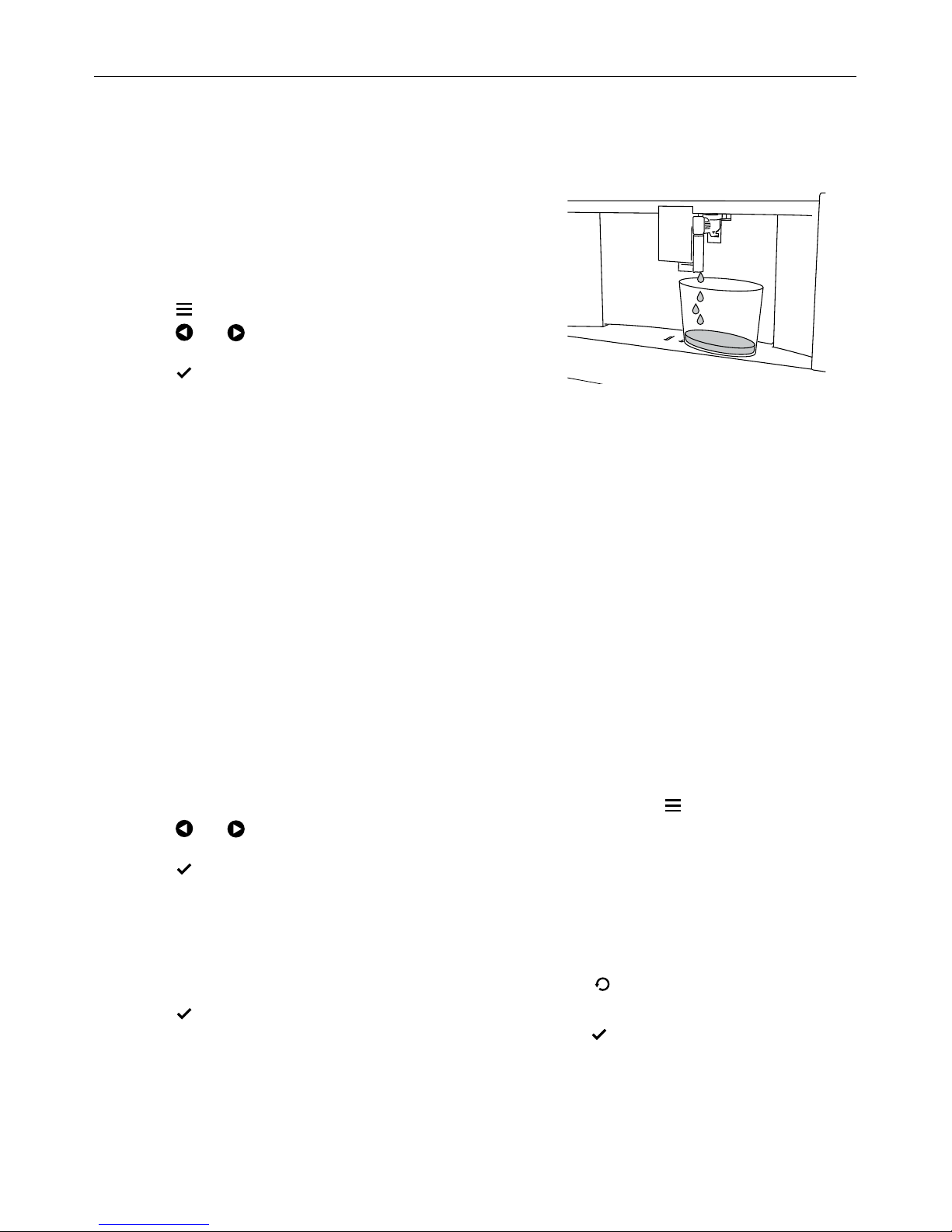

6PLACE 2L CONTAINER UNDER SPOUTS, PRESS OK TO START: position a container
under the coffee spouts and hot water spout. Press .
7RINSING UNDERWAY, PLEASE WAIT: the appliance performs a rinse cycle from the
coffee spouts. Do not leave the appliance unattended while hot water is being delivered.
8
EMPTY WATER TANK: extract the tank and empty it completely, then press.
9
(If the filter is installed) REMOVE WATER SOFTENER FILTER: remove the filter from
the tank. Press NEXT.
!0 INSERT WATER TANK, PRESS OK TO CONTINUE: insert the water tank and press .
!1 WATER CIRC. EMPTYING UNDERWAY: wait for the appliance to empty the circuit.
As the water circuit empties, the appliance could become noisy. This is part of normal
operation. Do not leave the appliance unattended while hot water is being delivered.
!2
EMPTY DRIP TRAY: remove, empty and reposition the drip tray, then press NEXT.
!3
EMPTYING COMPLETE: press .
Note: when turned on again, the appliance asks for the circuit to be filled.
!4 WATER CIRCUIT EMPTY PRESS OK TO START FILLING PROCESS. Place a container
under the spouts.
!5 Press the appliance will deliver water from the spout and then turn off.
Default values
This resets all menu settings and programmed quantities back to the default settings
(with the exception of the language which remains as set).
To reset the default values:
1Press .
2Press or until DEFAULT VALUES appears on the display. Press .
3Press RESET ALL to reset all of the user profiles or alternatively select an individual profile.
4RESET DEFAULT VALUES: press to confirm or BACK to cancel.
5DEFAULT VALUES RESET: Press or BACK to go back to the home screen.
Statistics
This function displays statistics relating to the appliance, including:
●The number of drinks that have been prepared.
●Amount of water that has been delivered.
●Total descales performed.
●Container cleans performed.
●Number of water filters used.
To display the statistics, relating to the appliance:
1Press .
2Press or until STATISTICS appears on the display.
3Press to view all the available statistics by pressing or .
4
Press BACK to go back to the main screen.

17
MAKING COFFEE
Selecting the strength of coffee
Select the required strength by pressing STRENGTH :
STRENGTH
Very Light
Light
Medium
Strong
Extra Strong
Customised strength – if programmed
Pre-ground coffee
After delivering the drink, the strength setting is reset to the value.
Selecting the coffee size
Select the required size of coffee delivered by pressing SIZE from the display.
SIZE
Small
Medium
Large
Extra Large
Customised size – if programmed
After delivering the drink, the size setting is reset to the value.

18
MAKING COFFEE
Using coffee beans
IMPORTANT!
Do not use green, caramelised or candied coffee beans as they could stick to the
coffee mill and make it unusable.
1

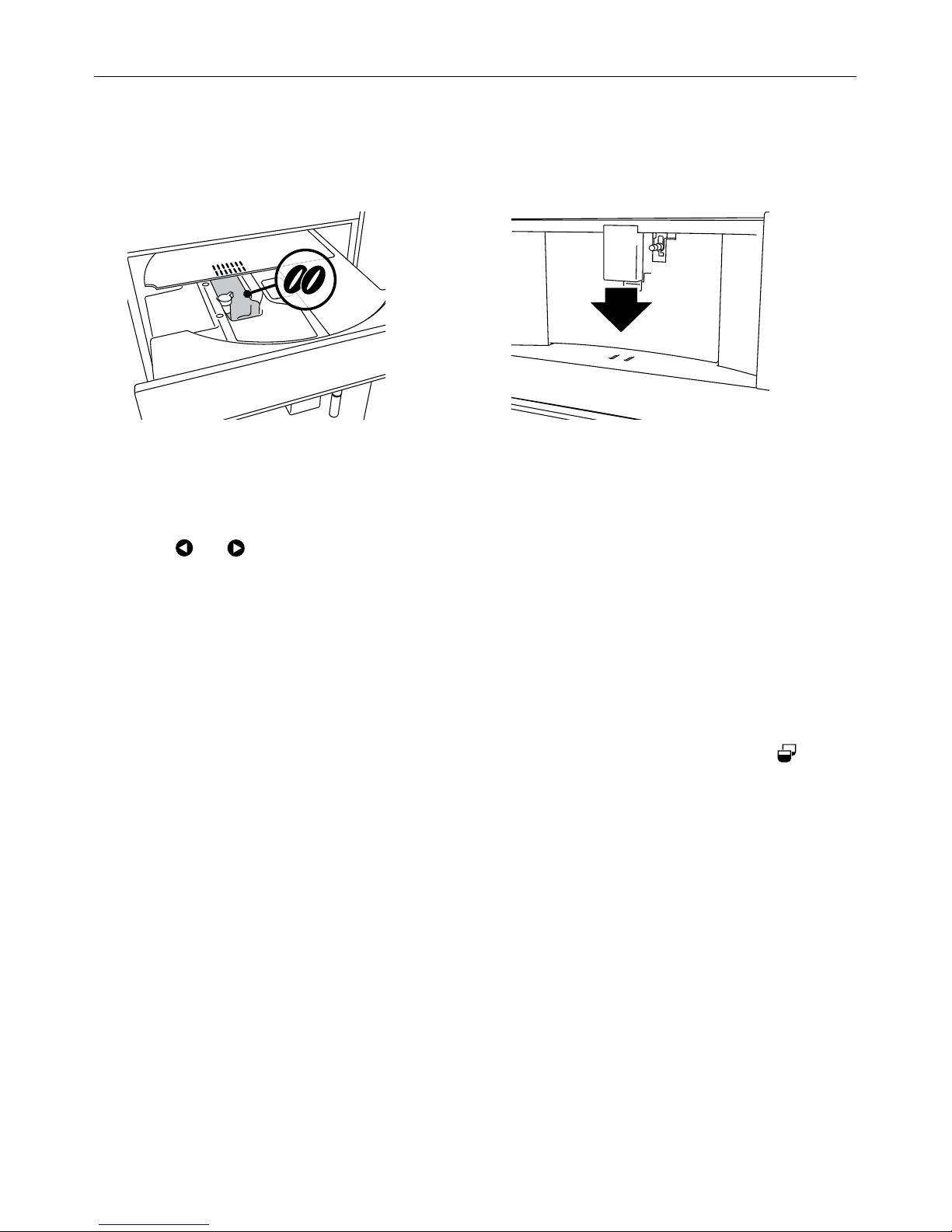

Fill the beans container with
coffee beans.
Selecting a drink from the menu
1Press or until your chosen drink is displayed then select the drink:
●Espresso
●Double Espresso
●Coffee
●Long Black
●Americano
2Preparation begins. An image of the selected drink appears on the display, together
with a progress bar which gradually fills to indicate the stage of completion.
Note:
●You can prepare two cups of espresso coffee at the same time by pressing 2X during
preparation of one espresso (the image is displayed for a few seconds at the
start of preparation).
●While the machine is making coffee, delivery can be cancelled at any moment
by pressing CANCEL.
●As soon as delivery has ended, to increase the size of coffee in the cup, just press EXTRA.
When desired size is reached, press CANCEL.
Note:
Various alarm messages could be displayed while using the appliance (FILL TANK,
EMPTY GROUNDS CONTAINER, etc.). The actions to take are explained in section
‘Displayed messages’.
●If the coffee is delivered a drop at a time, too weak and not creamy enough or
too cold, read the tips in sections ‘Adjusting the coffee mill’ and ‘Troubleshooting’.
●Preparation of each coffee can be customised (see sections ‘Customising the beverages’
and ‘Memorising your personal profile’).
●If ‘Energy Saving’ mode is active, you may have to wait a few seconds before the
first coffee is delivered.
2
Place a cup under the coffee spouts.
3Lower the spouts as near as possible to
the cup. This makes for a creamier coffee.
