Fisher & Paykel CI926DTB User manual

FULL SURFACE
INDUCTION COOKTOP
CI926DTB model
USER GUIDE
NZ AU BI EU SG

CONTENTS
Safety and warnings 5
First use 10
Cookware 12
Using your cooktop 13
Using the timer 17
Cooking features 21
cooking functions 22
Safety features 24
Customising your cooktop 27
Cooking guidelines 36
Care and cleaning 38
Alert messages 39
Troubleshooting 41
Energy guidelines 43
Energy guidelines (BI EU only) 44
Warranty and service 45
Registration
To register your product visit our website: fisherpaykel.com/register
3

SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Do not cook on a broken or cracked cooktop.
If the cooktop surface should break or crack,
switch the appliance off immediately at the
mains heat supply (wall switch) and contact a
qualified technician.
• Switch off the appliance before cleaning
or maintenance.
!WARNING!
Fire Hazard
Failure to follow this advice may result in
serious burns or death.
• Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never try to extinguish fire with water. Switch
off the appliance. Cover the flame, eg with
a lid or fire blanket, or use dry chemical or
foam-type extinguisher.
• Do not store items on cooking surfaces.
5

SAFETY AND WARNINGS
!WARNING!
Hot Surface Hazard
Failure to follow this advice may result in
electric shock or death.
• During use, accessible parts of this appliance
will become hot enough to cause burns.
• Do not let body, clothing or any item other than
suitable cookware contact with the ceramic
glass until the surface is cool.
• Never leave metal objects (such as kitchen
utensils) or empty pans on the cooktop as they
can become hot very quickly.
• Beware: magnetisable metal objects worn on
the body may become hot in the vicinity of
the cooktop. Gold or silver jewellery will not
be affected.
• Keep children away.
• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.
• Failure to follow this advice could result in burns
and scalds.
6

SAFETY AND WARNINGS
!WARNING!
Health Hazard
Failure to follow this advice may result
in death.
• This appliance complies with electromagnetic
safety standards. However, persons with cardiac
pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor
or implant manufacturer before using this
appliance to make sure that their implants will
not be affected by the electromagnetic field.
!WARNING!
Cut Hazard
Failure to follow this advice may result in
serious burns or death.
• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and
out of reach of children.
7

READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow
the important safety instructions listed below. Read all the guidance before using
the appliance.
Installation
zUnpack the packaging materials from the cooktop.
zEnsure your appliance is properly installed and grounded by a qualified technician.
zIf a drawer is situated under an embedded appliance, ensure the space between the
content of drawer and appliance is large enough (2cm) to provide correct ventilation.
General Use
zThis domestic appliance is exclusively for the cooking of food, to the exclusion of any
other domestic, commercial or industrial use.
zRemove all labels and self-adhesives from the ceramic glass.
zDo not change or alter the appliance.
zNever leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
zNever use your appliance as a work or storage surface.
zWear proper apparel — Loose-fitting or hanging garments should never be worn while
using the appliance.
zNever leave any objects or utensils on the appliance.
zDo not place or leave any magnetisable objects (eg credit cards, memory cards) or
electronic devices (eg computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.
zWe recommend using plastic or wooden kitchen utensils for cooking with your
induction cooktop.
zStorage on appliance — Flammable materials should not be stored on the cooktop or
near surface units.
zDo not place or leave aluminum foil on the cooktop.
zNever use your appliance for warming or heating the room.
zDo not use water on grease fires – Smother fire or flame or use dry chemical or
foam-type extinguisher.
zUse only dry potholders — Moist or damp potholders on any hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
zAfter use, always turn off the cooktop as described in this guide (ie by using the
touchscreen).
zDo not rely on the pan detection feature to turn off the cooking zones when you
remove the pans.
zDo not use a steam cleaner to clean your cooktop.
zDo not place or drop heavy objects on your cooktop.
zDo not use pans with jagged edges as this can scratch the glass.
zDo not stand on your cooktop.
zDo not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop,
as these can scratch the ceramic glass.
zDo not operate your cooktop by means of an external timer or separate
remote-control system.
SAFETY AND WARNINGS
8

zDo not cook on a broken cooktop. If cooktop is broken, cleaning solutions and
spillovers may penetrate inside the cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
zCAUTION: The cooking process has to be supervised. A short term cooking process has
to be supervised continuously.
Child Safety
zDo not allow children to play with the appliance or sit, stand, or climb on it.
zDo not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.
zDo not leave children alone or unattended in the area where the appliance is in
use. Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.
Cleaning
zClean cooktop with caution — If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.
zIf the power supply cable is damaged, it must only be replaced by a qualified
technician.
zIf the appliance is malfunctioning, it will display an alert code: first note down the alert
code (see section ‘Alert codes’ in this manual), then contact your Authorized Service
Center or Customer Care to arrange for service. Do not use your appliance until it has
been repaired by a Fisher & Paykel authorized technician.
Standard Requirements
zThis induction cooktop generates and uses ISM frequency energy that heats cookware
by using an electromagnetic field. It has been tested and complies with Part 18 of the
FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to
minimize interference with other devices in residential installation. Induction cooktops
may cause interference with television or radio reception. If interfence occurs, the user
should try to correct the interference by:
zRelocating the receiving antenna of the radio or television
zIncreasing the distance between the cooktop and the receiver
zConnecting the receiver into an outlet different than the receiver.
SAFETY AND WARNINGS
9

07 : 11
0
0
0
FIRST USE
DISPLAY DESCRIPTION
Cooking zone off
(not activated)
Cooking zone on
(activated but not operating)
– Heat levels
Pan failure
Error message
Residual heat
BBooster
07 : 11
0
0
0
Locking
4 3 2 1 0 9 8 7 2 1 0 1 0 OFF A
9 8 7
Keep warm
07 : 11
0
0
0
Pause
Touch display
Your cooktop is operated using
an intuitive touch display. Use
the touchscreen to navigate
cooking settings.
Using the touchscreen
Use the ball of your finger, not its
tip. The controls respond to touch,
so pressure is not needed.
WARNING!
Do not place metal objects on top of the touchscreen when the cooktop is on.
COOKTOP FEATURES
1 Cooking area
2 Cooktop On/Off
3 Touchscreen
4 Heat display
5 Clock
6 Keylock
7 Kitchen timer
8 Pause
9 Settings
!0 Pan position*
*Size according to pan dimension
76 8 9
4
1
23
5
!0
10

COLOR HEAT LEVEL
1 Grey Pan is lifted
2 Blue 0
3 Purple 1 - 3.5
4 Red 5 - 6.5
5 Orange 7 - B
PAN SIZE
1 Small
2 Medium
3 Large
FIRST USE

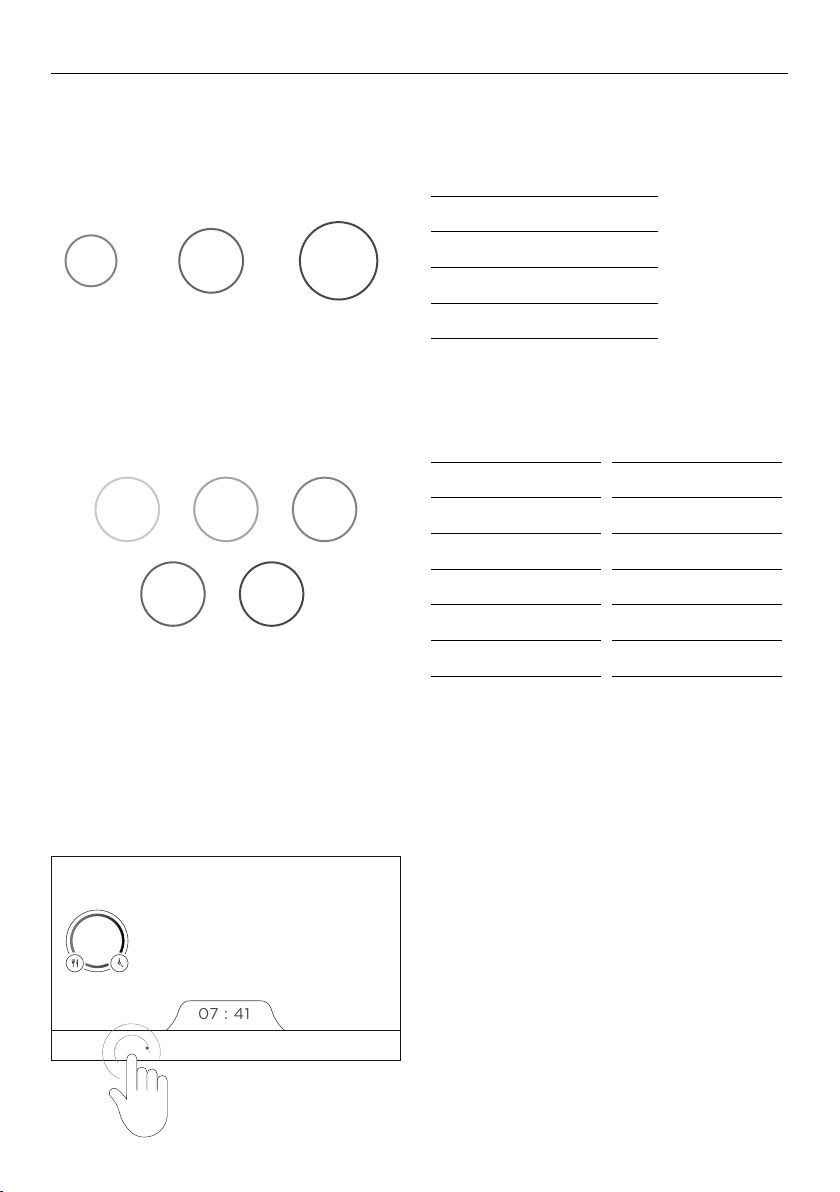

Zone display
There are three types of possible displays for your pan based on pan dimensions; small,
medium and large. The touchscreen will show the pan according to its size and position on
the cooking surface.
Power display
The colour of the pan display changes according to the selected heat setting.
To select the heat level with the slider,
slide your finger on the power slider. For
quick access, place your finger directly on
the selected level.
Power slider
Your cooktop has 17 heat levels and a PowerBoost for optimal usage and control. When
a pan is selected, the display shows only full heat levels on the slider. After a heat level is
selected on the slider, a small dot will be displayed between the full heat levels to indicate
half heat levels.
2 .5
0 1 2 3 4 5 6 7 8 9 B
07 : 41
1
1
2
2
3
3
45
11

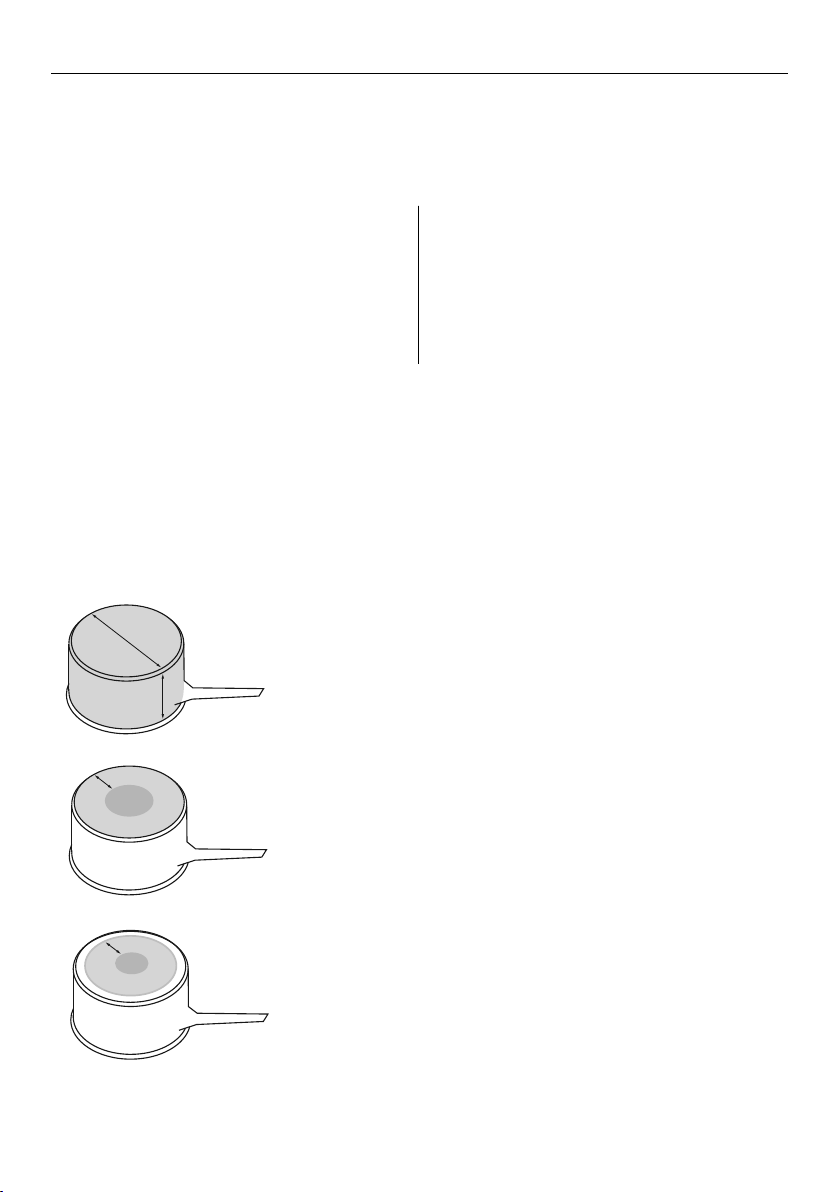

COOKWARE
Quickest heating performance
High content of ferromagnetic material. Heating area is
consistent across the base and up the sides of pan.
Average heating performance
Reduced area of ferromagnetic material. Reduced zone of
heating, results in poor performance and slower heating.
Slow heating performance
Very limited area of ferromagnetic material. Results in very
slow heating performance.
Note: This type of pot is good for very delicate tasks such
as melting chocolate, as heating is very slow.
The quality of your cookware can affect cooking performance. Only use
induction-compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan. We recommend
to use cookware with maximum diameter of 360mm or less.
Suitable cookware material:
zferromagnetic stainless-steel
zaluminium with ferromagnetic bottom
zcast iron
zsteel
zenamelled steel
Unsuitable cookware material:
zaluminium without ferromagnetic
bottom
zstainless-steel without ferromagnetic
bottom
zcopper
zbrass
zglass
zceramic porcelain
To check if cookware material is suitable, carry out a magnet test:
Move a magnet across the base of the pan. If the magnet is attracted, the pan is induction
suitable. Ensure attraction is consistent across the base of the pan. If there are gaps, such
as an indented manufacturer’s logo, then the performance will be impaired.
If you do not have a magnet, fill the pan with some water in a pan and place it on the
cooktop surface. Select the pan indicator icon and set at level 9. This water must heat in a
few seconds. Refer to section ‘Using your cooktop’.
12

USING YOUR COOKTOP

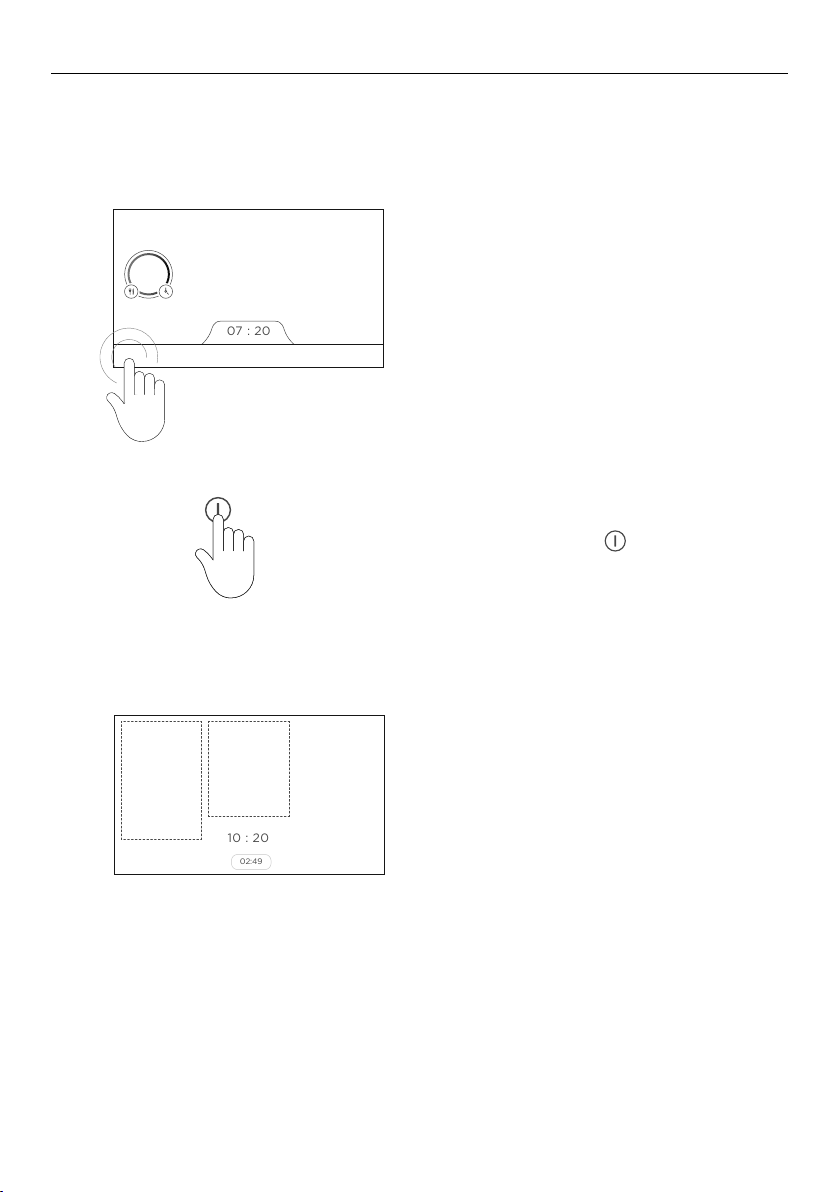

To start cooking
Touch and hold for two seconds to
turn on the cooktop.
Place a suitable pan anywhere on the
cooking surface
zEnsure the bottom of the pan and
cooking surface are clean and dry.
Once the pan is placed on the cooking
surface, a heat level selector is displayed
at the bottom of the touchscreen.
1
While cooking, you can move your pan to any place on the cooking surface while keeping
the selected settings. The heat level in the previous position of the pan will be automatically
transferred to the new position.
Ensure that you only move one pan at a time. Moving pans simultaneously will result in
inconsistent detection of pans or incorrect pan display. An error will be displayed if the pans
are not detected and incorreclty positioned.
If the pan is lifted, the pan display will stay for about 20 seconds. After then all settings will
reset automatically.
3
Select the pan icon on the display, and
then select the desired heat level by
touching or sliding along the power slider
with your finger.
zIf heating level is not selected within
20 seconds, the cooktop automatically
goes to standby mode.
zYou can modify the heat setting at any
time during cooking.
2
0 1 2 3 4 5 6 7 8 9 B
07 : 20
0 1 2 3 4 5 6 7 8 9 B
07 : 20
13

08 : 30
2
1
2
3
USING YOUR COOKTOP
To pause cooking
This feature temporarily stops cooking operation for a maximum of 10 minutes. This is
useful if you are leaving for a short period of time while cooking. All selected settings such
as heat level, timer will remain when cooking resumes.
Touch
08 : 19
2
00:06
on the menu bar to pause
cooking operation.
The pan display will turn grey and
08 : 30
2
icon appears.
zAll pan settings are retained when
in paused mode.
To resume cooking, touch
08 : 30
2
again.
zThe cooktop will operate at its
current settings.
If paused state extends longer than 10 minutes, the cooktop will automatically turn off.
If you want to cancel cooking during paused mode, touch or slide down your finger
down to 0.
08 : 19
2
00:06
08 : 30
2
14

Touch and hold for two seconds to
turn off the cooktop.
2
After cooking is done
Select the pan on the display.
Turn off the pan heating by touching
or sliding down to 0.
Ensure pan display shows ‘0’.
1
3
USING YOUR COOKTOP
10 : 20
02:49
HH
Beware of hot surfaces: Hwill be
displayed on the display screen to
indicate areas on the cooktop surface
that are still too hot to touch. It will
remain on and steadily lit even when
the cooktop is turned off. It will
disappear when the surface has cooled
down to a safe temperature.
0 1 2 3 4 5 6 7 8 9 B
07 : 20
0
15

Using PowerBoost
This feature enables you to increase the heat level of a selected pan to maximum power for
a short period of time. When activated, this function can be used for rapid heating of large
quantities of water for cooking, such as rice, pasta or noodles for 10 minutes.
1
2
Select the pan first.
Select POWERBOOST by touching or
sliding to Bon the heat selector.
To cancel POWERBOOST, touch or slide
to any power level 1-9 or deactivate
the pan by selecting 0 on the power
slider.
USING YOUR COOKTOP
0 1 2 3 4 5 6 7 8 9 B
07 : 55
B
0 1 2 3 4 5 6 7 8 9 B
07 : 20
0
16

USING THE TIMER
Setting the cooking time
This feature enables the cooktop to automatically switch off the heat supply of each pan
after a preset time. You can set the cooking time of each individual pan for up to 9 hours
and 59 minutes. The timer can be set for each pan independent from other pans.
Once the pan is placed on the cooking
surface, touch on the right of the
pan indicator icon.
TIMER will be displayed on the screen.
Scroll up/down to set the cooking
time (hours/minutes).
Touch to confirm.
2
1
3
4
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
The hour/minutes setting will be
shown on the lower right side of the
pan display.
2
05:00
17

When the set time is up, 00:00 will
flash and you wil hear a beeping
sound.
Touch 00:00 to stop the flashing and
beeping sound.
If not pressed timer automatically
stops after 35 seconds.
USING THE TIMER
5
2
3
Resetting the timer
Touch to reset the timer to 00:00.
Touch to confirm.
3
00:00
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
1Touch the set time displayed.
2
05:00
18

1
2
Touch
06 : 40
on the menu bar to select
Kitchen timer.
USING THE TIMER
Using the kitchen timer
This feature is used as a standalone timer which has no effect on the cooking process. The
heat level setting of any pan can be operated normally while the kitchen timer is running.
The kitchen timer can be adjusted ranging from 1 minute to 9 hours and 59 minutes.
TIMER will be displayed on the screen.
Scroll up/down to set the cooking
time (hours/minutes).
Touch to confirm.
3
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
TIMER
2
HOURS
00
09
05
01
07
:
06
MINUTES
06 : 40
19

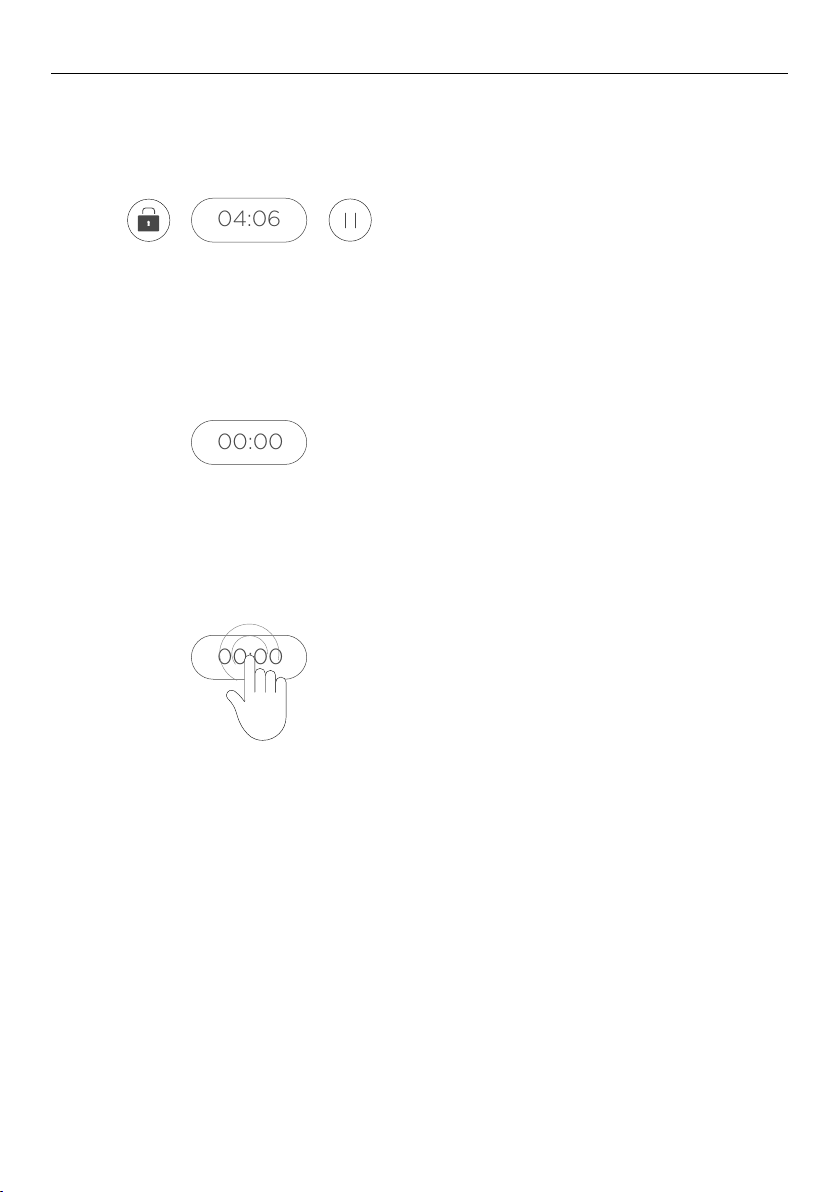

The timer will start and the display will
show the current time.
zIf set time is less than 1 hour, the
time is displayed in minutes and
seconds.
zIf set time is more than 1 hour, the
time is displayed in hour/s and
minutes.
When the set time expires, 00:00
will flash and you wil hear a beeping
sound.
Touch 00:00 to stop the flashing and
beeping sound.
The timer menu will automatically
close after 15 seconds.
4
5
6
USING THE TIMER
04:06
00:00
00:00
20
