Fisher & Paykel CI302DTB3 User manual

INDUCTION COOKTOP
CI302DTB3, CI603DTB2, CI604DTB3,
CI754DTB2, CI905DTB2 & CI905DTB3 models
INSTALLATION GUIDE
NZ AU GB IE SG
590492G 09.18

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1SAFETY AND WARNINGS
WARNING!
Electrical shock hazard
Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance on it.
Connection to a good earth wiring system is
essential and mandatory.
Alterations to the domestic wiring system must
only be made by a qualified electrician.
Failure to follow this advice may result in
electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or
cuts.
IMPORTANT SAFETY INSTRUCTIONS
●Particular attention shall be given to the relevant
requirements regarding ventilation.
●Read these instructions carefully before installing this
product.
●Please make this information available to the person
installing the appliance as it could reduce your
installation costs.
●This appliance is to be installed and serviced only by
an authorised person.
●Installation must comply with your local building and
local electricity regulations.
●The manufacturer accepts no responsibility for
the incorrect installation of appliances. Incorrect
installation may result in personal injury, damage to
property and may invalidate any warranty or liability
claims.
●Do not modify this appliance.
●Do not use or store flammable materials on or near this
appliance.
●Packing elements (eg plastic bags, polystyrene foam,
staples, packing straps etc) and tools should not be left
around during and after installation, especially if they
are within easy reach of children, as these may cause
serious injuries.
!
!

2
1SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Before you install the appliance, please make sure that
●a suitable disconnection switch is incorporated in the
permanent wiring, mounted and positioned to comply
with the local wiring rules and regulations. A means
of disconnection with at least a 3 mm air gap contact
separation in all poles must be incorporated into the
fixed wiring in accordance with the wiring rules, unless
the local wiring rules allow for alternative means.
●the benchtop is made of a heat resistant material.
●the power supply cable is not accessible through
cupboard doors or drawers.
●there is adequate flow of cool air from the cabinetry
to the base of the cooktop. You may ventilate from
adjacent cupboards, but ensure that the available air
supply will not be restricted.
●the ventilation area must be at least two 50mm diameter
holes or of an equivalent area.
●the isolating switch is easily accessible by the customer.
●you use heat-resistant and easy-to-clean finishes (such
as ceramic tiles) for the wall surfaces surrounding the
cooktop.
●the cooktop will not be installed directly above a
dishwasher, fridge, freezer, washing machine or clothes
dryer, as the humidity may damage the cooktop
electronics.
IMPORTANT SAFETY INSTRUCTIONS
●if the cooktop is installed above an oven, the oven has a
built-in cooling fan.
●the installation will comply with all clearance
requirements and applicable standards and regulations.
●you consult local building authorities and by-laws if in
doubt regarding installation.
When you install the appliance
●We do not recommend you flush mount or seal this
appliance into the bench with silicone or glue. Doing so
will make future servicing difficult. Fisher & Paykel will
not be liable for any costs associated with removing or
replacing a sealed-in appliance, nor for repairing any
damage that may be incurred by doing this.
●Seal exposed bare edges of the cutout with an oil-based
paint or moisture-proof polyurethane to prevent possible
moisture creeping between the cooktop trim and the
benchtop.
●Take extreme care not to chip, crack, or break the top
glass surfaces during installation. A heavy metal tool or
part accidentally dropped on the glass could damage it.
●If, after following the instructions given, correct
performance cannot be achieved, please contact your
nearest Fisher & Paykel Authorised Service Centre,
Customer Care, or contact us through our local website
listed at the end of this document.

3
2PARTS SUPPLIED
Clamping brackets (4)
and screws (4)
CI302DTB2 only
Clamping brackets (2)
and screws (2)
Installing multiple products
●Note: We recommend installing products in separate cutouts with a minimum distance of 5 mm between the glass edges.
●If installing multiple products adjacent to each other within the same cutout, a separate joining strip kit is required for installation.
●The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our website www.fisherpaykel.com.
●If installing different products adjacent to each other (eg a wok burner next to an induction cooktop), the minimum clearance measurements for the different products may vary.
Always use the greater distance.
Foam tape (1)

4
A
D
B
E
C
G
F
H
I
3PRODUCT & CABINETRY DIMENSIONS
TOP TOP
FRONT
REAR SIDE
CI302DTB CI603DTB CI604DTB CI754DTB CI905DTB
PRODUCT AND CABINETRY DIMENSIONS mm mm mm mm mm
AOverall height of product (including terminal block below top of chassis) 54 54 54 54 54
BOverall width of product 300 600 600 750 900
COverall depth of product 530 530 530 530 530
DHeight of chassis (including terminal block below top of chassis) 49 49 49 49 49
EWidth of chassis 257 549 549 719 855
FDepth of chassis 478 478 478 478 482
GOverall width of cutout 265 560 560 725 870
HOverall depth of cutout 490 490 490 490 494
ICorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10
Note: Electrical connection is
made at the right rear

5
BD
E
C
C
A
FRONT
ISO
CI302DTB CI603DTB CI604DTB CI754DTB CI905DTB

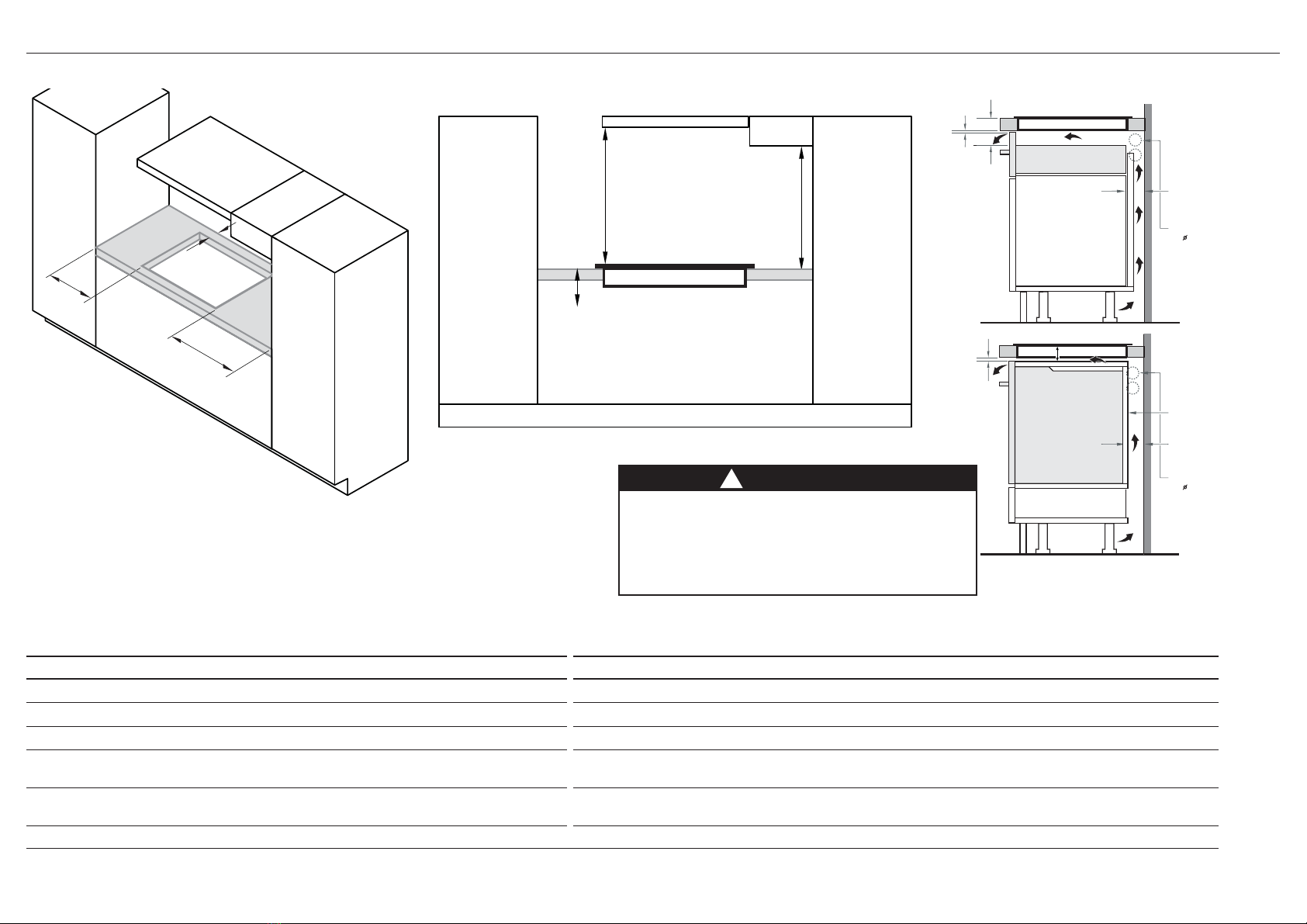

CLEARANCE DIMENSIONS mm mm mm mm mm
AMinimum clearance from rear edge of cutout to nearest combustible surface 30 30 30 30 30
BMinimum clearance from glass surface to rangehood 650 650 650 650 650
CMinimum clearance from side edges of cutout to nearest combustible surface 30 30 30 25 25
DMinimum clearance from benchtop to overhead cabinet not directly above the
cooktop 450 450 450 450 450
EMinimum clearance below top of benchtop to:
Rear top of oven* installed below cooktop or cabinetry 65 65 65 65 65
* The oven installed below the cooktop MUST have a cooling fan.
4CLEARANCE DIMENSIONS
min. 75 mm
Alternatively
2x 50mm holes
in side wall to allow
adequate cool air
min. 4 mm
min. 4 mm
Drawer or other obstruction
Oven with cooling fan
Ventilation gap
must be present
20 mm
E
Alternatively
2x 50mm holes
in side wall to allow
adequate cool air
Ventilation gap
must be present
20 mm
Some ovens require
installation in a sealed
box. Please refer to oven
install guide for full specs.
Dimension E = from top of
cabinetry/box.
WARNING!
!
This cooktop requires adequate supply of cool air
to fully function. The base of the cooktop must have
direct unrestricted ventilation to the room where the
cooktop is installed. There must be a 4mm air gap
at the front of the cooktop (as shown on diagram
above). Follow the requirements shown.

6
A
D
B
E
C
F
5FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)
TOP
TOP
FRONT
REAR SIDE
CI302DTB CI603DTB CI604DTB CI754DTB CI905DTB
PRODUCT AND CABINETRY DIMENSIONS mm mm mm mm mm
AOverall height of product (including terminal block below top of chassis) 54 54 54 54 54
BOverall width of product 300 600 600 750 900
COverall depth of product 530 530 530 530 530
DHeight of chassis (including terminal block below top of chassis) 49 49 49 49 49
EWidth of chassis 257 549 549 719 855
FDepth of chassis 478 478 478 478 482
GOverall width of routered recess 305 605 605 755 905
GIWidth of cutout 265 560 560 725 870
HOverall depth of routered recess 535 535 535 535 535
HIDepth of cutout 490 490 490 490 494
ICorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10
JCorner radius of routered recess max. 2 max. 2 max. 2 max. 2 max. 2
KHeight of routered recess 55555
LMinimum clearance below top of benchtop to:
rear top of oven* installed below cooktop or cabinetry
thermal protection barrier
70
70
70
70
70
70
70
70
70
70
Note: Electrical
connection is
made at the right rear
WARNING!
We do not recommend flush mounting and
sealing as servicing requires the cooktop to
be removed from the benchtop. The owner
carries all risk for flush mounting the cooktop.
The owner must ensure the cooktop has been
cut out from the benchtop before servicing
can be carried out. Fisher & Paykel will not be
liable for any costs associated with removing
or replacing a flush-mounted and/or sealed-in
product, nor for repairing any damage that
may be incurred by doing this.
!
G
G
K
L
HH
IJ

7
5FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)
5 mm
1
2
3
min. 150 OC rated
1
2
TO REMOVE PRODUCT
Ensure silicone does not leak underneath glass.
12-40mm 40mm+
view from below
No. of brackets and slot positions depends on model
Fit a minimum of 2 brackets on opposing sides
AROUTER THE BENCHTOP TO THE SPECIFIED DEPTH
DAPPLY SILICONE
BFIT THE CLAMPING BRACKETS
EWIPE OFF EXCESS SILICONE
CMASK OFF THE AREA TO BE SILICONED
FIF REMOVING PRODUCT, CUT
AROUND THE SILICONE

8

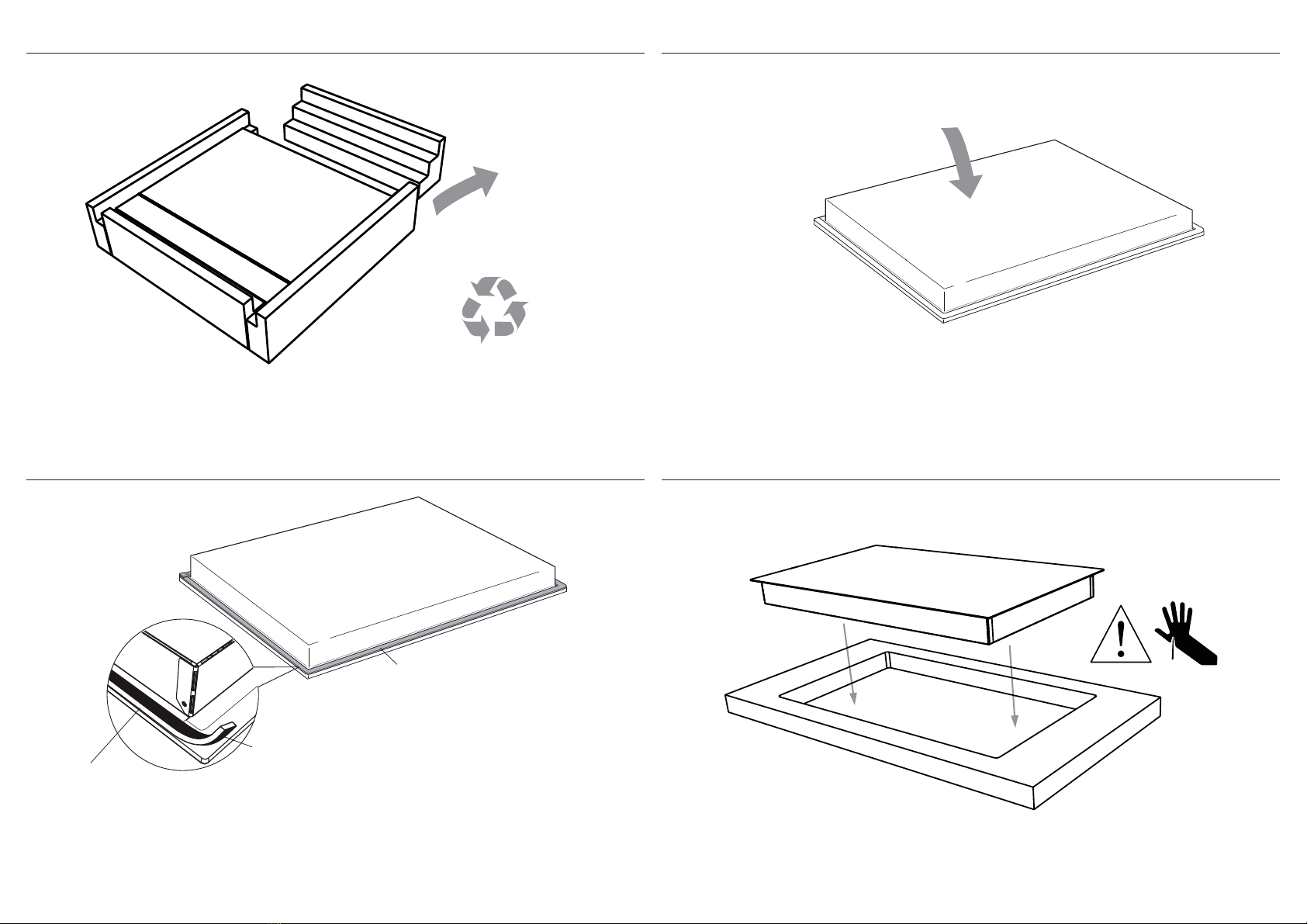

6DISCARD PACKAGING
8APPLY ADHESIVE FOAM TAPE AROUND GLASS EDGE
7PLACE COOKTOP UPSIDE DOWN
9LOWER GENTLY INTO THE CUTOUT
Recycle responsibly
IMPORTANT! - To avoid damage to the glass, ensure there is a protective cover underneath it.
Foam Tape
Adhesive side
Ensure edge of tape
lines up with outer
edge of cooktop
1Apply the foam seal around the glass
overhang, 5 mm in from the edge
of the glass, with the adhesive side
facing down to form a continuous
seal around the cooktop.
2Using a sharp cutter or trimmer
knife, trim the excess sealing
material around the edge of the
cooktop. Take care not to damage
the benchtop.

9
!0 CONNECTING THE COOKTOP TO THE MAINS POWER SUPPLY
!1 FIT CLAMPING BRACKETS BASED ON THE
BENCHTOP THICKNESS !2 SECURE TO BENCHTOP
IMPORTANT!
●This cooktop must be connected to the mains power supply only by a suitably qualified
person.
●To connect the cooktop to the mains power supply, do not use adapters, reducers, or
branching devices, as they can cause overheating and fire.
●The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75 oC at any point.
Before connecting the cooktop to the mains power supply check that:
●The domestic wiring system is suitable for the power drawn by the cooktop.
●The voltage corresponds to the value given in the rating plate
●The power supply cable sections can withstand the load specified on the rating plate.
Power supply
CI302DTB3 3700W@ 220-240V 1N ~ 16A*
CI603DTB2 6950W@ 220-240/380-415V 2N ~ 30A
CI604DTB3 7000W @ 220-240/380-415V 2N ~ 30A
CI754DTB2 7400W @ 220-240/380-415V 2N ~ 32A
CI905DTB2 9800W @ 220-240/380-415V 3N ~ 43A
CI905DTB3 11100W @ 220-240/380-415V 3N ~ 48A
*The CI302DTB2 comes supplied with a cable. This must be wired into a suitably rated plug,
permanent connection outlet or power isolator.
IMPORTANT!
Check with an electrician whether the domestic wiring system is suitable without alterations.
Any alterations must only be made by a qualified electrician.
Connection diagrams
12-40mm 40mm+
view from below
Repeat on all the other brackets
PE
1
2
3
4
5
N
LPE
1
2
3
4
5
N
L1L2
PE
1
2
3
4
5
N
L 1L3L2
PE
1
2
3
4
5
N
L
Single-phase connection
220-240V~
Single-phase connection
220-240V~
Two-phase connection
380-415V 2N~
Three-phase connection
380-415V 3N~
CI905DTB2, CI905DTB3
CI302DTB3, CI603DTB2, CI604DTB3, CI754DTB2
No. of brackets and slot positions depends on model
Fit a minimum of
2 brackets on opposing sides
Secure on at least 2
opposing sides

10
!1 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Is the cooktop earthed?
Check that there is an adequate and constant flow of cool air from the cabinetry to the
base of the cooktop.
Check that the power supply cable is not accessible via cupboard doors or drawers and
that it is NOT touching the cooktop.
Is the cooktop clamped down securely?
Check that the pan detection feature is working correctly. Turn on each cooking zone
without putting any cookware on them. Are all the displays flashing?
Check that all the cooking zones function correctly. Place suitable pans with water in
them on each zone, then turn all of them on to a high setting. Is the water heating?
Are all touch controls and displays functioning?
Check that the Bridging function works (CI302DBT2 & CI604DBT2 models only). Place a
pan of water in each cooking zones (or one covering both cooking zones). Touch both
control panels simultaneously. Do the bridging zone indicators light up? Is the water
heating?
To check that the ‘hot surface’ indicators function correctly, turn off all the zones. Is H
displayed in all the cooking zone displays?
Have you demonstrated the basic operation to the customer?
Make sure you explain to the customer about
1the importance of taking note of the safety warnings at the beginning of the user
guide, especially for persons with pacemakers or other electrical implants.
2the ‘hot surface’ indicators.
3using induction suitable cookware only.
4the pan detection feature.

11

NZ AU GB IE SG
590492G 09.18
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2018. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
