Installation instructions
and User guide
CoolDrawer
RB90S model

1
Contents
The model shown in this User Guide may not be available in all markets and is
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Important!
SAVE THESE INSTRUCTIONS
Introduction 2
Important safety instructions 3
Before you start 5
Getting started quickly 6
Customising the storage environment 8
Freezer mode 9
Additional Freezer mode functions 10
Chill mode 12
Fridge mode 13
Pantry mode 15
Wine mode 17
Which storage mode should I use? 19
General operating instructions 25
Temperature adjustment 25
Key Lock 26
Sabbath mode 26
Fault alarm 27
Control panel beeps 27
Customisable storage containers 28
Normal operating sounds 29
Food storage tips 30
Why food spoils 31
Keeping food fresh 32
Fruit and vegetable care 35
Frozen food care 38
Keeping food safe 41
Caring for your appliance 43
Cleaning 43
Before you call for service 44
Customer Care 48
European directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE) 49

2

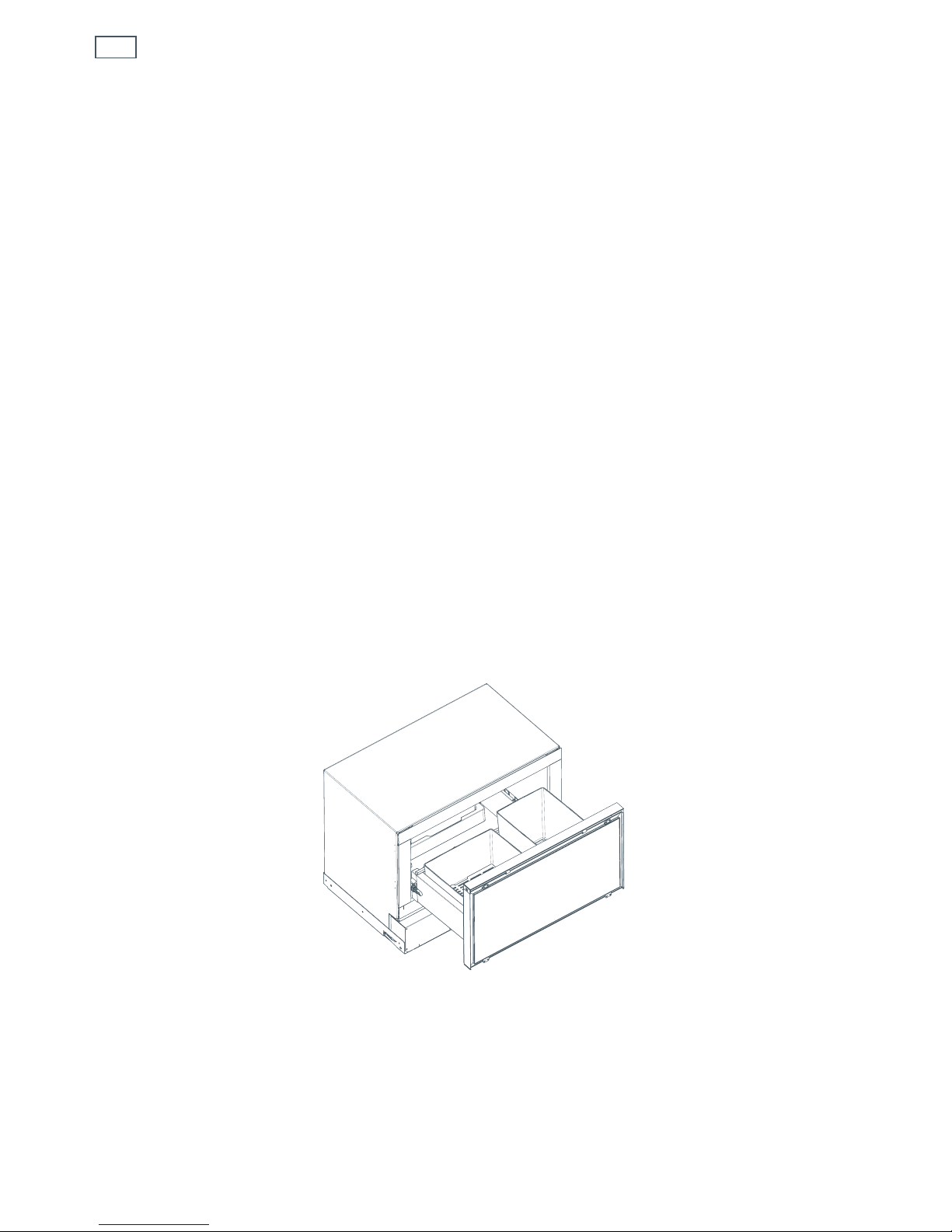

Thank you for buying a Fisher & Paykel CoolDrawer food care system.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment.
Thousands of hours of food care research and over 75 years of refrigeration experience has been
programmed into your appliance, to provide you with the best possible performance.
Your appliance will be unlike any refrigeration system you have previously owned, offering you a
new level of flexibility, ergonomics and performance.
Your appliance provides you with the ability to customise its storage environment to suit your
changing needs. It can be a refrigerator one day, and a freezer or wine cellar the next.
You can place the CoolDrawer where it best suits you; under the counter of the kitchen, in the
living room, or even in the recreation room. The choice is yours.
It is important you take the time to read these instructions carefully to ensure you have all
the information you need to use and enjoy your CoolDrawer. This will allow you to take full
advantage of the unique food care features this system has to offer you and help you achieve the
best possible food preservation performance.
We hope you enjoy your new food care system, we have certainly enjoyed designing it for you.
Important!
It is important that this User Guide is retained with your appliance for future reference. Should
the appliance be sold or transferred to another owner, please ensure the User Guide is left
with the appliance. This will ensure that the new owner can familiarise themselves with the
information and warnings contained within the Guide.
Introduction

3
WARNING!
Electric Shock Hazard
Follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide, before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury
to persons.
To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
Use this appliance only for its intended purpose as described in this User Guide.
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE
When using this appliance always exercise basic safety precautions including the following:
Danger
This appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:

– Take off the doors
– Leave the shelves in place so that children may not easily climb inside.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.
Your local Fisher & Paykel Appliances Authorised Service Centre Dealer or Customer Care

Centre will be able to give advice on environmentally friendly methods of disposing of your old
refrigerator or freezer.
Electrical
This appliance must be properly installed in accordance with the installation instructions before

it is used.
Never unplug your appliance by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at its power point or use extension cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, contact your local Fisher & Paykel Appliances Authorised

Service Centre Dealer to purchase a replacement spare part.
Care should be taken when the appliance is installed or removed, to reduce the likelihood of

damage to the power supply cord.
Disconnect power to appliance before cleaning.

Important safety instructions

4Important safety instructions
Storing food and drinks
Never store volatile/flammable materials or solvents in your appliance as they may explode or

adversely react with materials in this appliance.
Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.
Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Frozen food may be cold enough to cause damage when

brought into contact with bare skin, eg. frozen ice cubes.
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately
or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 5ºC – discard all foods.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Cleaning
Many commercially available cleaning products contain solvents which may attack plastic

components of your appliance and cause them to crack. Please refer to the cleaning care section
of this guide for further advice.
Always keep the floor around the toe-kick area clean, to limit the amount of dirt or dust that may

enter the condenser cooling circuit of the product.
SAVE THESE INSTRUCTIONS

5
Before placing food in the drawer
Clean the inside of the appliance with warm water and a little liquid detergent to remove

manufacturing and transportation dust.
Ideally, allow the drawer to run empty overnight, or for at least 5 hours, to allow it to cool to the

appropriate temperature before placing food inside.
The appliance may have an odour initially, but this will go when the compartment has cooled

sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
Ensure your CoolDrawer has adequate ventilation as recommended in the installation instructions.

Allow good clearances in front of air ducts within the CoolDrawer.

Cool hot foods down before placing them in the CoolDrawer.

Do not overfill the CoolDrawer.

Keep door openings to a minimum.

Select a temperature setting that isn't too cold.

Check your door seals for leaks.

If your appliance is turned off for any reason, wait 10 minutes before turning it back on. This will
allow the refrigeration system pressures to equalise before restarting.
The temperature of the drawer is accurately controlled and does not change with the
temperature or humidity of the surroundings; whether summer or winter.

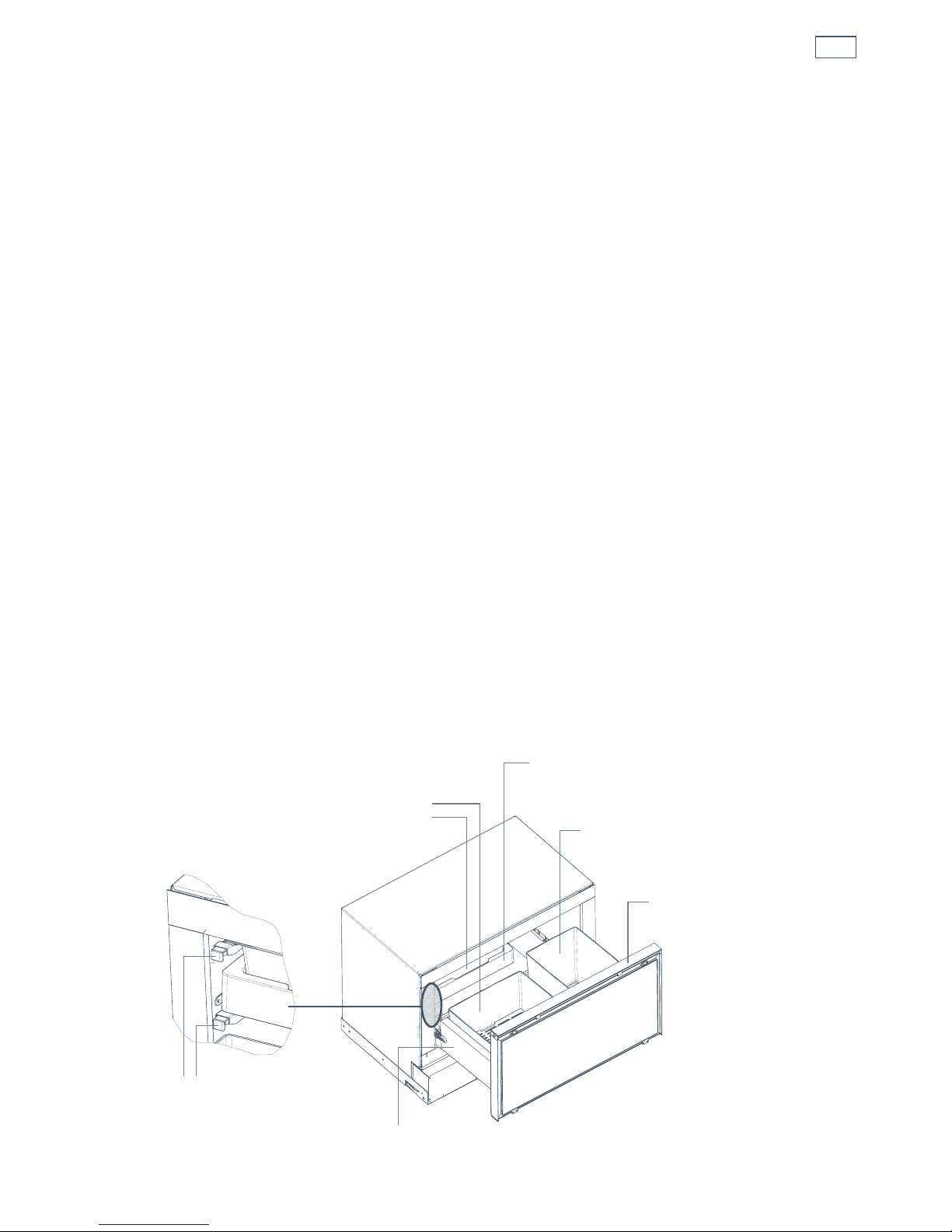

Fig. 1 Compartment layout
Main storage tray
Humidity control buttons
(refer to pages 13 and 14)
Storage bins featuring humidity
control system (refer to page 13)
Compact storage tray
Tall storage bin
Control panel (refer to page 6)
Before you start

6Getting started quickly
Operating instructions
Important!
Before placing food into the CoolDrawer for the first time, it is important that you allow the
drawer to run empty overnight, or for at least 5 hours, to allow it to cool to the appropriate
temperature before placing food inside.
Control panel features
A
Sabbath mode, Control panel beeps, Fault alarm
B
Key Lock
C
Temperature adjustment
D
Mode select
E
Storage modes
F
Function select
G
Additional Freezer functions (only active once Freezer mode is selected)
A B C D
Fig.2 CoolDrawer control panel

7
Getting started quickly
Important!
Your cabinet will default to ‘Freezer mode’ when you first turn it on. If you do not wish to use the
appliance as a freezer, simply select another option from the other four storage modes displayed
on the control panel.
To use the control panel
1
Unlock the control panel by pressing and holding the LOCK button for 3 seconds. A beep will
sound and the Key Lock light will go out.
2
Simply match the type of items that you wish to store in the CoolDrawer to the relevant storage
environment (refer to page 8).
3
Press the MODE SELECT button to scroll to the desired mode, which best represents the food
items you wish to store.
4
The storage mode icon selected will flash until the CoolDrawer reaches a suitable temperature
for food to be added (this will take between 1 – 6 hours approximately).
F GE

8Customising the storage environment
The CoolDrawer has a wide range of operating modes, from a deep freezer, freezer, chiller, fridge,
pantry and even a wine cooler.
To change the storage mode:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the MODE SELECT button.
3
Scroll to the required storage mode.
4
The storage mode icon will flash until the CoolDrawer is at a suitable
temperature for food to be added (this will take between 1 – 6 hours).
Storage modes
Freezer mode (-18°C / 0°F)
For general frozen food storage (refer to page 9).
Chill mode (-0.5°C / 31°F)
Premium extra-cold storage for highly perishable fresh meat, fish and poultry (refer
to page 12).
Fridge mode (3°C / 37°F)
General storage for fresh food, dairy and leftovers (refer to page 13).
Pantry mode (12°C / 54°F)
Ideal for tropical fruit and temperature sensitive foods that require extra care,
eg. bananas, tomatoes. Also perfect for foods recommending storage in a ‘cool,
dark place’ (refer to page 15).
Wine mode (7 – 15°C / 45 – 59°F)
Provides ideal long term cellaring for wine, as well as 2 additional customised
short term storage environments (refer to page 17).

9
Freezer mode
The use of temperatures of -18°C / 0°F or colder to store food means that the food can be kept
for longer periods than when refrigerator temperatures are used. This is because the growth
of bacteria, moulds and yeasts are stopped, and chemical and physical reactions are severely
restricted at such low temperatures. This results in food staying fresher for longer.
To use Freezer mode:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the MODE SELECT button.
3
Scroll to FREEZER mode.
4
The Freezer mode icon will flash until the CoolDrawer is at a suitable
temperature for food to be added (this will take between 1 – 6 hours).
Recommended freezer storage times for food stored on freezer mode
These times should not be exceeded.
Months
1Bacon, casseroles, milk
2Bread, ice-cream, sausages, pies (meat and fruit), prepared
shellfish, oily fish
3Non-oily fish, shellfish, pizza, cakes and muffins
4Ham, beef and lamb chops, poultry pieces
6Butter, vegetables (blanched), eggs whole and yolks, cooked
crayfish, minced meat (raw), pork (raw)
12 Fruit (dry or in syrup), egg whites, beef (raw), whole chicken,
lamb (raw), fruit cakes
For optimum freezing results we recommend removing storage bins from the CoolDrawer and
placing packaged food directly on the trays.
Customising the storage environment

10
Additional freezer mode functions
Note: only one Freezer mode function may be operated at any one time.
Bottle Chill
This function allows you to rapidly chill your beverages in the freezer without the worry of
forgetting about them. Activating Bottle Chill drops the freezer down to its coldest setting for
15 minutes. After 15 minutes, an alarm will sound to remind you to remove your beverage. The
user alarm will continue to sound until the drawer is opened and the display panel is unlocked.
The Bottle Chill light will also flash.
Remember to remove your beverage when the alarm sounds, to ensure the liquid does not
freeze.
Important!
This function can only be activated when the CoolDrawer is set to ‘Freezer’ setting.
To use the Bottle Chill function:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the FUNCTION SELECT button to select BOTTLE CHILL. The Bottle
Chill timer will start automatically.
3
Place your beverage into the CoolDrawer.
To turn Bottle Chill off at any time, press the FUNCTION SELECT button
three times until no Freezer function lights are displayed.
The Temperature adjustment light will scroll back and forth over the 15 minute period to remind
you that Bottle Chill is active.
Fast Freeze
The Fast Freeze function has been designed to assist in preserving fresh food quality by freezing
food at a faster rate than the normal freezer setting. Activating Fast Freeze drops the freezer
temperature down to its coldest temperature for 24 hours. You may wish to use this when
freezing meat or when you are making frozen desserts. It is also good to use when arriving home
from the supermarket and adding fresh food into the freezer.
Important!
This function can only be activated when the CoolDrawer is set to ‘Freezer’ setting.
Customising the storage environment

11
Additional freezer mode functions
To use the Fast Freeze function:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the FUNCTION SELECT button to select FAST FREEZE. Fast Freeze
will start automatically.
3
Place your fresh food to be frozen into the CoolDrawer.
4
Fast Freeze will automatically switch off after 24 hours and return to
Freezer mode.
To turn Fast Freeze off at any time, press the FUNCTION SELECT button
twice until no Freezer function lights are displayed.
The Temperature adjustment light will scroll back and forth over the 24 hour period to remind
you that Fast Freeze is active.
For best results, we recommend that you activate this function approximately 2 hours before it is
required. Alternatively, activate it when placing food into the freezer.
Deep Freeze
The key to long term frozen storage is low temperature. The lower the temperature, the longer
frozen food will its vital flavour and quality.
The reduced temperature of Deep Freeze will keep frozen food at its best for longer periods.
Deep Freeze sets the compartment at -25°C / -13°F.
Ensure that food is placed in thick freezer proof packaging.
Important!
This function can only be activated when the CoolDrawer is set to ‘Freezer’ mode.
To use the Deep Freeze function:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the FUNCTION SELECT button to select DEEP FREEZE.
To turn Deep Freeze off at any time, press the FUNCTION SELECT button
once until no Freezer function lights are displayed.
Note:
Deep Freeze function has no additional temperature adjustment.

While Deep Freeze is active no lights will be displayed on the temperature adjustment area.

Customising the storage environment

12
Chill mode
Chill mode sets the CoolDrawer at a temperature that is ideal for the storage of highly perishable
fresh meats, poultry and fish products. It is ideal to hold highly perishable food at a temperature
as close to freezing as possible to retain their vital freshness.
Chill mode sets the CoolDrawer at -0.5°C / 31°F, just above the freezing temperature for meat.
This reduces the amount of microbial activity and slows physical changes, ensuring that meat
stays fresher for longer.
The initial quality of the perishable food that is placed in Chill mode will be critical to successful
storage. Ensure that meat is as fresh as possible when purchased and stored.
The Chill mode can also be used for chilling alcoholic beverages.
Important!
This setting is not recommended for any other food or non-alcoholic drink items.
To use Chill mode:
1
Press and hold the LOCK button for 3 seconds to unlock the
control panel.
2
Press the MODE SELECT button.
3
Scroll to CHILL mode.
4
The Chill mode icon will flash until the CoolDrawer is at a suitable
temperature for food to be added (this will take between 1 – 6 hours).
Research tells us that highly perishable food stored on Chill mode will last 2 – 3 times longer
than when stored at normal refrigerator temperatures.
Customising the storage environment

13
Fridge mode
Fridge mode is the ideal storage environment for most fresh foods.
When storing fresh fruit and vegetables, we recommend that they are stored in the top or
bottom bins on the left-hand side of the drawer. Both of these bins are humidity controlled.
This will help to preserve the quality of the fruit and vegetables, increasing their storage life.
Ensure all food is well wrapped (except for fruit and vegetables stored in the vegetable bins),

covered or placed in a container before it is stored.
To use Fridge mode:
1
Press and hold the LOCK button for 3 seconds to unlock the
control panel.
2
Press the MODE SELECT button.
3
Scroll to FRIDGE mode.
4
The Fridge mode icon will flash until the CoolDrawer is at a suitable
temperature for food to be added (this will take between 1 – 6 hours).
Fruit and vegetable Humidity Control System (HCS)
Humidity control cover
The vegetable bins feature a unique hidden cover which provides two functions:
The humidity cover seals the bins and provides a humid micro climate to extend storage times of

fruit and vegetables.
The humidity cover prevents condensation, which forms at high humidity, from dripping down

onto the fruit and vegetables by retaining the moisture droplets in the lid.
Customising the storage environment
Fig 3. Humidity control buttons

14
Humidity control
Each fruit and vegetable bin has a humidity control button that can be adjusted to care for fruit

or vegetables depending on what is stored in the bins. The humidity controls are located on the
left hand side of the CoolDrawer (as shown in fig 3, on the previous page).
If possible, try to store fruit and vegetables separately. This will help to extend their storage life.

If there is too much water in the bins (due to the high humidity in the bins), the control can be

adjusted to the FRUIT setting and/or the water can be wiped out as required.
Remember a small amount of water in the bins is beneficial for fruit and vegetable storage. The
vegetable screens, in the bottom of the bins, will ensure that fresh produce is held above any
moisture in the bottom of the bins to retain optimum freshness.
To adjust the humidity setting:
The picture on the top of the humidity control button will show the current
setting. To change the setting, simply push the adjustment button.
Suitable for: Suitable for:
Salad greens (high humidity)
– Lettuce
– Spinach
Fruit with skin/ peel (reduced humidity)
– Apples
– Pears
– Kiwifruit
Broccoli
Cabbage
Carrots
For a more detailed list please refer to pages 22 – 24.
Customising the storage environment

15
Pantry mode
The Pantry mode finally provides a solution for all those foods that you didn’t previously know
what to do with, and have always resorted to storing on the bench or in the cupboard.
The Pantry mode is designed specifically for foods that require a 'cool, dark place' for storage.
Sensitive food
There are a wide variety of foods that often perish quickly if stored at room
temperature but can be damaged by normal refrigerator temperatures,
eg. bananas and tomatoes.
The Pantry mode provides a stable storage environment at 12°C / 54°F,
making it an ideal environment for sensitive food items. Pantry mode
also allows tropical fruits, eg. avocados, melons and pineapples, to ripen
slowly under controlled conditions, without the risk of damage from low
temperatures.
A cool cupboard
Freshly baked items such as cakes and breads can quickly turn mouldy when placed in the
cupboard but become hard and stale when placed in a conventional refrigerator. The Pantry
mode provides ideal storage for these items so that they remain fresher for longer. It is also a
great place to store dried goods, cereals and other items that can become a target for mould and
insects when stored at room temperature.
Important!
The Pantry mode is not suitable for highly perishable fresh dairy and meat items, or
pre-cooked foods.
To use Pantry mode:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the MODE SELECT button.
3
Scroll to PANTRY mode.
4
The Pantry mode icon will flash until the CoolDrawer is at a suitable
temperature for food to be added (this will take between 1 – 6 hours).
Customising the storage environment

16
The following table shows some examples of food items that are suitable for the Pantry mode.
Fruits Vegetables General Foods
Avocado
Bananas
Feijoas
Grapefruit
Guava
Lemons
Limes
Mangos
Passionfruit
Papaya/ Pawpaw
Pineapple
Tomatoes
Watermelons
Basil
Courgettes/zucchinis
Cucumbers
Eggplant/aubergine
Potatoes
Pumpkin
Squash
Taro
Baked goods
Breads
Chocolate
Cereals
Dried goods
Dried Herbs
Nuts
Additional uses for Pantry mode
Keep your natural cosmetic and skin care products in Pantry mode to keep them fresher

for longer.
When the weather is hot, keep your moisturiser, toner and spritzer cool for a refreshing lift

when applied.
Use Pantry mode to ripen moulded cheeses, eg. brie, camembert, blue cheese. Ensure that

cheeses are well wrapped, and once ripened, place back into Fridge mode.
Keep dry goods out of reach of insects and high humidity in summer months.

Customising the storage environment

17
Wine mode
The conditions in which wine is stored can have large effects on its overall taste and aroma.
Warmer temperatures can cause premature aging of wines and loss of quality. Cold temperatures
can be just as bad, causing irreversible damage to the flavour. Temperature fluctuations can also
have a negative impact on wine quality. Typical household fluctuations in temperature from day
to night can cause harm to wine over time.
Wine mode provides an ideal controlled environment for the long and short-term storage of
both red and white wines.
Long-term storage
For long-term storage (longer than one week) of both red and white wines, the ideal recommended
storage temperature is 12°C / 54°F. When Wine mode is selected, the CoolDrawer is automatically
set to this ideal, constant temperature, to provide the optimum conditions for long term storage.
Short-term storage / serving
Wine mode is also ideal for short-term storage (less than one week) of wines. Both red and
white wines require different serving temperatures to ensure an optimum taste experience.
White wines should be served at cooler temperatures (approximately 7°C / 45°F) whereas red
wines are better served at warmer temperatures (approximately 15°C / 59°F). Wine mode can be
customised to provide these two optimum serving temperatures.
Serving temperature Wine type
7°C / 45°F Suitable for the majority of white wines including
Chardonnay, Sauvignon Blancs, Rieslings, Chenin Blancs
and Pinot Gris. If white wines are served too cold, the
aromas and flavours will be minimised and you won’t get
full enjoyment.
15°C / 59°F Suitable for red wines including Merlot, Bordeaux,
Zinfandel, Cabernet Sauvignon and Syrah/Shiraz. If red
wines are served too warm the alcohol can produce an
unpleasant bite on the palate.
Customising the storage environment

18
To use Wine mode:
1
Press and hold the LOCK button for 3 seconds to unlock the control panel.
2
Press the MODE SELECT button.
3
Scroll to WINE mode.
4
The Wine mode icon will flash until the CoolDrawer is at a suitable
temperature for wine bottles to be added (this will take between 1 – 6 hours).
To customise the storage environment for ideal serving temperatures:
Use the Temperature adjustment control to change the temperature.
Cellar (default setting)
Automatically selected when Wine mode is selected.
Long term wine storage for red and white wine cellaring.
White wine
For white wine short term storage and serving press the
COLDER button to select the white wine (-) setting.
Red wine
For red wine short term storage and serving press the
WARMER button to select the red wine (+) setting.
Customising the storage environment
Fig.4 Adjusting temperature
