Fisher & Paykel RB2470BRV User manual

24” INTEGRATED
REFRIGERATOR/FREEZER
RB2470BRV model
INSTALLATION GUIDE
US CA
849695B 10.18

1
TABLE OF CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to
our website fisherpaykel.com or contact your local Fisher & Paykel dealer.
OR
1 SAFETY AND WARNINGS
2 COMPONENTS LIST
3 COMPONENTS LIST — DOOR PANELS AND HANDLES
4 PRODUCT DIMENSIONS
5 CABINETRY DIMENSIONS
6 DOOR OPENING ROTATION
7 ELECTRICAL SPECIFICATIONS
8 BEFORE INSTALLATION
9 UNPACKING AND MOVING YOUR PRODUCT
!0 INSTALLATION OVERVIEW
!1 CHANGING OVER DOOR HINGE (OPTIONAL)
!2 INSTALL TRIM CLIPS
!3 INSTALL CABINETRY ATTACHMENT BRACKETS
!4 INSTALL CLEARANCE ADJUSTMENT PLATES
!5 POSITION YOUR PRODUCT INSIDE THE CABINETRY
!6 FIX YOUR PRODUCT INSIDE THE CABINETRY
!7 INSTALL THE TRIMS
!8 INSTALL DOOR PANELS (STAINLESS STEEL)
!9 INSTALL TOP DOOR PANEL (CUSTOM)
@0 INSTALL BOTTOM DOOR PANEL (CUSTOM)
@1 INSTALL COVERS AND INLET VENT GRILLE
@2 FINAL CHECKLIST

2
1 SAFETY AND WARNINGS 2 COMPONENTS LIST
! WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this installation
guide before operating this product.
Failure to do so can result in death, electric shock, fire or injury
topersons.
! WARNING!
Cut Hazard
Take care – panel edges are sharp. Failure to use caution could result
ininjury or cuts.
IMPORTANT!
To ensure that the product is stable under all loading conditions, the fittings supplied must
be installed according to the following installation instructions by a professional installer.
MI (miscellaneous items) pack — included in the product.
INTEGRATED REFRIGERATOR
RB2470BRV model
RÉFRIGÉRATEUR ENCASTRABLE
Modèle RB2470BRV
USER GUIDE
GUIDE D’UTILISATION
US CA
849696ABOOK UG REF RB2470V USCA FA R1.indd 1 13/08/18 10:28AM
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTO JA TAKUU
SERVICE OG GARANTI
保修和维修
服務和保修
24” INTEGRATED
REFRIGERATOR/FREEZER
RB2470BRV model
INSTALLATION GUIDE
US CA
849695A 09.18
User guide (1x) Service & Warranty (1x) Installation guide (1x)
Product accessories — included with the product.
Attached to the side of the product duringtransport.
Top trim* (1x) Side trim bottom
compartment
hinged side (1x)
Side trim top
compartment
hinged side (1x)
Side trim non hinged
side (1x)
* Top trim is located inside the refrigerator compartment, behind the shelves. The shelves must be removed to get
the top trim out.
Optional accessory — not included with the product and must be purchased separately.
Inlet vent grille (1x)*
* Use only for cabinetry inlet vent area with dimensions 17 5/8” x 2 1/8” (448mm x 55mm). Refer to ‘Install
covers and inlet vent grille’ for more information.

3

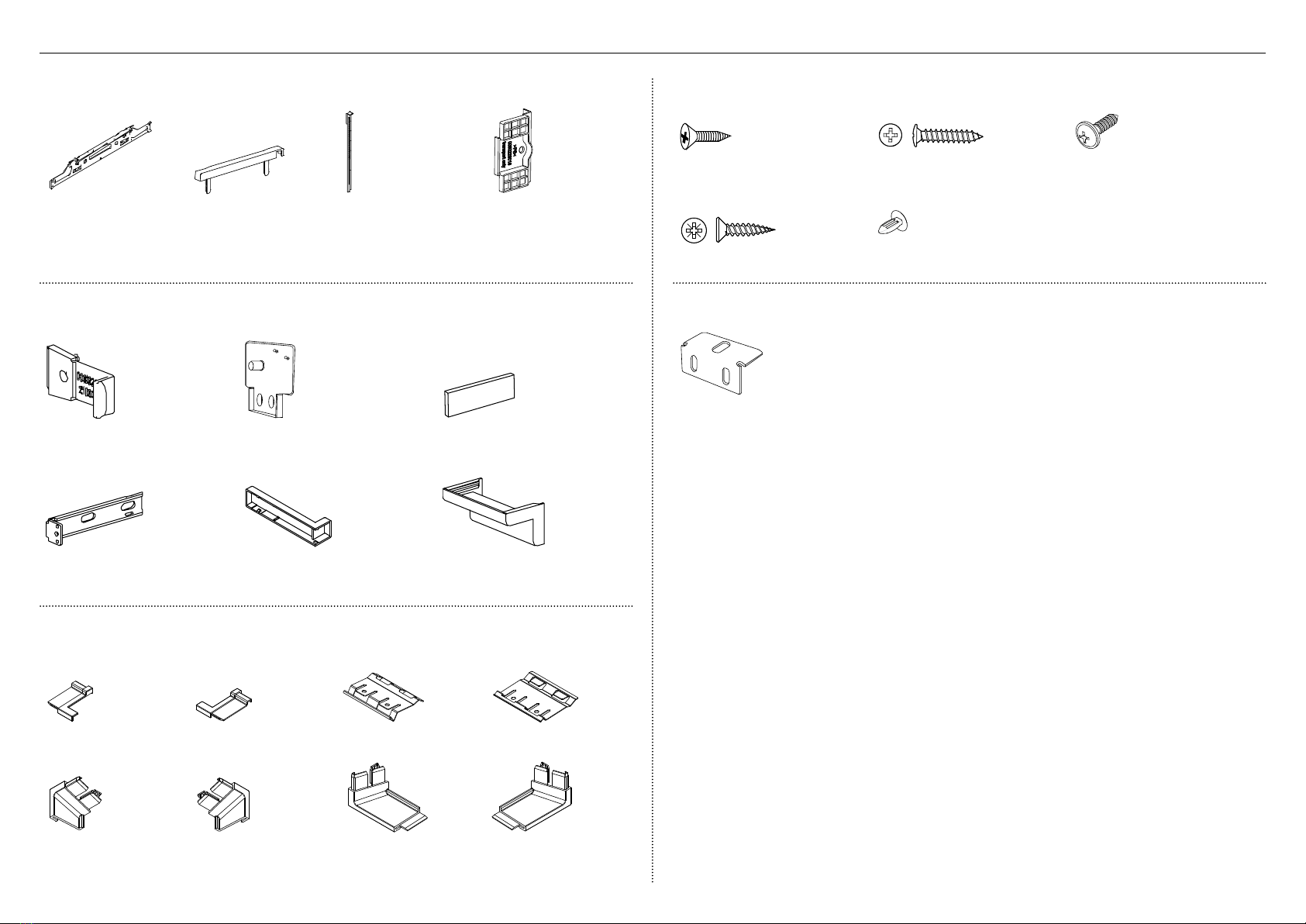

2 COMPONENTS LIST
Fasteners — included in the product.
#8 x 5/8
Pan Head
Philips Screw
#8 x 5/8
Pan Head
Philips Screw
Cabinetry attachment
screws (2)
Hinge screws (8) Bottom attachment
screws (4)
#8 x 19 Countersunk Twin Thread Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
Wood screws (52) Hinge hole plugs (8)
Trim installation fittings — included in the product.
Trim end LH (2) Trim end RH (2) Top trim clips (2) Side trim clips (8)
Top corner hinged
LH (1)
Top corner hinged
RH (1)
Top corner
non hinged RH (1)
Top corner
nonhinged LH (1)
Pre-installed parts — included with the product.
Top hanging
bracket (2x)
Top hanging
bracket cover (2x)
Top attachment
ruler (4x)
Door gasket baffle*
(2x)
* Used only when transporting the product. Remove from the door after delivery of the product.
Door panel (Custom) fittings — included in the product.
Bottom attachment
brackets (4)
Product fittings — included in the product.
Position adjustment
plate(1)
Clearance adjustment
plates (4)
Hinge covers (4)
Cabinetry attachment
bracket(1)
Cabinetry attachment
bracket cover (1)
Bottom attachment
bracket covers (4)

4
3 COMPONENTS LIST — DOOR PANELS AND HANDLES
Door handle kits — not included with theproduct
and must be purchased separately.
Contemporary square handle kit
M5 x 25 Pan Head Socket Screw OR M5x25 hex screw
M5 x 25 Pan Head Socket Screw OR M5x25 hex screw
Square handle (2) M5x25 Hex screw (8)
Contemporary round handle kit
M5 x 25 Pan Head Socket Screw OR M5x25 hex screw
M5 x 25 Pan Head Socket Screw OR M5x25 hex screw
Round handle (2) M5x25 Hex screw (8)
STAINLESS STEEL CUSTOM*
DOOR PANEL DIMENSIONS in (mm) in (mm)
aHeight of top door panel 43 1/4”(1098) 43 1/4”–43 1/2”(1098–1105)
bHeight of bottom door panel 28 3/16”(716) 28 3/16”(716)
cWidth of top and bottom door panels 23 3/4”(603) 23 3/8”–23 3/4”(594–603)
dDepth of each door panel (excluding door handle) 3/4”(19) min 5/8”–max 3/4” (16–19)
DOOR PANEL WEIGHT lb (kg) lb (kg)
Weight of top door panel 18 (8) max 26 (12)
Weight of bottom door panel 11 (5) max 26 (12)
* Custom door panels to be manufactured and fitted by cabinet maker.
Custom door panels — Customers can supply their own
Custom door panel to match their cabinetry.
Door panel fittings — included
with the product.
Bottom attachment brackets (4)
#8 x 19 Countersunk Twin Thread Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
Wood screws (8)
Bottom door panel
Top door panel
D
A
C
D
B
C
Stainless Steel door panels — Fisher & Paykel (Stainless steel)
door panel is not included with the product and must be
purchased separately.
Door panel fittings — included
with the door panel.
Bottom attachment brackets (4)
Side spacer bracket (4)
Bottom attachment strap (4)
M5 x 10 Pan Head Philips Screw
M5 x 10 Pan Head Philips Screw
Screws (28)
Top door panel
D
A
C
D
B
Bottom door panel
C

5
4 PRODUCT DIMENSIONS
PRODUCT DIMENSIONS in (mm)
AOverall height of product 69 3/4” (1773)
BOverall width of product 21 7/8” (555)
COverall depth of product (excluding door panels) 21 1/4” (540)
dHeight of top door (including top and bottom hinges) 42” (1066)
eHeight of hinge gap 1/2” (12)
fHeight of bottom door (including top and bottom hinges) 27 1/4” (692)
PRODUCT SPECIFICATIONS
Weight (including packaging)
(without packaging)
81kg (179lbs)
75kg (165lbs)
Door hinge Hettich K99
SIDE VIEW
A
c
F
D
E
B
FRONT VIEW

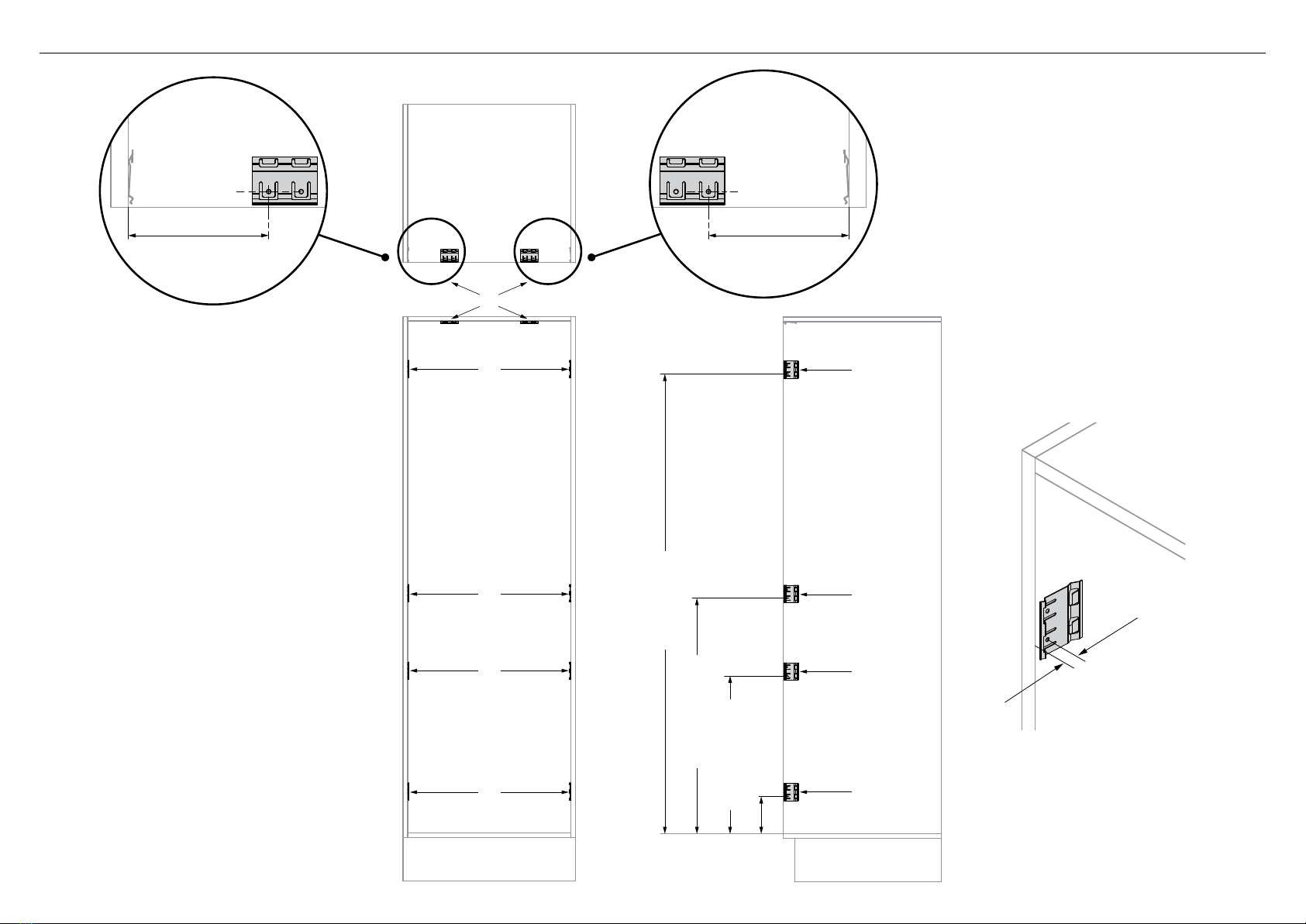

5 CABINETRY DIMENSIONS
A
D
EC
B
E
D D
E
PLAN VIEW
Door panel flush
with side of cabinetry
CABINETRY DIMENSIONS in (mm)
AInside height of cabinetry 70 1/8” – 70 1/4” (1782 – 1786)
BInside width of cabinetry 22 1/4” – 22 1/2” (564 – 570)
COverall depth min 21 5/8” (min 550)
MINIMUM CLEARANCE in2(mm2)
DMinimum inlet vent area* 31 (2000)
EMinimum outlet vent area 43 (2800)
* An optional inlet vent grille is available for inlet vent area with dimensions 17 5/8” x 2 1/8” (448mm x 55mm).
Refer to ‘Install covers and inlet vent grille’ for more information.

6
6 DOOR OPENING ROTATION
DOOR OPENING AND CLEARANCE DIMENSIONS in (mm)
AWidth of door (90° open) measured from front of door panel 17 3/8” (440)
bMinimum door clearance* to adjacent wall (115° ) 11 3/4” (300)
cMinimum door clearance* to adjacent wall (90° ) 4” (100)
* Measured from front cabinetry edge.
WARNING!
 Ensure that the product is stable before opening the doors.
 Ensure that you follow the instructions to avoid risks that can cause serious injury or death.
A
115° DOOR OPENING
(FULL ROTATION)
90° DOOR OPENING
Wall Wall
C
B
A

7
7 ELECTRICAL SPECIFICATIONS
WARNING!
 Electric shock hazard! Assume all parts are live.
Disconnect supply before servicing and installation.
!
!
Floor
REAR OF CAVITY
Left side
of cavity
77/8”
(200mm)
!
!
Electrical
Electrical
Alternative area for electrical connection
should be on the wall above the cabinetry.
ELECTRICAL SPECIFICATIONS
Supply 120 VAC, 60Hz
Service 10 amp circuit
Outlet 3-prong grounding plug [NEMA 5 – 15P]
Note: Electrical connection can be located in an adjacent cabinet to either side of the fridge or above the fridge cavity.
We recommend to use an isolating switch that is easily accessible to the user after the refrigerator is installed.
Do not locate electricity in this area, keep clear of connections.
CAUTION: central area can only fit water outlet and electrical plug if they are placed within a recessed cavity.
!
!
Power cord (excl. plug) — 41 3/8” (1050mm)
from top edge of product
Power cord (excl. plug) — 931/4” (2370mm)
from left side edge of product
LEFT HAND SIDE
Power cord (excl. plug) — 105 1/8” (2670mm)
from right side edge of product
RIGHT HAND SIDE

8
8 BEFORE INSTALLATION
IMPORTANT!
 Ensure your product is not exposed to any heat generating products eg cooktop, oven or dishwasher.
 The product must be installed by a qualified installer, or Fisher & Paykel trained and supported service technician to avoid faulty electrical connection.
 All connections for electrical power and grounding must comply with local codes and ordinances and be made bylicensed personnel when required.
 Avoid installation of the product/s under a ground fault circuit interrupter (GFCI).
 Ensure the product is installed properly. Improperinstallation that results in product failure isnot covered under the product warranty.
Check the installation location
Cabinetry
 Check the dimensions of the cabinetry (width, depth, height, floor level, finished alcove returns).
 Ensure that the ventilation openings in the cabinetry areclear of obstruction.
Power supply connection
 Ensure that there is a separate power outlet for the product.
 Avoid sharing the power point with other products to prevent the product from accidentally switching off.
 For power requirements, refer to the information onthe serial plate.
 Ensure your product is properly grounded (earthed).
 Connect your product to an electrical supply with thefitted plug and lead.
 We recommend to use an isolating switch that is easily accessible to the user after the product is installed.
Your product
 Ensure that your product is the correct model as peryour order.
 Ensure that the packaging is not damaged upon delivery.
 Check that the components and install kits are complete.

9
9 UNPACKING AND MOVING YOUR PRODUCT
WARNING!
 Follow these instructions to avoid risks that can cause serious injury or death.
 Keep doors closed until the product has been moved to its installation location.
IMPORTANT!
 Be careful when unpacking to prevent damage to the surface of your product.
 Ensure that the product is stable to prevent from tipping over when unpacking.
 Do not open the doors to prevent the product from tipping over.
 If the product is damaged, contact your Fisher & Paykel dealer.
 Take note of your model and registration numbers located at the bottom right side of the
product. You will need these to request for servicing or repair of your product.
4 Remove the door gasket
baffles from both doors (A).
– Keep the door gasket
baffles in case you need
to move the product in
the future.
B
D
C
Top and side trims
Unpacking your product
1 Remove the carton and packaging,
along with the rip tag.
2Remove the side trims taped to the
side of the product and the top trim
from inside theproduct.
3Remove the bags of component parts
from inside the product.
Door gasket baffle
A
Moving your product
5 After unpacking, tape the door shut to prevent the possible opening of the doors when tilting.
6 Tilt the product slightly forward (B) and slide a two-wheeled cart (C) between the product
andbase pack (polystyrene foam).
– Do not insert the cart from the back or front side of the product!
7 Restrain the product to the cart with straps, and then tilt backward onto the cart (D).
8 Set aside the base pack and push the product to the installation location.
– Make sure the door stays closed until the product is positioned inside the cabinetry.

10

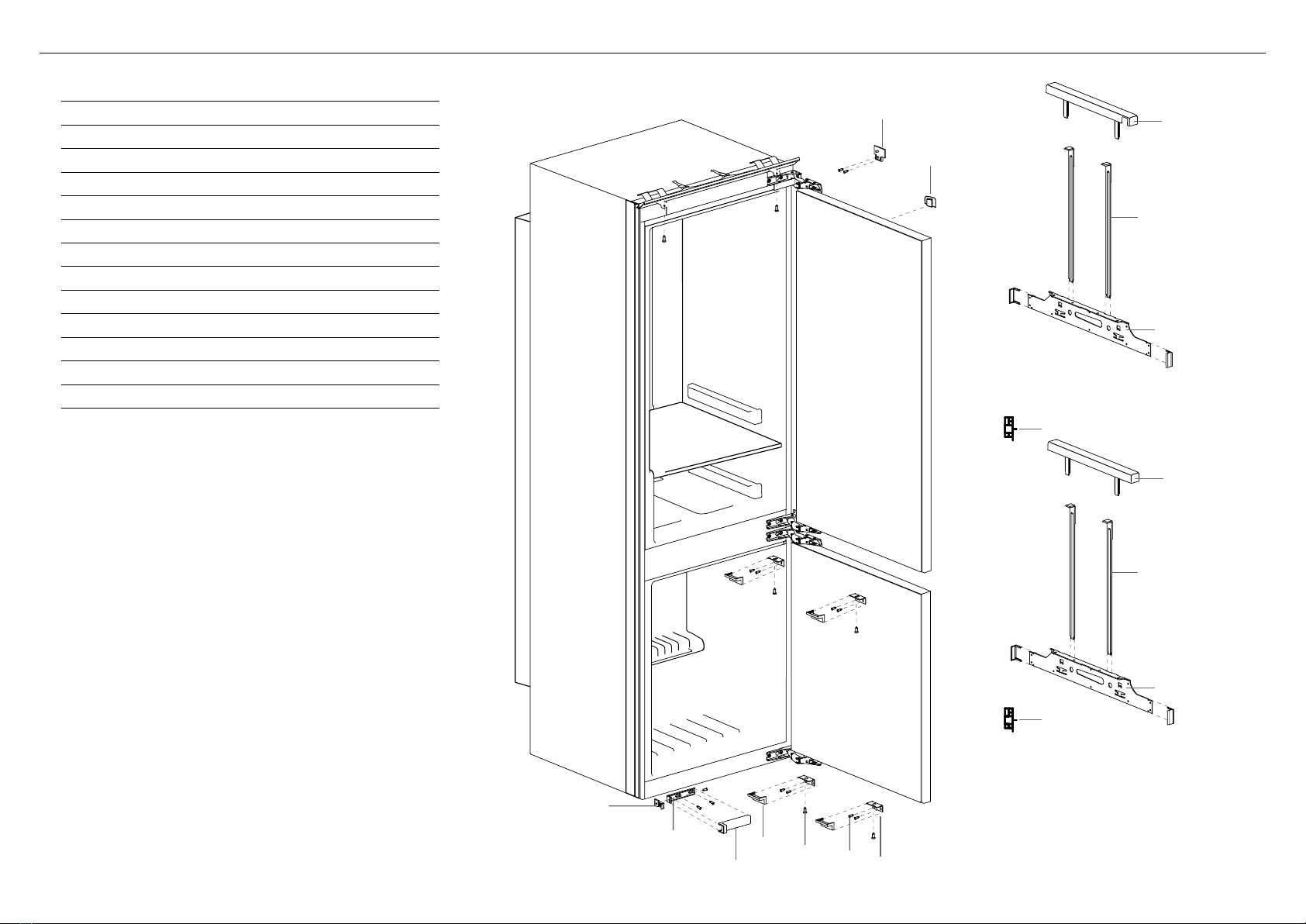

!0 INSTALLATION OVERVIEW
aClearance adjustment plate
bBottom attachment bracket
cHanging bracket cover
dSensor magnet
eBottom attachment bracket cover (Custom door only)
fTop attachment ruler
gCabinetry attachment bracket cover
hCabinetry attachment bracket
iPosition adjustment plate
jDoor gasket baffle
kWood screw
lBottom attachment bracket screw
mTop hanging bracket
a
D
c
j
j
b
k
l
e
g
h
i
c
m
f
f
M

11

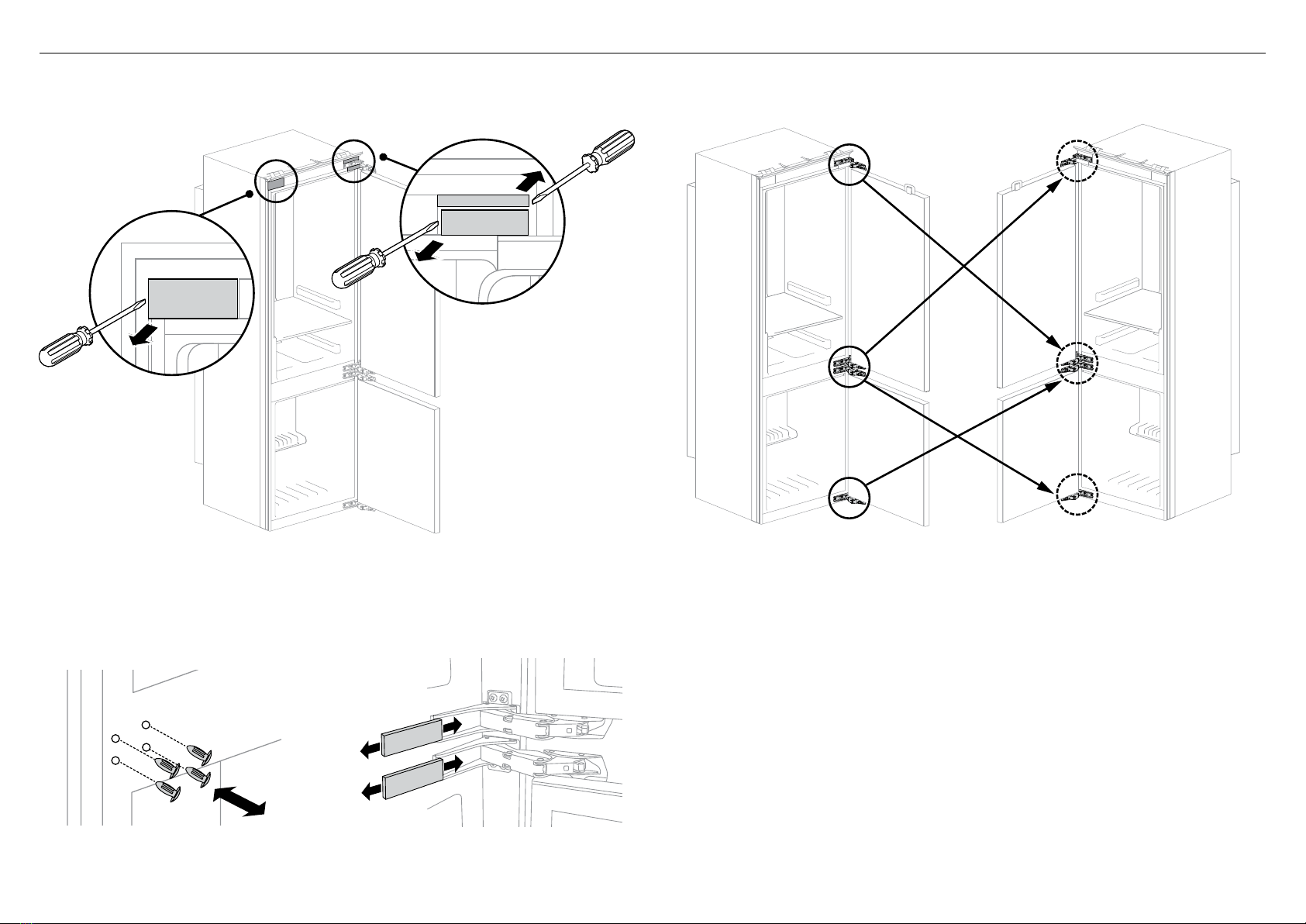

!1 CHANGING OVER DOOR HINGE (OPTIONAL)
This model is right hinged with a left-opening door. If required, you can change this model to left hinged with a right-opening door.
1Remove the covers on the left and right ends of the control panel using a
flat-head screwdriver.
4Remove the door hinges (C) and refit to the opposite side (as illustrated above).
5Insert the hinge covers (B).
6Insert the hinge hole plugs to the holes on the opposite side (A).
2When changing the hinge position
remove the hinge hole plugs (A).
RIght hinged door Left hinged door
C
3Remove the remaining hinge covers (B).
Remove the left hand
cover by levering from
the outer edge.
Remove the right hand cover by
levering from the outer edge.
Remove the hinge cover by
levering from the inner edge.
A
Right hand cover
Hinge cover
Left hand cover
B

12
!2 INSTALL TRIM CLIPS
Installing trim clips to the cabinetry
1Install top trim clips (A) to the top inside
surface of the cabinetry at a minimum
clearance of 51/8” (130mm) from the top
side edge of the cabinetry.
2Install side trim clips (B) to the right and left
side inner surfaces of the cabinetry. Drill each
screw hole 9/16” (15mm) from the front edge
of the cabinetry side (C).
63” (1600mm)
32 1/4” (820mm)
215/8” (550mm)
51/8” (130mm)
Installation location
of side trim clips
Cabinetry top
inside surface
A
B
B
B
B
B
B
B
B
51/8” (130mm) 51/8” (130mm)
A A
Drill hole 9/16" (15mm)
back from front edge of
cabinetry for side trim clips
9/16” (15mm)
C

13
!3 INSTALL CABINETRY ATTACHMENT BRACKETS
Adjust the air flow stops
4 Adjust the air flow stops located on the back cover of the compressor. Ensure the air flow
stops make contact with the cabinetry.
IMPORTANT!
It is possible for the air flow stops to get flattened during transport. If this happens,
unfurl the air flow stops to ensure they meet the back of the cabinetry to help airflow.
Adjust the air flow stops
Air flow
stops
Air
outlet
Air inlet
Install cabinetry attachment bracket to the product
1Remove the pre-existing screw/plastic
washer(A) and plastic plugs (B) on
the non-hinge side bottomcorner of
the product.
2Attach the position adjustment plate (C)
to the cabinetry attachment bracket (D)
by inserting the knobs of the plate into
the holes of the bracket.
3Install the cabinetry attachment bracket
to the bottom non-hinge side of the
product by inserting two screws (E) into
the existing plug holes.
– Do not tighten fully to allow for
adjustment.
C
D
A
B
Loosely screw in, to enable
bracket to slide side to side
E

14
!4 INSTALL CLEARANCE ADJUSTMENT PLATES
IMPORTANT!
Clearance adjustment plates are installed depending on the overall
dimensions of your cabinetry (see table for more information).
1 Attach clearance adjustment plates to the door hinges of the
refrigerator and freezer doors.
– Ensure the correct orientation when attaching the plates.
CABINETRY OUTSIDE WIDTH OF CABINETRY
in (mm)
INSIDE WIDTH OF CABINETRY
in (mm)
THICKNESS OF SIDE PANEL
in (mm)
CLEARANCE ADJUSTMENT PLATE
Standard US 24” (609) 221/2” (571.5) 3/4” (19) 
Standard European 235/8” (600) 221/4” (564) 11/16” (18) *
221/2” (570) 5/8” (15) 
* The clearance adjustment plate is not necessary if the outside width of your cabinetry is 235/8” (600mm) with 221/4” (564mm) inside dimension and 11/16” (18mm) side panels.
Clearance adjustment plate

15
!5 POSITION YOUR PRODUCT INSIDE THE CABINETRY
Aligning the product inside the cabinetry
3Push the product all the way into the cabinetry and adjust its position.
– Ensure the front edges of all clearance adjustment plates (refrigerator and freezer
doors) are flush with the cabinetry front edge (B).
B
A
Connecting the product to the power supply
1Move the product in front of the cabinetry close enough that you can access behind to
connect the power supply.
2Connect the power cord of the product to the power outlet (A) and turn ON before
placing into the cabinetry.
– Ensure that the power cord does not bend or get entangled to prevent damage
that can cause a fire hazard.
4Ensure the front tab of the position adjustment plate is up against the cabinetry front
edge (D).
Note: If not using clearance adjustment plates, ensure the
front face of each door hinge is flush with the cabinetry
front edge (C).
C
D

16
!6 FIX YOUR PRODUCT INSIDE THE CABINETRY
2Slide the cabinetry attachment bracket
towards the cabinetry wall so that the position
adjustment plate is pressed against the cabinetry
wall, and then fix with a wood screw (A).
3Tighten the attachment bracket screws (B).
1Fix the product to the cabinetry by
screwing in all door hinges.
5 Place the bracket cover on the cabinetry
attachment bracket (D).
A
B
Break off
C
D
4 Once the product is fixed into the cabinetry,
break off the tab of the position adjustment
plate (C).

17
!7 INSTALL THE TRIMS
Top trim
1Slide the LH and RH top corners (A) into the
ends of the top trim (B).
2Fix the top trim to the trim clips (C).
Note: You may need to cut the top trim
depending on the overall dimensions of your
cabinetry. (See table for more information).
Top and bottom side trims (hinged side)
3Slide the trim ends (D) to the top and
bottom ends of each side trim (E).
4Fix the side trims to the trim clips (C).
Side trim (non-hinged side)
5Slide the top end of the side trim (F) into
the LH top corner (A).
6Fix the side trim to the trim clips (C).
CABINETRY OUTSIDE WIDTH OF CABINETRY
in (mm)
INSIDE WIDTH OF CABINETRY
in (mm)
THICKNESS OF SIDE PANEL
in (mm)
1/8” (4mm)
TO BE CUT FROM TOP TRIM
Standard US 24” (609) 221/2” (571.5) 3/4” (19) 
Standard European 235/8” (600) 221/4” (564) 11/16” (18) 
221/2” (570) 5/8” (15) 
A
F
B
A
D
E
D
E
D
D
C

18
!8 INSTALL DOOR PANELS (STAINLESS STEEL)
IMPORTANT!
 Ensure to protect the finish of the Fisher & Paykel Stainless steel door panels.
 Leave the protective film on the panels when hanging and remove the film only when the installation is complete.
Loosening the height adjustment nut
Before installing the top door panel, you must
remove the door magnet from the refrigerator
door to enable you to access and loosen the
height adjustment nut.
4Loosen the height adjustment nut (D) with
a spanner.
IMPORTANT!
Do not remove!
Note: Loosening the nut allows you to
easily turn it from the top using a hex key
after the door panel has been installed.
5Reinstall the sensor magnet to the refrigerator
door (E) and then close the door.
IMPORTANT!
 Reinstall the door sensor magnet before
fitting the door panel as this is not possible
once the door panel is installed.
 The magnet sensor is installed only on the
refrigerator door.
3Remove the magnet (B) by unscrewing the
screws (C) using a crosshead screwdriver.
IMPORTANT!
Keep the sensor magnet to reinstall later.
B
E
C
C
D

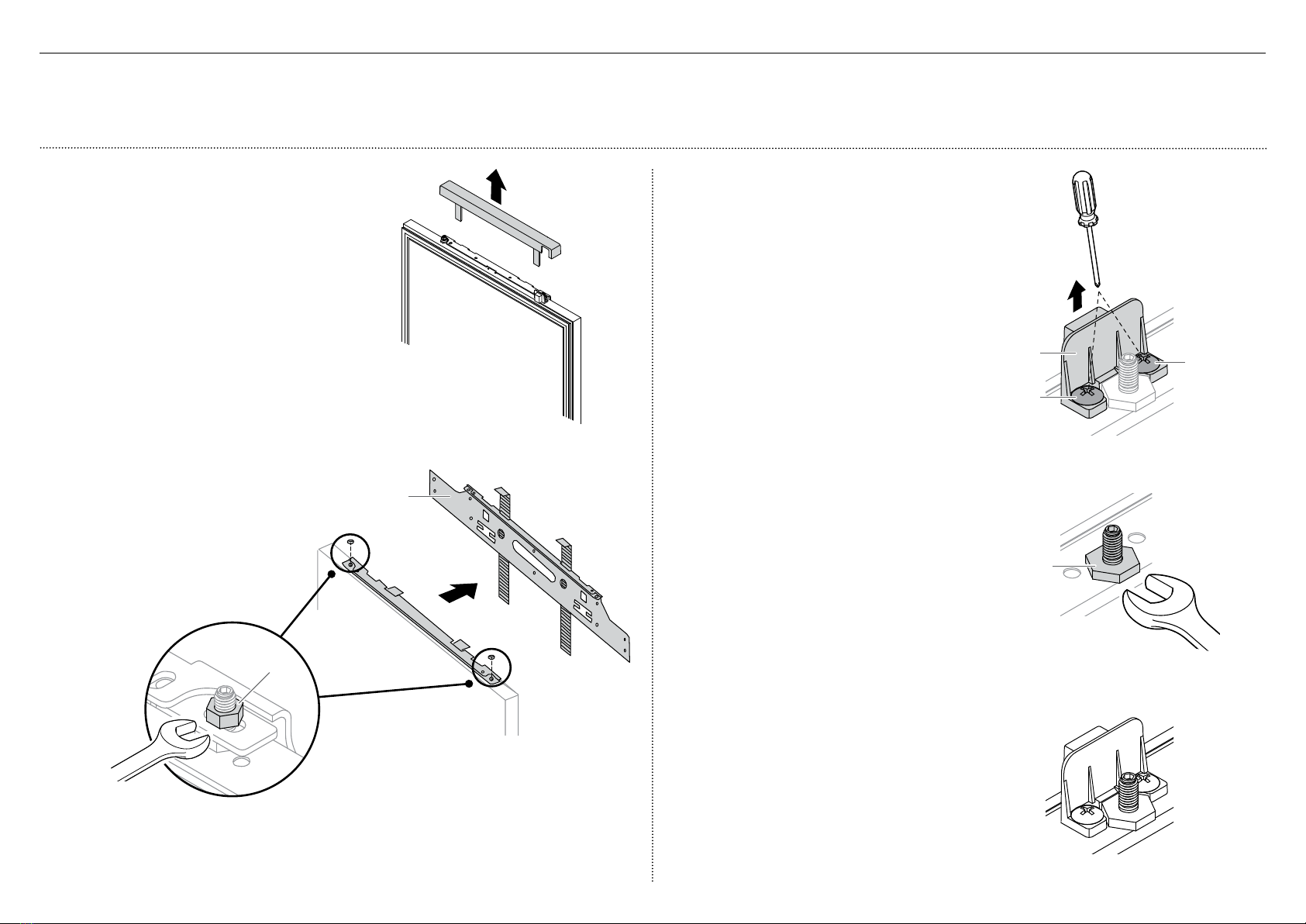

Removing the hanging bracket
1Open the refrigerator door and remove the top
hanging bracket cover by drawing out upwards.
Refrigerator door
Repeat steps 1– 2for the freezer door.
2Remove the two side adjustment
nuts (A) on the top hanging bracket
using a spanner, then remove the top
hanging bracket and rulers together.
– Keep the hanging bracket to
reinstalllater.
Refrigerator door
Top hanging
bracket
A
