Fisher-Price Power Wheels X3419 User manual

Please read this manual and save it
Please read this manual and save it
with your original sales receipt.
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver
Tools needed for assembly: Phillips Screwdriver
(not included) and Assembly Tool (included).
(not included) and Assembly Tool (included).
Use only with a Power Wheels
Use only with a Power Wheels
®
®
12 Volt Lead Acid
12 Volt Lead Acid
Rechargeable Battery with Built-in Thermal Fuse
Rechargeable Battery with Built-in Thermal Fuse
and Power Wheels
and Power Wheels
®
®
12 Volt Charger with Type
12 Volt Charger with Type
12V Connector (both included).
12V Connector (both included).
Requires four "C" (LR14)
Requires four "C" (LR14)
alkaline
alkaline
batteries
batteries
(not included) for FM Radio operation.
(not included) for FM Radio operation.
Owner's Manual
Owner's Manual
with Assembly
with Assembly
Instructions
Instructions
For Model X3419
For Model X3419
Product features may vary
Product features may vary
from the picture above.
from the picture above.
CUSTOM EDITION
®

X3419pr-0920 2
IMPORTANT INFORMATION
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 2 (two) riders at a time.
WARNING
RIDING HAZARD
WARNING
ELECTRICAL HAZARD
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a re resulting in serious
injury and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a re or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles
could cause overheating, re or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults
only. A child could be injured by the electricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each
time you charge the battery. If damage or excessive wear is detected, do not use the
charger or the battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
WARNING

3X3419pr-0920
• Read this manual carefully for important safety
information and operating instructions before using
your vehicle. Keep this manual for future reference, as it
contains important information.
• The vehicle is designed for use on grass, asphalt, and
other hard surfaces; on generally level terrain; and by
children 3 years of age and older. Do not exceed the
maximum weight capacity of 130 lbs (59 kg).
• Your new vehicle requires adult assembly. Please set
aside at least 60 minutes for assembly.
• Use this vehicle ONLY outdoors. Most interior flooring can
be damaged by riding this vehicle indoors. Fisher-Price®
will not be responsible for damage to the floor if the
vehicle is used indoors.
• You must charge your battery for 18-30 hours before
you use your vehicle for the first time. We recommend
charging your battery before beginning assembly. Please
see the Battery Charging section for detailed instructions.
• The battery charger is not a toy.
• Do not short circuit the battery.
• Adults Note: Regularly examine the charger for damage
to the cord, plug, housing or other parts that may result
in the risk of fire, electric shock or injury. In the event of
any damage, do not use the charger until the damage has
been properly repaired.
• Your Power Wheels®12 volt battery is equipped with
a built-in thermal fuse. The thermal fuse is a self-resetting
safety device which automatically “trips” and shuts down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has “tripped”,
remove your foot from the pedal and wait approximately
25 seconds before operating the vehicle again. To avoid
repeated automatic shut-downs, avoid severe
driving conditions.
• If a thermal fuse in a battery continually trips under
normal driving conditions, please contact your local
Power Wheels®Authorized Service Center.
• To prevent damaging the motors and gears, teach your
child to stop the vehicle before switching direction.
• If you have any questions about your Power Wheels®
vehicle, please call our toll-free service lines at
1-800-348-0751. Trained customer service representatives
are available to take your call in English or French.
Habla Español? Si usted tiene alguna pregunta ó necesita
asistencia llame gratis 1-800-348-0755 para los Estados
Unidos. Tenemos representantes que hablan español para
atender su llamada.
• For your convenience, Power Wheels®maintains
an independently owned and operated Authorized
Service Center Network with more than 300 authorized
service centers nationwide. Our authorized service centers
will repair or replace parts under warranty at no extra
charge, and can perform non-warranty repairs for a minimal
charge. To find the authorized service center nearest you,
please visit us online at www.powerwheels.com or call
1-800-348-0751.
• Please visit us online at www.powerwheels.com to
register your vehicle.
IMPORTANT INFORMATION

X3419pr-0920 4

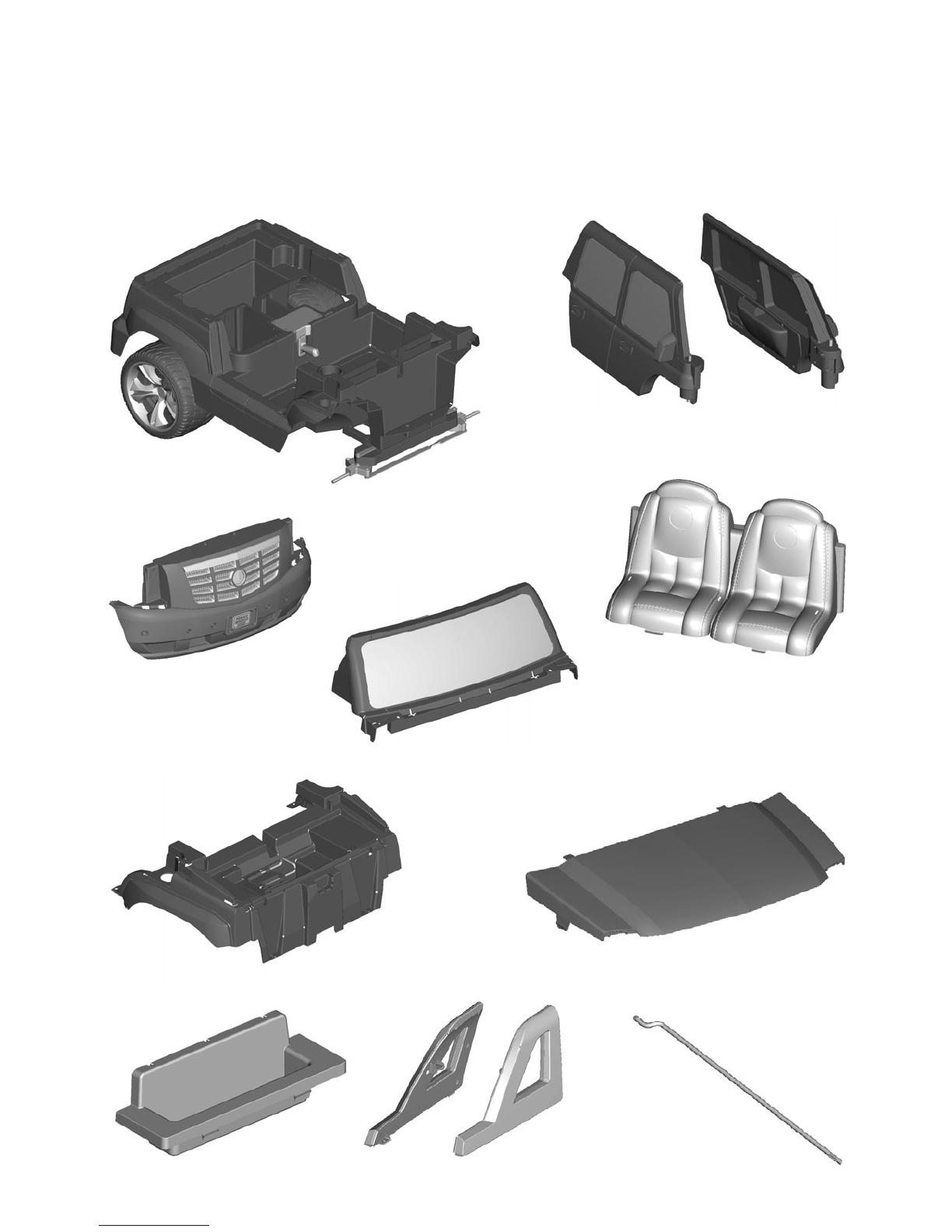

Vehicle
Front End
Bumper
2 Doors
(Left and Right)
Seat
Windshield/Dash
Hood
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than
return this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no
parts are discarded.
Note: Some parts of this product have been packed with a protective foam cover. After removing the foam cover, you may
notice a cloudy film on the parts. Wipe these parts with a clean, dry, soft cloth to remove this residue.
PARTS
Steering Column
Truck Bed
2 Wings
(Left and Right)

5X3419pr-0920
2 Hubcaps
Steering
Column Cap
2 Bushings2 Door Plates
2 Taillights
(Left and Right)
2 Headlight Lenses
(Left and Right)
2 Headlights
(Left and Right)
Steering Wheel Cap
PARTS
2 Short Seat Belts Long Seat Belt
Assembly Tool
Key Assembly
12 Volt Battery 12 Volt Charger
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips
screwdriver. Do not over-tighten the screws.
7/16" (1,1 cm) Washer – 2
#8 x 3/4" (1,9 cm) Screw – 34
3/8" (0,95 cm) -16 Lock Nut – 2
1/4x 11/4" (0,6 cm x 3,1 cm) Screw – 2
5/32" (0,4 cm) x 11/2" (3,8 cm) Pin – 1
Steering Wheel
2 Wheel Covers
2 Front Wheels
(Left and Right)

X3419pr-0920 6

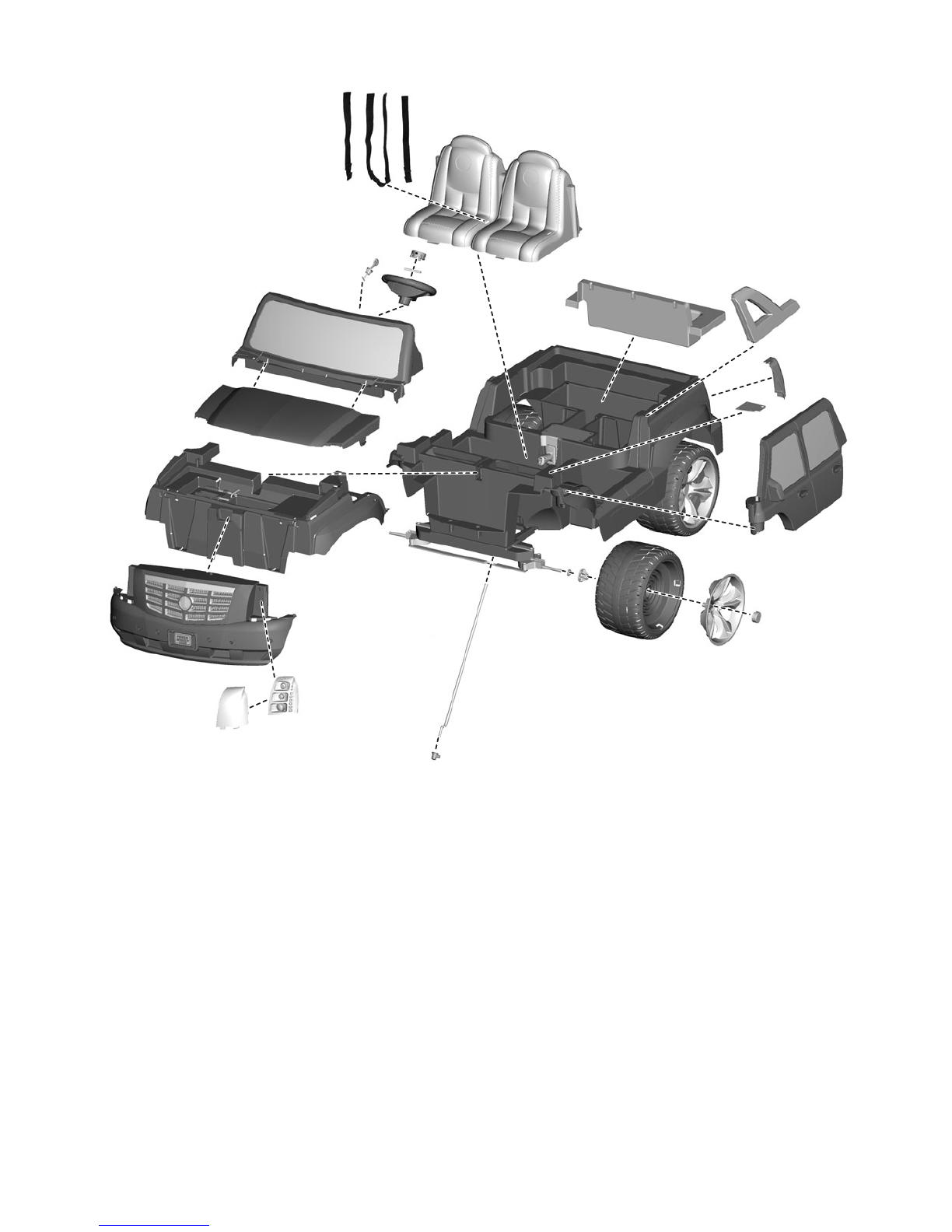

PARTS PICTURE
Note: Some parts shown are assembled on both sides of the vehicle.

7X3419pr-0920
BATTERY CHARGING
Use the charger in dry locations only.
ELECTRICAL HAZARD • Make sure you charge the battery for at least 18 hours
using the enclosed Power Wheels®12 volt charger before
operating your vehicle for the first time. Charge the
battery for at least 14 hours after each use of the vehicle.
Never charge the battery longer than 30 hours. Failure to
follow these instructions may damage your battery and
will void your warranty.
• Use only a Power Wheels®12 volt charger with “12V”
connector (input 120 VAC, 60Hz, with an output of
12 VDC) to charge your Power Wheels®12 volt battery.
• Battery can fall out and injure a child
if vehicle tips over. Always use
battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a re resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or
charger could cause a re or explosion
resulting in serious injury.
- Use of Power Wheels®components
in products other than Power Wheels®
vehicles could cause overheating, re
or explosion.
• The battery must be handled by adults
only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the
battery. Battery charging must be done
by adults only. A child could be injured
by the elec-tricity involved in charging
the battery.
• Read the safety instructions on
the battery.
• Examine the battery, charger and
their connectors for excessive wear
or damage each time you charge the
battery. If damage or excessive wear is
detected, do not use the charger or the
battery until you have replaced the worn
or damaged part.
WARNING
CAUTION
Charger
Connector

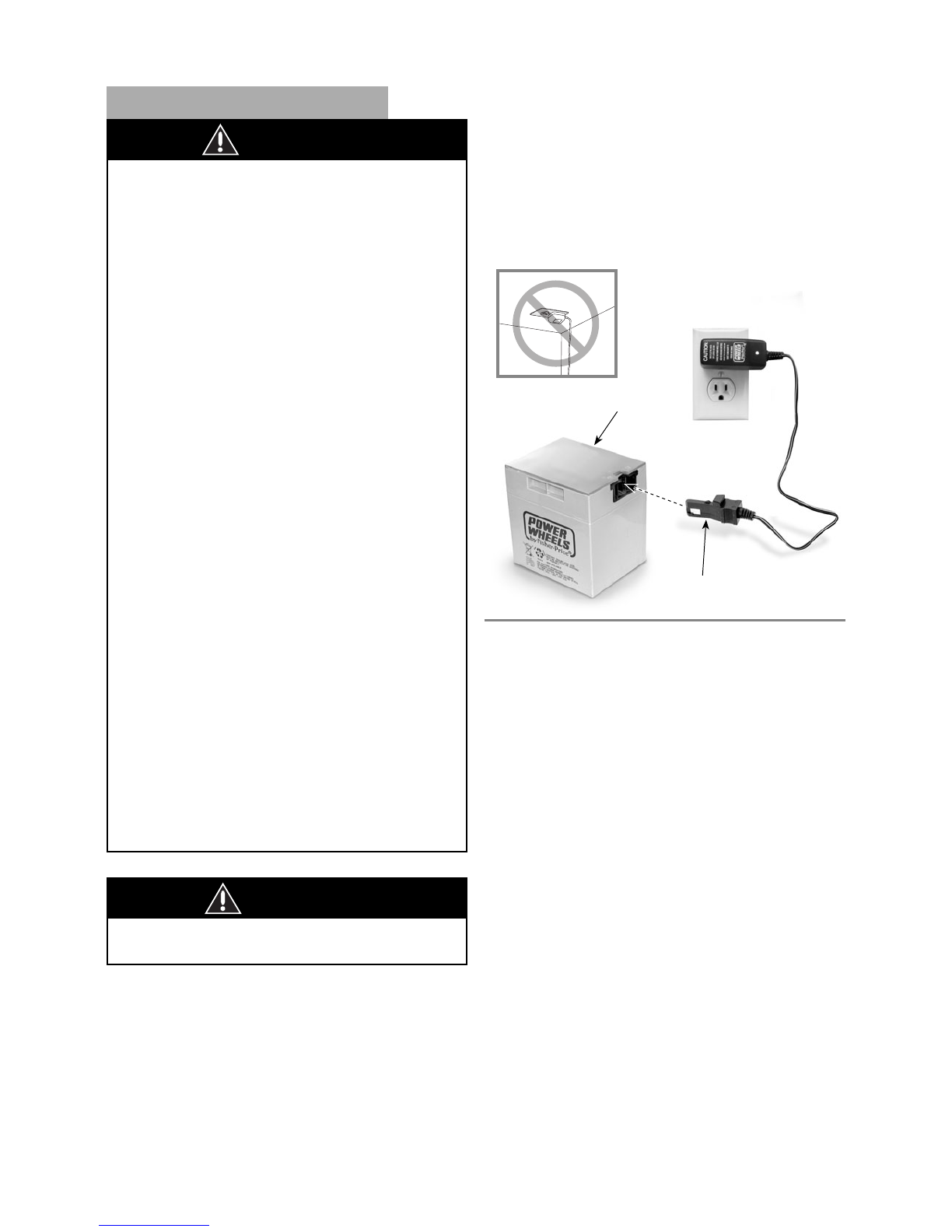

• Plug the charger connector into the battery.
• Plug the charger into a standard wall outlet.
Notes:
- If power flow to the wall outlet is controlled by a switch,
make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the
charger into a ceiling outlet.
• Before charging the battery, examine the battery case
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process. If
damage is detected, do not charge the battery or use it in
your vehicle. Battery acid is very corrosive and can cause
severe damage to surfaces it contacts.
• Do not place the battery on a surface (such as kitchen
counter tops) which could be damaged by the acid
contained inside the battery. Take precautions to protect
the surface on which you place your battery.
• Charge the battery in a well ventilated area.
• Once the battery is charged, disconnect the battery
connector from the charger connector. Unplug the
charger from the wall outlet. Refer to the Battery
Installation section for instructions on installing your
battery. If your battery is already installed in your vehicle,
simply re-connect the motor harness connector to
the battery.
• You do not need to remove the battery from your vehicle
to recharge it.
Battery

X3419pr-0920 8
WARNING
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by
electrical items. Care should be taken in
unpacking and assembly of the vehicle.
Children should not handle parts,
including the battery, or help in assembly
of the vehicle.
ASSEMBLY

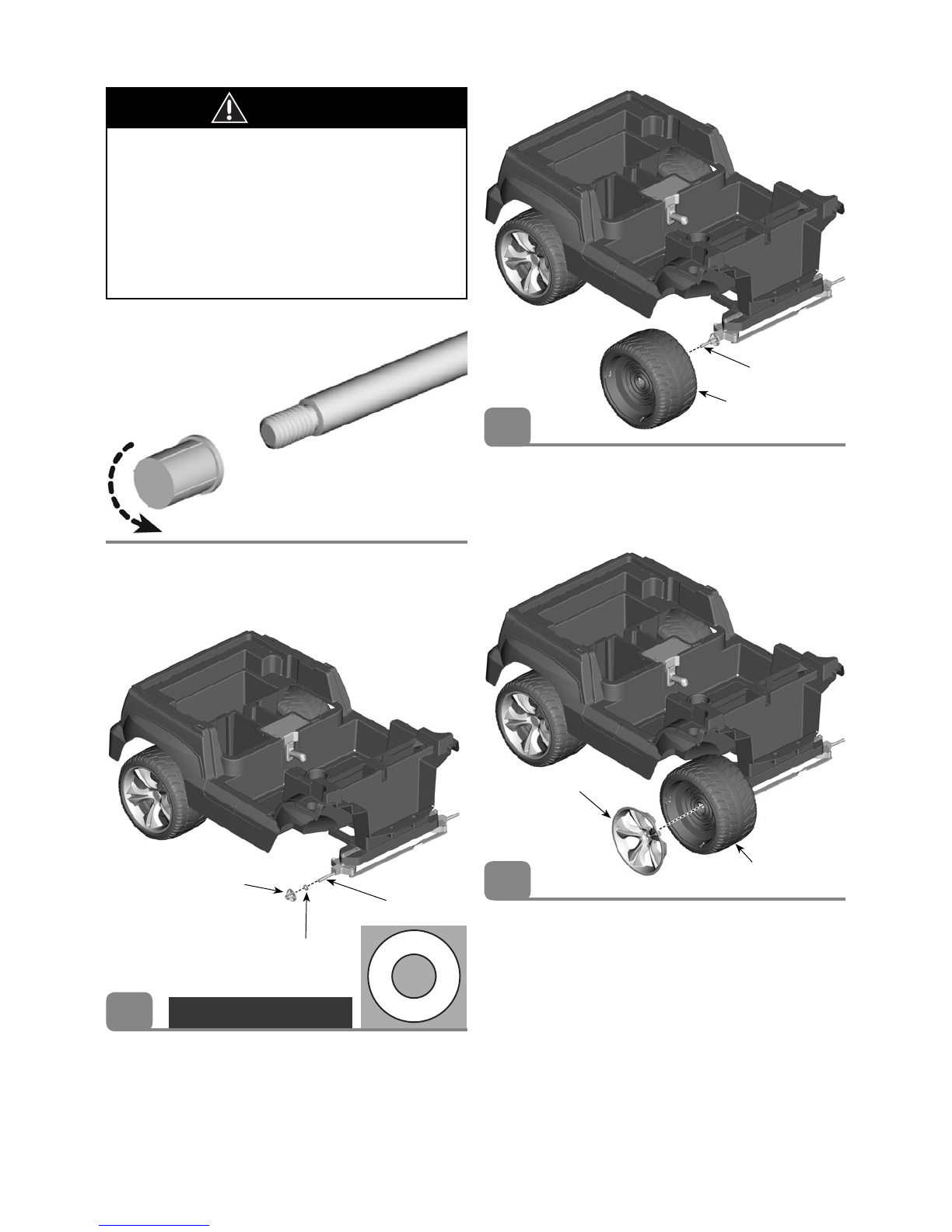

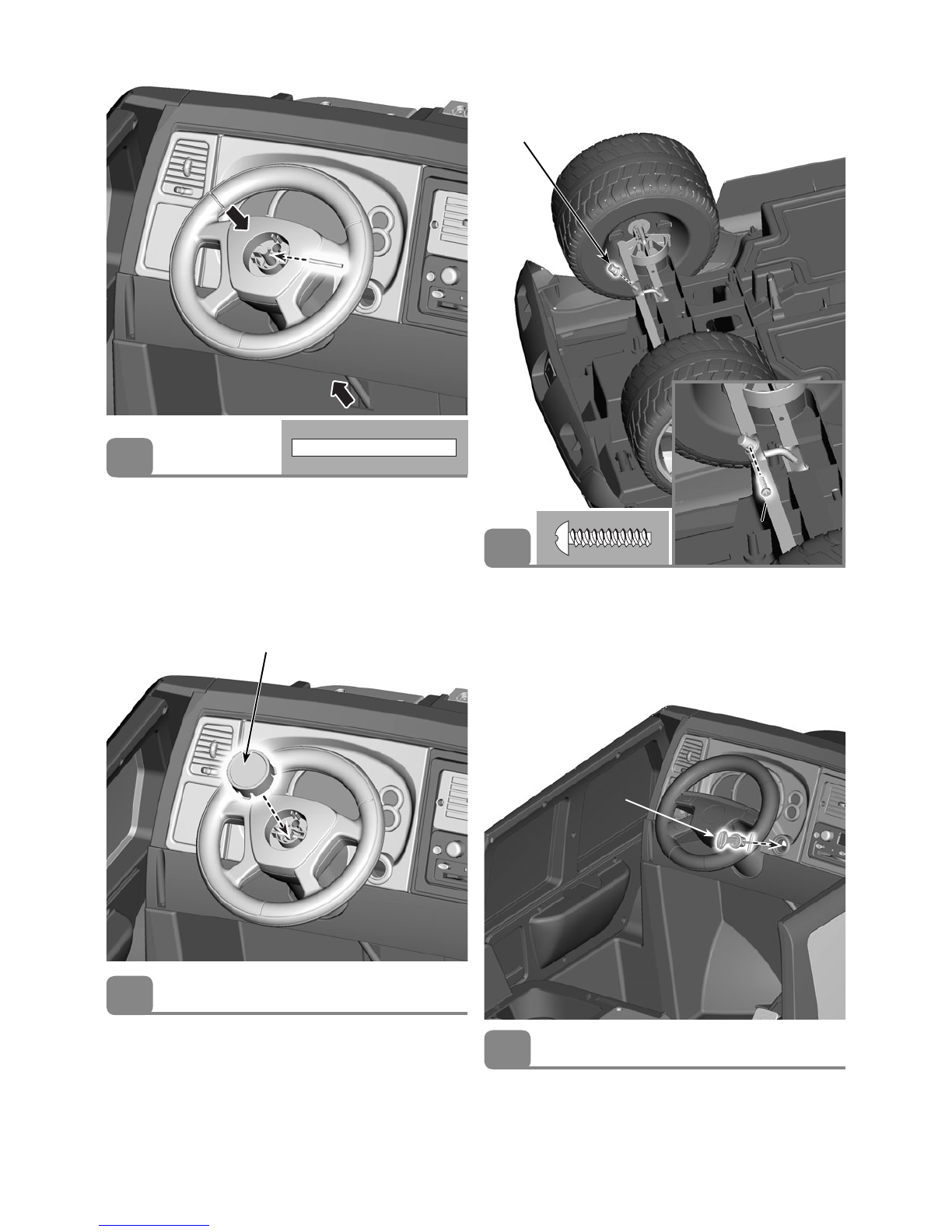

• Slide a 7/16" (1,1 cm) washer onto a front axle.
• Fit a bushing (flat side first) onto the front axle.
• Repeat this procedure to assemble the other 7/16" (1,1 cm)
washer and bushing to the other front axle.
7/16" (1,1 cm) Washer
Front Axle
Bushing
RIGHT SIDE VIEW
Note: Protective caps have been added to the threaded
metal parts to prevent damage during shipping. Please
remove and throw the caps away.
1
Hint: There is a right and a left front wheel. Place the right
wheel (marked R) on the passenger side of the vehicle, and
the left wheel (marked L) on the driver side of the vehicle.
• Place a front wheel onto each front axle.
Front Axle
Front Wheel
• Fit a wheel cover onto each front wheel.
Front Wheel
Wheel Cover
2
3

9X3419pr-0920
ASSEMBLY
• Place a 3/8" (0,95 cm) -16 lock nut (rounded side out)
onto a front axle.
IMPORTANT: Tighten the lock nut firmly using the closed
end of the assembly tool.
• Repeat this procedure to fasten the other front wheel
assembly with the other 3/8" (0,95 cm) -16 lock nut.
3/8" (0,95 cm) -16 Lock Nut
Assembly Tool
• Align the slot in a hubcap with the rib in the wheel cover.
"Snap" a hubcap into the center of each wheel cover.
Wheel
Cover
Hubcap
4
5
• Fit the front end onto the vehicle.
• Insert the tabs on the back edge of the front end into the
slots in the vehicle.
Front End
• Insert two #8 x 3/4" (1,9 cm) screws through the front end
and into the vehicle. Tighten the screws.
#8 x 3/4"(1,9 cm) Screws
6
7

X3419pr-0920 10
ASSEMBLY
1/4"x 11/4" (0,6 cm x 3,1 cm) Screws

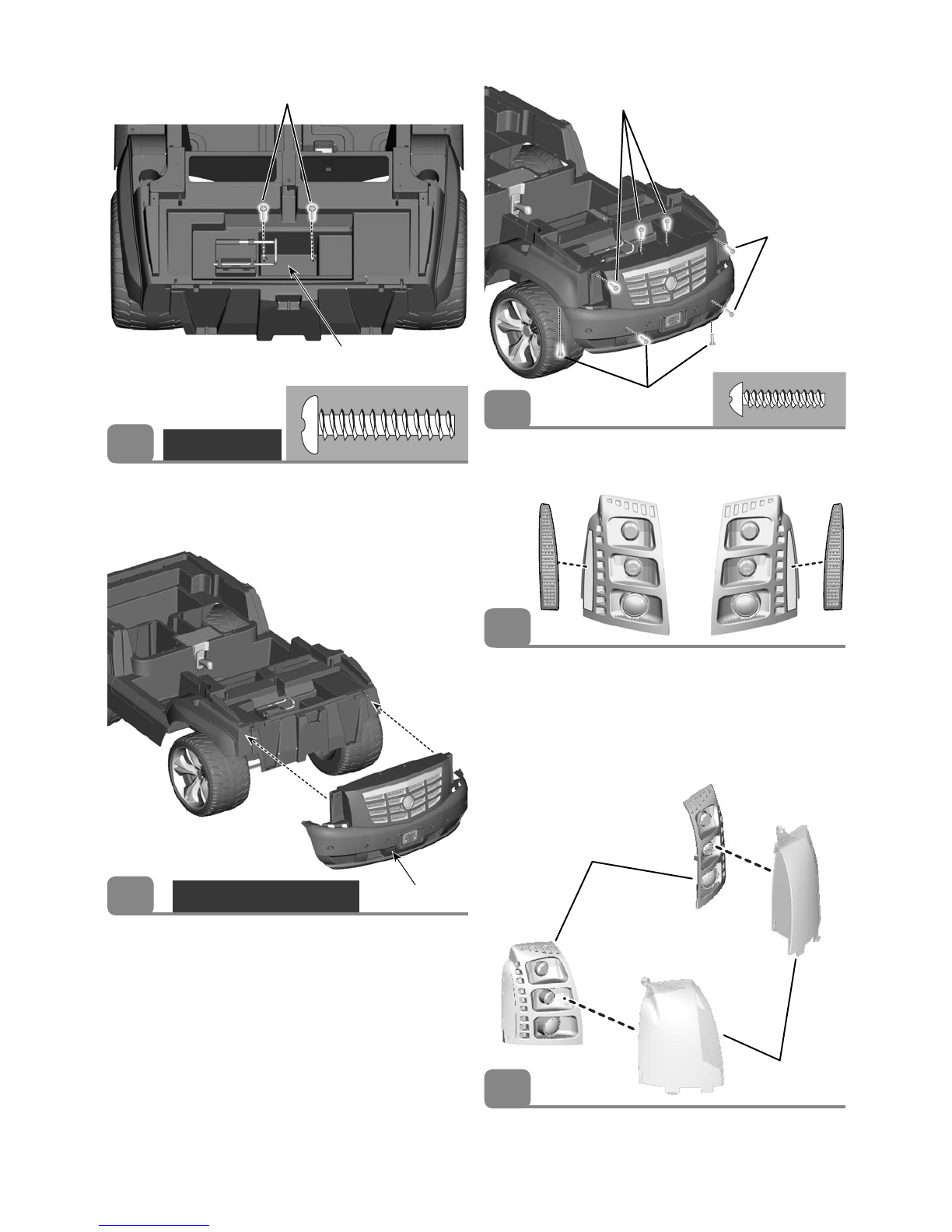

• Insert two 1/4"x 11/4" (0,6 cm x 3,1 cm) screws inside
of the battery compartment and into the front end of the
vehicle. Tighten the screws.
Battery
Compartment
• Fit the bumper onto the front end.
TOP VIEW
RIGHT SIDE VIEW Bumper
8
9
• Insert eight #8 x 3/4" (1,9 cm) screws into the bumper
and tighten.
• "Snap" the headlights into the headlight lenses.
Hint: There is a left and right headlight and headlight lens.
• Apply the labels to the headlights.
• Before applying the labels, wipe the surface of the vehicle
with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustration.
• For best results, avoid repositioning a label once it has
been applied to the vehicle.
36 37
10
12
11
#8 x 3/4"(1,9 cm) Screws
#8 x 3/4"(1,9 cm) Screws
#8 x 3/4"(1,9 cm)
Screws
Headlight
Headlinght Lens

11 X3419pr-0920
ASSEMBLY

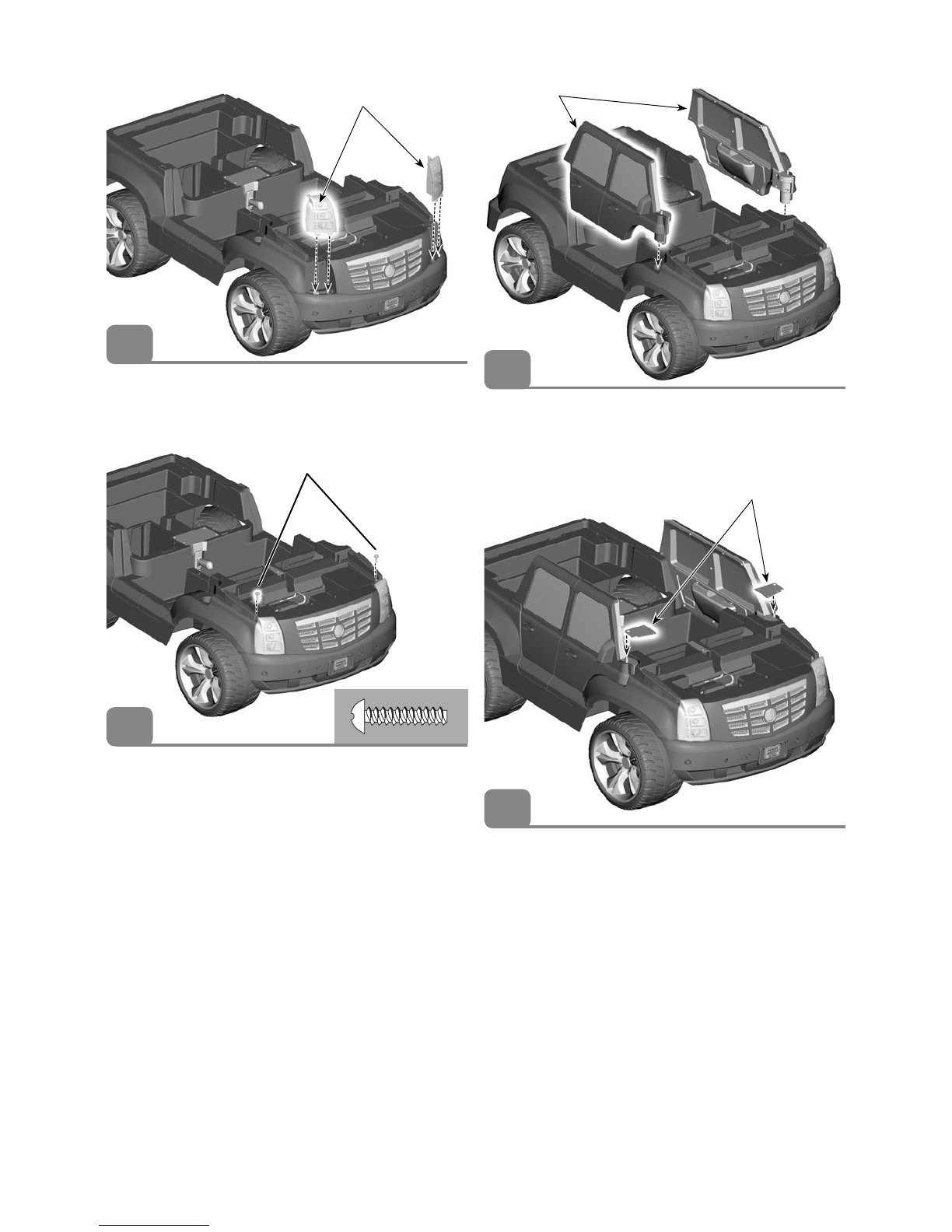

• Fit the large hole on the plates to the door posts.
• Align the holes in the plates with the holes in the top side
of the vehicle.
Plates
16
• Fit the door pegs onto the holes near the front end of
the vehicle.
Hint: There is a left and right door. They are designed to be
assembled one way.
15
• Insert one #8 x 3/4" (1,9 cm) screw into the top edge of
each headlight. Tighten the screws.
14
#8 x 3/4"(1,9 cm) Screws
• Fit the headlights (left and right) onto the bumper.
Hint: Headlights only fit one way. If they do not seem to fit,
try the other side.
Headlights
13
Doors

X3419pr-0920 12
ASSEMBLY
• Fit the tabs on the windshield/dash into the slots in the
front end of the vehicle.
Windshield/
Dash
FRONT VIEW
• Insert four #8 x 3/4"(1,9 cm) screws into the base of the
windshield/dash. Tighten the screws.
• Position the motor harness connector towards the front
of the vehicle and into the battery compartment.
Motor Harness
Connector
Front
BACK VIEW
18
19
20
#8 x 3/4"(1,9 cm)
Screws
• Insert three #8 x 3/4" (1,9 cm) screws into each plate
and tighten.
17
#8 x 3/4"(1,9 cm)
Screws
#8 x 3/4"(1,9 cm)
Screws

13 X3419pr-0920
ASSEMBLY

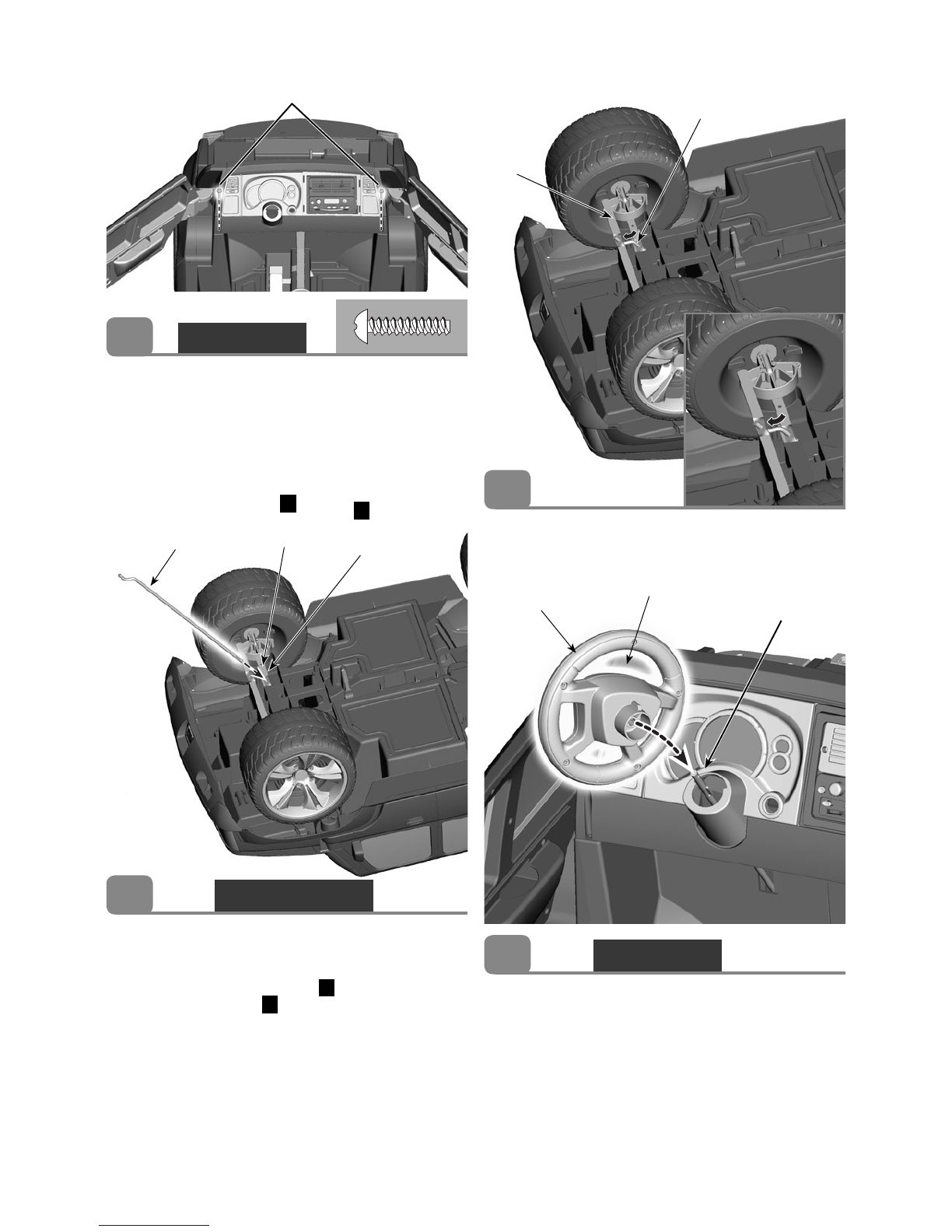

• Insert the curved end of the steering column through the
hole in the steering rod.
Steering
Rod
Steering
Column
• Insert two #8 x 3/4" (1,9 cm) screws into the sides of the
windshield/dash. Tighten the screws.
• Close the doors on the vehicle.
DASH VIEW
• Wipe the steering column with a paper towel to remove
any excess lubricant.
• First, insert the straight end of the steering column down
through the hole in the metal bar A; then through the
hole in the vehicle floor B; and finally, out through the
hole in the dash.
Steering
Column
Metal
Bar Hole
BOTTOM VIEW
AB
Vehicle
Hole
IMPORTANT! Turn the vehicle on its side or over to
complete assembly steps 23-28.
• Position the steering wheel so that the large opening
is UP.
• Fit the steering wheel onto the steering column.
Steering Wheel Steering Column
Large Opening
DASH VIEW
21
23
24
22
#8 x 3/4"(1,9 cm) Screws

X3419pr-0920 14
• Insert and "snap" the key assembly into the slot in
the dash.
28
Key
Assembly
ASSEMBLY
• Insert and "snap" the steering wheel cap into the center of
the steering wheel.
Steering Wheel Cap
• While pressing down on the steering wheel, grasp the
steering column under the dash and pull it up as far as it
will go.
• Insert the 5/32" (0,4 cm) x 11/2" (3,8 cm) pin through the
hole in the steering column.
• Grasp the steering column again and pull down to fit the
pin into the center of the steering wheel.
Press Wheel
Press Wheel
Lift Steering
Column
Press Wheel
Steering
Column Cap
• Fit the steering column cap onto the end of the
steering column.
• Insert a #8 x 3/4" (1,9 cm) screw through the large
opening in the steering column cap and into the hole in
the steering column. Tighten the screw.
• Turn the vehicle upright.
25
26
27
#8 x 3/4" (1,9 cm)
#8 x 3/4" (1,9 cm)
Screws
Screws

15 X3419pr-0920
ASSEMBLY
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product. To
avoid battery leakage:
• Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose of
batteries safely. Do not dispose of product in a fire. The
batteries may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type,
as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product
before charging.
• If removable, rechargeable batteries are used, they are
only to be charged under adult supervision.
1,5V x 4
"C" (LR14)

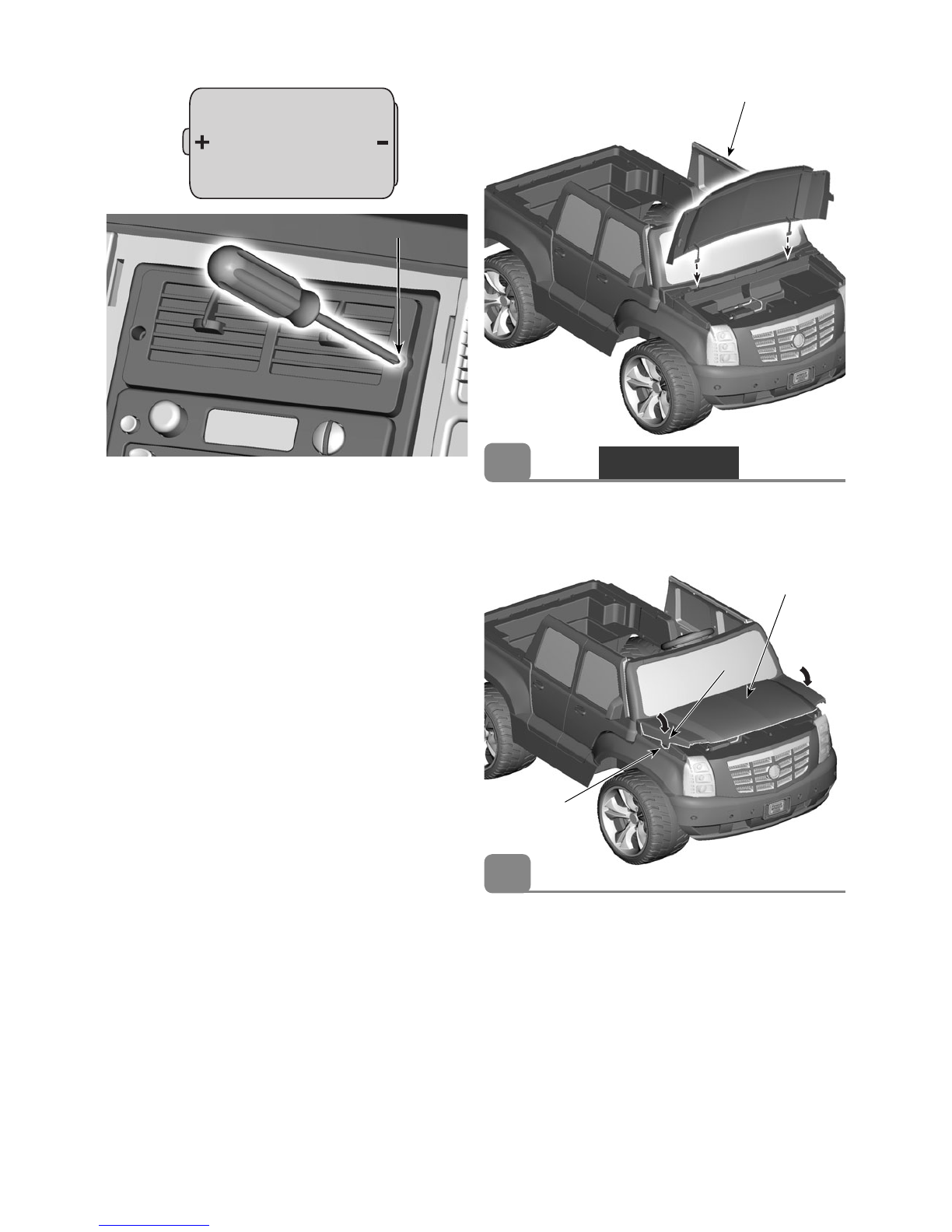

• Locate the FM Radio on the dash.
• Loosen both screws in the battery compartment door.
• Remove the battery compartment door.
• Insert four, new "C" (LR14) alkaline batteries.
Hint: We recommend using alkaline batteries for longer
battery life.
• Replace the battery compartment door and tighten
the screws.
• When sounds become faint or stop, it’s time for an adult
to change the batteries! Please refer to page 26 for FM
Radio use.
Loosen This Screw
• Fit the long tabs on the hood into the slots in the front
end of the vehicle.
Hood
FRONT VIEW
• Lower and fit the side tabs on the hood into the slots on
each side of the front end of the vehicle.
Hood
Tab
Slot
29
30

X3419pr-0920 16
ASSEMBLY

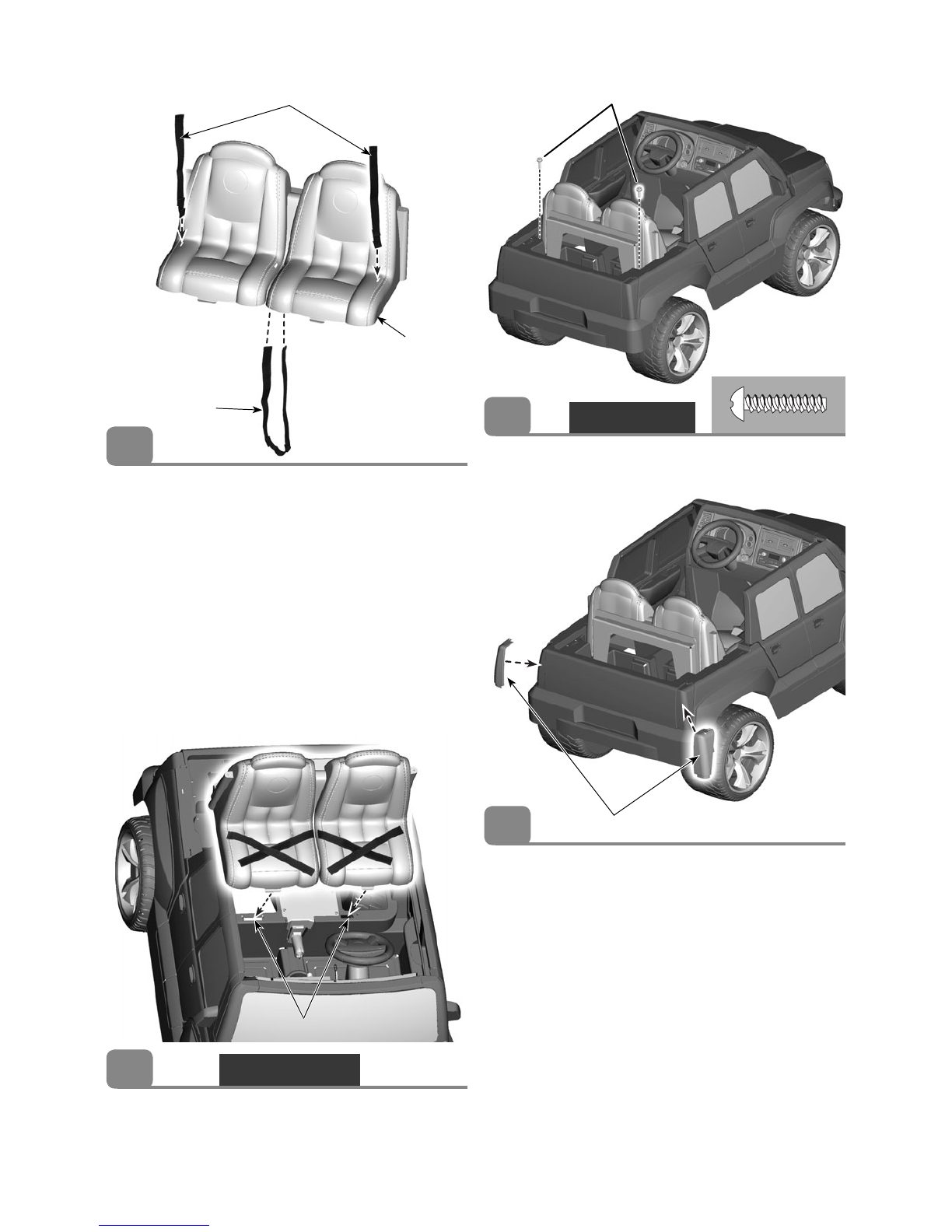

• Insert the two tabs on the front edge of the seat into the
slots in the vehicle.
Slots
TOP VIEW
Note: Make sure the fasteners on both short seat belts face
each other.
• Fit the folded end of each short seat belt down through
the outer slots in the seat. Do not insert the folded tab
into the slot. Pull up on each seat belt to make sure it
is secure.
Note: Make sure the fasteners on the long seat belt are
facing the fasteners on the short seat belts.
• Insert the ends of the long seat belt up through the slots
in the center of the seat.
• Fit the folded tabs on the belt up through the slots in the
center of the seat to keep the long seat belt in place.
Make sure the folded tabs are on visible on the top side
of the seat.
Short Seat Belts
Long Seat Belt
Seat
• Insert two #8 x 3/4" (1,9 cm) screws into the back of the
seat. Tighten the screws.
BACK VIEW
• Fit the taillights (left and right) onto the rear of the vehicle.
Taillights
31
33
34
32
#8 x 3/4"(1,9 cm) Screws

17 X3419pr-0920
ASSEMBLY

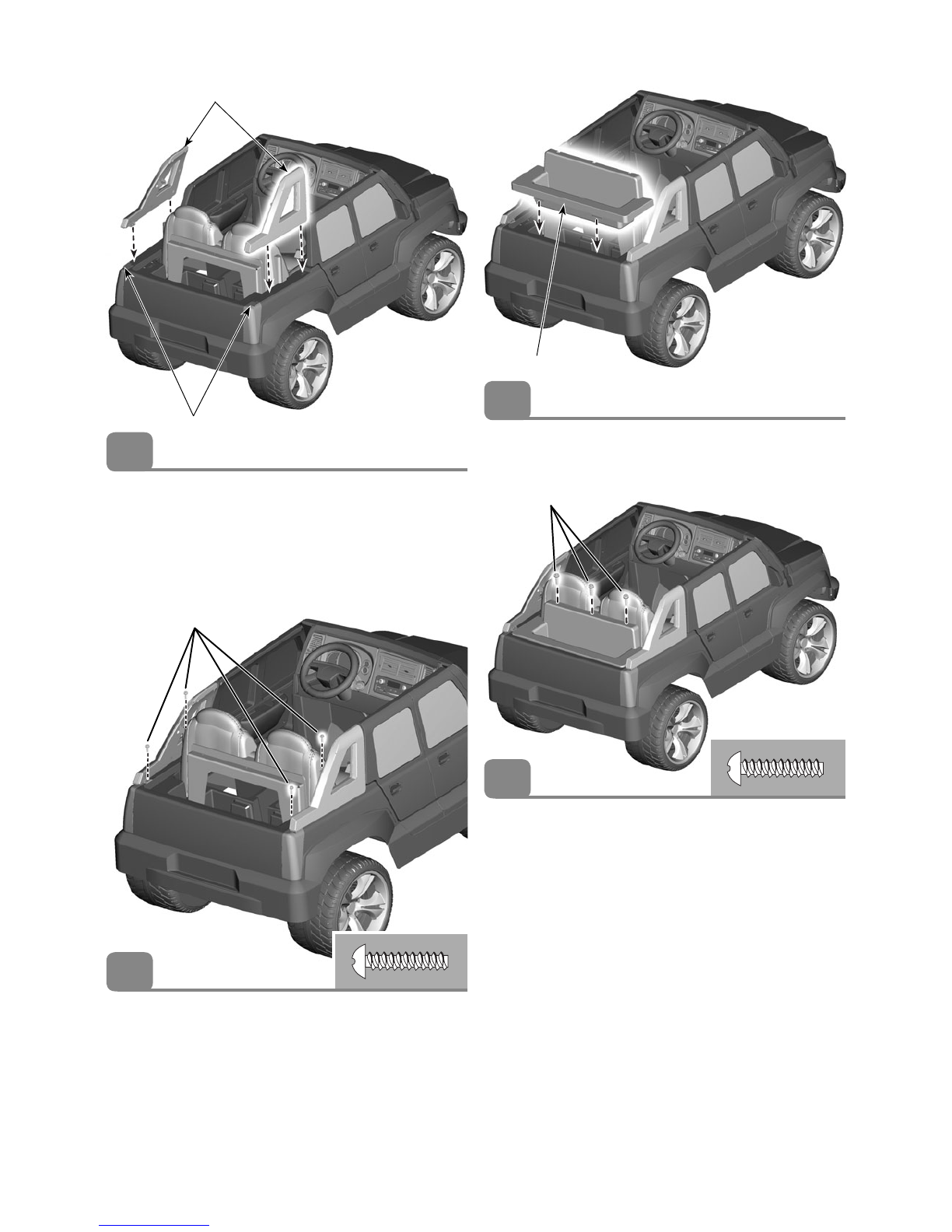

• Fit the wing tabs into the slots in the top edge near the
rear of the vehicle.
Hint: There is a left and right wing. They are designed to be
assembled one way. Make sure the tabs on the top of the
taillights fit into the bottom of each wing.
Wings
Taillight Tabs
• Insert two #8 x 3/4" (1,9 cm) screws into each wing.
Tighten the screws.
• Place the truck bed over the back end of the vehicle.
Truck Bed
• Insert three #8 x 3/4" (1,9 cm) screws into the top of the
truck bed. Tighten the screws.
35
37
36
38
#8 x 3/4"(1,9 cm)
Screws
#8 x 3/4"(1,9 cm)
Screws

X3419pr-0920 18
Proper label application will help to keep the labels looking their best! When applying labels, keep the following
guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been applied to the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle. Start
at the center of a label, and smooth towards the outer edges to remove air bubbles.

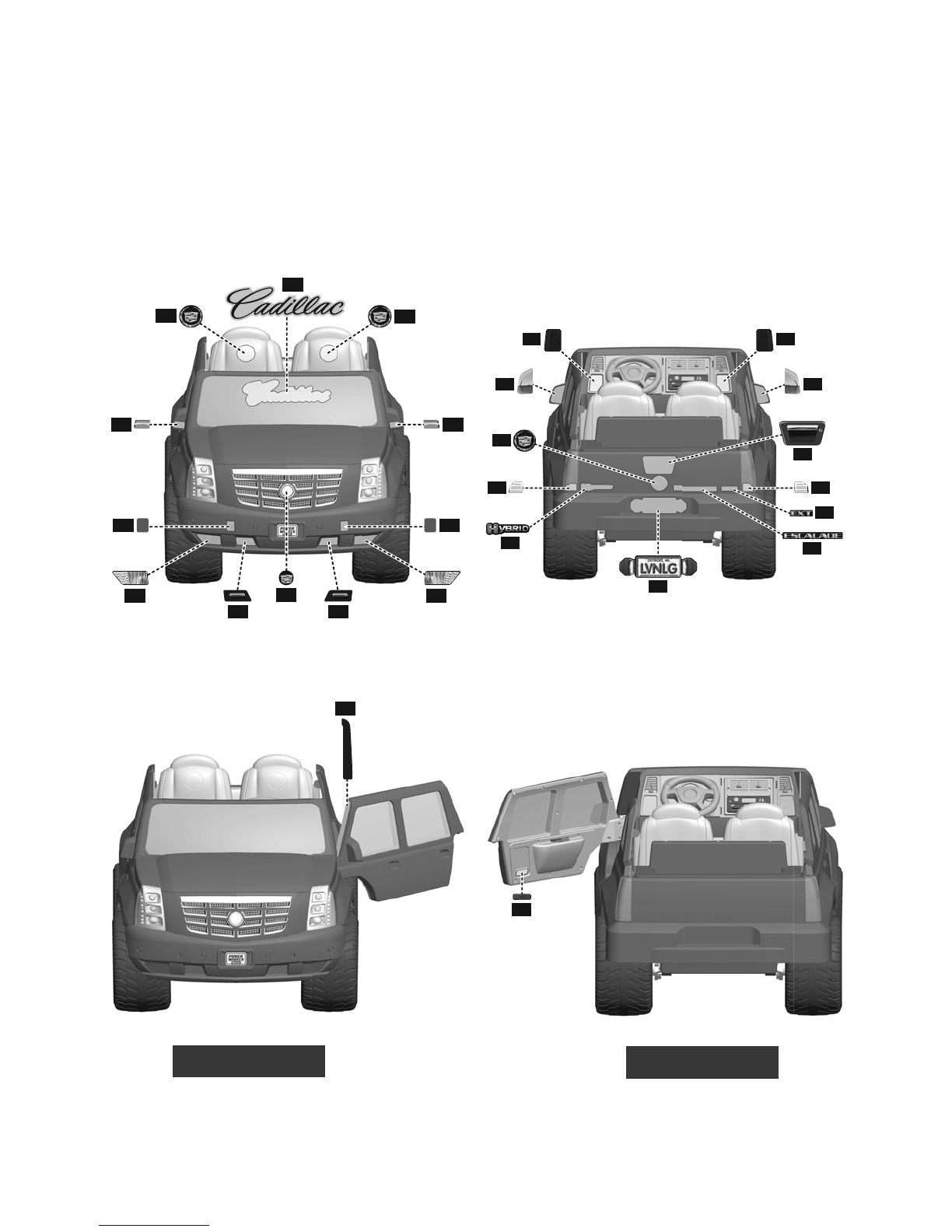

DECORATION
30
35
25
19
34
18 17
31 33
19
26
35
FRONT VIEW REAR VIEW
22
20
29
15
24
1
10
9
27
16
21
23
8
(7 on other side)
3
(2 on other side)

19 X3419pr-0920
DECORATION
41
5
4
28
28
38
42
RIGHT SIDE
40
6
4
28 28
39 42
LEFT SIDE
11 12
13
14
32 DASH VIEW

X3419pr-0920 20
IMPORTANT! Use only a Power Wheels®12 volt lead-acid
rechargeable battery. Use of any other battery will damage
your vehicle. Make sure that you charge the battery for at
least 18 hours using the enclosed Power Wheels® 12 volt
charger before operating your vehicle for the first time.
Charge the battery for at least 14 hours after each use of
the vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your
battery and will void your warranty.
• Lift the hood to access the battery compartment.
• Plug the motor harness connector into the 12 volt battery.
Hood
• Push the battery retainer.
• Place the 12 volt battery into the battery compartment.
Make sure the battery retainer slides over the battery.
• To close the hood, fit the tabs on the front end of the
hood into the slots on each side of the front end of
the vehicle.
Power Wheels®
12 Volt Battery
Battery Retainer
BATTERY INSTALLATION
Motor Harness
Connector
Battery
Compartment
Power Wheels®
12 Volt Battery
1
2
BATTERY CARE
If a battery leak develops, avoid contact with the leaking
acid and place the damaged battery in a plastic bag. See
next section for proper disposal.
If acid comes in contact with skin or eyes, flush with cool
water for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia
or egg whites immediately. Never give emetics or induce
vomiting. Call a physician.
• Do not allow the battery to run down completely
before charging.
• Charge the battery before storing the vehicle, and at least
once per month, even if the vehicle has not been used.
• Charge the battery after each use, regardless of how long
the vehicle was used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle.
Battery leakage and corrosion can damage the vehicle.
• Do not store the battery in temperatures above 75° F or
below -10° F.
BATTERY CARE
AND DISPOSAL
• Your Power Wheels®battery is a non-spillable sealed
lead-acid battery. It must be recycled or disposed of in
an environmentally sound manner.
• Do not dispose of a lead-acid battery in a fire. The battery
may explode or leak.
• Do not dispose of a lead-acid battery in your regular,
household trash. The incineration, landfilling or mixing
of sealed lead-acid batteries with household trash is
prohibited by law in most areas.
• Protect the environment by not disposing of this product
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities.
• Return an exhausted battery to a federal or state approved
lead-acid battery recycler, such as a Power Wheels®
authorized service center or a local seller of automotive
batteries. For the authorized service center location
nearest to you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
Contact your local waste management officials for
other information regarding the environmentally sound
collection, recycling and disposal of lead-acid batteries.
If you live in the State of Florida or the State of
Minnesota, it is prohibited by law for anyone to throw
away lead-acid batteries in the municipal waste stream.
BATTERY DISPOSAL
