FISHER
OPERATING
INSTRUCTIONS
MT-6330
MT-6330C
LINEAR
MOTOR
DIRECT
DRIVE
TURNTABLE
THE
FIRST
NAME
IN
HIGH
FIDELITY
jfe
NOTE:
Locate
turntable's
serial
number
(shown
on
rear
panel
of
unit)
and
record
it
here
..

3
FISHER
MT-6330
SPECIFICATIONS
Motor
120
Pole
Linear
AC
Servo
Drive
System
Direct
Wow
&
Flutter
(WRMS)
0.035
%
Rumble
(DIN
45539B)
-70
dB
Speed
Variation
±0.5
%
Speed
Control
Range
±3%
Tracking
Force
Range
0.6
—
3.5
grams
Tracking
Force
Adjustment
Calibrated
Counterweight
Platter
Diameter
12-3/8”
Platter
Weight
2.2
lbs.
Strobe
Light
Yes
Record
Speed
Selector
33/45
rpm
Auto
Function
Stop
Yes
Reject
Yes
Automatic
Tone
Arm
Return
at
End
of
Record
Yes
Manual
Function
Start
Yes
Stop
Yes
Tone
Arm
Data
Resonance
<10
Hz
Balance
Adjustment
Counterweight
Effective
Length
222
mm
Shape
S-Form
Bearing
Type
Horizontal
Thrust
Friction
Sensitivity
0.18
gram
Vertical
Pivot
Friction
Sensitivity
0.22
gram
Max.
Tracking
Error
±1.8°
Anti-Skate
Control
Calibrated
Adjustable
Cueing
Viscous
Damped
Overhang
Indicator
Yes
Cartridge
Supplied
Model
MT-6330C
Stereo
Magnetic
(MG-35V)
GENERAL
120
V
AC
±10%
Power
Requirements
50/60
Hz
3.5
Watts
Dimensions
(WxDxH)
17-5/16”x
14-15/16”x5-7/16"
Weight
(approx.)
13.7
lbs.
*
Specifications
are
subject
to
change
without
notice.
2

INTRODUCTION:
"Linear
Drive",
a
novel
engineering
approach
to
the
difficult
task
of
rotating
a
turntable
accurately
and
without
undesirable
drift
is
featured
in
this
unit.
This
drive
employs
120
magnetic
poles
instead
of
the
usual
4
to
24.
It
achieves
a
completely
uniform
rotation
and
virtually
eliminates
wow
and
flutter
as
well
as
rumble.
IMPORTANT
.
..
This
highly
sophisticated
turntable
was
developed
by
FISHER
to
give
you
many
years
of
listening
enjoyment.
Please
read
the
following
instructions
carefully.
They
were
prepared
to
assist
you
during
the
initial
set-up
and
to
ensure
ultimate
performance
of
the
turntable
at
all
times.
THE
WARRANTY
ON
THIS
UNIT
DOES
NOT
COVER
DAMAGE
CAUSED
BY
MISHANDLING
OR
MISUSE.
WARNING:
To
avoid
the
hazard
of
fire
or
electrical
shock,
do
not
expose
this
turntable
to
rain
or
other
moisture.
UNPACKING
THE
UNIT
1
Carefully
unpack
the
unit,
the
45
rpm
adapter
which
is
packed
separately
in
a
plastic
bag,
the
counterweight
and
cartridge
shell
which
are
packed
in
padding
and
the
rubber
mat
and
trim
ring
plate
which
are
packed
separately
in
plastic
bags.
Remove
the
three
screws
that
hold
the
turntable
platter
in
place
during
shipment.
(Fig.
1)
It
is
advisable
to
retain
the
carton,
padding
and
the
turntable
platter
shipping
screws
in
case
reshipment
is
necessary.
TURNTABLE
PLATTER
SHIPPING
SCREWS
STRING
Fig.
1
ASSEMBLING
Place
the
rubber
mat
and
the
trim
ring
plate
onto
the
turntable
platter.
Rotate
the
cartridge
shell
ring
of
the
tone
arm
and
attach
the
cartridge
shell.
Screw
the
counterweight
onto
the
end
of
the
tone
arm
to
mount.
(Fig.
2)
4
Unfasten
the
string
or
"twist
tab"
wire
that
secures
the
tone
arm
during
shipment.
(Fig.
1)
Remove
the
stylus
cover.
3

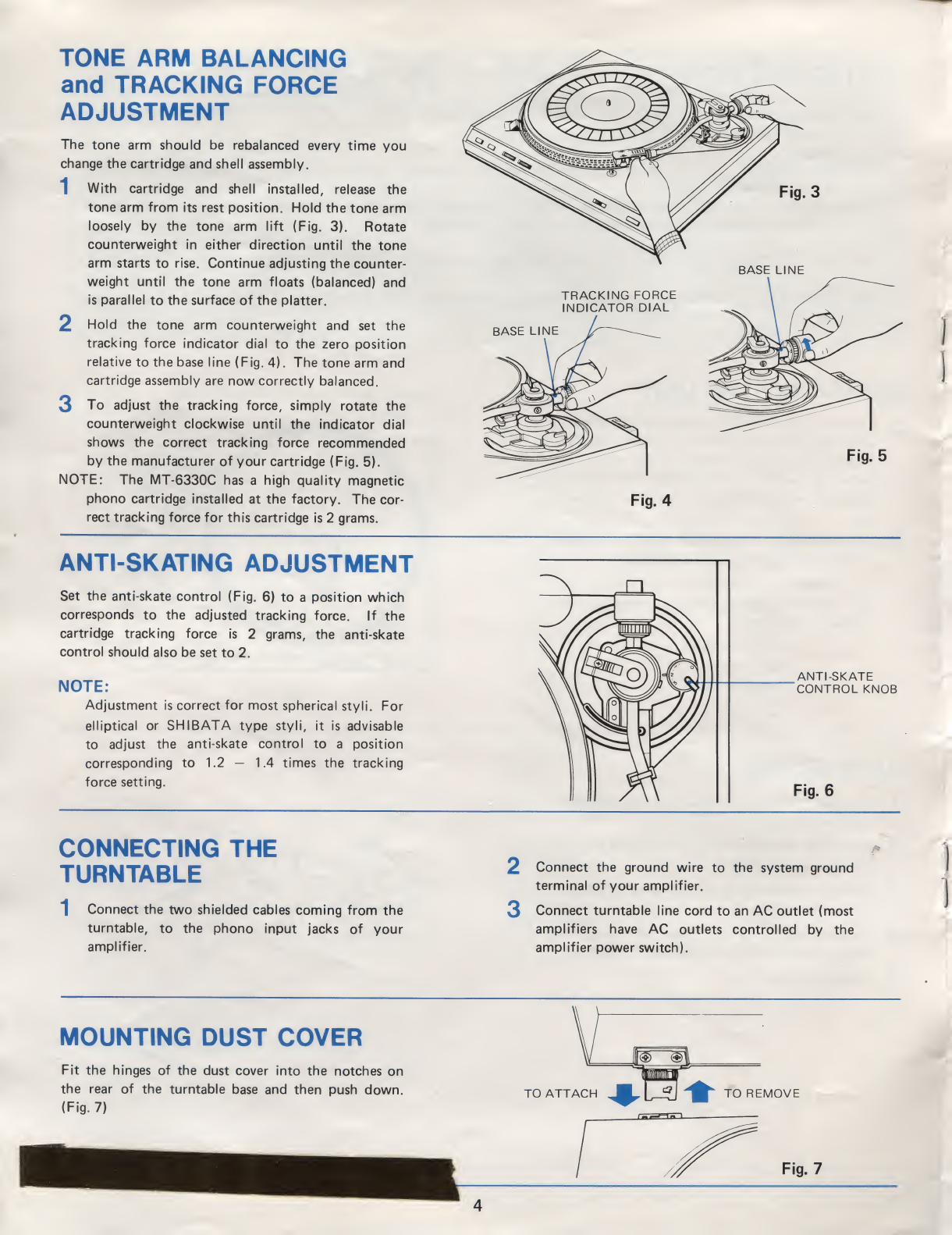

TONE
ARM
BALANCING
and
TRACKING
FORCE
ADJUSTMENT
The
tone
arm
should
be
rebalanced
every
time
you
change
the
cartridge
and
shell
assembly.
With
cartridge
and
shell
installed,
release
the
tone
arm
from
its
rest
position.
Hold
the
tone
arm
loosely
by
the
tone
arm
lift
(Fig.
3).
Rotate
counterweight
in
either
direction
until
the
tone
arm
starts
to
rise.
Continue
adjusting
the
counter¬
weight
until
the
tone
arm
floats
(balanced)
and
is
parallel
to
the
surface
of
the
platter.
Hold
the
tone
arm
counterweight
and
set
the
tracking
force
indicator
dial
to
the
zero
position
relative
to
the
base
line
(Fig.
4).
The
tone
arm
and
cartridge
assembly
are
now
correctly
balanced.
3
To
adjust
the
tracking
force,
simply
rotate
the
counterweight
clockwise
until
the
indicator
dial
shows
the
correct
tracking
force
recommended
by
the
manufacturer
of
your
cartridge
(Fig.
5).
NOTE:
The
MT-6330C
has
a
high
quality
magnetic
phono
cartridge
installed
at
the
factory.
The
cor¬
rect
tracking
force
for
this
cartridge
is
2
grams.
TRACKING
FORCE
INDICATOR
DIAL
l
i
ANTI-SKATING
ADJUSTMENT
Set
the
anti-skate
control
(Fig.
6)
to
a
position
which
corresponds
to
the
adjusted
tracking
force.
If
the
cartridge
tracking
force
is
2
grams,
the
anti-skate
control
should
also
be
set
to
2.
NOTE:
Adjustment
is
correct
for
most
spherical
styli.
For
elliptical
or
SHIBATA
type
styli,
it
is
advisable
to
adjust
the
anti-skate
control
to
a
position
corresponding
to
1.2
—
1.4
times
the
tracking
force
setting.
CONNECTING
THE
TURNTABLE
Connect
the
two
shielded
cables
coming
from
the
turntable,
to
the
phono
input
jacks
of
your
amplifier.
Connect
the
ground
wire
to
the
system
ground
terminal
of
your
amplifier.
Connect
turntable
line
cord
to
an
AC
outlet
(most
amplifiers
have
AC
outlets
controlled
by
the
amplifier
power
switch).
MOUNTING
DUST
COVER
Fit
the
hinges
of
the
dust
cover
into
the
notches
on
the
rear
of
the
turntable
base
and
then
push
down.
(Fig.
7)
4

ADJUSTMENT
OF
TURNTABLE
SPEED
Place
a
33-1/3
rpm
LP
on
the
platter.
Push
the
"33"
speed
selector
button.
Slide
the
cueing
knob
to
the
UP
position.
When
the
tone
arm
rises,
move
it
over
to
the
lead-in
groove
of
the
record.
Slide
the
cueing
knob
to
the
DOWN
position,
and
the
stylus
will
descend
onto
the
record
sur¬
face.
Watch
the
rows
of
dots
on
the
platter
rim.
They
can
be
synchronized
by
turning
the
"33"
SPEED
ADJUST
control
knob.
With
perfect
synchro¬
nization,
the
dots
will
appear
stationary
at
the
selected
speed
and
power
line
frequency.
There
are
four
rows
of
dots
for
speed
adjustment.
From
top
to
bottom,
they
are
33-1/3
rpm
at
a
line
frequency
of
50
Hz,
33-1/3
rpm
at
60
Hz,
45
rpm
at
50
Hz
and
45
rpm
at
60
Hz.
When
the
dots
appear
to
move
in
either
direction,
adjust
the
speed
precisely
with
the
SPEED
ADJUST
control
knob.
Turn
the
SPEED
ADJUST
control
knob:
(F)
mark.the
speed
will
increase
(S)
mark.the
speed
will
decrease
The
platter
is
rotating
at
the
correct
speed
when
the
dots
stand
still.
The
platter
speed
should
be
checked
regularly.
When
the
selected
speed
is
"33"
and
the
power
line
frequency
is
60
Hz,
watch
the
second
line
of
dots
from
the
top.
Adjust
the
speed
precisely
if
the
dots
appear
to
move
to
the
right
or
left.
IDENTIFICATION
OF
PARTS
AND
THEIR
FUNCTIONS
1
45
rpm
record
adapter
Place
this
over
the
turntable
spindle
when
playing
45
rpm
records.
2
Turntable
platter
and
rubber
mat
3
Trim
ring
plate
4
Turntable
spindle
5
Stroboscope
6
Speed
selector
buttons
33.Push
this
button
when
playing
a
33-1/3
rpm
record.
"45".Push
this
button
when
playing
a
45
rpm
record.
SPEED
ADJUST
control
knobs
Use
together
with
the
stroboscope
to
fine
adjust
the
platter
speed.
8
Overhang
indicator
This
marks
point
for
positioning
the
stylus.
9
Cueing
knob
(arm
lifter)
Slide
this
knob
to
the
UP
position
and
the
tone
arm
will
rise.
Slide
the
knob
to
the
DOWN
position
and
the
tone
arm
will
descend
onto
the
record
gently.
This
control
can
be
used
either
for
starting
or
interrupting
record
play.
10
REJECT
button
Push
this
button
to
stop
record
play.
The
tone
arm
will
return
to
the
arm
rest
automatically.
11
Cartridge
shell
12
Tone
arm
13
Lock
lever
14
Arm
rest
©
©
©0
O
Fig.
8
15
Anti-skate
control
knob
Use
this
to
adjust
the
force
which
prevents
the
tone
arm
from
skating
toward
the
center
of
the
record.
16
Tracking
force
indicator
dial
17
Counterweight
5
©

TURNTABLE
OPERATION
Turn
on
your
amplifier
or
receiver.
Be
sure
to
turn
the
VOLUME
control
to
its
MINIMUM
setting
BEFORE
operating
turntable.
Place
a
record
on
the
platter.
(If
necessary,
use
the
45
rpm
adapter.)
Select
the
platter
speed
by
depressing
the
33
or
45
button.
3
Slide
the
cueing
knob
to
the
UP
position
and
the
tone
arm
will
rise
from
its
rest.
Move
the
tone
arm
over
the
lead-in
groove
of
the
record.
4
Slide
the
cueing
knob
to
the
DOWN
position
and
the
tone
arm
will
descend
gently
onto
the
record
and
play
will
begin.
5
At
the
end
of
the
record
the
tone
arm
will
auto¬
matically
rise
and
return
to
the
arm
rest.
•
To
interrupt
play
.
.
.
Slide
the
cueing
knob
to
the
UP
position
and
the
tone
arm
will
rise
from
the
record.
Slide
the
cueing
knob
to
the
DOWN
position
and
the
tone
arm
will
descend
onto
the
record
surface
and
play
will
resume.
•
To
stop
play
.
.
.
Push
the
REJECT
button.
This
will
cause
the
tone
arm
to
rise
and
swing
back
to
the
rest.
The
platter
will
stop
rotating
as
the
tone
arm
descends
onto
the
arm
rest.
NOTE:
DO
NOT
touch
the
tone
arm
while
it
is
returning
automatically
to
the
arm
rest.
TROUBLE-SHOOTING
GUIDE
Before
having
your
turntable
unit
serviced,
be
sure
to
check
the
following
and
make
the
corrections
if
possible,
according
to
these
suggestions.
SYMPTOM
PROBABLE
CAUSE
CORRECTION
•
Turntable
does
not
rotate.
•
Faulty
AC
power
connection.
•
Make
sure
unit
is
plugged
in
to
"live"
AC
socket.
•
No
sound
is
produced.
•
Output
cords
not
connected.
•
Improper
cartridge
shell
attach¬
ment.
•
Faulty
lead
wire
connections
in
cartridge.
•
Connect
cords
to
amplifier.
•
Plug
cartridge
shell
into
tone
arm
and
fasten
it
securely.
•
Re-connect
lead
wires.
•
Noise
is
audible
and
there
is
marked
sound
distortion
in
high
tonal
range.
•
Dust
accumulation
on
stylus.
•
Dusty
or
scratched
disc
surface.
•
Stylus
is
worn
out.
•
Improper
tracking
force.
•
Treble
sound
excessive.
•
Blow
dust
off,
or
use
stylus
brush.
•
Try
a
new,
clean
record.
•
Replace
stylus.
•
Adjust
tracking
force.
•
Adjust
tone
control.
•
Humming
sound
evident
when
playing
a
record.
•
Turntable
and
amplifier
are
not
connected
with
ground
wire.
•
Faulty
connections
on
output
cords.
•
Connect
turntable
and
amplifier
with
ground
wire
at
ground
ter¬
minals.
(In
some
cases
the
sound
may
be
better
when
they
are
not
connected
by
ground
wire.)
•
Connect
output
cords
to
the
amplifier
correctly.
•
Speakers
howl
when
volume
is
turned
up.
•
Improper
location
of
turntable
in
relation
to
speakers.
•
Place
turntable
on
solid
surface
at
a
distance
from
speakers.
6

MAINTENANCE
Remember
that
your
turntable
is
a
sensitive
electro¬
mechanical
device
that
needs
occasional
maintenance.
Cleaning
the
stylus:
Dust
particles
often
build
up
around
the
stylus.
If
the
build-up
becomes
excessive
it
will
not
only
result
in
noisy
repro¬
duction
but
will
eventually
shorten
the
lives
of
both
the
record
and
the
stylus.
Should
this
occur,
do
not
remove
the
dust
with
your
fingers
or
a
tool.
Lift
the
tone
arm
by
its
handle
and
blow
the
dust
away
or
use
a
stylus
brush.
Replacing
the
stylus:
To
assure
distortion-free
reproduction,
replace
the
diamond
stylus
after
1000/2000
LP
plays.
To
remove
the
old
stylus,
pull
out
the
stylus
assembly
as
in
Fig.
9.
Replace
with
a
new
stylus
(available
from
Fisher
Service
Center).
3
Cleaning
the
dust
cover,
cabinet
and
visible
metal
parts:
Wipe
gently
with
a
soft
cloth
moistened
with
lukewarm
water.
NEVER
use
benzol,
benzine
or
other
strong
chemical
cleaners
since
they
will
damage
the
finish
of
your
unit.
DO
NOT
allow
moisture
to
penetrate
inside
of
the
turntable.
Fig.
9
MOUNTING
THE
CARTRIDGE
Carefully
mount
the
cartridge
according
to
the
maker's
instructions.
DO
NOT
tighten
the
mount¬
ing
screws.
Connect
the
4
colored
leads
in
the
cartridge
shell
to
the
cartridge
terminals.
Connect
properly
by
matching
the
colors
of
the
leads
and
cartridge
terminals.
White
=
Left
output
Blue
=
Left
ground
Red
=
Right
output
Green
=
Right
ground
Plug
the
cartridge
shell
into
the
tone
arm
and
tighten
the
cartridge
shell
ring
by
turning
it
clockwise.
(Fig.
10)
4
Move
the
tone
arm
over
the
overhang
indicator
and
adjust
cartridge
until
the
stylus
point
is
located
exactly
above
the
overhang
indicator.
Fix
cartridge
in
this
location
by
TIGHTENING
the
mounting
screws.
(Fig.
11)
Be
sure
to
keep
the
cartridge
straight
in
the
cartridge
shell.
Adjust
tracking
force
and
anti-skating.
(See
page
4.)
j*
MT-6330.WITHOUT
CARTRIDGE
MT-6330C.WITH
MAGNETIC
CARTRIDGE
MOUNTING
CARTRIDGE
SCREW
SHELL
RING
7

S
FISHER
Offait/ter
-C^fimcJa/u/
THE
FIRST
NAME
IN
HIGH
FIDELITY
FISHER
CORPORATION,
21314
LASSEN
STREET
•
CHATSWORTH
•
CALIFORNIA
91311
Copyright
1979,
Fisher
Corporation.
All
Rights
Reserved.
Printed
in
Japan
1316-4119-77901
MT-6330
/
MT-6330C,
Issue
Number
1
