Original Leaning Post
INSTALLATION MANUAL
©2019 Fishmaster 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
Do you have installation questions? Call us @ 877.777.8693 Monday - Friday, 8am-5pm EST
Original Leaning Post Included Hardware Identification
Gather additional necessary tools and materials:
(1) Leg Base (R)
(1) Leg Base (L)
(1) Seat Platform
(1) Foot Rest
(1) Seat Cushion
(6) 1.5" x 1/4" Deck Screws
(4) M10 x 40 Bolts
(2) M8 x 30 Bolts
(4) M6 x 25 Shoulder Bolts
(4) M6 Washers
Verify all parts are included
before you begin.
(6) 1.5" x 1/4" (4) M10 x 40 (2) M8 x 30
• Blue painter’s tape
• Black permanent marker
• Tape measure
• Cordless drill with 1/8" bit
• 45° chamfer bit
• Metric allen wrench set
• Phillips head screwdriver
• Tube of 3M 5200
Marine Adhesive
Patent Pending
(4) M6 x 25
(4) M6 x 25
Washers
WARNING: If you are unfamiliar with your boat’s construction,
please seek professional advice before installing your leaning post.

2
STEP 2: Install the Original Leaning Post foot rest to leaning post assembly
1. Insert foot rest with by aligning slots
of foot rest with tabs on leg bases.
2. Secure foot rest to Leaning Post
assembly using 2 M8 x 30 bolts with
6mm allen wrench. Tighten firmly.
©2019 Fishmaster 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
Do you have installation questions? Call us @ 877.777.8693 Monday - Friday, 8am-5pm EST
STEP 1: Install the Original Leaning Post seat platform to leg bases
1. Position leg bases with foot rest
attachment pointed in same
direction and holes on the
top facing each other. (Holes
are shown in inset drawings
highlighted with red circles.)
2. Place seat platform on top of
leg bases while aligning holes
on the top of the leg bases.
3. Secure platform to leg bases
with 4 M10 x 40 with 6mm allen
wrench. Tighten firmly.

3
SEE NEXT PAGE FOR INSTALLATION INTO BOAT.
©2019 Fishmaster 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
Do you have installation questions? Call us @ 877.777.8693 Monday - Friday, 8am-5pm EST
STEP 3: Install the Original Leaning Post seat cushion to leaning post assembly
1. Position seat cushion on leaning
post assembly by aligning holes on
seat cushion bottom and holes in
seat platform.
HELPFUL TIP! Put a bolt through
seat platform from bottom on one
corner and align with hole. Use
this method for second bolt on
opposite corner and the other two
holes should align.
2. Insert M6 x 25 bolt through M6
washer and into each location with
only a few turns of bolt to get each
bolt started.
3. After all four bolts are in position,
tighten each bolt firmly with 6mm
allen wrench.

4

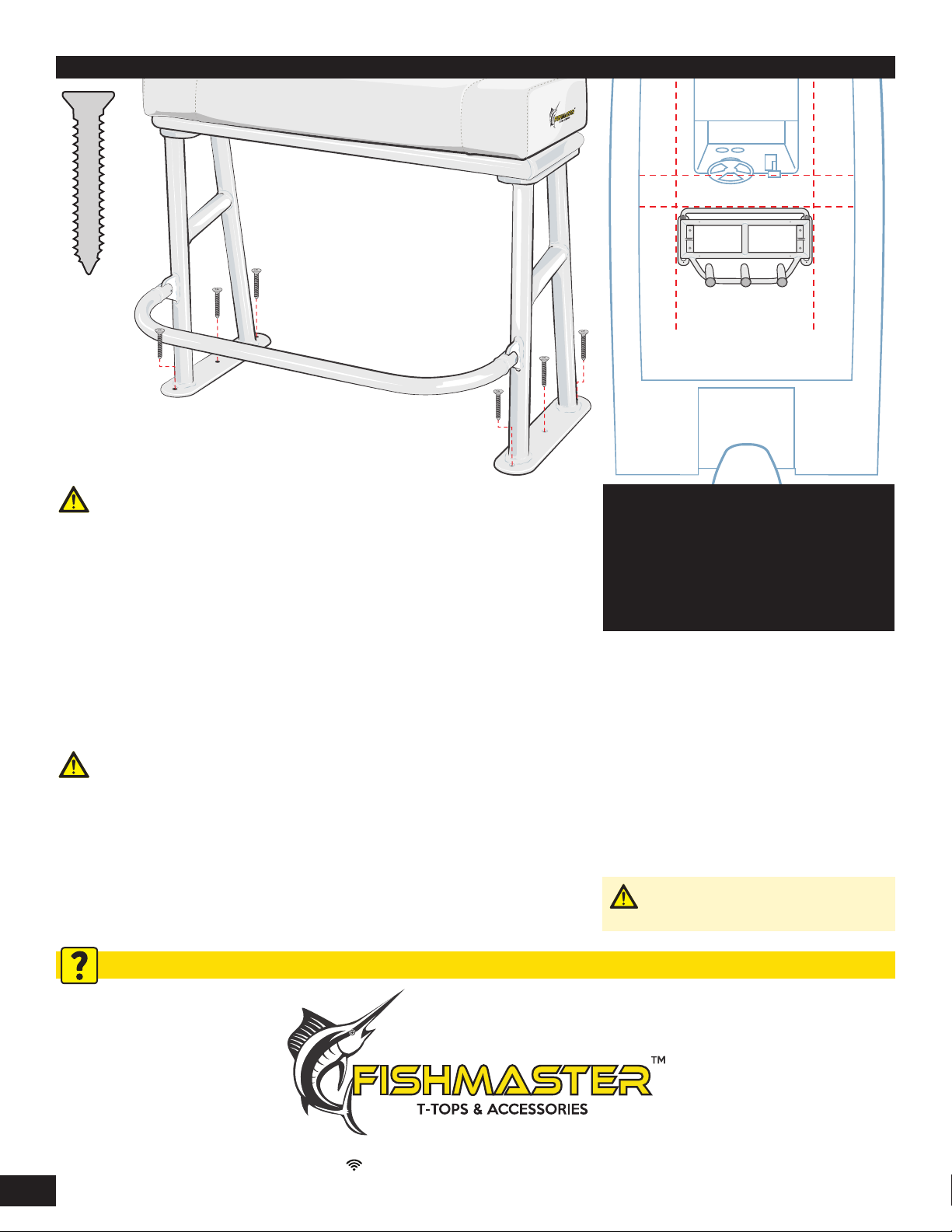

STEP 4: Install the Original Leaning Post seat assembly to boat
Do you have installation questions? Call us @ 877.777.8693 Monday - Friday, 8am-5pm EST
2640 Byington Solway Rd, Knoxville, TN 37931
fishmaster.com 877.777.8693
©2019 Fishmaster
IMPORTANT: Before using your
leaning post, allow time for the adhesive
to cure according to 3M recommendations.
WARNING: If you are unfamiliar with your boat’s construction,
please seek professional advice before drilling holes.
1. Locate the fuel tank, steering cables, and other critical boat
components to ensure their safety when drilling.
2. Measure from the rear of your center console to the aft of your
boat and place a tape line as a guide for where the front of the base
plates will be mounted. Leaning posts are commonly installed at 15"
to 20" back from the console, but this can be adjusted for your own
comfort and specific boat requirements.
3. Position your leaning post on the deck and measure from the outside of each screw hole in the base plate to
the side walls of your boat. This will help ensure the leaning post is centered on the deck of the boat and facing
straight towards the bow.
4. Once in position, use a permanent marker to mark the screw hole positions on both leaning post base plates.
5. At each marked location, drill in reverse approximately 3/8" deep through the gel coat. Switch the drill to its
standard rotation and finish drilling the hole through the deck.
IMPORTANT: Starting each hole with your drill in reverse is necessary
to prevent spider cracking of the gel coat finish.
6. Once all holes are drilled, use a 45° chamfer bit with the drill in reverse to countersink the screw holes.
7. Drill one of the provided deck screws into each hole and remove it to thread the holes.
8. Use 3M 5200 Marine Adhesive in each of the screw holes as well as on the bottom of the base plate for added
strength and durability.
9. Carefully set the leaning post on the prepared mounting surface –
matching up the newly drilled holes in the deck of the boat with those
in the leaning post base plates.
10. Install the six deck screws to complete your installation.
Pro Tip: We recommend positioning
the leaning post so that there is
adequate standing room with the
footrest in the down position.
This will ensure comfort for both
the captain and any accompanying
passengers who wish to sit atop
the leaning post.
