Fitness Reality 1000 Super Max User manual

Bench
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change without
notice.
2804.6-021717

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP and contact customer service if you have any
questions regarding assembly or proper operation of the
machine.
Email us at:
[e-mail]
Or call us at:
1-844-641-7920
Hours:
8:00 am to 5:00 pm (PST) Daily

1
TABLE OF CONTENT
SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
IMPORTANT SAFETY GUIDELINES ------------------------------------ 4
OVERVIEW DRAWING ------------------------------------------------------ 5
PART LIST ---------------------------------------------------------------------- 6
HARDWARE & TOOLS PACK --------------------------------------------- 7
ASSEMBLY --------------------------------------------------------------------- 8
ADJUSTMENTS --------------------------------------------------------------- 11
TRANSPORTATION ---------------------------------------------------------- 14
WARRANTY -------------------------------------------------------------------- 15
PARTS REQUEST FORM--------------------------------------------------- 16

2
SERVICE
IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any other service
support, please contact our customer service department by the below methods:
For The Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Emailing us with the information above will be the best method to receive a response during
peak business hours
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7920
(8:00 AM - 5:00 PM Pacific Standard Time, Daily)
Response time may vary via calling
Please have the following information ready when requesting for service:
•Your name
•Phone number
•Model number
•Serial number
•Part number
•Proof of Purchase
For damaged or defective product please contact our customer service before returning to
the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA

3
LABEL PLACEMENT

4
IMPORTANT SAFETY GUIDELINES
Read all instructions carefully before assembling and operating this product. This unit is
designed with optimum safety in mind. Retain this owner’s manual, do not remove any
safety labels from the machine, and keep the original purchase receipt for future reference.
1. Make sure your equipment is correctly assembled before you use it.
2. Be sure all screws, nuts, and bolts are tightened prior to use.
3. Always wear proper exercise apparel when using the equipment. Use care when getting on or off
the unit.
4. If any time you feel faint, light-headed or dizziness while operating the equipment, stop exercising
immediately. You should also stop exercising if you are experiencing pain or any kind of discomfort.
5. Keep children and pets away from the equipment at all times.
6. Only one person should use the equipment at a time.
7. Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and
bolts are tightened prior to use.
8. Do not operate this or any exercise equipment if it is damaged.
9. Wait 2 hours after eating before using the exercise equipment. If you get nauseous, stop exercising
as soon as you feel queasy.
10.Always use this equipment on a clear and level surface. Do not use outdoors or near water.
11.Keep hands and feet away from any moving parts. Do not insert any object into any openings.
12.Keep loose clothes, jewelry, limbs and long hair away from moving parts.
13.Children under the age of 13 should not use this fitness equipment.
14.Children from 13 to 18 should have adult supervision.
WARNING: It is highly recommend that you have assistance during the assembly of the
equipment.
WARNING: Before using this equipment you should consult with your personal
physician to see if the product is appropriate for you. Do not use this equipment without
your physician’s approval. Do not use this equipment if you have any of the following
conditions or ailments:
Extreme obesity
Glaucoma, retinal detachment or conjunctivitis
Pregnancy
Spinal injury, Cerebral Sclerosis, or acutely swollen joints
Middle ear infection
High blood pressure, Hypertension, Recent stroke or Transient ischemic attack
Heart or circulatory disorders for which you are being treated
Hiatus hernia or Ventral hernia
Bone weaknesses including Osteoporosis, Unhealed fractures, Modularly pins, or Surgically
implanted orthopedic supports
Use of anti-coagulants includingAspirin in high doses
Do not exceed the maximum rated weight (load)
The maximum weight capacity of this machine is 800lbs/363kgs.

5
OVERVIEW DRAWING

6
PARTS LIST
Part # Description Q'ty
A Main Frame 1
B Front Support Tube 1
C Front Stabilizer 1
D Rear Stabilizer 1
E Rear Support Tube 1
F Backrest Support Tube 2
G Leg Holder 1
H Seat 1
J Backrest 1
2 Hex Bolt M8x20mm 4
28 Hex Bolt M8x50mm 4
29 Carriage Bolt M8x60mm 4
30 Hex Bolt M12xL90 1
60 Flat Washer Ø12xØ24x2 4
61 Spring Washer Ø8 13
62 Flat Washer Ø8xØ16x1.5 8
63 Curved Washer Ø8xØ21x2 4
64 Flat Washer Ø8xØ21x2 1
76 Nylon Nut M12 3
79 Cap Nut M8 4
105 Pin Ø10x100 1
106 Round Knob M8x40mm 1
133 Wheel End Cap Ø50mm 2
134 Stability End Cap Ø50mm 2
135 Round End Cap Ø32 2
136 Round End Cap Ø19 2
159 Rectangle End Cap 30x60m 1
160 Square End Cap 30x30m 4
211 Hand Grip Ø19x75x3 2
212 Leg Hold Grip Ø32x168x3t 2
230 Washer Ø20x12x2.5T 2
296 Threaded Shaft Ø12x160m 1
484 Bumper Ø12x22x2 1

7
HARDWARE & TOOLS PACK

8

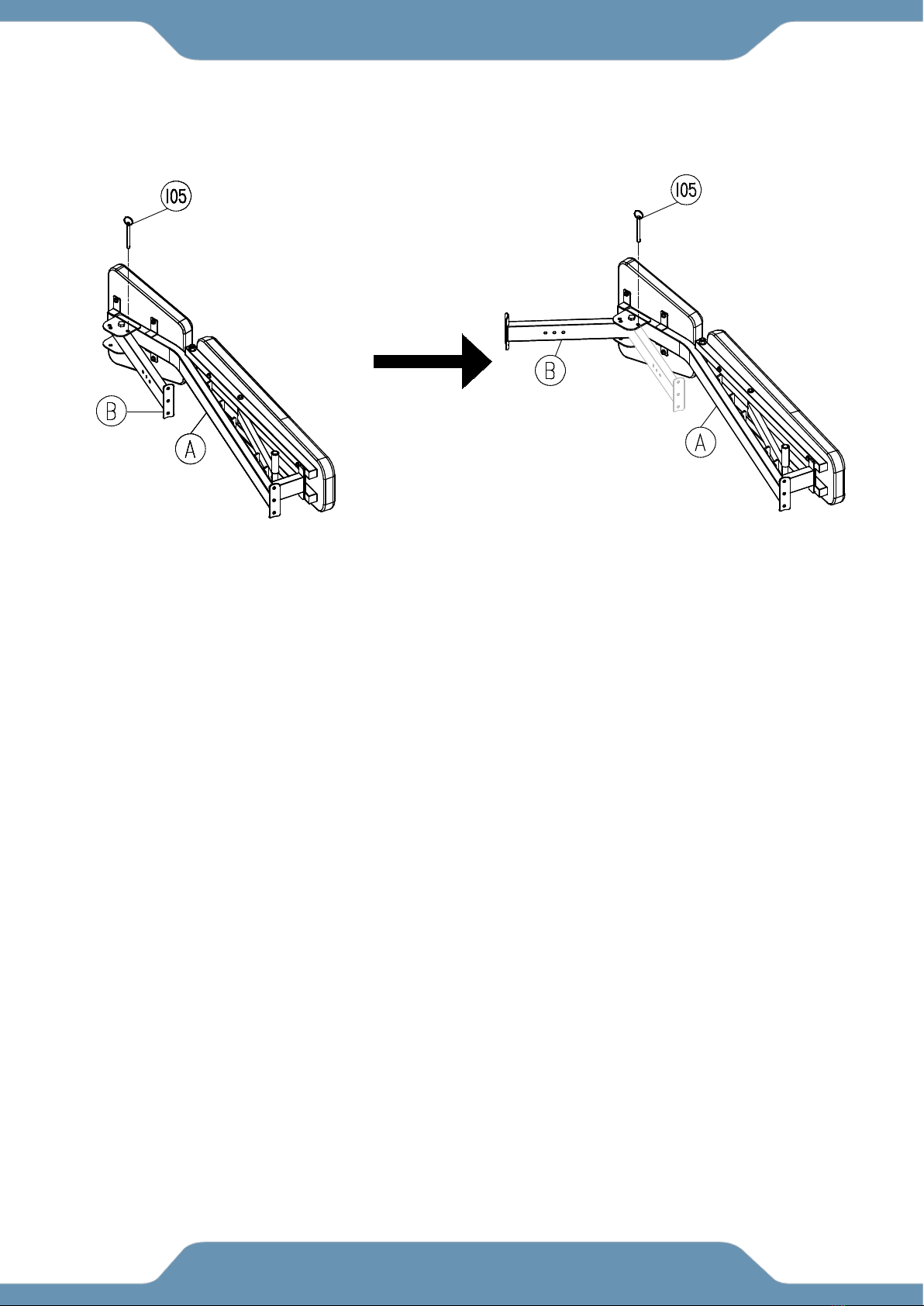

STEP 1
A. Rest the Bench on its side and completely pull out the Pin (105) from the bracket
on the Main Frame (A).
B. Pull the Front Support Tube (B) outwards and completely reinsert the Pin (105)
into the first hole on the bracket of Main Frame (A).
ASSEMBLY

9
STEP 2
A. Installing the Front Stabilizer: Lift up the Front Support Tube (B), and then align the Front
Stabilizer (C) holes with the holes on the front curve of the Front Support Tube (B). The square
holes of the Front Stabilizer (C) should point towards the floor. Insert two Carriage Bolts (29)
through the Front Stabilizer (C) and Front Support Tube (B) until the bolts reach through. On the
protruding end of the Carriage Bolts (29), secure on two Curved Washers (63), two Spring
Washers (61), and two Cap Nuts (79). Tighten the Cap Nuts (79) with the two 19mm Wrenches
provided.
B. Installing the Rear Stabilizer: Lift up the rear of the Main Frame (A), and then align the Rear
Stabilizer (D) holes with the holes on the rear curve of the Main Frame (A). The square holes of
the Rear Stabilizer (D) should point towards the floor with the Customer Service Stickers facing
upward. Insert two Carriage Bolts (29) through the Rear Stabilizer (D) and the rear curve of the
Main Frame (A) until the bolts reach through. On the protruding end of the Carriage Bolts (29),
secure on two Curved Washers (63), two Spring Washers (61), and two Cap Nuts (79). Tighten
the Cap Nuts (79) with the two 19mm Wrenches provided.
Hardware:
(29) Carriage Bolt
4 PCS
(79) Cap Nuts
4 PCS
(61) Spring Washer
4 PCS
(63) Curved Washer
4 PCS
19mm Wrench
2pcs
Tools:
ASSEMBLY

10

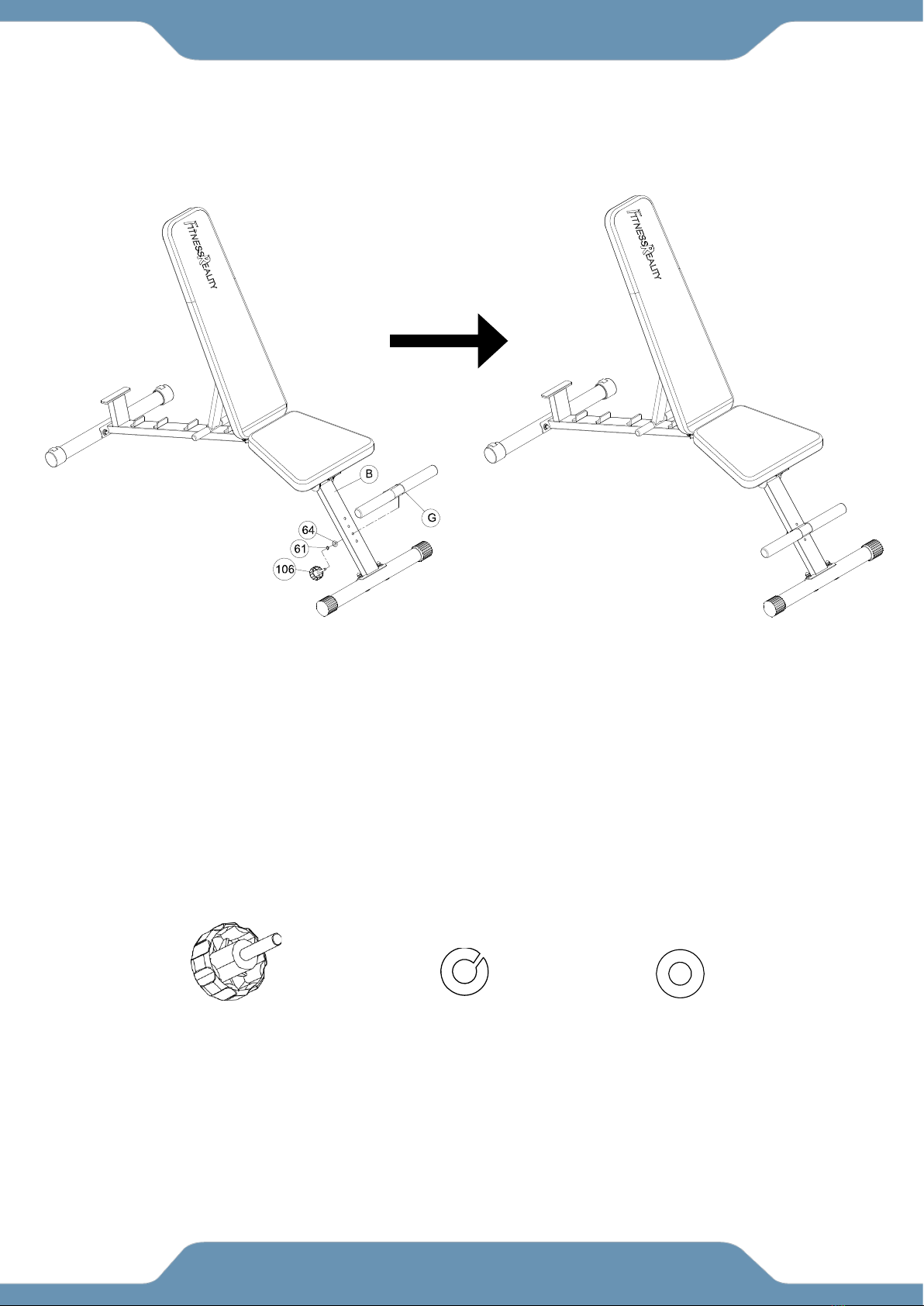

STEP 3
A. Installing the Leg Holder: There are four holes down the Front Support Tube (B). They are
for height levels. Pick one of the holes and insert the threaded end of the Round Knob (106) along
with one Spring Washer (61) and one Flat Washer (64) through the back side. Align the Leg
Holder (G) to the protruding threaded shaft of Round Knob (106). Tighten the Round Knob (106)
in a clockwise manner to secure in place the Leg Holder (G).
Hardware Pack:
(106) Round Knob
1 PC
(61) Spring Washer
1 PC
(64) Flat Washer
1PC
ASSEMBLY

11

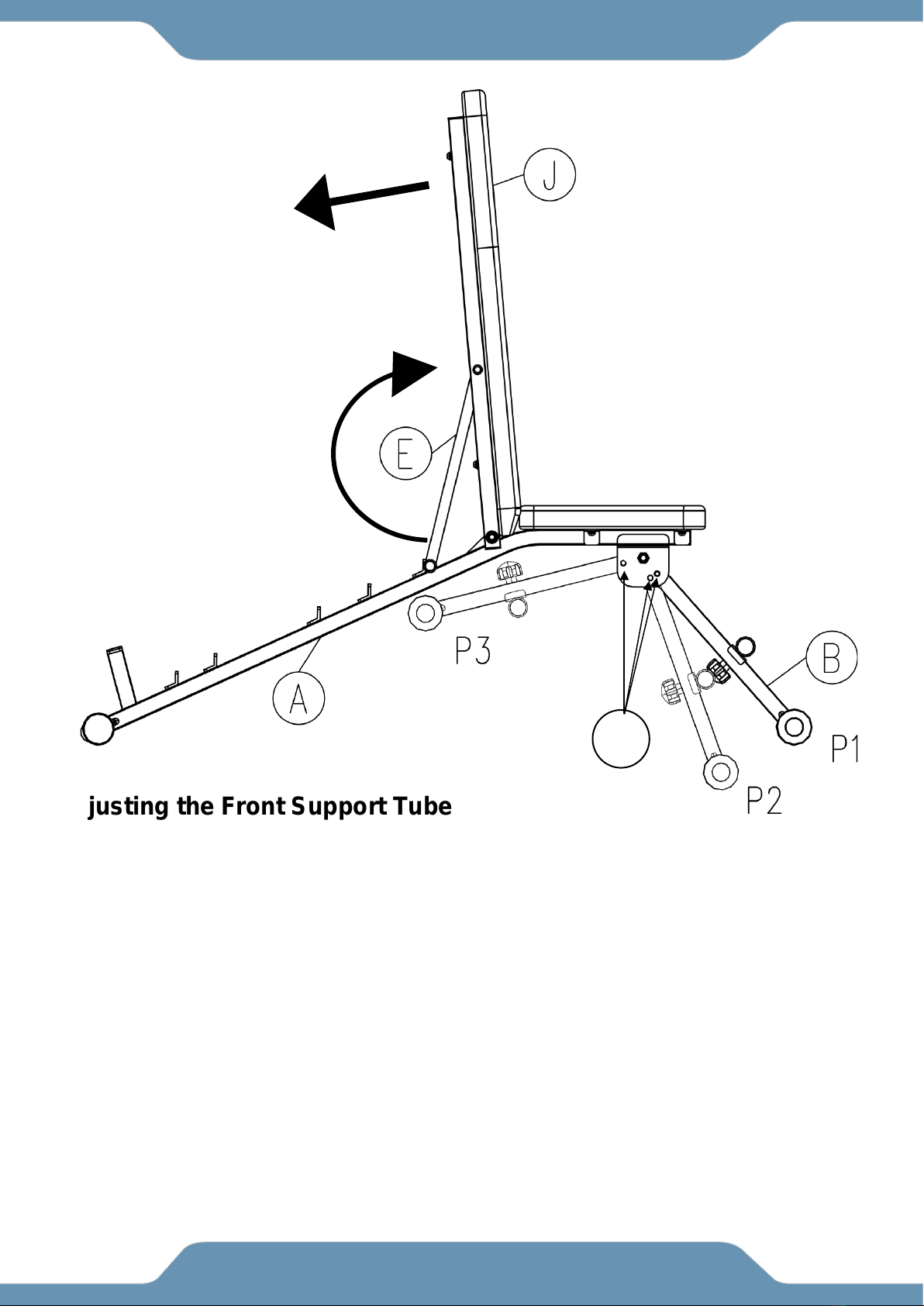

Adjusting the Front Support Tube
Pull the Pin (105) out from the Main Frame (A) and swing the Front Support Tube (B) into one of the
following positions:
a. Position P1 gives a flat and level seat for working out.
b. Position P2 gives an inclined seat for working out.
c. Position P3 is for folding up the Bench for storage.
Completely re-insert the Pin (105) into the hole of the bracket on the Main Frame (A) for the position you
select.
105
ADJUSTMENTS

12

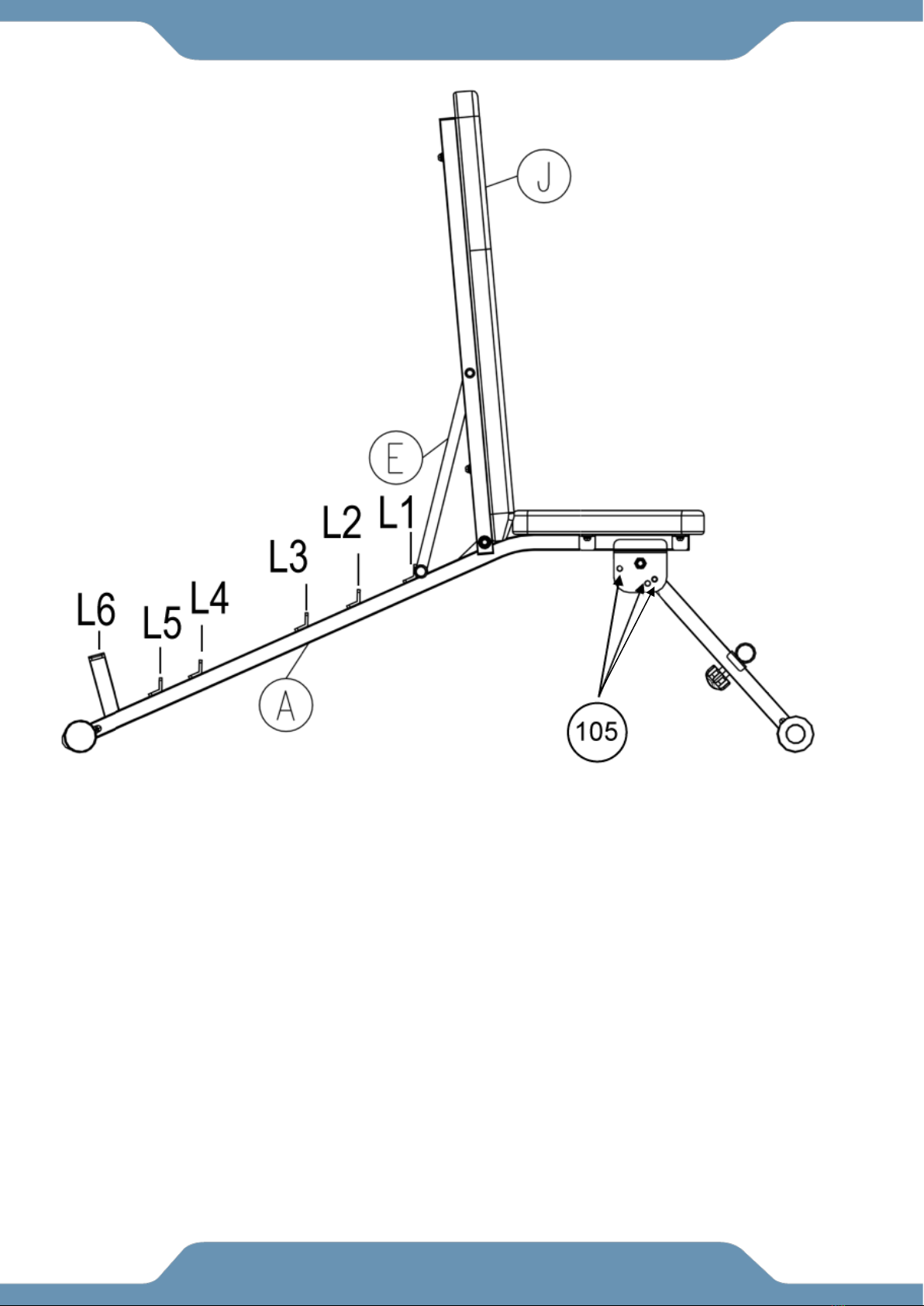

Adjusting the Backrest
Push the Backrest (J) upwards to lift the Rear Support Tube (E) off of the tabs that run along the
rear shaft of the Main Frame (A). Then gently lower the Backrest (J) while guiding the Rear
Support Tube (E) back into the new tab height so that your backrest angle is adjusted. There are
six different adjustments:
1. L1 = 80°
2. L2 = 60°
3. L3 = 40°
4. L4 = 15°
5. L5 = -10°
6. L6 = -20°
ADJUSTMENTS

13

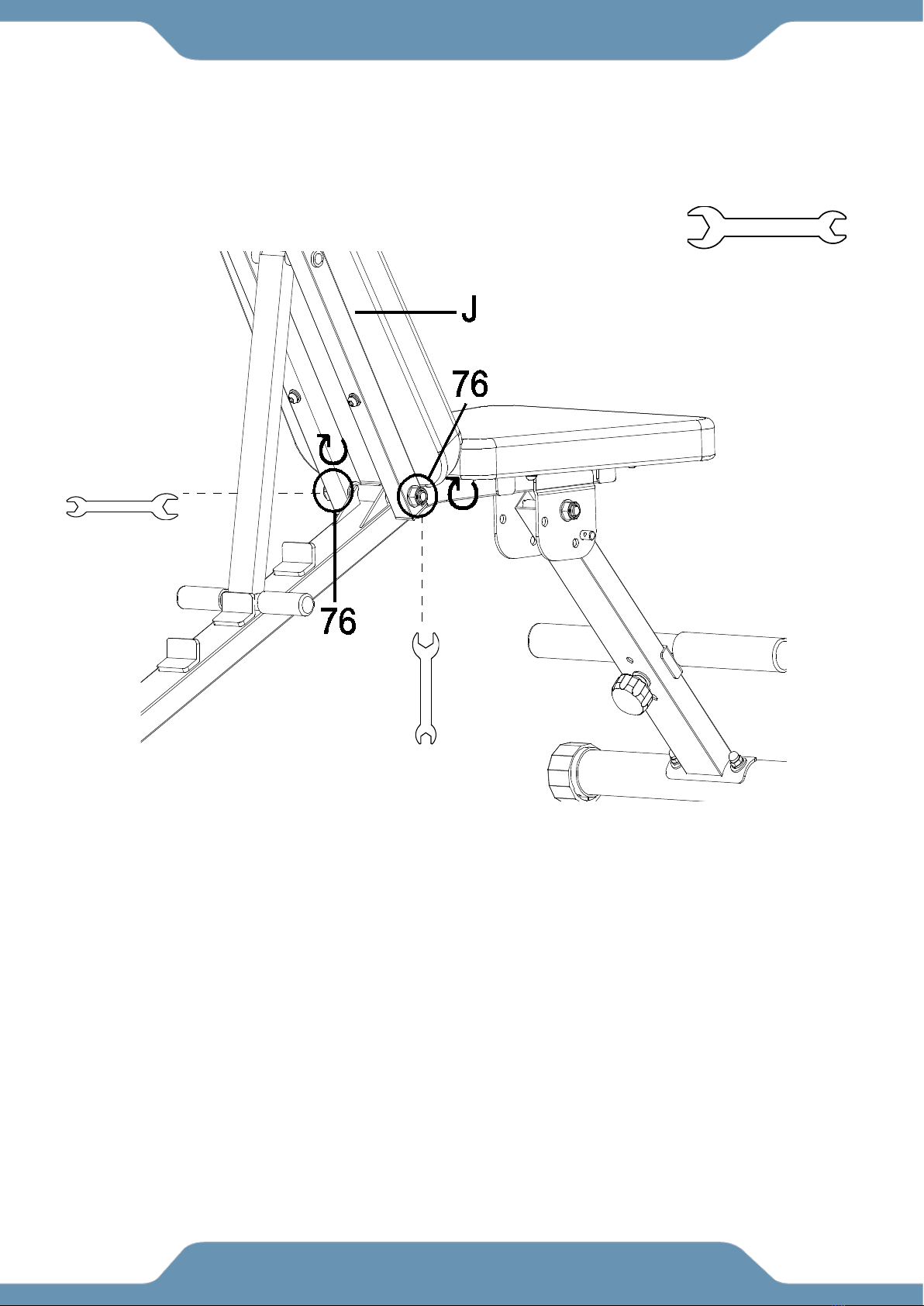

Loose Backrest
If the Backrest (J) feels loose, shifting side to side use the two included 19mm Wrenches to tighten the
Nylon Nuts (76).
ADJUSTMENTS
19mm Wrench
2pcs
Tools:
13, 19mm Wrench
13,19mm Wrench

14
Transporting when the bench is set up:
Lift up the Front Stabilizer (C) until the wheels on the Wheel End Caps (133) make contact with
the ground, then move the bench to your desired location.
Transporting In Storage Mode:
Lift up the bench by holding the Seat (H) until the wheels on the Wheel End Caps (133) make
contact with the ground, then move the bench to your desired location.
133
H
133
C
TRANSPORTATION

15
MANUFACTURER’S LIMITED WARRANTY
Paradigm Health & Wellness warrants to the original purchaser that this product is free from
defects in material and workmanship when used for the purpose intended, under the
conditions that it has been installed and operated in accordance with Paradigm’s Owner’s
Manual. Paradigm’s obligation under this warranty applies to the following:
COMPONENT LENGTH OF WARRANTY
Structural Frame 1 year
All Other Components 90 days
(computer display, electronics, upholstery, foam, ball bearings, pulleys, belts, cables, wires,
shocks, covers, tension, internal mechanism, wheels, pedals, knobs, accessories and
hardware)
Exclusions from Warranty Coverage:
Paradigm does not warrant against and is not responsible for, and no implied warranty shall be deemed to cover, any
product failure, product malfunction, or damages attributable to:
1. Improper installation and/or failure to abide by Paradigm’s installation guidelines;
2. Use of this product beyond normal home use, or in an application for which it was not designed;
3. Cosmetic items such as scratches, dents or discolorations;
4. Damage caused by normal wear and tear, vandalism, and accidental or by animals;
5. Any act of Nature (such as fire, flooding, snow, ice, hurricane, earthquake, lightning or other natural disaster),
environmental condition (such as air pollution, mold, mildew, etc.), or staining from foreign substances (such as dirt,
grease, oil, etc.);
6. Normal weathering due to exposure to sunlight, weather and atmosphere which can cause colored surfaces to,
among other things, flake, chalk, or accumulate dirt or stains; or
7. Improper operation, alteration, handling, storage, abuse or neglect of the products.
Paradigm, using its sole discretion, will either repair or replace free of charge any part(s)
proven to be defective under normal home use. Any repair or replacement shall provide no
new warranty coverage, but shall retain only the remaining portion of the original product’s
warranty. All exchanged parts and Products replaced under this limited warranty will
become the property of Paradigm Health and Wellness. This warranty is offered only to the
original purchaser and is not transferable. Proof of original purchase is required.
Ordering Replacement Parts
Replacement parts can be ordered by emailing our customer service department:
[e-mail]
Open Daily 8:00 AM - 5:00 PM (PST).
When ordering replacement parts please have the following information ready:
1. Owner’s Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
WARRANTY

16
Paradigm Health & Wellness, Inc.
EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO
[e-mail]
NAME:_____________________________________________________________ ________________________
ADDRESS:__________________________________________________________________________________
CITY:________________________ STATE:_____________ ZIP:_______________________________________
TELEPHONE: (Day)__________________________________________________________________________
(Night)________________________________________________________________________
SERIAL#:___________________________________________________________________________________
MODEL#:___________________________________________________________________________________
PURCHASE DATE:___________________________________________________________________________
PLACE OF PURCHASE:_______________________________________________________________________
“YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”
* This form can also be faxed in Fax #: [phone]
PART #
DESCRIPTION
QTY
PARTS REQUEST
