Flash 4in1 ZOOM F7000544 User manual

USER MANUAL / INSTRUKCJA OBSŁUGI
LED Moving Head
4x15W RGBW 4in1 ZOOM
F7000544

LED Moving Head 4x15W RGBW 4in1 ZOOM F7000544
www.flash-butrym.pl
1
Table of contents
1Introduction......................................................................................................................................................2
2Safety information ...........................................................................................................................................2
3Product information ........................................................................................................................................2
3.1 Specification................................................................................................................................................2
4Installation........................................................................................................................................................3
5Connections......................................................................................................................................................3
5.1 Connecting DMX signal.............................................................................................................................3
5.2 Voltage specification..................................................................................................................................4
5.3 Connecting power supply........................................................................................................................4
6Operation manual............................................................................................................................................4
6.1 Control panel ..............................................................................................................................................4
6.2 Menu............................................................................................................................................................4
6.3 DMX channel list........................................................................................................................................5
Spis treści
1Wprowadzenie...............................................................................................................................................10
2Zasady bezpieczeństwa ................................................................................................................................10
3Informacje o produkcie .................................................................................................................................10
3.1 Specyfikacja...............................................................................................................................................10
4Instalacja .........................................................................................................................................................11
5Połączenia.......................................................................................................................................................11
5.1 Podłączenie sygnału DMX ......................................................................................................................11
5.2 Specyfikacja zasilania...............................................................................................................................12
5.3Podłączanie zasilania...............................................................................................................................12
6Instrukcja użytkowania.................................................................................................................................12
6.1 Panel sterowania ......................................................................................................................................12
6.2 Menu..........................................................................................................................................................12
6.3 Lista kanałów DMX..................................................................................................................................13

www.flash-butrym.pl
2
1INTRODUCTION
Thank you for purchasing LED Moving Head 4x15W RGBW 4in1 ZOOM. For safety reasons and to ensure
the trouble-free operation, carefully read the instructions.
2SAFETY INFORMATION
1. Installation should be done by qualified personnel in order to minimize the risk of accidental
electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect the
device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
3PRODUCT INFORMATION
A small moving head with four powerful LEDs and a unique (for this size) ZOOM function. The ability to
control the width of the light beam in combination with the smooth rotation in two axes in the range of 540°
/ 270° makes this device convenient and versatile for small stages applications and in clubs or theaters. The
head is also well suited to the difficult to access places, where it is necessary to have full control of the light
without the possibility of adjusting the physical parameters of the device.
3.1 Specification
Power consumption: 65W
Power supply voltage: 95 - 240V
Voltage frequency: 50/60Hz
Diode type: 4in1
Number of diodes: 4
Diode power: 15W
Display: LED - 4 characters
Color: RGBW
Beam angle (min): 10°
Beam angle (max): 60°
Dimming: Linear: 0 - 100%
Flash frequency (min): 0Hz
Flash frequency (max): 12Hz
PAN range: 540°
TILT range: 270°
Number of DMX channels: 10 / 12 / 15
DMX standard: DMX 512
Control interface: 4 buttons
Operating modes: DMX, Automatic, Sound controlled, Master/Slave
AC IN: IEC - C14
AC OUT: IEC - C13
DMX IN: XLR - 3 pin
DMX OUT: XLR - 3 pin

LED Moving Head 4x15W RGBW 4in1 ZOOM F7000544
www.flash-butrym.pl
3
IP Rating: IP20
Housing made: ABS
Cooling: Active
Height [cm]: 27
Width [cm]: 15
Depth [cm]: 17
Weight [kg]: 3,5
Weight with packaging [kg]: 5
4INSTALLATION
After removing the packaging, check if the device was not damaged during transport. Before connecting to
the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage
caused by unstable mounting.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are
consistent with device requirements. All activities, including connecting the device to the mains must be
performed by qualified personnel.
5CONNECTIONS
The device is equipped with the following interfaces:
1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): IEC C14/C13 socket

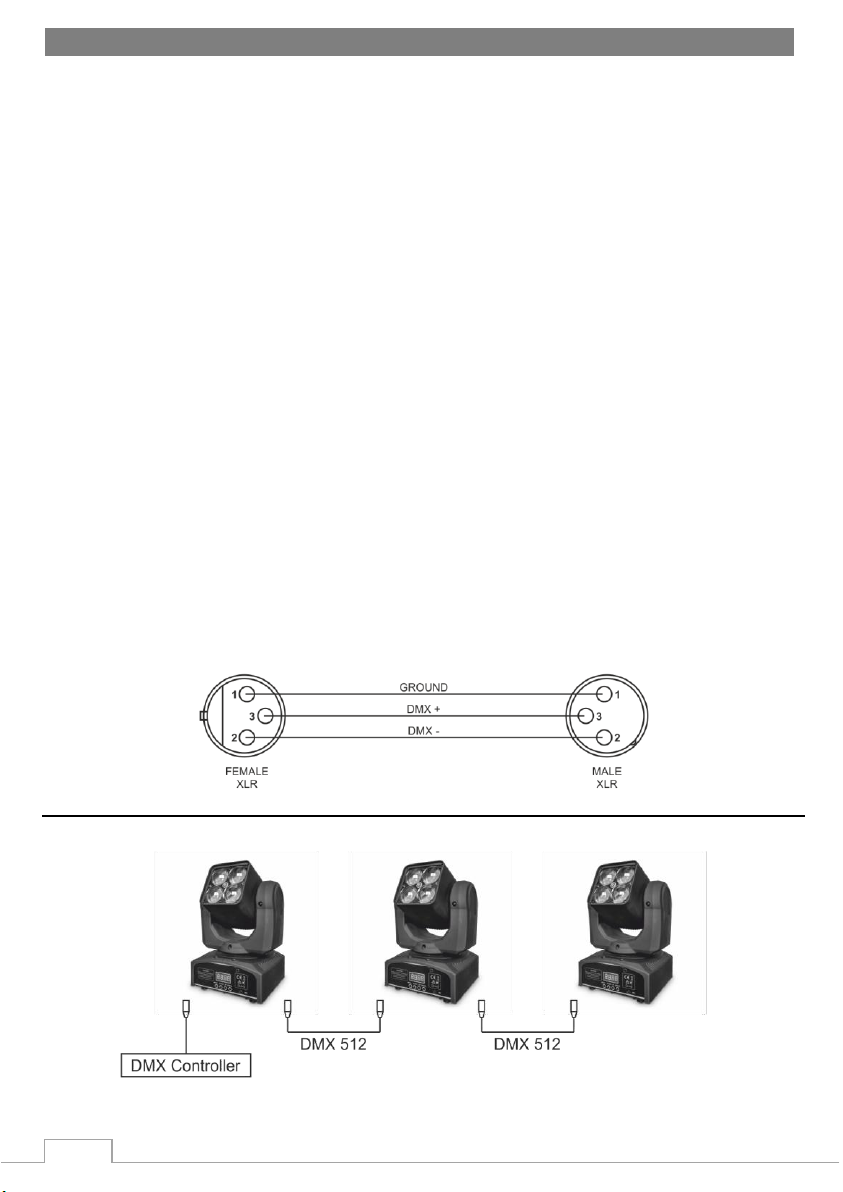

5.1 Connecting DMX signal
The connection is performed using cable with XLR-female -> XLR-Male plugs.

www.flash-butrym.pl
4
5.2 Voltage specification
Input Voltage
Total Power
Frequency
95~240V
65W
50/60Hz
5.3 Connecting power supply
The connection is performed using power cable with IEC C13 connector (included).
The device must be operated by qualified personnel. Make sure that the power grid supply parameters are
consistent with device parameters and limitations are not exceeded.
CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only
on the manufacturer or by a person with appropriate permissions.
6OPERATION MANUAL
6.1 Control panel
The control panel is equipped with display and 4 control buttons:
1. MENU –access to menu
2. DOWN –change value, go to next option
3. UP –change value, go to previous option
4. ENTER –confirm changes
6.2 Menu
Menu diagram:
DMX channel
Addr
→
001 - 512
Channel mode
Chnd
→
10CH, 12CH, 15CH
Master / slave mode
Slnd
→
Master, Slave 1, Slave 2
Show mode
Shnd
→
Show 1-4
Auto-run mode
Auto
→
Non-automatic, automatic
Sound control
Soud
→
On-Off
Sound sensitivity
Soen
→
00-100
Pause mode
Blac
→
Stop, Start up
Backlight
Led
→
On-Off
Display flip
Disp
→
disp-disp
X axis flip
Pan
→
Yes-No
Y axis flip
Tilt
→
Yes-No
Menu test
Menu
→
Pan, Tilt, Zoom, Red, Green, Blue, White, Dimmer, Strobe
Automatic test
Test
→
Test
Reset
Rest
→
Reset

LED Moving Head 4x15W RGBW 4in1 ZOOM F7000544
www.flash-butrym.pl
5
6.3 DMX channel list
10CH mode
Channel
Function
Effect
CH 1
Pan
0-255: 0°-540°
CH 2
Tilt
0-255: 0°-270°
CH 3
Zoom
0-255: Narrow to wide
CH 4
Red
0-255: 0-100%
CH 5
Green
0-255: 0-100%
CH 6
Blue
0-255: 0-100%
CH 7
White
0-255: 0-100%
CH 8
Dimmer
0-255: 0-100%
CH 9
Strobe
0-7: Blackout
8-15: No function
16-131: Strobe, slow to fast
132-139: No function
140-181: Fast close, slow open
182-189: No function
190-231: Fast open, slow close
232-239: No function
240-247: Random strobe
248-255: No function
CH 10
Function
0-69: No function
70-79: Blackout while moving Pan / Tilt
80-179: No function
180-189: Auto run
190-199: No function
200-209: Reset
210-255: No function
12CH mode
Channel
Function
Effect
CH 1
Pan
0-255: 0°-540°
CH 2
Tilt
0-255: 0°-270°
CH 3
Zoom
0-255: Narrow to wide
CH 4
Red
0-255: 0-100%
CH 5
Green
0-255: 0-100%
CH 6
Blue
0-255: 0-100%
CH 7
White
0-255: 0-100%
CH 8
Dimmer
0-255: 0-100%
CH 9
Strobe
0-7: Blackout
8-15: No function
16-131: Strobe, slow to fast
132-139: No function
140-181: Fast close, slow open
182-189: No function
190-231: Fast open, slow close
232-239: No function
240-247: Random strobe
248-255: No function
CH 10
Color change
0-7: No function

www.flash-butrym.pl
6
8-11: Color 1
12-15: Color 2
16-19: Color 3
20-22: Color 4
23-26: Color 5
27-30: Color 6
31-34: Color 7
35-37: Color 8
38-41: Color 9
42-45: Color 10
46-48: Color 11
49-52: Color 12
53-56: Color 13
57-60: Color 14
61-63: Color 15
64-67: Color 16
68-71: Color 17
72-75: Color 18
76-78: Color 19
79-82: Color 20
83-86: Color 21
87-89: Color 22
90-93: Color 23
94-97: Color 24
98-101: Color 25
102-104: Color 26
105-108: Color 27
109-112: Color 28
113-115: Color 29
116-119: Color 30
120-123: Color 31
124-127: Color 32
128-131: Color Macro 1
132-135: Color Macro 2
136-139: Color Macro 3
140-143: Color Macro 4
144-147: Color Macro 5
148-151: Color Macro 6
152-155: Color Macro 7
156-159: Color Macro 8
160-163: Color Macro 9
164-167: Color Macro 10
168-171: Color Macro 11
172-175: Color Macro 12
176-179: Color Macro 13
180-183: Color Macro 14
184-187: Color Macro 15
188-191: Color Macro 16
192-195: Color Fade Macro 1
196-199: Color Fade Macro 2
200-203: Color Fade Macro 3
204-207: Color Fade Macro 4
208-211: Color Fade Macro 5
212-215: Color Fade Macro 6

LED Moving Head 4x15W RGBW 4in1 ZOOM F7000544
www.flash-butrym.pl
7
216-219: Color Fade Macro 7
220-223: Color Fade Macro 8
224-227: Color Fade Macro 9
228-231: Color Fade Macro 10
232-235: Color Fade Macro 11
236-239: Color Fade Macro 12
240-243: Color Fade Macro 13
244-247: Color Fade Macro 14
248-251: Color Fade Macro 15
252-255: Color Fade Macro 16
CH 11
Color change speed
0-255: Slow to fast
CH 12
Function
0-69: No function
70-79: Blackout while moving Pan / Tilt
80-179: No function
180-189: Auto run
190-199: No function
200-209: Reset
210-255: No function
15CH mode
Channel
Function
Effect
CH 1
Pan
0-255: 0°-540°
CH 2
Tilt
0-255: 0°-270°
CH 3
Zoom
0-255: Narrow to wide
CH 4
Speed (pan, tilt, zoom)
0-255: Slow to fast
CH 5
Red
0-255: 0-100%
CH 6
Green
0-255: 0-100%
CH 7
Blue
0-255: 0-100%
CH 8
White
0-255: 0-100%
CH 9
Dimmer
0-255: 0-100%
CH 10
Strobe
0-7: Blackout
8-15: No function
16-131: Strobe, slow to fast
132-139: No function
140-181: Fast close, slow open
182-189: No function
190-231: Fast open, slow close
232-239: No function
240-247: Random strobe
248-255: No function
CH 11
Color change
0-7: No function
8-11: Color 1
12-15: Color 2
16-19: Color 3
20-22: Color 4
23-26: Color 5
27-30: Color 6
31-34: Color 7
35-37: Color 8
38-41: Color 9
42-45: Color 10
46-48: Color 11

www.flash-butrym.pl
8
49-52: Color 12
53-56: Color 13
57-60: Color 14
61-63: Color 15
64-67: Color 16
68-71: Color 17
72-75: Color 18
76-78: Color 19
79-82: Color 20
83-86: Color 21
87-89: Color 22
90-93: Color 23
94-97: Color 24
98-101: Color 25
102-104: Color 26
105-108: Color 27
109-112: Color 28
113-115: Color 29
116-119: Color 30
120-123: Color 31
124-127: Color 32
128-131: Color Macro 1
132-135: Color Macro 2
136-139: Color Macro 3
140-143: Color Macro 4
144-147: Color Macro 5
148-151: Color Macro 6
152-155: Color Macro 7
156-159: Color Macro 8
160-163: Color Macro 9
164-167: Color Macro 10
168-171: Color Macro 11
172-175: Color Macro 12
176-179: Color Macro 13
180-183: Color Macro 14
184-187: Color Macro 15
188-191: Color Macro 16
192-195: Color Fade Macro 1
196-199: Color Fade Macro 2
200-203: Color Fade Macro 3
204-207: Color Fade Macro 4
208-211: Color Fade Macro 5
212-215: Color Fade Macro 6
216-219: Color Fade Macro 7
220-223: Color Fade Macro 8
224-227: Color Fade Macro 9
228-231: Color Fade Macro 10
232-235: Color Fade Macro 11
236-239: Color Fade Macro 12
240-243: Color Fade Macro 13
244-247: Color Fade Macro 14
248-251: Color Fade Macro 15
252-255: Color Fade Macro 16
CH 12
Color change speed
0-255: Slow to fast

LED Moving Head 4x15W RGBW 4in1 ZOOM F7000544
www.flash-butrym.pl
9
CH 13
Pan / Tilt Macro
0-15: No function
16-35: Macro 1
36-55: Macro 2
56-75: Macro 3
76-95: Macro 4
96-115: Macro 5
116-135: Macro 6
136-155: Macro 7
156-175: Macro 8
176-195: Macro 9
196-215: Macro 10
216-235: Macro 11
236-255: Macro 12
CH 14
Pan / Tilt Macro speed
0-255: Slow to fast
CH 15
Function
0-69: No function
70-79: Blackout while moving Pan / Tilt
80-179: No function
180-189: Auto run
190-199: No function
200-209: Reset
210-255: No function
