FLATLIFT EXTRA FLAT User manual

P.01
Operating Manual
Outperform. Outlast.
Well thought-out space-saving!
Operating Manuel
Operating Manual

P.02
Operating Manual
Outperform. Outlast.
CONTENTS
CONTENTS
C.01 INTRODUCTION
C.02 FEATURES
C.03 PRODUCT DIMENSIONS
C.04 INITIAL PRODUCT SET UP
Set-up P.06
Images P.07
C.05 PRODUCT CONTROL
C.08 TROUBLE SHOOTING
Programming the remote control (S435) P.08
Resetting the receiver P.09
Connecting to a room control system P.09
C.09 LEGAL NOTICE
C.06 PRODUCT INTEGRATION
C.07 RECOMMANDED INSTALLION
Example of console integration P.13
Example of back of sofa integration P.14

P.03
Operating Manual
Outperform. Outlast.
CONTENTS
INTRODUCTION
INTRODUCTION
C.01:
Intended Use
The product serves the lifting and lowering of LCD and plasma TV equipment.
All company names and product names are trademarks of the corresponding owner. All rights reserved.
The scope of supply can vary depending on the product and the range of xtures and ttings. Please
check that the product supplied is complete and inform us within seven days of delivery if the scope of
supply is not complete.
Safety and Hazards Recommendations
Please read this chapter carefully and follow all of the instructions provided. In this way you are able to
guarantee the reliable operation and a long lifespan for your lift system. Keep the operating manual in a
safe place.
In the event of damage which is the result of non compliance with this operating manual, all claims pertai-
ning to the guarantee are null and void. We generally accept no responsibility for secondary damage.
We accept no responsibility for damage to objects or persons which is caused by the inappropriate use of
the product or through ignoring the safety instructions. In such cases, all claims pertaining to the guaran-
tee are null and void.
Quality
In the choice of our components, our primary focus was on ensuring a high level of functionality,
straightforward use, safety and reliability.
We would like to thank you for the trust you have placed in our Flatlift brand products.
We can help you with your installation through providing individual customer care.
For safety reasons, the unauthorized conversion and/or changing of the product is not permitted. Do not
dismantle this product.
This product is not a toy and does not belong in the hands of children.
Do not allow the product to become damp or wet.
Do not leave the packaging material lying around as children may choke if they swallow it.
The product will be damaged if it is dropped, even from a low height.
Before using the product for the rst time, please check that the free raising and lowering of the Flatlift
including the mounted TV equipment is possible and ensure a collision-free run.
For legal reasons and insurance purposes, your Flatlift is equipped with an ‘automatic safety
device’.
This means that the button which controls the raising and lowering must be pressed down all
the time.
The system stops and remains in the same position as soon as you let go of the button.

P.04
Operating Manual
Outperform. Outlast.
PRODUCT FEATURES
PRODUCT FEATURES
C.02:
Features:
Installation base
W=400 mm D=215 mm
Installation dimensions, Flatlift
W=785mm D=85mm H=800mm
Lift 965mm
Lifting speed 45 mm / sec
TV weight max. 45 kg / 450N / including cover (P.012)
TV size 43-50“ (inches)
(max. TV size possible in mm: W = * , H = max. 916, D = *)
Power-on time 18%/h
Can be tilted (-15° manual).
Soft Start / Soft Stop
Low noise level < 45 dB
Environmental temperature from +5°C to 40°C
Connection to room control system possible (refer to P.09 image 5)
Automatic TV switch-off (optional)
Millimetre-exact programming of the stopping point (optional)
230V emergency power supply (optional)
Flatlift Extraat 43“ / 50“
Control box
230V power cord
Motor cable
12V wall power supply for the receiver
433.92 MHz 2 channel receiver
433.92 MHz 2 channel transmitter
Scope of supply:
L
I
F
E
T
I
M
E
R
e
p
a
i
r
c
o
s
t
l
i
m
i
t
5
y
e
a
r
s
f
u
l
l
s
e
r
v
i
c
e
GUARANTY

P.05
Operating Manual
Outperform. Outlast.
PRODUCT FEATURES
PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
C.03:
135
200 300 200
135
785
590 600
495
400
215 215
85
85
1765
770 800
785

P.06
Operating Manual
Outperform. Outlast.
INITIAL PRODUCT SET U
INITIAL PRODUCT SET UP
C.04:

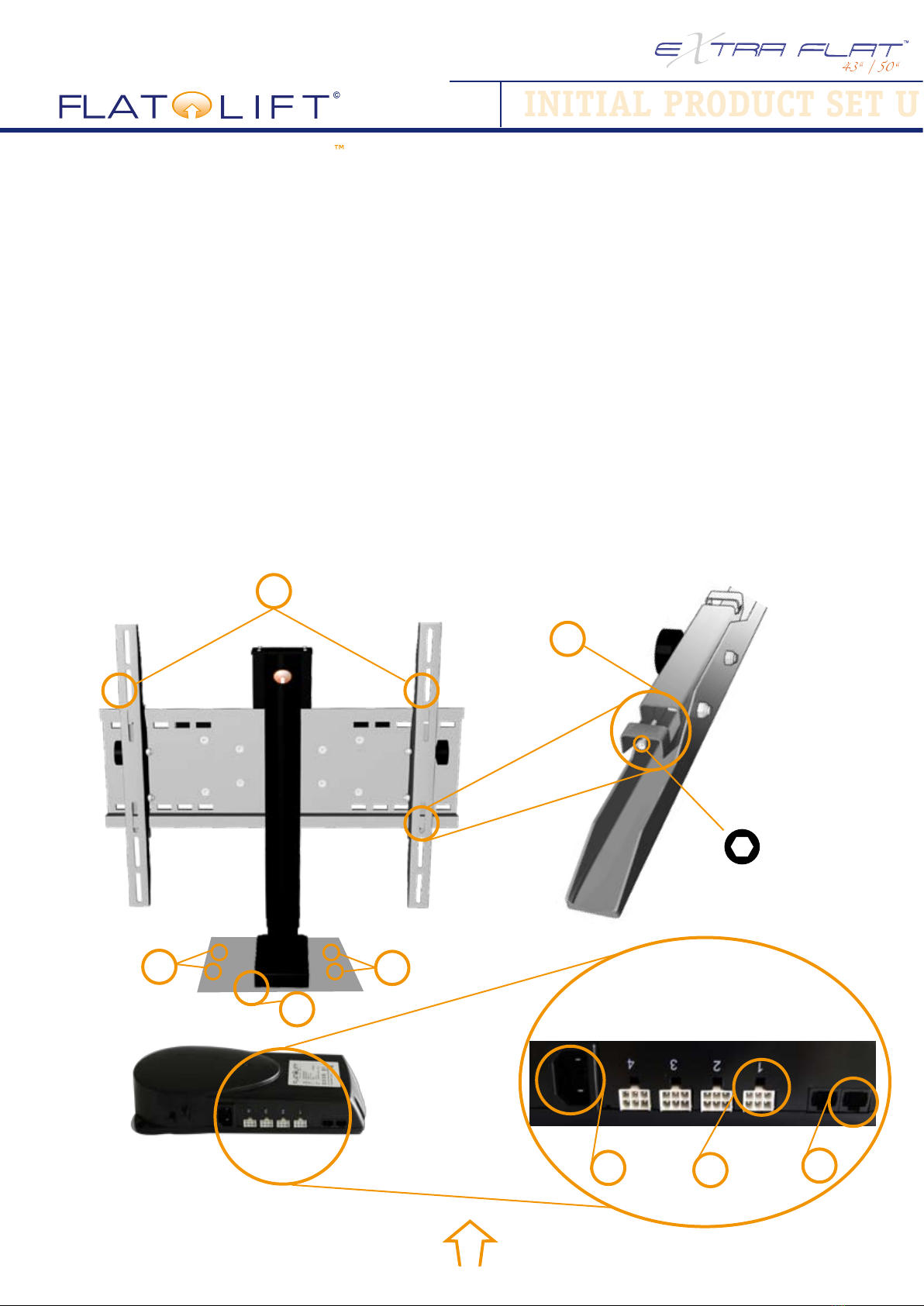

Initial set up:
1. In order to prevent the system from tipping over, x your Pop-Up installation base to the oor using 4
screws (image 1 no. 1).
2. Connect the Flatlift (image 1, no. 3) with the motor cables (P.07, image 3) and connect these with the
control box (image 2, no. 5) at connection point ‘1’. The motor cables must be connected starting
at port 1 and going up.
3. Connect the RJ-45 Western plug of the receiver (P.07, image 4, no. 7) to the control box (image 2, no. 6).
4. Connect the control box (image 2, no. 4) with the power cord (P.07, image 5) to the mains supply.
5. Connect the wall power supply of the receiver (image 2, no. 4) with the power cord (P.07, image 5) to the
mains supply.
6. Now initialise the Flatlift by pressing down the ‘Down’ key on the controller (P.07 image 6 no. 9) for 2 x 5
sec. After this, extend and retract your Flatlift fully twice over.
7. Your Flatlift is now ready for use as the end points of the lift have now been saved in the control box.
8. You are now able to mount your TV set on the system. To do this, uncouple the two holders (image 1 no.
2). Attach these to your TV and then secure the holder subsequent to putting the TV set in place by
screwing in the safety screw (image 1, no. 4).
If you separate the motor cable from the control box, then the Flatlift must be initialised all
over again.
Image 1
2
1
1
3
456
Image 2
5
4

P.07
Operating Manual
Outperform. Outlast.
INITIAL PRODUCT SET U
INITIAL PRODUCT SET U
INITIAL PRODUCT SET UP
C.04:
7
Image 4
8
Image 5
Image 3
Image 6
9

P.08
Operating Manual
Outperform. Outlast.

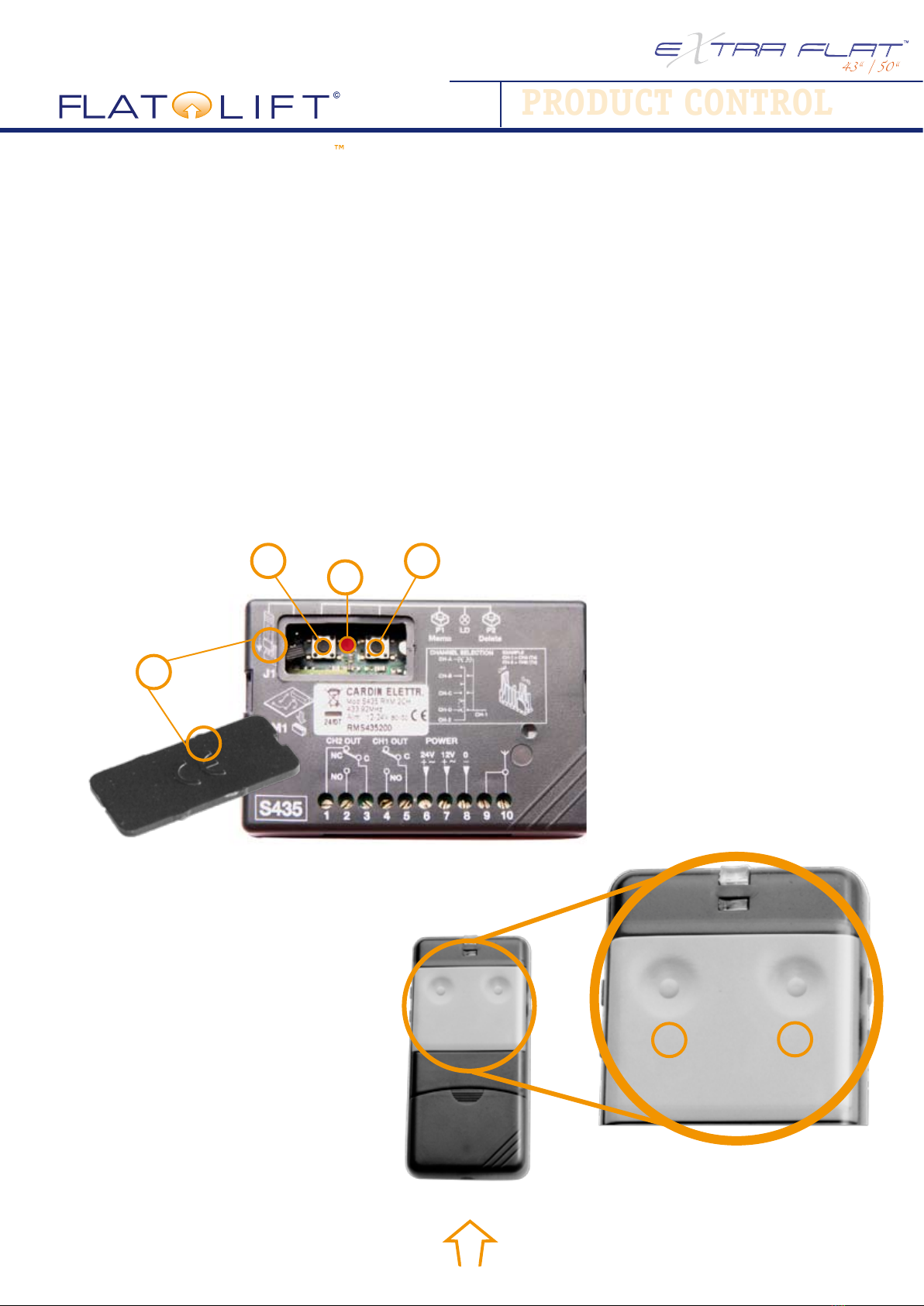

Programming the remote control (S435):
You can also get additional remote controllers for your Flatlift system (optional extra). As the controllers are
coded, you have to programme them.
1) To access the programming key, remove the cover (image 1, no. 1) on the receiver.
2) Press down the left hand key (image 1, no. 2). After this, an LED (image 1, no. 3) will then ash slowly.
3) Holding the programming key down, press the rst key on the remote control at the same time (image
2, no. 5). On recognising the remote control, the LED (image 1 no. 3) starts to ash rapidly.
4) Release both of the keys.
5) To store a second channel, repeat the procedure starting at step 2 using the second key on the remote
control (image 2, no. 6). If your remote control has been successfully recorded, you should hear a soft
‘click’ in the receiver when you press down the key on the controller.
Image 2
56
3
4
1
Image 1
PRODUCT CONTROL
PRODUCT CONTROL
C.05:
2

P.09
Operating Manual
Outperform. Outlast.
PRODUCT CONTROL
Resetting the receiver:
It may sometimes occur that the transmitting codes stored in the receiver are lost.
In this case, the receiver must be cleared and re-programmed.
1) To access the programming key, remove the cover (image 1, no. 1) on the receiver.
2) Press down both of the programming keys (image 3, no. 2 + 4) until the LED (image 3, no. 3) rapidly
ashes. This is the signal that the memory has been successfully cleared.
3) Now re-enter your remote control (refer to P.08).
Connection to a room control system:
You can connect your Flatlift to a room contro
l system (image 5) if this system has 2 relay outputs
with potential free contacts. These relays must be
actuated for a programmable time period.
1) Remove the receiver from the power supply
2) Remove the cables (contacts 2-4) from the receiver
(image 4).
3) Now connect the blue and red cable to one of the
relay outputs (control command: lower Flatlift).
4) Bridge the blue cable onto the second relay
output and also attach the green cable to this
relay output (lift Flatlift).
Image 3
2
3
4
1
Image 5
PRODUCT CONTROL
PRODUCT CONTROL
C.05:
Image 4

P.010
Operating Manual
Outperform. Outlast.
C.06:
PRODUCT INTEGRATION
PRODUCT INTEGRATION

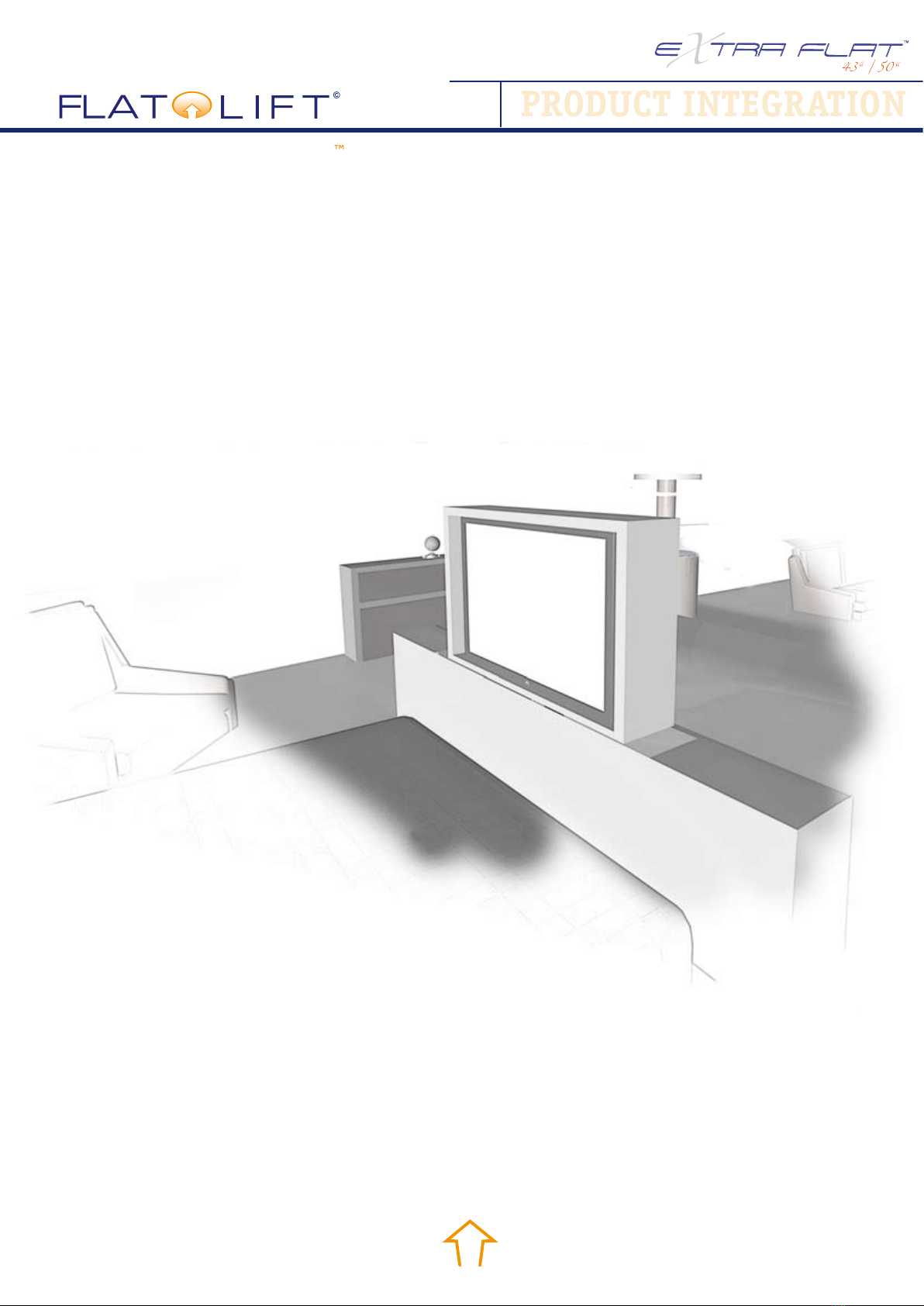

Image 1
Lid variation 1:
A lid closing mechanism on the
rear section of the unit incor-
porating spring damped hinges
which opens automatically when
the Flatlift moves upwards.
Different lid closing solutions are
available depending on the reali-
sation of the project (image 1).
The A/V installer which is ins-
talling the Flatlift thus enjoys
exibility and can also change
the lid solution again at a later
time. When the Flatlift retracts,
the cover closes softly thanks to
the spring dampened hinges.

P.011
Operating Manual
Outperform. Outlast.
PRODUCT INTEGRATION
PRODUCT INTEGRATION
PRODUCT INTEGRATION
C.06:
Image 3
Image 4
Lid variation 2:
In this version, the lid goes up
with the Flatlift and rests on the
top of the TV set. This variation
is known as the ‚oating top‘
version.
Depending on the customer
requirements, you can also at-
tach the lid to the Flatlift using
a U-bracket (image 3) and/or
attach it to the TV holder with 2
L-rods, as shown in image 4.

P.012
Operating Manual
Outperform. Outlast.
PRODUCT INTEGRATION
PRODUCT INTEGRATION
C.06:
Image 5
Lid variation 3:
With this solution a complete
enclosing of the TV is achieved,
which blocks out the back of
the TV set. This variant is often
used in divided rooms and/or on
yachts.
WARNING!
With the complete covering of
the TV set, the weight of the TV
and the weight of the covering
must not be too much for the
lifting power of Flatlift.
On image 5 (cross section), you
can see how the case has been
attached to the Flatlift. This
variant is similar to lid version 2
(refer to P.11, image 3). When
the Flatlift is fully retracted, the
lid is ush with the rest of the
top of the unit.

P.013
Operating Manual
Outperform. Outlast.
PRODUCT INTEGRATION
RECOMMENDED INSTALL
RECOMMENDED INSTALLATION
C.07:
Recommended installation
for integration with furnitu-
re:
The 43/30” Extraat has a lift
height of 965 mm. As different
installation options are possib-
le for the system, we will now
explain how the system is to be
best arranged with installation
on a cabinet.
The following rule applies
with cabinet and/or furnitu-
re installation:
There must be at least 10 mm
clearance underneath the TV
which is attached to the Flatlift.
This clearance is always requi-
red for the initialisation run.
Clearance of at least 10 mm
must also be provided above
the TV. When the Flatlift is fully
extended, we also recommend
a minimum clearance of 10 mm
between the bottom edge of the
TV set and the top surface of
the furniture.

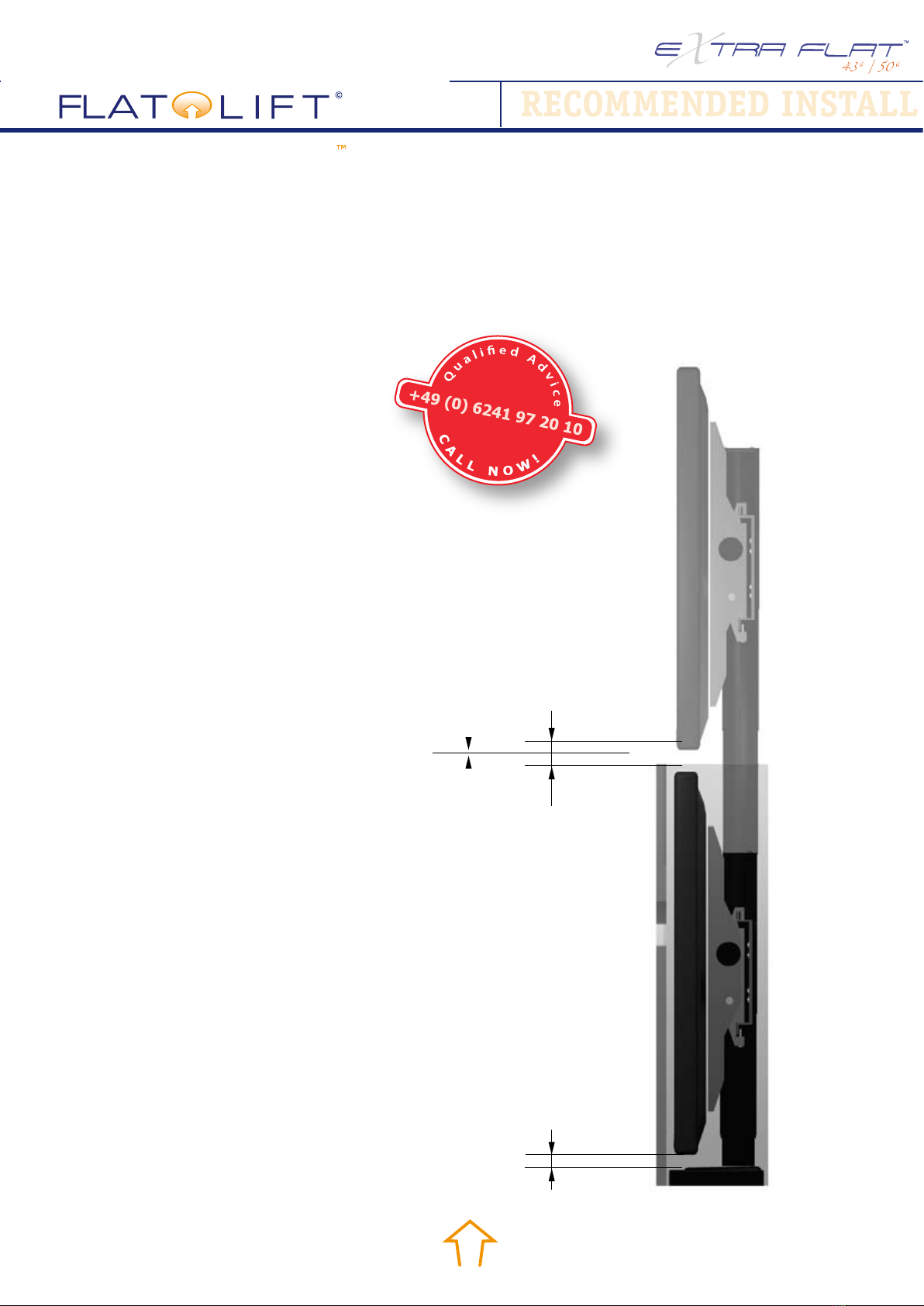

The following calculation formu-
la therefore results with concern
to the height of the TV set:
min. 10
min. 10
min. 10
min. 12 - 19
Lift height, Flatlift = 965 mm - 3 x 10 mm min. clearance -
(12 to 19 mm) thickness of the cover, = 916 mm
916mm = max. height of TV
If your TV is bigger of heavier,
we recommend you to contakt
us.

P.014
Operating Manual
Outperform. Outlast.
RECOMMENDED INSTALL
RECOMMENDED INSTALLATION
C.07:
Set up at
sofa or couch:
For installation behind a couch
or sofa, the following calculation
formula results:
With this TV set, the sofa must
not be higher than 940 mm.
The same thing applies to the
TV. If the TV height is less than
940 mm, then you can also
place the Flatlift on a platform
which is the same height as
the resulting height difference
to the upper edge of the sofa
(image 1).
If your TV is bigger of heavier,
we recommend you tocontakt
us.
min. 10
min. 15
Height difference
Example:
Height of sofa = lift height of 965 mm - 10 mm min. clearance
from oor - 15 mm projection = 650 mm
940 mm = max. height of TV
Image 1

P.015
Operating Manual
Outperform. Outlast.
RECOMMENDED INSTALL
Trouble shooting:
If your Flatlift is not working properly, please make sure you check the following things:
The Flatlift won’t move up or down
Is the power cord attached to the control box?
SCheck the mains connection
Are all of the plugs properly connected to the control box? (NOTE: plugs which are not connected properly
can damage the system)
SCheck all of the connections
SThe motor cables must be connected starting at port 1 and going up
Is there any evidence of damage to the cables, the control box, the remote control or the Flatlift?
S Damaged components must be exchanged. Please contact us. .
The Flatlift has stopped and will only move in the wrong direction.
SIs your Flatlift fully extended already?
SIs the TV too heavy?
SRemote control command possibly deleted!
SProgramming or initialisation error!
SStopping point incorrectly programmed
Have you, in error, attached a TV to your Flatlift which is too heavy?
STake the TV off the Flatlift and now see if the Flatlift works.
Is the remote control working?
SChange the battery in the remote control if necessary.
Is the receiver receiving the signals?
SWhen activating the remote control, the relay should ‘click’ on both channels. (If the receiver does
not ‘click’, please delete the channels and reset them. Refer to page 8)
The lifting mechanism jerks or stutters?
SPlease check as to whether another frequency source is also transmitting at 433 Mhz in your house
(possible sources of problems: garage door opener, baby phone, alarm system or intercom). With a
frequency jammer you will have to change over to a frequency of 868 Mhz! A free changeover from
433 Mhz to 868 Mhz is only possible within the rst 7 days subsequent to the date of delivery.
Please contact us if this particular point is relevant to you.
TROUBLE SHOOTING
TROUBLE SHOOTING
C.08:
If you experience any problems setting your system up or you experience an error, you can also contact
us over the telephone or via Email:
Customer Service:
Via email: info@atlift.de
Our telephone service time is 7.30 am - 5.30 pm. The telephone number is +49 (0) 62 41 - 97 20 10.
Please have the following information at hand / or include it in any email that you sent to us:
Your customer number
Your invoice number or delivery receipt number
The purchase date of your Flatlift
The name/model of your Flatlift system

P.016
Operating Manual
Outperform. Outlast.
LEGAL NOTICE
LEGAL NOTICE
C.09:
Legal Notice
FLATLIFT TV Lift Systeme GmbH
Gewerbegebiet Südwest
Niedesheimer Str. 15
67547 Worms, GERMANY
Tel.: [phone]
Fax.: [phone]
info@fl atlift.de
www.fl atlift.de
Hours of business: Mon-Fri. 7:30 am- 5:30 pm
Managing Director: Sascha Rissel
HRA Mainz: HRB 40436
USt. (VAT) ID: On request
Status of document: JULY 2008
FLATLIFT References
© 2008 FLATLIFT TV LIFT SYSTEME GMBH
