Touchstone Whisper Lift II User manual

Whisper Lift II TV Lift
Drop-Down Bracket Installation Instructions

Whisper Lift II Drop Down Mounting Bracket
www.touchstonehomeproducts.com
800.215.1990
Version: 20200224
2
Table of Contents
Parts Included ............................................................................................................................................................. 3
Tools Required............................................................................................................................................................ 3
Safety............................................................................................................................................................................ 5
IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS................................................................ 5
Assembling Drop Down Lift Brackets ...................................................................................................................... 6

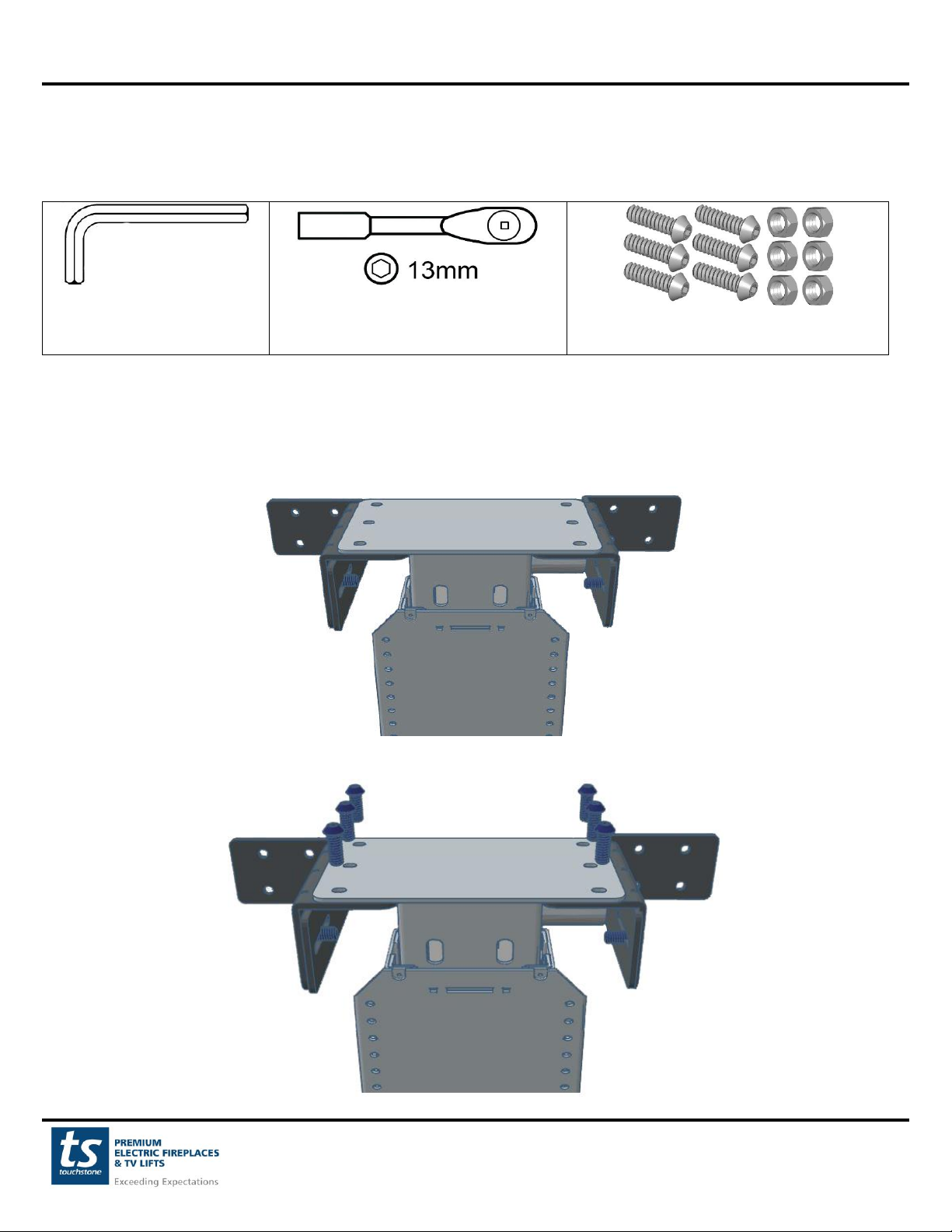

Attaching Drop-Down Brackets to Lift..................................................................................................................... 8

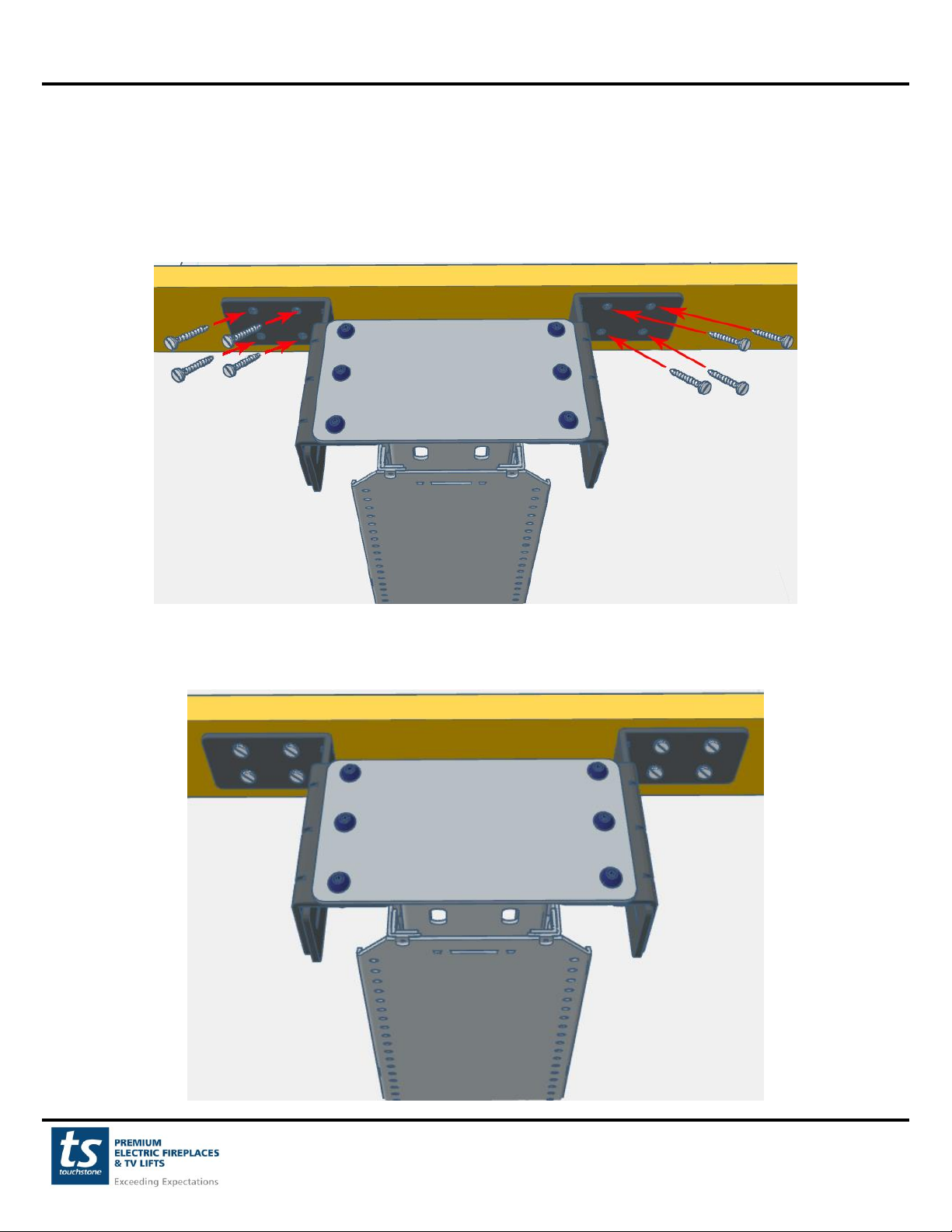

Mounting Drop-Down Lift Brackets and Lift.......................................................................................................... 9
Warranty ................................................................................................................................................................... 11

Whisper Lift II Drop Down Mounting Bracket
www.touchstonehomeproducts.com
800.215.1990
Version: 20200224
3

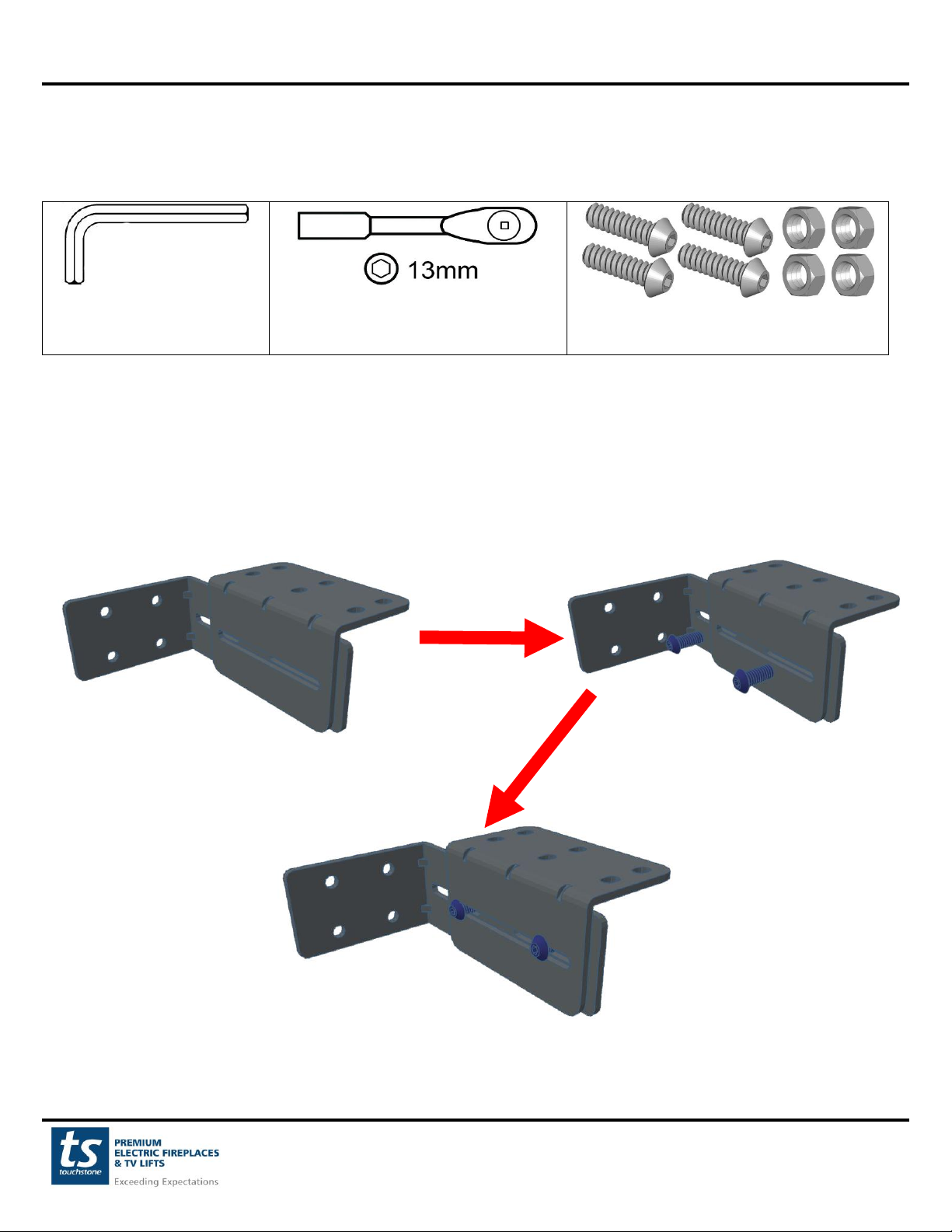

Parts Included
Wall-Side Brackets –2
Lift Side Brackets - 2
Bolts –12
Nuts - 12
Tools Required
The following tools are required to assemble the drop-down lift brackets:
- M5 Hex Wrench
- Socket Wrench with 13mm head

Whisper Lift II Drop Down Mounting Bracket
www.touchstonehomeproducts.com
800.215.1990
Version: 20200224
4

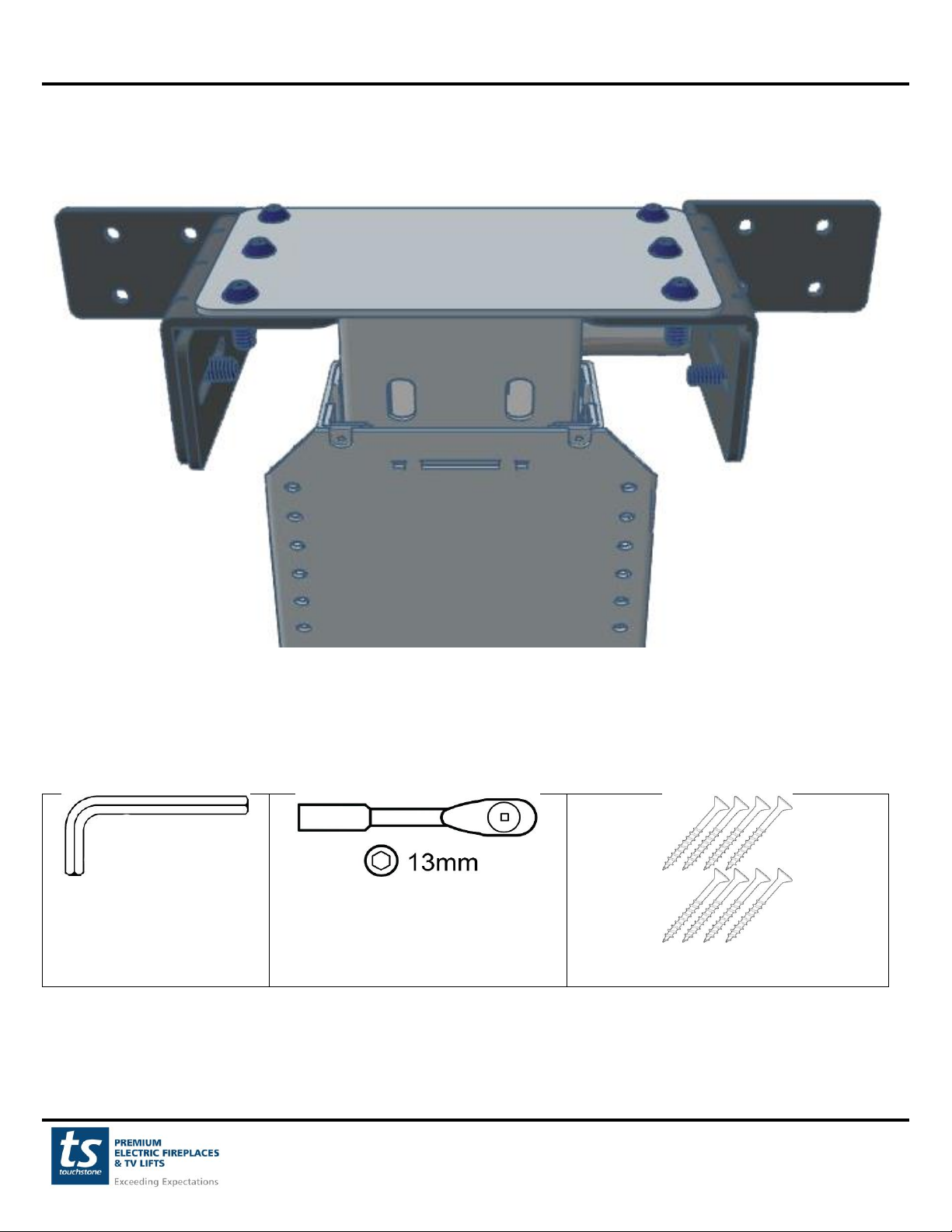

Dimensional Diagram

Whisper Lift II Drop Down Mounting Bracket
www.touchstonehomeproducts.com
800.215.1990
Version: 20200224
5
Safety
These drop-down brackets are ONLY designed for use with the following Touchstone Home Products TV Lift
Mechanisms:
- 23202 –Whisper Lift II TV Lift
- 23401 –Whisper Lift II PRO TV Lift
- 23501 –Whisper Lift II PRO Swivel TV Lift
- 23601 –Whisper Lift XL PRO TV Lift
The brackets are NOT designed to work with any other Touchstone Home Products TV Lift Mechanism or any
other brand of TV lift. Touchstone Home Products is not responsible for damages caused by misuse of these drop
down TV lift brackets or use with any other TV Lift Mechanism other than those mentioned above.
IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS
1. Please adhere to the proper installation procedure as detailed in the installation instructions.
2. Safety precaution measures must be practiced at all times during installation of this product.
3. The entire installation instructions should be fully read and understood before beginning installation.
4. At least two people should be available to mount the lift and assembled brackets.. Please take care when mounting
the brackets and lift, as injury and/or damage can result from dropping or mishandling of the TV lift.
5. Carefully measure all dimensions before proceeding. Please consult your TV Lift manual for TV opening dimension
requirements.
6. All cords connecting components to the TV should be a minimum of 72” (6 feet) in length when installing
components inside of a cabinet or a minimum of 144” (12 feet) in length when installing components outside of
cabinet (length of cable will depend on placement of your component).
Contact Touchstone Customer Service at 1-800-215-1990 with any questions regarding the operation installation of the
Drop-Down Lift Brackets. We are also available on the web at www.touchstonehomeproducts.com
