1. Product Overview
1.1. FW5072
FlexWATCH® 5072 is a standalone, pure network video recorder which saves, transmits real-time
video from FlexWATCH(Network Video Server, Network Camera) over TCP/IP network.
It can transmit up to 120fps@HD over the existing network. You can monitor video of FW5072 through
web browser(ie. MS Internet Explorer), if FW5072 is connected to network. Saving & search is possible as
well with HDD equipped.
FW5072 supports video compression MJPEG, and H.264 simultaneously so that user can choose
appropriate video compression for the purpose. A hard drive is equipped inside FW5072 so the video
streams can be recorded and searched per user’s need. The recording can be kept enabled all the time, or it
can also be initiated by motion-detection, sensor input, or time scheduling. The searching feature provides
various search conditions that can be combined together for efficiency.
Picture 1 : FW5072

FW5072 User’s Manual
M4065-00 5 Seyeon Tech Co., Lt
1.2. Key Features
 Standalone device built-in web server
 10M/100M/1000M Auto-Sensing Ethernet
 Configuration and control device through Web browser
 Max 240 fps transmission speed on TCP/IP network
 Effective Bandwidth & Bit-rate Control (VBR/CBR) by H.264
 Support Dynamic IP network by IPCCTVDNS Server
 Support various PTZ (Pan/Tilt/Zoom) devices
 Support Transparent Mode
 Encryption function by user authentication
 Network server adding, saving
 Encryption function by user authentication
 Image transmission function via FTP and Email
 User-friendly GUI for playback & export Video as AVI file
 Record Video by motion event

FW5072 User’s Manual
M4065-00 6 Seyeon Tech Co., Lt
1.3. Specification for FW5072
Hardware
32bit Embedded CPU
Flash 8Mbytes /SDRAM: DDR2 128Mbytes
Linux version 2.6.24.4 operating system
Battery backed up real-time clock
Video compression MJPEG MPEG-4
H.264
Recording
2 Step frame rate
(Fast on event/Slow on continuous recording mode)
Supports Linux File system.
Supports max. 4 Tera SATA HDD (Two 2 Tera SATA HDD)
Anti-shock system
Transmission or Recording
(Single Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec : 120fps(NTSC)/100fps (PAL)
when Single Mode with total channels at HD
Transmission and Recording
(Duplex Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec: 110fps(NTSC)/100fps (PAL)
when Duplex Mode with total channels at HD
Transmission and Recording
and Playback
(Triplex Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec : 110fps(NTSC)/100fps (PAL)
when Triplex Mode with total channels at HD
LAN interface 10/100/1000 BaseT Ethernet auto sensing
Serial Interface One serial ports for console, modem(PSTN & GSM), serial input/output device, COM Port is RS-232,
Max Baudrate: 115200 bit/s
Management Configurable by serial, web or telnet
Remote system update via telnet, FTP OR web browser.
Developer support Provides HTTP CGI API
ActiveX control development kit
PWR Consumption
DC 12Volt
Max or Peak: 1.8 A
Normal : 1.0 A
(with Seagate Barracuda ES.2 1000Gbyte)
Operating Environment Temperature : 41°~ 122°F (5°~ 50°C)
Humidity : 20 ~ 80% RH(non-condensing)
Miscellaneous Work with Smart NVR(CMS software)
Dynamic IP support through IPCCTVDNS Server
Users Live-cast for up to 16x8 Channel
Playback for up to 16 clients
Installation, management and
maintenance Installation CD and web-based configuration Firmware upgrades over HTTP, telnet & FTP, firmware available at homepage

FW5072 User’s Manual
M4065-00 7 Seyeon Tech Co., Lt
Video access from Web
browser Video access from Web browser
Minimum Web browsing
requirements
Pentium 4, 2 GHz, 2GB(RAM) or higher
Video Card: 256MB RAM, 1024x768 resolution or higher
100Mbps Network Adaptor or faster
Windows XP Pro or later
Internet Explorer 6.x or later
System integration support
Powerful API for software integration available at http://www.flexwatch.com,
including Simple Viewer API, FlexWATCH Control SDK, event trigger data in video
stream, embedded scripting and access to serial port peripherals over HTTP/TCP
User can be installed user program daemon for event notification or sending image.
Embedded operating system: Linux 2.6
Supported protocols HTTP, TCP/IP, FTP, Telnet, RARP, PPPoE, PAP, CHAP, DHCP, NTP, SMTP client
Approvals
KCC
FCC : Class A
CE : Class A
RoHS
Dimensions (HxWxD) and
weight 378(W) x 267(D) x 64(H) (in mm) About 2.3kg without power supply & HDD.
* All specifications are subject to change without prior notice.
Table 1 : Specification for FW5072

FW5072 User’s Manual
M4065-00 8 Seyeon Tech Co., Lt
1.4. FW5072 Packing List

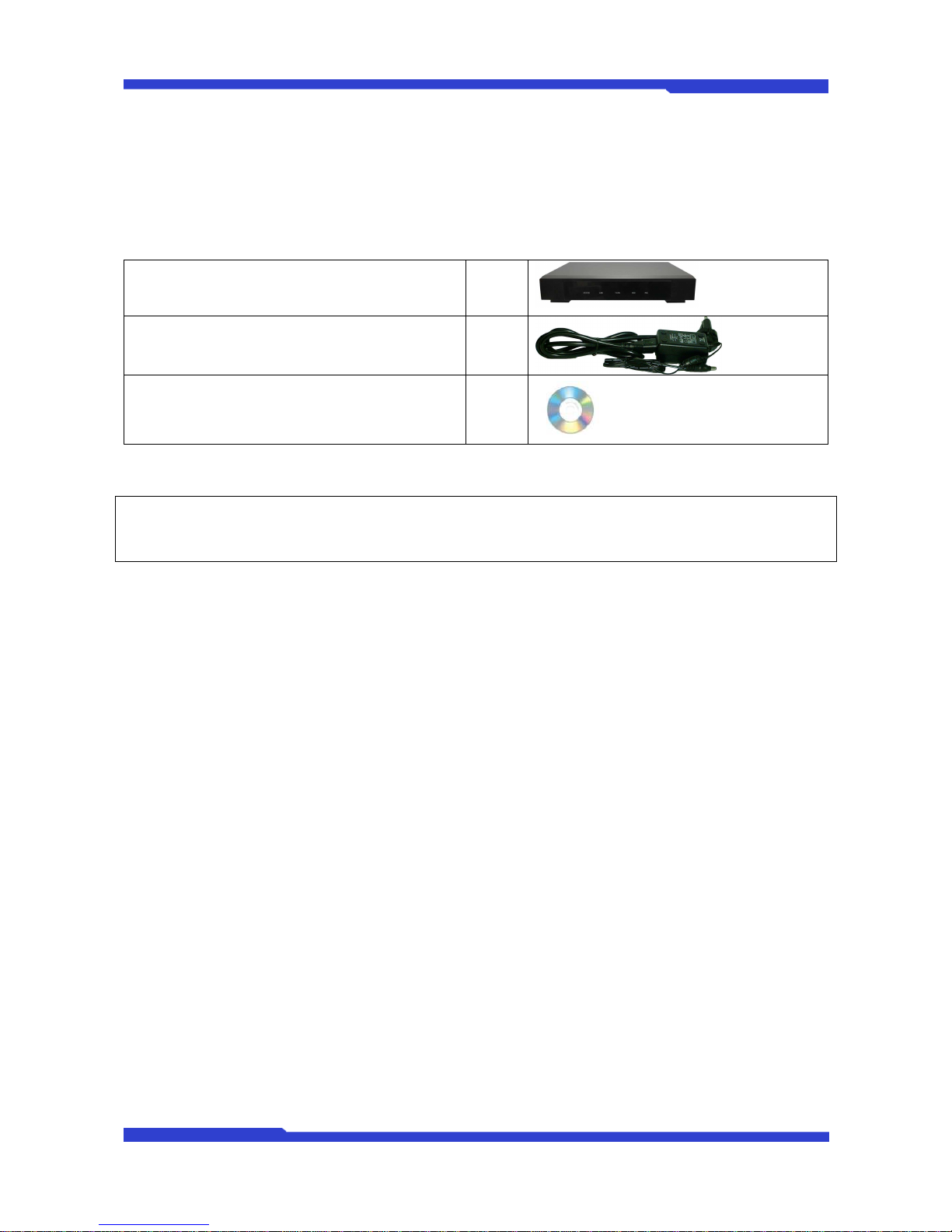

FW5072’s packing box includes the following items
FW5072 1 EA
Power Supply Unit
(Power Cable & SMPS DC12V 5A Adapter) 1 EA
CD (User’s Manual, IP Installer and etc) 1 EA
Table 2 : FW5072 Packing list


 Please check all the listed items are included in your package. For any missing items, please contact
your local distributor.

FW5072 User’s Manual
M4065-00 9 Seyeon Tech Co., Lt
2. Hardware Description
2.1. FW5072 Front View
Picture 2 : FW5072 Front panel
A B C D E
PART DESCRIPTION
A STATUS LED It indicates the status of operation & shutdown of FW5072.
Blue LED turns on during normal operation after FW5072 boots.
B LAN LINK LED It indicates the status of access to LAN physically.
Blue LED turns on in case it accesses to LAN normally.
C LAN(Tx/Rx) LED Blue LED turns on when there is data transmission at the connected LAN.
D HDD LED Blue LED blinks when formatting or recording at HDD.
E HDD RECORDING LED Red LED blinks when HDD is recording.
Table 3 : FW5072 Front panel description
Beep Sound Description
Name Description
1 Power ON Beep one time shortly when power switch on.
2 System Ready Beep two times when booting is finished.
3 Power Off Beep two times (0.5 sec) when power switch off.
4 HDD Error Beeps continuously for five seconds when HDD has an error.
To make it keep quiet, you can set it on admin menu.
5 FD Button Beep one time (0.5 sec) after three seconds and then beep three times shortly
after another three seconds.
Table 4 : FW5072 Beep Sound Description

FW5072 User’s Manual
M4065-00 10 Seyeon Tech Co., Lt
2.2. FW5072 Rear Panel
Picture 3 : FW5072 Real panel
A B C D E F G
PART DESCRIPTION
A Cooling FAN HDD Cooling FAN
B USB USB port (reserved for future use)
C Factory Default Switch
It gets back system to factory default.
Push the switch for 7 secs after system booting.
D COM Needed to set up devices with Console ( UART-Out, UART-In)
E LAN LAN port
F Power
DC 12V 5A


 Do not push power switch right after power turns off.


 Push power switch after HDD, FAN stops operation.
G Power Switch
Used to switch on/off power


 Do not turn off the power switch until format is completed since fatal
problem happens if users turn off the switch during HDD format.
Table 5 : FW5072 Rear panel view
