GPX D200B User manual

Plug the attached AC cord into a standard AC
power outlet to power the DVD player. Pb/CbY Pr/Cr
R COAXIAL
AUDIOOUT DIGITAL
L VIDEO
VIDEOOUT
120V ~ 60Hz
USER’S GUIDE
V:591-03
Stop
Press to stop a loaded
disc during play
RCA Stereo Audio
Outputs
Component Video
Outputs
D200B DVD Player
Introduction and Setup
Power
Requires 2 AAA batteries (not included).
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or
rechargeable (ni-cad, ni-mh, etc) batteries
Remote
DVD / CD PLAYER
POWERPLAY/
PAUSE
STOPOPEN/
CLOSE
Pb/CbY Pr/Cr
R COAXIAL
AUDIO OUT DIGITAL
L VIDEO
VIDEO OUT
120V ~ 60Hz
OPEN/CLOSE
AUDIO
SETUPMENU
PROG
GOTO
MUTE
VOLUME
ENTER
TITLE
SUBTITLE
ANGLE
SLOWN/P
L/R REPEAT
STEP A-B
WIDEOSDVIDEO ZOOM
Power
Number Keypad
Menu
Press to access
the main
menu on a
loaded DVD.
Title
Volume
Stop
Video
Press to switch
between
Interlaced or
Progressive.
OSD
L/R
Search
Open/Close
Mute
Audio
Goto
Prog
Setup
Press to access
the setup menu.
Arrows/Enter
Subtitle
Skip
Play/Pause
Zoom
Repeat
Wide
A-B
Slow
Step
Composite Video
Output
Power
Press to turn the DVD
player off or on.
Play/Pause
Press to play or pause
the loaded disc.
Open/Close
Press to open or close
the Disc Drawer.
Disc Drawer
Coaxial Digital Audio
Output
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.gpx.com Customer Service: 1-888-999-4215
Email Support: [email protected], Email Parts: [email protected]
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.
N/P
Press to switch between
NTSC and PAL.
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. When the provided plug does
not t into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
FCC Warnings
Warning: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
• WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain,
moisture, dripping, or splashing.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specied
may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining
where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass
between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of
the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as
it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in
the unit. Only use rechargeable NiMH batteries.
• WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled
or disposed of according to state and local guidelines. They should never be disposed of in normal
household waste, and they should never be incinerated, as they might explode. Contact your local
government for disposal or recycling practices in your area.
• WARNING: Shock hazard - Do Not Open.
Objects lled with liquids, such as vases, shall not be placed on the apparatus.
• Battery shall not be exposed to excessive heat such as sunshine, re or the like.
Caution marking is located at the rear or bottom of the apparatus.
• Mains plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should be
disconnected form the mains socket outlet completely.
Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• WARNING: This product may contain chemicals known to the State of California to cause birth
defects, or other reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
This product utilizes a Class 1 laser to read Compact Discs. This laser
Compact Disc Player is equipped with safety switches to avoid exposure
when the CD door is open and the safety interlocks are defeated. Invisible
laser radiation is present when the CD Player’s lid is open and the system’s
interlock has failed or been defeated. It is very important that you avoid
direct exposure to the laser beam at all times. Please do not attempt to defeat
or bypass the safety switches.
WARNING: DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD.
Warning: To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to qualied service
personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
This symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts.
The lightning ash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.

Pb/CbY Pr/Cr
R COAXIAL
AUDIO OUT DIGITAL
L VIDEO
VIDEO OUT
120V ~ 60Hz

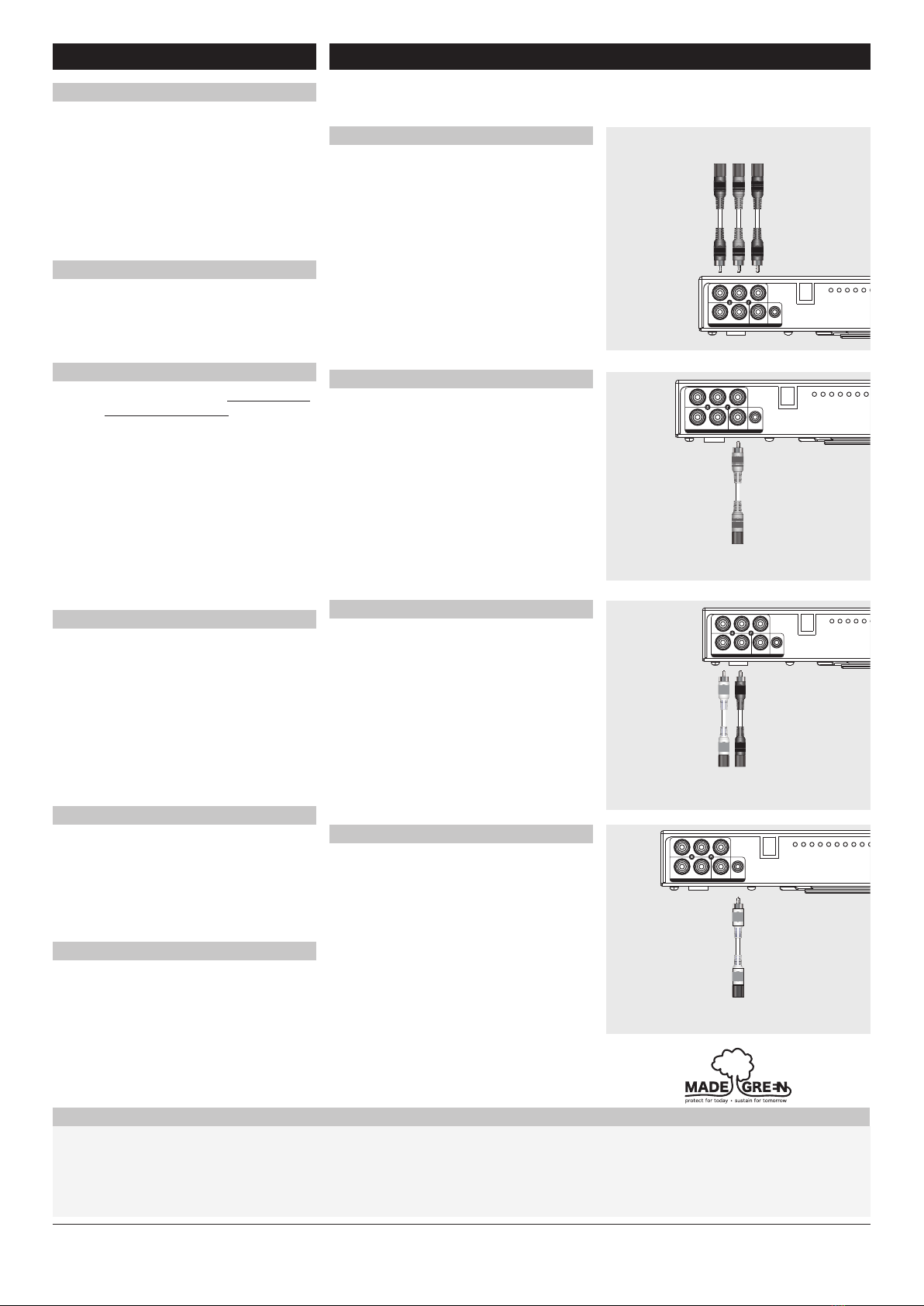

1. Press the Open/Close button to open the
Disc Drawer.
2. Load a disc into the DVD player, label side
facing up.
3. Press the Open/Close button to close the
Disc Drawer.
4. After a disc is loaded, it will begin playing
automatically.
1. Follow the instructions for Loading a Disc
and Playing a Loaded Disc.
2. While the loaded disc is playing, press the
Prog button on the remote.
3. Use the Arrows/Enter buttons to highlight
and select a DVD title and chapter, or CD
track.
DVD Titles and chapters or CD tracks will
play in the order they are programmed.
4. Repeat step 3 until the desired DVD
titles and chapters or CD tracks are
programmed.
DVD and CD Connecting Video and Audio
Loading a Disc
1. Follow the instructions for Loading a Disc.
2. If the disc does not begin playing
automatically, press the Play/Pause
button.
Playing a Loaded Disc
Programming a Loaded Disc
1. Load a JPEG photo disc into the player
by following the instructions for Loading
a Disc.
A slide show of JPEG photos from the CD
will begin playing automatically.
2. Press the Stop button to access a le
view of the loaded JPEG disc.
3. Use the Arrows/Enter buttons on the
remote to select and view photos.
Playing a JPEG CD
Press the Stop button on the remote twice.
In order to access all of the features of the DVD
setup menu, the DVD player needs to be fully
stopped.
Press the Setup button on the remote.
Access the DVD Setup Menu
• SPDIF/OFF: There will be no digital audio
signal output. (Coaxial off)
• SPDIF/RAW: The digital audio signal
output will be in its raw format. This mode
is usually used for DTS & Dolby Digital 5.1
signals.
• SPDIF/PCM: The digital audio signal
output will be in PCM format. This mode is
usually used for audio CD signals.
Digital Output Settings
Television
Composite Video Input
Note: Before making or changing any connections, make sure that all the devices are
disconnected from the power outlet.
Note: Both video and audio connections must be made from the DVD player to your television.
1. Use the Composite Video Output to
send video from the DVD player to a
television.
2. Requires an RCA video cable (not
included).
3. Use the RCA video cable to connect the
Composite Video Output to a composite
video input on a television.
4. Adjust the connected televisions input
setting to match the input used in the
previous step.
Composite Video Output (Good)
Pb/CbY Pr/Cr
R COAXIAL
AUDIO OUT DIGITAL
L VIDEO
VIDEO OUT
120V ~ 60Hz
Television
Component Video Inputs
1. Use the Component Video Output to
send high quality video from the DVD
player to a television.
2. Requires a component video cable
(included).
3. Use a component video cable to connect
the Component Video Output to a
component video input on a television.
4. Adjust the connected televisions input
setting to match the input used in the
previous step.
Component Video Output (Better)
Pb/CbY Pr/Cr
R COAXIAL
AUDIO OUT DIGITAL
L VIDEO
VIDEO OUT
120V ~ 60Hz
Television
RCA Stereo Audio Inputs
1. Use the RCA Stereo Audio Output to
send audio from the DVD player to a
television.
2. Requires an RCA audio cable (included).
3. Use the RCA audio cable to connect the
RCA Stereo Audio Output to an RCA
stereo audio input on a television.
4. Adjust the connected televisions input
setting to match the input used in the
previous step.
RCA Stereo Audio Output (Good)
Pb/CbY Pr/Cr
R COAXIAL
AUDIO OUT DIGITAL
L VIDEO
VIDEO OUT
120V ~ 60Hz
Audio System
Coaxial Digital Audio Input
1. Use the Coaxial Digital Audio Output
to send high quality audio from the DVD
player to an audio system.
2. Requires an RCA audio cable (included).
3. Use the RCA audio cable to connect
the Coaxial Digital Audio Output to an
coaxial digital audio input on an audio
system.
4. Adjust the connected audio system’s input
setting to match the input used in the
previous step.
5. In the Digital Out portion of the
setup menu, adjust to PCM, RAW or
OFF.
Coaxial Digital Audio Output
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.gpx.com Customer Service: 1-888-999-4215
Email Support: [email protected], Email Parts: [email protected]
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.
To download this User’s Guide in English,
Spanish, or French, or to get answers
to frequently asked questions, visit the
support section at: www.gpx.com
Para descargar este Manual del Usuario en
inglés, español y francés, o para obtener
respuestas a preguntas frecuentes, visite
la sección de apoyo en www.gpx.com
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions
fréquemment posées, consultez la rubrique
d’assistance sur www.gpx.com
International Support
