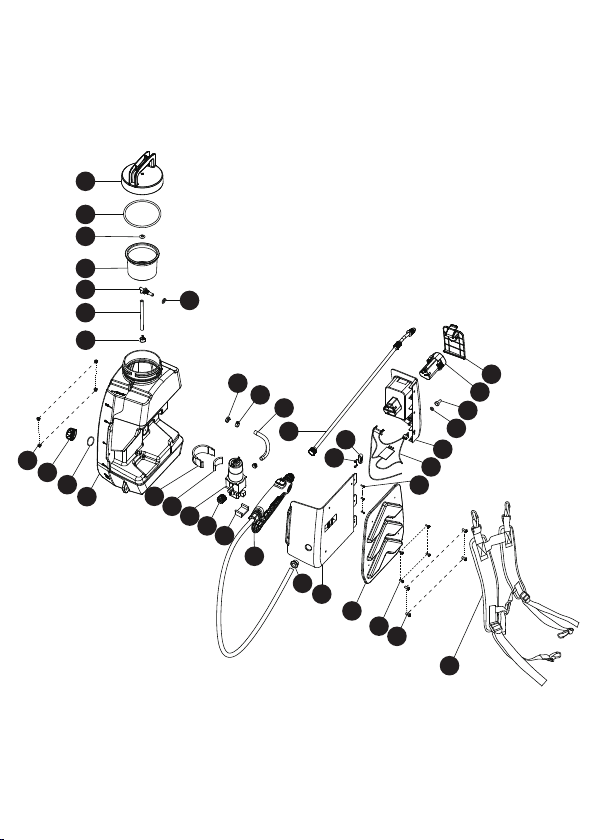

SPRAYER ASSEMBLY:
2
3
4
56
7
9
10
12
11
13 14 15
16 17 18 19 20
21
22
23 24
25
26
27
28
29
30
31
32
33
34
35 36
37
1
8

DESCRIPTION
PART
NO. DESCRIPTION
PART
NO.
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
CLAMP
WATER INLET HOSE
WATER PUMP CLIP
SHOCK PAD
WATER PUMP
NUT
SHOCK PAD
HOSE
WAND
GASKET
BACK CAP
SCREWS
SCREWS
CLIP FOR CIRCUIT BOARD
CIRCUIT BOARD COMPARTMENT
BATTERY COMPARTMENT
NUT
SWITCH COVER
LI-ION BATTERY
BATTERY DOOR
BACK PAD
SCREW
SCREW
STRAP
37
CAP O-RING
VALVE
FILTER
CONNECTOR
CONNECTOR O-RING
PIPE TUBE
INLET WATER FILTER
SCREWS
TANK
FRONT CAP O-RING
FRONT CAP
PLASTIC NUT
CAP
1

The FloraSprayer’s lithium battery should only be charged indoors.
Never charge outdoors
When the FloraSprayer’s battery requires charging, remove it from the
battery compartment and connect to charging cable. When the battery’s
light illuminates red the battery is charging. When the light shifts to
green charging is complete.
The FloraSprayer’s charger is only be used with a suitable lithium
battery. Any other usage is forbidden. To avoid overcharging, which will
shorten service life, remove charger from outlet when charge is
complete.
If you suspect your FloraSprayer’s battery is damaged or not working
properly do not use and contact FloraFlex or your distributor.
The FloraSprayer’s battery is to only be charged with the included
charger. Charging with an incorrect charger can result in a shorter
service life, fir, or explosion.
After long periods of non-use the FloraSprayer’s battery will gradually
lose charge. For best results charge your FloraSprayer every six
months. This will prevent the battery from becoming fully depleted,
which will degrade the battery over time.
If the FloraSprayer’s charger is connected to power and to the
FloraSprayer charging port and the LED does not illuminate immediately
unplug and discontinue use.
If the FloraSprayer’s battery is completely depleted at the time of
charging a longer duration to fully charge may be needed. If the LED
fails to turn green after this time immediately unplug and discontinue use.
Store in a cool and dry environment at room temperature
(15 -35 C or 60-95 F) Do not exceed 65% humidity.
SAFETY INSTRUCTIONS:

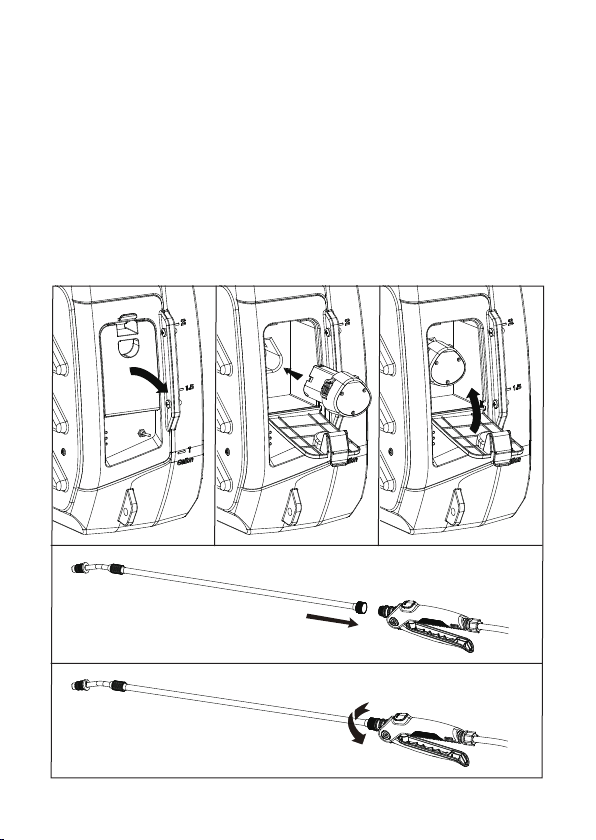

ASSEMBLY INSTRUCTIONS:
1. Open the battery compartment.
2. Put battery (No. 32 on page 2) inside the machine.
3. Close the battery compartment.
4. Join wand and trigger together.
5. Screw the wand nut to the threaded end of the FloraSprayer trigger.
2 3
1
5
4

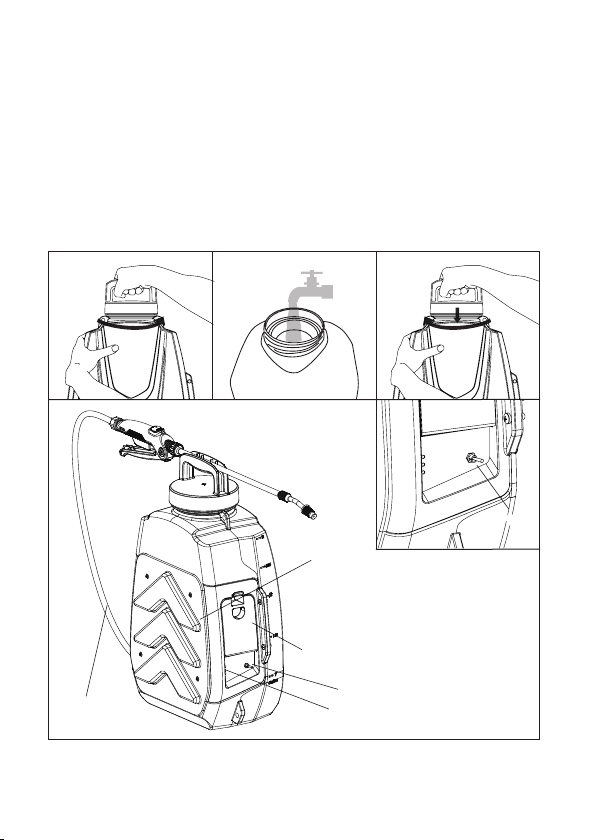

USE INSTRUCTIONS:
1. Remove sprayer cap. Twist counterclockwise to remove.
2. Fill the FloraSprayer reservoir with your desired watering liquid.
3. Replace sprayer cap an twist to seal (do not over-tighten).
4. Turn on FloraSprayer using ON/OFF switch.
21
4
3
OFF/ON
POWER INDICATOR
BATTERY COMPARTMENT COVER
BACK PAD
HOSE
OFF/ONOFF/ON

WAND INSTRUCTIONS:
1. To extend the wand twist wand locks.
2. Pull wand to desired length
3. Pull trigger to dispense spray.
2
3
1
NOZZLE INSTRUCTIONS:
1. Rotate sprayer nozzle to the left or right to adjust flow. Flow can be
adjusted from a A. full stream, B. medium spray, or a C. fine mist.
CBA

CHARGING INSTRUCTIONS:
1. Remove battery from battery compartment.
2. Connect batter to the charger in the correct orientation.
3. Connect charger to power source.
4. The FloraSprayer’s LED will light to indicate the unit is charging. As
the FloraSprayer’s battery charge the LED will illuminate red. After
around 150mins the LED will shift to green indicating that the unit is fully
charged.
1
3
2
4
Red = Charging
Green = Charge complete

TROUBLESHOOTING:
The motor fails to
start after being
powered on
Water is not flowing
1. The power cable
has become
disconnected during
charging
2. The battery is out
of power
3. The power switch
has been damaged
Filter maybe clogged
1. Dismantle the cover
to connect the cable
2. Charge your
FloraSprayer
3. Replace the switch
(contact FloraFlex®or
your distributor)
Detach tank, remove
filter, and clean
PRODUCT INFO/TECHNICAL DATA:
Item No. - 5108
Total Capacity - 8L
Voltage - 12V
Current Flow - 1.3A
Battery Capacity - 2.5 Ah - 2.6 Ah
Work Time - 120 min
Charging Time - 150 min
Flow - 0.95 L/min
Problem Causes Fix

SAFETY INSTRUCTIONS:
CAUTION: CONTENTS UNDER PRESSURE. READ THIS BEFORE
OPERATING.
1. Always wear protective clothing, gloves, eye protection, and a mask
while spraying.
2. Keep FloraSprayer out of reach of children.
3. If spraying in conditions of light wind, always with direction of wind.
4. Do not spray on humans or animals.
6. Do not use if any part of the FloraSprayer is visibly damaged.
7. Do not spray any liquid above 104° F/ 40° C
8. Some chemicals that can be used with the FloraSprayer may be
dangerous if swallowed or come in contact with the skin. Always refer to
the chemical supplier for safety instruction and contact poison control or
doctor immediately.
9. Always release pressure before refilling, servicing, or storing
10. Do not leave FloraSprayer (filled, empty, or pressurized) unattended
in direct sunlight.
11. Do not use to spray solvents or flammable liquids.
WEAR PROTECTIVE
CLOTHING
WEAR EYE
PROTECTION
WEAR
GLOVES
WEAR AN APPROVED
FILTER MASK

MAINTENANCE OF EQUIPMENT:
1. Remove battery after use and recharge if depleted.
2. Clean the FloraSprayer with water without corrosives.
3. Store in a cool and dry place
1. Do not expose battery to seawater or freshwater
2. Do not store battery anywhere but a cool dry environment
3. Do not expose battery to fire or heat
4. Do not connect battery cathode to a circuit directly
6. Do not reverse the charging pattern(positive/negative) of battery
7. Do not transport or store battery with metal
8. Do not knock, throw, or stomp on battery
9. Do not store use battery where there is a strong electrostatic or
strong magnetic field
WARNINGS:
