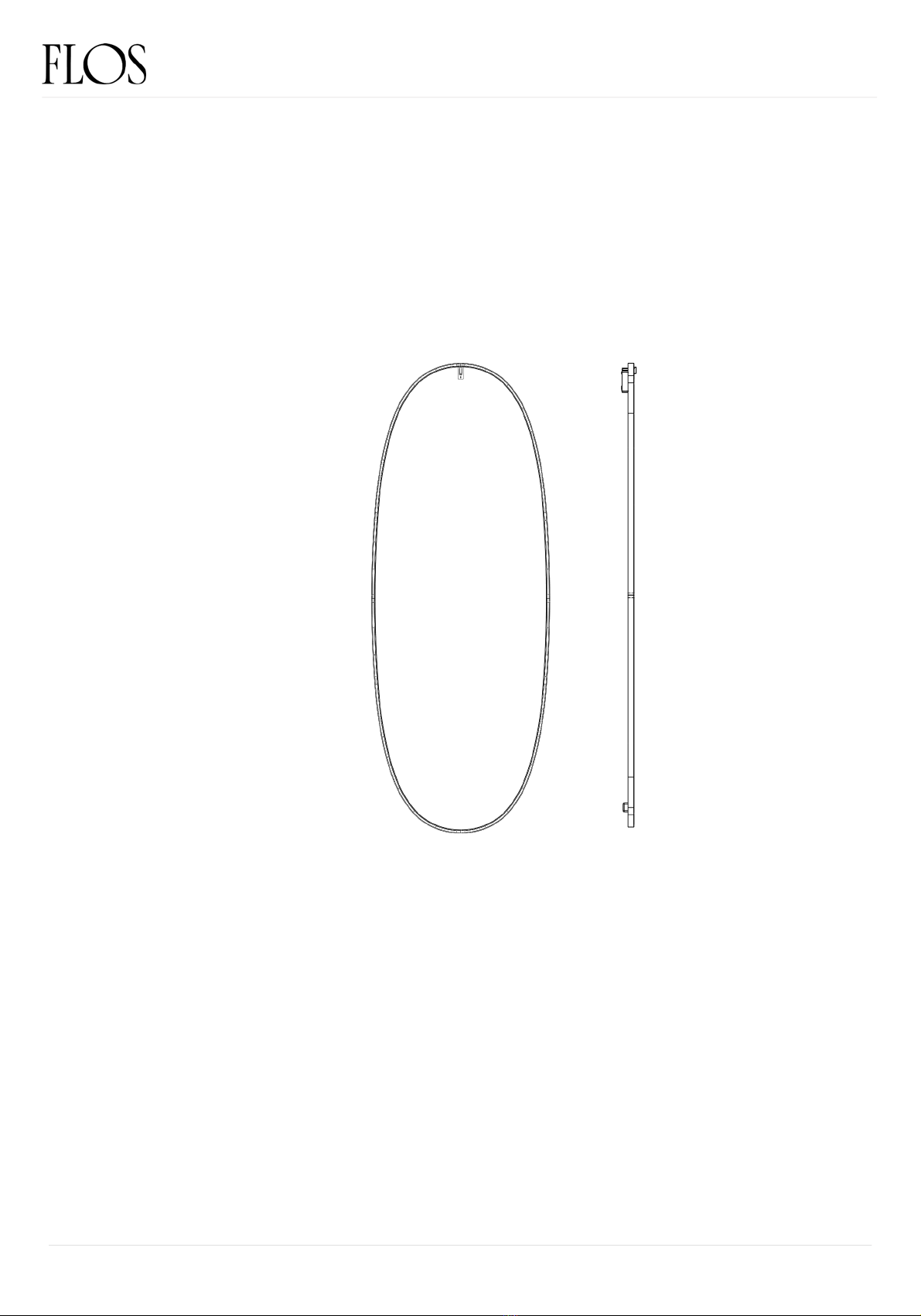

01. RF3680100

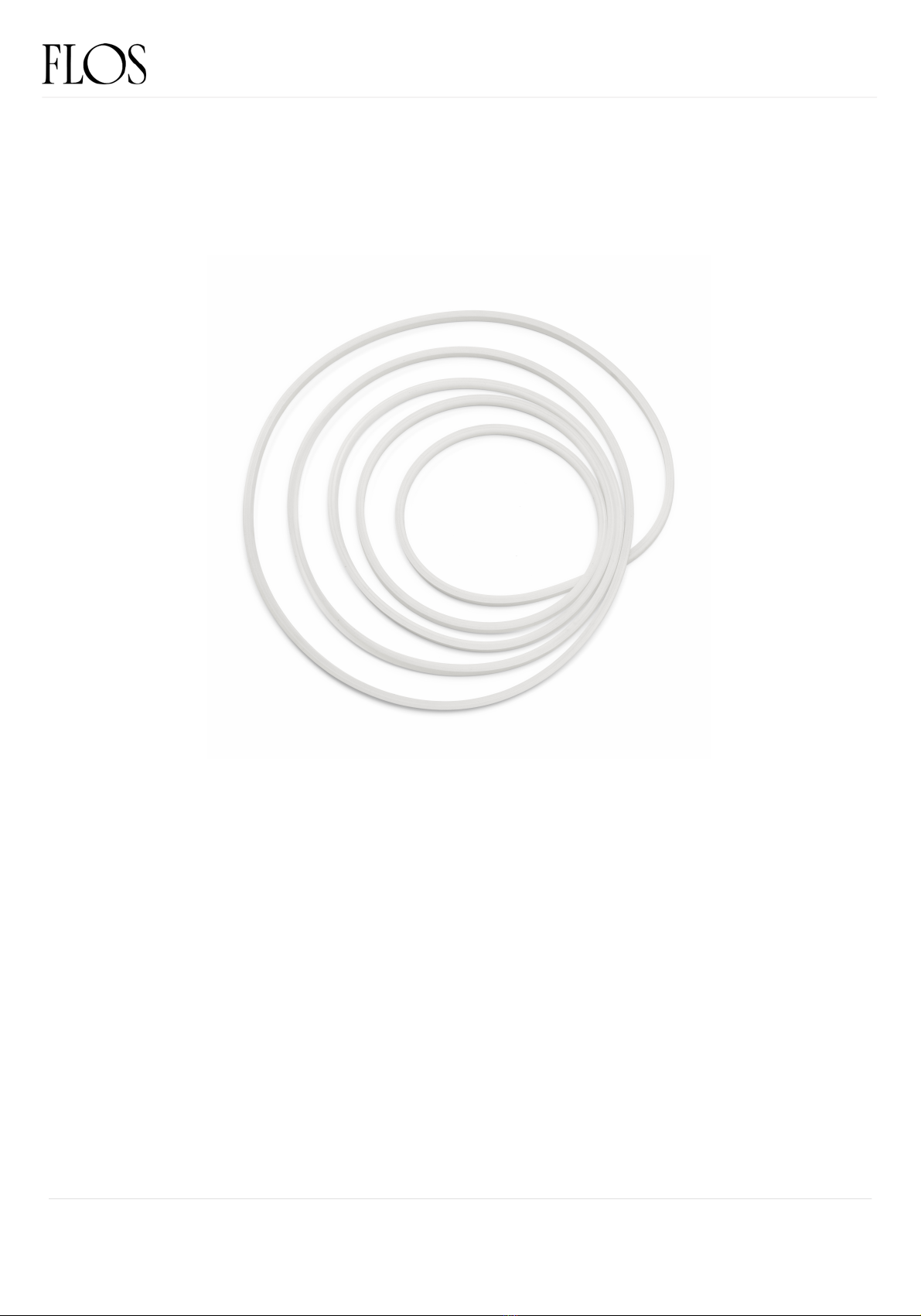

–Opal silicone diffuser ring

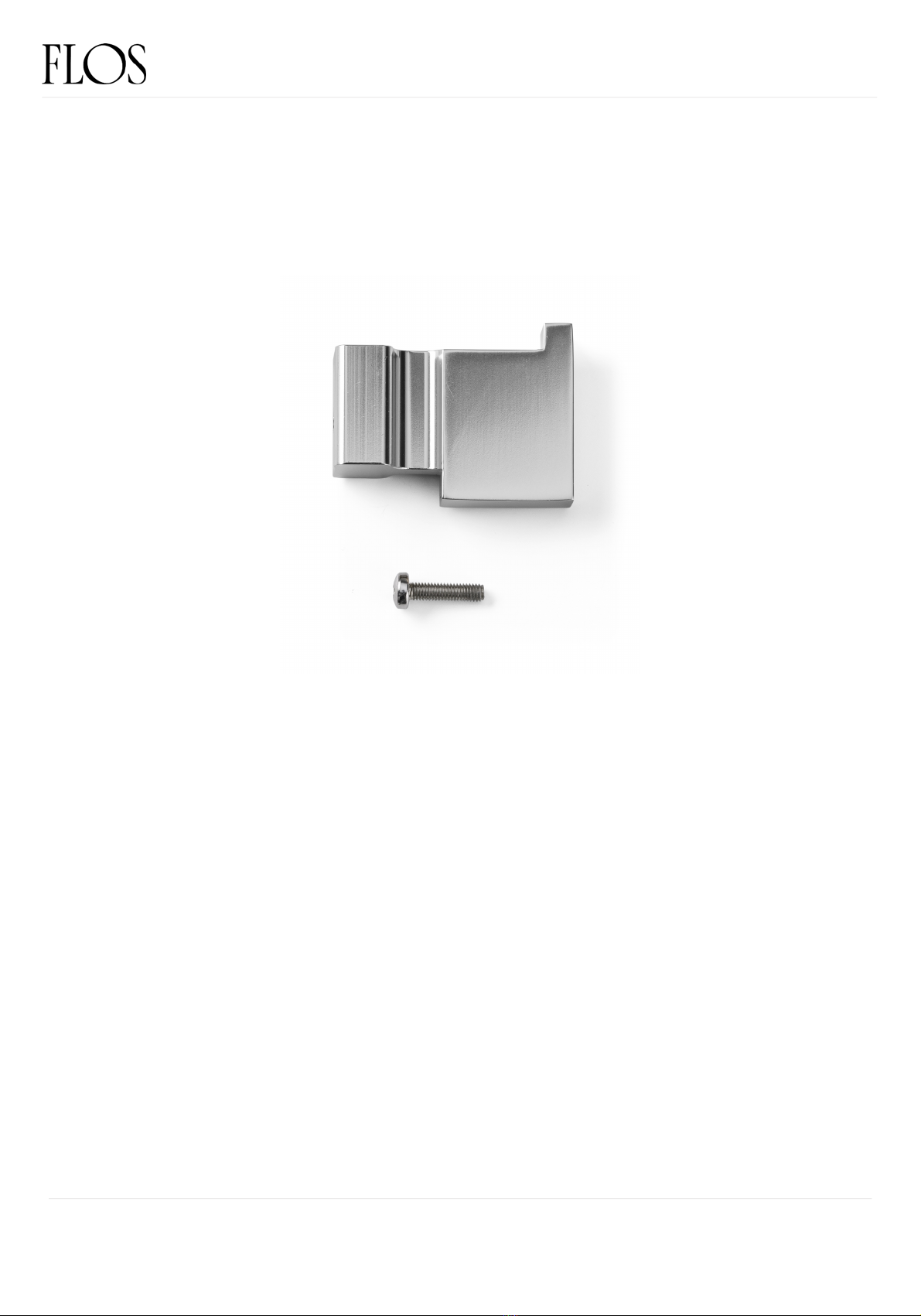

02. RF3680264
–Anodized shiny mirror hook
03. RF3680300
–Electrical mounting assembly
04. RF3680464
–Anodized shiny power unit
REV. 1
DATE 23/07/2021
LA PLUS BELLE
F3680064

3
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
RF3680100
OPAL SILICONE DIFFUSER RING
LA PLUS BELLE F3680064
REV. 1
DATE 23/07/2021

4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064
REV. 1
DATE 23/07/2021

5
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.1
Remove the mirror from the wall.
Disconnect the electrical cables.
Remove the power unit from the wall..
REV. 1
DATE 23/07/2021
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

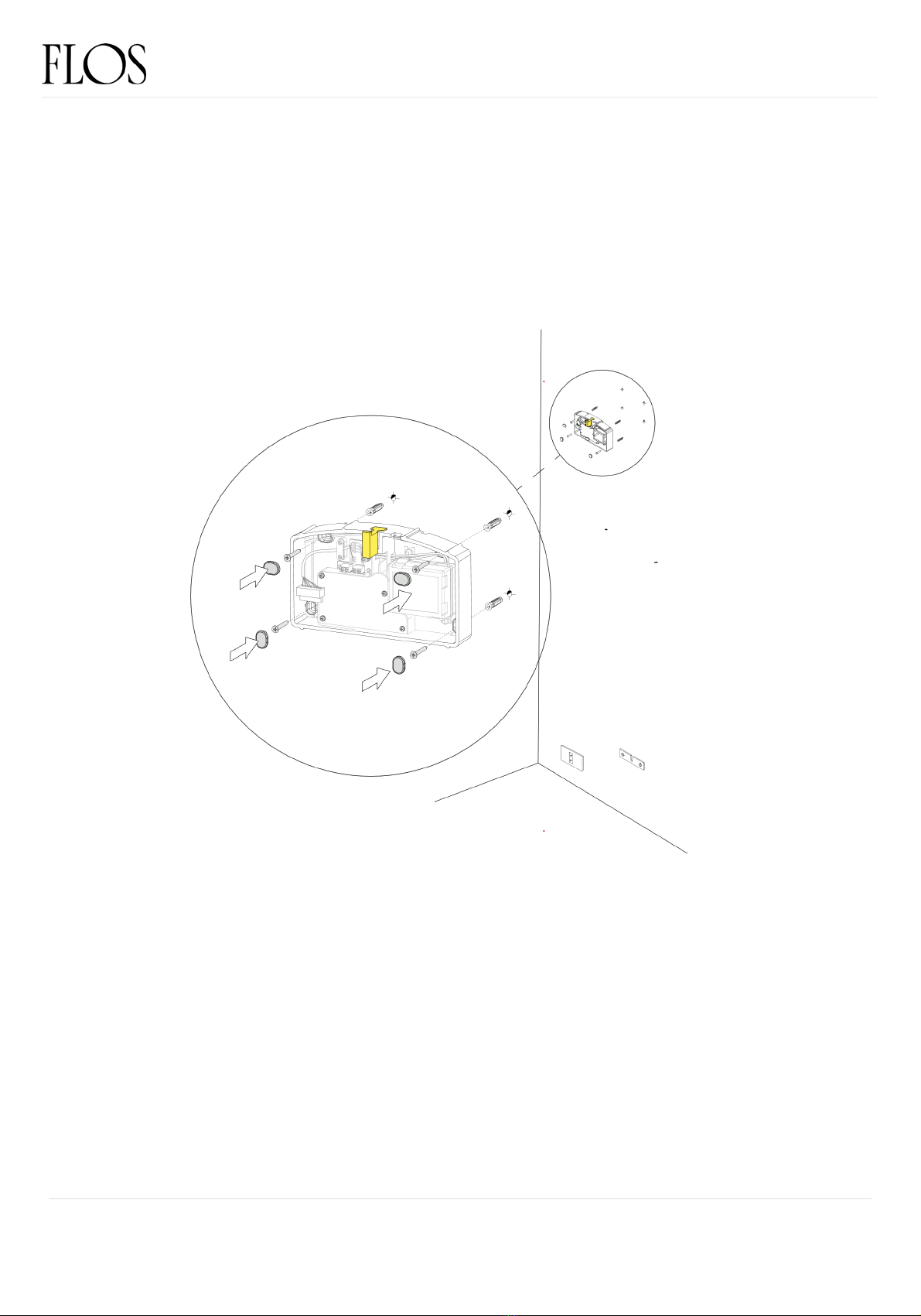

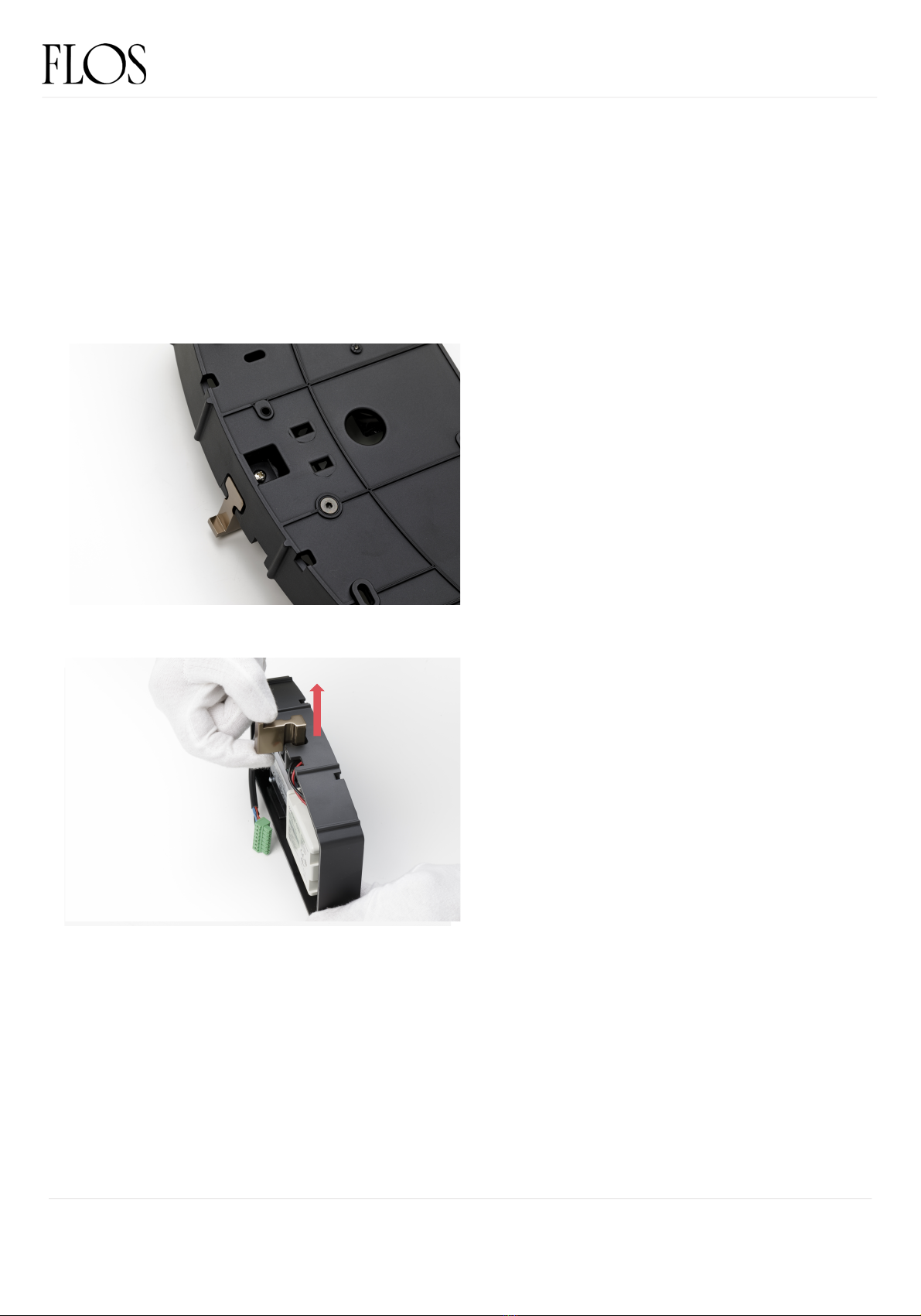

Remove the screw located behind the power
unit.
Remove the mirror hook from the power unit
(See the yellow arrow).
Fig.2
Fig.3
REV. 1
DATE 23/07/2021
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Position the mirror hook to the power unit
(See the green arrow).
Tighten the screw behind the power unit.
Fig.4
Fig.5
REV. 1
DATE 23/07/2021
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.6
Position the power unit by screwing the screws in the same position as
the old power unit.
REV. 1
DATE 23/07/2021
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

9
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.7

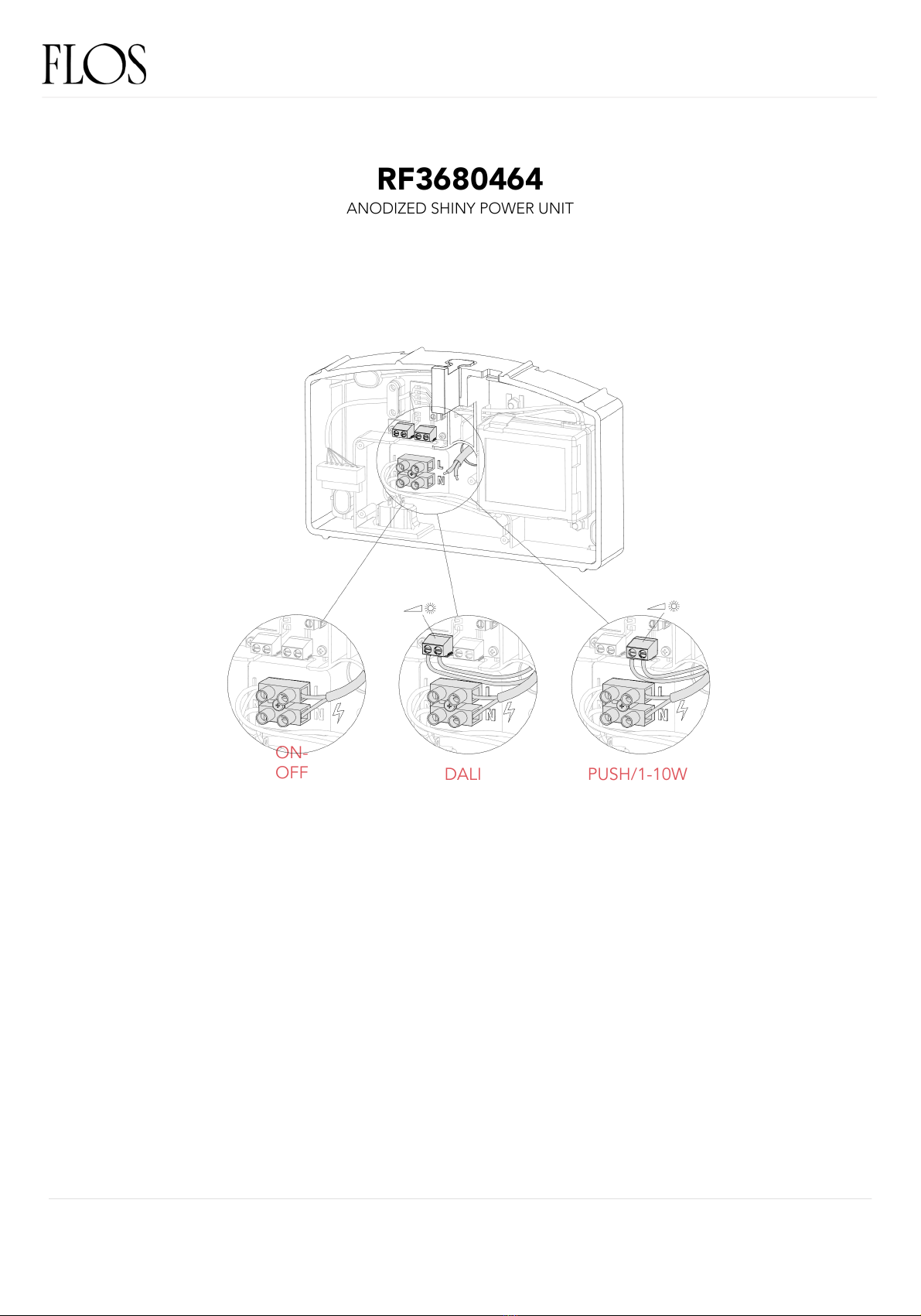

Connect the electric cables in the same position as the previous
version.
REV. 1
DATE 23/07/2021
ON-OFF DALI PUSH/1-10W
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

10
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

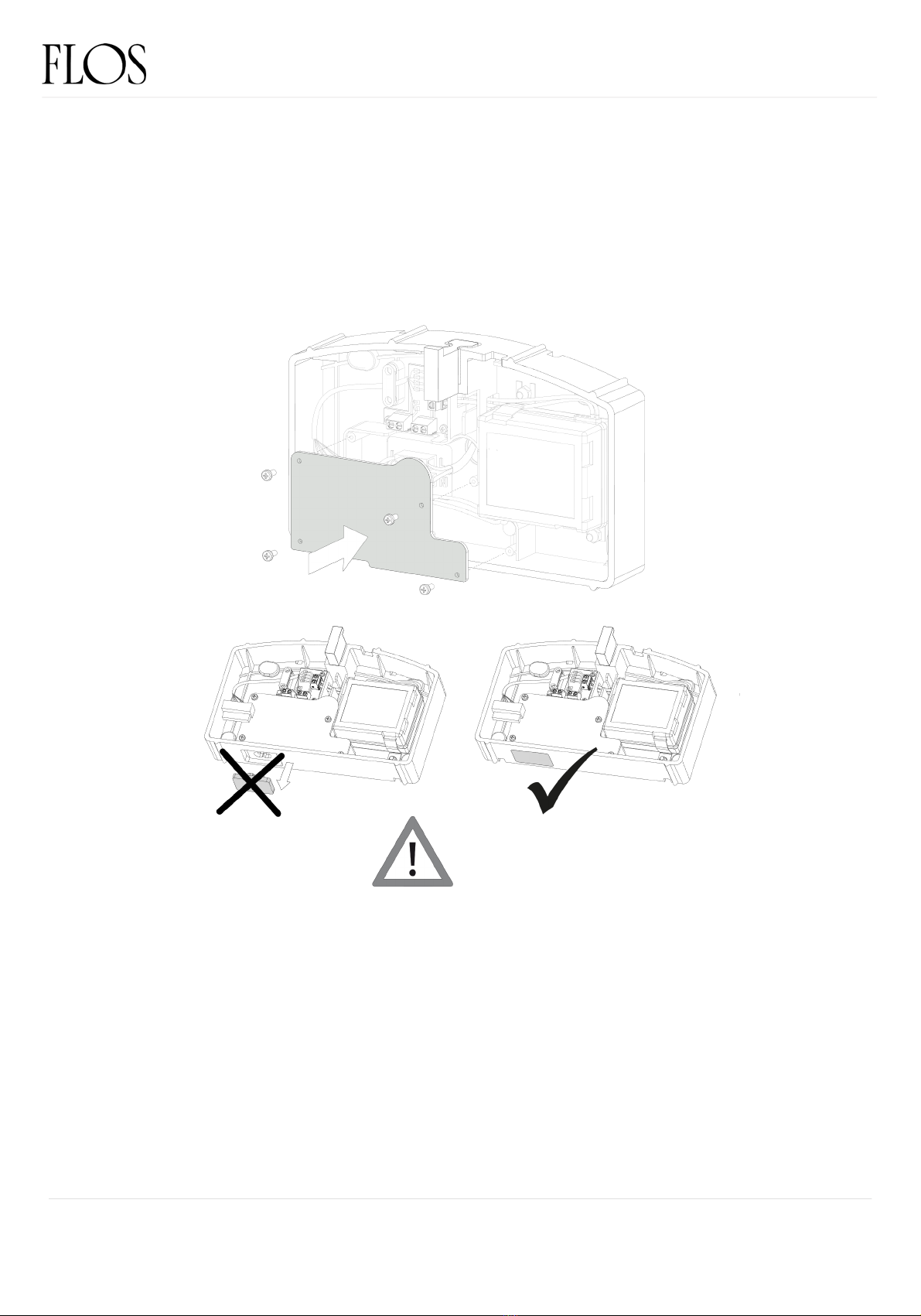

Fig.8

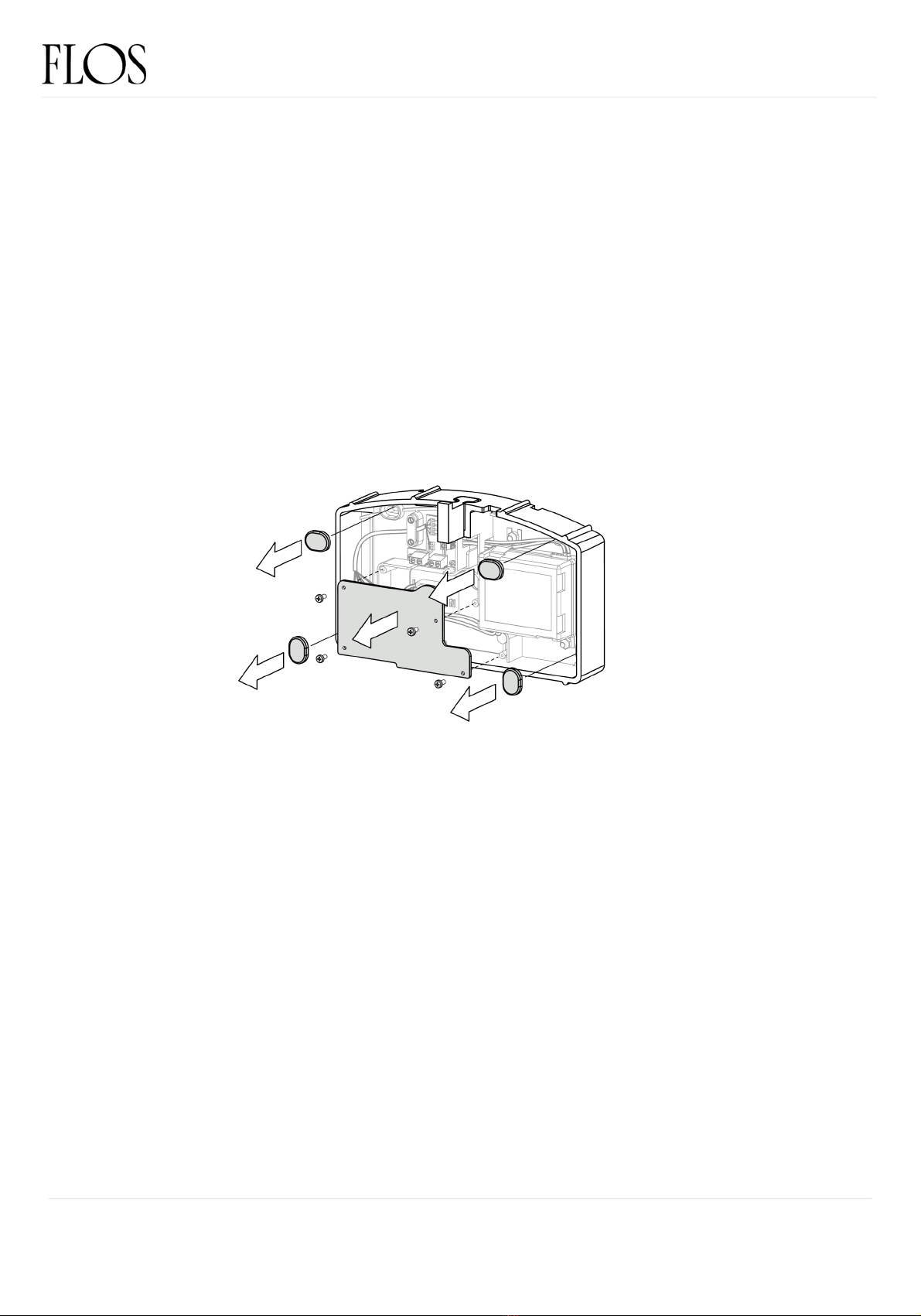

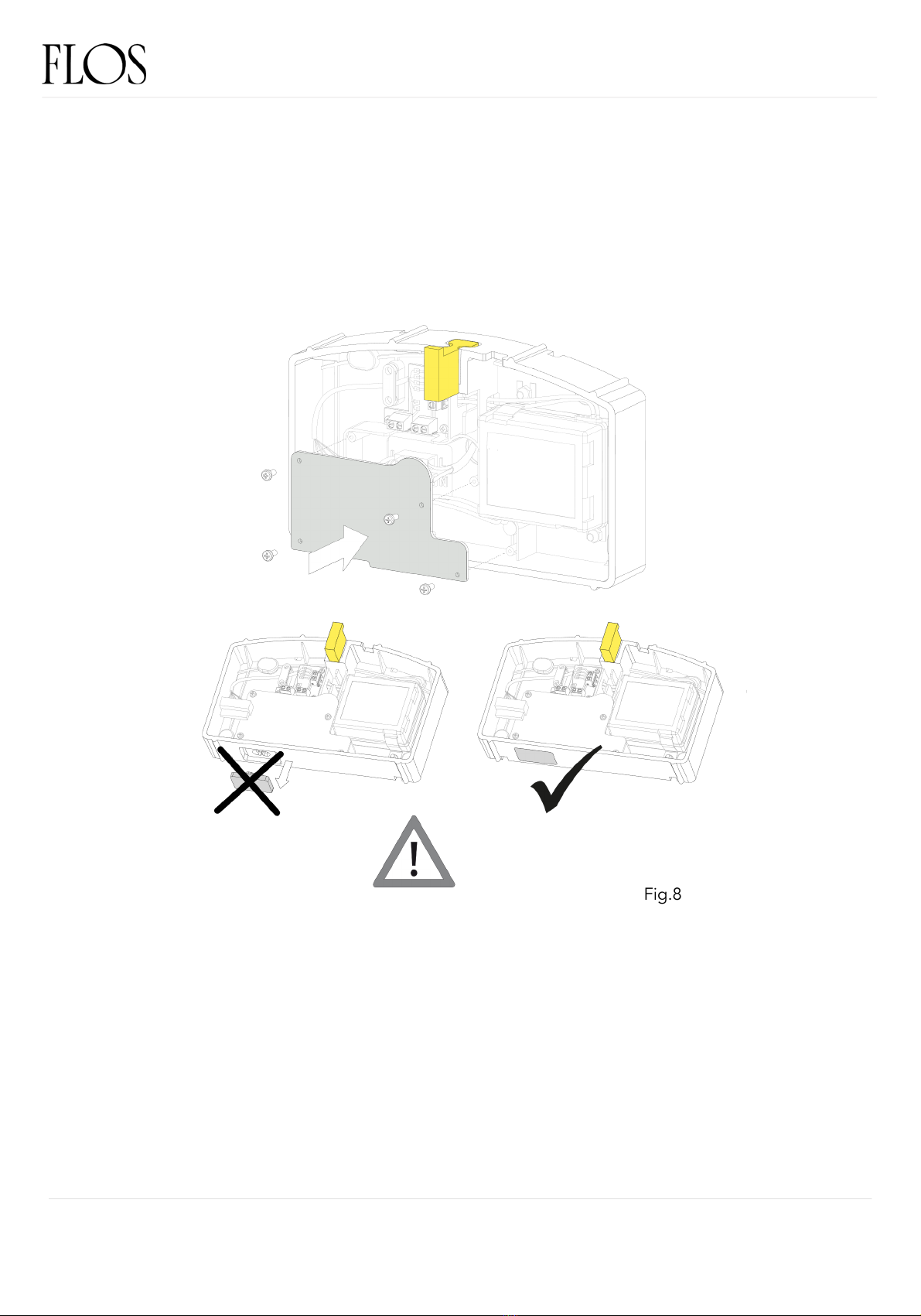

Position the protection screen and fix it with the 4 screws.
REV. 1
DATE 23/07/2021
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

11
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
REV. 1
DATE 23/07/2021

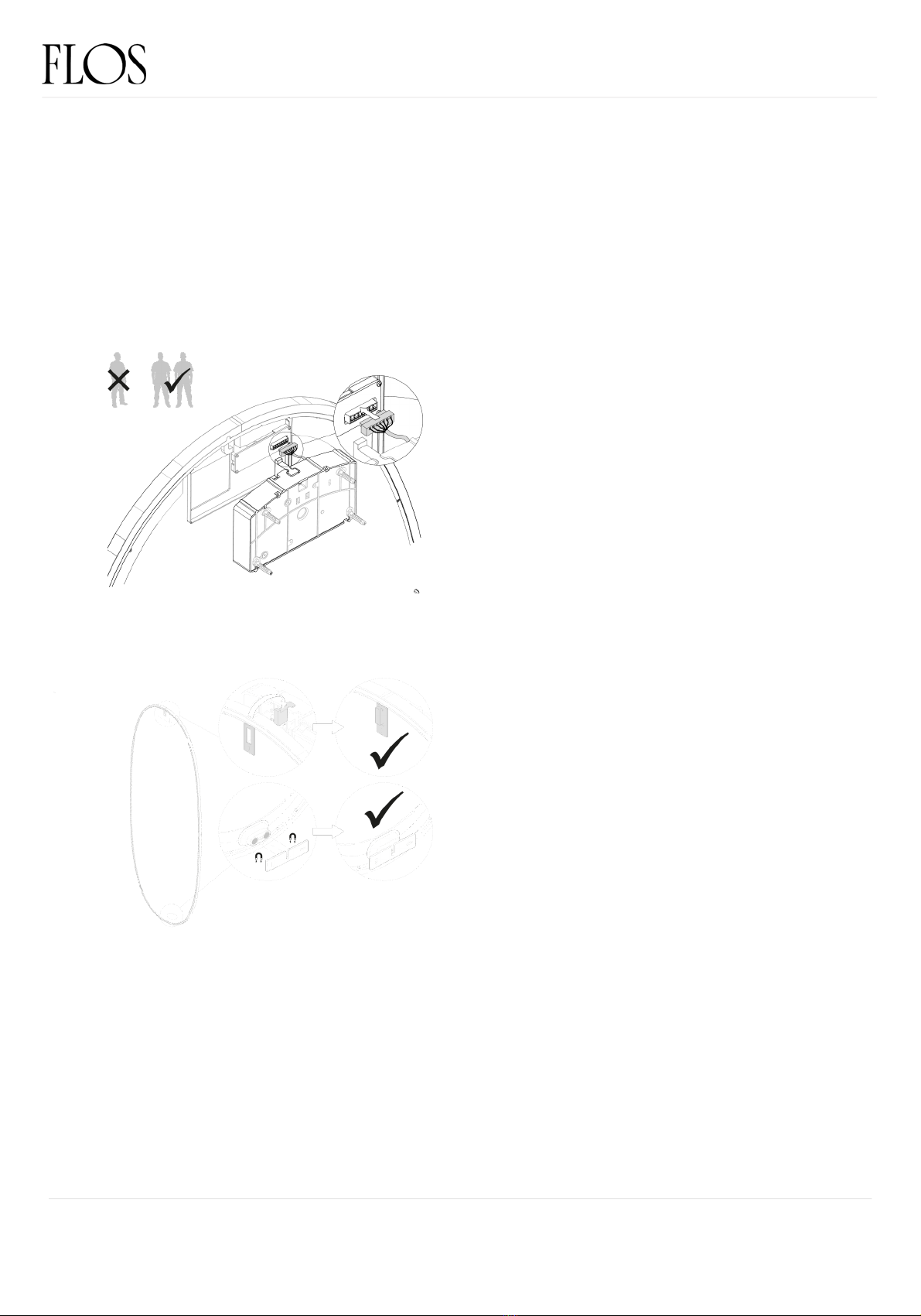

Fig.9

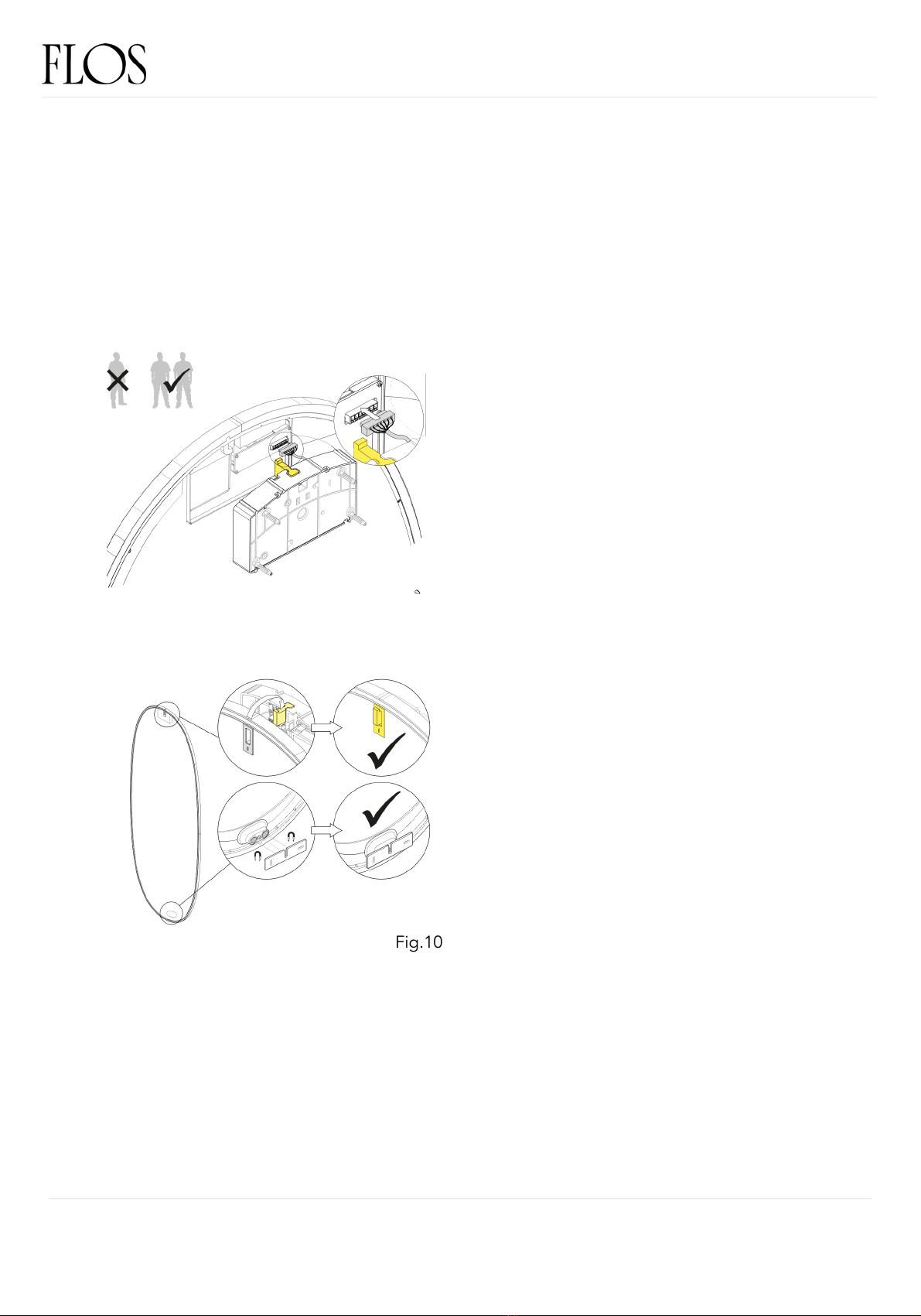

Fig.10 Position and connect the mirror.
RF3680264
ANODIZED SHINY MIRROR HOOK
LA PLUS BELLE F3680064

12
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
REV. 1
DATE 23/07/2021

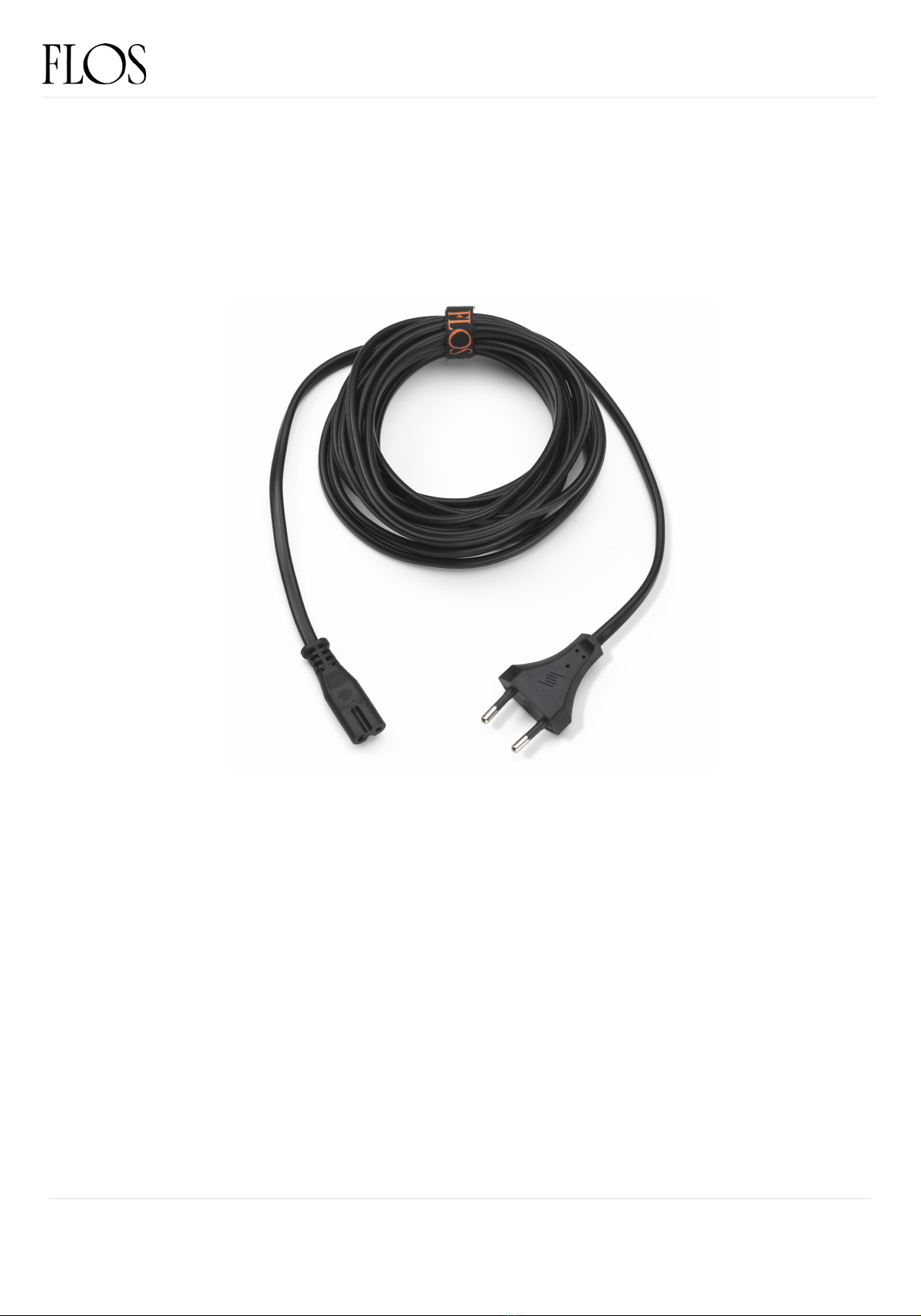

RF3680300
ELECTRICAL MOUNTING ASSEMBLY
LA PLUS BELLE F3680064

13
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

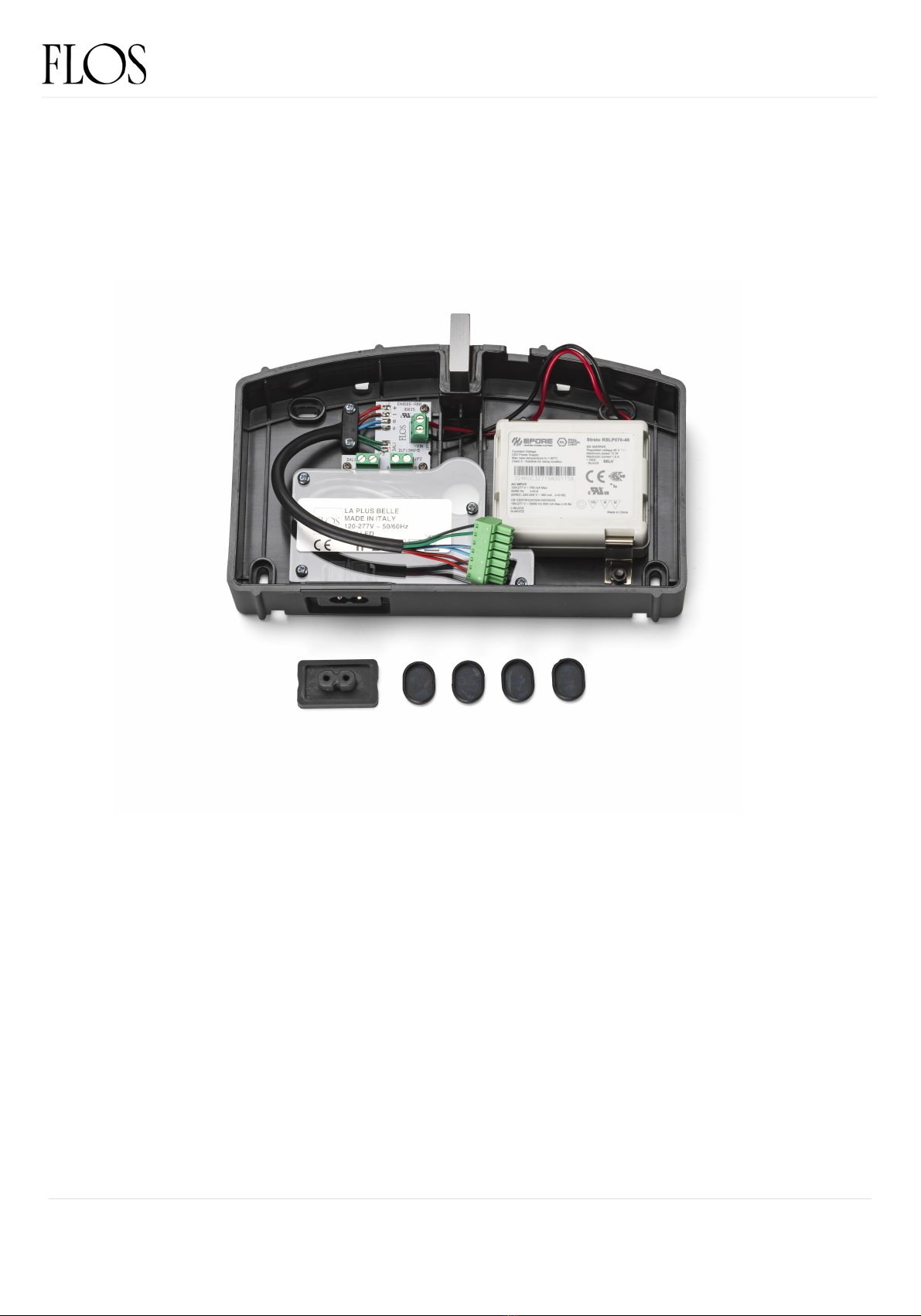

RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064
REV. 1
DATE 23/07/2021

14
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.1
Remove the mirror from the wall.
Disconnect the electrical cables.
Remove the power unit from the wall..
REV. 1
DATE 23/07/2021
RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064

15
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.2
Position the power unit by screwing the screws in the same position as
the old power unit.
REV. 1
DATE 23/07/2021
RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064

16
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.3
Connect the electric cables in the same position as the previous
version.
REV. 1
DATE 23/07/2021
ON-
OFF DALI PUSH/1-10W
RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064

17
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.4
Position the protection screen and fix it with the 4 screws.
REV. 1
DATE 23/07/2021
RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064

18
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
REV. 1
DATE 23/07/2021
Fig.5
Fig.6 Position and connect the mirror.
RF3680464
ANODIZED SHINY POWER UNIT
LA PLUS BELLE F3680064
