Fluke P5514 User manual

P5514, P5514-V &
P5514-EP
Hydraulic Comparison Test Pump
Users Manual
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

i
Table of Contents
Title Page
Preparation ......................................................................................................... 1
How to Contact Fluke ........................................................................................ 1
Operating Fluid Compatibility........................................................................... 2
Safety Information ............................................................................................. 2
Compressed Liquid........................................................................................ 2
Personal Protective Equipment...................................................................... 2
Symbols Used in this Manual ............................................................................ 2
Connections ....................................................................................................... 3
Connect the Gauge ........................................................................................ 4
Connect the Test Port Insert .......................................................................... 4
Operation ........................................................................................................... 5
Priming .......................................................................................................... 5
Operation ....................................................................................................... 6
Maintenance and Servicing................................................................................ 6
Screw Press Seals .......................................................................................... 6
Complete Disassembly .................................................................................. 7
Ancillary Equipment.......................................................................................... 11
Angle Adapter, P5543 ................................................................................... 11
Pointer Remover/Punch, P5551..................................................................... 11

P5514, P5514-V & P5514-EP
Users Manual
ii

iii
List of Tables
Table Title Page
1. Operating Fluid Compatibility ............................................................................... 2
2. Symbols.................................................................................................................. 3
3. Test Port Insert - Parts List..................................................................................... 5
4. Seal Kit - Part Numbers ......................................................................................... 6
5. Screw Press Assembly - Parts List......................................................................... 10

P5514, P5514-V & P5514-EP
Users Manual
iv

v
List of Figures
Figure Title Page
1. Connecting the Gauge ............................................................................................ 4
2. Test Port Insert ....................................................................................................... 5
3. Reservoir and Test Port Assemblies....................................................................... 9
4. Screw Press Assembly ........................................................................................... 9
5. Angle Adapter ........................................................................................................ 11
6. Pointer Remover/Punch.......................................................................................... 11

P5514, P5514-V & P5514-EP
Users Manual
vi

1
Preparation
The Hydraulic Comparison Test Pump User’s Manual covers the following instruments:
the P5514, P5514-V, and the P5514-EP.
The Comparison Test Pump is used for checking pressure-measuring instruments against
Master Test Gauges.
Note
The terms ”Master Test Gauge” and “Gauge” in this document refer to
any pressure-measuring instrument such as Transfer Standards, Digital
Calibrators, and Transducers.
This system is only as accurate as the Master Test Gauge used. The Master Test Gauge
must be regularly calibrated on a Primary Reference Standard (such as a Deadweight
Tester) to ensure accuracy is maintained.
The comparison test pump should be mounted securely to a stable workbench or similar
surface. Four mounting holes are provided in the pump stand for this purpose.

P5514, P5514-V & P5514-EP
Users Manual
2
Operating Fluid Compatibility
The standard system is designed for use with a wide range of fluids; however, the O-ring
seals are Nitrile; use of solvents, fuel oils, brake fluids or other, similar aggressive fluids
can damage the seals. The table below details the two alternative versions of this
instrument, which offer increased compatibility with other fluids.
Table 1. Operating Fluid Compatibility
Model O Rings
P5514 Nitrile
P5514-V Viton
P5514-EP Ethylene Propylene
Rotate reservoir dust cover through ½ turn and fill reservoir approximately 3/4 full with
the appropriate fluid. Rotate dust cover back to cover reservoir.
WCaution
To avoid damage to the instrument, the operator should check
the quality of the operating fluid during use. If the fluid
becomes discolored, cloudy or particles appear in the reservoir,
the system should be drained and flushed with clean fluid.
Safety Information
The following are general safety precautions that are not related to any specific
procedures and do not appear elsewhere in this publication. These are recommended
precautions that personnel must understand and apply during equipment operation and
maintenance to ensure safety and health and protection of property.
Compressed Liquid
Use of compressed liquids can create an environment of propelled foreign matter.
Pressure system safety precautions apply to all ranges of pressure. Care must be taken
during testing to ensure that all hydraulic connections are properly and tightly made prior
to applying pressure. Personnel must wear eye protection to prevent injury.
WWarning
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Personal Protective Equipment
Wear eye protection approved for the materials and tools being used.
Symbols Used in this Manual
In this manual, a Warning identifies conditions and actions that pose a hazard to the
user. A Caution identifies conditions and actions that may damage the Hydraulic
Comparison Test Pump.
Symbols used on the Hydraulic Comparison Test Pump and in this manual are explained
in Table 2.

Hydraulic Comparison Test Pump
Connections
3
Table 2. Symbols
Symbol Description
BAC (Alternating Current)
JEarth Ground
WImportant Information: refer to manual
~Do not dispose of this product as unsorted
municipal waste. Go to Fluke’s website for
recycling information.
Connections
Fit the device under test (DUT) to the test port using the method described below:
WCaution
Ensure that all devices are internally clean and free from
contamination before connecting to the tester.
Particle contamination can damage the sensitive piston
assemblies, valve seats, and screw pump.
To avoid cross-contamination from other fluids and protect the
system from particulates, we recommend the use of a
Liquid-to-Liquid Separator (see Section 5, Ancillary Equipment).
WWarning
DO NOT use Teflon/PTFE tape on these connections as this will
prevent correct sealing. The Gauge Adapter sealing system is
designed for hand-tight sealing up to 20,000 psi / 1,400
bar-wrenches or similar tools are not required — over
tightening can cause damage to threads or sealing faces.
Before connection, ensure that there is an O-ring fitted to the
test port.
Check that the sealing face of the device to be fitted is clean
and undamaged, as scratches or dents can form leak-paths.
Note
The thread on the test port, and the lower part of the gauge adapters is
LEFT-HANDED. The following procedure details the correct method for
mounting devices using these adapters.

P5514, P5514-V & P5514-EP
Users Manual
4
1 2 3 4
gjq001.eps
Figure 1. Connecting the Gauge
Connect the Gauge
Refer to Figure 1 for steps 1 to 4.
1. Screw the appropriate gauge adapter fully on to the instrument to be tested.
2. Screw assembly down COUNTER-CLOCKWISE on to test port.
Note
Hand-tight is sufficient; ensure that the bottom face contacts the O-ring on
the test port.
3. To adjust the position to face forward, hold the gauge adapter and turn the instrument
COUNTER-CLOCKWISE, so that it faces forward.
4. Hold the instrument steady, while turning the gauge adapter
COUNTER-CLOCKWISE until it pulls down onto the O-ring.
Connect the Test Port Insert
For devices with 1/8 BSP or NPT mounting threads, the diameter of the thread is very
close to the effective sealing diameter of the O-ring fitted to the test port.
This can make it difficult to achieve a good seal. When mounting these devices, use the
test port insert (stored in the spare seals container) as shown Figure 2.

Hydraulic Comparison Test Pump
Operation
5
1
3
2
4
gjq002.eps

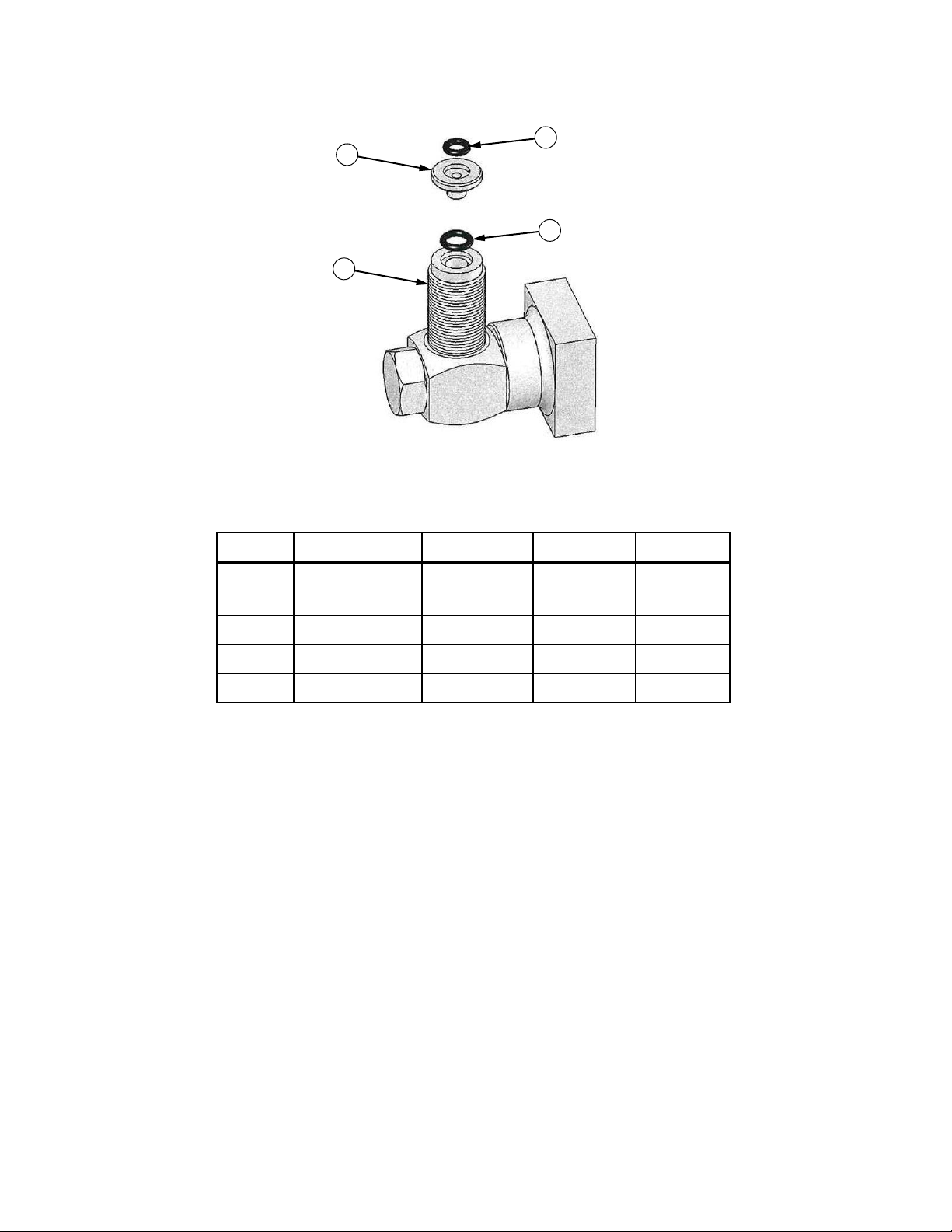

Figure 2. Test Port Insert
Table 3. Test Port Insert - Parts List
Item Description P5515 P5515-V P5515-EP
1 O Ring 3865142 3865163 3867888
2 Test Port Insert 3919892 — —
3 O Ring 3883397 3883521 3867895
4 Test Port 3918298 — —
To calibrate panel-mounted gauges with pressure connections in the rear, use an Angle
Adapter (see Ancillary Equipment section).
Operation
Priming
1. Open reservoir valve (13) one turn counter-clockwise and turn screw press fully in.
2. Close valve (13) and turn screw press fully out.
3. Open valve and turn screw press fully in.
Note
During this operation, bubbles may appear in the reservoir, as trapped air
is expelled. For large volumes, repeat steps 2 and 3 until no further bubbles
appear.
4. With valve open, turn screw press fully out and close valve. The test pump is now
ready for use.
WWarning
Turning the capstan out with the reservoir valve closed will
generate approximately 15 inHg / 0.5 bar vacuum. If the DUT is
vacuum sensitive, leave valve (13) open during priming
operation.

P5514, P5514-V & P5514-EP
Users Manual
6
Operation
WWarning
Do not exceed the maximum working pressure of the
instrument (stated on the instrument label).
1. Turn the screw press in to generate pressure.
2. Allow a few moments for the system to stabilize before taking any readings,
especially after large changes in system pressure.
Note
Large, sudden changes in pressure will cause the system temperature to
rise or fall, which can cause instrument readings to change as the fluid in
the system expands or contracts, thus increasing or decreasing the
pressure.
3. Compare the reading of the gauge under test with that of the master gauge.
4. For the next higher calibration point, repeat from Priming, Step 1.
5. To measure reducing pressures, turn the screw press out (counter-clockwise).
6. Depressurize the system by turning the screw press FULLY OUT, then open the
reservoir valve
WCaution
Never release the system pressure by using the reservoir valve
alone, as sudden depressurization will “shock” the system,
which may cause damage to sensitive instruments attached
to it.
Maintenance and Servicing
The Figures on the following pages detail the components of each assembly, together
with the relevant part numbers. Where “ASSY” appears as a part number, this indicates
that this particular component is associated with other components in an assembly for
replacement purposes.
Before beginning any maintenance, remove any instruments that may be mounted to the
test pump, and drain the fluid from the system.
Table 4. Seal Kit - Part Numbers
Model Seal Kit P/N
P5514 3891113
P5514-V 3891124
P5514-EP 3891136
Screw Press Seals
1. Turn the screw press out so that there is a distance of at least 1” / 2.5cm between the
large union nut at the end of the barrel and the capstan hub.
2. Unscrew the union nut and withdraw the lead screw assembly (24) from the barrel,
taking care not to drop the rambler (22).
3. Inspect the seals for signs of wear or damage, replace as necessary.

Hydraulic Comparison Test Pump
Maintenance and Servicing
7
4. The white, anti-extrusion ring (21) is a PTFE spiral, and can be removed by
“unwinding” it from the rambler.
5. When removing the rambler seal (20), take care not to use any tool that may have a
sharp edge that will scratch the surfaces of the rambler, otherwise it may leak when
reassembled.
6. The replacement rambler seal can be eased over the front of the rambler, and into
the groove.
7. Similarly, the new anti-extrusion ring can be “wound” into the groove in the rambler,
behind the rambler seal.
8. If the rambler has been separated from the lead screw, ensure that the ball (23) is
correctly fitted before reassembly.
9. Ensure that the rambler assembly is correctly located on the end of the lead screw
assembly. Carefully introduce the rambler into the open end of the barrel; making
sure that it does not tilt when entering the barrel.
10. Push the lead screw assembly fully in to the barrel, ensuring that the key in the nut
locates correctly in the slot in the barrel.
11. Re-tighten the barrel union nut.
WCaution
If the lead screw assembly (24) shows signs of excessive wear,
then it is very likely that the associated components have worn
also; therefore, the screw press assembly is available as a
spare part.
Complete Disassembly
1. Remove the screw press assembly as described above.
2. Unscrew and remove valve stem (13), taking care not to lose spring (12) and nylon
washer (11).
3. Remove reservoir cover (10).
4. Unscrew locknut (9), and remove reservoir (8).
5. Unscrew valve body (6), taking care not to lose bonded seal (7) or O-ring (5).
6. Remove banjo bolts (1), together with banjo test ports (3), taking care not to lose
O-rings (2).
7. Disconnect the stand (15) from the bench. Remove screws (14), and tilt
manifold/barrel assembly downward and pass it out of the bottom of the stand.
8. To remove the barrel (19), the locknut (18) must be loosened approximately 1/2 turn.
The barrel can then be unscrewed from the manifold (16).
9. Before re-fitting the barrel, ensure that the barrel seal (17) is correctly located in the
counter-bore in the front of the barrel. Screw the barrel fully in to the test station, and
secure with the locknut.
10. Inspect all seals for wear or damage — replace as necessary.

P5514, P5514-V & P5514-EP
Users Manual
8
WCaution
If the rambler shows signs of wear, then it is very likely that the
main bore in the barrel is worn also. If the bore is worn or
scratched, it will not seal correctly, and may leak under
pressure.
11. Re-assembly is the reverse of the above. Ensure that all seals and sealing surfaces are
clean and undamaged.
1
1
3
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
2
2
gjq003.eps
Figure 3. Reservoir and Test Port Assemblies

Hydraulic Comparison Test Pump
Maintenance and Servicing
9
20
22
23
24
25
25
26
26
21
16
17
19
18
gjq004.eps

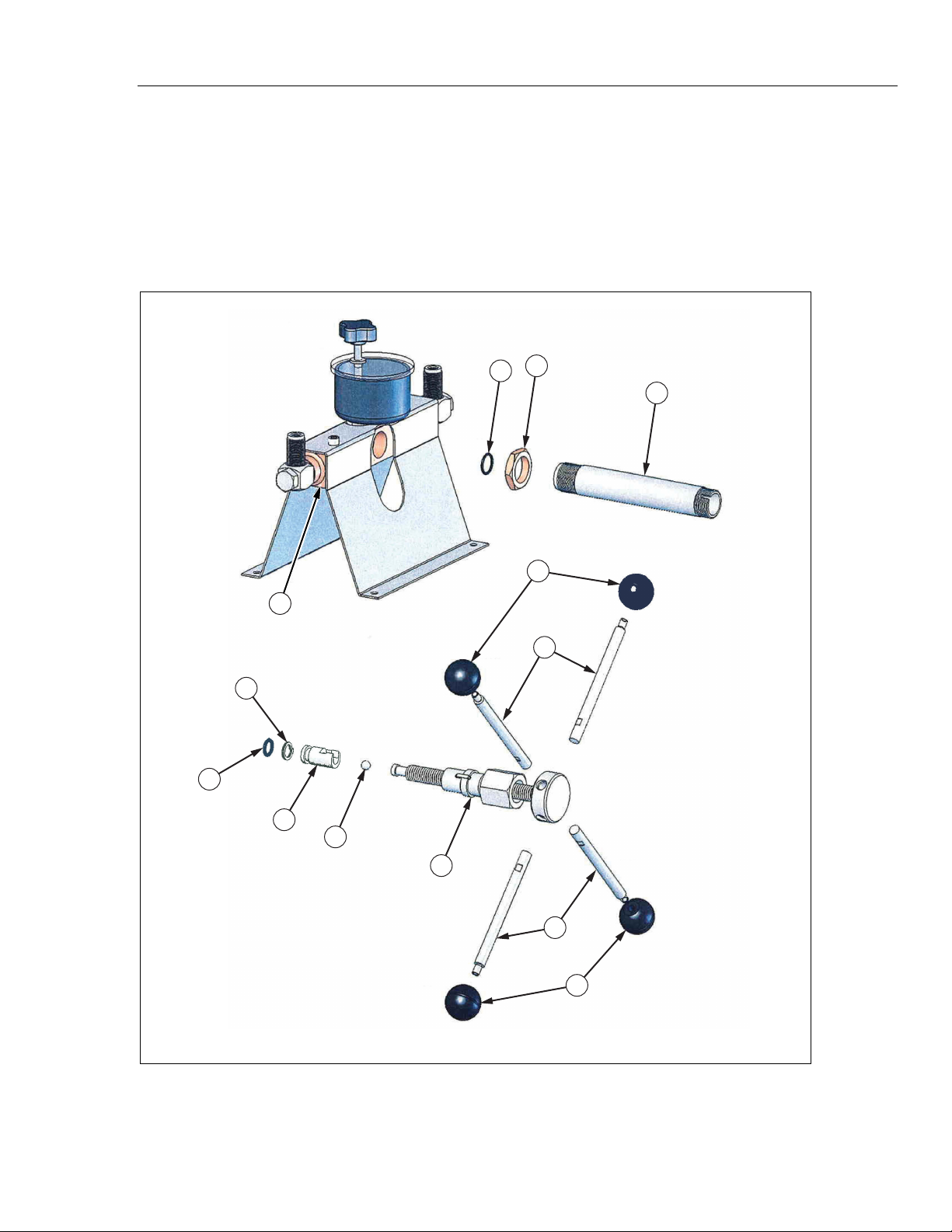

Figure 4. Screw Press Assembly

P5514, P5514-V & P5514-EP
Users Manual
10
Table 5. Screw Press Assembly - Parts List
Part
Item Description
P5514 P5514-V P5514-EP
1 Banjo Bolt 3918323 — —
2 O Ring 3905652 3919393 3926936
3 Banjo Test Port 3918298 — —
4 O Ring 3883397 3883521 3867895
5 O Ring 3864857 3865277 3921986
6 Valve Body 3923785 — —
7 Bonded Seal 3862349 3922096 3922043
8 Reservoir 3919463 — —
9 Locknut 3918244 — —
10 Reservoir Cover 3918350 — —
11 Washer 3916458 — —
12 Spring 3922786 — —
13 Valve Stem Assembly 3885982 — —
14 Screw 3909422 — —
15 Pump Stand 3918271 — —
16 Manifold 3918280 — —
17 O Ring 3864711 3865359 3865576
18 Locknut 3917862 — —
19 Barrel 3919630 — —
20 O Ring 3864782 3865214 3865541
21 Back-Up Ring 3920516 — —
22 Rambler 3919611 — —
23 Ball 3917855 — —
24 Lead Screw Assembly 3885982 — —
25 Spoke 3921672 — —
26 Knob 3917843 — —

Hydraulic Comparison Test Pump
Ancillary Equipment
11
Ancillary Equipment
Angle Adapter, P5543
To calibrate gauges with the pressure connection on the rear (e.g. panel-mount gauges) in
their correct position, an angle adapter should be used. The angle adapter fits directly
onto the test station, converting it through 90 degrees, allowing the standard adapters to
be used.
Figure 5. Angle Adapter
Pointer Remover/Punch, P5551
To remove and refit the pointer of a pressure gauge, use the pointer remover/punch
instrument. This tool has a spring-loaded plunger to quickly and consistently refit the
pointer.
Figure 6. Pointer Remover/Punch

P5514, P5514-V & P5514-EP
Users Manual
12
