Fly Dragon Light Sky SHARK 450BSW User manual

SHARK 450BSW
Please read these user manual carefully before use!
E-mail:
n
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
Contents
1. Safety information........................................................................................................2
2. Technical information..................................................................................................4
3. Attachment and body size........................................................................................7
4. Installation and connecting.......................................................................................8
5. Control panel..............................................................................................................12
6. Menu setting...............................................................................................................13
7. Channel function.........................................................................................................16
8. Circuit connecting diagram.......................................................................................22
9. Cleaning and maintenances.......................................................................................23
10.Troubeshooting.........................................................................................................23
11.Duty exonerative and copyright protection............................................................25

■ Connection to mains supply
The double insulation between the LV power supply and the control conductor on the fixture.
SAFETY INFORMATION
2
■This lighting fixture is for professional use only - it is not for household use.
■ Installtion
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be prgperly hooked onto the fitting and secured to the framework.
When suspending the fixture, ensure that the supporting structure and all hardware used
can hold at least 10 times the weight of all the devices they support.
Ensure a minimum clearance of 0.5m around the cooling fans and ventilation.
Please do not install the fixture onto combustible surface.
Do not expose the front glass to sunlight or other strong light source from any angle.
Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.
■ Mounting surface and fire protection
Keep all combustible materials at least 1 m away from the fixture.
■ Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I
appliance according to standard EN 60598-1).
It is,moreover, recommended to protect the supply lines of the projectors from indirect
contact and/or shorting to earth by using appropriately sized residual current devices.
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
Don’t use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change the damaged power
cable in order to avoid any dangerous.
The fixture is intended for indoor and outdoor application.
Do not operate the fixture if the ambient temperature (Ta) exceeds 40℃
ta40℃
■ Maximum ambient temperature

Never look directly into the light source. You risk injury to your retina, which may induce blindness.
Do not stare directly into the light output.Never look at an exposed lamp while it is lit.
Protection optical radiation
Protection against explosion
The protection screen, lens or ultraviolet screen on the lamp can be damaged to the degree
of failure if visible damage, such as a crack or deep mark, should be replaced。
The tting mounts a high-pressure lamp that needs an external .
Immediately replace the lamp if damaged or deformed by heat.
The light source in this xture shall be replaced by the manufacturer or its service agent or
similar qualication.
Always disconnect from mains before replacing the lamp.
3
■ Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 100℃.
■ Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding.
The lenses must be mounted and, if visibly Damaged, they have to be replaced with genuine spares.
■ Lamp
When the luminaire projects an object, the minimum distance of the luminaire to
the ammable object is 12 meters.
The products referred to in this manual conform to the European Community Directives to which
they are subject:
Low Voltage 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
The product implementation standard：GB 7000.1-2015 GB7000.217-2008

● Power supplies available
- A C100~240V~ 50/60Hz
● Power
- 700W PF0.985
● Lamp
- Brand：NSL- 450 USHIO LIGHT SKY
- Lamp power：450W
- A verage life：1500h
● Luminous flux：10057 Lm
● Motors
- 18 ultra-quiet motors
● Inputs ：DMX512
● Ballast：Electronic
● Channel ：28CH
● Color
- 14colors + white，Bi-direction rainbow effect
● Color mixing system
- CMY mixed color system
● Color temperature：
- Colour temperature：6900K
CCT Light Output: 3200-6500K
● Static gobo wheel
- 10Gobo + 1 white + animation range
Bi-direction flow water animation effect
:●Rotation Gobo Wheel
- 8 rotating Gobos + white,Bi-direction flow water
animation effect
● Prism
- 3+1 d ouble p rism d isc a nd m ultiple p rism
c ombination e ffect.
● Beam angle ：
- Beam Projection：2-21°，Spot Projection ：3-42°
● Frost
- 5° of atomization
● Focus and Lens
- High precision optical lens，linear adjustment
● Strobe
- Double lens strobe (0.5-9 times/second)
● Dimmer
- 0-100％ linear adjustment
● X/Y Travel 540°/240°：
● X/Y Resolution 2.11°/0.98°：
● X/Y Speed 2.7S/1.6S：
Lighting Size● ：509X X754MM320
Box Size 1● ( Sets)：810X580X395MM
：38.5kg ：42.5kg N .W. G.W.
Sets● Flycase Size( 1 )：
640X620X825MM
N.W.：38.5kg G.W.：72.5kg
● IP set
- The lamp needs electricity when setting the
address code.
● Software upgrade
- Insert USB upgrade software.
● ：Display Menu
- The display panel adopts a 2.0-inch LCD12864 LCD
screen, which is used in both Chinese and English
languages to facilitate quick operation and browse
menus.
-Display board can record device’s using time , show
device’s temperature, channel data and software
version .
● Features
- Remote control lamp's swith function display light
and lamp's using time.automaticallay adjust cooling
fan's speed,Drop power when strobe lens.
- Remote reset DMX address。
- The built-in gravity induction system can change
the heat dissipation of the bulb in different directions
of the lamp。
●:IP IP RATE 66
● Safety Devices
- BIPOlar circuit breaker with thermal protection.
- Automatic break in power supply in case of
overheating or failed operation of cooling system.
● Cooling
- Forced ventilation with axial fans.
●Structure
- Fully aluminum alloy Die-casting case, patent,
fashion, simple & laconic.
●The vertical direction of the use of hidden locking
device,convenient transportation and maintenance.
● CE Marking
- In conformity with the European Union Low Voltage
Directive 2014/35/EU and Electomagnetic compatibility
Directive 2014/30/EU.
4
TECHNICAL INF ORMATION

5

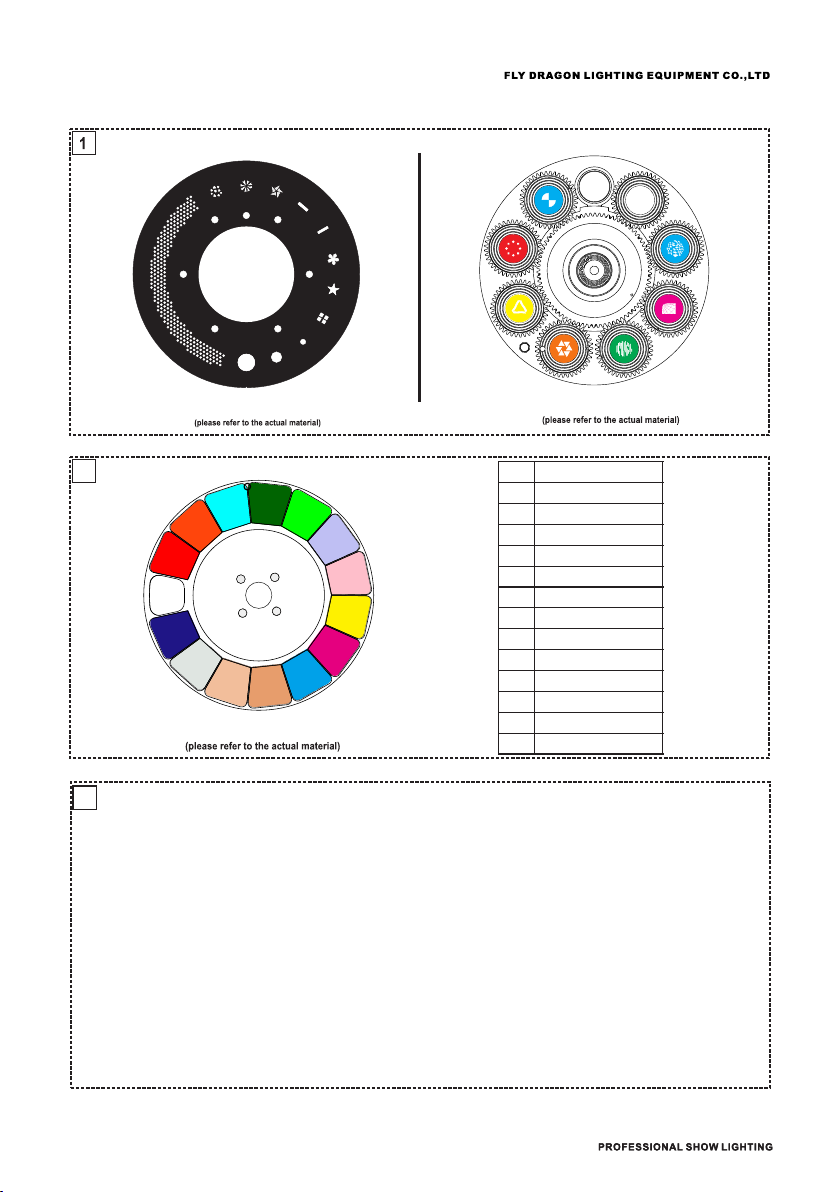

Color wheel
Rotating gobo wheel
2
3
Static gobo wheel
C M Y
CMY color mixing system
1
Dar k re d
2
Orange
3
Aquamarine
4
Dark green
5
green
6
Lavender
7
Pink
8
Yellow
9
Magenta
10
Cyan
11
CT02
12
Ct01
13
CTB
14
Dark blue
1
2
345
6
7
8
9
10
11
12
13
14
White
1
2
3
45
6
7
8
Whit e r

4

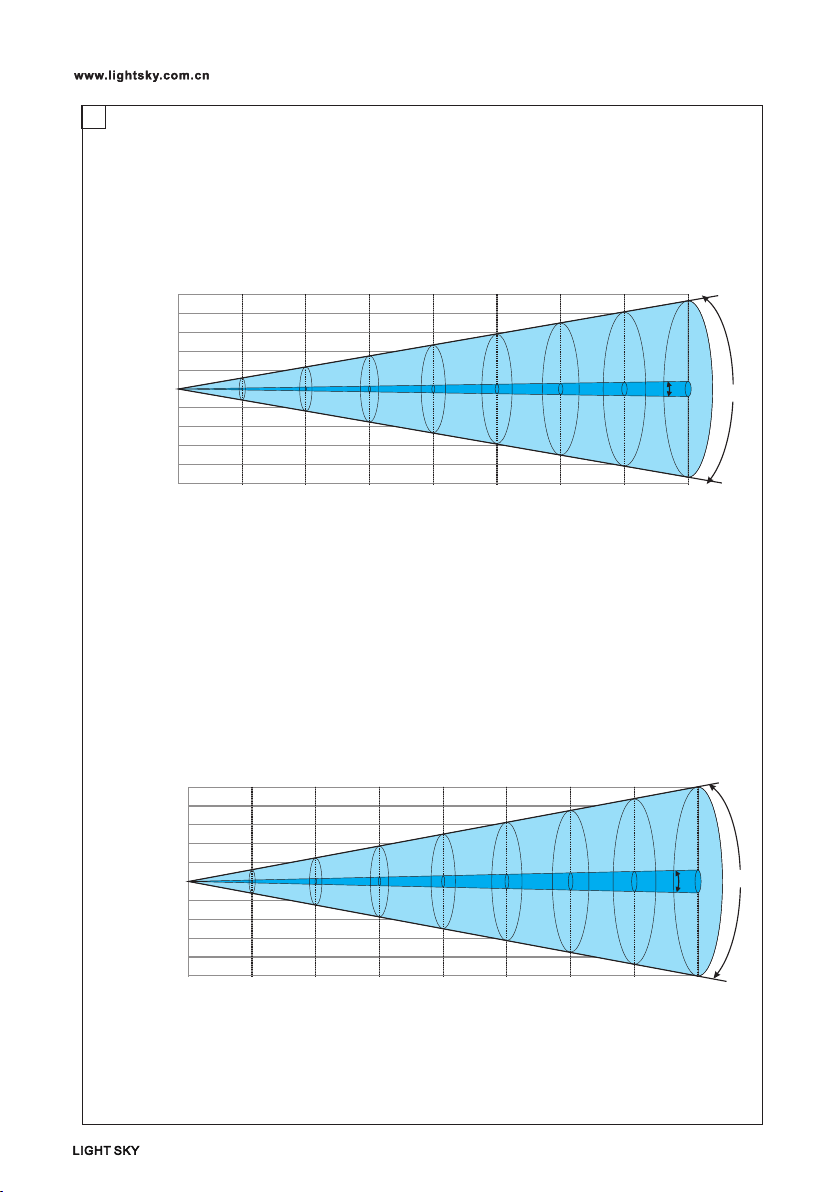

distance, spot diameter and illumination diagram（Beam model）
6
10 20 30 40 50 60 70 800
0
3
6
9
12
15
15
12
9
6
3
2° 21°
Distance(m)
2° Diameter(m)
21° Diameter(m)
0.3
3.46
0.62
6.95
0.92
10.42
1.26
13.75
1.6
17.35
1.91
20.75
2.18
24.25
2.45
27.79
21°Lu
2°Lux
Lux（fc）
3552(330.1)
422000(39219) 105600(9814) 45600(4238)
930(86.4) 408(37.9)
25200(2342)
228(21.2)
15840(1472)
170（15.8）
11760(1093)
120(11.2)
9000(836.4)
95(8.8)
6880(639.4)
61(5.7)
510 15 20 25 30 35 400
0
3
6
9
12
15
15
12
9
6
3
3° 42°
Distance(m)
3° Diameter(m)
42° Diameter(m)
0.46
7.52
0.69
15
0.92
11.2
1.15
18.8
1.38
22.5
1.6
26.3
1.84
30.1
42°Lux(照度)
3°Lux(照度)
Lux（fc）
2850(265)
695400(64628) 171000(15892) 84000(7807)
765(71.1) 388(36.1)
33200(3086)
216(20.1)
27800(2584)
132(12.3)
19100(1775)
81(7.5)
15000(1394)
60(5.6)
11400(1060)
45(4.2)
3.76
0.23
distance, spot diameter and illumination diagram（Spot model）

ATTACHMENT AND BODY SIZE
7
-2
329
265
433
320
754
567
45
97
509
370
270
117

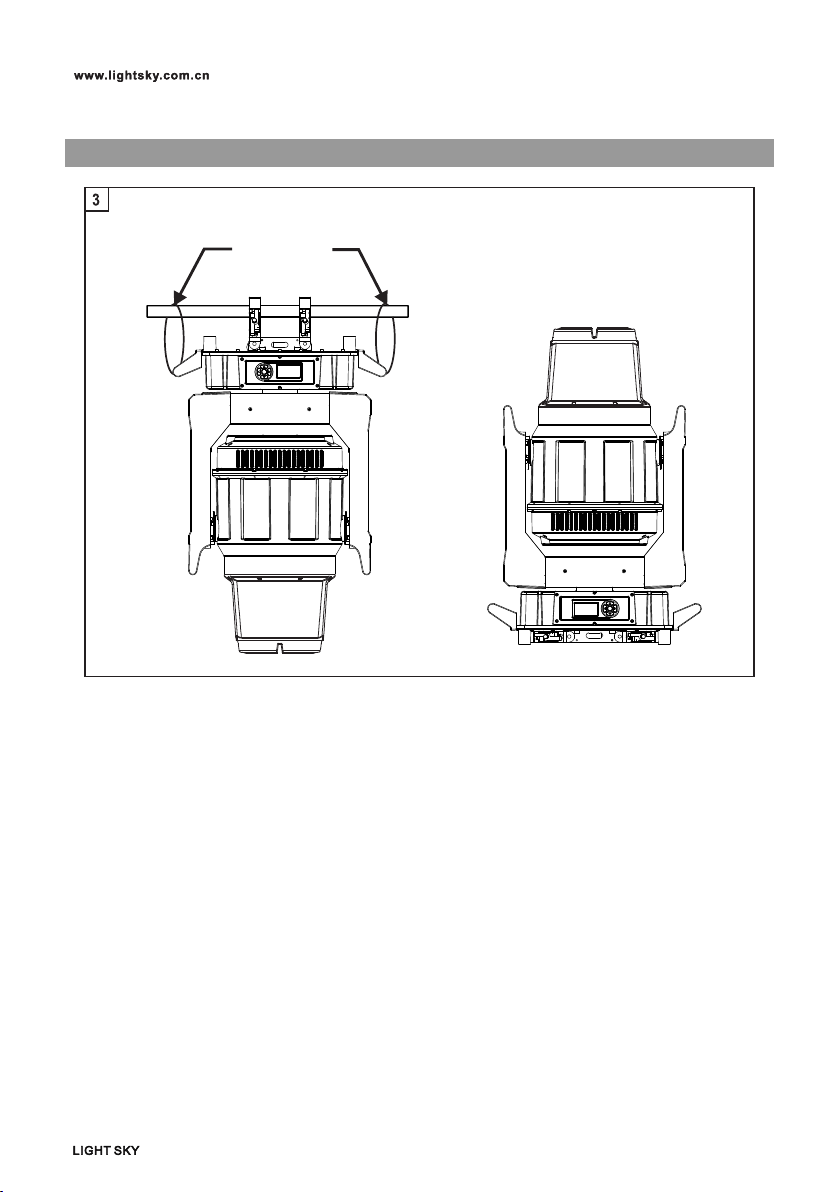

Installing the projector- Fig. 3

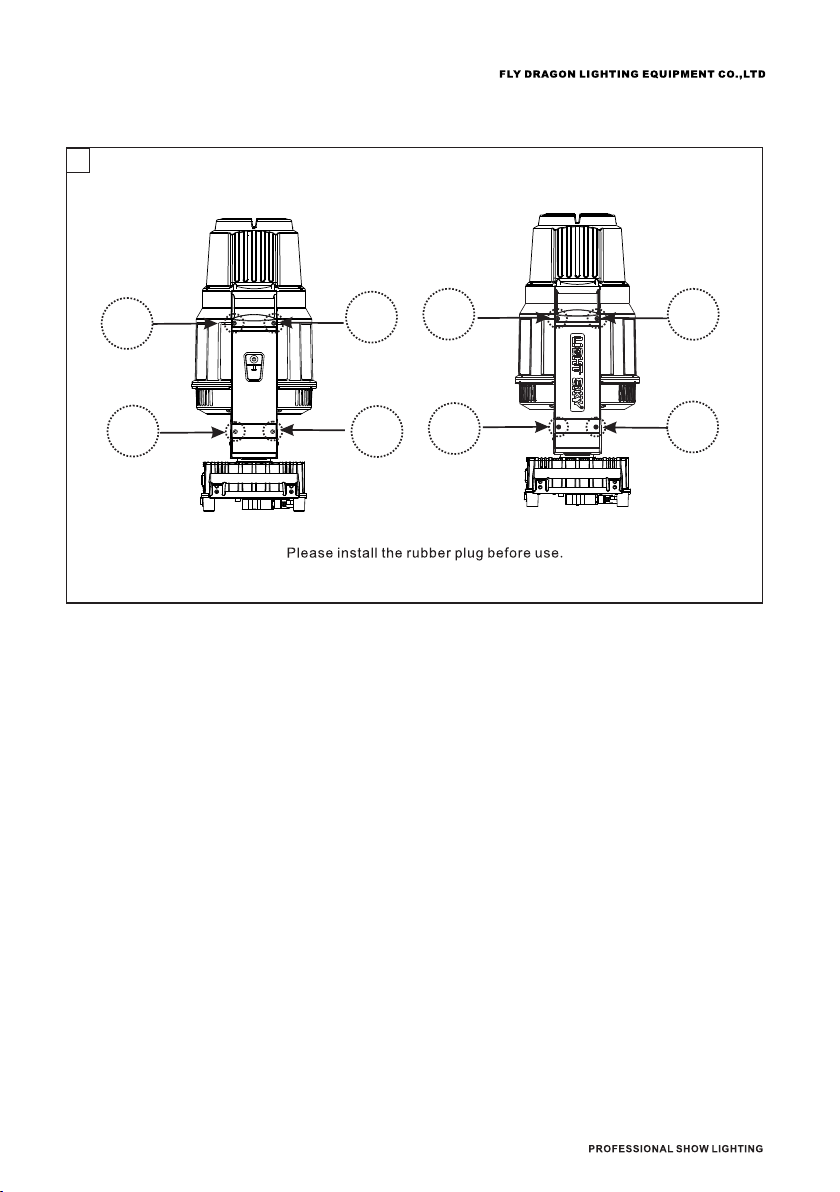

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the base handle.
8
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
When suspending the fixture, ensure that the supporting structure and all hardware used can
hold at least 10 times the weight of all the devices they support.
INSTALLATION AND CONNECTING
Safety rope

9

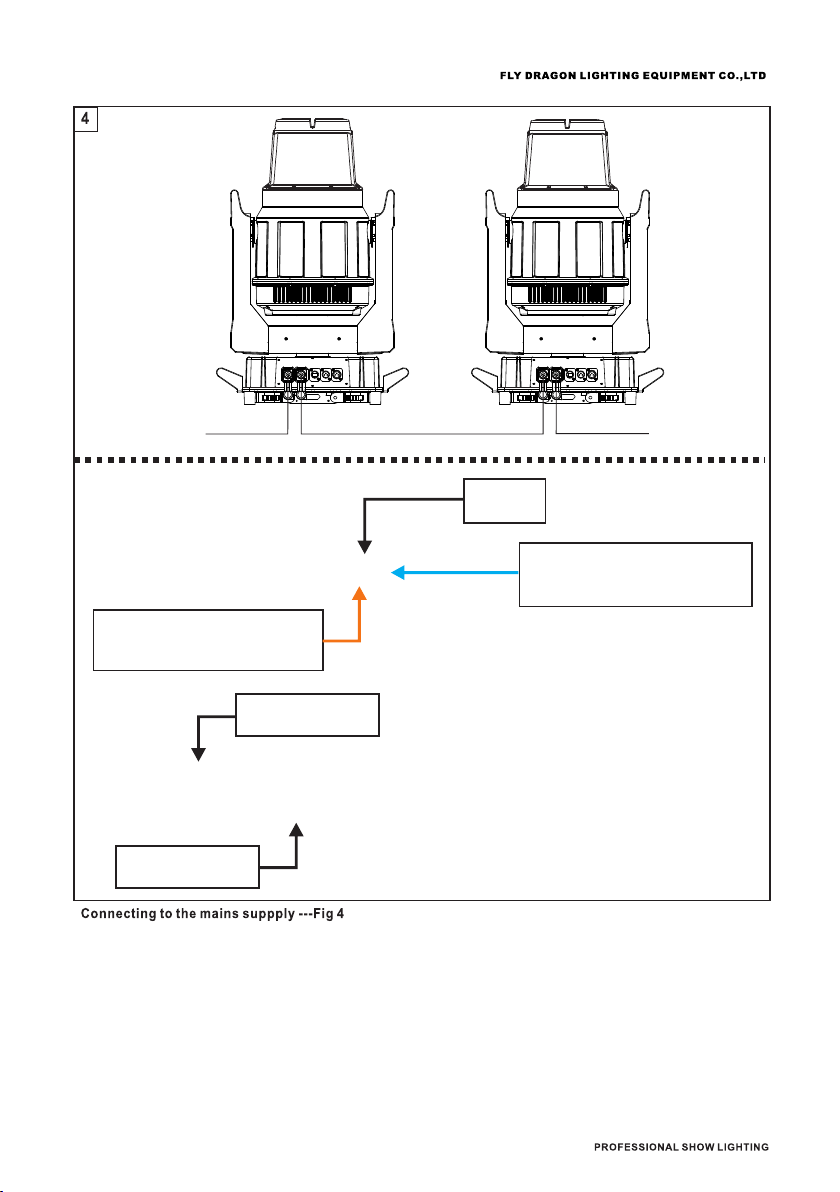

● After doing the above operation and making sure all the devices had been installed with
natural operate, press the power switch to check whether everything is working normally.
● Connection to the eiectricty mains must be carried out by a qualified electrical installer.
● The stage lighting power supply can not be more than 2pcs pre line.
power in power end
out in
The N terminal is connected
with the blue line.
Ground
The L terminal is connected
with the brown line.
Watertight seal ring
Watertight seal ring
●The stage lighting delivers a three-core waterproof plug.

10

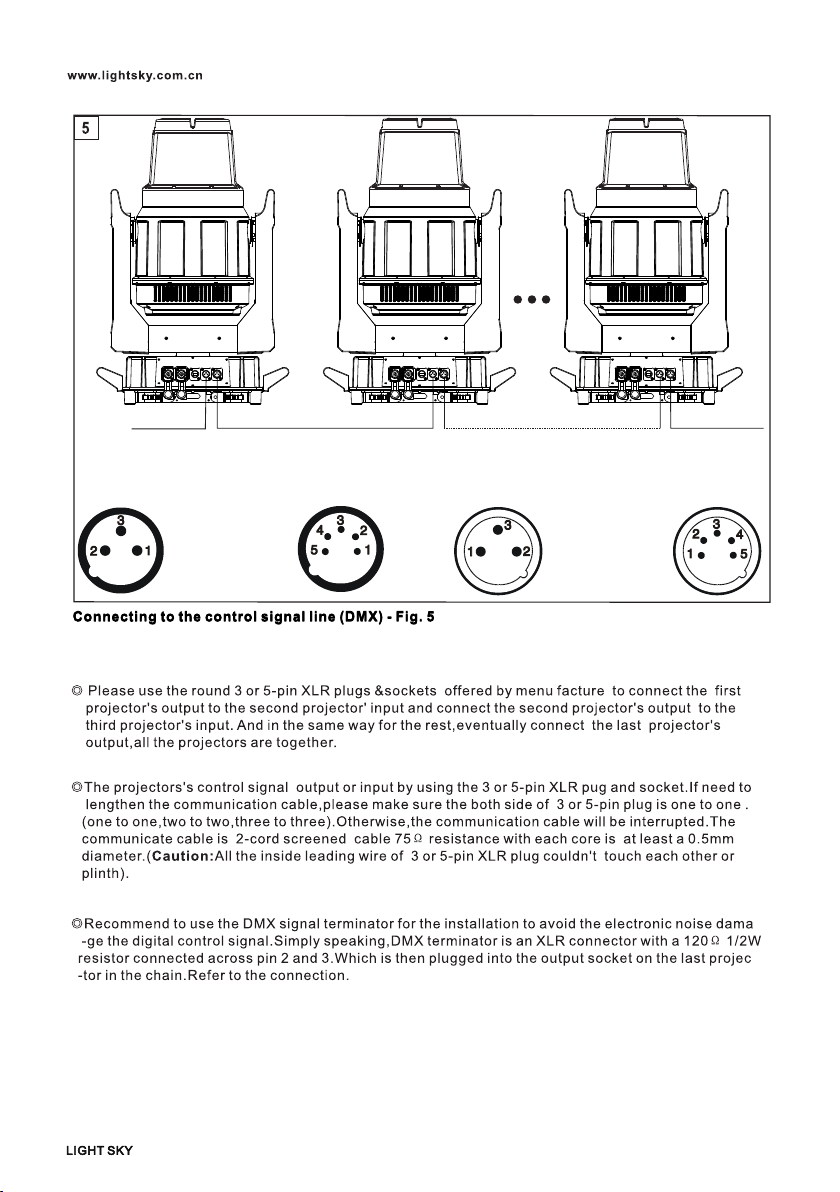

DMX - output
1 - Shield
2 - Signal (-)
- Signal (+)
- Not connected
- Not connected
3
1
2
3
DMX-input
- Shield
- Signal (-)
- Signal (+)
- Not connected
- Not connected
4
5
4
5
DMX512 in
out in out in signal end

11
6

CONTROL PANEL
12
Display
Up arrowhead : page up
Down arrowhead : page down
Left arrowhead : reduce
Right arrowhead : increase
Enter : OK function
Exit : in the choice screen
UP
DOWN
LEFT RIGHT
ENTER
● Press the switch.The projector starts resetting the effects.
At the same time,the following information scrolls on the display
（please refer to the actual material)
DMX:
001 DMX Address Information Personal Manual control
Service Language Reversal
Lamp
8
7

13
DMX Address →Address
:001-512
Information
→
Totel Time →Power :****(h)
Lamp ON :****(h)
Lamp Hours →Total :****(h)
Lamp Open :****(h)
Temperature →
E-ballast:000.0
Out Temp
In Temp :000.0
RDM UID → ***********
Fan speed/Voltag →
1.L_Fan :**.*V
2.Out Fan :**.*V
3.In Fan :**.*V
4.L_Fan :****R
5.OutFan1 :****R
6.OutFan2 :****R
7.OutFan3 :****R
8.In Fan1 :****R
9.In Fan2 :****R
DMX Live →
1.Pan ***
2.Pan Fine ***
3.Tilt ***
4.Tilt Fine ***
5.Functions ***
6.Dimmer ***
7.Shutter ***
8.Cyan ***
9.Magenta ***
10.Yellow ***
11.Colour ***
12.StaticGobo ***
13.Rot Gobo ***
14.Gobo Rot ***
15.Prism 1 ***
16.Prism1 Rot ***
17.Prism 2 ***
18.Prism2 Rot ***
19.PrismMacro ***
20.Macro Rot. ***
21.Frost ***
22.Zoom ***
23.Zoom Fine ***
24.Focus ***
25.Focus Fine ***
26.Focus 2 ***
27.AutoFocus ***
28.Effect Mac
System Version →
XY :V*.**
Gobo ： V*.**
CMYCMY ：V*.**
Fan ： V*.**
Prism ：V*.**
Display ：V*.**
Return(ESC)
Main
menu Ⅰ me nu Ⅱ menu Ⅲ menu

14
Personal →
Auto lamp on →OFF
ON
P/T invert →
Pan invert → OFF
ON
Tilt invert → OFF
ON
Return(ESC)
Display →
Language → English
Chinese
Back Light →
Open
Auto close(15s)
Reversal → Normal
Rota.180
Backlight blink → ON
OFF
Return(ESC)
Return(ESC)
Manual
control →
Channel control
→
1.Pan ***
2.Pan Fine ***
3.Tilt ***
4.Tilt Fine ***
5.Functions ***
6.Dimmer ***
7.Shutter ***
8.Cyan ***
9.Magenta ***
10.Yellow ***
11.Colour ***
12.StaticGobo ***
13.Rot Gobo ***
14.Gobo Rot ***
15.Prism 1 ***
16.Prism1 Rot ***
17.Prism 2 ***
18.Prism2 Rot ***
19.PrismMacro ***
20.Macro Rot. ***
21.Frost ***
22.Zoom ***
23.Zoom Fine ***
24.Focus ***
25.Focus Fine ***
26.Focus 2 ***
27.AutoFocus ***
28.Effect Mac
Return(ESC)
Reset →
System reset
Pan/Tilt reset
Gobo reset
Color reset
Dimmer reset
Zoom reset
Main
menu Ⅰ m e nu Ⅱ menu Ⅲ menu

15
Effects reset
Return(ESC)
Test →
Test P/T → STEP ***
Test effect → STEP ***
Test all → STEP ***
Return(ESC)
Return(ESC)
Service
→
Error list →
Clean error →Keep
List
Empty List
Calibration →
Pan 000-255
Tilt 000-255
Dimmer 000-255
NC/NC 000-255
Focus 000-255
Zoom 000-255
Colour 000-255
Gobo 000-255
Prism 1 000-255
Prism
2
000-255
NC/NC 000-255
Frost 000-255
Cyan
000-255
Magenta 000-255
Yellow 000-255
Rota.Gobo 000-255
Return(ESC)
Factory →
Load default
Reset timers
上电时间
亮灯时间
总时间
Developer
升级字库
LOGO选择
升级LOGO
总运行时间TotelTime
Firmware update
Return(ESC)
return (ESC)
Lamp → Off
On
Language →English
Chinese
Reversal →
Normal
Rota.180
Main
menu Ⅰ m e nu Ⅱ menu Ⅲ menu

16
CHANNEL FUNCTION(V1.0)
10-255 0-100 Pan
20-255 0-100 Pan Fine
30-255 0-100 Tilt
40-255 0-100 Tilt fine
5
Function
0-9 Reserved (0=default)
10-14 Reserved
15-19 Reserved
20-24 Reserved
25-29 Reserved
30-34 Reserved
35-39 Reserved
40-44 Reserved
45-49 Reserved
50-54 Reserved
55-59 Reserved
60-64 Reserved
65-69 Reserved
70-74 Reserved
75-79 Reserved
80-84 Reserved
85-89 Reserved
90-94 Reserved
95-99 Reserved
100-101 Reserved
102-103 Reserved
104-105 Reserved
106-107 Reserved
108-119 Reserved
120-124 Reserved
125-129 Reserved
130 - 139 Lamp On
140 - 149 Pan/Tilt reset
150 - 159 Colour system reset
160 - 169 Gobo
wheels reset
170 - 179 Dimmer/Shutter
reset
180 - 189 Zoom/focus/frost/prism wheels reset
190 - 199 Effect wheel reset
200 - 209 Total reset
210 - 229 Reserved
230 - 239 Lamp Off
240 - 244 Reserved
245 - 249 Reserved
250 - 255 Reserved
6
Dimmer intensity
0 - 255 Dimmer intensity from 0% to 100% (0=default)
7
Shutter/ strobe
0 - 31 Shutter closed
32 - 63 Shutter open (32=default)
64 - 95 Strobe-effect from slow to fast
96 - 127 Shutter open
128 - 143 Opening pulse in sequences from slow to fast
DMX
Percentage
Function
Channel

17
144 - 159 Closing pulse in sequences from fast to slow
160 - 191 Shutter open
192 - 223 Random strobe-effect from slow to fast
224 - 255 Shutter open, Full lamp power
8Cyan
0 - 255 Cyan from min. saturation --> full cyan (0=default)
9Magenta
0 - 255 Magenta from min. saturation --> full magenta (0=default)
10
Yellow
0 - 255 Yellow from min. saturation --> full yellow (0=default)
11
Colour wheel
Continual positioning
0-4 White
5-8 White+Red
9-12 Red
13-16 Red+Orange
17-20 Orange
21-24 Orange+Aquamarine
25-28 Aquamarine
29-32 Aquamarine+Green
33-36 Green
37-40 Green+Light Green
41-44 Light Green
45-48 Light Green+Lavender
49-52 Lavender
53-56 Lavender+Pink
57-60 Pink
61-64 Pink+Yellow
65-68 Yellow
69-72 Yellow+Magenta
73-76 Magenta
77-80 Magenta+Cyan
81-84 Cyan
85-88 Cyan+CTO 260
89-92 CTO 260/CTO2
93-96 CTO 260+CTO 190/CTO2+CTO1
97-100 CTO 190/CTO1
101-104 CTO 190+CTB 8000/CTO1+CTB
105-108 CTB 8000/CTB
109-112 CTB 8000+Blue
113-116 Blue
117-120 Blue+White
121 - 181 Forwards rainbow effect from fast to slow
182 - 188 No rotation
189 - 249 Backwards rainbow effect from slow to fast
250 - 255 Auto random colour selection from fast to slow
Static gobo wheel
0-3 White
DMX
Percentage
Function
Channel

18
12
4-7 Gobo1
8-11 Gobo2
12-15 Gobo3
16-19 Gobo4
20-23 Gobo5
24-27 Gobo6
28-31 Gobo7
32-35 Gobo8
36-39 Gobo9
40-43 Gobo10
44-47 Gobo11
Shaking gobos from slow to fast
48-60 Gobo1 Shake Slow-Fast Speed
61-73 Gobo2 Shake Slow-Fast Speed
74-86 Gobo3 Shake Slow-Fast Speed
87-99 Gobo4 Shake Slow-Fast Speed
100-112 Gobo5 Shake Slow-Fast Speed
113-125 Gobo6 Shake Slow-Fast Speed
126-138 Gobo7 Shake Slow-Fast Speed
139-151 Gobo8 Shake Slow-Fast Speed
152-164 Gobo9 Shake Slow-Fast Speed
165-177 Gobo10 Shake Slow-Fast Speed
178-190 Gobo11 Shake Slow-Fast Speed
191-207 Effect Shake Slow-Fast Speed
208-226 Forwards
gobo wheel rotation
from fast to slow
227-230 No
rotation
231-249 Backwards gobo
wheel rotation
from slow to fast
250-255 Auto
random gobo selection from fast to slow
13
Rotating gobo wheel
I ndex - set indexing on channel 14
0 Open/Hole (0=default)
1-8 Hole (flat field)
9-21 Gobo
1
22-34 Gobo
2
35-47 Gobo
3
48-60 Gobo
4
61-73 Gobo
5
74-86 Gobo
6
87-99 Gobo
7
100-112 Gobo
8
Shaking gobo from slow to fast
Index - set indexing on channel 14
113-125 Gobo 1
126-138 Gobo 2
139-151 Gobo 3
152-164 Gobo 4
165-177 Gobo 5
178-190 Gobo 6
191-203 Gobo 7
204-216 Gobo 8
217-249 Open/hole
DMX
Percentage
Function
Channel

19
250-255 Auto random gobo selection from fast to slow
14
Rot. gobo indexing and rotation
0 - 127 Gobo indexing
128 - 187 Forwards gobo rotation from fast to slow
188-195 No rotation
196 - 255 Backwards gobo rotation from slow to fast
15
Prism wheel 1
This wheel is blocked If Rotating gobo wheel >0 DMX
0-3 Open position/hole (0=default)
Index - set indexing on channel 16
4-15 Prism 3 - 6-facet linear
16-27 Prism 2 - 4-facet 12° circular
28-39 Prism 1 - 8-facet 12° circular
Rotation - set rotation on channel 16
40-51 Prism 3 - 6-facet linear
52-63 Prism 2 - cylindrical
64-75 Prism 1 - 8-facet 12° circular
76-255 Raw DMX
16
Prism wheel 1 indexing/rotation
Prism indexing - set position on channel 15
0 - 255 Prism
1 indexing
Prism
1 rotation - set position
on channel 15
0-3 No rotation
4-34
35-65
66-96
97-127
128-188 Forwards
prism rotation from fast to slow
189-194 No rotation (128=default)
195-255 Backwards prism rotation from slow to fast
17
Prism wheel 2
0-3 Open position/hole (0=default)
Index - set indexing on channel 18
4-15 Prism - 8-facet 18° circular
Rotation - set rotation on channel
16-27 Prism - 8-facet 18°
circular
28-255 Raw DMX
18
Prism wheel 2 indexing/rotation
Prism indexing - set position on channel 17
0-255 Prism indexing
Prism rotation-set position on channel 17
0 No rotation
4-34 Slow → Fast,90°Rotating back and forth
35-65 Slow → Fast,180°Rotating back and forth
66-96 Slow → Fast,270°Rotating back and forth
97-127 Slow → Fast, 360°Rotating back and forth
DMX
Percentage
Function
Channel
Slow → Fast,90°Rotating back and forth
Slow → Fast,180°Rotating back and forth
Slow → Fast,270°Rotating back and forth
Slow → Fast, 360°Rotating back and forth
