Focal Point Ebony LED Electric Fire Assembly Instructions

©2014 Focal Point Fires plc.
INSTALLATION & USER INSTRUCTIONS
All instructions must be handed to the user for
safekeeping.
MODELS COVERED BY THESE INSTRUCTIONS
Ebony LED Electric Fire
WALL MOUNTED ELECTRIC FIRE
Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
1
Revision A - 09/14
GB IE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
Email: [email protected].uk
Questions or problems with your appliance?
Don’t take it back to the store
just give us a call on 01202 588601 we’re here to help
lines open between 9am and 5pm, Monday to Friday
EBONY LED ELECTRIC FIRE

IMPORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE
REFERENCE.
When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person,
including the following:
• This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply
voltage.
• DO NOT switch the appliance on until it is properly installed as described in this manual.
• The heater must not be located immediately above a socket outlet.
• Keep furniture, curtains and other fabric material away from the appliance.
• DO NOT leave the appliance unattended during use.
• From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage.
A damaged cord must only be replaced by a qualified person.
• DO NOT operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
• DO NOT run the mains cable under carpets, rugs etc.
• DO NOT cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.
• Never immerse the product in water or any other liquids.
• DO NOT use this heater where it may come into contact with water e.g. in bathrooms, shower rooms etc.
• DO NOT use the appliance outdoors.
• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool.
• DO NOT clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the
appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not lift the appliance by the decorative fascia.
• DO NOT insert or allow foreign objects to enter the inlet or outlet vents as this may result in electric shock, fire or damage to
the appliance.
• DO NOT install the fire using an extension cord.
• Unplug from the mains supply if the appliance is not to be used for long periods
• CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied
through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.
•CAUTION! Some parts of this product can become very hot and cause burns. Particular attention has to be given where
children and vulnerable people are present.
•WARNING: Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years
and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance
or perform user maintenance.
The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is therefore
necessary for a suitable electrical socket to be located within this distance and be easily accessible. This appliance is designed to
be wall hung, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall. This appliance is
suitable for installation in static holiday/park homes.
©2014 Focal Point Fires plc.
I N S TA L L AT I O N & U S E R I N S T R U C T I O N S
2
GB IE
2.0 INSTALLATION REQUIREMENTS
Section Contents Page No.
1.0 Important Notes 2
2.0 Installation Requirements 2
3.0 Appliance Data 3
4.0 Component Checklist 3
5.0 Site Requirements 3
6.0 Clearances To Combustibles 3
7.0 Unpacking The Appliance 4
Section Contents Page No.
8.0 Installation Wall Mounted 4
9.0 Operating the Appliance 7
10.0 Cleaning and Maintenance 8
11.0 Troubleshooting Guide 9
12.0 Appliance Dimensions 9
13.0 Guarantee - Terms and Conditions 10
1.0 IMPORTANT NOTES

4.0 COMPONENT CHEC LIST
3©2014 Focal Point Fires plc.
3.0 APPLIANCE DATA GB IE
Weight (kg): 15kg

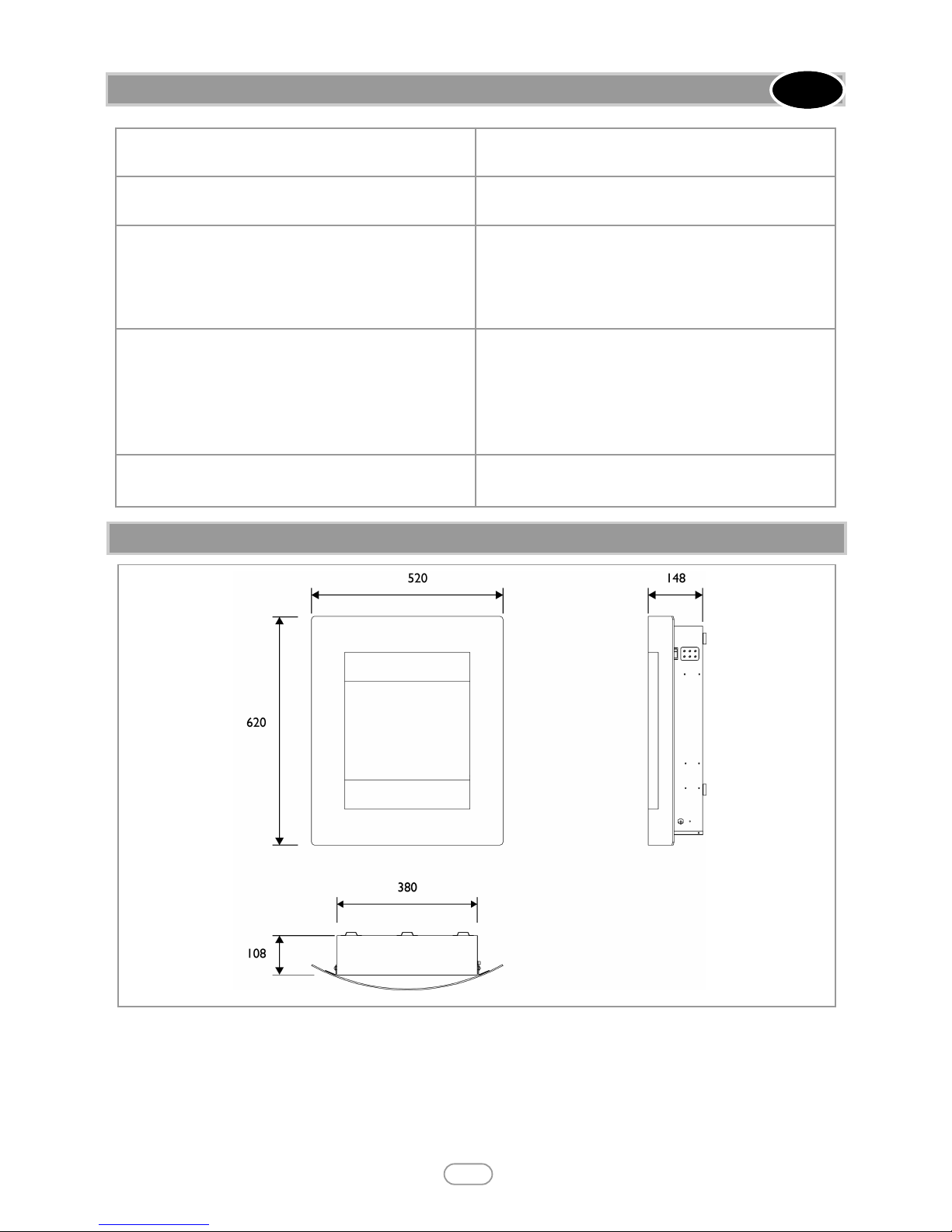

Dimensions: H 620 x W 520 x D 148 (mm)
Supply Voltage: 220~240V AC, 50Hz
Fuse Rating: 13 Amp
Heating Elements: 1500W
Lighting: ED
This fire is fitted with ED’s ( ight Emitting Diode) in place of conventional bulbs. ED’s generate the same light levels as
conventional bulbs, but use a fraction of the energy consumed. ED’s are maintenance free and will not require replacing during
the life of the product.
Quantity Description
1 Heater unit
1 Decorative glass fascia
1 Remote control handset
1 Metal fixing plate
4 Wall plugs
4 Fixing screws
4 Metal plate screw
5.0 SITE REQUIREMENTS
It should be noted that the appliance creates warm convected air currents. These currents move heat from the room
surroundings to, and up the wall surfaces adjacent to the heater.
Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco
smoke) exist, may slightly discolour wall finishing.
If the appliance is to be mounted on a dry lined or timber framed construction then the integrity and ability of the wall to
carry the weight of the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or
structural members of the house frame are not damaged.
If you are unsure of the ability of the wall to carry the weight and/or which type of wall fixing to use, you should take
professional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.
DO NOT
• mount on a ceiling or floor
• recess any part of the appliance into the wall, or run the supply cable under carpets
• site any electrical equipment e.g. plasma screen TV sets etc, on the wall below the appliance.
• site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat
rack
• site behind an opening door where mechanical impact/damage could occur
• site where the supply cable would become a trip hazard
• sit, stand or forcefully pull on the appliance
• obstruct, cover or force items into the openings
• use the heater to dry clothes
• site/use in an outdoor location(s)
It is important that the following clearances are maintained from the appliance to combustible materials. These clearances are
dependent on the mounting location as defined below:
• The minimum distance from the top of the appliance to a ceiling is 300mm
• The minimum distance from the bottom of the appliance to the floor is 300mm
• The minimum distance to the sides of the appliance is 200mm
• The minimum distance to the front of the appliance is 500mm
6.0 CLEARANCES TO COMBUSTIBLES

IMPORTANT - PLEASE READ COMPLETELY THROUGH THE INSTRUCTIONS AND VERIFY THAT ALL LISTED
PARTS ARE PRESENT BEFORE ASSEMBLY.
7.0 UNPAC ING THE APPLIANCE
Caution: This appliance is heavy. Always seek assistance whilst unpacking and/or during installation. Please read
all the instructions before continuing to unpack or install appliance.
Before starting the installation of this fireplace, please read the following:
1. The installation should be carried out by two adults to avoid injury or damage. If for any reason it is considered too heavy,
please obtain assistance.
2. When lifting the fireplace, always keep your back straight. Bend your legs and not your back. Avoid twisting at the waist. It is
better to reposition your feet.
3. Avoid upper body / top heavy bending. Always bend from the knees rather than the waist. Do not lean forward or sideways
while handling the heater.
4. Always grip the heater with the palm of the hand. Do not use the tips of fingers for support.
5. Always keep the heater as close to the body as possible. This will minimize the cantilever action.
6. Use gloves to provide additional grip.
7. Unpack the package and lift the product gently out of the box, put it on a flat surface with the front panel facing up.
4©2014 Focal Point Fires plc.
GB IE
8.0 INSTALLATION WALL MOUNTED
CAUTION: DO NOT CONNECT THE APPLIANCE TO THE
ELECTRICAL SUPPLY AT THIS TIME.
Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages
that may occur due to improper installation or handling.
Remove any protective film coatings from the finished/decorative surfaces of the
appliance, if any. After having selected the final mounting position of the appliance
taking into account the integrity of the wall the firebox of the appliance may be
secured to the wall.
To ensure customer safety, be sure to design the installation so that the strength of
both the wall and any wall fixings used are sufficient. The appliance should not be
installed until all wet plastering and/or dry wall sanding and wall painting has been
completed. Do not block the ventilation holes of the appliance. The wall onto
which the appliance is installed must be flat. Install only on a vertical surface. Avoid
sloped surfaces. Installation onto anything other than a vertical wall may result in
fire, damage or injury.
If the appliance is to be mounted on the inner leaf of a conventional cavity brick
wall, or a solid wall, then the wall plugs and fixing screws provided may be used.
Depending on the condition of the wall it may be necessary to use additional fixings.
In this situation, any additional fixings and wallplugs should be of the same size and
type as the ones provided.
The wall where the appliance is to be
installed must be capable of
long-term support of the total load of
the appliance. Measures should also
be taken to ensure sufficient strength
to withstand the force of
earthquakes, vibration and other
external forces. Plasterboard alone is
not considered to be a structural
material. It is not recommended to
rely on plasterboard fixings alone to
support the weight of the appliance.
WARNING

If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then efforts should be made to fix
in at least two positions vertically, into one of the wooden studs, or supporting wooden members of the wall using the fixing
screws provided. If this is not achievable then the wall should be strengthened using appropriate building materials.

8.0 INSTALLATION WALL MOUNTED - CONTINUED GB IE
Installing the wall plugs into the wall.
1. Drill 4 holes (8mm diameter, 40mm deep) into wall.
2. Insert the supplied wall plugs into the drilled holes.
3. Please refer to the diagram for hole locations.
Please note: Before drilling into walls, always check that
there are no hidden wires, pipes, etc.Make sure that
screws and wall plugs supplied are suitable for
supporting the unit in your surface. Consult a qualified
person if you are not sure
5©2014 Focal Point Fires plc.
Installing the fixing screws into the wall.
1. Insert three of the fixing screws into the top three wall plugs.
Installing the metal fixing plate to the back of the fire
1. Carefully place the fire on it’s front.
2. Align the metal fixing plate (A) with the screw holes located at
the back of the fire box.
3. Use two of the metal plate screws to fix the metal fixing plate
to the firebox.
4. Ensure the metal fixing plate is securely attached.

8.0 INSTALLATION WALL MOUNTED - CONTINUED GB IE
6©2014 Focal Point Fires plc.
Securing the fire to the wall.
1. Insert one of the fixing screws into the hole of the
metal fixing plate.
2. Fully tighten the screw to secure the fire to the wall.
3. Ensure the fire is secured to the wall.
Hanging the firebox onto the wall
1. Check to make sure the fixing screws are securely
attached to the wall.
2. ift the firebox and hang on the fixing screws.
Installing the front fascia.
1. Hold the glass fascia securely and hang it onto the
firebox hooks, which are located on both sides of the
firebox.
2. The glass fascia should be secured on all four firebox
hooks.
3. Check to make sure the glass fascia is securely in place.

8.0 INSTALLATION WALL MOUNTED - CONTINUED GB IE
7©2014 Focal Point Fires plc.

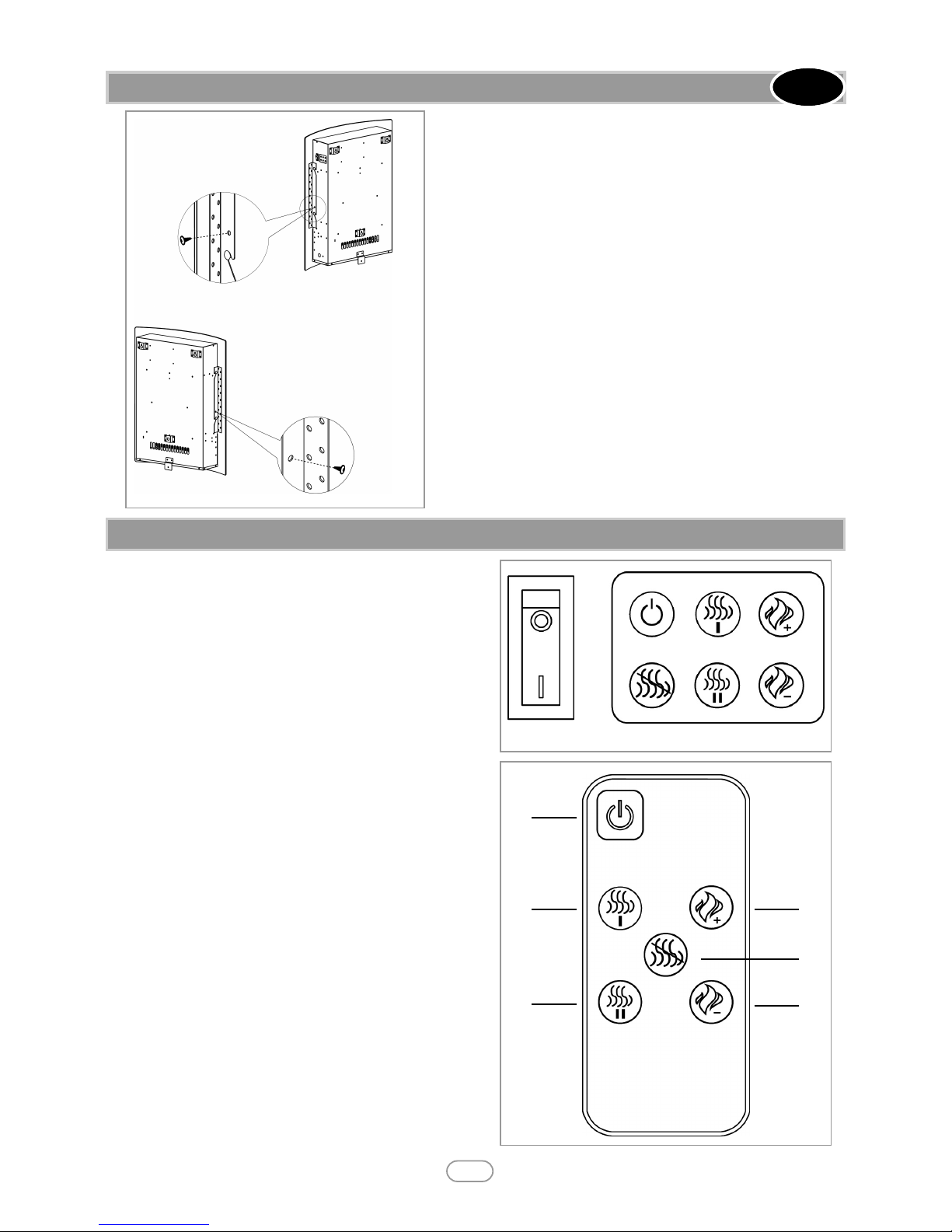

Securing the front fascia.
1. ocate the hole on both left and right sides and insert a
screw
through the hook, into the fireplace insert.
2. Tighten screw to pass it through the hook, on both
sides.
3. Ensure the front fascia is secure.
Note: Tighten up the screw carefully, to avoid damage to
the front panel
9.0 OPERATING THE APPLIANCE
On the top right side plate of the Electric there is the control panel
(see figure 1). This panel contains the buttons to properly operate the
electric fire. The buttons on the control panel on the side of the
Electric Fire and the Remote Control function in the same way. The
remote control has an effective range of up to 13 feet.
To turn unit on, press the main ON/OFF switch from "0" to "I". The
switch will illuminate and it will beep one time. The unit will go into
standby mode. To turn it off, please press the switch from "I" to "0".
Now you can use either buttons next to the main ON/OFF switch
or remote control to control the appliance.
1. On/Off
2. Heater low (750W)
3. Heater high (1500W)
4. Flame effect level up
5. Heater off
6. Flame effect level down
2.
3.
1.
4.
6.
Figure 1.
5.

8
9.0 OPERATING THE APPLIANCE - CONTINUED GB IE
©2014 Focal Point Fires plc.
Remote Control
The fire is supplied with an IR multifunction remote.
Before the remote will operate the plastic insulating sheet needs
to be removed.
Battery Replacement
Battery Requirements: CR2025
1. ocate and remove the battery bracket.
2. The battery has two sides, one with a button feature, and the
other is flat.
3. Insert the battery with the button side down into the battery
bracket, making sure the battery is firmly seated.
Power Button
Press this button once to turn on the fire and press it again to turn it back to
standby mode.
Heater Buttons
The heater buttons allows you to chose from either 750W or 1500W of heat
depending on which button you press. The low button will give you 750W of heat and
the high button gives you 1500W of heat.
Heater Off Button
This button will turn off the electric fan heater.
Flame Effect Buttons
The flame effect buttons allows you to adjust the flame effect levels by pressing the
buttons. The level up button will allow you to increase the flame effect and the flame
effect level down will allow you decrease the flame effect level.
ALWAYS DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY OUTLET
SOC ET BEFORE UNDERTA ING ANY CLEANING OR MAINTENANCE!
For general cleaning use a soft clean duster - never use harsh abrasive or cleaners. The glass viewing screen should be cleaned
carefully with a soft cloth.
If in doubt consult a qualified electrician. Refer to Section 3.0 Appliance Data for fuse specification. Excluding fuses, use only
genuine manufacturers spare parts available from your supplier.
Replacing the remote control battery:
When the battery becomes weak, the range of the remote control becomes shorter. Replace the battery with a new CR2025
lithium battery.
Note: Keep the lithium battery out of the reach of children.
10.0 CLEANING AND MAINTENANCE

11.0 TROUBLESHOOTING GUIDE GB IE
9
12.0 APPLIANCE DIMENSIONS
Dimensions in mm
Fire is not switching on Ensure mains switch is on
Replace the fuse in the plug
Logs glow but flame effect does not work Check to see if the spinning motor is working. If not contact
Focal Point Fires
Heater doesn't work, but Power and Heater
switches / buttons are in the "ON" position
Turn all switches / buttons to the "OFF" position and unplug
the unit from the wall outlet for 5 minutes.
After 5 minutes plug the unit back into wall outlet, and
operate as normally.
Fire seems noisy There is a level of noise when the flame effect is in use,
caused by a motor that helps generate the effect. This noise
will be heard when there is no other background noise.
There is a higher level of noise associated with the heater
motor; this is due to the air flow required when heat has
been selected.
Remote is not operating Check or replace batteries.
©2014 Focal Point Fires plc.

The 3 year guarantee only covers products purchased on or after 1st February 2009. For all gas fires purchased the 3 year
guarantee commences from the date of purchase, provided that the following 3 terms and conditions are adhered to:
For all electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the
proof of purchase. This does not cover consumable items such as pebbles, coals or light bulbs. Purchase(s) must be made
through an authorised stockist.
Making a claim
Making a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have
been met then please submit the following information for the attention of the 3G Service Department to the address below.
Alternatively, you can email or fax.
Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT.
Email: [e-mail],
Fax. [phone].
Details required:
1. Name, full address including postal code and contact telephone number.
2. A copy of your proof of purchase e.g. receipt or bank statement.
3. Original installers Gas Safe registration number (gas fires only).
4. Annual service receipt for every 12 months (gas fires only).
13.0 GUARANTEE - TERMS AND CONDITIONS GB IE
10
F861290
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.
©2014 Focal Point Fires plc.
