Focal Point KENSINGTON REALITY User manual

INSTALLATION, SSERVICING AAND
USER IINSTRUCTIONS
All iinstructions mmust bbehhanded ttotthe uuser ffor ssafekeeping
Revision A 01/99
Country(s) of destination: GB, IE
Focal Point Fires plc, Avon Trading Park, Christchurch, Dorset BH23 2BT
: [phone]
Fax: [phone]
www.focalpointfires.co.uk
e-mail: [email protected]
KENSINGTON
REALITY
Coal eeffect
gas ffires

IMPORTANT NNOTES
This fire is an Inset Live Fuel Effect Gas Fire providing radiant and convected warmth. It is designed to operate on
Natural Gas or LPG (Propane) depending upon factory set adjustments. See Data Plate on appliance for gas type.
It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered
fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British
Standards for Installation, Codes of Practice and in accordance with the Manufacturers’ Instructions. The
installation shall also be carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
BS 5871 part 2
BS 5440 part 1
BS 8303
BS 1251
BS 6891
BS 6461 part 1
BS 5482 part 1 (for LPG appliances)
Failure ttoccomplyywwith tthese rregulations ccould llead ttopproseccution aand ddeem tthe wwarrantyy
invalid.
This aapplianccemmust bbeiinstalled iinaaccccordanccewwith tthe rrules iinfforcceaand uused oonlyyiinaa
sufficcientlyyvventilated sspacce.
Consult aall iinstrucctions bbefore iinstallation aand uuse ooftthis aappliancce.
This aappliancceiisffree ffrom aanyyaasbestos mmaterial. RRefracctories aand ccoal bbed aare cconstruccted
from cceramiccffibre.
1
Secction
1.0
2.0
3.0
4.0
4.1
5.0
6.0
7.0
7.1
8.0
8.1
8.2
8.3
Contentss
Important Notes
Appliance Data
Installation Requirements
Site Requirements
Debris Collection Space
Ventilation
Flue Box
Unpacking the Appliance
Component Checklist
Installation of Appliance
Preparing the Appliance
Preparing the Opening
Gas Supply Routing
PaggeNNo.
1
2
2
3
4
4
5
5
6
6
6
7
7
Secction
8.4
8.5
9.0
10.0
11.0
11.1
11.2
11.3
12.0
12.1
13.0
14.0
15.0
Contentss
Cable Fixing
Fitting the Burner Tray

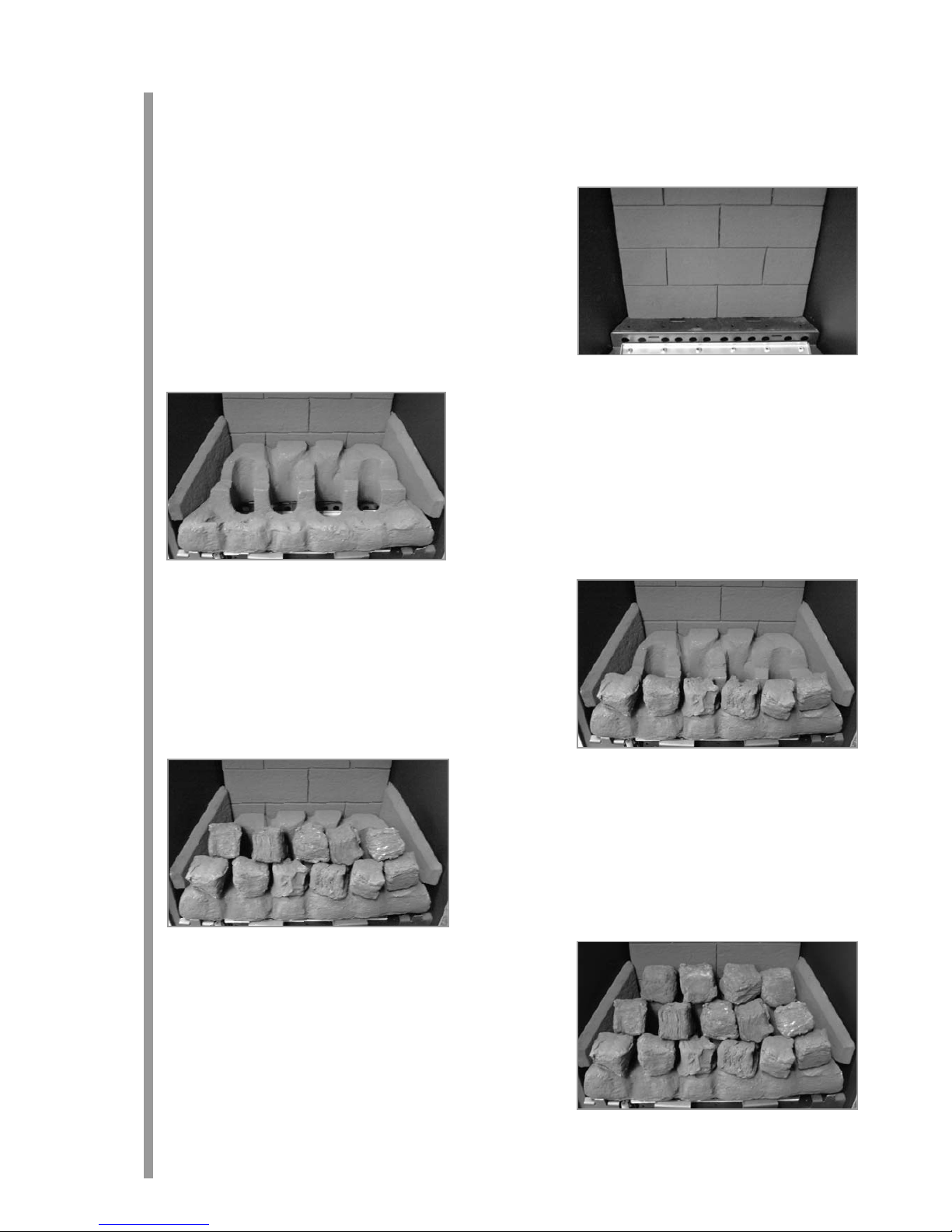

Fuel Bed Layout

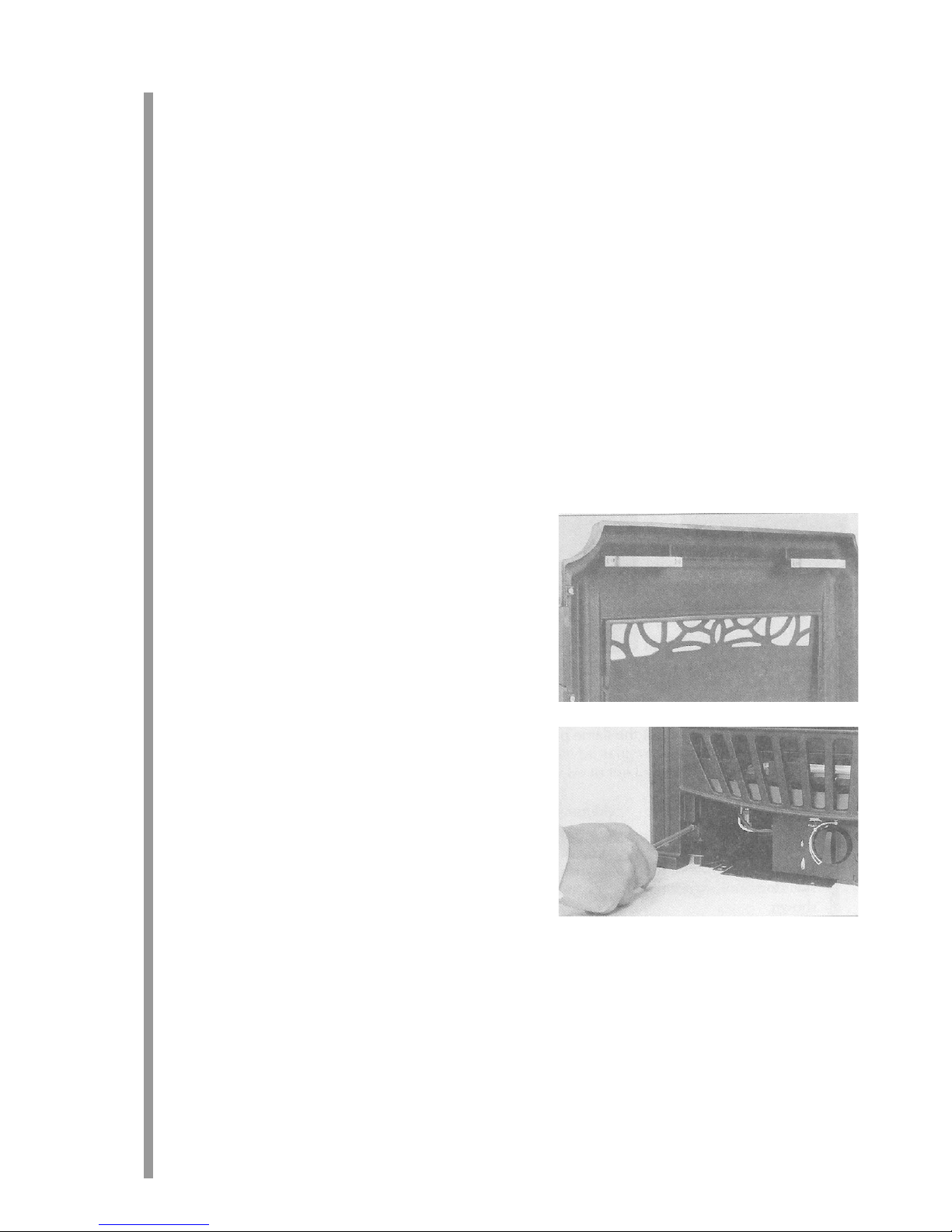

Fitting the Casing
Testing and Commissioning

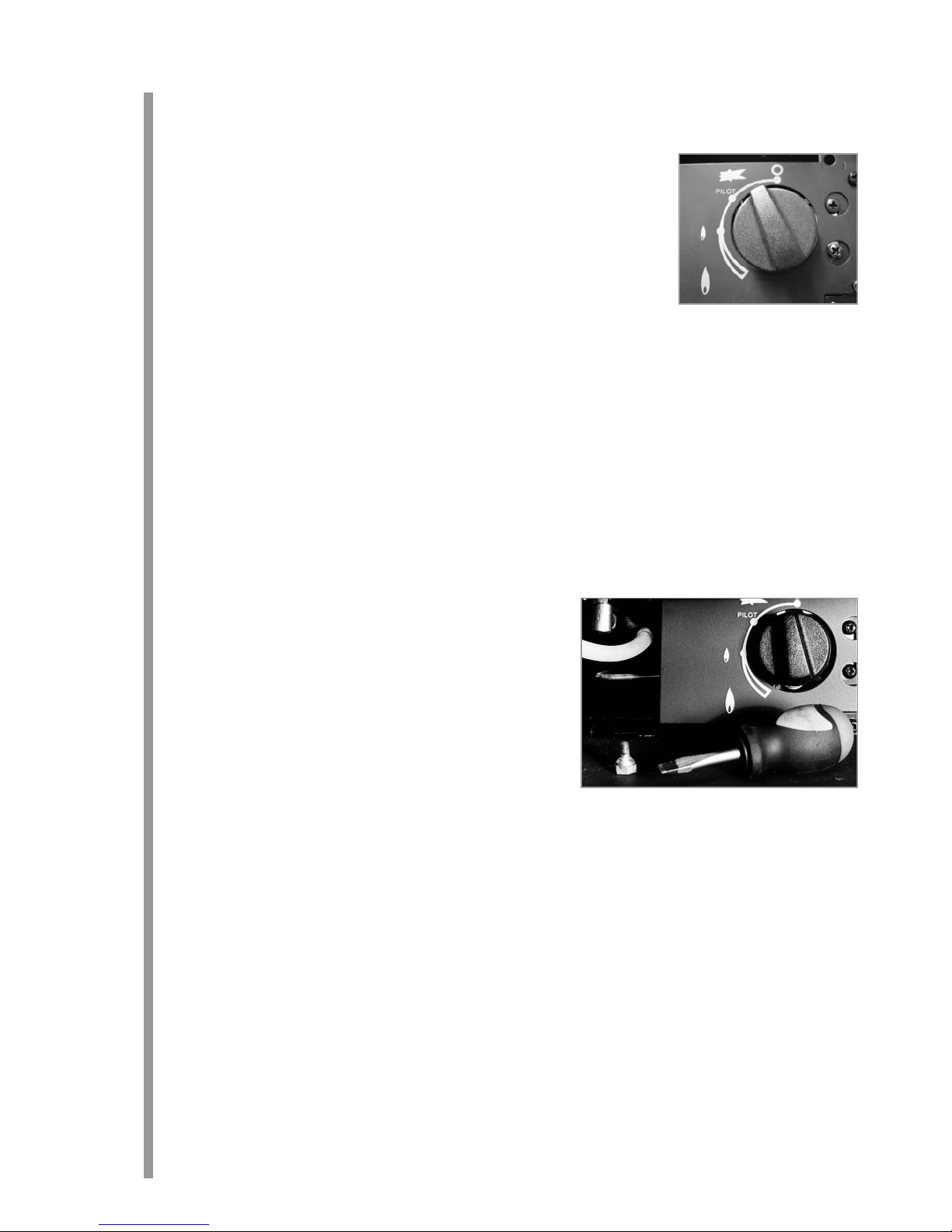

Operating the Appliance
Spark Failure
Setting Pressure
Spillage Monitoring System
Testing for Spillage
Briefing the Customer
Servicing
Troubleshooting Guide
PaggeNNo.
8
8
9
10
10
10
11
11
11
12
12
13
15
Note - FFor RRepubliccoofIIreland, rreferencce
sshould bbemmade ttotthe rrelevant sstandardss
ggoverninggiinsstallation, pparticcularly iinrreggard
to fflue ssizinggaand vventilation. SSee IIS813,
ICP3, IIS3277aand aany oother rrulessiinfforcce.
1.0

INSTALLATION RREQUIREMENTS
The LPG (propane) version of this appliance MUST NOT be installed into a basement, or into an area that is
entirely or partially below ground level.
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be
present. The fire has been designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and
meeting certain dimensional requirements), or a suitable flue box complying with the constructional
requirements of BS 715. The flue box must be installed onto a suitable non-combustible insulating surface at least
12mm thick, covering the entire base area of the box.
The flue must have an effective height of at least three meters, as measured from the hearth to the top of the flue.
Any flue damper plates or restrictors should be removed and no other restriction fitted to the flue. Where removal
is not practical, the restriction must be fixed in the fully open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney
must be swept prior to appliance installation. Pre-cast flues must be checked for mortar fangs and correct
installation of joints, flue sections in loft space and terminals. The flue must be checked before installation by
using a smoke pellet or similar to ensure proper draw and that leakage is not evident at any joints. Repair and
re-test as necessary before the appliance is installed.
The flue must be connected to only one fireplace, and the flue must not vent more than one appliance (i.e. not
shared with a gas back boiler). There must be no opening in the flue apart from the one that the appliance is
installed into, and the one venting the gases into the air. A suitable terminal may be fitted, such as class GC1, as
regulations allow.
This appliance has been tested for use in pre-cast flues of a minimum free internal area of 12500 sq.mm (19.37
sq. ins). In accordance with BS 1289 part 1, pre-cast flues built with directly plastered faces (front or rear) are not
correctly installed as to ensure proper operation with
any
type of gas fire. In some instances of this flue
construction, temperature cracking of the surface plaster may occur through no fault of the appliance. An air gap
or some form of insulation material should be installed to prevent normal flue temperatures from damaging wall
surfaces.
This appliance is suitable for use with a “lightweight” surround and back panel of 150C minimum rating.
2
APPLIANCE DDATA
Gas Group G20 Natural Gas CAT I2H G31 Propane CAT I3P
Inlet Pressure 20 mbar 37 mbar
Max Energy Input (gross) 6.2 kW 6.2 kW
Min Energy Input (gross) 3.5 kW 3.5 kW
Pilot Energy Input (gross) 210 W 210 W
Setting Pressure 17.1 mbar 36.6 mbar
Main Injector Burner Stereo size 77 Stereo size 130
Gas Inlet Connection 8mm compression 8mm compression
Ignition Piezo spark Piezo spark
Spark Gap 3.5 to 4.5mm 3.5 to 4.5mm
Weight (Pack1) 20 Kg 20 Kg
(Pack 2) 16 Kg 16 Kg
Please see Data Badge affixed to appliance for current data.
This aappliancceiisffor uuse oonlyywwith tthe ggas ttyype, aand aattthe ppressure sstated oontthe aappliancce
Data BBadge, aand iisffor ddeccorative ppurposes.
2.0
3.0

SITE RREQUIREMENTS
The fireplace opening should be inspected and repairs made where necessary. Any chair brick or fireback may
be left in place.
The opening
WIDTH
and
HEIGHT
dimensions should be between 300mm and 440mm wide, and 505mm to
570mm high. For flues previously used with solid fuel the minimum
WIDTH
is 380mm.
Opening
DEPTH
should be 100mm or greater for a clay/cement lined or pre-cast flue which is new, unused or
previously only used with a gas fire. DEPTH should be 140mm or greater for a flue which has previously been
used for a solid fuel or oil burning appliance. Opening
DEPTHS
include any plaster or infill panels which form part
of the installation.
This appliance requires a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS 715.
Pre-cast block flue complying with BS 1289 with minimum free internal area of 12500 sq.mm.
Any existing under grate draught device must be sealed off.
The opening wall must be non-combustible.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top surface must be at
least 50mm above the surrounding floor level, or be surrounded by a raised edge or fender 50mm high.
To enable the product of combustion to be cleared properly up the flue, the outlet at the back of the appliance
must have a 50mm minimum clearance between it and the back wall of the opening or any other obstruction.
The area immediately above the outlet must form a smooth path into the flue.
3

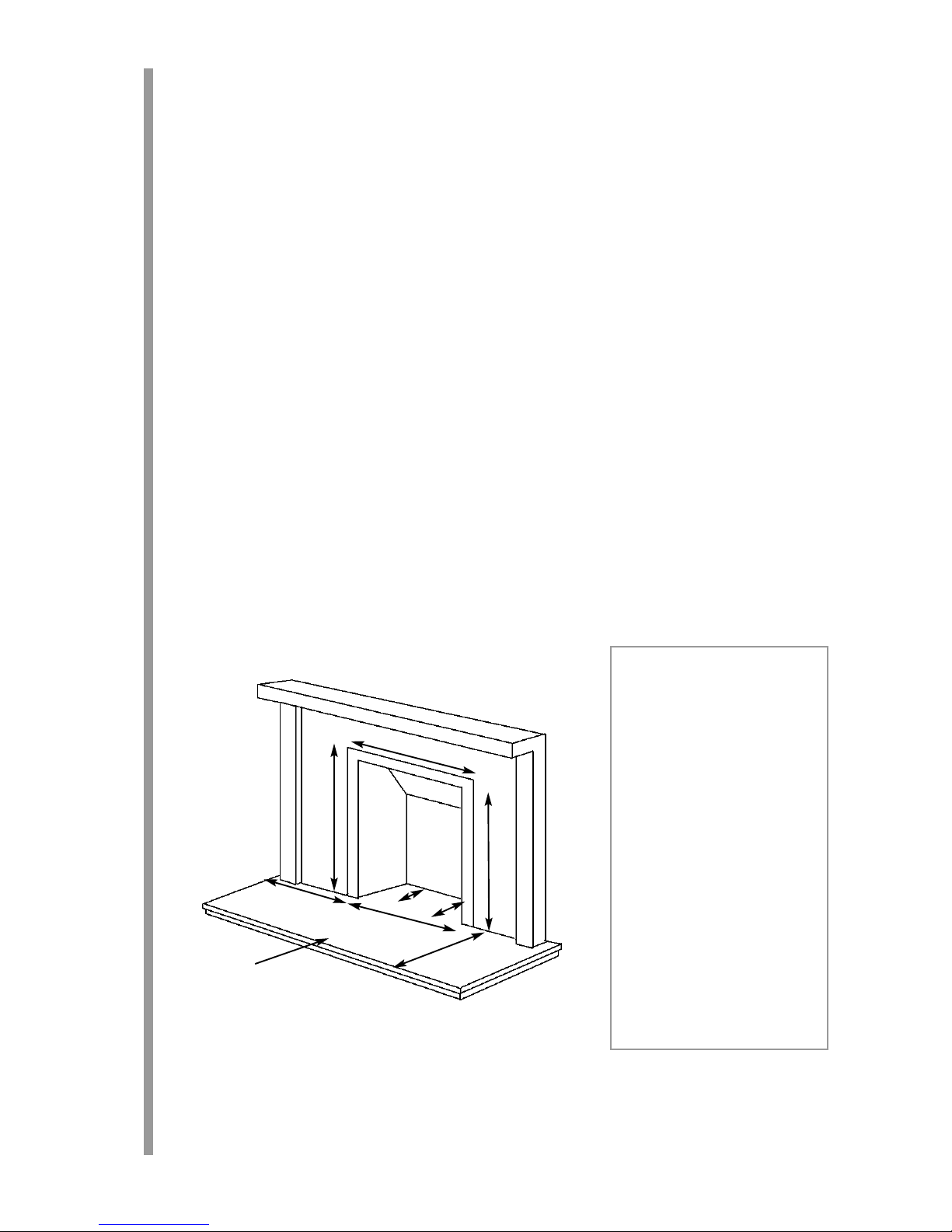

A
C
D
B
E
F
A. Opening height: 505mm
min/570 mm max.
B. Opening width: 300mm
min/440mm max.
C. Mounting depth: 80mm
D. Hearth must extend minimum
of 150mm either side of the
opening.
E. Hearth must extend minimum
of 300mm in front of the firebed.
F. Non-combustible hearth must
be a minimum of 50mm in height,
or be surrounded by 50mm high
fender.
G. 510mm: This area must be flat
and vertical to allow good frame
sealing.
H. 615mm: This area must be flat
and vertical to allow good frame
sealing.
X. SSee ssecction 44.1.
4.0
G
H
X

SITE RREQUIREMENTS ((continued)
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.

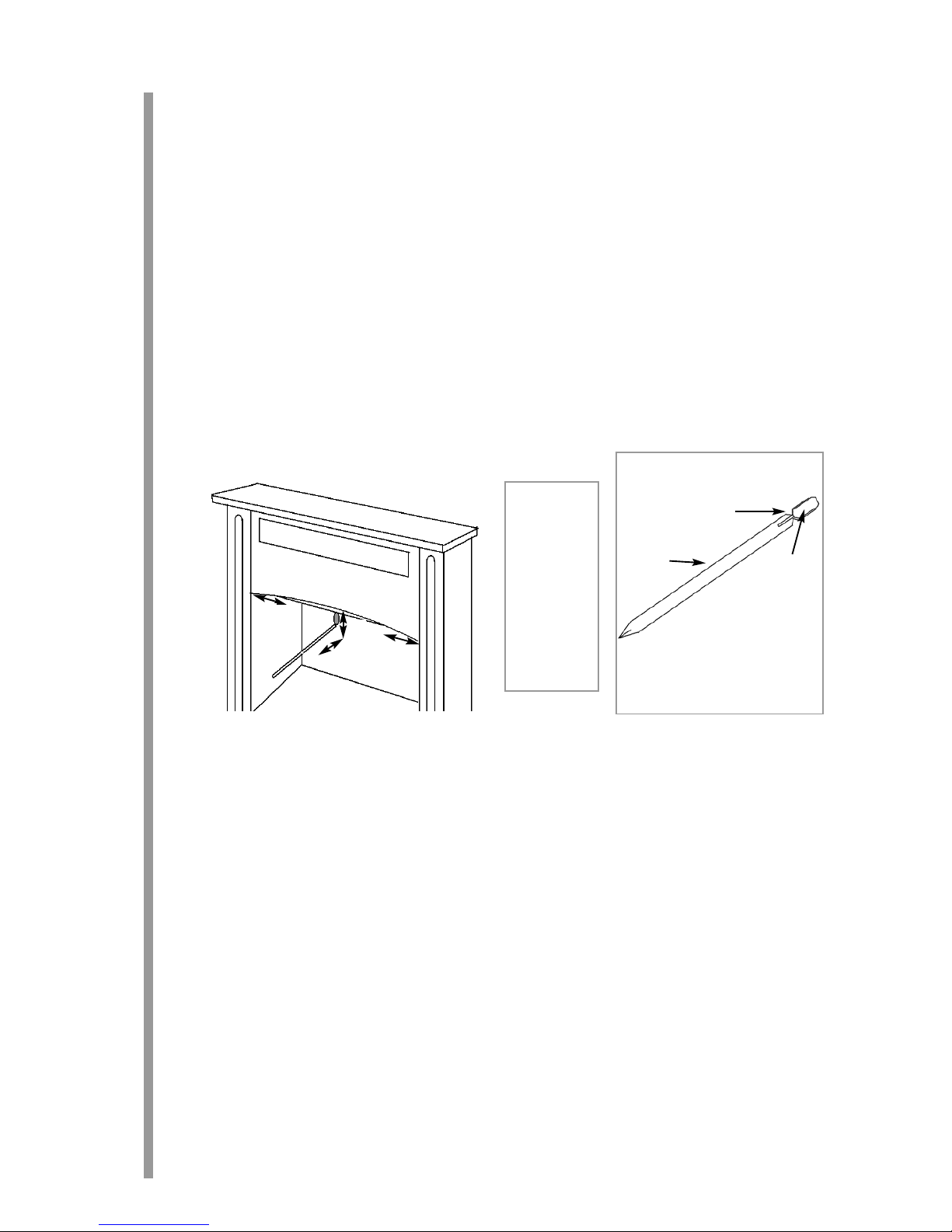

A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given
below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the fireplace
opening, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
DEBRIS CCOLLECTION SSPACE
The mounting depth of this appliance is 80mm.
In accordance with BS 5871 part 2, minimum debris collection volumes are required behind the installed
appliance. These are shown in the table below and as dimension X on the fireplace diagram shown previously.
CLAAY/CEMENT LLINES OORBBLOCK FFLUE WWHICH IISNNEW, UUNUSED, OORPPREVIOUSLY OONLY UUSED WWITH AA
GAASFFIRE.
XDDimension ==220mm
UNLINED FFLUE OORCCHIMNEY WWHICH HHAASBBEEN PPREVIOUSLY UUSED FFOR AASSOLID FFUEL OOROOIL BBURNING
AAPPLIAANCE
XDDimension ==660mm
VENTILATION
No ppurpossepprovided vventilation iissnnormally rrequired ffor tthissaappliancce
. The requirements of other appliances
operating in the same room or space must be taken into consideration when assessing ventilation.
If spillage is detected when commissioning the appliance, there may be insufficient natural ventilation for correct
operation of the flue. Installation of an air brick is the best solution to this problem. Any ventilation fitted must
comply with BS 5871 part 2 and BS 5440 part 2.
Spillage detected during commissioning is almost always a result of poor flue performance that cannot be
corrected by any amount of ventilation.
For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.
4
Maximum ddepth oofsshelf MMinimum ddisstancceffrom iinsside eedggeoof
fire fframe ttouundersside oofsshelf
100mm (4in) 203mm (8in)
150mm (6in) 305mm (12in)
203mm (8in) 356mm (14in)
4.0
4.1
5.0

PREFABRICATED FFLUE BBOXES
This appliance can be fitted into a number of proprietary flue boxes provided that the minimum dimensions given
in the diagram below are complied with.
Consstrucctional NNote:
The frame of the fire, any back panel or other infill panels, and the flue box must be sealed
together so that there is no possibility of leakage between them. Adequate clearances to combustible materials
(e.g. false chimney breast construction) must be maintained.
The mmanufaccturerss’iinsstrucctionssffor ffittinggtthe pprefabriccated bbox sshall bbeccomplied wwith aataall ttimess.

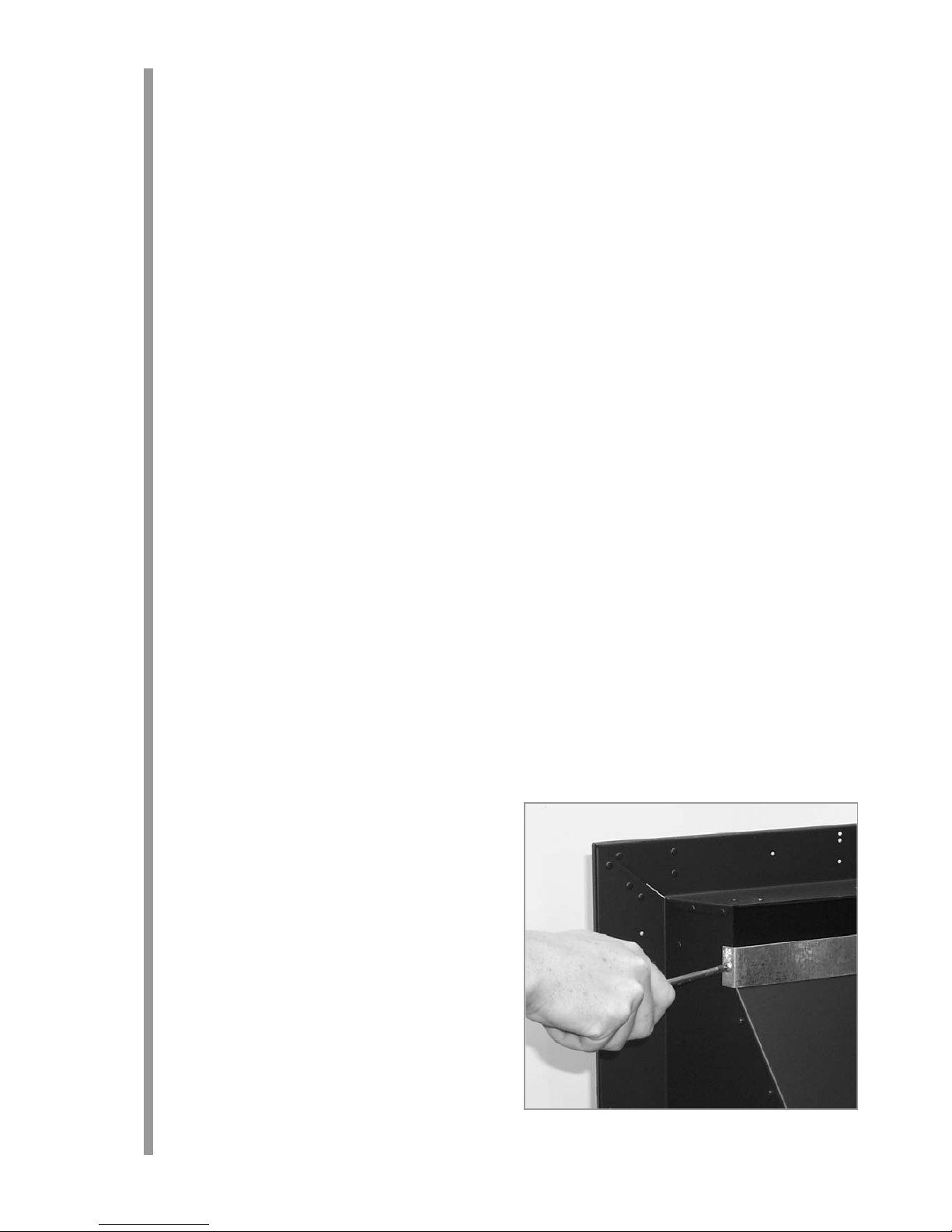

To fit the fire using the cable fixing kit, some minor adaption may be necessary for certain flue boxes.
A check should be made to ensure the firebox does not obscure the flue box outlet.
The firebox, base of the flue box, and hearth below may be drilled to allow plugs and screws to secure
installation.
It is important that the sealing requirements of the appliance are met at all times and that the flue box is well
sealed to any back or infill panel.
Note:
The DEPTH dimension is inclusive of any back or infill panel.
UNPACKING THE APPLIANCE
Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read
all
the instructions
before continuing to unpack or install this appliance.
Remove the box containing the cast front fret, and the bags containing the coals. Remove the cardboard packing
pieces, and any other bags or boxes containing fittings or other parts. When all loose parts have been removed,
the outer sleeve may be lifted off to reveal the appliance. Check that the components supplied correlate with the
component checklist given in section 7.1. Please dispose of all the packaging materials at you local recycling
centre.
5
125mm min internal
dia twin wall flue
505mm min
opening height
300mm min
opening width
140mm
min depth
6.0
7.0

COMPONENT CCHECKLIST
QUAANTITY DESCRIPTION
1 Firebox and burner tray assembly.
1 Moulded ceramic fibre combustion matrix.
15 Individual ceramic coals.
2 Ceramic fibre side cheeks
1 Ceramic brick panel.
1 Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 fixing eyes, 4 rawlplugs
1 Sealing grommet
3 Lengths of adhesive sealing strip.
1 Self tapping screw pack; 4 No8 x 5/16, 2 No8 x 1.
1 Deflector baffle
1 Blanking plate plus M4 x 12 screws
1 Set of manufacturers instructions and warranty card.
1 Pack 2 containing full cast fire case and ashpan door.
INSTALLATION OF AAPPLIANCE
Note: EEnssure tthat tthe ggassssupply iissiissolated bbefore ccommenccinggiinsstallation ooftthe aappliancce.
The fireplace opening and environment must be in compliance with specifications laid down in the appropriate
sections of these instructions.
PREPARING TTHE AAPPLIANCE
Remove the appliance from it’s carton as described previously and stand on a dust sheet or similar. Place the
coals, ceramics and fixings safely to one side.
Remove the burner from the assembly by removing the two screws in the data/control plate. Lift away the plate,
and remove the two screws retaining the tray legs. The tray is now free and may be lifted away.
Knock out holes are provided in the rear of the convector box for use where concealed pipework is required.
Knock out the holes with a sharp tap from a hammer and fit the rubber grommet supplied. A small incision can
now be made in the rubber to slip snugly around the outside of the supply pipe and sleeving.
Note: DDO NOT
install or use the appliance without this
seal in place.
If the hole is inadvertently opened, reseal with an intact
grommet. Failure to fit this seal correctly will cause the
flue suction to act upon the area under the burner result-
ing in poor performance.
SPIGOT RESTRICTOR.
If fitting the fire into a Class 1or
good Class 2 flue, attach the spigot restrictor to the rear
of the appliance using screws provided.
If spillage is detected during the commissioning of the
appliance, the spigot restrictor should be removed
immediately
6
7.1
8.1
8.0

PREPARING TTHE OOPENING
Before installing the fire, check the flue for correct operation using a smoke pellet. All of the smoke should be
drawn up the flue and exit correctly from the terminal. If problems are found DO NOT fit the fire until corrective
action is completed.
Protect the decorative hearth whilst pushing the convector box in and out of the opening. Part of the packaging
is an ideal hearth saver pad.
Before running the gas supply into the opening, offer up the convector box to the fireplace to check the fit is
good. Ensure that it slides in correctly, the sealing face sits flat and square to the wall or infill panel, and that the
base is firm in the floor of the opening as no leaks are permissible here. At this stage it is essential to ensure that
the spigot outlet of the fire is not obstructed in any way. Remove the convector box and take any necessary meas-
urements before making good and preparing for final installation. Apply the self adhesive sealing strips around
the edge of the rear of the firebox frame, approximately 5mm in from the edge.
Cable ffixingg:
For fixing the fire by the cable method, see relevant section.
Fixinggbbyssccrew:
Mark and drill the fireframe or base, and relevant points in the opening or on the wall.
Rawlplugs will be required. NOTE: Plastic rawlplugs are not suitable for this application.
Gassssupply:
Following preparation for the fixing method, the concealed gas supply (if required) can now be put
into place. Refer to the relevant section for suggested pipe routes. The ends of the sleeving in which the gas
pipe is run should be sealed. The end of the 8mm supply pipe should be temporarily sealed to prevent the
ingress of debris during fixing.
GAS SUPPLY
When the opening is ready for installation of the fire, the gas supply can be routed as shown in the following
diagrams.
An isolator cock or restrictor elbow must be fitted to the incoming supply to facilitate servicing.
If using a concealed supply it should be laid in accordance with the diagram below. Select the supply route
most relevant to the entry point of the gas supply into the fireplace opening.
If using an across the hearth connection, then the firebox is notched and the supply pipe can be routed
through this.
The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be
sealed to the pipe at its ends.
The open end of the gas supply pipe should be temporarily sealed to prevent ingress of dust and dirt during
installation.
77
Fireplace Opening
Grommets
Firebox
Gas Valve
8.2
8.3

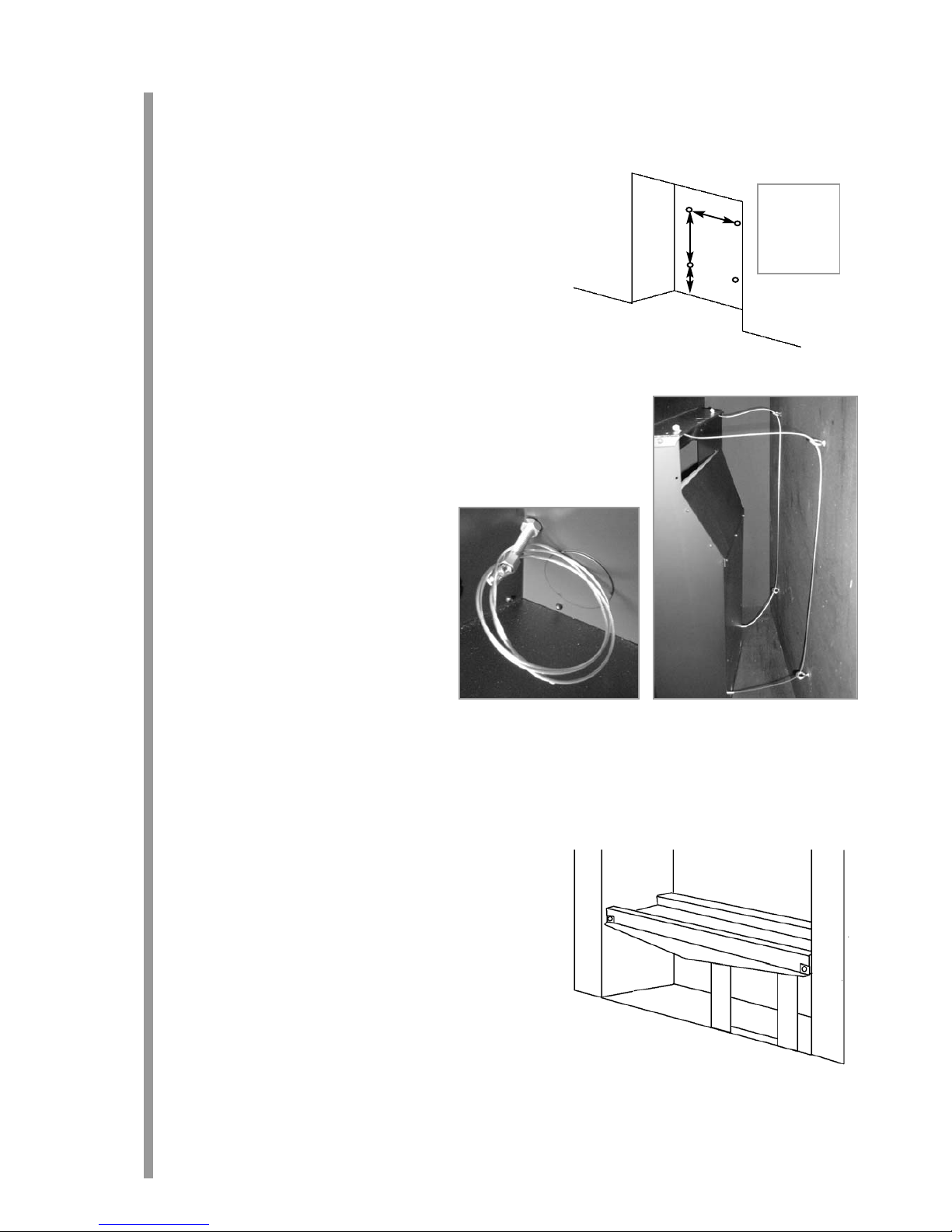

CABLE FIXING
Drill four holes as shown in the diagram and fit the fibre rawl
plugs. If the fireplace does not allow for the exact layout shown,
the eyebolts should be fixed to give a similar configuration as
possible.
Thread both tensioning cables through the holes at the top of
the firebox, both eyelets, and back through the lower holes in
the firebox as shown in the photograph. Before finally fitting the
firebox, apply the self-adhesive sealing strips around the rear of
the firebox frame.
Push the appliance back into the fireplace, centralise and pull
the loose cables through the holes into the firebox.
Thread the cable tensioners onto the cables as shown, with the nuts screwed
down close to the tensioner head.
Slide the screwed nipple onto the cable, pull cable taut and tighten nipple.
Adjust tensioner using a suitable spanner to
pull the appliance back into position, to
allow an even seal around the fireplace
opening.
Visually inspect the seal and reseat if
necessary.
Surplus tension cable MUST NOT be cut off
as this will prevent proper installation after
servicing. Coil up the surplus cable and tuck
the coils out of the way as suggested in the
photograph.
FITTING THE BURNER TRAY
Temporarily fit the burner tray and ensure a suitable gas route can be achieved. Place the burner tray into the
convector box making sure that the rear lugs locate properly on to the ledge in the firebox.
Fit the two securing screws through the tray legs to secure the assembly.
Connect the gas supply and tighten the gas connections.
Fit the data/control plate to the tray using the two screws
provided. Ensure that the control knob can be pushed fully in
and does not touch the plate.
Fit the deflector baffle to the two locations on the front face of
the firetray. Screws are provided for this purpose. The baffle
should be level with the lower edge of the tray. Place the front
casting in front of the fire temporarily to check the angle of the
baffle. The casting should fit well and the control devices
beneath should not be visible to the eye. Realign the baffle
slightly if necessary to achieve the correct fit.
8
A. 250mm
B. 350mm
C. 60mm
Dimensions
+/-10mm
A
B
C
8.4
8.5

FUEL BED LAYOUT
Place the brick panel against the rear of the firebox
Place the ceramic combustion matrix onto the burner and the
ceramic side cheeks onto the matrix.
Place the front row of six coals on to the matrix, with the two
coals second front each end turned on their sides. Ensure the
coals are firmly against the side cheeks as shown in the photo-
graph. If necessary, pull the coals forward slightly to ensure
their rear edges do not overhang the flame ports. Corners or
rough edges MUST NOT be allowed to enter the flame ports.
Place the rear row of four coals, making sure that the flat sides
are firmly against the brick panel and side cheeks as shown.
Place the middle row of five coals onto the flats in the matrix.
Ensure the coals are not put into the holes in the matrix. Place the
two end coals firmly against the side cheeks and back to the
steps on the matrix, turning them on to their sides as shown.
Note: TThe ccoalssmmusstnnot bbeccrammed ttoggether, ooriinsserted iinto
the hholessiintthe mmatrix. AAwwell llaid oout, ggeneroussly sspacced ccoal
layout wwill ggive tthe bbesstrressultss.
9
9.0

FUEL BED LAYOUT ((continued)
Coals may be rotated slightly within their positions to give a good visual effect.
The fire is designed to operate correctly with the coals supplied when assembled according to the instructions.
Never add to the fifteen coals, or change them for a different type. Never throw rubbish or other matter onto the
coal bed.
FITTING THE APPLIANCE CASTING
An outer case casting section and ashpan door are supplied in the separate box (No 2 of 2).
Fit the blanking plate to the cutout in the right hand side column of the front casing using the M4 screws pro-
vided.
Place the casting assembly onto the location lugs on the top face of the convection box frame. The casing
assembly can then be fixed to the convector box using the two long No.8 screws through the holes in the front
face of the casting (behind the ashpan door). Do not overtighten, screw in until cast is held against firebox.
Ensure the casing is square and level to the backpanel. Make adjustments where necessary to achieve
squareness.
View of locating brackets in top of casting. Blanking plate in
position.
With the casing hooked over the location lugs, insert and tight-
en the fixing screws as shown in the photograph below. Do
not over tighten the screws.
TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with current Approved Codes of
Practice (ACOPs)
OPERATING THE APPLIANCE
The pilot is visible through the left hand side of the matrix. Rotate the coals for good viewing. Push in and turn
the control knob to the SPARK position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the PILOT light position, ensuring the pilot has lit. If
not, return the knob clockwise, and repeat.
10
9.0
10.0
11.0
11.1

OPERATING THE APPLIANCE ((continued)
When the pilot lights after the spark, keep the knob depressed for approx-
imately ten seconds. Now release the knob and the pilot should stay alight. If the
pilot is extinguished during use, wait three minutes before repeating the ignition
procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turn-
ing anti-clockwise to the high position. The main burner should light after a few
seconds.
To decrease the setting to LOW, turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release.
SPARK FAILURE
The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark. There should
be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by
proceeding with the ignition sequence as previously described, and after turning the control knob through the
spark position, the knob should be held in and the pilot lit with a taper.
SETTING PRESSURE
Remove the screw from the pressure test point, situated on the
main injector pipe, and attach a U gauge. Light the fire on the
HIGH setting.
The setting pressure should be in accordance with the figures
stated on page 2 of these instructions. The fire is factory set to
achieve these pressures, and any significant variation could indi-
cate a supply problem.
If the pressure is too high, the gas supply meter may be set
incorrectly. This should be checked with the fire running and if
necessary reset by the gas supplier.
If the pressure is too low, then check the meter governor pressure with the appliance running. If this is incorrect
it will need to be reset by the gas supplier.
If the setting pressure is too low, but the meter pressure is acceptable, then a problem in the supply pipework is
to be suspected. This will be dirt and debris, kinked or inadequate size pipes, restriction in a fitting or solder
flashing across a joint.
FLUE SPILLAGE MONITORING SYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason
then several things may be suspected. If a door or window has been opened creating a draught, then pilot
disturbance is the problem, and removal of the draught should resolve this. The gas pressure reaching the fire
must also be checked (again, recall your installer to check and rectify any problem). The thermocouple
connection into the back of the gas control valve may also have worked loose during installation, simply get the
installer to tighten.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF,
check the flue and carry out any remedial work required. Relight the fire and carry out a spillage test. DO NOT
allow the appliance to be used if it continues to fail a spillage test.
11
11.1
11.2
11.3
12.0

FLUE SPILLAGE MONITORING SYSTEM (continued)
The aeration hole of the pilot must be carefully cleaned out on each annual service to ensure continued function
of the ODS.
The spillage monitoring system shall not be adjusted, modified, or put out of operation by the installer. Any spare
parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer.
If the fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide.
TESTING FOR SPILLAGE
Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes.
Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm
down and 25mm in. Starting 50mm in from either side, run the smoke match across the opening. All the smoke
should be drawn away up the flue. Any smoke returning into the room indicates that spillage is occurring. If
the initial spillage test fails, run the fire for a further 10 minutes and repeat the test. When the test has been com-
pleted satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any com-
municating doors open. Finally, repeat with all doors open.
BRIEFING TTHE CCUSTOMER
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the
need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least one
annually.
Advise that cleaning of the fire may be achieved when the fire is cold using a damp cloth and mild detergent on
most surfaces.
Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with
matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint only when the fire is OFF
and cold. Always mask off the surrounding area to prevent contamination with overspray. Ventilate the room
during the use of the spray. DO NOT attempt to spray paint the coals or ceramics, or wash them in water.
Advise that the fire will emit a “newness” smell for a time after initial commissioning and that extra ventilation
may be needed during this time. Advise that the fire is fitted with a spillage safety device (O.D.S.). If the fire shuts
down, this system may be in operation. If spillage is suspected, SWITCH APPLIANCE OFF and call in the installer
to investigate any problems.
12
12.0
12.1
13.0
A
B
C
C
Cross section of smoke
match tube
Take a length of 10mm dia pipe
and seal one end. Crimp the
pipe to prevent the match from
sliding down inside
A.25mm down
from top of
opening
B. 25mm in
from front of
opening.
C. Disregard
outer 50mm
either side of
fireplace open-
ing
Crimp
Match
Tube

SERVICING
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested
procedure for servicing is detailed below.
1. Lay out the dust sheet and tools.
2. Carefully remove the ceramic components.
3. Remove the two screws securing the decorative casing and lift away. Check the appliance paint and
casing top bar do not show signs of discolouration.
4.Remove the two screws that retain the data/control plate.
5. Disconnect the gas supply, and remove the two securing screws in the tray legs.
6. Remove the burner tray.
7. Remove convector box as described.
8. Check the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate
remedial work on the flue.
9. Check the flue with smoke pellet for correct operation.
10. Refit convector box using new seals where necessary
11. Strip off the burner pipes and clean thoroughly.
12. Clean out the injector, pilot assembly and burner tube. DO NOT remove the pilot injector.
13. Re-assemble and re-fit the burner tray.
14. Turn on the gas supply, and leak test.
15. Refit the decorative casing and ceramics.
16. Check any purpose provided ventilation is un-obstructed.
17. Light the fire and test for spillage.
18. Check setting pressure and safe operation of the appliance.
For specific servicing instructions, see the relevant sections.
CLEANING TTHE CCOALS
Remove the firefront casting and place to one side. Remove the ceramic components. Gently clean in the open
air. Be careful not to create dust from the coals. Where necessary replace damaged components with genuine
spares. Re-fit the coals by referring to the relevant section of these instructions.
DISMANTLING TTHE BBURNER TTRAY
Remove the tray as previously described. The pilot unit can be removed by undoing the tubing nut, the
thermocouple nut on the rear of the valve, and the two securing screws, and lifting away. Remove the tubing nut
from the valve end of the pilot pipe, and blow through to dislodge any debris. Clean the exterior of the pilot
assembly with a soft brush and blow through the flame ports on the pilot head. Check the aeration holes are free
from lint or dirt. The pilot assembly is a non-serviceable item, and should not be taken apart. The aeration hole
must be absolutely clear internally for proper operation
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow. Release the screw through the
supporting leg and lift assembly clear. The injector pipe can now be checked for debris. Remove the nut
retaining the injector elbow. Blow through the elbow to remove any debris.
The valve is not field serviceable, apart from the pilot filter. Remove the control knob by pulling it forwards, then
remove the largest of the three screws on the face of the valve. Slide the filter out and clean away any debris that
may have accumulated. The filter element should also be blown clean. This component should not require
replacement, however if signs of deterioration are evident then a genuine spare must be used. If a large amount
of debris is present in the filter then the pipework and control should be thoroughly cleaned before re-assembly.
13
14.0
14.1
14.2

REMOVING THE BURNER TRAY
Remove the two screws retaining the decorative casing and lift away.
Remove the ceramics and the data/control plate.
Remove the two screws securing the tray legs to the firebox. Pull tray forward slightly and lift away.
Refitting is the reverse of above, being sure to engage the tray location lugs on the shelf at the rear of the firebox.
REMOVING TTHE CCONVECTOR BBOX
Remove the burner tray as described previously.
Protect the hearth from potential damage.
Unroll the coiled tensioner cables from the rear of the firebox. Remove the securing nipples and tensioner
adjusters.
The firebox is now released from the opening and can be slid outward onto the hearth.
Inspect the fireplace opening for debris and if excessive rectify the flue before proceeding further.
Check the seal around the fireframe and if necessary replace.
Refitting of the convector box is as described in the fitting section of these instructions.
DISMANTLING TTHE BBURNER TTRAY
Remove the tray as previously described.
The pilot unit can be removed by withdrawing the tubing nut and the two securing screws, and lifting away.
Remove the tubing nut at the other end of the pilot pipe and blow through the pipe to dislodge any debris.
Remove the two tubing nuts on the main pipe to the elbow injector. Release the screw through the tray brackets
and lift the valve assembly clear. Check for debris.
Remove the nut securing the elbow injector and blow through to clear.
Check all control connections for debris. If debris is present in the control, clean all pipework thoroughly.
Reassembly is the reverse of dismantling, checking all gas joints for soundness on completion.
PILOT ASSEMBLY
Remove the burner tray as in relevant section and pilot unit as described.
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or
lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two span-
ners to make cleaning easier. Do not damage or try to remove the pilot injector.
The unit is factory set and the only check necessary is to ensure the spark gap is correct. See specifications for
gap setting.
14
14.3
14.4
14.5
14.6

TROUBLESHOOTING GGUIDE
Fire ssparkssbbut ppilot ddoessnnot lligght
No gas to fire, check isolators are open.
Pipework blockage, clean out.
Air not fully purged, repurge supply or wait longer.
Spark earthing to metal work, reset gap correctly.
Blocked pilot, clean out internally.
Pilot lligghtssbbut tthen ggoessoout
Severe restriction in gas supply, clear obstruction.
Faulty thermocouple, replace pilot unit.
Hold control knob in for longer.
Check control knob does not foul data plate.
Missing grommets seal in firebox, replace
Fire ddoessnnot sspark aatppilot
HT lead detached, refit.
Spark gap too large or small, reset correctly.
Faulty piezo unit, replace.
Debris shorting out electrode, clean.
Spark shorting to metalwork under tray, realign HT lead.
Fire rrunssffor aattime aand tthen ccutssooff
Excessive room draught or flue pull, rectify.
Loose or faulty thermocouple, rectify.
ODS system in operation.
Firebox grommet seal not fitted, rectify.
Lint in pilot aeration hole, clean thoroughly internally
Pilot fflame sshrinksswwhen ffire iissoonhhiggh
Poor gas flow to fire, check pressure with fire on high.
If pressure is low, remove any restriction in pipework or valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
Air leak under base of firebox, rectify.
Lint in pilot aeration hole, clean thoroughly internally.
Firebox grommet seal missing, rectify
Fire ssmellsswwhen ffirsstllit ooriinuusse
Newness smell from brand new appliance.
Spillage occurring. Carry out spillage test and rectify any problems.
Low temperature sealants or combustible materials used in incorrect
positions.
Air leak under base of firebox, rectify
Firebox grommet seal missing, rectify.
15
15.0

USER INSTTRUCTTIONS
IMPORTANT NNOTES
The installation of this fire MUST only be carried out by a competent person (such as a CORGI registered fitter)
in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes
of Practice, the Building Regulations and the manufacturers’ instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance
warranty.
Please ensure you are handed all of the manufacturers documents on completion of the installation. This will
include these instructions.
Always keep a note of the installer’s name and address, the original purchase receipt and the date of installation
for future reference.
The fire and flue should be serviced regularly to ensure continued safe operation. See the servicing section for
further details. Frequency of service will depend on use, but MUST be carried out at least once annually.
Parts of this appliance become naturally hot during use. It is recommended that a suitable fire guard conforming
to BS 6778 is used, especially where young children, the elderly, or infirm are concerned.
Combustible items, such as flooring and furniture, and soft wall coverings (such as blown vinyl or embossed
paper) may discolour if fitted too close to the fire. See relevant section for further details on clearances to
combustibles. No combustible material or flooring should protrude onto the hearth.
DO NOT burn any foreign material on this fire, the coals must be of the correct type and laid out in accordance
with the relevant section of these instructions. Failure to do so could create a hazard or lead to sooting.
Before the appliance is installed, the chimney should be swept. All flues should be checked by the installer to
ensure there are no defects or obstructions that may prevent the flow of combustion products.
This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions
occur. It is NOT a substitute for an independently mounted Carbon Monoxide detector.
The fire is only suitable for use with the gas type for which it is supplied.
1
Secction
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
Contentss
Important Notes
Firefront
Clearances to Combustibles
Ventilation
Operating Instructions
Flue Spillage Monitoring System
Cleaning
Coals and Ceramics
Servicing
PaggeNNo.
1
2
2
2
2
3
3
3
3
1.0

FIREFRONT
This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under
the firebed for the correct functioning of this appliance.
Compliance with safety standards cannot be guaranteed if another style of front is used.
CLEARANCES TTOCCOMBUSTIBLES
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given
below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the
appliance, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
VENTILATION
No ppurpossepprovided vventilation iissnnormally rrequired ffor tthissaappliancce.
The requirements of other appliances
operating in the same space or room, and the results of a spillage test must be taken into consideration when
assessing ventilation requirements, this will have been carried out by your CORGI registered installer.
For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.
OPERATING IINSTRUCTIONS
The pilot is visible through the underside of the left hand side of the matrix. Push
in and turn the control knob to the SPARK position, and hold there for a few sec-
onds.
Continue turning anti-clockwise through the spark click to the PILOT light
position, ensuring the pilot has lit. If not, return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approx-
imately ten seconds. Now release the knob and the pilot should stay alight. If the pilot is extinguished during use,
wait three minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high
position. The main burner should light after a few seconds.
To decrease the setting to LOW, turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release.
2
Maximum ddepth oofsshelf MMinimum ddisstancceffrom iinsside eedggeoof
fire fframe ttouundersside oofsshelf
100mm (4in) 203mm (8in)
150mm (6in) 305mm (12in)
203mm (8in) 356mm (14in)
2.0
3.0
4.0
5.0

FLUE SSPILLAGE MMONITORING SSYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason
then several reasons may be suspected. If a door or window has been opened creating a draught, then pilot
disturbance could be the problem, and removal of the draught should resolve this. The fire can then be re-lit in
accordance with the previous section. A grommet seal may also be missing from the firebox causing abnormal
draught to shut down the pilot. Call you installer to check seals are properly fitted.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF,
call in your installer to check the flue and ventilation and carry out any remedial work required. DO NOT allow
the appliance to be used until the flue system is passed as safe.
CLEANING
Before carrying out any of the following operations, ensure that the fire is OFF and completely cold.
Debris that may form on the firebed should be periodically removed by a competent person. Large deposits could
indicate deterioration of the flue. This should be repaired by a competent person, and the fire serviced before
further use.
FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or dry cloth. Heavy
stains may be removed by using a damp cloth and mild household detergent. Brass parts of the firefront may be
cleaned using a suitable brass cleaner. Replace the front centrally against the fire after cleaning.
PAINTED AREAS - These can be cleaned using a dry cloth.
COALS AAND CERAMICS
See the relevant section in the Installation Guide of these instructions.
SERVICING
The fire and flue should be checked on an annual basis to ensure all of the product of combustion are entering
the flue and that there is no excessive build up of soot. The frequency of service will depend on usage, but MUST
be carried out at least once annually. Servicing must be carried out by a competent person, such as a CORGI reg-
istered installer.
Cleaning of the coals may be carried out by following the instructions given in the Installation section. The
Installation instructions carry full servicing details for the use of the installer.
If debris from the flue or other foreign matter is found on the fire it may indicate a need for servicing. Do not use
the fire until the source of the debris has been found and rectified.
Air vents (where fitted) should be checked periodically to ensure they are free from obstruction.
LIST OF SPARES
PAART NNO. ITEM
FT003033/0 Pack of 15 coals
FT003005/0 Ceramic combustion matrix
FB004030/0 Ceramic side cheeks
FB004050/0 Ceramic brick panel
Enquire Decorative Frame
Enquire Decorative Front
3
6.0
7.0
8.0
9.0
