Focal Point ExcelsiorRadiant MAN User manual

INSTTALLATTION IINSTTRUCTTIONS
PPrelimminnary NNotes BBefore IInnstallationn
This appliance is an Inset Live Fuel Effect appliance that provides radiant
warmth utilising the latest type burner technology.
The fire is designed to fit various types of fireplaces and natural draught flues as
listed in the Installation Requirements.
The appliance must be installed by a competent person in accordance with
Gas Safety (Installation and Use) Regulations 1998. It is strongly recommended
that a CORGI registered engineer be used for this purpose.
Read all these instructions before commencing installation.
This appliance must be installed in accordance with the rules in force and only
used in a sufficiently ventilated space.
The appliance is designed for installation on to a non-combustible hearth of at
least 300mm depth.
This appliance is factory set for operation on the gas type, and at the pressure
stated on the appliance data plate.
This appliance is available in either a manual (rotary) version, or a battery pow-
ered remote control version. These instructions cover both control options. See
the relevant section of these instructions for further details.

IMPORTANT NNOTES
This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate on Natural Gas or
LPG (Propane) depending upon factory set adjustments. See Data Plate on appliance for gas type.
It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered
fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British
Standards for Installation, Codes of Practice and in accordance with the Manufacturers’ Instructions. The
installation shall also be carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
BS 5871 part 2
BS 5440 part 1
BS 8303
BS 1251
BS 6891
BS 6461 part 1
BS 5482 part 1 (for LPG appliances)
Failure ttoccomplyywwith tthese rregulations ccould llead ttopproseccution aand ddeem tthe wwarrantyy
invalid.
This aapplianccemmust bbeiinstalled iinaaccccordanccewwith tthe rrules iinfforcceaand uused oonlyyiinaa
sufficcientlyyvventilated sspacce.
This aappliancceiisffree ffrom aanyyaasbestos mmaterial. RRefracctories aand ffuel bbed aare cconstruccted
from cceramiccffibre.
Consult aall iinstrucctions bbefore iinstallation aand uuse ooftthis aappliancce.
Note ::RRemote ccontrol mmodelssoonly - This appliance features a battery-operated remote control system, and under
normal usage will need new batteries approximately every twelve months.
Remote control Handset requirements - 1 x ‘PP3’ type (9 volt)
Receiver/motor unit requirements - 4 x ‘AA’ type (1.5 volt)
Refer to the appropriate section of these instructions for details of how to change the batteries.
1
Note - FFor RRepubliccoofIIreland, rreferencce
sshould bbemmade ttotthe rrelevant sstandardss
ggoverninggiinsstallation, pparticcularly iinrreggard
to fflue ssizinggaand vventilation. SSee IIS813,
ICP3, IIS3277aand aany oother rrulessiinfforcce.
1.0
Secction
1.0
2.0
3.0
4.0
4.1
5.0
6.0
7.0
7.1
8.0
9.0
10.0
Contentss
Important Notes
Appliance Data
Installation Requirements
Site Requirements
Debris Collection Space
Ventilation
Prefabricated Flue Boxes
Unpacking the Appliance
Component Checklist
Preparing the Appliance
Preparing the Opening
Gas Supply Routing
PaggeNNo.
1
2
2
3
4
4
5
5
6
6
7
7
Secction
11.0
11.1
11.2
12.0
12.1
12.2
13.0
14.0
14.1
14.2
15.0
16.0
Contentss
Fitting the Firebox
Installation by Cable Fixing Kit
Gas Connection

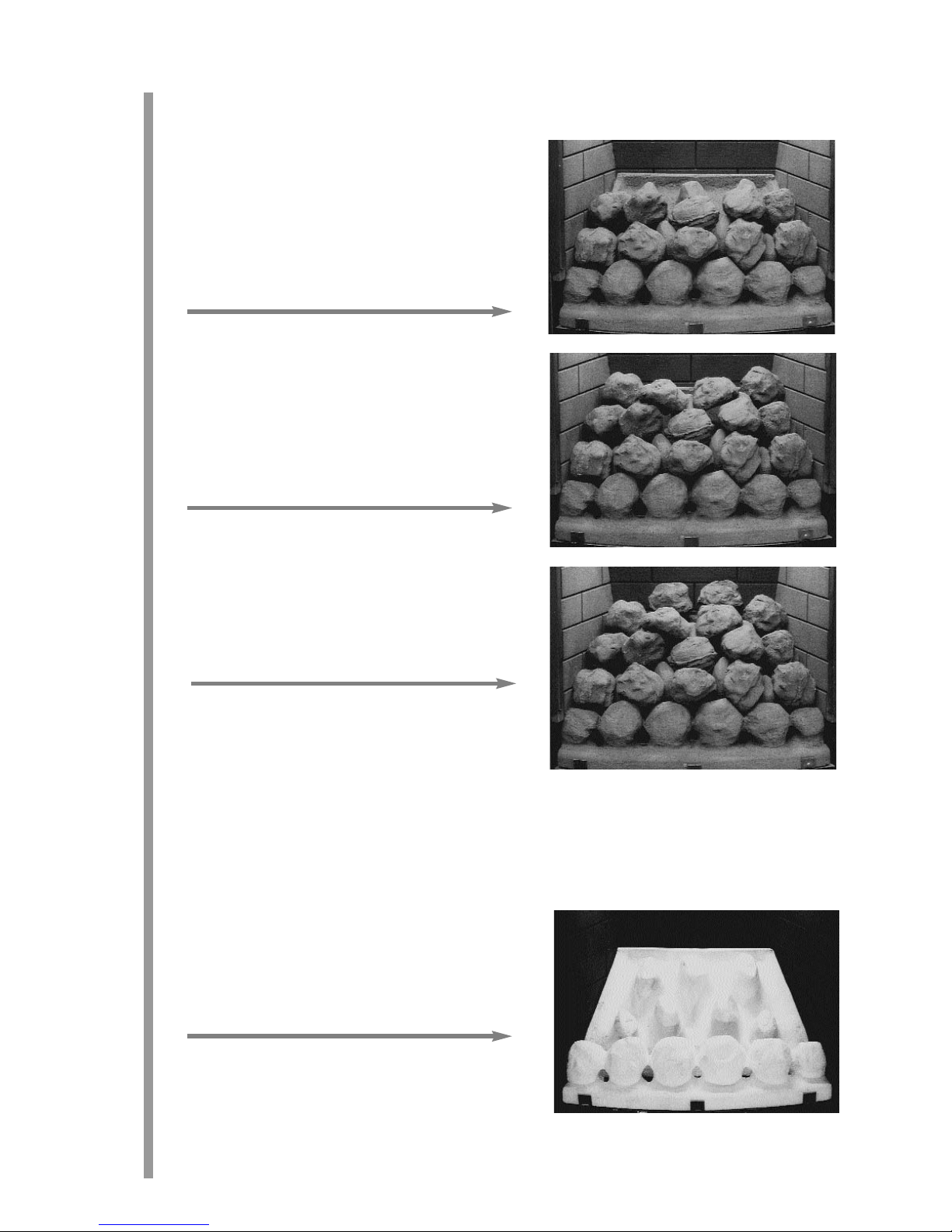

Fuel Bed Layout (coal versions)

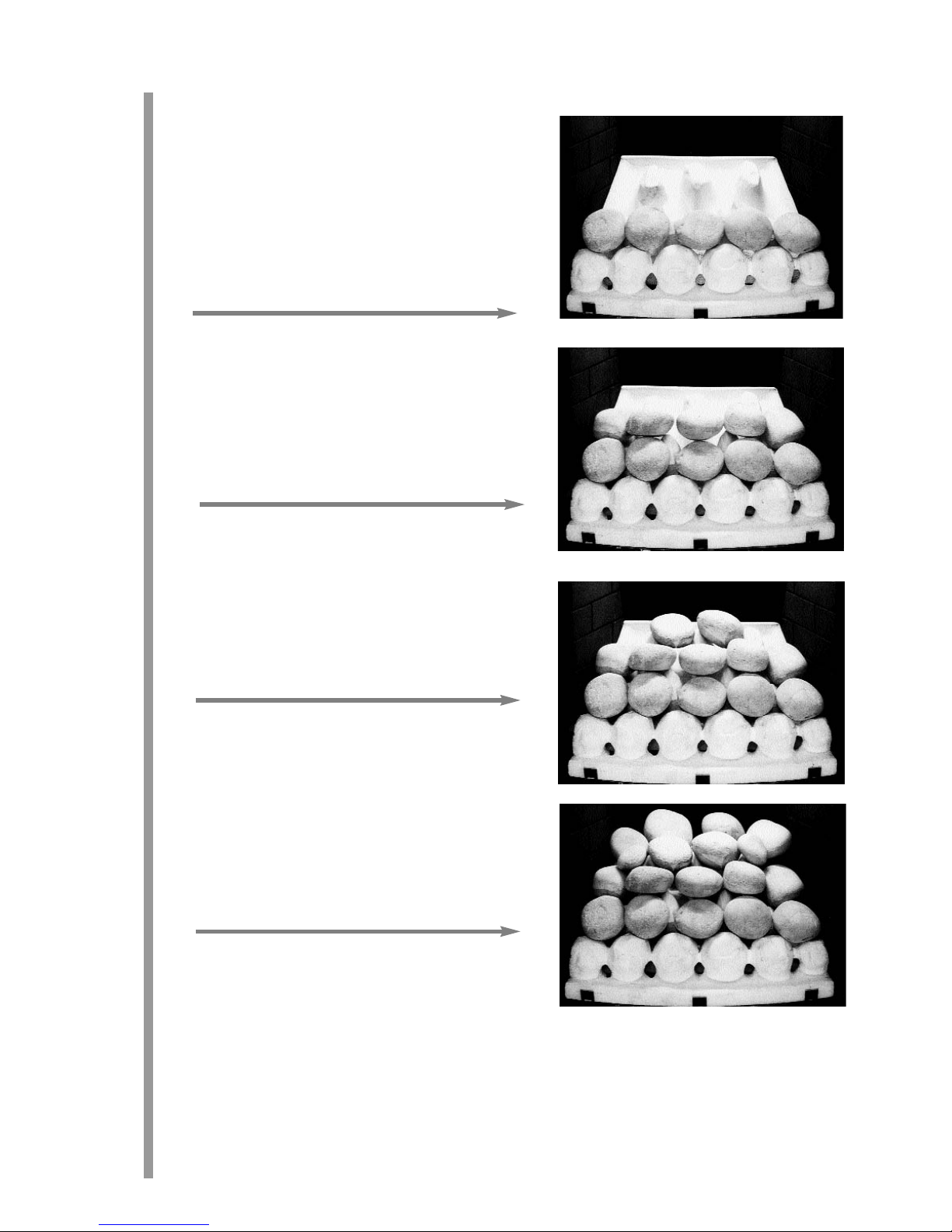

Fuel Bed Layout (pebble versions)
Fuel Bed Layout (log version)
Fitting Fireframe and Front
Testing & Commissioning
Operating the fire (manual versions)
Operating the fire (remote versions)
Servicing
Troubleshooting Guide
User Instructions
PaggeNNo.
7
8
9
9
10
12
13
13
13
13
16
18

INSTALLATION RREQUIREMENTS
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be
present. The fire has been designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and meet-
ing certain dimensional requirements), or a suitable flue box complying with the constructional requirements of
BS 715. The flue box must be installed onto a suitable non-combustible insulating surface at least 12mm thick,
covering the entire base are of the box.
The flue must have an effective height of at least three metres, as measured from the hearth to the top of the flue.
Any flue damper plates or restrictors should be removed and no other restriction fitted to the flue. Where removal
is not practical, the restriction must be fixed in the fully open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney
must be swept prior to appliance installation. Pre-cast flues must be checked for mortar fangs and correct instal-
lation of joints, flue sections in loft space and terminals. The flue must be checked before installation by using a
smoke pellet or similar to ensure proper draw and that leakage is not evident at any joints. Repair and re-test as
necessary before the appliance is installed.
The flue must be connected to only one fireplace, and the flue must not vent more than one appliance (i.e. not
shared with a gas back boiler). There must be no opening in the flue apart from the one that the appliance is
installed into, and the one venting the gases into the air. A suitable terminal may be fitted, such as class GC1, as
regulations allow.
This appliance has been tested for use in pre-cast block flues complying with BS 1289. In accordance with BS
1289 part 1, pre-cast flues with directly plastered faces (front or rear) are not installed as to ensure proper oper-
ation with anytype of gas fire. In some instances of this flue construction, temperature cracking of the surface
plaster may occur through no fault of the appliance. An air gap, or some form of insulation should be installed to
prevent normal flue temperatures from damaging wall surfaces.
This appliance is suitable for use with a “lightweight” surround and back panel of 150ºc minimum rating.
2
APPLIANCE DDATA
Manual Control Version Remote Control Version
Gas Group G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H
Inlet Pressure 20 mbar 20 mbar
Max Energy Input (gross) 6.8 kW 6.8 kW
Min Energy Input (gross) 3.5 kW 3.5 kW
Pilot Energy Input (gross) 210 W 210 W
Setting Pressure (cold) 15.8 mbar (+/- 0.75mbar) 15.8 mbar (+/- 0.75mbar)
Main Injector Burner Stereo size 81/Bray cat. 82/420 Stereo size 81/Bray cat. 82/420
Gas Inlet Connection 8mm compression 8mm compression
Gas Control Valve Dungs BM 733/Negabahn 6801 Mertik Maxitrol GV34 Series
Ignition Integral Piezo spark Integral Piezo spark
Spark Gap 3.5 to 4.5mm 3.5 to 4.5mm
Weight 20 Kg 22 Kg
Please see Data Badge affixed to appliance for current data.
This aappliancceiisffor uuse oonlyywwith tthe ggas ttyype, aand aattthe ppressure sstated oontthe aappliancce
Data BBadge, aand iisffor ddeccorative ppurposes.
2.0
3.0

SITE RREQUIREMENTS
The fireplace opening should be inspected and repairs made where necessary. Any chair brick or fireback may
be left in place, providing that the dimensional requirements for debris collection and spigot clearance are met.
The opening WIDTH and HEIGHT dimensions should be between 375mm and 450mm wide, and 540mm (see
note bbelow) to 575mm high.
Note: TThe sspiggot ooutlet ooftthe ffire iiss5560mm hhiggh, bbut sshould ffit iinto tthe ggather aattthe ttop ooftthe ffireplacceaasstthe
appliancceiissffitted. AAny mmodificcationssttotthe ffireplacceoopeninggmmusstbbettoaahheigght oof5560mm mmin.
Opening DEPTH should be 200mm or greater for a clay/cement lined or pre-cast flue that is new, unused, or pre-
viously used only with a gas appliance. DEPTH should be 240mm or greater for a flue used for solid fuel of oil
burning appliances. Opening DEPTHS include any plaster or in-fill panels that form part of the installation.
This appliance required a natural draught flue system that may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS 715.
Pre-cast block flue complying with BS 1289.
Any existing under grate draught device must be sealed off.
The opening wall must be non-combustible and have adequate flat surface for appliance sealing.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top surface must be at
least 50mm above the surrounding floor level, or be surrounded by a raised edge or fender 50mm high.
To enable the products of combustion to be cleared properly up the flue, the outlet at the back of the appliance
must have a minimum 50mm clearance between it and the back wall of the opening or other obstruction. The
area immediately above the outlet must form a smooth path into the flue.
3
G
A
XC
H
D
B
E
F
A. Opening height: 540mm
min/575 mm max.
B. Opening width: 375mm
min/450mm max.
C. Mounting depth: 180mm
D. Hearth must extend minimum
of 150mm either side of the
opening.
E. Hearth must extend minimum
of 300mm in front of the opening.
F. Non-combustible hearth must
be a minimum of 50mm in height,
or be surrounded by 50mm high
fender.
G. 470mm, this area must be flat
and vertical to ensure a good seal.
H. 585mm, this area must be flat
and vertical to ensure a good seal.
X. See section 4.1
4.0

SITE RREQUIREMENTS ((continued)
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given
below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fire-frame.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the
appliance, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
DEBRIS CCOLLECTION SSPACE
The mounting depth of this appliance is 180mm. In accordance with BS 5871, minimum debris collection vol-
umes are required behind the installed appliance. These are shown below, and as Dimension X on the fireplace
diagram on the previous page.
CLAAY/CEMENT LLINED OORBBLOCK FFLUE WWHICH IISNNEW, UUNUSED, OORPPREVIOUSLY OONLY BBEEN UUSED
WITH AAGGAASFFIRE.
XDDimension ==220mm
UNLINED FFLUE OORCCHIMNEY WWHICH HHAASBBEEN UUSED FFOR SSOLID FFUEL OOROOIL BBURNING AAPPLIAANCES.
XDDimension ==660mm
VENTILATION
No purpose provided ventilation is normally required for this appliance. The requirements of other appliances
operating in the same room or space must be taken into consideration when assessing ventilation.
If spillage is detected when commissioning the appliance then amongst other problems there may be insufficient
natural ventilation for the correct operation of the flue. This is potentially a greater problem should the property
be of modern nature. If the appliance does not spill with windows open but does with windows closed, this
proves that lack of ventilation is the problem, if not, it will be the flue at fault. Installation of an air brick is the best
solution. Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2.
Spillage detected during commissioning is almost always a result of poor flue performance, which cannot be cor-
rected by any amount of ventilation.
For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.
4
Maximum ddepth oofsshelf MMinimum ddisstancceffrom iinsside eedggeoof
fire fframe ttouundersside oofsshelf
100mm (4in) 745mm (29 1/4in)
150mm (6in) 845mm (33 1/3in)
203mm (8in) 895mm (35 1/4in)
4.0
4.1
5.0

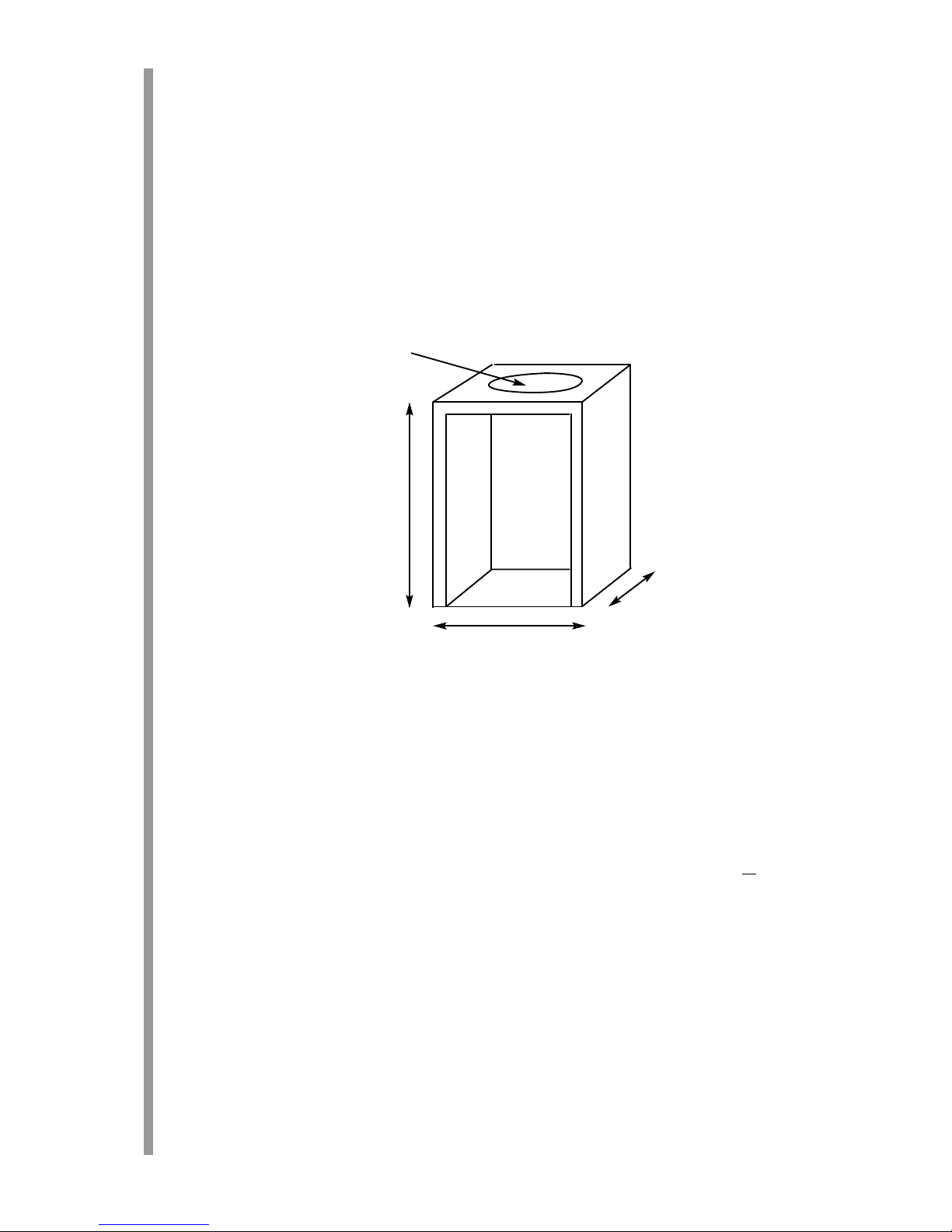

PREFABRICATED FFLUE BBOXES
This appliance can be fitted into a number of proprietary flue boxes, provided that the minimum dimensions
given in the diagram below are complied with. The flue outlet of the fire must nnot obscure the flue outlet from
the flue box. A smooth path into the flue must exist.
Consstrucctional NNote:
The frame of the fire, any back panel or other in-fill panel, and the flue box must be sealed
together so that there is no possibility of leakage between them. Adequate clearances to combustible materials
(e.g. false chimney-breast construction) must be maintained.
The mmanufaccturerss’iinsstrucctionssffor tthe ffittinggooftthe pprefabriccated fflue bbox sshall bbeccomplied wwith aataall ttimess.
Some flue boxes may require minor adaptation when fitting the fire using the cable fixing kit.
The firebox, base of the flue box, and the hearth may be drilled to allow plugs and screws to secure installation.
It is important that the sealing requirements of the appliance are met at all times and that the flue box is well
sealed to any back or in-fill panel.
Note: TThe DDEPTH ddimenssionsssshown aare iincclussive oofaany bbacckooriin-ffill ppanelss.
UNPACKING TTHE AAPPLIANCE
Stand the carton right way up, cut the strapping bands and remove the top end cap. Read all the instructions
before continuing to unpack or install this appliance.
Remove the box containing the cast front fret, and the bag containing the coals. Remove the cardboard packing
pieces, and any bags containing other fittings or parts.
When all loose parts have been removed, the outer sleeve may be lifted off to reveal the appliance.
Check that the components supplied correlate with the checklist given in section 7.1.
Please dispose of the packaging materials at your local recycling centre.
5
125mm min internal dia
twin wall flue tube
250mm min depth
375 mm min
opening width
560mm min
opening height
6.0
7.0

COMPONENT CCHECKLIST
QUAANTITY DESCRIPTION
1 Firebox and burner tray assembly.
1 Decorative frame, one of several finishes.
1 Cast front fret with separate ashpan cover, one of several designs and finishes.
1 Moulded ceramic fibre combustion matrix.
16 Individual ceramic coals (Coal option only).
16 Individual ceramic pebbles (Pebble option only).
9 Individual ceramic logs (Log option only).
1 Moulded ceramic front coal strips (Coal option only).
1 Moulded ceramic front pebble strips (Pebble option only).
1 Moulded ceramic front log strips (Log option only).
3 Ceramic brick effect radiant panels.
1 Set of manufacturers instructions and warranty card.
1 Cable fixing kit comprising; 2 cables, 2 tensioners, 2 clamps, 4 fixing eyes, 4 fibre rawl plugs.
1 Remote control handset (Remote control option only)
1 Pack of batteries (1 x ‘PP3’, 4 x ‘AA’) (remote control option only)
1 Self tapping screw pack.
3 Lengths of self adhesive sealing strip.
1 Rubber grommet.
PREPARING TTHE AAPPLIANCE
Note: EEnssure tthat tthe ggassssupply iissiissolated bbefore ccommenccinggiinsstallation ooftthe aappliancce.
The fireplace opening and environment must be in compliance with the specifications laid down in the
appropriate sections of these instructions.
Remove the appliance from it’s carton as described previously and stand upon a dust sheet or similar. Place the
decorative frame, coals, ceramics and fixings safely to one side. Remove the burner from the assembly by
releasing the two screws through the tray legs. Remove the transit screw securing the rear ledge of the firetray to
the firebox. This will no longer be required. The tray is now free, and may be lifted away.
The four radiant panels may now be fixed inside the firebox.
Select the plain or patterned side of each panel and insert as
follows; Lay the firebox on it’s back. Lay the tapered and
small rectangular panels onto the rear faces of the firebox.
The side panels should be fitted by inserting their front edges
into the pre-fitted retaining brackets on the front face of the
firebox. Gently align the side panels with the side of the fire-
box, over the top of the back panels already in place. Make
sure that the side panels are pushed
up
firmly to the roof of
the firebox, and
bacck
firmly to retain the tapered panel.
Make small adjustments to line up the mortar lines if
required. Clamp the side and back panels using the ‘Z’
shaped brackets and screws provided. The screws should
locate into the pre-punched holes in the rear of the firebox. Fit the two side infill panels to the lower sides of the
firebox, using the screws provided in the pre-punched holes (as shown in photograph).
Knockout holes are provided in the rear of the firebox for use where concealed pipework is required. Where
necessary, knock out the appropriate hole with a sharp tap from a hammer, and fit the rubber grommet supplied.
A small incision can how be made in the rubber to slip snugly around the outside of the pipe and sleeving.
Do
not iinsstall ooruussetthe aapplianccewwithout tthe ssealssiinpplacce.
If a hole is inadvertently opened, reseal with an intact
grommet. Failure to fit the seal correctly will cause flue suction to act upon the area under the burner, resulting
in poor performance and intermittent cutting out of the burner.
6
8.0
7.1

PREPARING TTHE AAPPLIANCE ((continued)
SPIGOT RRESTRICTOR:
If installing the fire into
a Class 1 or good Class 2 flue, attach the spig-
ot restrictor to the rear of the appliance using
the screws provided. If the spigot restrictor is
provided already fitted to the fire (stitch bend
join) simply bend up into position in the flue
outlet of the fire.
You MMUST rremove ((or bbend ddown ffully))tthe
sspiggot rresstricctor aand rre-ttesstiiftthe aappliancce
failssaasspillaggettesstdduringgccommissssioningg.
Apply the self adhesive sealing strips to the
back of the fire-frame to give a continuous
seal.
PREPARING TTHE OOPENING
Before installing the fire, check the flue using a smoke pellet. All of the smoke should travel up the flue and exit
correctly from the terminal. If problems are found, DO NOT fit the fire until corrective action is completed.
Protect the decorative hearth whilst pushing the firebox in and out of the opening. Part of the packaging makes
an ideal hearth saver pad.
Before running the gas supply into the opening, offer up the firebox to the fireplace to check the fit is good. Angle
the firebox or adjust the spigot outlet as described in the Fitting the Firebox section. Ensure that it slides in cor-
rectly, the sealing face sits flat and square to the wall or in-fill panel, and that the base is firm on the floor of the
opening as no leaks are permissible here. At this stage it is essential to ensure that the spigot outlet of the fire is
not restricted in any way. Remove the firebox and take any necessary measurements before making good and
preparing for final installation.
CABLE FIXING. For fixing of the fire by the cable method, see the relevant section. The cable fixing locations
should be marked on the back of the opening and the holes drilled. Fit the fibre rawlplugs and eyebolts to these
holes.
Note: PPlassticcrrawlpluggssaare NNOT ssuitable ffor tthissaappliccation.
SCREW FIXING. For fixing by screw, mark and drill the fireframe or base, and the relevant points in the opening
or on the wall. Rawlplugs will again be required. Pre-punched holes are not provided for this purpose to allow
you to choose the optimum positions.
GAS SUPPLY. Following preparation for the fixing method, the concealed gas supply, where required, can now
be put into place. Refer to the gas supply section for suggested pipe routes. The ends of the sleeving in which the
gas pipe is run should be sealed. The ends of the 8mm supply pipe should be temporarily sealed to prevent the
ingress of debris during fixing.
GAS SSUPPLY RROUTING
When the opening is ready for installation of the fire, the gas supply can be routed as shown below.
IMPORTANT - Wherever a concealed connection is made a rubber grommet
must be used to seal the firebox.
77
8.0
9.0
10.0
Grommets
Firebox
Fireplace opening
Gas valve
Manual ccontrol vversion
Grommets
Firebox
Fireplace opening
Gas valve
Remote ccontrol vversion

GAS SSUPPLY RROUTING ((continued)
The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be
sealed to the pipe at its ends.
To comply with current installation codes, it is essential that the supply pipe is fitted with an appliance isolator
valve (e.g. a restrictor elbow at the side of the hearth).
The open end of the supply pipe should be sealed temporarily during the installation of the firebox to prevent the
ingress of dirt and dust.
The appliance firefront is specially notched to allow the gas pipe to pass through when an over hearth supply is
necessary.
FITTING THE FIREBOX
The firebox may be fitted to the opening by using screw fixing or by the cable kit as described in the relevant
section. It may be easier to fit the decorative brass fireframe at this stage rather than later if it is a clip-on type.
See relevant section for fitting details. Leave the polythene coating in place until fitting procedures are complete
to eliminate any risk of scratching the decorative finish.
To fit the firebox, firstly check the fire goes fully back into the opening. If the fire will not fit straight in, tilt the unit
backwards and insert the spigot first to lead in to the gather at the top of the fireplace. If this is still not possible,
remove the spigot outlet screws using a screwdriver, bend it down and partly insert the firebox. Now ppush tthe
outlet ddeflector bback uupttotthe ooriginal pposition under the lip of the fireplace opening and secure with the screws.
The fire is designed to operate correctly with the deflector screwed in its original position and spillage problems
may arise by not realigning correctly once fitted.
Secure the firebox by drilling and screwing down the frame or base of the firebox, or use the cable fixing method.
INSTALLATION BBYCCABLE FFIXING KKIT
Drill the four holes for the rawlplugs, as shown in the diagram. If
the fireplace configuration does not allow the exact layout
given, the eyebolts should be positioned as close to the correct
layout as possible.
Before finally fitting cables, apply the self-adhesive sealing strips.
The fireframe must be sealed evenly to the fireplace opening all
around the periphery.
Thread the tensioning cables through the holes in the top of the
firebox, then the eyelets, and finally through the lower holes in
the back of the firebox, as shown in the photographs.
Note: TThe bburner ttray MMUST bberremoved aasspper rrelevant ssecction ttoggain
accccessssttotthe ccable aadjussterss.
Push the appliance back into to fireplace, centralise, and pull the loose
tensioning cables through the holes into the firebox. You may need to
temporarily adjust the outlet deflector at this point as described in the
Fitting the firebox section. Thread the tensioner bolts onto the cables, with
the nuts screwed down close to the tensioner head. Slide the screwed nip-
ple onto the cable, pull cable tight, and tighten nipple.
The tension of the cable may now be adjusted by using a suitable spanner
on the tensioner nuts to pull the appliance tightly against the fireplace
opening. Visually inspect the seal and re-seat if necessary.
Note: DDO NOT ccut ooff eexccessssccable.
Surplus cable must not be cut off, as it will be impossible to refit the fire
after servicing. Coil up the surplus cable, and locate at rear of firebox.
Note ::IIfrrunninggaacconccealed ggassssupply, eenssure ggrommetssaare sseccure
around iinccominggppipess.
8
11.0
11.1
A. 200mm
B. 350mm
C. 60mm
Dimension can
be +/-10mm
A
B
C
10.0

GAS CONNECTION
Refit the burner tray into the firebox, fit the two screws through the locating holes in the tray legs, and tighten.
Purge the gas supply thoroughly to remove air and dirt/debris
BEFORE
connection. Now connect the previously
installed gas supply to the control tap and tighten all joints. Soundness test installation.
If using an across hearth connection, ensure the decorative fireframe and firefront will clear the supply route.
If the data/control plate is not already fitted, attach with two screws, ensuring the control knob is free to be
depressed fully.
FUEL BED LAYOUT
Coal EEffect OOption
1. Remove the combustion matrix from its protective pack-
aging, and position onto the burner tray as shown. The
front edge of the matrix should sit snugly behind the back
edge of the burner rails. Do not fit the matrix on top of the
burner rails.
2. Next, remove the front coal strip from its protective
packaging and position as shown. The rear edge of the
front coal strip should fit in front of the burner rail. Again,
do not to place on top of the burner rails. When the front
coal is in position bend up the three metal tags at the front
of the tray to retain (inset).
3. Open the bag of 16 moulded coals. All of the coals are
the same. Take five coals and place them as shown. Care
should be taken to ensure that the coals bridge the gap
between the front coal and the four coal supports at the
front of the matrix. Care should also be taken not to push
the coals right down between the coal supports, as this
can detract from the flame picture when the appliance is
running.
9
11.2
12.0

FUEL BED LAYOUT
Coal EEffect OOption(continued)
4. Take five more moulded coals and position as shown to
form the ‘second row’ of the fuel effect. The coals may be
rotated as desired to fit into the gaps between the coal sup-
ports in order to create a random, realistic effect. Again,
remember not to push the coals down too far into the val-
leys between the coal supports as this can have a detrimen-
tal effect to the flame picture.
5. Now take another four coals and place behind the second
row of coals, in order to complete the third row. The coals
may be orientated as desired to achieve a realistic effect.
Keep the spacing between the coals even and uniform. The
two coals at the ends of the row may be placed rearwards,
towards the back corners of the fuel matrix.
6. Finally, take the two remaining coals and place at the back
of the fuel matrix, in the centre as shown. Adding these coals
should complete the appearance of the fuel bed giving an
even distribution of equally spaced coals.
The fire is designed to operate correctly with the coals sup-
plied when assembled according to the instructions. Never
add to the sixteen coals, or change them for a different type.
Never throw rubbish or other matter onto the coal bed.
FUEL BED LAYOUT
Pebble EEffect OOption
1. Refer back to section 12.0 - Fuel bed layout (coal effect
option) and follow steps 1 and 2. The front strip and fuel
effect matrix used for pebble effect versions are of the same
design as coal effect versions, but have a different surface fin-
ish.
10
12.0
12.1

FUEL BED LAYOUT
Pebble EEffect OOption ((Continued)
2. Open the bag of 16 ceramic pebbles. All of these pebbles
are the same. Take five pebbles and place them as shown.
Care should be taken to ensure that the pebbles bridge the
gap between the front strip and the four supports at the front
of the matrix. Care should also be taken not to push the peb-
bles right down between the supports, as this can affect the
flame picture when the appliance is running.
3. Take five more ceramic pebbles and position as shown to
form the ‘second row’ of the fuel effect. The pebbles may be
rotated as desired to fit into the gaps between the supports
in order to create a random, realistic effect. Again, remember
not to push the pebbles down too far into the valleys between
the supports as this can have a detrimental effect to the flame
picture.
4. Now take another two pebbles and place behind the sec-
ond row of coals, next to each other in the centre of the fuel
bed. The pebbles may be orientated as desired to achieve a
realistic effect. Keep the spacing between the pebbles even
and uniform.
5. Finally, take the four remaining pebbles and place at the
back of the fuel matrix as shown.
Once again, the pebbles may be orientated as desired in
order to give a realistic effect. Avoid pushing the pebbles
down between the supports. The fuel bed is now complete.
The fire is designed to operate correctly with the pebbles supplied when assembled according to the instructions.
Never add to the sixteen pebbles, or change them for a different type. Never throw rubbish or other matter onto
the coal bed.
Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal use.
11
12.1

FUEL BED LAYOUT
Log EEffect OOption
1. Refer back to section 12.0 - Fuel bed layout (coal effect
option) and follow steps 1 and 2. The fuel effect matrix used for
log effect versions is the same design as coal effect versions, but
has a different surface finish. The front log strip is of a different
design and must be handled with care.
2. Open the bag of 9 moulded ceramic logs. All of the logs
except two are the same. Take the largest log (numbered 16)
and place it as shown. Care should be taken to ensure that the
orientation is correct and the log fits snugly into its position.
3. Take the two medium sized logs (numbered 15 and 8) posi-
tion the log numbered 8 on the left hand side ensuring correct
orientation. Place the log numbered 15 on the right hand side
again ensuring correct orientation. Both these logs will fit
securely into their allocated poisition, they may require rotating
slightly to ensure this.
4. Now take the remaining large log (numbered 4) and position
vertically as shown, ensuring correct orientation. The base of
this log must rest securely on the front log strip. Take one of the
smaller logs (numbered 14) and position in between the two
vertically positioned logs ennsuring the orientation is correct.
Keep the spacing between these logs uniform.
5. Finally, take the remaining two medium sized logs (numbered
5 and 7) and place in a horizontal position shown, 5 first, rest-
ing on the front log strip. 7 next resting on 5. Now take the
smallest log (numbered 12) and position in the orientation
shown ensuring the log does not fall into the matrix but rests
securely on the allocated supports. Now take the final log (num-
bered 14) and place in a horizontal position as shown. Ensure
there is even spacing between the logs and rotate if necessary
to provide a stable fit onto the matrix. The
fuel bed layout is now complete.
The fire is designed to operate correctly with the logs supplied
when assembled according to the instructions. Never add to the
nine logs, or change them for a different type. Never throw rub-
bish or other matter onto the fuel bed. 12
12.2

FITTING THE DECORATIVE FRAME AND FRONT
The appliance is supplied with a decorative frame in a variety of finishes.
The frame is held onto the firebox by one of two methods; either by mag-
netic pieces fitted to the steel backing plates, or as a three piece clip-on
assembly.
If not pre-fitted, the clip-on frame pieces should be hooked over the outer
edges of the fireframe, and pushed firmly home. The sides should be
fixed first, followed by the top bar, which overlaps the sides. Push firmly
home. A plastic protective film may be applied to the outside of the frame
and should be removed at this stage.
IMPORTAANT ::DDue ttotthe ppossssibility oofssharp eedggess,ccare sshould bbe
taken wwhen hhandlinggtthe tthree-ppieccefframe ccomponentss.TThe uusseoofppro-
tecctive gglovessiissrreccommended.
Place the decorative firefront in front of the fire and slide the ashpan door into place. The firefront shown in these
instructions may be different to the one supplied with the appliance.
TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with current Approved Codes Of
Practice (ACOPs).
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the
room during this period, at least one hour.
OPERATING TTHE FFIRE ((manual vversions)
The pilot is visible through the left hand side of the front coal strip. Push in and turn the control knob to the SPARK
position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the PILOT light position, ensuring the pilot has lit. If
not, return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approxi-
mately ten seconds. Now release the knob and the pilot should stay alight. If
not, retry ignition. If the pilot is extinguished during use, wait three minutes
before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue
turning anti-clockwise to the high (large flame) position. The main burner
should light after a few seconds.
To decrease the setting to LOW, turn the control knob clockwise to the low set-
ting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot
position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled sufficiently to allow
the magnetic valve unit to reset itself.
OPERATING TTHE FFIRE ((remote ccontrol vversions)
The gas valve has two control knobs ;
Turn the main burner control (shown on left hand side of control valve) knob fully anti-clockwise.
Turn ignition knob (shown on right hand side of control valve) slightly left towards the ignition position until reach-
ing the stop, press down and hold for a few seconds until
pilot gas is flowing.
13
13.0
14.2
14.0
14.1

OPERATING TTHE FFIRE ((remote ccontrol vversions)
Continued
Continue pressing down the knob while turning further to the left to activate the piezo spark, continue to hold
the knob down for a further 10 seconds after the pilot has been lit. If the pilot does not light repeat the previous
steps.
Upon lighting the pilot and after the further 10 sec-
onds, release the knob and turn further to the left to
the ON position. The main burner will light and be
controlled in accordance with the main burner con-
trol knob setting. Adjust the main burner control
knob to the desired setting.
If the pilot is extinguished during use of the fire, you
must wait three minutes before repeating the igni-
tion procedure.
To turn the main burner OFF whilst keeping the pilot
flame lit, turn the ignition control knob to the pilot
position then only the pilot will remain lit.
To shut the fire off completely, press the ignition control knob down and continue turning to the right from the
pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled sufficiently to allow
the magnetic valve unit to reset itself.
The remote control unit allows operation of the main burner between maximum and
pilot only setting. It does not turn the pilot on or off.
The remote control handset incorporates an in-built safety feature to prevent the
main burner being activated or turned up accidentally. It is necessary to press but-
ton 1 and 2 (see illustration) simultaneously to turn the fire up.
To turn the fire down press button 3 only.
INSTALLING TTHE BBATTERIES
(remote ccontrol vversions oonly)
Handset - Remove cover from rear of handset and insert 1 x ‘PP3’ (9 volt) battery -
Replace cover
Appliance - Ensure aappliance iisooff aand ccool. Remove cover from top of receiver box.
The cover is protected by reflective foil, and located towards the right hand side,
underneath the burner unit. Insert 4 x ‘AA’ (1.5 volt) batteries - Replace cover.
SPARK FAILURE
The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark. There should
be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by pro-
ceeding with the ignition sequence as previously described, and after turning the control knob through the spark
position, the knob should be held in and the pilot lit with a taper.
SETTING PRESSURE
Remove the screw from the pressure test point.
Manual control versions - The pressure test point is situated on the main injector pipe next to the pilot.
Remote control versions - The pressure test point is located directly above the gas control.
Attach a U gauge. Light the fire on the HIGH setting.
The setting pressure should be in accordance with the figures stated on page 2 of these instructions.
14
11
22
33
14.2
14.3
14.4
14.5

SETTING PRESSURE
Continued
The fire is factory set to achieve these pressures, and any significant variation could indicate a supply problem.
If the pressure is too high, the gas supply meter may be set incorrectly. This should be checked with the fire run-
ning and if necessary reset by the gas supplier.
If the pressure is too low, then check the meter governor pressure with the appliance running. If this is incorrect
it will need to be reset by the gas supplier. If the setting pressure is too low, but the meter pressure is acceptable,
then a problem in the supply pipework is to be suspected. This will be dirt and debris, kinked or inadequate size
pipes, restriction in a fitting or solder flashing across a joint. (NOTE: you will not get an accurate reading of the
inlet pressure with a pressure gauge on the end of the supply pipe - this is the static pressure in the system. You
must use a T piece and measure the supply pressure with the fire on High - the dynamic pressure). Refit and tight-
en the screw into the pressure test point when the test is complete.
FLUE SPILLAGE MONITORING SYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason
then several things may be suspected. If a door or window has been opened creating a draught, then pilot dis-
turbance is the problem, and removal of the draught should resolve this. If a grommet seal has been left out of
the firebox then this also will also cause intermittent shutdown. The gas pressure reaching the fire must also be
checked. The thermocouple connection into the back of the gas control valve may also have worked loose dur-
ing installation, simply tighten to remedy if this is the case.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance OFF,
check the flue and carry out any remedial work required. Relight the fire and carry out a spillage test. DO NOT
allow the appliance to be used if it continues to fail a spillage test.
The aeration hole of the pilot must be carefully cleaned out on each annual service to ensure continued function
of the ODS.
TESTING FOR SPILLAGE
Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes.
Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm
down and 25mm in. Starting 50mm in from either side, run the smoke match across the opening. All the smoke
should be drawn away up the flue. Any smoke returning into the room indicates that spillage is occurring. If the
initial spillage test fails, run the fire for a further 10 minutes and repeat the test. When the test has been completed
satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any communicat-
ing doors open. Finally, repeat with all doors open.
NOTE: IIfsspillaggeiisssstill iindiccated aafter uundertakinggaall ooftthe aabove, tthere mmay bbeaaffault iintthe fflue, ooriinssufficcient
ventilation iissppressent.
If the problem cannot be rectified immediately, then expert advice should be sought. Inform the user, disconnect
the fire, and attach an explanatory label.
15

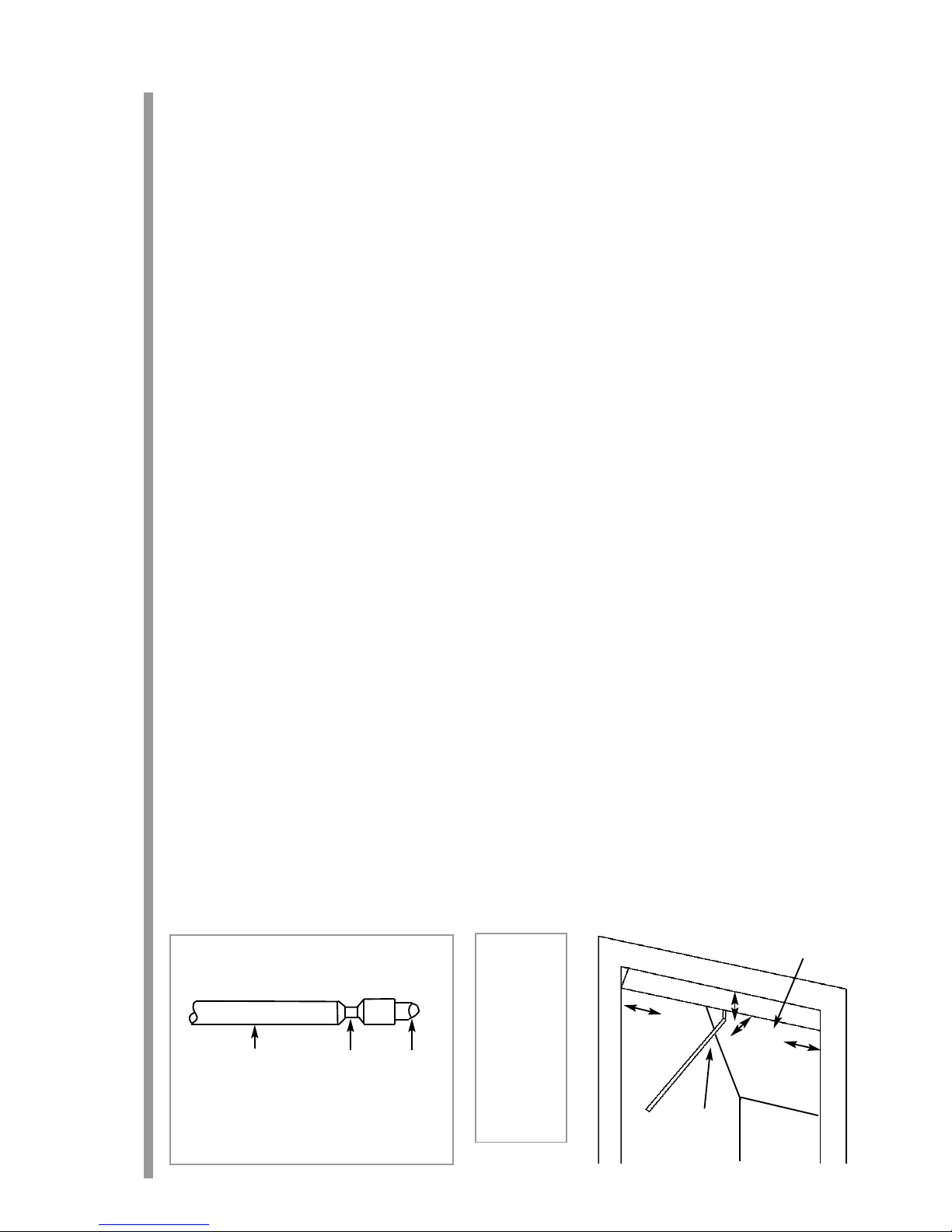

Match
Crimp
Tube
Cross section of smoke match tube
Make a smoke match tube from 10mm
diameter tube. Seal off one end and crimp
the tube to prevent the smoke match from
sliding down inside.
A.25mm down
from top of
opening
B. 25mm in
from front of
opening.
C. Disregard
outer 50mm
either side of
fireplace open-
ing
C
CB
A
Fireplace Opening
Smoke Match
In Tube
14.5
14.6
14.7

BRIEFING TTHE CCUSTOMER
All instructions must be handed to the user for safekeeping.
Show tthe ccusstomer hhow ttolligght aand ccontrol tthe ffire
.
After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the
need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least one
annually.
Scratched and other superficial damage to the matt black paint work of the appliance can be covered with
matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint only when the fire is OFF
and cold. Always mask off the surrounding area to prevent contamination with overs-pray. Ventilate the room dur-
ing the use of the spray.
DO NOT attempt to spray paint the coals or ceramics, or wash them in water.
SERVICING
Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is detailed below.
1. Lay out the dust sheet and tools.
2. Carefully remove the firefront casting, and ceramic components.
3. Remove the decorative frame, and check frame top for discolouration and signs of spillage.
4. Isolate the gas supply at the appliance inlet elbow, and disconnect the gas supply pipe. Remove the
two screws securing the tray to the firebox.
5. Lift the burner tray from the firebox.
6. Remove the firebox as detailed in the relevant section.
7. Check the area behind the firebox for rubble accumulation and remove. If debris is excessive, initiate
remedial work on the flue.
8. Check the flue with smoke pellet for correct operation.
9. Re-fit the firebox using new seals where necessary.
10. Strip off the burner pipes and clean thoroughly.
11. Clean out the injector and pilot assembly. DO NOT attempt to dismantle the pilot unit.
12. Ensure the injector is aligned squarely with the venturi tube. Re-assemble and re-fit the burner tray.
13. Re fit and replace the ceramics, using genuine spares where necessary.
14. Re-fit the decorative front.
15. Turn on the gas supply, and leak test.
16. Check any purpose provided ventilation is un-obstructed.
17. Light the fire and test for spillage.
18. Check setting pressure and safe operation of the appliance.
For specific servicing instructions, see the relevant sections.
CLEANING TTHE CCERAMICS
Remove the firefront casting and place to one side. Remove the ceramic components. Gently clean in the open
air. Be careful not to create dust from the coals. Where necessary replace damaged components with genuine
spares. Seal scrap components in plastic bags and dispose of at proper refuse sites as directed.
Re-fit the coals carefully by referring to the relevant section of these instructions.
16
14.8
15.0
15.1

REMOVING TTHE FFIREBOX
Remove the fire-tray as previously described. Uncoil the fixing kit cables from the rear of the firebox, remove the
screwed nipples and tensioning adjusters. The firebox can now be withdrawn from the opening and outwards
onto the protected hearth. Inspect the fireplace opening for debris, and if excessive rectify the flue before pro-
ceeding further. Check the seal around the fireframe and replace if necessary. Refitting of the firebox is described
in the relevant section.
DISMANTLING TTHE BBURNER TTRAY
Remove the tray as previously described. The pilot unit can be removed by undoing the tubing nut, the thermo-
couple nut on the rear of the valve, lint arrestor, two securing screws, and lifting away. Remove the tubing nut
from the valve end of the pilot pipe, and blow through to dislodge any debris that may be present. Clean the exte-
rior of the pilot assembly with a soft brush and blow through the flame ports on the pilot head. Check the aera-
tion holes are free from lint or dirt. The pilot assembly is a non-serviceable item, and should not be taken apart.
The aeration hole must be absolutely clear internally for proper operation. A thoroughly cleaned (inside and out)
oxypilot will cure a wide range of ignition faults.
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow. Release the screw through the
supporting leg and lift assembly clear. The injector pipe can now be checked for debris. Remove the nut
retaining the injector elbow. Blow through the elbow to remove any debris.
Remote CControl VVersions - The valve is not field serviceable.
Manual CControl VVersions - The valve is not field serviceable, apart from the pilot filter. Remove the control knob
by pulling it forwards, then remove the largest of the three screws on the face of the valve. Slide the filter out and
clean away any debris that may have accumulated. The filter element should also be blown clean. This compo-
nent should not require replacement, however if signs of deterioration are evident then a genuine spare must be
used. If a large amount of debris is present in the filter then the pipework and control should be thoroughly
cleaned before re-assembly.
177
15.2
15.3

TROUBLESHOOTING GGUIDE
Fire ssparkssbbut ppilot ddoessnnot lligght
No gas to fire, check isolators are open.
Pipework blockage, clean out.
Air not fully purged, re-purge supply or wait longer.
Spark earthing to metal work, reset gap correctly.
Blocked pilot, clean out internally.
Pilot lligghtssbbut tthen ggoessoout
Severe restriction in gas supply, clear obstruction.
Faulty thermocouple, replace pilot unit.
Hold control knob in for longer.
Manual versions only - Check control knob does not foul data plate.
Fire ddoessnnot sspark aatppilot
HT lead detached, refit.
Spark gap too large or small, reset correctly.
Faulty piezo unit, replace.
Debris shorting out electrode, clean.
Fire rrunssffor aattime aand tthen ccutssooff
Excessive room draught or flue pull, rectify.
Loose or faulty thermocouple, rectify.
ODS system in operation.
Firebox grommet seal not fitted, rectify.
Lint in pilot aeration hole, clean thoroughly internally
Pilot fflame sshrinksswwhen ffire iissoonhhiggh
Poor gas flow to fire, check pressure with fire on high.
If pressure is low, remove any restriction in pipework or valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
Air leak under base of firebox, rectify.
Lint in pilot aeration hole, clean thoroughly internally.
Fire ssmellsswwhen ffirsstllit ooriinuusse
Newness smell from brand new appliance.
Spillage occurring. Carry out spillage test and rectify any problems.
Low temperature sealants or combustible materials used in incorrect
positions.
Air leak under base of firebox, rectify.
18
16.0

USER INSTTRUCTTIONS
IMPORTANT NNOTES
The installation of this fire MUST only be carried out by a competent person (such as a CORGI registered fitter)
in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes
of Practice, the Building Regulations and the manufacturers’ instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the appliance
warranty.
Please ensure you are handed all of the manufacturers documents on completion of the installation. This will
include these instructions.
Always keep a note of the installer’s name and address, the original purchase receipt and the date of installation
for future reference.
The fire and flue should be serviced regularly to ensure continued safe operation. See the servicing section for
further details. Frequency of service will depend on use, but MUST be carried out at least once annually.
Parts of this appliance become naturally hot during use. It is recommended that a suitable fire guard conforming
to BS 6778 is used, especially where young children, the elderly, or infirm are concerned.
Combustible items, such as flooring and furniture, and soft wall coverings (such as blown vinyl or embossed
paper) may discolour if fitted too close to the fire. See relevant section for further details on clearances to
combustibles. No combustible material or flooring should protrude onto the hearth.
DO NOT burn any foreign material on this fire, the fuel effect must be of the correct type and laid out in accor-
dance with the relevant section of these instructions. Failure to do so could create a hazard or lead to sooting.
Before the appliance is installed, the chimney should be swept. All flues should be checked by the installer to
ensure there are no defects or obstructions that may prevent the flow of combustion products.
This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions
occur. It is NOT a substitute for an independently mounted Carbon Monoxide detector.
The fire is only suitable for use with the gas type for which it is supplied.
Remote ccontrol mmodels oonly - This appliance features a battery-operated remote control system. Remote control
models, under normal usage will need new batteries approximately every twelve months.
Remote control Handset requirements - 1 x ‘PP3’ type (9 volt)
Receiver/motor unit requirements - 4 x ‘AA’ type (1.5 volt)
Refer to the appropriate section of these instructions for
details of how to change the batteries.
1
1.0
Secction
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
Contentss
Important Notes
Firefront
Clearances to Combustibles
Ventilation
Operating Instructions
Replacing the batteries (remote control versions only)
Flue Spillage Monitoring System
Cleaning
List of Spares
PaggeNNo.
1
2
2
2
2
3
3
3
4
