Focal Point MALMESBURY LED ELECTRIC SUITE Assembly Instructions

©2015 Focal Point Fires plc.
INSTALLATION & USER INSTRUCTIONS
All instructions must be handed to the user for
safekeeping.
MODELS COVERED BY THESE INSTRUCTIONS
MALMESBURY LED ELECTRIC SUITE
FLOOR MOUNTED ELECTRIC FIRE
Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
1
Revision A- 10/15
GB IE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.focalpointfires.co.uk
Email: [email protected].uk
Questions or problems with your appliance?
Don’t take it back to the store
just give us a call on 01202 588601 we’re here to help
lines open between 9am and 5pm, Monday to Friday
MALMESBURY LED ELECTRIC SUITE

IMPORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY
AND RETAINED FOR FUTURE REFERENCE.
When using this electrical appliance, basic precautions should be followed to reduce the risk
of fire, electric shock and injury to person, including the following:
• This heater must be used on an AC supply only and the voltage marked on the heater’s
rating label must correspond to the supply voltage.
• DO NOT switch the appliance on until it is properly installed as described in this
manual.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance
provided that it has been placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION: Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• The heater must not be located immediately below a socket-outlet.
• DO NOT use this heater in the immediate surroundings of a bath, a shower or a
swimming pool.
• WARNING: In order to avoid overheating, do not cover the heater.
• DO NOT use this heater with a programmer, timer, separate remote-control system or
any other device that switches the heater on automatically, since a fire risk exists if the
heater is covered or positioned incorrectly.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal
cutout, this appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by the utility.
• WARNING: This heater is not equipped with a device to control the room
temperature.
• Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
• eep furniture, curtains and other fabric material away from the appliance.
• DO NOT leave the appliance unattended during use.
©2015 Focal Point Fires plc.
I N S TA L L AT I O N & U S E R I N S T RU C T I O N S
2
GB IE
Section Contents Page No.
1.0 Important Notes 2
2.0 Installation Requirements 3
3.0 Appliance Data 3
4.0 Component Checklist 3
5.0 Site Requirements 3
6.0 Clearances To Combustibles 4
7.0 Unpacking The Appliance 4
Section Contents Page No.
8.0 Installation 4
9.0 Operating the Appliance 5
10.0 Safety Cutout System 6
11.0 Cleaning and Maintenance 6
12.0 Troubleshooting Guide 7
13.0 Servicing 7

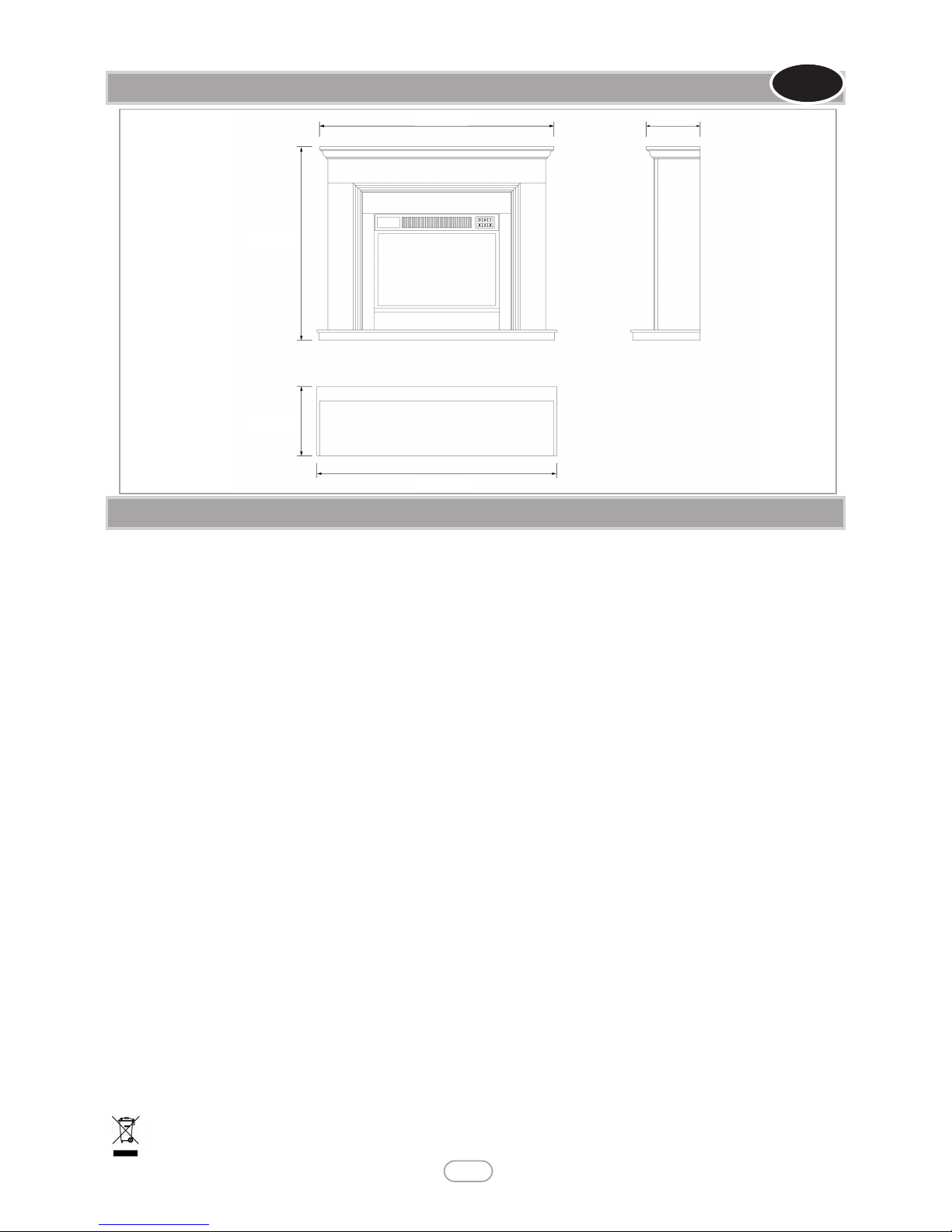

14.0 Appliance Dimensions 8
15.0 Guarantee - Terms and Conditions 8
1.0 IMPORTANT NOTES

©2015 Focal Point Fires plc.
3
2.0 INSTALLATION REQUIREMENTS
The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is therefore
necessary for a suitable electrical socket to be located within this distance and be easily accessible. This appliance is designed to
be fixed to the wall, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall. This appliance
is suitable for installation in static holiday/park homes.
1.0 IMPORTANT NOTES - CONTINUED
3.0 APPLIANCE DATA
Weight (kg): 36kg
Dimensions: H 920 x W 1140 x D 330 (mm)
Supply Voltage and Rating Power: 220-240V AC, 50Hz 1500W
Fuse Rating: 13 Amp
Heating Elements: 1500W
Lighting: LED
This fire is fitted with LED’s (Light Emitting Diode) in place of conventional bulbs. LED’s generate the same light levels as
conventional bulbs, but use a fraction of the energy consumed. LED’s are maintenance free and will not require replacing during
the life of the product.
4.0 COMPONENT CHEC LIST
Quantity Description
1 Fire suite
1 Remote control handset
2 Wall plugs
2 Washers
2 Fixing screws
5.0 SITE REQUIREMENTS
It should be noted that the appliance creates warm convected air currents. These currents move heat from the room
surroundings to, and up the wall surfaces adjacent to the heater.
Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco
smoke) exist, may slightly discolour wall finishing.
If the appliance is to be secure on a dry lined or timber framed construction then the integrity and ability of the wall to secure
the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or structural members of
the house frame are not damaged.
If you are unsure of the ability of the wall to secure the appliance and/or which type of wall fixing to use, you should take
professional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.
• From time to time, check the cord for damage. Never use the appliance if the cord or any
part of the appliance shows signs of damage.
• DO NOT run the mains cable under carpets, rugs etc.
• DO NOT cover or obstruct the heater in any way. Overheating will result if it is
accidentally covered.
• Never immerse the product in water or any other liquids.
• DO NOT use the appliance outdoors.
• Before cleaning the appliance, ensure it is unplugged from the power and that it is
completely cool.
• DO NOT clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It
could cause danger to the user or damage to the appliance.
• DO NOT insert or allow foreign objects to enter the inlet or outlet vents as this may
result in electric shock, fire or damage to the appliance.
• DO NOT install the fire using an extension cord.
• Unplug from the mains supply if the appliance is not to be used for long periods.

DO NOT
• recess any part of the appliance into the wall, or run the supply cable under carpets
• site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat
rack
• site behind an opening door where mechanical impact/damage could occur
• site where the supply cable would become a trip hazard
• sit, stand or forcefully pull on the appliance
• obstruct, cover or force items into the openings
• use the heater to dry clothes
• site/use in an outdoor location(s)
It is important that the following clearances are maintained from the appliance to combustible materials. These clearances are
dependent on the securing location as defined below:
• The minimum distance to the front of the appliance is 900mm.
• There are no clearances for above or to the side of the appliance, apart from being clear of curtains and drapes.
5.0 SITE REQUIREMENTS - CONTINUED
4©2015 Focal Point Fires plc.
GB IE
6.0 CLEARANCES TO COMBUSTIBLES
7.0 UNPAC ING THE APPLIANCE
Caution: This appliance is heavy. Always seek assistance whilst unpacking and/or during installation. Please read
all the instructions before continuing to unpack or install appliance.
Before starting the installation of this fireplace, please read the following:
1. The installation should be carried out by two adults to avoid injury or damage. If for any reason it is considered too heavy,
please obtain assistance.
2. When lifting the electric suite, always keep your back straight. Bend your legs and not your back. Avoid twisting at the waist.
It is better to reposition your feet.
3. Avoid upper body / top heavy bending. Always bend from the knees rather than the waist. Do not lean forward or sideways
while handling the heater.
4. Always grip the heater with the palm of the hand. Do not use the tips of fingers for support.
5. Always keep the heater as close to the body as possible. This will minimize the cantilever action.
6. Use gloves to provide additional grip.
7. Unpack the package and lift the product gently out of the box, put it on a flat surface with the front panel facing forward.
IMPORTANT - PLEASE READ COMPLETELY THROUGH THE INSTRUCTIONS AND VERIFY THAT ALL LISTED
PARTS ARE PRESENT BEFORE ASSEMBLY.
8.0 INSTALLATION
CAUTION: DO NOT CONNECT THE APPLIANCE TO THE
ELECTRICAL SUPPLY AT THIS TIME.
Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages
that may occur due to improper installation or handling.
Remove any protective film coatings from the finished/decorative surfaces of the
appliance, if any. After having selected the final position of the appliance taking into
account the integrity of the wall the electric suite may be secured to the wall.
To ensure customer safety, be sure to design the installation so that the strength of
both the wall and any wall fixings used are sufficient. The appliance should not be
installed until all wet plastering and/or dry wall sanding and wall painting has been
completed. Do not block the ventilation holes of the appliance. The wall onto
which the appliance is installed must be flat. Install only on a vertical surface. Avoid
sloped surfaces. Installation onto anything other than a vertical wall may result in
fire, damage or injury.

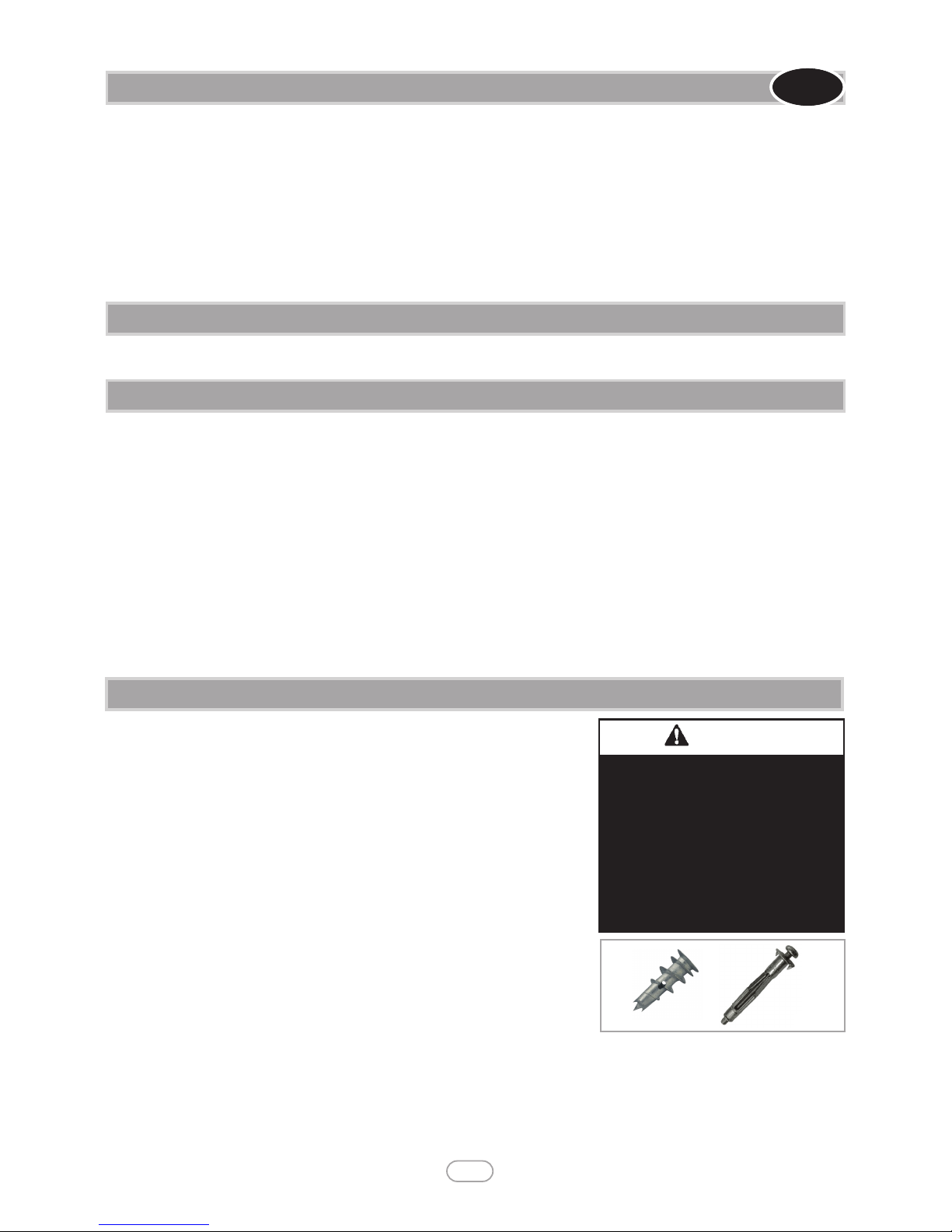

If the appliance is to be mounted on the inner leaf of a conventional cavity brick
wall, or a solid wall, then the wall plugs and fixing screws provided may be used.
Depending on the condition of the wall it may be necessary to use additional fixings.
In this situation, any additional fixings and wall plugs should be of the same size and
type as the ones provided.
The wall where the appliance is to be
installed must be capable of
long-term support of the total load of
the appliance. Measures should also
be taken to ensure sufficient strength
to withstand the force of
earthquakes, vibration and other
external forces. Plasterboard alone is
not considered to be a structural
material. It is not recommended to
rely on plasterboard fixings alone to
support the weight of the appliance.
WARNING

If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then efforts should be made to fix
one position vertically, into one of the wooden studs, or supporting wooden members of the wall using the fixing screws
provided. If this is not achievable then the wall should be strengthened using appropriate building materials.
Figure 1

8.0 INSTALLATION - CONTINUED GB IE
5©2015 Focal Point Fires plc.
Wall
A
B
C
A x 2
Bx 2
Cx 2
Installing the wall plugs into the wall.
1. Offer the appliance up to the wall in it’s desired location.
Draw a mark where you wish to connect the straps in to
the wall. Remove the appliance from the position and drill a
hole (5.5mm diameter, 40mm deep) each side.
Please note: Before drilling into walls, always check
that there are no hidden wires, pipes, etc. Make sure
that screws and wall plugs supplied are suitable for
supporting the unit in your surface. Consult a
qualified person if you are not sure.
Inserting the wall plugs into the wall.
Gently hammer the wall plugs into position.
Installing the appliance to the wall.
Using a screw driver screw through the washers and the
fixing straps and into the wall plugs you have just installed
into the wall. Securing the appliance into position.
x2
x2
x2
9.0 OPERATING THE APPLIANCE
The control panel is located at the top right hand side of the appliance.
When a function is changed from the control panel or remote there will be a corresponding indicator displayed. The indicator shows the
function changed and the level selected. When the function is turned off, the corresponding indicator will fade off.
Figure 4
Figure 3
Figure 2

6©2015 Focal Point Fires plc.

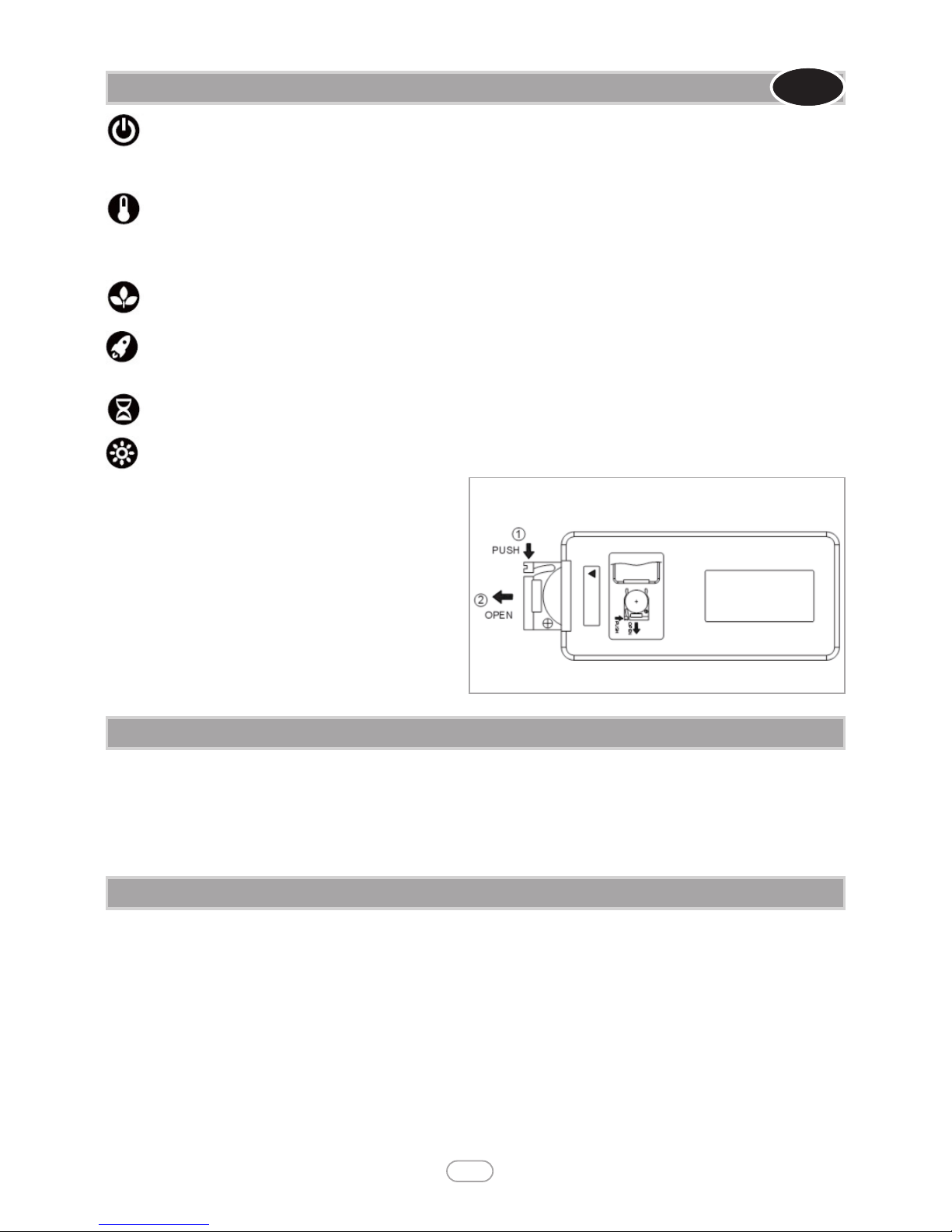

9.0 OPERATING THE APPLIANCE - CONTINUED
This button will not only put the fireplace insert in a standby mode, but also you can see the flame effect through the screen. This
will turn off all functions at once.
Note: Holding the POWER button for 3 seconds will turn on the Child safety lock. It disables or enables all functions on the con
trol panel and remote control.
The fireplace contains a fan forced heater.
The default setting temperature is 72°F (22°C).
The thermostat setting range is 50°-86°F or 10°-30°C.
The thermostat is adjustable by 2°F or 1°C increments.
To change between °F and °C press and hold the HEATER button for 5 seconds.
Press the ECO button when the heater is on, to run the heater in a reduced wattage range.
Note: Holding the ECO button for 3 seconds disables any heater functions.
To quickly heat up a cold room/space, press the BOOST button to run the heater at the full rated wattage.
Pressing the BOOST button repeatedly will cycle through the following boost settings: 5 minutes, 10min, 15min, 20min, 25min,
30min and off.
Pressing the timer button repeatedly will cycle through the following timer settings: 30 minutes, 1 hr, 2 hr, 3 hr, 4 hr, 5 hr, 6 hr, 7 hr, 8
hr and off.
The fireplace will automatically turn off when the timer reaches zero minutes.
This button controls the brightness of the flame effect.
GB IE
Remote Control
The fire is supplied with an IR multifunction remote.
Before the remote will operate the plastic insulating sheet needs
to be removed.
Battery Replacement
Battery Requirements: CR2025
1. Locate and remove the battery bracket.
2. The battery has two sides, one with a button feature, and the
other is flat.
3. Insert the battery with the button side down into the battery
bracket, making sure the battery is firmly seated.
ALWAYS DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY OUTLET
SOC ET BEFORE UNDERTA ING ANY CLEANING OR MAINTENANCE!
For general cleaning use a soft clean duster - never use harsh abrasive or cleaners. The glass panels should be cleaned carefully
with a soft cloth.
If in doubt consult a qualified electrician. Refer to Section 3.0 Appliance Data for fuse specification. Excluding fuses, use only
genuine manufacturers spare parts available from your supplier.
Replacing the remote control battery:
When the battery becomes weak, the range of the remote control becomes shorter. Replace the battery with a new CR2025
lithium battery.
Note: eep the lithium battery out of the reach of children.
11.0 CLEANING AND MAINTENANCE
Safety Control (Thermal Cut-Out):
CAUTION: This product has one non-self-resetting overheat protection device. In the event that the heater stops working as
a result of overheating take the following immediate steps: switch the electricity off at the socket and remove the plug. Remove
any objects that are covering the product.
CAUTION: Do not touch the heater as it will be hot. Set the heater switches to OFF and leave the heater to cool down fully.
Once completely cool, reconnect the heater and switch it on. Do not open this product. There are no user-serviceable parts
inside.
10.0 SAFETY CUTOUT SYSTEM
Figure 5

7©2015 Focal Point Fires plc.
Fire is not switching on Ensure mains switch is on
Replace the fuse in the plug.
Pebbles glow but flame effect does not work Check to see if the spinning motor is working. If not contact
Focal Point Fires.
Heater doesn't work, but Power and Heater switches /
buttons are in the "ON" position
Turn all switches / buttons to the "OFF" position and unplug
the unit from the wall outlet for 5 minutes.
After 5 minutes plug the unit back into wall outlet, and
operate as normally.
Fire seems noisy There is a level of noise when the flame effect is in use,
caused by a motor that helps generate the effect. This noise
will be heard when there is no other background noise.
There is a higher level of noise associated with the heater
motor; this is due to the air flow required when heat has
been selected.
Remote is not operating Check or replace batteries.
12.0 TROUBLESHOOTING GUIDE GB IE
13.0 SERVICING
There are no internal user serviceable parts.
Check regularly for security of wall fixings as appropriate. Also check security of supply cable and connections. If the supply cable
becomes damaged, it must be replaced by a service agent or competent person, such as a qualified electrician.

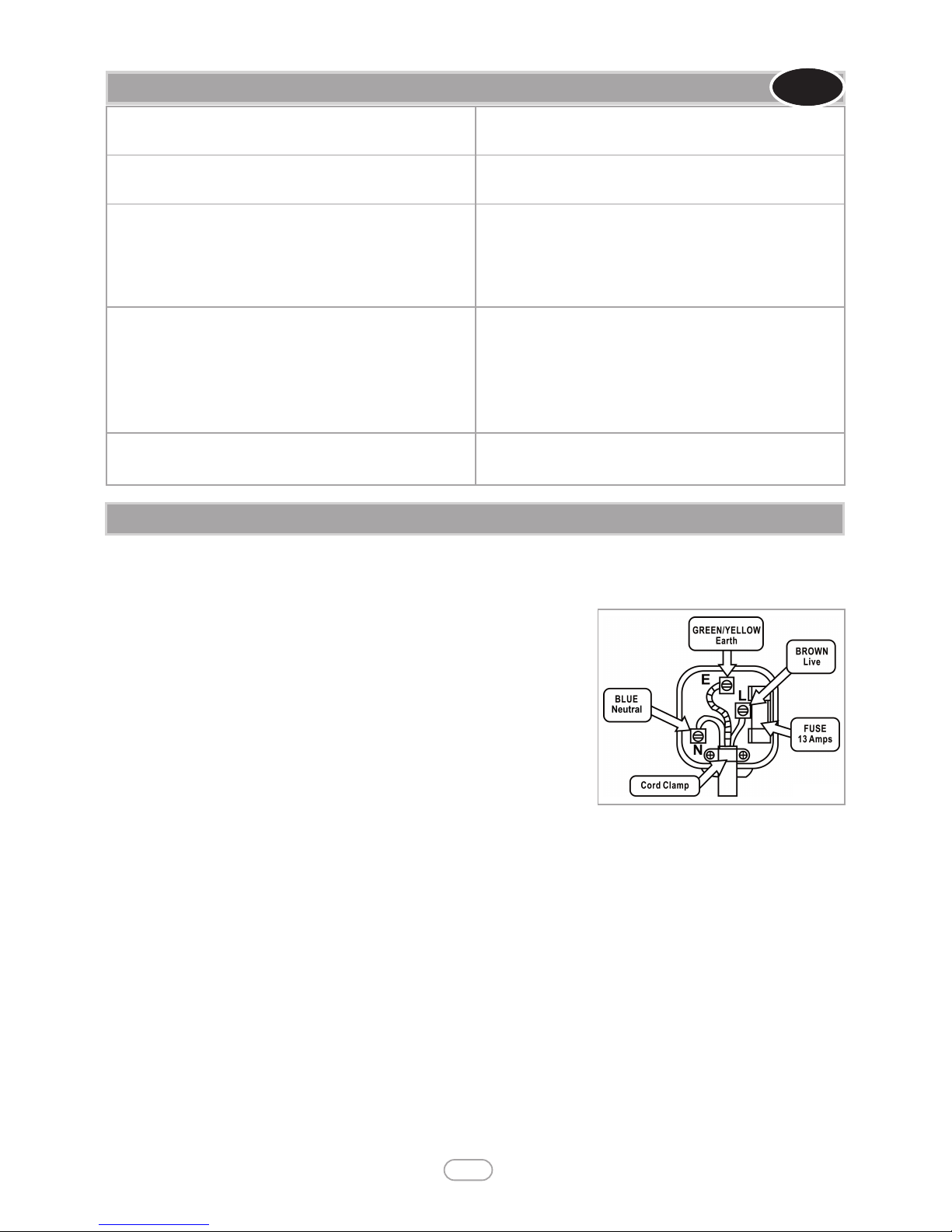

This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should
the fuse require replacing, it must be replaced with a fuse rated at 13 Amp and
approved to BS1362. In the event of the mains plug being removed/ replaced for any
reason, please note : IMPORTANT: The wires in the mains lead are coloured in
accordance with the following code:
Blue - Neutral
Brown - Live
Green/ Yellow - Earth
As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings identifying the
terminals in your plug, proceed as follows.
The blue wire must be connected to the terminal marked with an N or coloured black. The brown wire must be connected to
the terminal marked with an L or coloured red. The green/yellow wire must be connected to the earth terminal which is
marked with an E or with the earth symbol.
WARNING: Never connect live or neutral wires to the earth terminal of the plug.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be
destroyed to prevent engaging into a socket.
Refer to Section 3.0, Appliance Data for fuse specification. Excluding fuses, use only genuine manufacturers spare parts available
from your supplier.
Figure 6

14.0 APPLIANCE DIMENSIONS
Dimensions in mm
8©2015 Focal Point Fires plc.
GB IE
15.0 GUARANTEE - TERMS AND CONDITIONS
Registration is not required.
Appliances purchased prior to 1st February 2009, and those specifically marked as '1 year guarantee' on this website, are
guaranteed for one year from the date of purchase, provided that the following two terms and conditions are adhered to:
1. For any claim to be made within 1 year from date of purchase you will be required to provide and supply us with your
original proof of purchase.
2. All appliances must have been installed and operated in accordance with the manufacturer’s instructions.
3 Year Guarantee Terms and Conditions
Please be advised that the 3 year guarantee only covers products purchased on or after 1st February 2009.
The 3 year guarantee is only applicable to purchases made through an authorised stockist/retailer. Please see our website for a
list of authorised stockists. Any purchase(s) made through an unauthorised stockist(s) will be eligible for a statutory 1 year
guarantee.
Please note all consumable items such as any ceramics including; coals, pebbles, the matrix, front strips, side cheeks, rear panels
and tapered rear panels are not covered by the 3 year guarantee.
During the guarantee period any product or component which is proved to be faulty or defective in manufacture, will be
repaired or replaced free of material and labour charges, providing that we have authorised or carried out the repair or
replacement.
We will not accept or reimburse the costs of any third party who undertakes any work carried on the product or fits parts,
unless we have approved such work in advance of it being carried out.
The guarantee period will not be extended even if we repair or replace any product or part.
For all electric fires purchased the 3 year guarantee commences from the date of purchase, providing that you can supply the
proof of purchase. This does not cover consumable items such as pebbles, coals or light bulbs. Purchase(s) must be made
through an authorised stockist.
Making a claim:
Making a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have
been met then please submit the following information for the attention of the 3G Service Department to the address below.
Alternatively, you can email or fax.
Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT.
Email: [e-mail],
Fax. [phone].
Details required:
1. Name, full address including postal code and contact telephone number.
2. A copy of your proof of purchase e.g. receipt or bank statement.
3. Original installers Gas Safe registration number (gas fires only).
4. Annual service receipt for every 12 months (gas fires only).
Please note that this does not affect your statutory rights.
F861317
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifications without prior notice.
Figure 7
920mm
330mm
1140mm
1115mm 260mm
